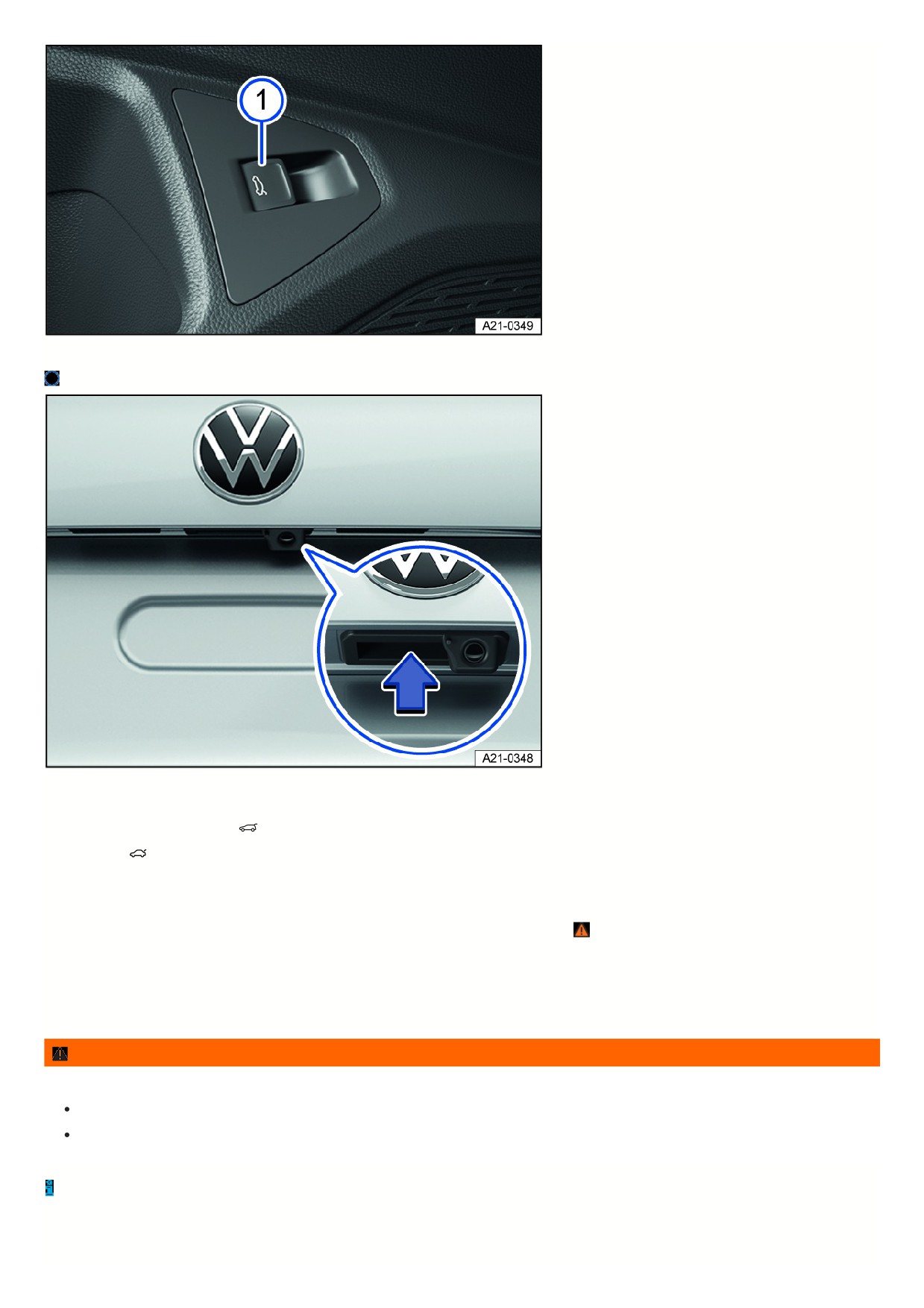

Fig. 58 In the driver's door: unlock button for the trunk lid.
Release button.
Fig. 59 In the trunk lid: button to open the trunk lid.
Opening the trunk lid
1. To unlock the trunk lid, press the
button on the vehicle key.
Or: pull the
button in the driver door upward fig. 58.
2. Raise the trunk lid using the button and pull all the way up fig. 59.
Closing the trunk lid
1. Pull the trunk lid downward firmly using the handle in the interior trim panel until it latches shut
The trunk lid will also lock when the doors are locked.
An image in the instrument cluster display indicates if the trunk lid has not opened or closed correctly.
The trunk lid locks automatically while driving.
WARNING
Closing the trunk lid incorrectly or carelessly may lead to serious injuries.
When opening the trunk lid, take care to pull it all the way up.
When closing the trunk lid, make sure your hands are not within the closing range of the lid.
If the trunk lid is not opened within several minutes after unlocking, it will lock again automatically.
Mechanically unlocking the trunk lid using the emergency release
83
Please read the introductory information and heed the Warnings and Notice
and Introduction.

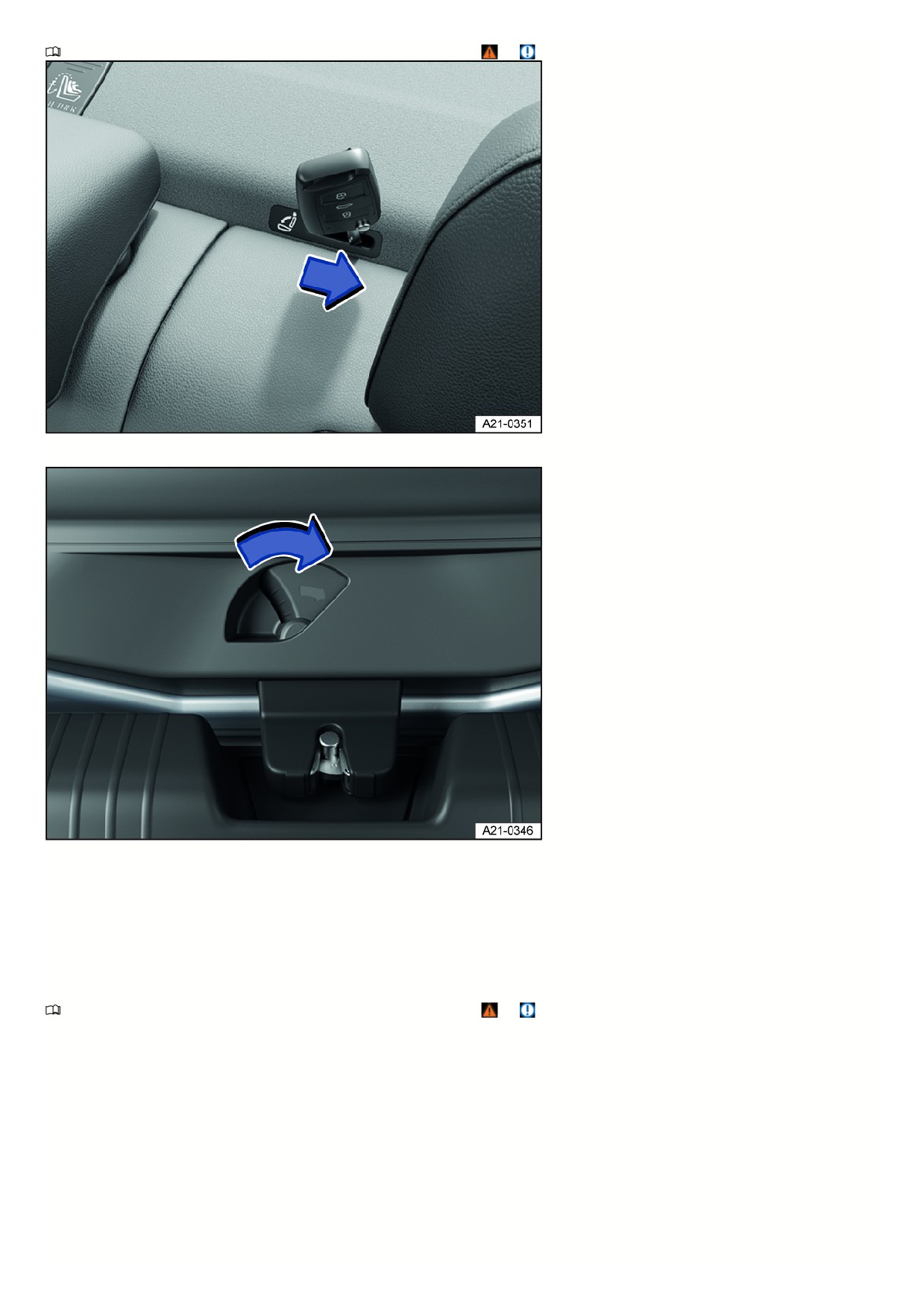

Fig. 60 Behind the rear seat backrest: mechanically unlocking the rear seat backrest using the emergency release.
Fig. 61 In the luggage compartment: mechanically unlocking the trunk lid using the emergency release.
Mechanically unlocking the trunk lid using the emergency release
1. Insert the vehicle key in the slot fig. 60 to unlock the rear seat backrest and press in the direction of the arrow.
2. Fold the rear seat backrest forward.
3. Push the lever fig. 61 in the direction of the arrow and open the trunk lid.
Troubleshooting
Please read the introductory information and heed the Warnings and Notice
and Introduction.
If the trunk lid will not open or close
1. Check if the trunk lid is being blocked by an object.
The trunk lid can be moved by hand. It is necessary to use more force when doing this.
If all turn signals flash four times
The vehicle key that was last used is still in the vehicle.
1. Remove the key and lock the vehicle.
If the trunk lid is difficult to move
The mechanism for opening the trunk lid may not always work automatically when the outside temperatures are around the freezing point.
1. Guide the trunk lid farther upward by hand.
84
The Easy Open sensor function is not working
Easy Open only works when the ignition is switched off.
Clean the sensors in the rear bumper.
Easy Open may be deactivated in heavy precipitation to reduce the risk of false activation.
Windows
Opening and closing the windows

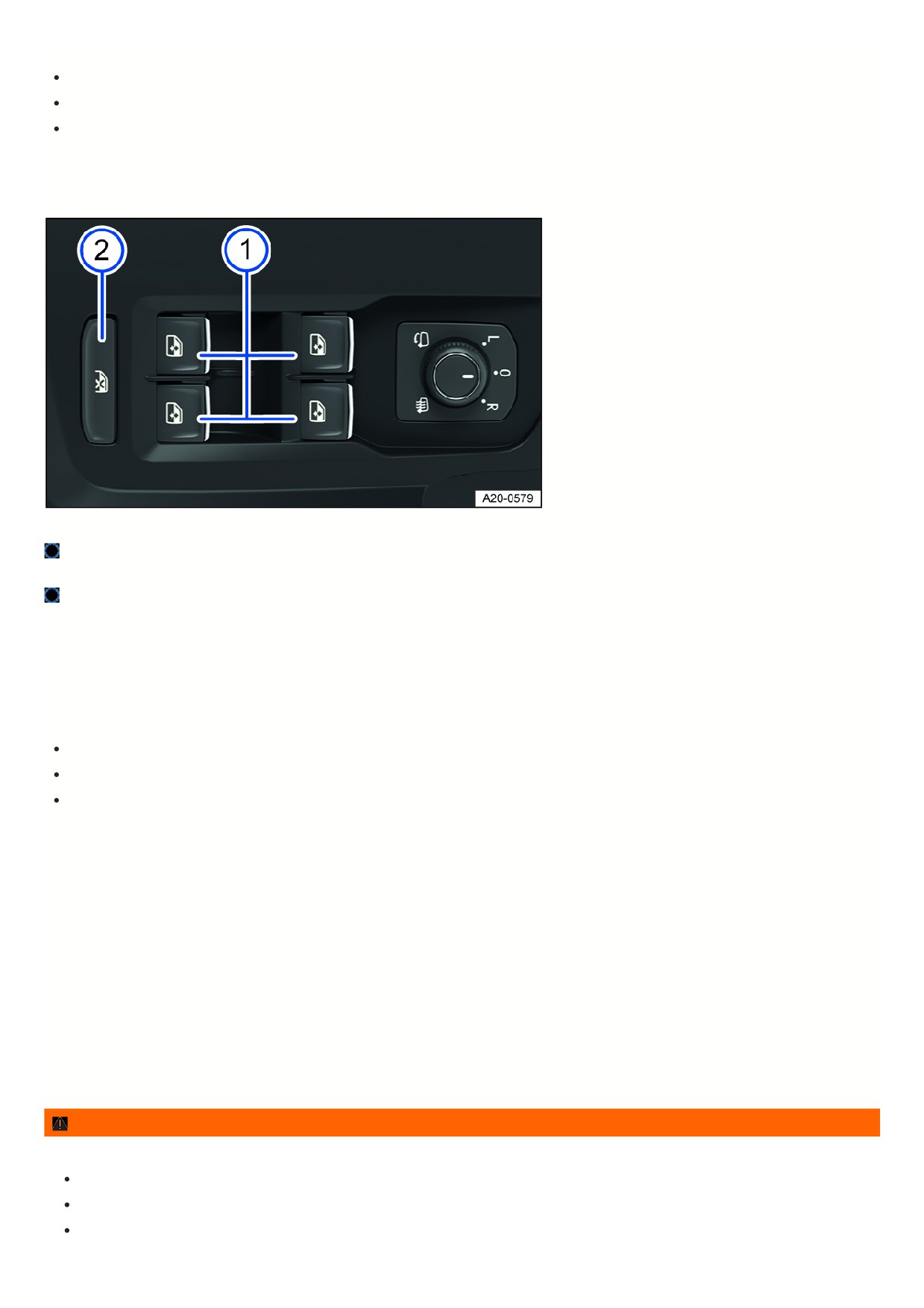

Fig. 62 In the driver door: Power window buttons.
Opening the window: press the switch.
Closing the window: pull the switch.
Deactivating the power window buttons in the rear doors: press the switch.
This button is only located in the driver door.
The windows can still be opened or closed using the switches in the doors for a brief period after the ignition has been switched off, as long as the driver’s or front
passenger door is not opened.
One-touch opening and closing function
The one-touch opening and closing function allows the windows to be completely opened or closed. To use this feature, do not hold the window switch up or down.
To start the one-touch closing function, pull the window switch upward briefly to the second level.
To start the one-touch opening function, press the window switch downward briefly to the second level.
To stop the one-touch opening or closing function, pull or press the switch for that window again.
Convenience opening and closing
Opening
The windows can be opened from outside the vehicle using the vehicle key when the ignition is switched off.
1. Press and hold the unlock button on the vehicle key.
2. To stop the function, release the unlock button.
Closing
1. On vehicles with Keyless Access with push-button start: press the sensor surface or locking button on the door handle for a few seconds, until the windows are
closed “Keyless Access” with push-button start . The vehicle key must be nearby to use this feature.
When all of the windows and the power sunroof are closed, the turn signals will blink once as a confirmation.
2. To stop the function, remove your finger from the sensor or switch.
You can select the convenience opening settings in the Vehicle settings menu in the Infotainment system.
WARNING
Careless or unintended use of the power windows can cause serious injuries.
Do not open or close the power windows if anyone is in the way.
Always take all vehicle keys with you when leaving the vehicle.
Note that the windows can still be opened or closed using the door buttons for a brief period after the ignition has been switched off, as long as the driver's
or front passenger door is not opened.
85
When driving with children seated on the rear bench seat, always disable the rear power windows so that the windows cannot be opened or closed.
WARNING
If the vehicle is locked, the windows can no longer be opened and will prevent people from escaping from the vehicle interior. In an emergency, this could cause
serious or fatal injuries.
Never leave children or people requiring assistance unattended in the vehicle when the vehicle is locked.
NOTICE
If the windows are open, precipitation can enter the vehicle and soak the interior equipment, which could restrict the function of the controls or damage them.
Close all windows if there is precipitation.
If the power windows are malfunctioning, the one-touch opening and closing function and the pinch protection may not function correctly. Contact a suitably
qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
Convenience opening and closing only functions if the one-touch opening and closing function is activated for all the power windows.
Power window pinch protection
The power window pinch protection can reduce the risk of being pinched and injured when the windows are closing.
If the window cannot close due to resistance or an obstacle, then the window will reopen immediately
1. Check why the window did not close.
2. Try again to close the window.
If the window will not close again, then the pinch protection will be disabled for several seconds.
If the window still cannot close, then the window will stop at the place where it meets resistance. If you press the switch again within several seconds, the window
will close without pinch protection
Closing windows without pinch protection
1. Try to close the windows again within a few seconds by holding the switch. This will disable the pinch protection.
If the closing process takes longer than several seconds, then pinch protection will be enabled again. If there is resistance to the window moving or an obstacle
is blocking the window, then the window will reopen automatically.
2. If the window still cannot close, then contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or
authorized Volkswagen Service Facility.
WARNING
Closing the window when pinch protection is disabled can result in serious injuries.
Always be careful when closing the windows.
Do not close windows if anyone is in the way.
Note that the pinch protection does not prevent fingers or body parts from being trapped against the window frame.
Pinch protection also occurs when using the convenience closing function with the vehicle key.
Troubleshooting
One-touch up/down feature
If the 12 V vehicle battery is disconnected or drained when the windows are not completely closed, then the one-touch up/down feature will not work. It must be
reprogrammed using the following steps:
1. Switch the ignition on.
2. Close all windows and doors.
3. Pull the switch for the desired window and hold it in that position for several seconds.
4. Release the switch, then pull it upward again and hold it.
The one-touch up and down features will then be fully functional.
The automatic power windows can be reprogrammed individually, or multiple windows can be reprogrammed at the same time.
86
Controls are responding differently than expected
Moisture, dirt and grease may limit the functioning of the controls.
1. Always keep the control panels clean and dry.
Sunroof
Opening and closing the tilting and sliding panoramic sunroof
The term “sunroof” is used as a synonym for the panoramic sliding/tilting sunroof.

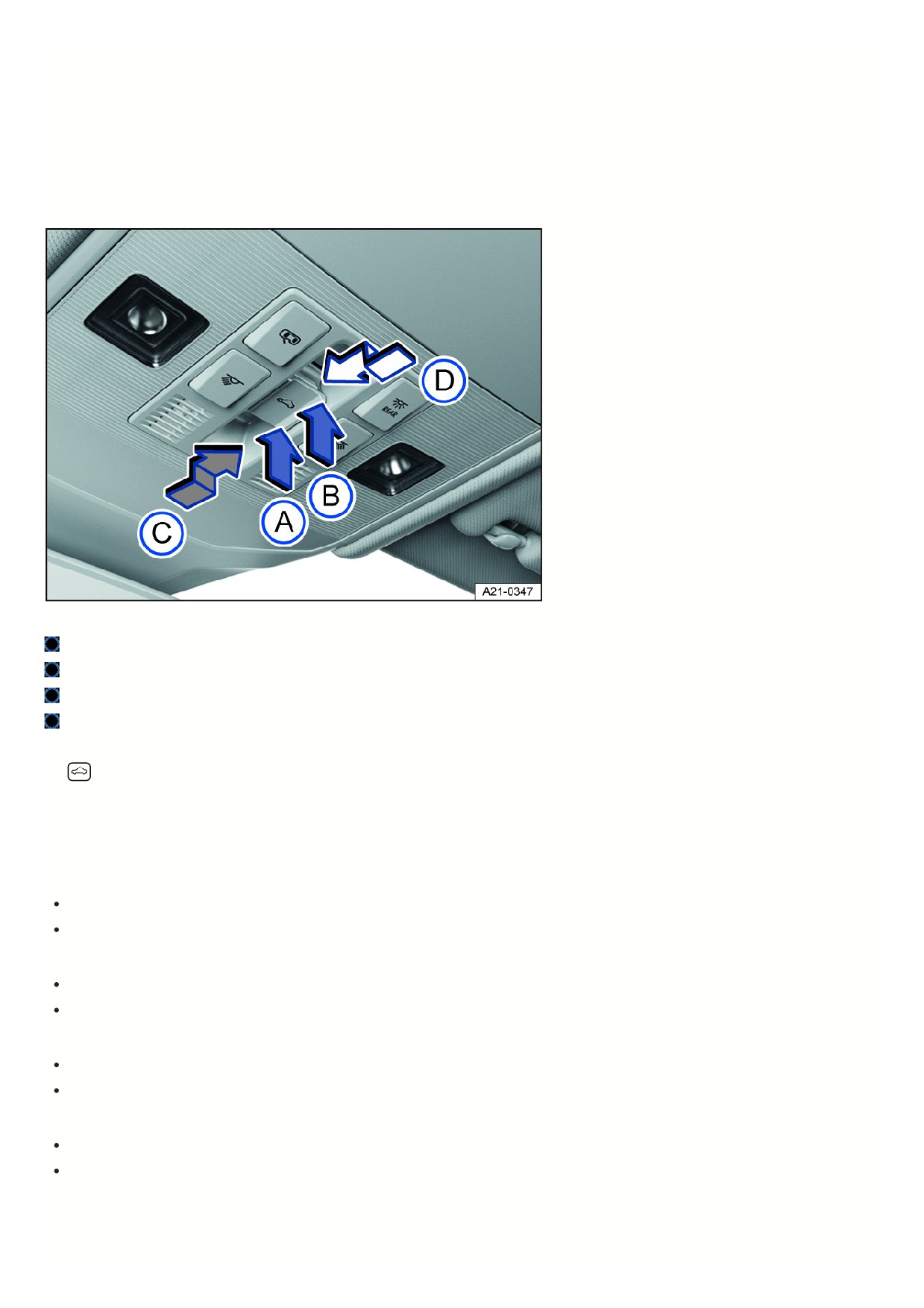

Fig. 63 In the headliner: sunroof button.
Close the power sunroof when tilted.
Tilt the power sunroof.
Open the power sunroof or stop the automatic process.
Close the power sunroof or stop the automatic process.
The sunroof is a roof opening system consisting of two glass pieces. The front glass piece is fixed and cannot be opened.
The
button has two levels.
First level: tilt, open, or close the sunroof completely or partially.
Second level: automatically open or close the sunroof completely.
You can stop the automatic process by pressing the button again.
Tilting the power sunroof
Manual process: press the fig. 63 button until the first level is reached.
Automatic process: press the fig. 63 button until the second level is reached.
Closing the power sunroof when tilted
Manual process: press the fig. 63 button until the first level is reached.
Automatic process: press the fig. 63 button until the second level is reached.
Opening the power sunroof
Manual process: press the fig. 63 button until the first level is reached.
Automatic process up to comfort position: press the fig. 63 button until the second level is reached.
Closing the power sunroof
Manual process: press the fig. 63 button until the first level is reached.
Automatic process: press the fig. 63 button until the second level is reached.
Stopping the automatic opening or closing process
1. Press the fig. 63 or fig. 63 button again.
87
WARNING
Careless or unintended use of the power sunroof may cause serious or fatal injuries.
Do not open or close the power sunroof if anyone is in its path.
Note that the power sunroof can still be opened or closed for a brief period after the ignition has been switched off, as long as the driver's or front
passenger door has not been opened.
WARNING
If you leave vehicle keys unattended in the vehicle, children or unauthorized people may lock the vehicle, start the engine, switch on the ignition or activate the
power sunroof. This can cause accidents and serious or fatal injuries.
Always take all vehicle keys with you when leaving the vehicle.
NOTICE
Opening or tilting the power sunroof when there is precipitation, particularly snow and ice, may cause damage to the vehicle interior and the electrical system.
Remove snow and ice from the vehicle roof before using the power sunroof in winter temperatures.
Always close the power sunroof before leaving the vehicle and when there is precipitation.
NOTICE
If you use a power sunroof with a roof rack mounted, the power sunroof may be damaged.
Keep the power sunroof closed when using a roof rack.
Remove leaves and other loose objects from the power sunroof guide rails regularly, either by hand or with a vacuum cleaner.
The pinch protection will not function correctly if the sunroof is malfunctioning. Contact a suitably qualified professional. Volkswagen recommends contacting
an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
Tilting and sliding panoramic sunroof convenience opening and closing
Convenience opening and closing
The sunroof can be opened and closed from outside the vehicle using the vehicle key.
1. Does not apply to the US or Canada: Press and hold the unlock or lock button on the vehicle key.
The sunroof will be tilted or closed.
2. To stop the function, release the unlock or lock button.
When using the convenience closing function, all windows in the doors and the sunroof will be closed. When all of the windows and the power sunroof are closed,
the turn signals will blink once as a confirmation.
Settings for the sunroof can be adjusted in the vehicle settings in the Infotainment system.
Sunroof pinch protection
The pinch protection reduces the risk of pinching injuries
. If the sunroof is obstructed while it is closing, it will open again automatically.
1. Check why the sunroof is not closing.
2. Try again to close the sunroof.
3. If the sunroof is still not able to close, close the sunroof without pinch protection.
Closing the sunroof without pinch protection
1. Press the
button to the second level until the sunroof is completely closed
Opening and closing the tilting and sliding panoramic sunroof .
2. If the power sunroof still cannot close, then contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or
authorized Volkswagen Service Facility.
If you release the switch during the closing process, then the sunroof will open again automatically.
WARNING
Closing the power sunroof without pinch protection may result in serious or fatal injuries.
88
Always be careful when closing the power sunroof.
Do not close the power sunroof if anyone is in its way, especially if it is closing without pinch protection.
Note that the pinch protection does not prevent fingers or body parts from being trapped against the roof frame.
Pinch protection also occurs when convenience closing the windows and sunroof with the vehicle key.
Troubleshooting
If the sunroof is not closing
The sunroof only works when the ignition is on. The sunroof can still be opened or closed for a brief period after the ignition has been switched off, as long as
the driver’s or front passenger's door has not been opened.
If it is not possible to close the sunroof using the power controls, the sunroof must be closed manually. Some vehicle components must be removed in order to
close the sunroof manually. Contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting an
authorized Volkswagen dealer or authorized Volkswagen Service Facility.
Controls are responding differently than expected
Moisture, dirt and grease may limit the functioning of the controls.
1. Always keep the control panels clean and dry.
89
Steering wheel
Adjusting the steering wheel position

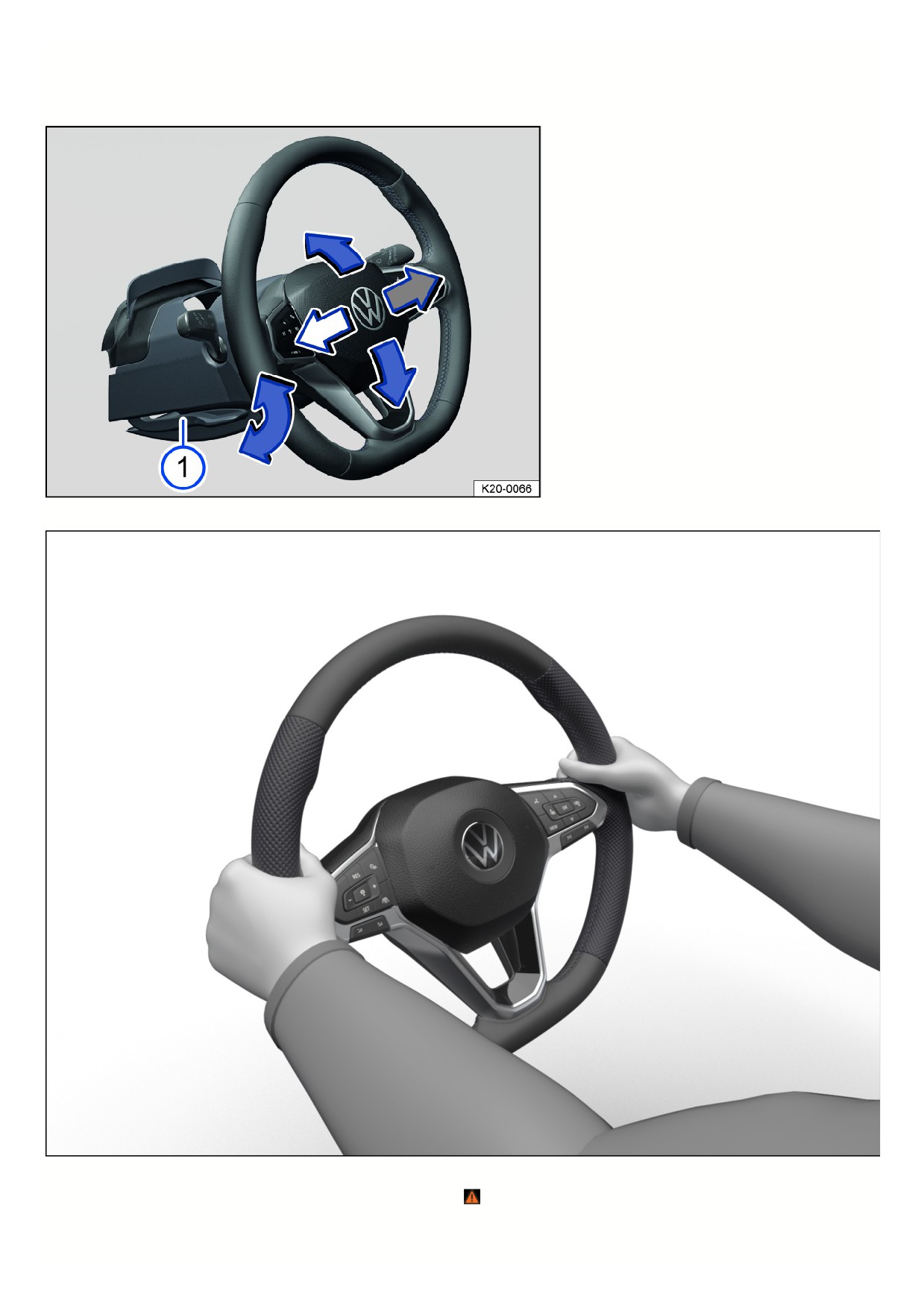

Fig. 64 Under the steering wheel in the steering column trim panel: lever to adjust the steering wheel position manually (general example).
Fig. 65 On the steering wheel: nine o’clock and three o’clock position.
Only adjust the steering wheel before driving or while the vehicle is stationary
1. Tilt the lever fig. 64 downward.
2. Adjust the steering wheel so that it can be firmly held at the outer edge with both hands at the nine o’clock and three o’clock position fig. 65.
9
3. Press the lever all the way up until it locks flush with the steering column trim panel
WARNING
Incorrect use of the steering wheel adjuster and an incorrect steering wheel adjustment could cause serious or fatal injuries.
Always push the lever fig. 64
upward into its locked position after adjusting so that you do not change the steering wheel position unintentionally while
driving.
Never adjust the steering wheel while driving. If you find the steering wheel must be adjusted while driving, stop the vehicle safely and adjust the steering
wheel correctly.
The steering wheel must always face toward the chest and never toward the face. Otherwise, the protective function of the driver’s front airbag may be
limited in the event of an accident.
To reduce the risk of injuries if the driver's front airbag deploys, always hold the outer edge of the steering wheel firmly with both hands in the nine o'clock
and three o'clock position fig. 65.
Never hold the steering wheel in the twelve o'clock position or in any other way, such as holding the center of the steering wheel. Otherwise, the arms,
hands, and head could be seriously injured if the driver’s front airbag deploys.
91
Seats and head restraints
Front seats
Introduction
The following information describes the various options for adjusting the front seats. Always make sure the seats are adjusted to the correct position
Introduction.
WARNING
Driving in an incorrect seating position due to seats being adjusted incorrectly may cause serious injuries.
Adjust the front seats according to the correct seating position each time before driving and make sure all passengers have their safety belts fastened
correctly.
Move the front passenger seat all the way back.
WARNING
Adjusting the seats incorrectly can cause accidents and serious injuries.
Only adjust the seats when the vehicle is stationary. Otherwise, the position of the seats could change unexpectedly while driving and you could lose
control of the vehicle. You could also put yourself in an incorrect seating position.
Only adjust the height, angle, and forward/back position of the front seats when there is no one within the seat’s range of movement.
Do not restrict the movement of the seats by placing objects within their range of movement.
The adjusting and locking areas of the seats must not be dirty.
WARNING
Using seat covers or protective covers incorrectly can result in unintentionally operating the seat adjusters, and the front seats could move unexpectedly while
driving. This could cause you to lose control of the vehicle. This can cause accidents and injuries. The electrical components in the front seats could also be
damaged.
Never install or secure seat covers and protective covers on the electrical controls.
Only use seat covers or protective covers that are specifically approved for use in your vehicle.
WARNING
Lighters in the vehicle can become damaged or ignite unintentionally. This can cause severe burns and vehicle damage.
Before adjusting any seat, always make sure that there are no cigarette lighters near the moving parts of the seat.
NOTICE
Objects with sharp edges can damage the seats.
Never touch the seats with sharp-edged objects. Sharp-edged objects, such as zippers, rivets on clothing, or belts, can cause surface damage. Open
hook and loop fasteners can also cause damage.
Manually adjusting front seats
Please read the introductory information and heed the Warnings and Notice
and Introduction.
The information that follows describes all possible controls. Depending on the seat version, the number of controls may vary.
The controls on the front passenger seat are a mirror image of those for the driver seat.
A seat may have both manual and power controls.
92

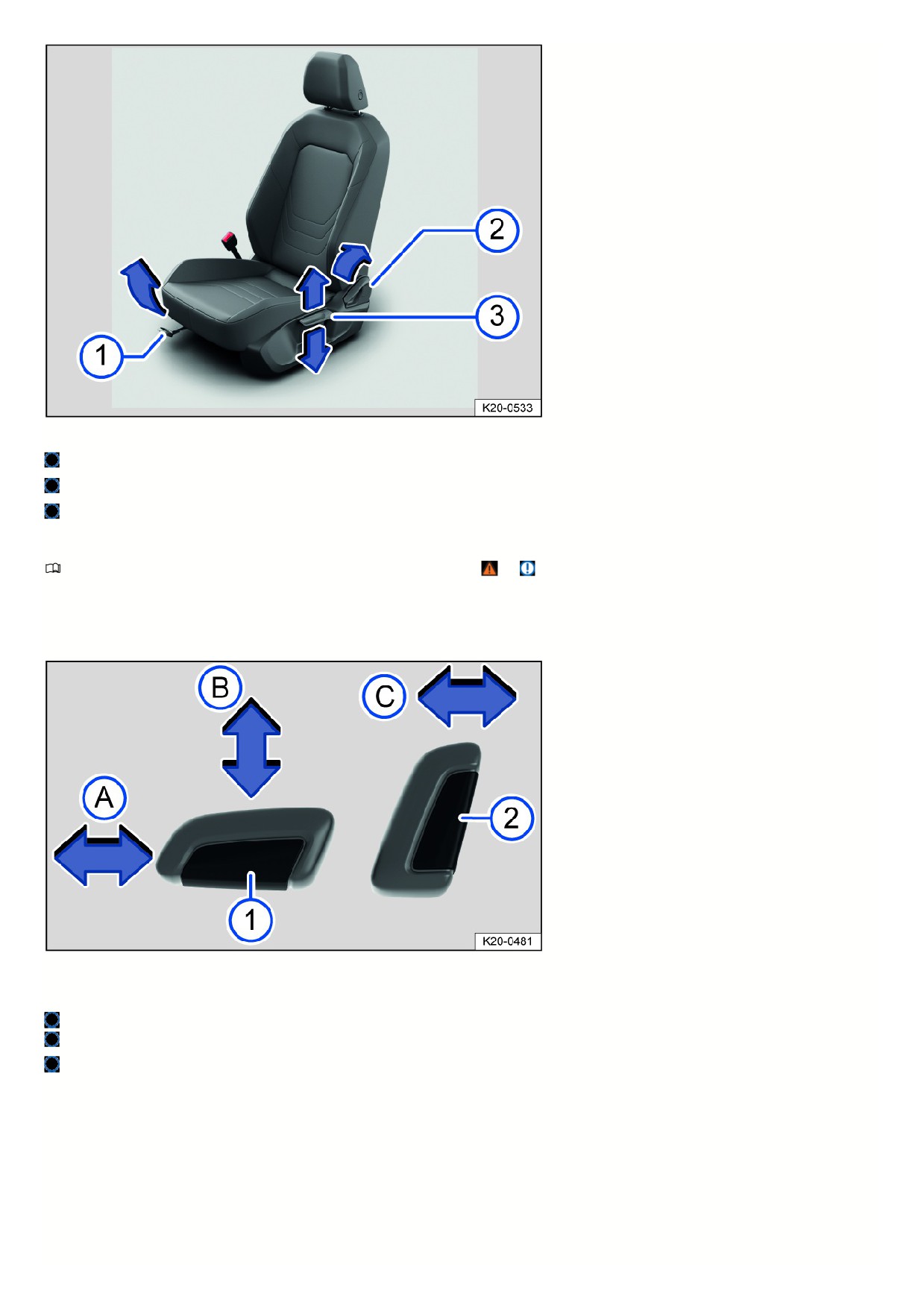

Fig. 66 On the driver seat: Controls.
Pull the lever to slide the front seat forward or backward. The front seat must lock into place after the lever is released.
To adjust the backrest, pull the lever, lean forward or backward and release the lever again.
If necessary, move the lever upward or downward multiple times to adjust the height of the seat.
Adjusting power front seats
Please read the introductory information and heed the Warnings and Notice
and Introduction.
The electric controls differ depending on the country and vehicle equipment and may vary according to the seat design.
The controls on the front passenger seat are a mirror image of those for the driver seat.
A seat may have both manual and power controls.
Fig. 67 Switch on the driver seat: Adjusting the front seat forward/back, the height and angle of the seat surface, and the front seat backrest.
Press the switch in the direction of the arrow:
Slide the seat forward or backward.
Adjust the height of the seat.
Adjust the angle of the backrest.
93

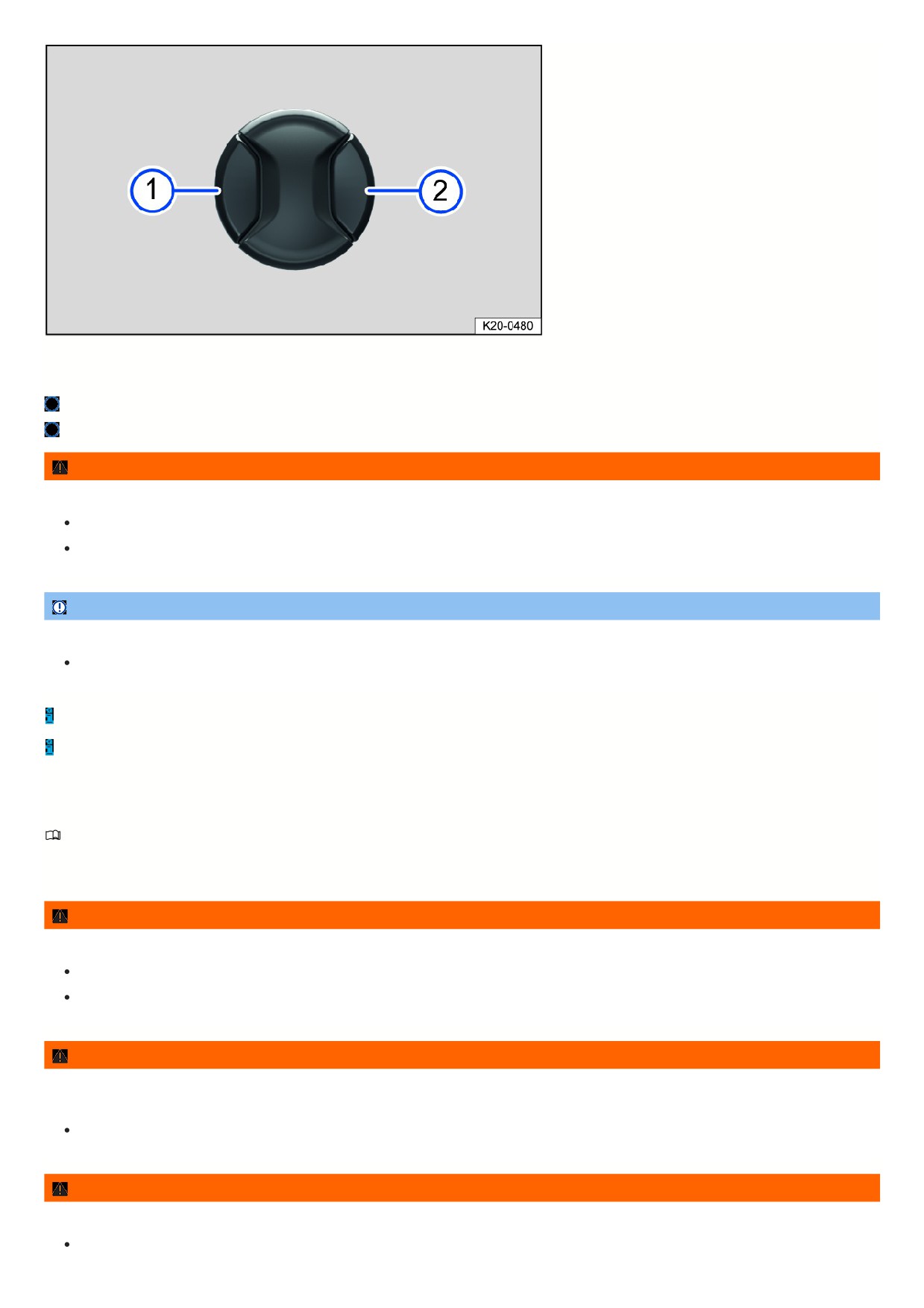

Fig. 68 Switch on the driver seat: Adjusting the lumbar support.
Press the switch in the direction you would like the lumbar support to move.
Move the curvature of the lumbar support forward.
Move the curvature of the lumbar support backward.
WARNING
Careless or unintended use of the power front seats can cause serious injuries.
The power front seats can also be adjusted when the ignition is switched off. Never leave children or people requiring assistance in the vehicle.
In case of an emergency, interrupt the power adjustment by pressing another switch.
NOTICE
Incorrect usage may damage the electric components in the front seats.
Do not kneel on the front seats and do not otherwise concentrate pressure on specific points of the seat cushion and backrest.
If the 12 V vehicle battery charge level is too low, the seat may not be able to be adjusted with the power controls.
Seat adjustment is canceled while the engine is starting.
Rear seats
Introduction
The following information describes the various options for adjusting the rear seats. Always make sure the seats are adjusted to the correct position
Correct
seating position.
WARNING
Incorrectly positioned rear seats increase the risk of serious injuries if an accident occurs.
Before every journey, ensure that the rear seats are positioned so that all passengers are sitting upright and have their safety belts on correctly.
Only adjust the rear seats when there is no one within the range of movement of the seats.
WARNING
If you adjust the rear seats while driving, you will adopt the wrong sitting position. In addition, the rear seats may move unexpectedly during the journey. This will
increase the risk of serious injuries if an accident occurs.
Only adjust the rear seats when the vehicle is stationary.
WARNING
Lighters in the vehicle can become damaged or ignite unintentionally. This can cause severe burns and vehicle damage.
Before adjusting any seat, always make sure that there are no cigarette lighters near the moving parts of the seat.
94
WARNING
Incorrect use of the rear center armrest may cause serious injuries.
The rear center armrest must always be folded up during journeys.
If the center armrest is folded down, the center rear bench seat must never be used by either adults or children.
Never allow an adult or child to ride on the center armrest.
NOTICE
Objects in the luggage compartment may get into the space between the seat and the luggage compartment floor when the rear seat is adjusted. This may
cause damage.
Remove all objects located between the seat and luggage compartment floor before you move the rear seat.
NOTICE
Objects with sharp edges can damage the seats.
Never touch the seats with sharp-edged objects. Sharp-edged objects, such as zippers, rivets on clothing, or belts, can cause surface damage. Open
hook and loop fasteners can also cause damage.
Folding the rear bench seat backrest forward or backward
Please read the introductory information and heed the Warnings and Notice
and Introduction.
The seat backrest is divided. Each part of the rear seat backrest can be folded forward individually to enlarge the luggage compartment.
Folding the seat backrest forwards using the remote release lever
Fig. 69 In the luggage compartment: Remote release lever.
95

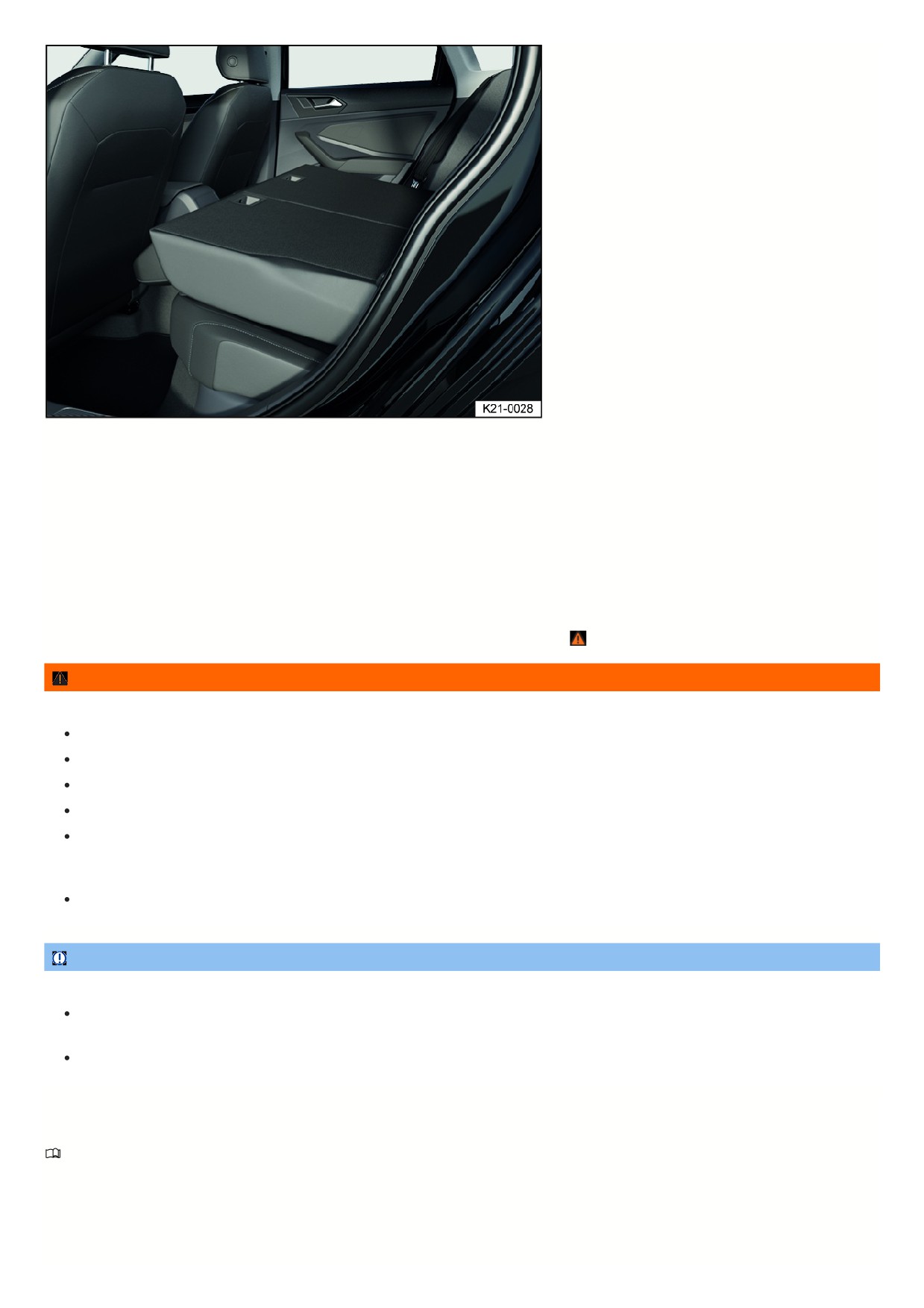

Fig. 70 Rear bench seat: Rear seat backrest folded forwards.
1. Move the head restraints all the way down.
2. Open the trunk lid.
3. Pull the remote release lever fig. 69 for the backrest section to be folded forwards.
The respective rear seat backrest section is released.
4. Fold the rear seat backrest section forwards.
5. Close the trunk lid, where applicable.
Folding the rear seat backrest up and back
1. Fold the rear seat backrest to the back and push firmly into the catch until it securely engages
WARNING
Folding and unfolding the rear seat backrest in an uncontrolled or careless manner may cause severe injury.
Always take care that no people or animals are in the way of the rear seat backrest when folding it forward and down.
Never fold the rear seat backrest forward or back while driving.
Make sure the safety belt is not pinched or damaged when folding the rear seat backrest back.
Keep hands, fingers, feet and other body parts away from the rear seat backrest when folding forward or back.
Each rear seat backrest must always be securely engaged to ensure that the safety belts in the rear seats can provide the maximum protection. Take
extra care especially with the middle seat in the rear bench seat. If a seat on the rear bench is used without the rear seat backrest being engaged, the
vehicle occupant will move forward with the rear seat backrest in the event of sudden braking and driving maneuvers or a collision.
Never allow people to sit in a rear seat if that rear seat backrest is folded forward or is not engaged.
NOTICE
Folding and unfolding the rear seat backrest in an uncontrolled or careless manner may cause damage to the vehicle or other objects.
Before folding the rear seat backrest forward, always adjust the front seats so that the head restraint or padding on the rear seat backrest does not press
against the front seats.
Before folding the rear seat backrest forward, always take care that there are no objects in its path.
Head restraints
Introduction
The information that follows describes how the head restraints can be adjusted and removed. Always make sure the seats are adjusted to the correct position
Correct seating position.
All seats are equipped with head restraints. The head restraints are specially approved for the relevant seat and should not be installed in another seat in the
vehicle.
96
The center rear head restraint (depending on the vehicle equipment) is only intended for the center seat on the rear bench seat. Therefore do not install this head
restraint in any other position.
There are notches in the head restraint supports so that they can be locked in different positions. Only head restraints which are correctly mounted can lock into the
notches within the adjustable range. To prevent the head restraints from being removed unintentionally after mounting, there are stops at the top and bottom of the
adjustable range.
Correct head restraint adjustment
Adjust the head restraint so that the upper edge of the head restraint is in line with the upper portion of the head as much as possible, but not lower than eye level.
Position the back of the head as close as possible to the head restraint.
Head restraint adjustment for shorter persons
Slide the head restraint all the way down, even if the head is then below the upper edge of the head restraint. When the head restraint is in the lowest position, ther
may be a small gap between the head restraint and the backrest.
Head restraint adjustment for taller persons
Move the head restraint up all the way.
WARNING
Driving with head restraint that have been removed or adjusted incorrectly increases the risk of serious or fatal injuries in the event of an accident or sudden
driving and braking maneuvers.
If a person is sitting in a seat, always drive with the head restraint correctly installed and adjusted on that seat.
If a person is sitting in a seat, adjust the head restraint according to their height.
Never adjust the head restraint while driving.
NOTICE
Removing and fitting the head restraints incorrectly may cause damage.
When removing and installing the head restraint, make sure the head restraint does not hit the headliner, the front seat backrest, or other vehicle
components.
Adjusting the head restraints
Please read the introductory information and heed the Warnings and Notice
and Introduction.
Adjusting the height of the front head restraint

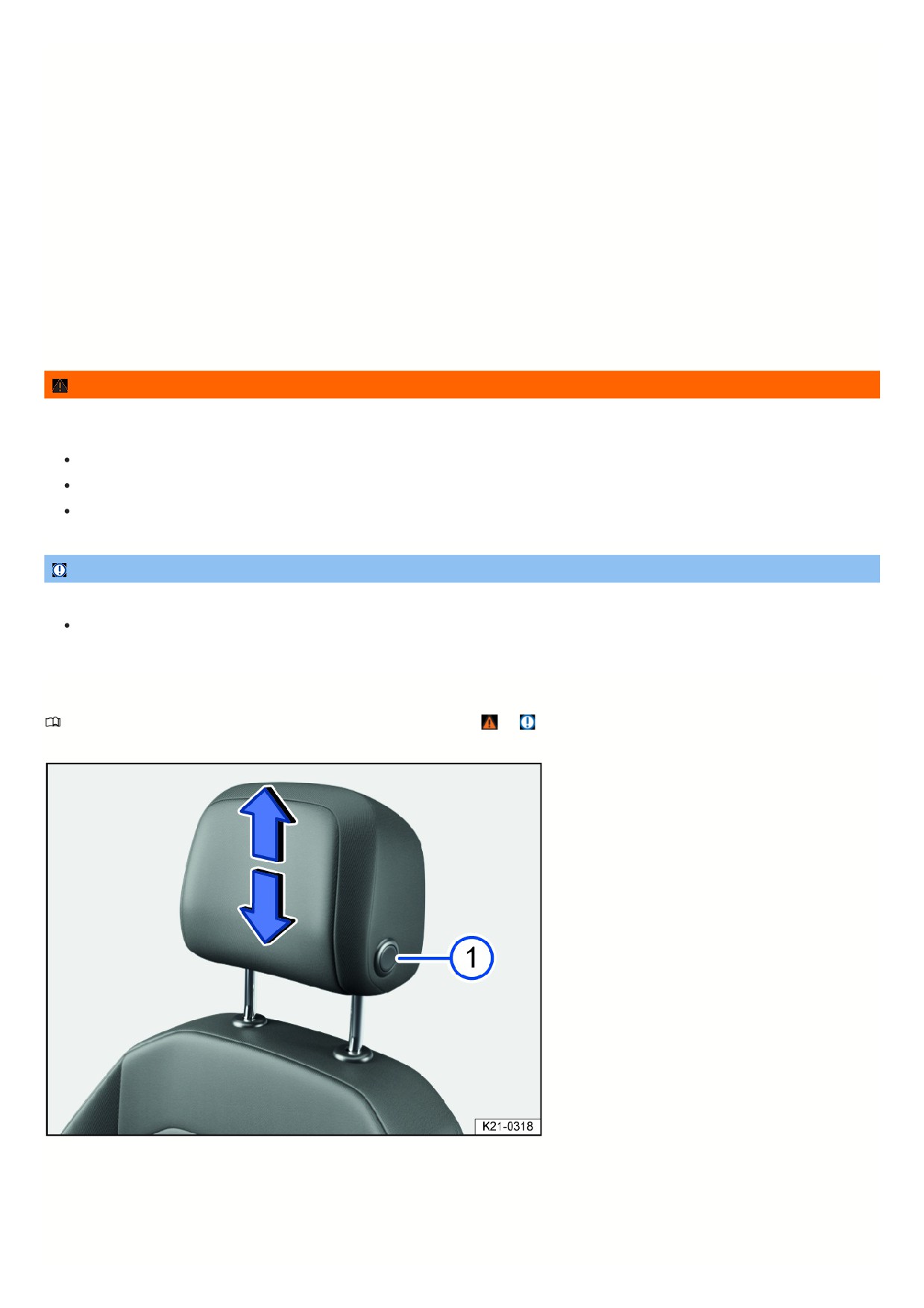

Fig. 71

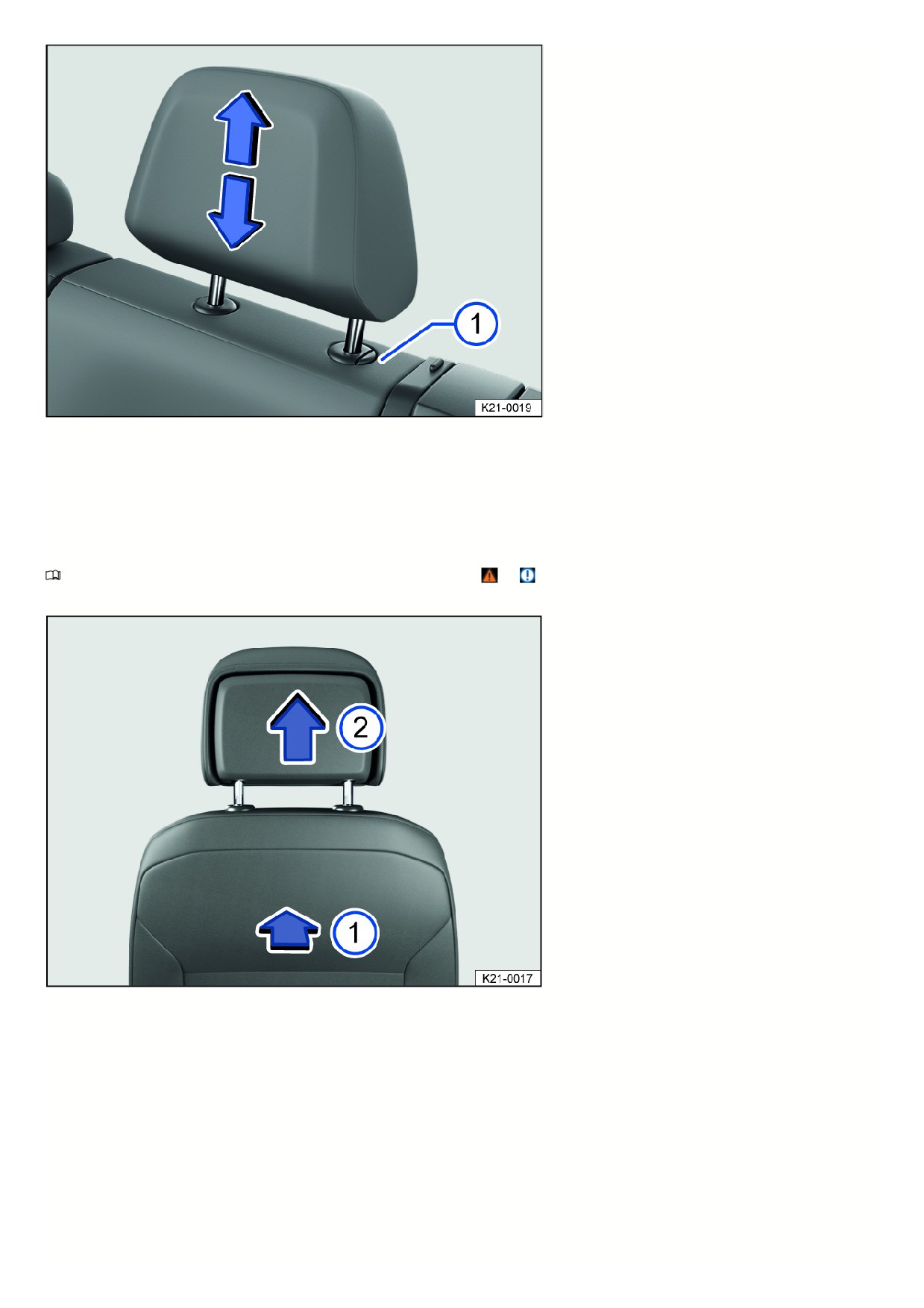

Adjusting the front head restraint (general example).
1. If necessary, slide the head restraint upward or downward in the direction of the arrow and when pressing the fig. 71 button.
The head restraint must lock securely into place.
Adjusting the height of the rear center head restraint
97
Fig. 72 Adjusting the middle rear head restraint (general example).
The head restraint of the center seat can be adjusted.
1. If necessary, slide the head restraint upward or downward in the direction of the arrow and when pressing the fig. 72 button.
The head restraint must lock securely into place.
Removing and installing the head restraints
Please read the introductory information and heed the Warnings and Notice
and Introduction.
Removing the front head restraints
Fig. 73 Removing the front head restraint (general example).
1. Lower the head restraint if necessary.
2. To release, find the notch on the rear side in the marked area fig. 73 and push and hold in the direction of the arrow.
3. Pull out the head restraint in the direction of the arrow fig. 73.
Installing the front head restraints
1. Position the head restraint correctly above the head restraint guides and insert into the guides on the seat backrest.
2. Slide the head restraint downward until it engages into the guide rods.
3. Adjust the head restraint to the correct position.
Removing the middle rear head restraint
98

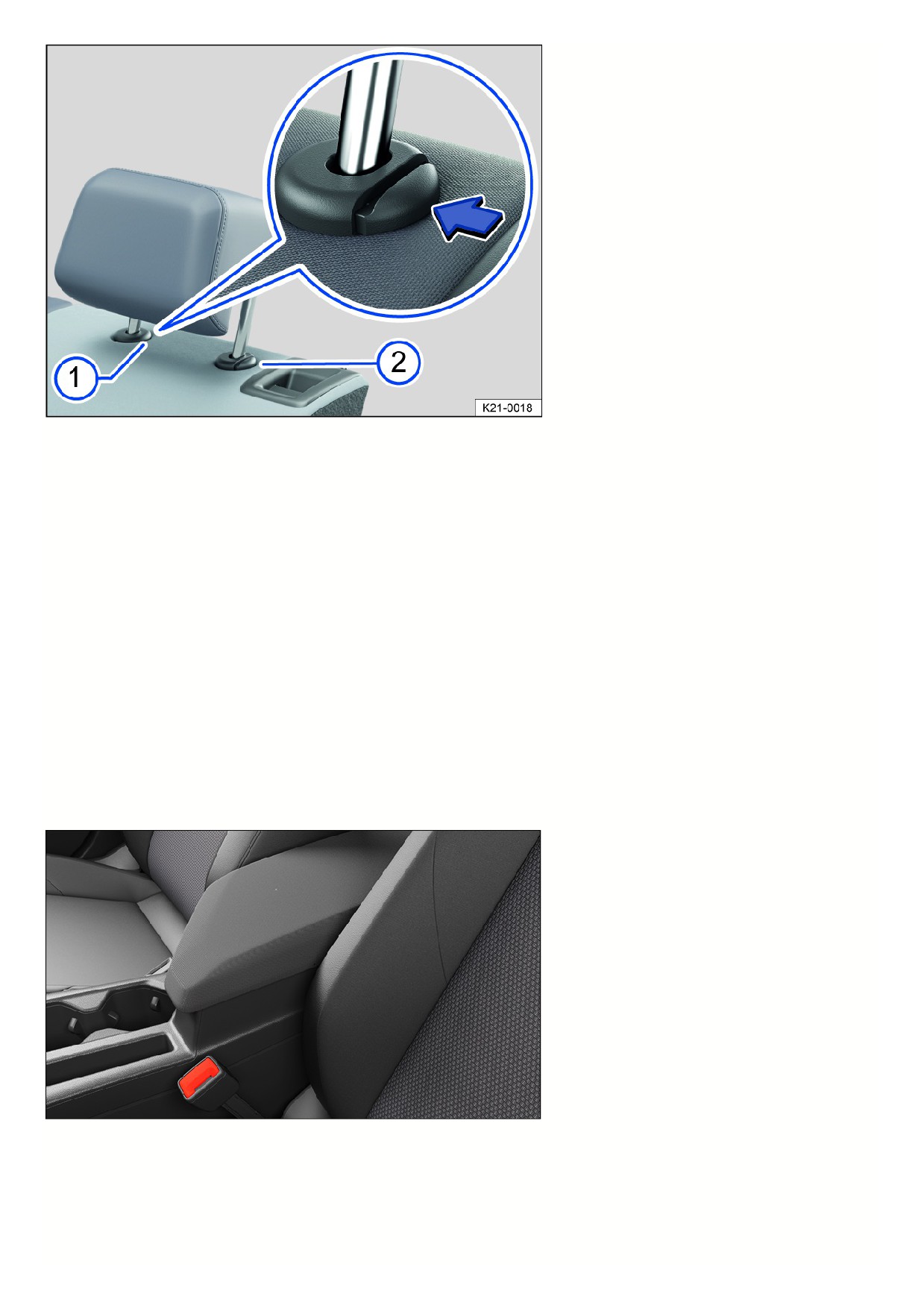

Fig. 74 Removing the middle rear head restraint (general example).
1. Release the middle backrest part of the rear bench seat and fold it forwards.
2. Slide the head restraint all the way upward.
3. Press the button fig. 74 on the head restraint guide.
4. At the same time, press the button fig. 74 while a second person pulls the head restraint all the way out.
5. Fold the rear bench seat backrest toward the rear and lock it securely into place.
Installing the middle rear head restraint
1. Release the middle backrest part of the rear bench seat and fold it forwards.
2. Position the head restraint correctly above the head restraint guides for the middle seat and insert it into the guides on the backrest.
3. Push the head restraint downward while pressing the fig. 74 button.
4. Fold the rear bench seat backrest toward the rear and lock it securely into place.
5. Adjust the head restraint to the correct position.
Seat functions
Center armrest
Front center armrest
Fig. 75 Front center armrest.
99
Fig. 76 Plastic support of the center armrest.
To raise: Pull the center armrest fig. 75 upward and fold the plastic supports in the direction of the arrow fig. 76. Then press the center armrest down.
To lower: Pull the center armrest fig. 75 upward and fold the plastic supports in the opposite direction to the arrow fig. 76. Then press the center armrest dow
WARNING
If the front center armrest is opened all the way or not completely closed, it can limit the driver’s ability to move his or her arms, which can cause accidents and
serious injuries.
Always keep the storage compartments closed while driving.
Never allow an adult or child to ride on the center armrest. This incorrect seating position can cause serious injuries.
Rear center armrest

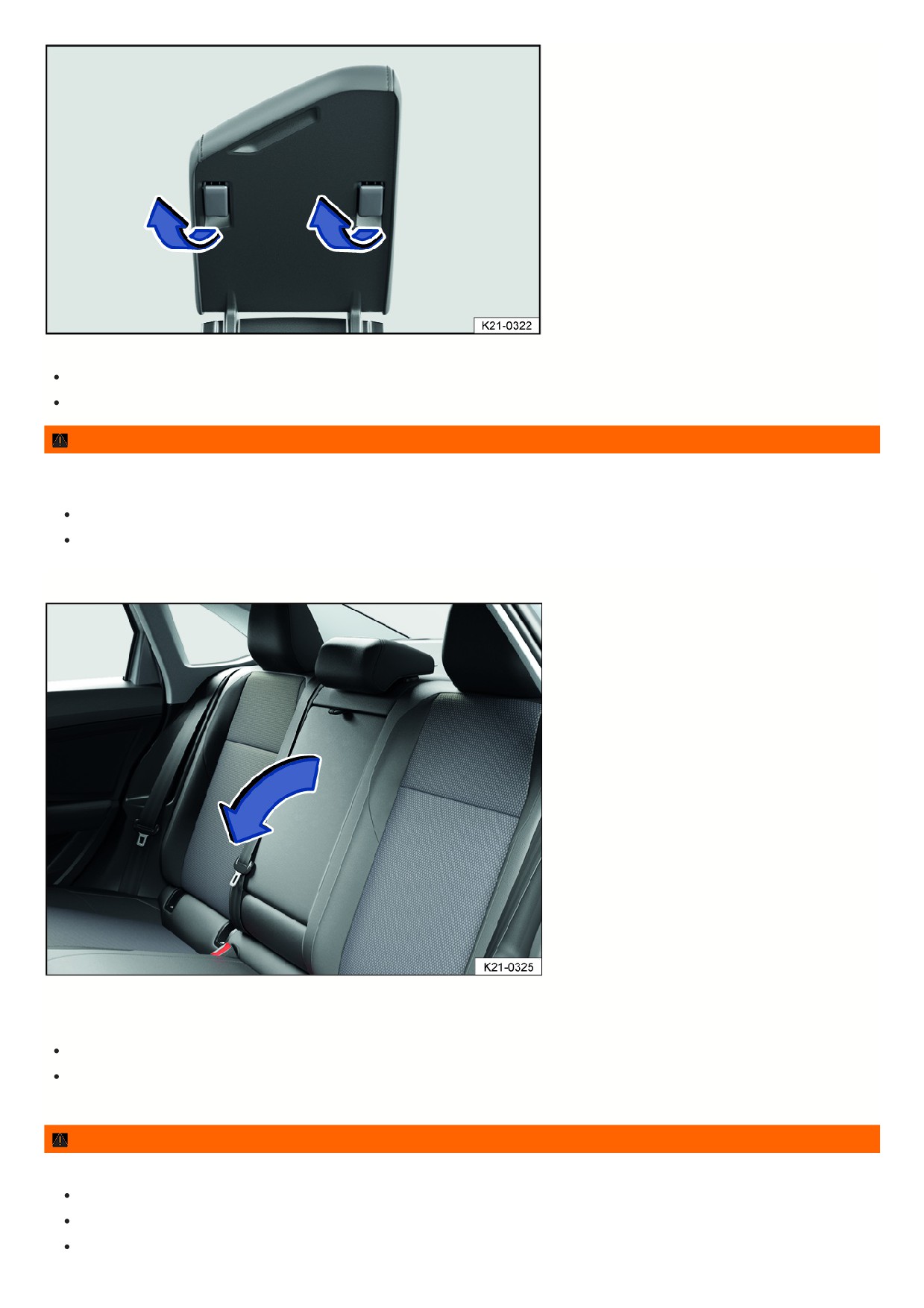

Fig. 77 Folding center armrest in the rear.
There may be a folding armrest in the backrest of the rear center seat.
To fold forward: pull the center armrest in the direction of the arrow using the loop fig. 77.
To fold back: fold the center armrest upward in the opposite direction of the arrow fig. 77 and press it all the way toward the seat backrest.
Passengers must not sit in the center rear seat when the center armrest is folded down.
WARNING
Incorrect use of the rear center armrest may cause serious injuries.
The rear center armrest must always be folded up during journeys.
If the center armrest is folded down, the center rear bench seat must never be used by either adults or children.
Never allow an adult or child to ride on the center armrest.
1
Memory function
Memory buttons

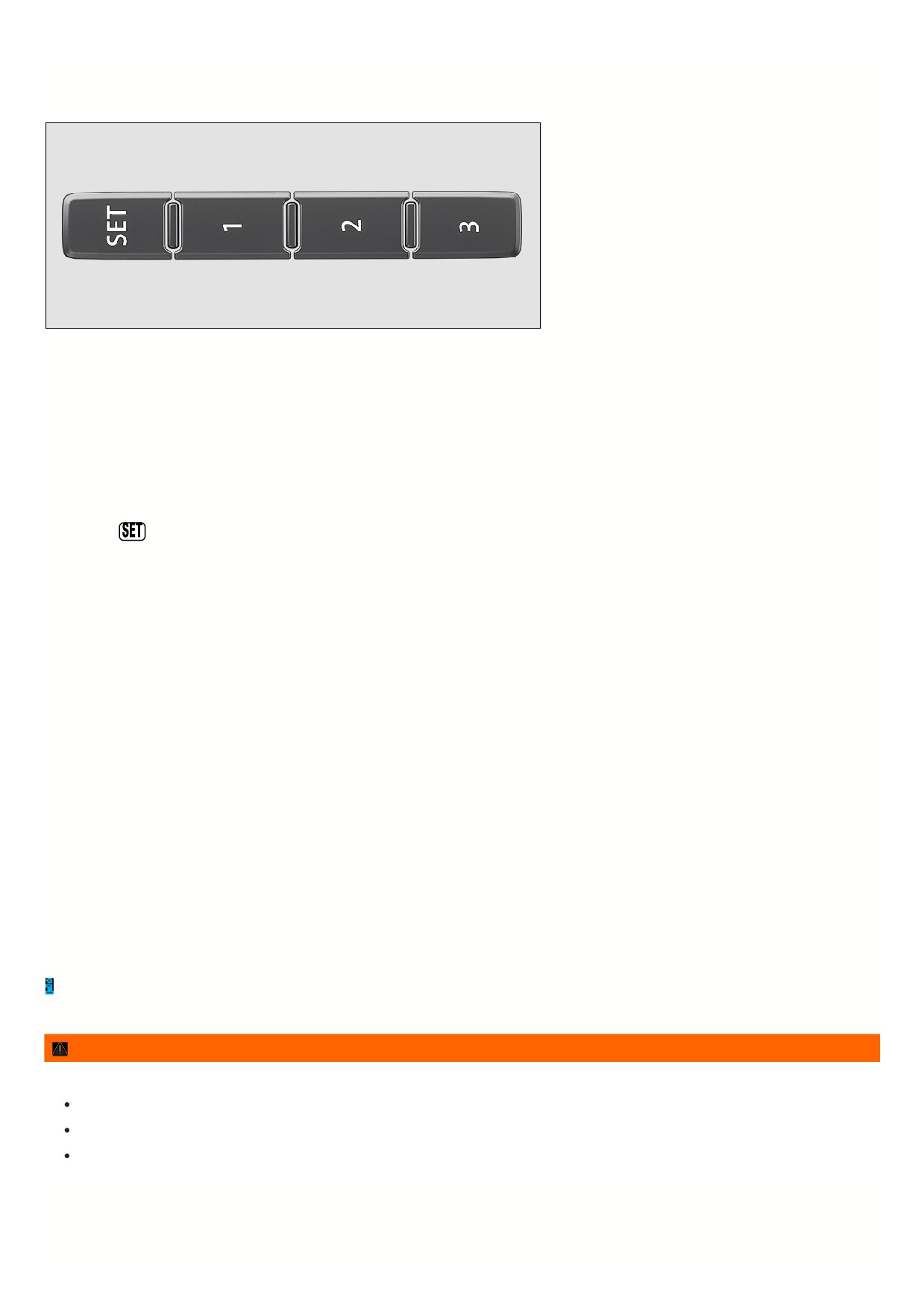

Fig. 78 On the outer side of the driver’s seat: memory buttons.
Driver seat and outside mirror settings can be saved and called up using the memory buttons.
Storing the driver's seat and outside mirror settings for driving forward
1. Set the electronic parking brake.
2. Shift the transmission to neutral.
3. Switch the ignition on.
4. Adjust the driver's seat and outside mirror.
5. Press the
fig. 78 button for longer than ten seconds.
6. Press the desired memory button within approximately ten seconds.
A chime will confirm that the settings were saved.
Storing the front passenger's outside mirror settings for driving in reverse
1. Set the electronic parking brake.
2. Shift the transmission to neutral.
3. Switch the ignition on.
4. Press the desired memory button fig. 78.
5. Select the reverse gear.
6. Adjust the front passenger's outside mirror so that the edge of the curb can be seen clearly, for example.
The selected mirror position will be stored automatically and assigned to the vehicle key that was used to unlock the vehicle.
Recalling driver's seat and outside mirror settings
1. When the vehicle is stationary, the ignition is switched off, and a door is open, press the respective memory button briefly.
After approximately ten minutes, the stored positions can no longer be adjusted automatically. The adjustment process will be canceled if one of the memory
buttons is pressed again.
Or: When the ignition is switched on or the door is closed, press and hold the respective memory button until the saved positions are reached.
The front passenger's outside mirror automatically leaves the position stored for driving in reverse once you begin driving forward at speeds of at least approx.
15 km/h (approx. 10 mph) or when you turn the knob for the outside mirrors from the R position to another position.
If you open the driver door more than approximately ten minutes after the vehicle is unlocked, the driver seat and the outside mirrors will not be adjusted
automatically.
WARNING
Improper use of seat functions can cause injuries.
Before beginning a journey always adjust to the correct seat position and maintain this throughout the journey. This also applies to all passengers.
Set the memory function only with the vehicle stationary.
Always keep your hands, fingers, feet and other parts of your body clear of the area in which the seats operate and move during adjustment.
1 1
Lights
Headlights
Switching the turn signals on and off

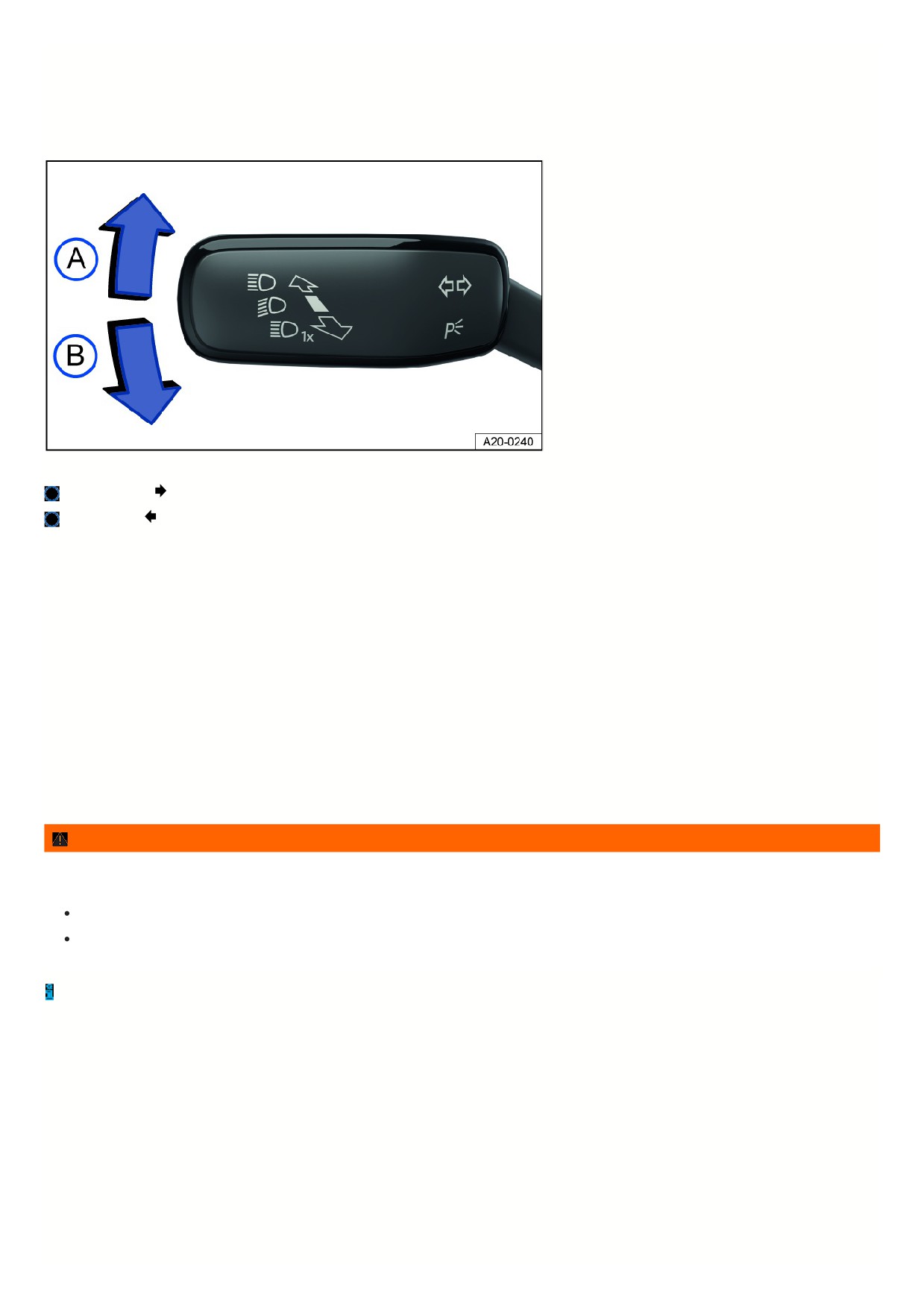

Fig. 79 On the left side of the steering column: turn signal and high beam lever.
Right turn signal
Left turn signal
Switching the turn signals on and off
1. Switch the ignition on.
2. Move the turn signal and high beam lever from the center position to the preferred position fig. 79.
3. To cancel the turn signal, move the turn signal and headlamp lever back to its basic position.
If no chime sounds when the turn signal is on, contact suitably qualified professionals and have the vehicle checked. Volkswagen recommends contacting an
authorized Volkswagen dealer or authorized Volkswagen Service Facility.
3-blink turn signal
To use the 3-blink turn signal, move the turn signal and high beam lever upward or downward to the pressure point and then release the lever. The turn signal will
blink three times.
To stop the 3-blink turn signal before it ends, move the turn signal and high beam lever immediately to the pressure point in the opposite direction and release.
The 3-blink turn signal can be activated and deactivated in the vehicle settings in the Infotainment system
Vehicle settings menu.
WARNING
Using the turn signals incorrectly, not using the turn signals, or forgetting to turn the turn signal off can mislead other road users. This can cause accidents and
serious or fatal injuries.
Always activate the turn signals correctly when changing lanes, passing, or turning.
Switch the turn signal off again every time you finish changing lanes, passing, or turning.
The emergency flashers also work when the ignition is switched off In case of an emergency.
Switching the lights on and off
1 2

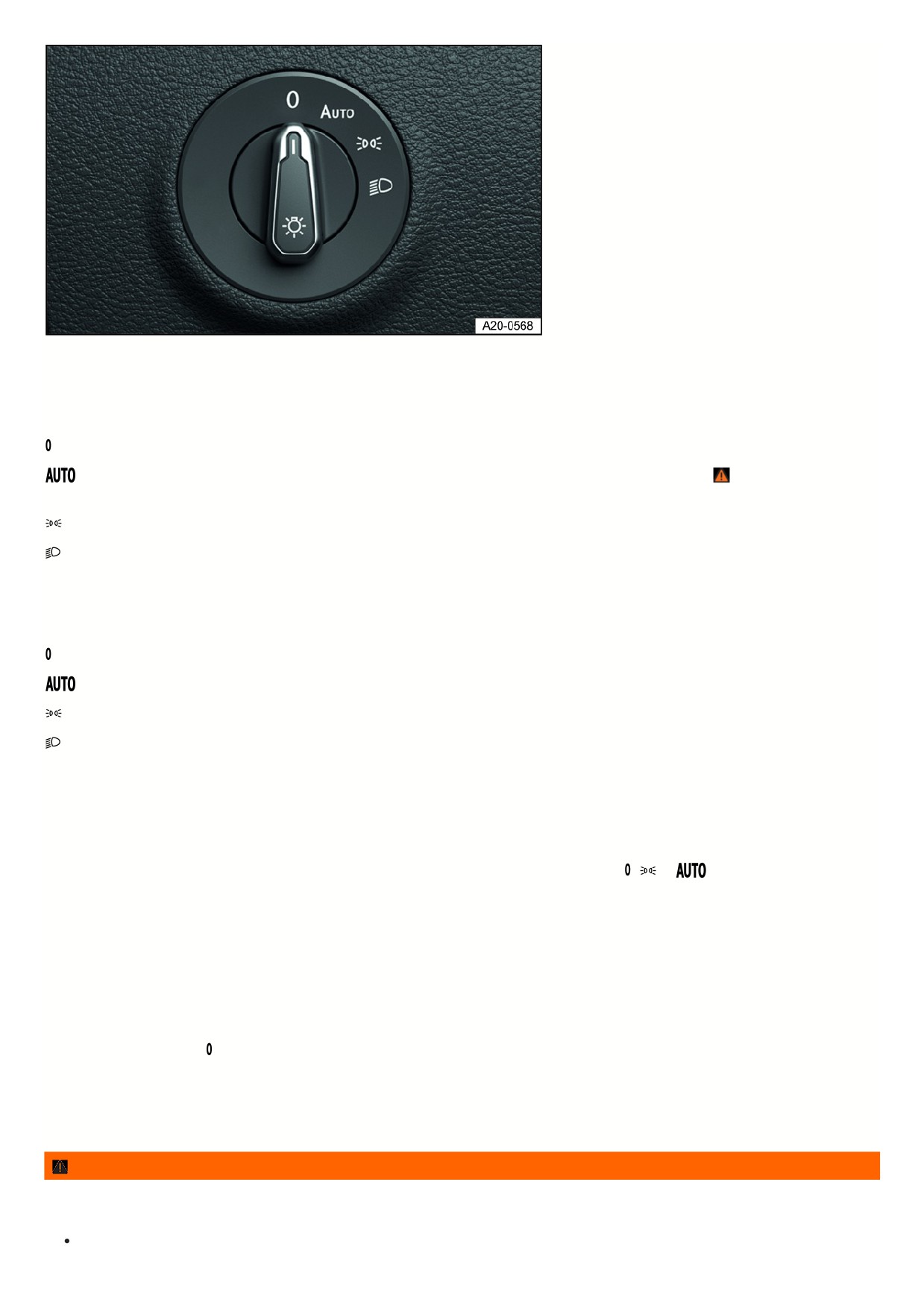

Fig. 80 Next to the steering wheel: light switch (one version).
Switching the lights on
1. Switch the ignition on.
2. Turn the light switch to the desired position fig. 80:
The side lights or parking lights and daytime running lights are switched on.
Automatic headlight control: the headlights will switch on or off depending on the brightness and weather conditions
, Automatic headlight
control.
The side lights or parking lights and daytime running lights are switched on. The green symbol in the light switch turns on.
The low beam headlights are switched on.
Switching the lights off
1. Switch the ignition off.
2. Turn the light switch to the desired position:
The lights are switched off.
The orientation lighting can be switched on “Exit lighting” and “Entry lighting” function (orientation lighting) .
The parking light is switched on Parking lights. The green symbol in the light switch turns on.
The low beam headlights are switched off.
Vehicles with ignition switch: As long as the remote control vehicle key is in the ignition switch, the parking light continues to light up.
Vehicles with starter button: As long as the driver door is closed, the parking light continues to light up.
Daytime running lights
The optional daytime running lights can increase the visibility of your vehicle in traffic during the daytime.
The daytime running light turns on automatically every time the ignition is switched on if the light switch is in the
,
or
position (if brightness detected).
The daytime running lights cannot be switched on or off manually.
Daytime running lights parking function
Depending on the equipment, the vehicle may have a daytime running lights parking function to turn off the daytime running lights temporarily when the ignition is
switched on.
Switch off the daytime running lights:
1. Switch the ignition on.
2. Turn the light switch to the position.
3. Set the electronic parking brake.
Switch on the daytime running lights:
1. Switch off the electronic parking brake.
WARNING
If the vehicle lighting is not used appropriately for the weather conditions, the road will not be illuminated sufficiently. The vehicle will not be visible to other road
users or will be difficult to see. This can cause accidents and serious or fatal injuries.
Always turn on the low beam headlight in the dark, when it is raining, and when visibility is poor.
1 3
Regularly check that the lighting system and turn signals are functioning correctly.
WARNING
The parking lights or daytime running lights are not bright enough to illuminate the road sufficiently and to be seen by other road users. The taillights do not
switch on with the daytime running lights. Without its taillights turned on, the vehicle may not be seen by other road users in the dark, in the fog, and when
visibility is poor. This can cause accidents and serious or fatal injuries.
Always turn on the low beam headlight in the dark, when it is raining, and when visibility is poor.
WARNING
The automatic headlights
are for assistance only. The driver is always responsible for turning on the correct vehicle lighting. Automatic headlight control
only turns the low beam headlights on and off when there are changes in brightness. Insufficient lighting on the road may cause accidents and serious or
fatal injuries.
Turn on the low beam headlights manually in certain weather conditions, such as in fog.
When reverse gear is engaged, the cornering lights on both sides of the vehicle will turn on automatically to better illuminate the surroundings while
maneuvering.
Switching the high beam headlights on and off

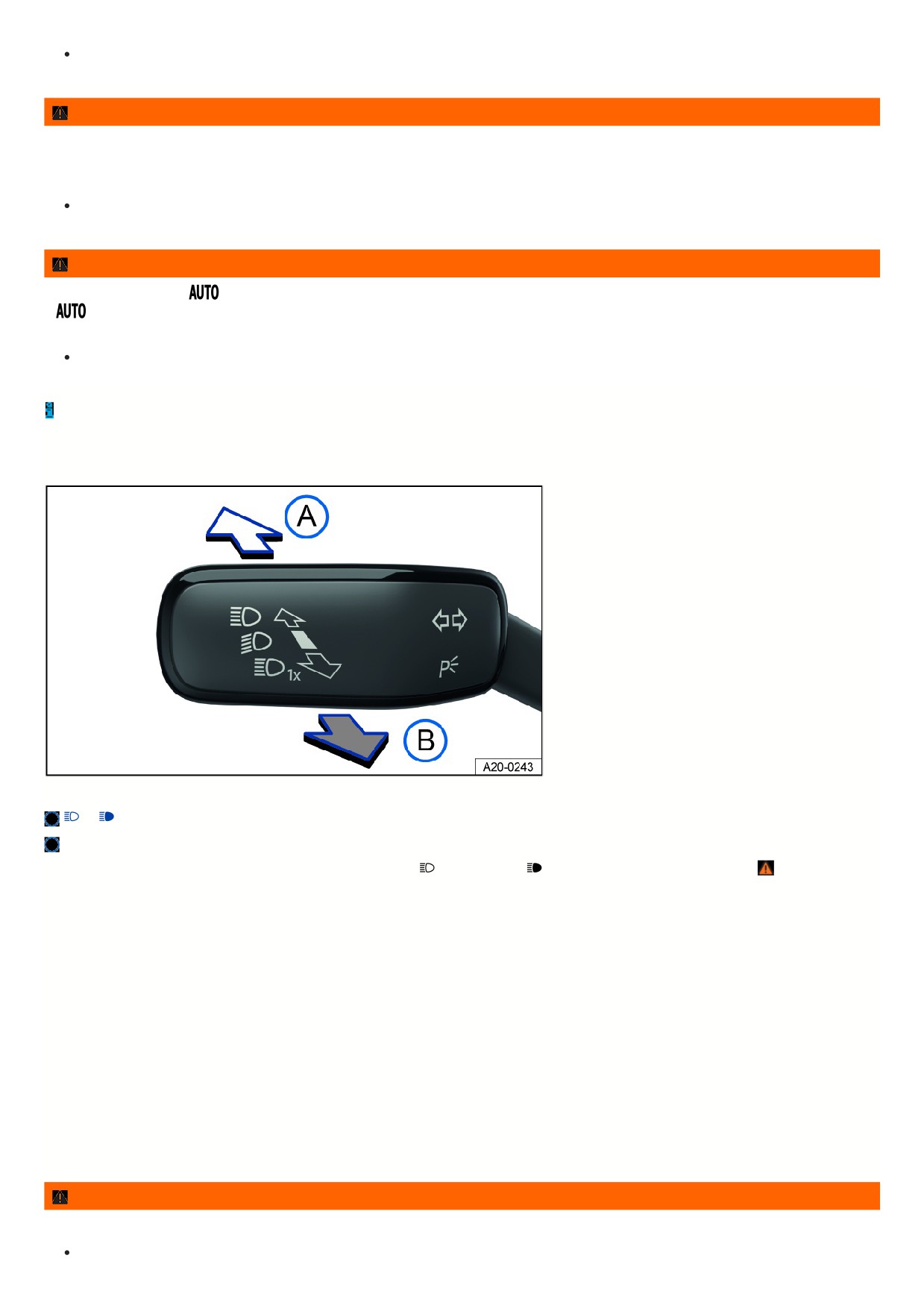

Fig. 81 On the left side of the steering column: turn signal and high beam lever.
or
turn on the high beam headlight.
Activate the headlight flashers or turn off the high beam headlights.
If the high beam headlights or headlight flashers are turned on, the blue
indicator light or
will come on in the instrument cluster
Turning on the high beam headlight
1. Switch the ignition on.
2. Switch on the low beam headlight.
3. Press the turn signal and high beam lever forward out of the center position fig. 81.
Turning off the high beam headlight
1. Pull the turn signal and high beam lever backward out of the center position fig. 81.
Turning the headlight flasher on and off
1. Pull the turn signal and high beam lever backward out of the center position and hold it fig. 81.
Release the turn signal and high beam lever to turn the headlight flasher off.
Light Assist
Depending on the equipment, high beam control (Light Assist) may be available page , High Beam Control (Light Assist) .
WARNING
Incorrect use of the high beam headlight may distract and blind other road users. This can cause accidents and serious or fatal injuries.
Use the high beam headlights only if other road users cannot be distracted or blinded.
1 4
High Beam Control (Light Assist)
High beam control (Light Assist) switches off automatically if the system detects oncoming vehicles or vehicles driving ahead. In addition, Light Assist generally
detects well-lit areas such as towns and deactivates the high beam headlights when driving through these areas.
The high beam headlights switch on and off automatically within the limits of the system, depending on the environmental and traffic conditions and the vehicle
speed
Switching on high beam control (Light Assist)
1. Switch on the ignition and the automatic headlights
2. Tap the turn signal and high beam lever forward out of the basic position.
When Light Assist is switched on, the
indicator light in the instrument cluster display will turn on. When high beam control (Light Assist) is active, the blue
indicator light
for the high beam headlight in the instrument cluster lights up.
Adjusting the sensitivity of Light Assist
Depending on the country, the sensitivity of Light Assist can be set in two stages:
Increasing the sensitivity: press the turn signal and high beam lever forwards from its original position and hold it in this position for around 15 seconds.
The
indicator light on the instrument cluster will blink three times to confirm that this has been applied.
Setting the sensitivity back to its standard setting: press the turn signal and high beam lever forwards from its original position and hold it in this position for
around 15 seconds.
The
indicator light on the instrument cluster will blink three times in quick succession to confirm that this has been applied.
Or: Switch the ignition off and on.
Switching off high beam control (Light Assist)
1. Switch off
automatic headlights.
Or: when Light Assist is switched on and active, pull the turn signal and high beam lever backward.
Or: if high beam control (Light Assist)is switched on and not active, tap the turn signal and high beam lever forward. The manual high beam headlights are now
switched on. Pull the turn signal and high beam lever backwards to switch the high beam headlights off manually if necessary.
Or: Switch off the ignition.
System limitations
The high beams must be switched off manually in the following situations, because Light Assist may not switch them off at the right time or at all:
In poorly lit towns which cannot be recognized as a town by the system.
On poorly lit roads with strongly reflective signs.
If there are others on the road who have inadequate lighting, such as pedestrians or cyclists.
On tight curves where the view of traffic is partially obstructed, on steep rises, or in dips.
When there are oncoming vehicles on roads with a center barrier and the drivers in the oncoming vehicle can clearly see above the barrier, for example truck
drivers.
In fog, snow, and heavy rain.
When there are dust and sand in the air.
If the windshield is damaged in the camera's field of vision.
If the camera visual field is fogged over, dirty, or covered by a sticker, snow, or ice.
If the camera switches off automatically due to a high ambient temperature or exposure to direct sunlight for a prolonged period. Light Assist will be available
once the camera is available again.
If the camera is faulty and the power supply is interrupted.
WARNING
Light Assist may not detect all traffic situations correctly and the function may be restricted in certain situations. High beam control (Light Assist) is only an aid.
The driver is always responsible for turning on the correct vehicle lighting. Switching on the high beam headlight at the wrong time may distract and blind other
road users. This can cause accidents and serious or fatal injuries.
Always control the headlights yourself and adapt them to the lighting, visual, and traffic conditions.
Switch the high beam off manually if it could blind other road users.
WARNING
1 5
If the camera lens is dirty, covered, or damaged, the Light Assist function may be limited. This is also the case if the vehicle lighting system is changed, such as
by adding auxiliary headlights. This can cause accidents and serious or fatal injuries.
Regularly clean the camera view area and keep it free of snow and ice.
Do not cover the camera view area.
Regularly check the windshield for damage in the camera lens area.
Troubleshooting
Turn signal indicator light
The green indicator light blinks.
If a turn signal light on the vehicle is not working, the indicator light will blink twice as fast.
1. Check the lights and replace any bulbs as necessary
Introduction.
2. If the malfunction persists, contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized
Volkswagen Service Facility.
Exterior lighting malfunction
The yellow indicator light turns on.
The headlights have completely or partially failed.
1. Check the lights and replace any bulbs as necessary
Introduction.
2. If the malfunction persists, contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized
Volkswagen Service Facility.
Rain/light sensor malfunction
The yellow indicator light turns on.
In the
light switch position, the vehicle lighting will not turn on or off automatically.
1. Switch the ignition off and on.
2. If the malfunction persists, contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized
Volkswagen Service Facility.
Parking lights
Parking lights
Parking lights
If the
parking light function is switched on, both headlights will come on, along with the parking lights, sections of the taillights, the license plate light and variou
buttons in the vehicle interior.
Automatic parking light deactivation
The vehicle detects that the 12 V vehicle battery is low and switches off the parking light early enough to ensure that the engine can still be started, but not until at
least two hours have passed.
If the battery capacity is not sufficient for the parking light to run for two hours, the 12 V vehicle battery may drain to such an extent that the engine can no longer be
started.
WARNING
If the vehicle is stopped without enough lighting and cannot be seen or is difficult for others on the road to see, this can cause accidents and serious or fatal
injuries.
Always stop the vehicle safely and with enough lighting.
Follow the country-specific legal regulations.
“Exit lighting” and “Entry lighting” function (orientation lighting)
When you are entering and exiting the vehicle in the dark, the “Exit lighting” and “Entry lighting” function illuminates the immediate area around the vehicle.
Depending on the equipment, the vehicle can have an automatic or manual “Coming home” function:
Automatic “Coming home” function: the “Coming home” and “Leaving home” function automatically control the rain/light sensor.
1 6
Manual “Coming home” function: the “Coming home” function is switched on manually.
The “Leaving home” function automatically controls the rain/light sensor.
The lighting time can be adjusted in the vehicle settings in the Infotainment system and the function can be activated or deactivated
Vehicle settings menu.
Switching on the automatic “Coming home” function
1. Switch the ignition off.
The “Coming home” lighting switches on automatically when the light switch is in the
position and the rain/light sensor detects darkness.
The lighting time begins when the last vehicle door or trunk lid is closed.
Switching on the manual “Coming home” function
1. Switch the ignition off.
2. Press the headlight flasher.
The “Coming home” lighting switches on automatically when the driver door opens. The switch-off delay begins when the last door or the trunk lid is closed.
Switching the “Exit lighting” function off
1. Turns off automatically after the set lighting time has elapsed.
Or: Automatically if a vehicle door or the trunk lid is still open approximately 30 seconds after switching on.
Or: Switch off the light.
Or: Switch on the ignition.
Switching the “Entry lighting” function on
1. Unlock the vehicle when the automatic headlight control
is switched on and the rain/light sensor detects darkness.
Switching the “Entry lighting” function off
1. Turns off automatically after the lighting time has elapsed.
Or: Lock the vehicle.
Or: Switch off the light.
Or: Switch on the ignition.
Light functions
Cornering lights
If the low beam headlights are switched on, a cornering light will also switch on during slow turns or in very tight corners.
When reverse gear is engaged, the cornering lights on both sides of the vehicle will turn on automatically to better illuminate the surroundings while
maneuvering.
Automatic headlight control
If automatic headlights
are switched on, the vehicle lighting switches on and off automatically along with the instrument illumination under the following
conditions:
The light sensor has detected darkness.
The windshield wipers are switched on for a long time.
When the lights are turned on, the yellow indicator light
turns on Switching the lights on and off .
Automatic headlight control is merely an aid and cannot always accurately detect all driving situations.
If the vehicle is equipped accordingly, the activation time of the automatic headlights can be adjusted in the vehicle settings in the Infotainment system
Vehicle
settings menu.
Headlight range control
The headlight range must always be adapted to the vehicle load level. This provides the driver with the best possible visibility and oncoming traffic is not dazzled. To
find out whether your vehicle features headlight range control, contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen
recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
Without headlight range control
The beam of the low beam headlights must be adjusted by an authorized Volkswagen dealer or authorized Volkswagen Service Facility to take into account the
vehicle's load . Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
WARNING
Heavy objects in the vehicle can affect the vehicle level in such a way that causes the headlights to dazzle and distract other road users. This can cause
1 7
accidents and serious or fatal injuries.
Always adjust the light cone to the vehicle load so that other road users are not dazzled.
WARNING
If the headlight range control fails or malfunctions, the headlights may blind and distract other road users. This can cause accidents and serious or fatal injuries.
Have the headlight range control inspected immediately by an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen
recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
Adjusting headlights (travel mode)
When traveling in countries that drive on the opposite side of the road from your home country, the asymmetric low beam headlights can dazzle oncoming traffic.
Therefore, when traveling in these countries, the headlights must be adjusted.
Depending on the vehicle equipment, the headlight alignment can be adjusted in the Infotainment system via the Vehicle settings menu Vehicle settings menu.
On vehicles whose headlights cannot be adjusted via the menu, mask certain areas of the headlight lens with film or have the headlights converted by an authorize
Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen
Service Facility.
Travel mode may be used only for a short period of time. Contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility for permanent
conversion. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
Warning tones when lights are not turned off
If the ignition has been switched off and the driver door is opened, warning tones will sound under the following conditions:
With the side lights switched on
If the orientation lighting is switched on, the warning tone to indicate that the light is still turned on will not sound when leaving the vehicle
“Exit lighting” and “En
lighting” function (orientation lighting).
Interior lighting
Instrument and switch illumination
You can adjust the brightness of the instrument illumination in the vehicle settings in the Infotainment system
Vehicle settings menu.
The selected brightness will automatically adjust to the changing brightness in the vehicle.
If the automatic headlights
are switched on, a sensor switches the dipped beams and the instrument and switch lighting on and off automatically based on
outside brightness.
The instrument illumination for the needles and dials turns on when the ignition is on and the lights are off. The lighting for the gauges reduces automatically
and eventually turns off as brightness outside increases. This function should remind the driver to turn off low beam headlights at the right time, such as when
driving through tunnels.
Interior/reading lights, ambient lighting
Switching on or off interior and reading lights
The scope and the representation of the controls in the headliner vary depending on the vehicle equipment.
Press the corresponding button:
Switch off the interior lights.
Switch on the interior lights. Switch the rear interior lights on or off.
The interior lights will switch on automatically when
unlocking or leaving the vehicle. The interior lights will switch on automatically when unlocking or leaving the vehicle.
Switch the reading lights on or off.
Glove compartment and luggage compartment lights
The glove compartment and the luggage compartment may be illuminated depending on the vehicle equipment.
The relevant light turns on or off when opening and closing the glove compartment or trunk lid.
Ambient lighting
Depending on vehicle equipment, ambient lighting can provide indirect lighting in various areas of the vehicle interior.
Other areas may also be illuminated, e.g. the footwell.
Depending on vehicle equipment, you can adjust the brightness and color of the ambient lighting in the vehicle settings in the Infotainment system
Vehicle
settings menu. If you select the setting Auto, the color of the ambient lighting changes depending on the driving mode setting.
Vehicles with a starter button: After the ignition has been switched off, the lights will turn off when the vehicle is locked or automatically after a few minutes.
This reduces the risk of the 12 V vehicle battery being drained.Vehicles with ignition lock: After the vehicle key has been removed from the ignition switch, the
lights will turn off when the vehicle is locked or automatically after several minutes. This reduces the risk of the 12 V vehicle battery being drained.
1
8
1 9
Visibility
Window wipers
Operating the windshield wiper lever

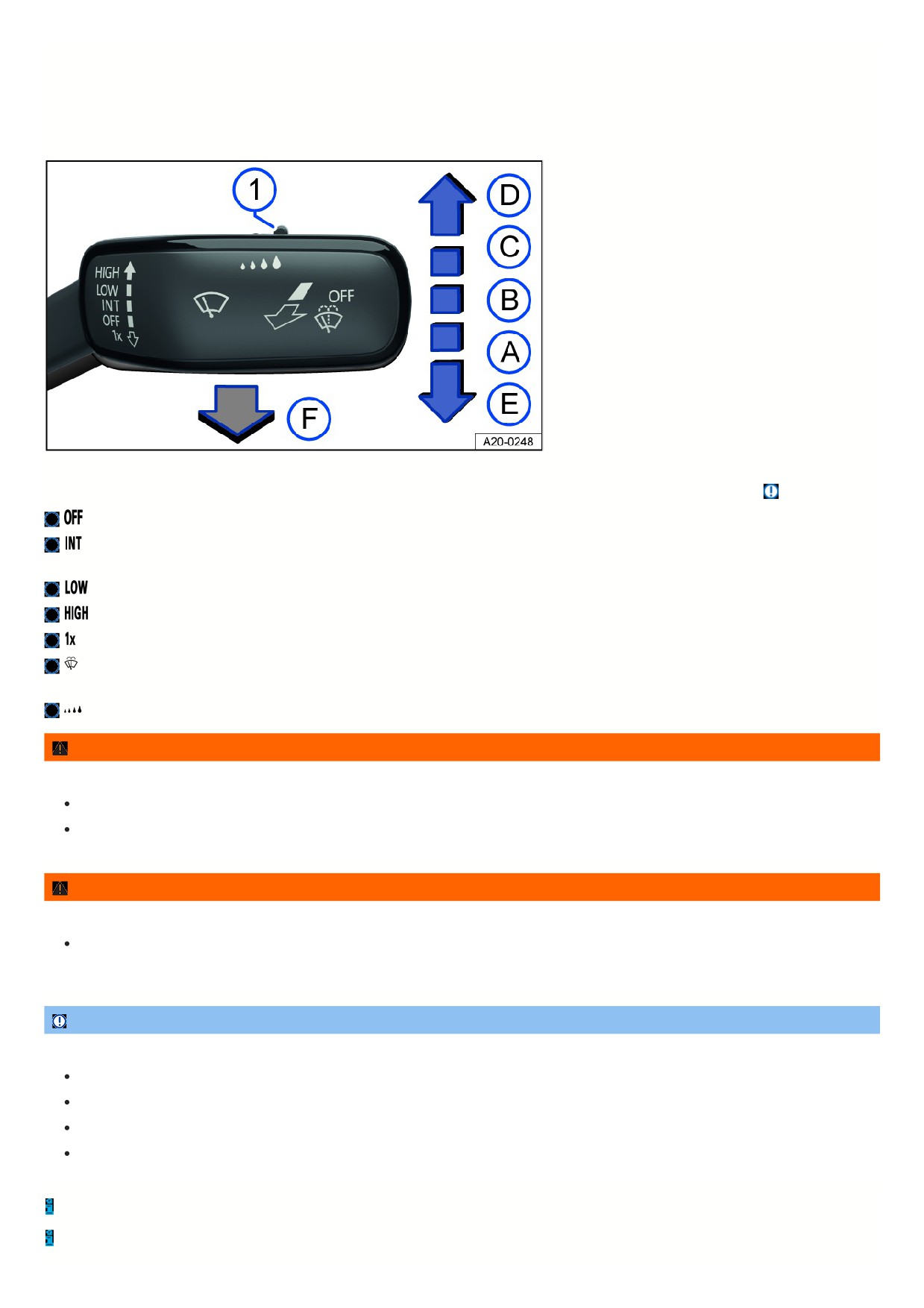

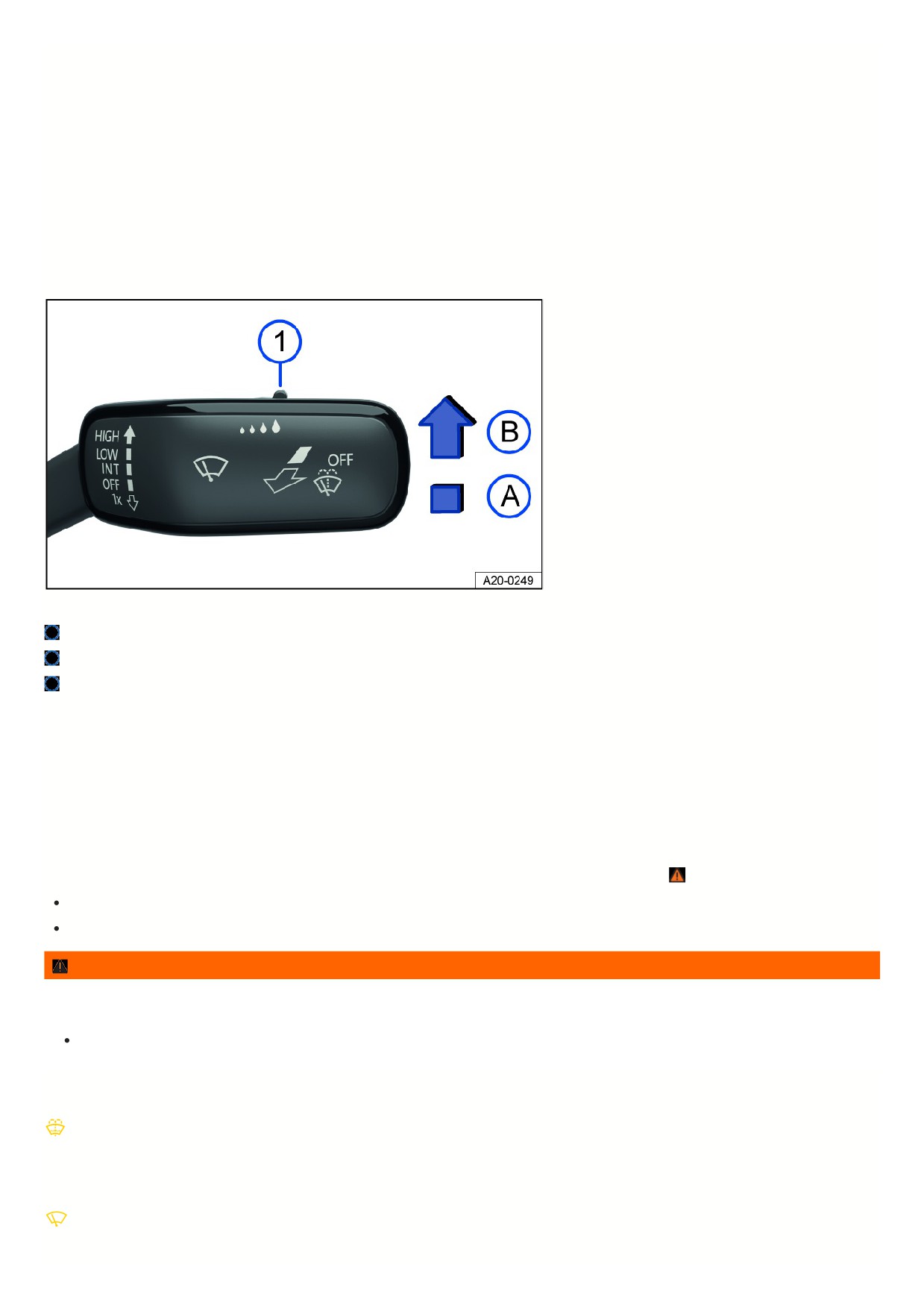

Fig. 82 On the right side of the steering column: operating the windshield wipers.
The windshield wipers only work when the ignition is switched on and the hood is closed. Move the wiper lever into the desired position
:
Wipers are switched off.
Interval wiping for the windshield or rain sensor mode. Interval wiping for the windshield depends on the driving speed. The higher the speed, the faster
the wipers will move.
Slow wiper speed.
Fast wiping.
One-tap wiping - brief wiping. Press and hold the lever down longer to wipe faster.
Pull the lever to activate the automatic wiper/washer system to clean the windshield. While the wiper/washer system is active, the Climatronic system
switches to recirculation mode for approximately 30 seconds to help prevent the washer fluid odor from entering the vehicle interior.
Switch for interval levels (vehicles without rain/light sensor) or to adjust the sensitivity of the rain/light sensor.
WARNING
Without the sufficient freeze protection, washer fluid can freeze on the window glass and reduce visibility. This can cause accidents and serious or fatal injuries.
Only use the washer system with sufficient freeze protection in winter temperatures.
Never use the window washer system in winter temperatures if the windshield has not been warmed up with the air conditioning system.
WARNING
Worn or dirty wiper blades reduce visibility and increase the risk of accidents and serious injuries.
Always replace wiper blades if they are damaged or worn and are no longer cleaning the window glass sufficiently
Cleaning and changing wiper
blades.
NOTICE
Incorrect handling of the windshield wipers can cause damage to the windshield, the wiper blades and the wiper motor.
Before driving and before the ignition is switched on, check that the windshield wiper lever is in the basic position.
Remove any snow and ice from the windshield wipers and the windshield.
Always carefully loosen wiper blades that have frozen onto the windshield from the windshield.
Do not turn on the windshield wipers when the windshield is dry.
The activated wiper speed temporarily changes to the next lower speed when the vehicle is stationary.
When parking the vehicle in cold weather conditions, moving the windshield wipers to the service position may be helpful for loosening the wiper blades more
easily from the windshield Putting the windshield wipers in the service position .
11
Wiper function
Heated washer nozzles
The heat thaws frozen washer fluid nozzles. The heat output is automatically regulated when the ignition is switched on and is dependent on the outside
temperature. Only the window washer nozzles are heated and not the washer fluid hoses.
Heated windshield wiper area
If the windshield wipers are in starting position, they can be heated when the temperature is approx. +4 °C (approx. +39 °F) or lower, depending on the vehicle
equipment. The function is switched on automatically as soon as you switch on the defrost function or the rear window defroster, or you start the vehicle via the
remote start relay function. If the vehicle is moved or the windshield wipers have become heated after a few minutes, then the function switches off automatically.
Rain/light sensor
Fig. 83 On the right side of the steering column: windshield wiper lever.
Switch for adjusting the sensitivity of the rain/light sensor.
Rain/light sensor deactivated.
Rain/light sensor activated, automatic wiping as necessary.
When switched on, the rain/light sensor automatically shortens or lengthens the delay between wiping cycles depending on how hard it is raining.
Activating and deactivating the rain/light sensor
1. Press the lever into the desired position fig. 83.
Automatic wiping can be activated and deactivated in the vehicle settings in the Infotainment system
Vehicle settings menu.
If automatic wiping is deactivated in the Infotainment system, the interval time will be set in fixed stages.
Adjusting the sensitivity of the rain/light sensor
The sensitivity of the rain/light sensor can be manually adjusted with the switch in the windshield wiper lever fig. 83 ,
Move the switch to the right - high sensitivity.
Move the switch to the left - low sensitivity.
WARNING
The rain/light sensor cannot detect all precipitation sufficiently and activate the windshield wipers accordingly. Reduced visibility can cause accidents and
serious or fatal injuries.
If necessary, switch on the windshield wipers manually if water on the windshield is impairing visibility.
Troubleshooting
Washer fluid level too low
The yellow indicator light turns on.
1. Fill the washer fluid reservoir Washer fluid.
Windshield wiper malfunction
The yellow indicator light turns on.
111
The windshield wipers are not working.
1. Switch the ignition off and on.
2. If the malfunction persists, contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized
Volkswagen Service Facility.
Rain/light sensor malfunction
The yellow indicator light turns on.
The windshield wipers will not be automatically activated in rain/light sensor mode when it is raining.
1. Switch the ignition off and on.
2. If the malfunction persists, contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized
Volkswagen Service Facility.
Changes to rain/light sensor reaction
Some possible reasons for malfunctions and misinterpretations in the sensor area of the rain/light sensor
View from the front could be:
Damaged wiper blades: damaged wiper blades can leave a film of water or streaks on the window, and this can extend the activation time, greatly shorten the
wiper intervals, or cause fast wiping time.
Insects: insects hitting the windshield may trigger the wipers.
Salt streaks: salt streaks on the windshield from driving in the winter can cause the wipers to wipe more frequently or continuously on a window that is almost
dry.
Dirt: dried dust, wax, any other build-up on the windshield (lotus effect), or washing product residue (car wash) can lower the sensitivity of the rain/light sensor
and cause it to react too slowly or not at all. Clean the sensor area for the rain/light sensor regularly and check the wiper blades for damage Exterior care
and cleaning.
Crack in the windshield: if a stone strikes and chips the sensor area while the rain/light sensor is on, this will trigger a wiper cycle. After that, the rain/light
sensor will detect this irregularity on the sensor surface and react to it. Depending on the size of the chip, the reaction behavior of the rain/light sensor may or
may not change.
If there is an obstacle for the wipers on the window glass, the wipers will attempt to remove it. If it continues to block the wipers, the wipers will stop moving.
1. Remove the obstacle and switch the wipers on again.
Mirrors
General safety precautions
Using the outside mirrors and the interior rearview mirror, the driver can observe traffic and adjust their driving based on traffic.
For driving safety, it is important that the driver adjusts the outside mirrors and the interior rearview mirror correctly before starting to drive.
It is not possible to oversee the entire side and rear area of the vehicle by looking in the outside and interior rearview mirrors. These areas that are not visible are
called blind spots. Other road users and objects could be in the blind spot.
WARNING
Adjusting the outside mirrors and interior rearview mirror while driving can distract the driver. This can cause accidents and serious or fatal injuries.
Only adjust the outside mirror and interior rearview mirror when the vehicle is stationary.
Always make sure that the mirrors are adjusted correctly and visibility to the rear is not limited by ice, snow, fog, or other objects.
WARNING
The view in the outside mirrors and interior rearview mirror does not cover the entire area around the side and rear of the vehicle. Other road users and objects
could be in these blind spots. This can cause accidents and serious or fatal injuries.
When parking, changing lanes, passing, and turning, always pay attention to your surroundings.
WARNING
Curved mirror surfaces (convex or aspheric) enlarge the field of vision and allow objects in the mirror to appear smaller and farther away. This can make it
difficult to estimate the exact distance from the vehicles behind, e.g. when changing lane. This can cause accidents and serious or fatal injuries.
Use the interior rearview mirror as much as possible to more accurately determine the distance to vehicles or other objects behind you.
Make sure there is sufficient visibility of the area behind the vehicle.
112
WARNING
An automatic dimming rearview mirror contains an electrolyte fluid that can leak out if the mirror glass breaks. Coming into contact with this liquid can irritate the
skin, eyes, and respiratory organs, especially in individuals with asthma or similar illnesses. This may cause serious injuries.
If electrolyte fluid is swallowed, rinse out the mouth immediately for at least 15 minutes with plenty of water. Do not induce vomiting unless it ordered to
do so by a doctor. Call for medical assistance immediately.
Immediately get plenty of fresh air and exit the vehicle. If this is not possible, open all the windows and doors.
If the electrolyte fluid comes into contact with eyes or skin, wash the affected area immediately for at least 15 minutes with plenty of water and seek
medical assistance.
If the electrolyte fluid comes into contact with your shoes or clothing, wash it for at least 15 minutes with plenty of water. Clean the shoes and clothing
thoroughly before wearing them again.
NOTICE
If the glass on an automatic dimming mirror breaks, electrolyte fluid can leak out. This fluid damages plastic surfaces.
Remove any leaking fluid as soon as possible, for instance using a wet sponge.
Interior rearview mirror

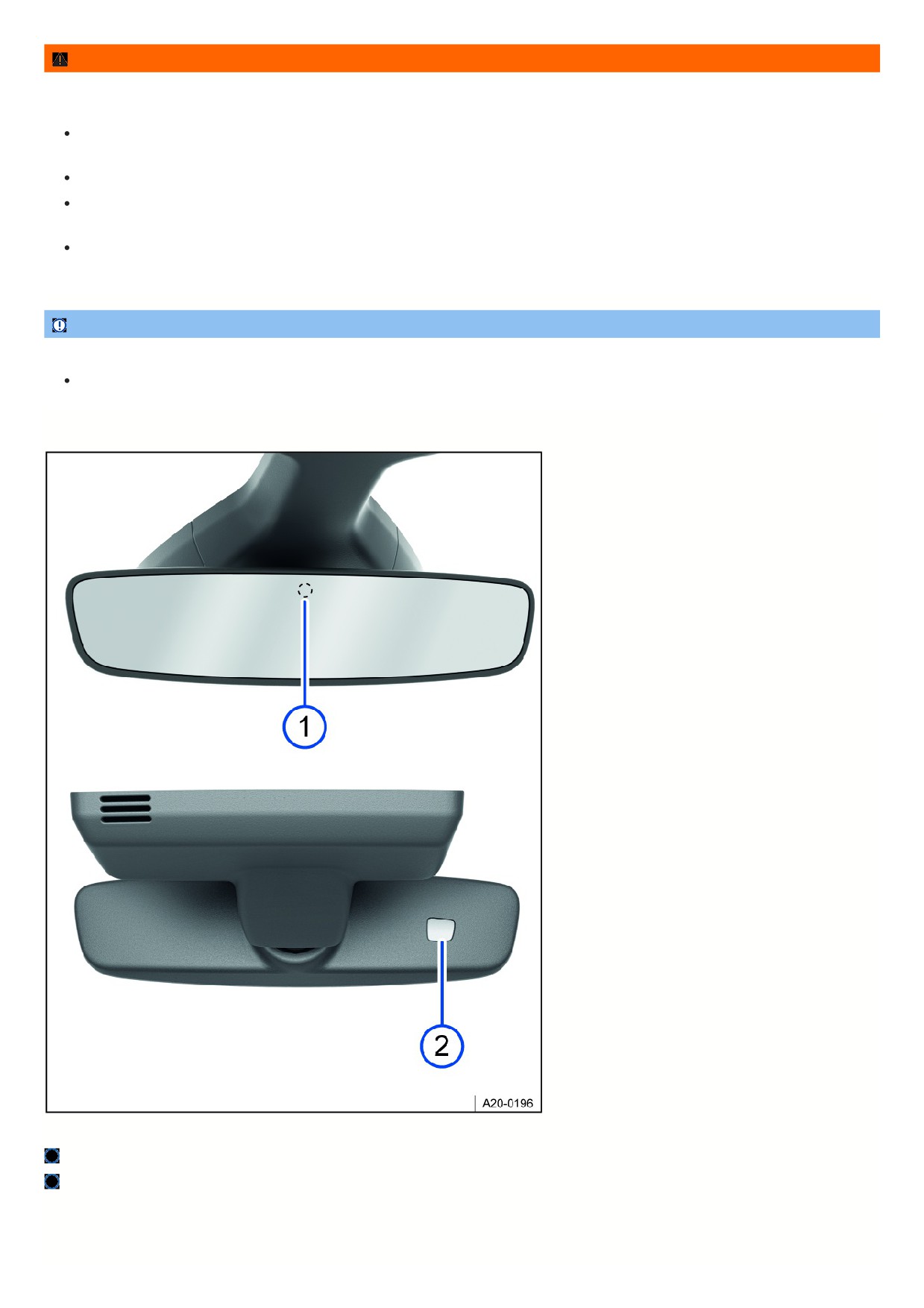

Fig. 84 On the windshield: automatic dimming interior rearview mirror.
Sensor for light entering from the rear.
Sensor for light entering from the front.
113

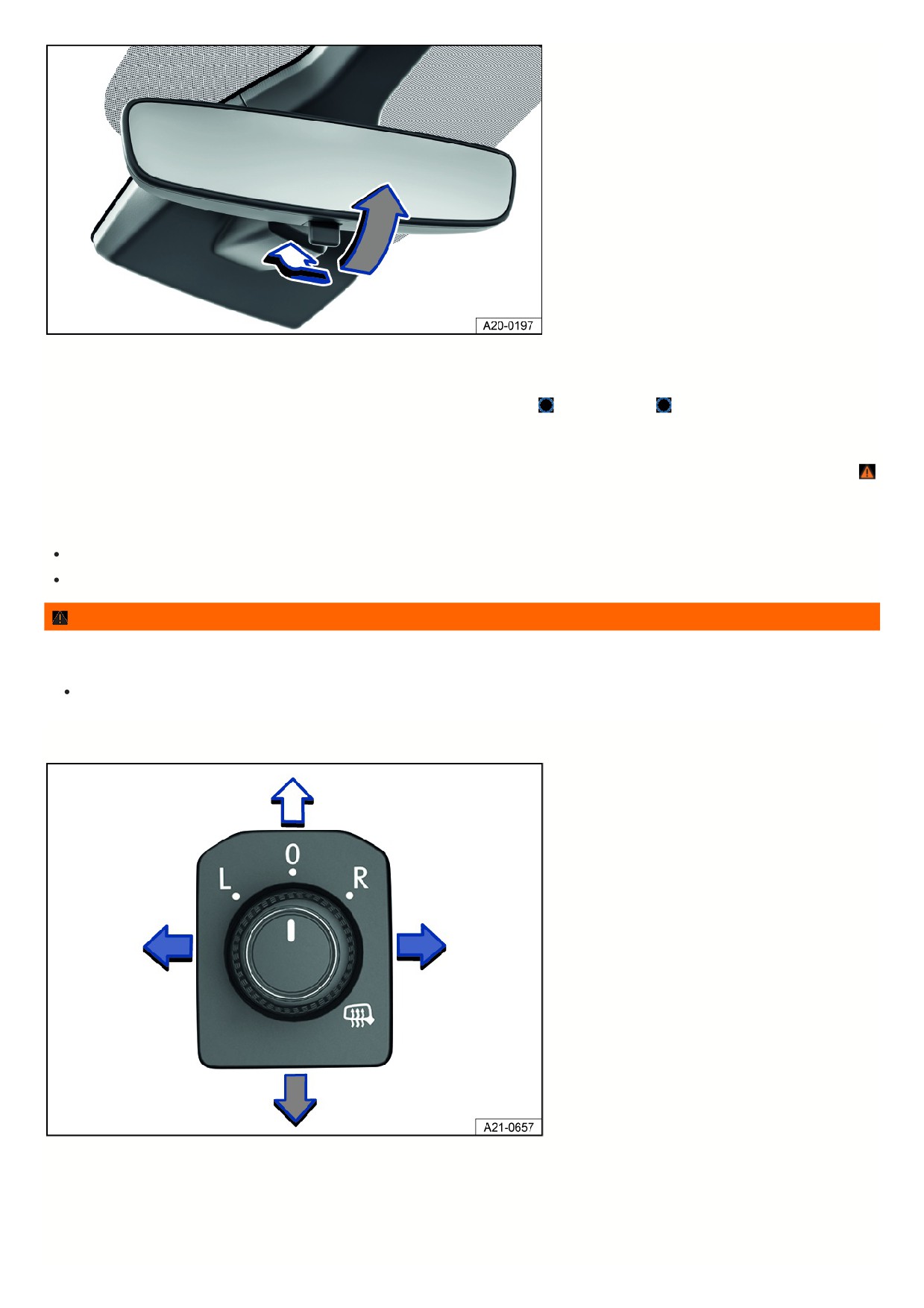

Fig. 85 On the windshield: manual dimming interior rearview mirror.
Automatic dimming interior rearview mirror
When the ignition is on, the sensors measure the amount of light entering from the rear fig. 84
and from the front
Depending on the measured values, the interior rearview mirror will dim automatically.
If the amount of light entering the sensors is limited or interrupted, for example by a sunshade or attachment, the automatic dimming interior rearview mirror may no
function or may malfunction. Mobile navigation devices on the windshield or near the automatic dimming interior rearview mirror can also affect the sensors
Automatic dimming will be deactivated in some situations, for example when reverse gear is engaged.
Manual dimming interior rearview mirror
Base position: lever on the lower edge of the mirror points forward toward the windshield.
To dim, pull the lever back fig. 85.
WARNING
The illuminated display of a mobile navigation system may interfere with the automatic dimming interior rearview mirror. This may stop you from using the
interior rearview mirror to accurately determine the distance from vehicles or other objects behind you. Accidents and serious or fatal injuries could result.
Switch the mobile navigation system off in such cases.
Outside mirrors
Fig. 86 In the driver door: knob for the outside mirrors.
Adjusting outside mirrors
1. Switch the ignition on.
2. Turn the knob in the driver door to the preferred symbol fig. 86.
3. To adjust the outside mirror, push the knob forward, back, right or left in the direction of the arrow.
114
Switch on the outside mirror heating. The exterior mirror heating only works when the ambient temperature is below approx. 20 °C (around 68 °F) and
provides the most heat when it first turns on. After about two minutes, the mirrors will be heated depending on the ambient temperature.
Adjusts the left outside mirror.
Adjusts the right outside mirror.
Neutral position. The outside mirror cannot be adjusted and all functions are switched off.
Activating outside mirror functions
The following outside mirror functions must be activated in the vehicle settings in the Infotainment system before they are used for the first time
Vehicle settings
menu.
Synchronized mirror adjustment
Depending on vehicle equipment, it may be possible to adjust both outside mirrors at the same time.
1. Turn rotary knob to position
2. Adjusts the left outside mirror. The right outside mirror will be adjusted the same way (synchronized).
3. To correct the adjustment of the right outside mirror, if necessary, turn the knob to the
position and adjust the right outside mirror.
Save the passenger-side outside mirror settings when reversing
1. Unlock the vehicle using the key, to which the setting is allocated.
2. Set the electronic parking brake.
3. Switch the ignition on.
4. Shift the transmission to neutral.
5. Select the reverse gear.
6. Adjust the front passenger outside mirror so that, for example, the edge of the curb can be seen clearly.
7. Shift the transmission to neutral.
8. Switch the ignition off.
The selected mirror position will be stored and assigned to the vehicle key.
Opening the front passenger outside mirror settings for driving in reverse
1. Turn rotary knob for the outside mirrors to the relevant position for adjusting the front passenger outside mirror.
2. With the ignition switched on, select reverse gear.
The front passenger outside mirror will adjust to the stored position.
The front passenger outside mirror will exit the position stored for driving in reverse when you begin driving forward faster than about 15 km/h (about 9 mph) or whe
the knob is turned to any other position.
WARNING
If you fold the outside mirrors against the vehicle or back without taking care, you could get your fingers jammed between the outside mirror and the mirror
base. This can cause severe injuries.
Do not fold the outside mirrors out or in if there are any obstacles in the path.
NOTICE
If outside mirrors are not folded in when driving through a car wash, they can get damaged.
Always fold in the outside mirrors.
NOTICE
Folding in the power exterior mirror manually can worsen wear and tear or damage the mirror motor.
Do not fold power exterior mirrors in or out by hand.
Leave the outside mirror heating on only as long as it is needed. Otherwise fuel will be used unnecessarily.
If there is a malfunction in the power outside mirror, you can adjust the position of the mirror manually by hand by pushing on the edge of the mirror surface.
115
Sunshade
Sun visors

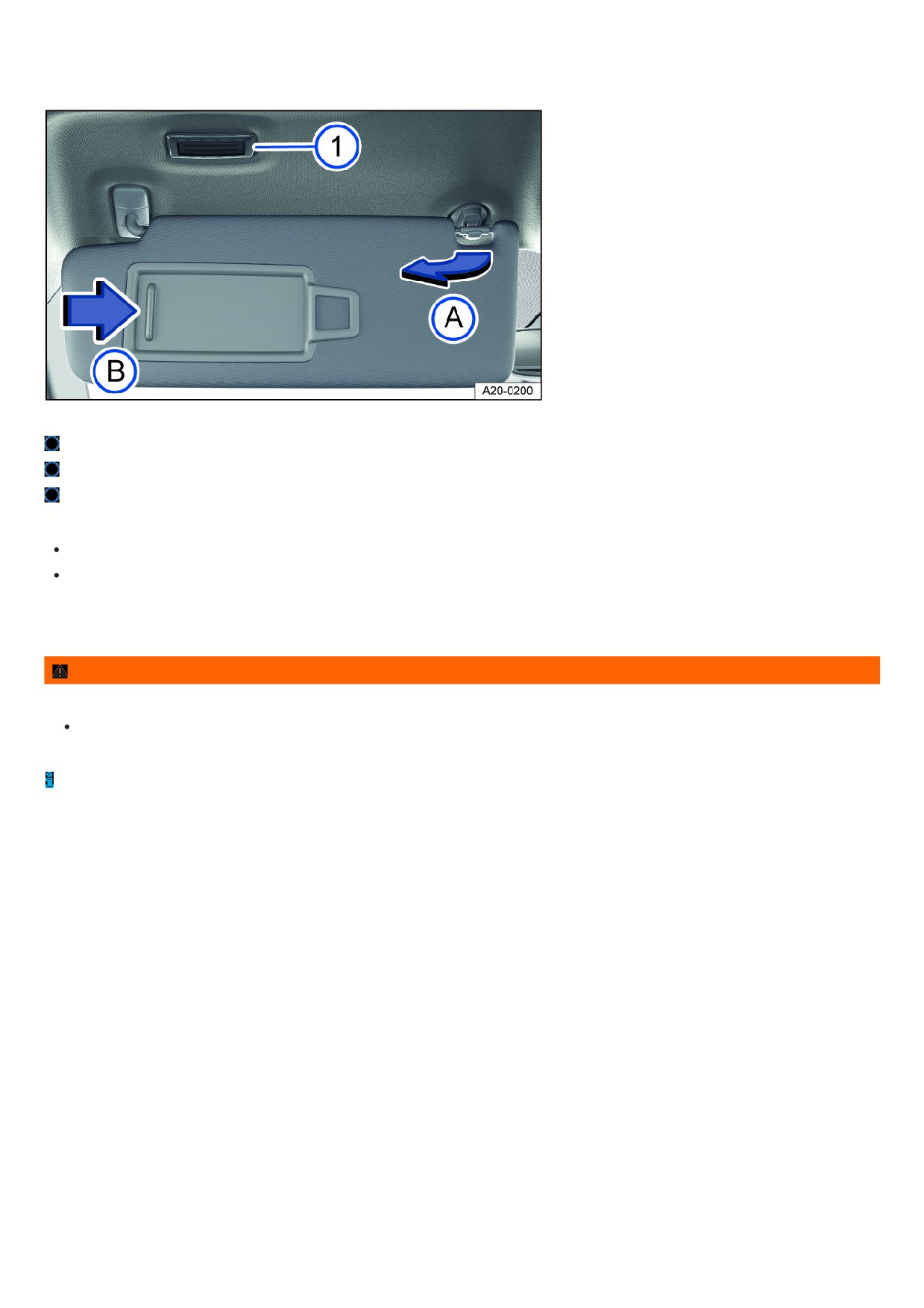

Fig. 87 In the front of the headliner: sun visor.
Light.
Remove from holder.
Slide cover open.
Adjustment options for the driver and front passenger sun visors:
Fold toward the windshield.
Remove from the holder and tilt toward the door fig. 87.
Illuminated vanity mirror
When the sun visor is folded down, there is a vanity mirror located behind a cover. The lights fig. 87 turn on when the cover fig. 87 slides open.
WARNING
Visibility may be reduced when sun visors are folded down and the sunshades are extended. This can cause accidents and serious or fatal injuries.
Always guide sun visors and sunshades back into their holders when they are no longer needed.
Under certain conditions, the light above the sun visor will turn off automatically after several minutes. This reduces the risk of the 12 V vehicle battery being
drained.
116
Heating and air conditioning system
Climatronic
Overview of the Climatronic
Climatronic is an automatic air conditioning system which warms, cools and dehumidifies the air. In automatic mode, Climatronic can automatically control the air
temperature, air distribution and the volume of air.
The air conditioner is most effective when the vehicle interior is kept closed. If there is a build-up of heat inside the vehicle, ventilation can help to speed up the
cooling process.
Certain functions of the air conditioner depend on the vehicle equipment.

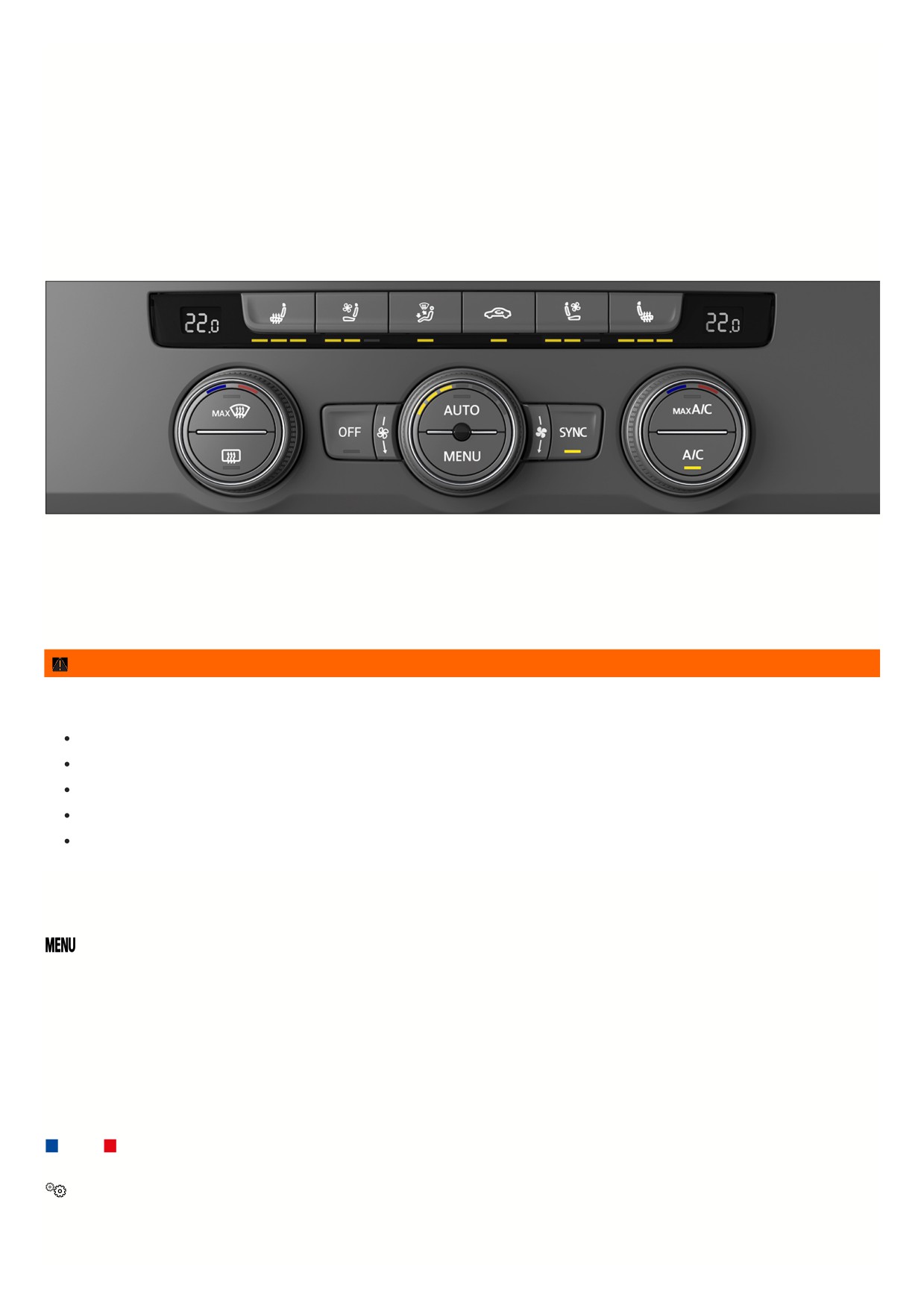

Fig. 88 In the upper section of the center console: Climate control bar for the Climatronic system.
Display of activated functions
Illuminated LEDs on the climate control bar indicate that the function is activated.
In the Air conditioner menu in the Infotainment system, function keys highlighted in color indicate that a function is switched on
Air conditioner menu in the
Infotainment system.
WARNING
Icy, snow-covered or foggy door windows restrict visibility very severely. This increases the risk of collisions and accidents, which may result in serious or fatal
injuries.
Keep all windows free of ice, snow and fog.
Adjust the heating, air conditioner, and rear window defroster to a setting where the windows do not fog up
Troubleshooting.
Only start driving when all windows are clear.
Only use recirculation mode for a short time. Otherwise, the windows could fog up very quickly and greatly reduce visibility.
Always switch off recirculation mode as soon as it is not necessary.
Air conditioner menu in the Infotainment system
On the climate control bar
Open the Air conditioner menu in the Infotainment system.
The Air conditioner menu in the Infotainment system is only available via the Climatronic. Certain functions depend on the vehicle equipment.
In the Air conditioner menu, you can find, for example, the functions for temperature regulation
Temperature regulation and air distribution Air distribution and
blower speed.
The top of the screen shows the current climate control settings, such as the air conditioner profile for automatic mode.
The lower section of the screen shows function keys for frequently used air conditioning functions.
Operating status of the air conditioner
The operating status of the air conditioning system is represented by colors:
Cooling. Heating.
Climate control settings submenu
Open the Climate control settings submenu.
Depending on the vehicle equipment, you can find additional comfort functions in the Climate control settings submenu:
Switching the Climatronic on and off
In the air conditioner menu or on the climate control bar
117
In the air conditioner menu or on the climate control bar
Switch off the Climatronic.
Adjust the blower speed.
1. To switch on Climatronic, turn the center knob clockwise.
2. To switch off the Climatronic, turn the center knob all the way counterclockwise.
Automatic mode of the Climatronic
In the air conditioner menu or on the climate control bar
The set air temperature is maintained constant. The air volume and air distribution are automatically controlled. Automatic mode switches off when the
blower speed is changed manually.
Selecting the air conditioner profile
The blower power in automatic mode can be controlled via the air conditioning profiles.
1. Open the Air conditioner menu in the Infotainment system.
2. Tap
3. To select an air conditioner profile, tap
at the top of the screen.
4. Select your preferred air conditioner profile in the pop-up window.
Manual air conditioning
Overview of the manual air conditioner
The manual climate control system warms, cools, and removes humidity from the air.
The air conditioner is most effective when the vehicle interior is kept closed. If there is a build-up of heat inside the vehicle, ventilation can help to speed up the
cooling process.
Certain functions of the air conditioner depend on the vehicle equipment.

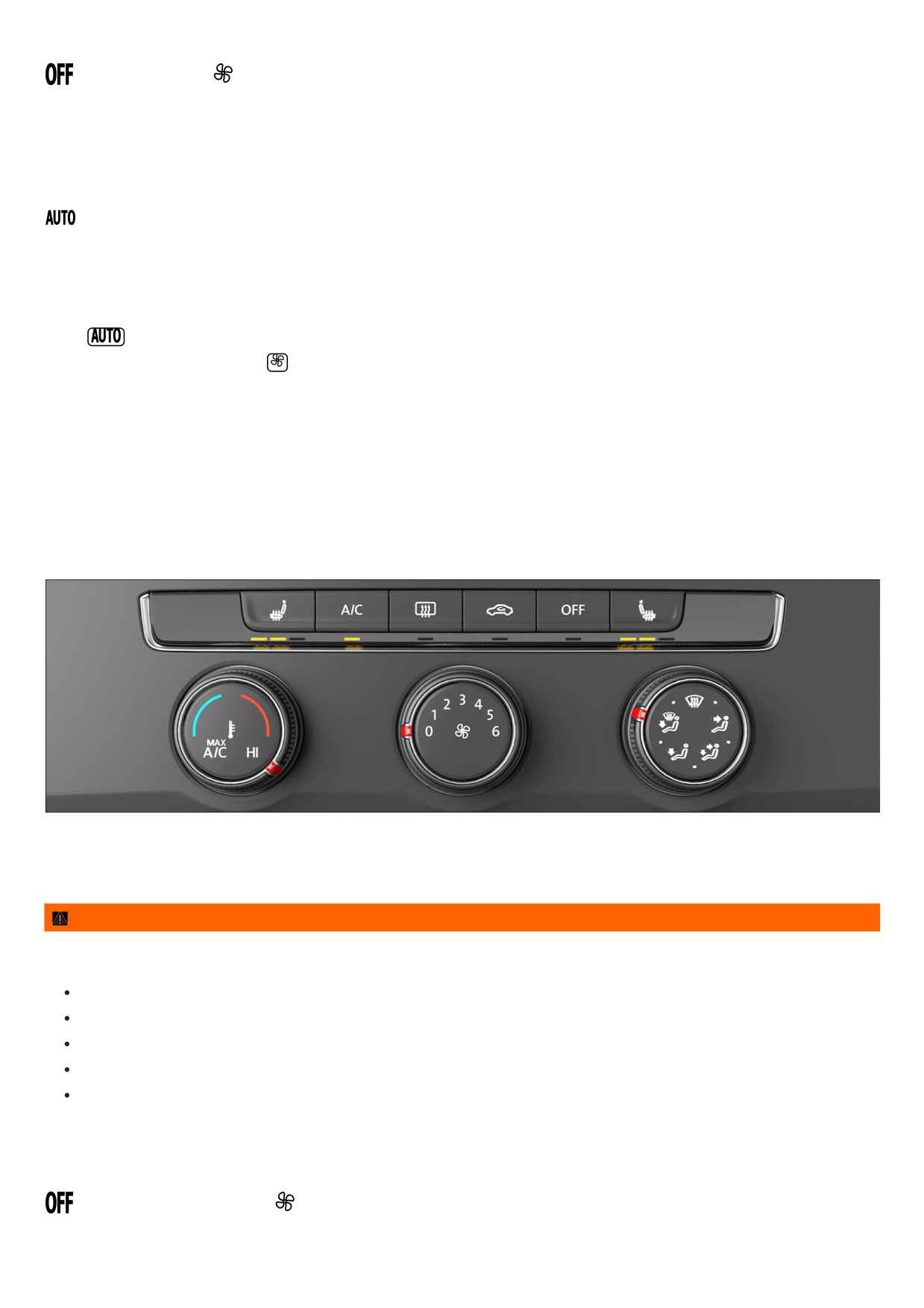

Fig. 89 In the upper section of the center console: Climate control bar for the manual climate control system.
Display of activated functions
Illuminated LEDs on the climate control bar indicate that the function is activated.
WARNING
Icy, snow-covered or foggy door windows restrict visibility very severely. This increases the risk of collisions and accidents, which may result in serious or fatal
injuries.
Keep all windows free of ice, snow and fog.
Adjust the heating, air conditioner, and rear window defroster to a setting where the windows do not fog up
Troubleshooting.
Only start driving when all windows are clear.
Only use recirculation mode for a short time. Otherwise, the windows could fog up very quickly and greatly reduce visibility.
Always switch off recirculation mode as soon as it is not necessary.
Switching the manual air conditioner on and off
On the climate control bar
Switch off the air conditioning system.
Adjust the blower speed.
1. To switch on the manual air conditioner, turn the center knob clockwise.
2. To switch off the manual air conditioner, turn the center knob all the way counterclockwise.
118
Temperature regulation
In the air conditioner menu or on the climate control bar
Adjust the temperature.
The air is cooled and dehumidified in cooling mode.
Apply temperature settings for the driver side to all seats.
Switch the maximum cooling output on and off.
Air recirculation is switched on automatically and Climatronic automatically directs air to the upper body.
Setting the temperature on the Climatronic climate control bar
1. Turn the left or right knob to
or
The Climatronic displays the set temperatures.
Setting the temperature on the manual air conditioning climate control bar
1. Turn the left knob to
or
Maximum cooling output and heating output
1. Turn the left knob as far as it goes to
or
Or: to switch on the maximum cooling output of the Climatronic, press
on the climate control bar or tap in the Air conditioner menu.
Air distribution and blower speed
Vents
Vents are located in the following places in the vehicle:
Driver’s side.
Passenger's side.
Front center console.
Rear center console.
NOTICE
Food, medication, and objects that are sensitive to heat or cold can become damaged or unusable from the air coming out of the vents.
Do not place any food, medication, or other objects that are sensitive to temperature in front of the vents.
Air distribution functions in the Air conditioner menu on the climate control bar
Adjust the blower speed.
Direct air to the upper body.
Direct air into the footwell.
Direct air to the upper body and into the footwell.
Direct
air onto the windshield and into the footwell.
Direct air onto the windshield.
Defrost function
The Climatronic defrost function clears fog and ice from the windshield.
The air is dehumidified and the blower is set to a higher speed.
The air conditioning system's defrost function clears the windshield of fog and ice.
The air must be dehumidified when the defrost function is switched on. Therefore when the defrost function is switched on, you cannot switch air recirculation on or
cooling mode off.
Air recirculation
No fresh air will enter the vehicle interior when recirculation mode is switched on.
Switch air recirculation on and off in the Air conditioner menu or climate control bar.
1. Press
on the climate control bar.
When does recirculation mode switch off?
Recirculation mode will switch off in the following situations
:
If the defrost function is switched on.
If a sensor detects that the windows could fog up.
WARNING
A lack of fresh air supply may result in reduced visibility due to fogged up windows and rapid driver fatigue due to stale air. This can result in collisions,
accidents and serious or fatal injuries.
Only use recirculation mode for a short time.
Always switch off recirculation mode as soon as it is not necessary.
119
NOTICE
Tobacco smoke can settle on the refrigerant system evaporator and the active combination filter and cause permanent odors.
To prevent permanent odors, do not smoke in the vehicle when air recirculation is switched on.
Climatronic: When reverse gear is engaged or while the automatic wash and wipe system is on, recirculation mode switches on automatically so that no odors
will enter the vehicle interior.
Manual air conditioning system: At very high outside temperatures, air recirculation helps to briefly cool down the vehicle interior faster.
Seat heating and seat ventilation
The seat heating and seat ventilation function when the engine is running. The front seats and outer rear seats may be heated in three stages
. The front se
may also be ventilated from inside in three stages.
The seat ventilation function ventilates the seat using vehicle interior air. This removes moisture from the body. The seat itself is not cooled directly.
Switch the seat heating on and off in the Air conditioner menu or climate control bar.
Switch the seat ventilation on and off in the Air conditioner menu or
climate control bar.
Heating and ventilation levels
The seat heating and seat ventilation are represented by colors. At the highest heating or ventilation level, all three LEDs light up.
Using the seat heating function
1. In order to switch on the seat heating at the highest heating level, press the
or
button in the climate control bar.
2. To set the heating level, press the
button or the
button repeatedly.
3. To turn off the seat heating, press the
or
button repeatedly until the LED turns off.
Using the seat ventilation function
1. In order to switch on the seat ventilation at the highest ventilation level, press the
or
button in the climate control bar.
2. To set the ventilation level, press the
or
button repeatedly.
3. To turn off the seat ventilation, press the
or
button repeatedly until the LED turns off.
The seat heating and seat ventilation switch on and off automatically
If you switch off the ignition, the seat heating and seat ventilation are also switched off. If you switch on the ignition again within ten minutes, the last heating level o
ventilation level selected for the driver seat is also automatically activated.
When should the seat heating and seat ventilation be switched off?
Switch off the seat heating and seat ventilation under any of the following conditions:
The seat is occupied by a person with a limited perception of pain or temperature
The seat is not occupied
A child restraint is installed on the seat
Objects are covering the seat, e.g. protective covers, jackets, blankets or bags.
The seat is damp or wet.
Seat heating only: The interior or exterior temperature is higher than +25 °C (+77 °F).
WARNING
Magnetic fields are generated when the seat heating is operated. In individual cases, these magnetic fields can affect active medical implants (e.g.
pacemakers).
If you wear an active medical implant, you should consult your doctor or the manufacturer of your implant before operating the seat heating.
Make your vehicle occupants aware of this as well.
WARNING
People who cannot perceive pain or temperature or who have a limited perception of these due to medication, paralysis, or chronic illnesses such as diabetes
could develop burns or undercooling on the back, buttocks, and legs when using seat heating or seat ventilation. Such injuries could take a very long time to heal
or may never heal completely.
If you have a limited perception of pain and/or temperature, never use the seat heating and seat ventilation.
12
Contact a medical doctor for questions about personal health conditions.
WARNING
If the seat cover is soaked through, this can cause the seat heating to malfunction and increase the risk of burns.
Make sure the seat surface is dry before using the seat heating function.
Never sit on the seat while wearing damp or wet clothing.
Do not place any damp or wet objects and clothing on the seat.
Do not pour any fluids on the seat.
NOTICE
The heating elements of the seat heating may be damaged by loads concentrated in a single place and insulating materials.
Do not kneel on the seats and do not exert pressure on the seat cushion and backrest with sharp or pointed objects.
Do not exert pressure on the seat cushion and backrest with pointed objects.
Switch the seat heating off if insulating materials are installed on the seat, e.g. a protective cover or a child restraint.
Only use the seat heating if the seat is equipped with the original seat covers.
If any odor starts to develop, turn off the seat heating immediately and have it checked by suitably qualified professionals. Volkswagen recommends
contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
In order to save fuel, switch off the seat heating and seat ventilation as soon as possible.
Steering wheel heating
The steering wheel heating only works when the engine is running.
Switch steering wheel heating on and off via the multi-function steering wheel.
Heating levels for the steering wheel heating
When you switch on the steering wheel heating, the current heating level is constantly displayed in the instrument cluster as a bar display. At the highest heating
level, all three bars are filled.
Operating steering wheel heating
1. To switch on steering wheel heating at the highest heating level, press the
button.
2. To adjust the heating level, press the
button repeatedly.
3. To switch off steering wheel heating, press the
button repeatedly until the bar display in the instrument cluster display turns off.
Steering wheel heating switches on automatically
If you start the engine again within approximately ten minutes, the last heating level set is automatically switched on.
Saving the heating level
1. Switch on the steering wheel heating and set the desired heating level.
2. To save the current heating level, press and hold the
button for approximately one second.
The heating level is saved and the steering wheel heating is switched off.
3. To switch the steering wheel heating back on at the most recently saved heating level, press and hold the
button for approximately one second.
Steering wheel heating switches off automatically
If one of the following conditions applies, the steering wheel heating switches off automatically:
If the energy use is too high.
If the steering wheel heating system is malfunctioning.
Rear window defroster
The rear window defroster only works when the engine is running.
Switch the rear window defroster on and off in the Air conditioner menu or climate control bar.
The rear window defroster switches off automatically after a maximum of around ten minutes.
121
NOTICE
Stickers attached to the inside of the rear window above the heating filaments of the rear window defroster could cause damage to the rear window defroster.
Do not attach any stickers above the heating filaments of the rear window defroster.
In order to save fuel, switch off the rear window defroster as soon as possible.
Troubleshooting
The cooling mode
or heating cannot be switched on or the function is limited
The
cooling mode only works when the engine is running and at ambient temperatures above +3 °C (+38 °F).
If the engine is very hot or if the outside temperature is extremely high, the function of the cooling mode
, the heating and the defrost may be restricted.
Switch on the fan.
Check the safeguard on the air conditioning system Replacing fuses.
Change active combination filters Service.
If the malfunction persists, contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized
Volkswagen Service Facility.
NOTICE
If the air conditioner is not working and is operated further, that can cause subsequent damage.
If the air conditioner is not cooling or warming the air, switch it off immediately.
Have the air conditioner checked by suitably qualified professionals. Volkswagen recommends contacting an authorized Volkswagen dealer or
authorized Volkswagen Service Facility.
The windows are fogged up
The windows fog up when they are colder than the ambient temperature and the air is very humid. Cold air does not absorb as much moisture as warm air which is
why windows fog up more frequently during cold seasons.
1. To improve the heating and cooling output, keep the air intake in front of the windshield free of ice, snow, and leaves
Vehicle care.
2. Leave the air duct in the rear section of the luggage compartment uncovered so that air can flow through the vehicle from front to back.
3. Switch on the defrost function Defrost function.
The temperature unit has changed
You can change the temperature units for all temperature displays in the vehicle using the Infotainment system.
1. Open the Settings menu.
2. Select the Units menu item.
Water or water vapor under the vehicle
In the case of high outside humidity and temperatures, condensation can drip from the air conditioning system evaporator and pool under the vehicle. This is norma
and does not mean there is a leak in the system.
122

















Content      ..     1      2      3      4      ..
