Volkswagen Jetta (2023 year). Manual in english - page 1





About this Owner's Manual
This Owner's Manual is valid for all models and versions of your Volkswagen model and model year. The Owner's Manual describes all equipment and models
without indicating special equipment or model versions. This may include descriptions of equipment that your vehicle may not have or that may only be available in
some countries.
You can find details of your actual vehicle equipment in your sales documentation or by contacting an authorized Volkswagen dealer or authorized Volkswagen
Service Facility. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
This Owner's Manual describes a passenger vehicle.
All information in this Owner's Manual was correct at the time of printing. Due to continuous vehicle development, there may be differences between your vehicle
and the information in this Owner's Manual. No legal commitment can be derived from the information, illustrations, or descriptions in this manual.
Due to legal and technical requirements, the vehicle may be provided with different Owner's Manual variants depending on the country.
Printed Owner's Manual
The printed Owner's Manual describes the range of functions of the vehicle at the time of release. Additions and amendments to the Owner's Manual may also be
added in the form of supplements.
An alphabetically ordered keyword index as well as a list of abbreviations that explains technical abbreviations and designations are included to assist with
orientation and understanding of the printed manual.
Make sure that the printed documents are in the vehicle if you wish to sell or lend the car. Volkswagen also recommends resetting the Infotainment system to its
factory settings in order to delete all personal data.
4
Explanations
Brief definitions are placed in front of some sections in a different color to summarize the topic in question. Detailed information about the systems and equipment
along with their properties, conditions, and system limitations is included in the associated sections.
The following section explains phrasings and terms found in the Owner's Manual to help understanding.
Directions
Directions (left, right, front, back) are in reference to the driving direction unless noted otherwise.
Units and speeds
The display in miles instead of kilometers or mph instead of km/h is determined by the versions of the instrument cluster and Infotainment system that are installed,
which varies depending on the country where the vehicle is sold.
Illustrations
Illustrations are only for orientation and are simply used to provide a visual display of descriptions and instructions. The illustrations may differ from your vehicle.
This Owner's Manual was created for left-hand drive vehicles. For vehicles with right-hand drive steering , controls are sometimes arranged differently from what is
shown in the illustrations or described in the text.
Form of address
To improve readability, plural pronouns are used here to refer to a singular subject of any gender. This applies to all genders equally. The use of abbreviations are
for editorial purposes and do not contain any evaluation.
Terms used and their meanings:
Sunroof
The term "power sunroof" is used as a synonym for all variants of the tilting and sliding panoramic sunroof depending on the vehicle equipment.
Authorized Volkswagen dealer or authorized Volkswagen Service Facility
Authorized Volkswagen dealer or authorized Volkswagen Service Facility refers to
workshops with instructed or trained personnel that specialize in servicing passenger vehicles. A qualified professional can be an authorized
Volkswagen dealer or authorized Volkswagen Service Facility or an independent workshop.
Authorized Volkswagen dealer or authorized Volkswagen Service Facility
Authorized Volkswagen dealer or authorized Volkswagen Service Facility refers to
workshops that have a contractual relationship with Volkswagen. This contractual relationship means that they have access to more information as well
as a direct line of communication to the manufacturer.
Contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility
In some situations, it is necessary for you to drive your vehicle to an
authorized Volkswagen dealer or authorized Volkswagen Service Facility so that it can be checked.
Contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility for assistance If it is no longer possible to continue driving your
vehicle, it is necessary to have it checked directly where it is by a professional. A decision regarding whether the vehicle can continue to be driven
following inspection or whether it needs to be towed must then be made depending on the circumstances.
5
Explanation of symbols
Indicates a reference to a section within a chapter containing important information and safety warnings
that should always be
heeded.
The arrow indicates the end of a section.
This symbol indicates situations where the vehicle must be stopped as quickly as possible.
The symbol means “Trademark” and indicates a recognized but not (yet) officially registered trademark. However, the absence of this
TM
symbol does not constitute a waiver of any rights associated with intellectual property.
This symbol indicates a registered trademark. However, the absence of this symbol does not constitute a waiver of any rights associated
with intellectual property.
Symbols of this type refer to warnings in the same section or on the specified page, pointing out possible risks that can cause accidents
and personal injuries and how to help prevent them.
Cross-reference to a warning of potential property damage, in the same section or on the specified page.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
NOTICE
NOTICE is used to address practices not related to physical injury, but related to damage to the vehicle.
Texts with this symbol contain information about the environment and how you can help to protect it.
Texts with this symbol contain supplementary information.
6
Vehicle overviews
View from the front

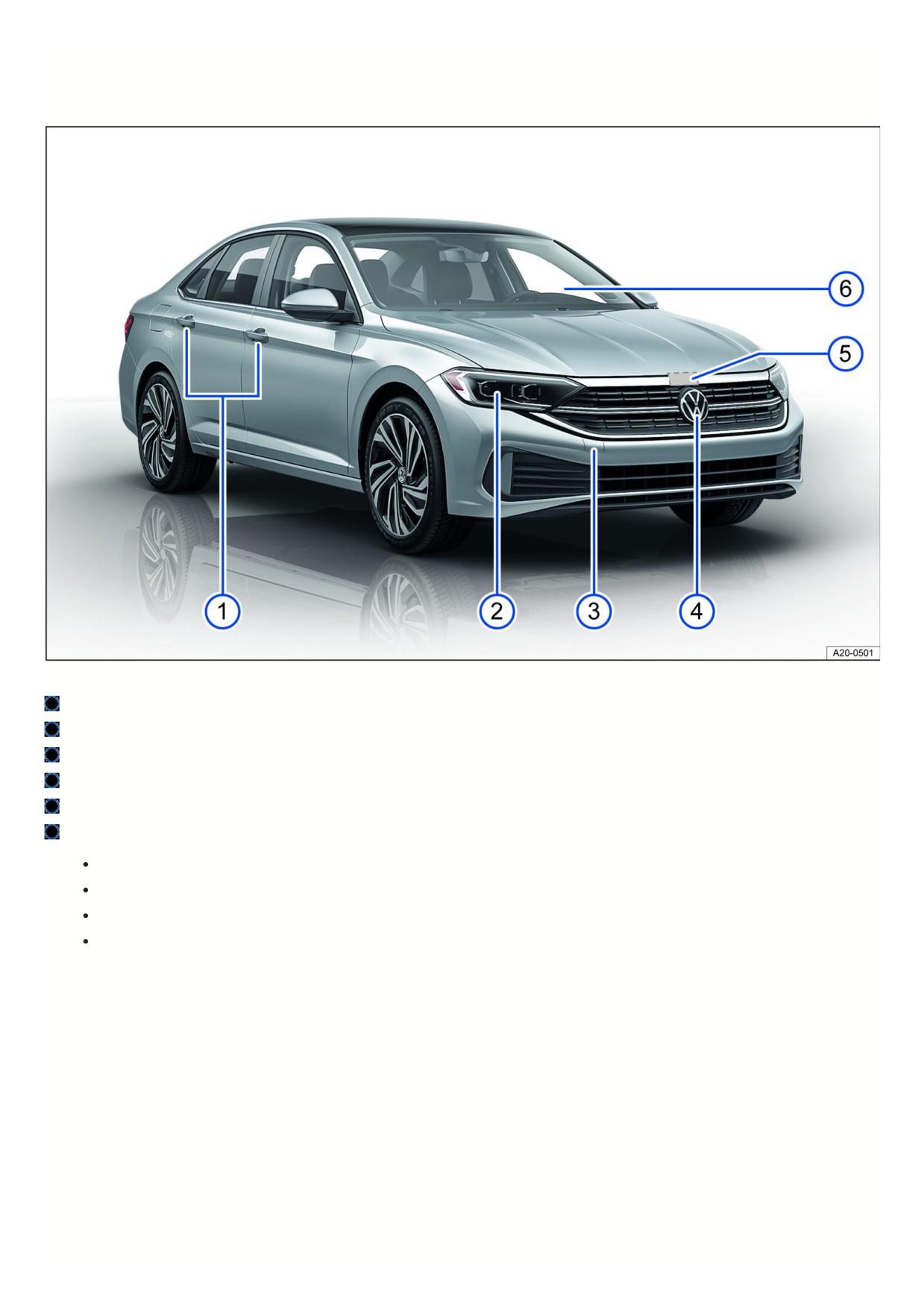

Fig. 2 Overview of vehicle from the front.
Door handles Doors and central locking button
Headlights Exterior lighting
Behind a cover: mount for towing eye Towing
Behind the Volkswagen emblem: radar sensor for assistance systems Exterior care and cleaning
Opening lever for the hood Opening and closing the hood
Windshield
With VIN Technical data
With windshield wipers Operating the windshield wiper lever
With camera for assistance systems in the interior rearview mirror area
Exterior care and cleaning
With rain/light sensor in the interior rearview mirror area
Rain/light sensor, Exterior care and cleaning
Rear view
7

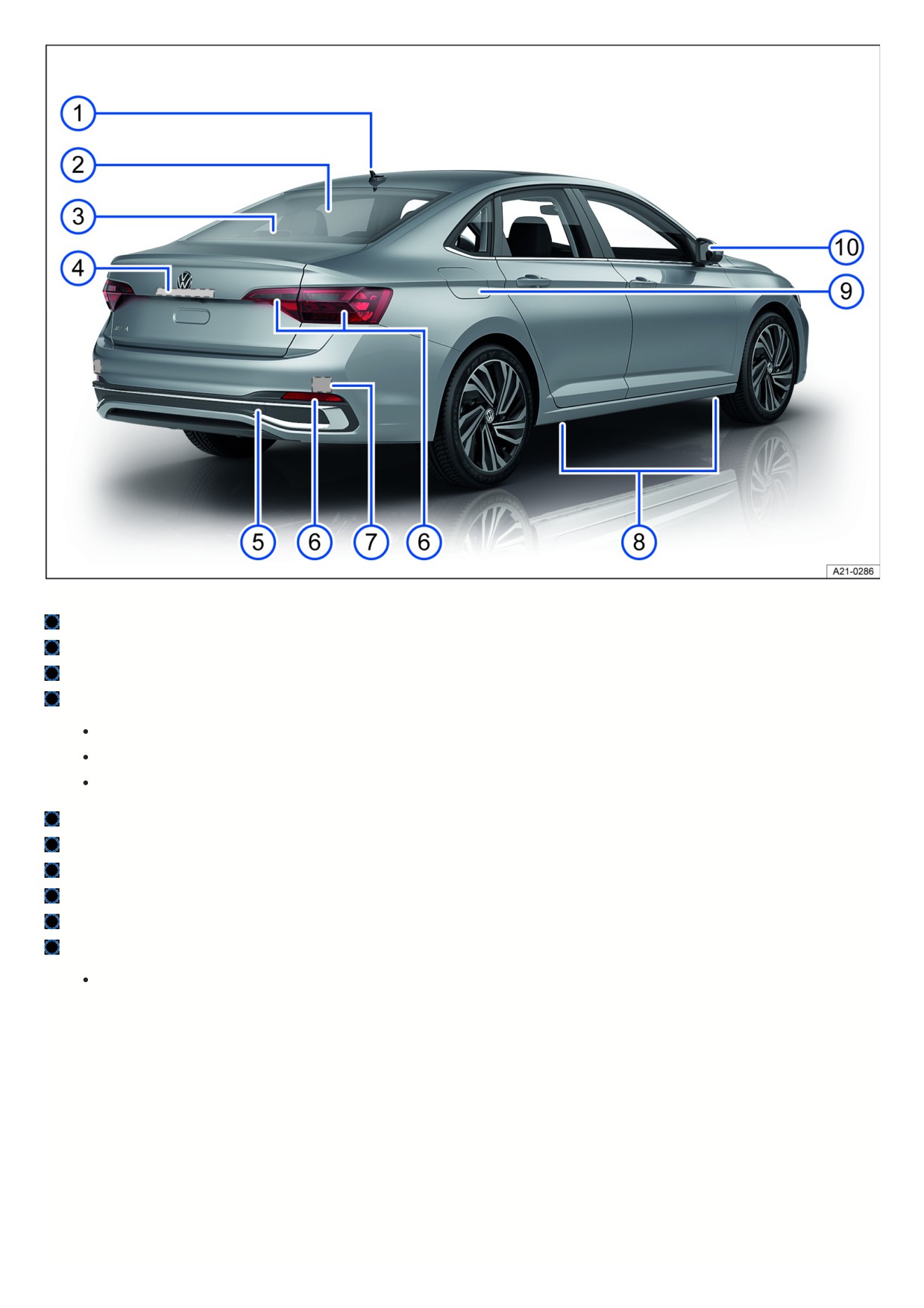

Fig. 3 Rear vehicle overview.
Roof antenna Infotainment system and aerials
Rear window with rear window defroster Rear window defroster
High-mounted brake light
Area
Button to open the trunk lid Trunk lid
Camera for parking systems Rear View Camera, Exterior care and cleaning
License plate light Exterior lighting
Behind a cover: mount for towing eye Towing
Taillights Exterior lighting
Behind the bumper: radar sensor for assistance systems Exterior care and cleaning
Mounting points for the vehicle jack Wheel change
Fuel filler flap Fuel types and refueling
Outside mirrors Outside mirrors
With “Blind Spot” Monitor display “Blind Spot” Monitor
Driver door
8

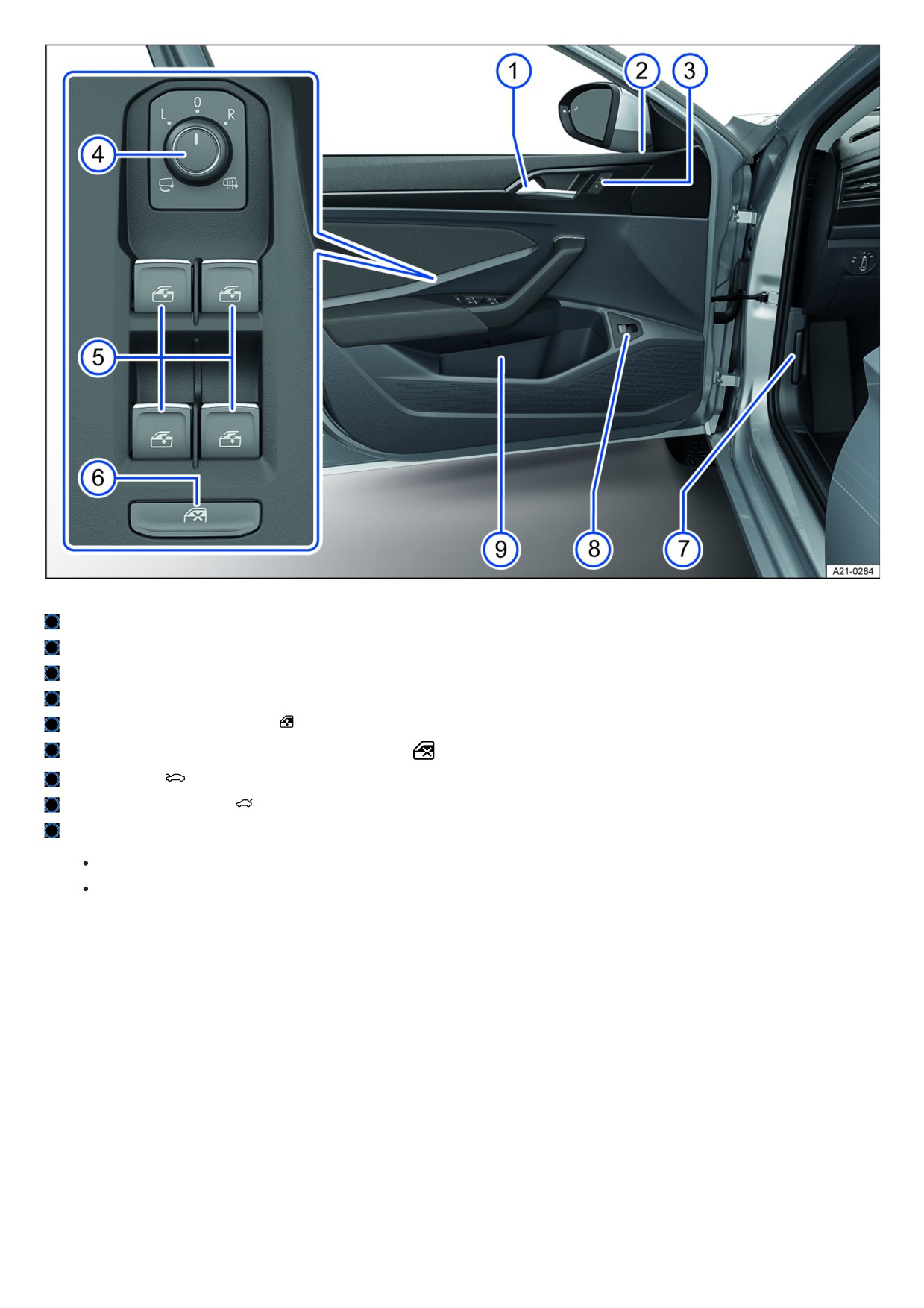

Fig. 4 Driver door: Controls.
Door handle
Central locking indicator light Indicator light in the driver's door
Central locking button to lock and unlock the vehicle Central locking button
Knob for outside mirror positions and functions Outside mirrors
Buttons for operating the power windows
Opening and closing the windows
Button for deactivating the power window buttons in the rear doors
Opening and closing the windows
Hood release lever
Opening and closing the hood
Button for unlocking the trunk lid
Trunk lid
Storage compartment
With cup holder
With storage option for a reflective vest Emergency equipment
Driver side
9

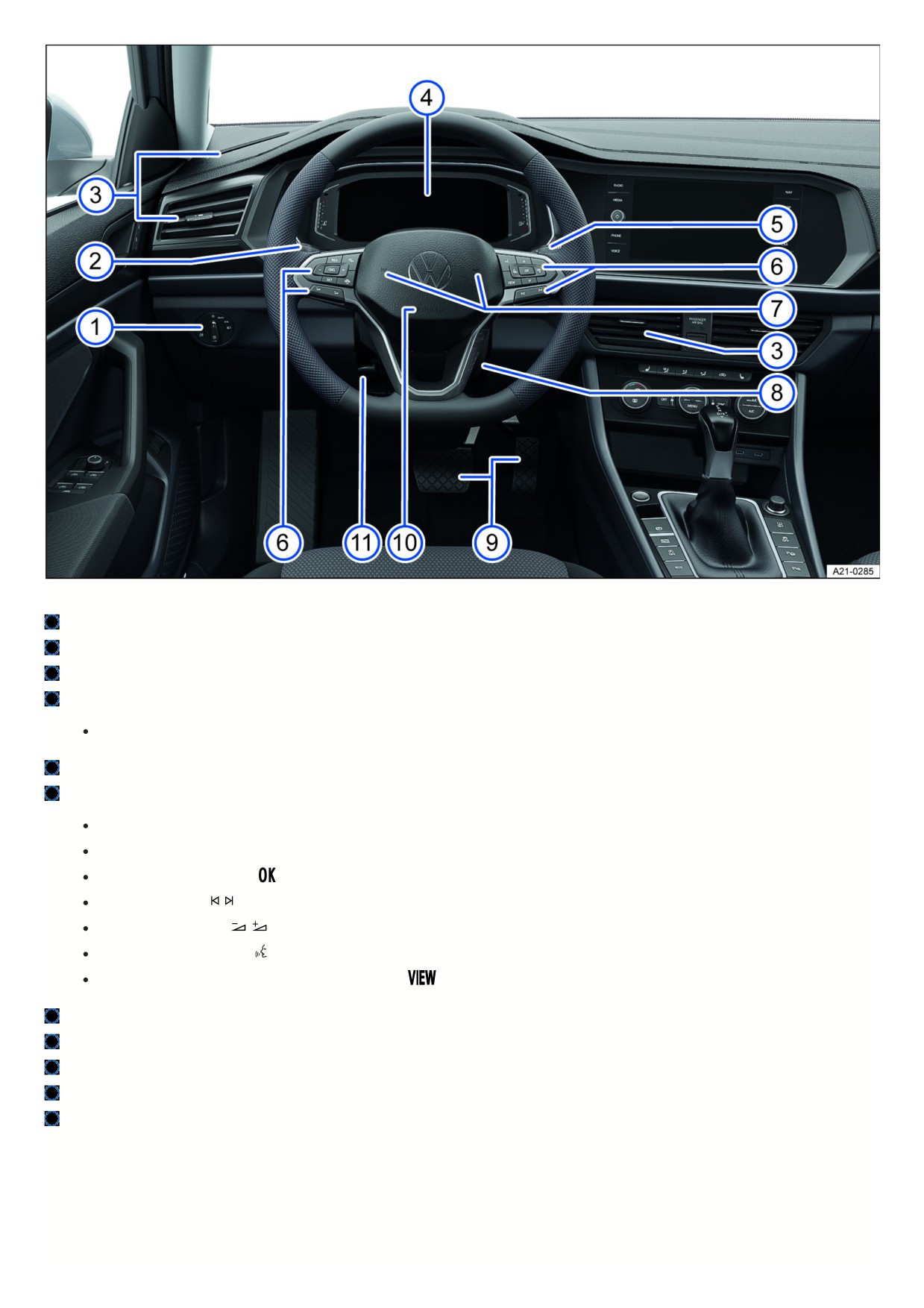

Fig. 5 Driver’s side overview.
Light switch Headlights
Turn signal and high beam lever Switching the turn signals on and off , Switching the high beam headlights on and off
Vents Air distribution and blower speed

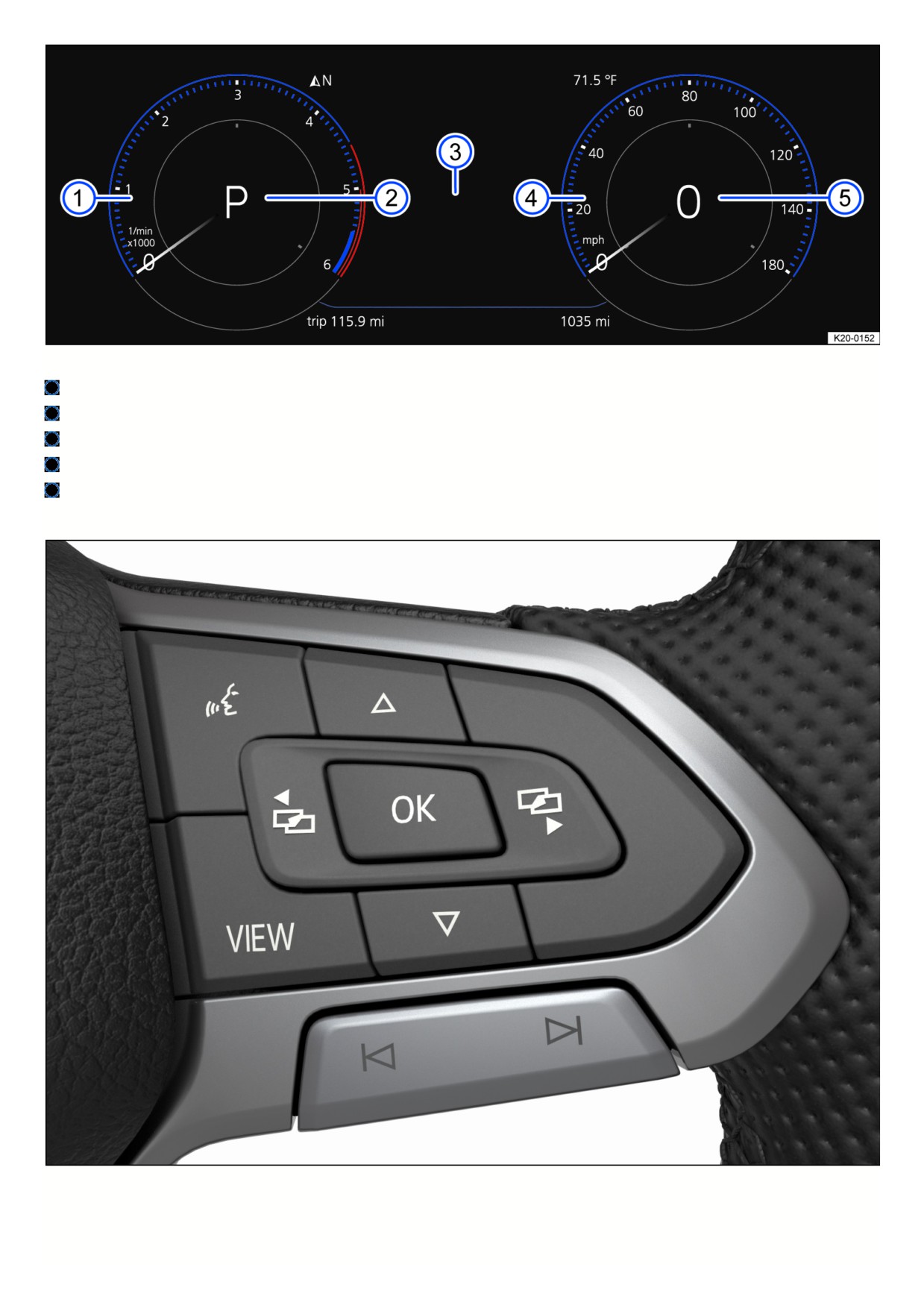

Instrument cluster Overview of the Volkswagen Digital Cockpit Pro
With warning and indicator lights Symbols in the instrument cluster
Windshield wiper/washer lever Window wipers

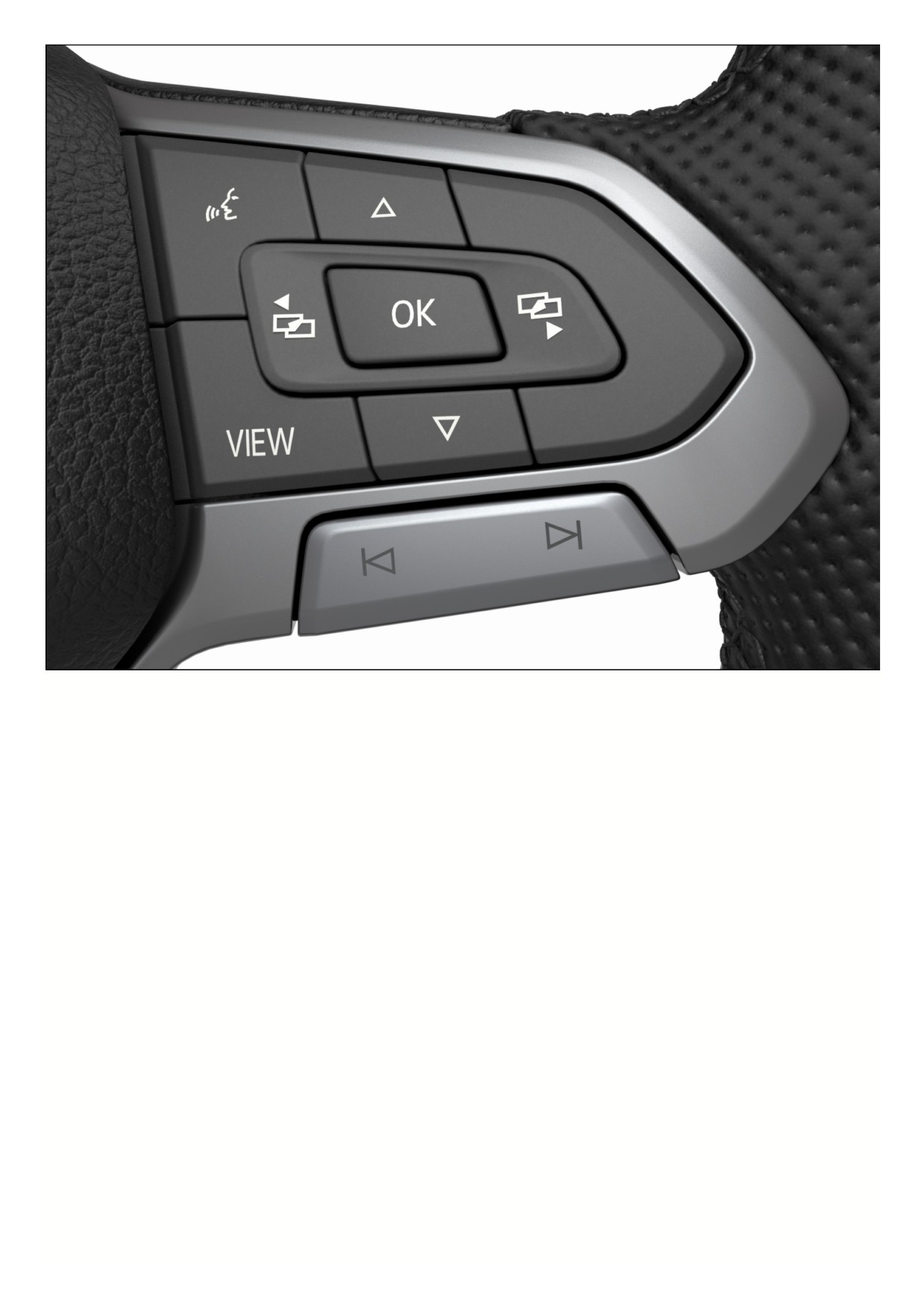

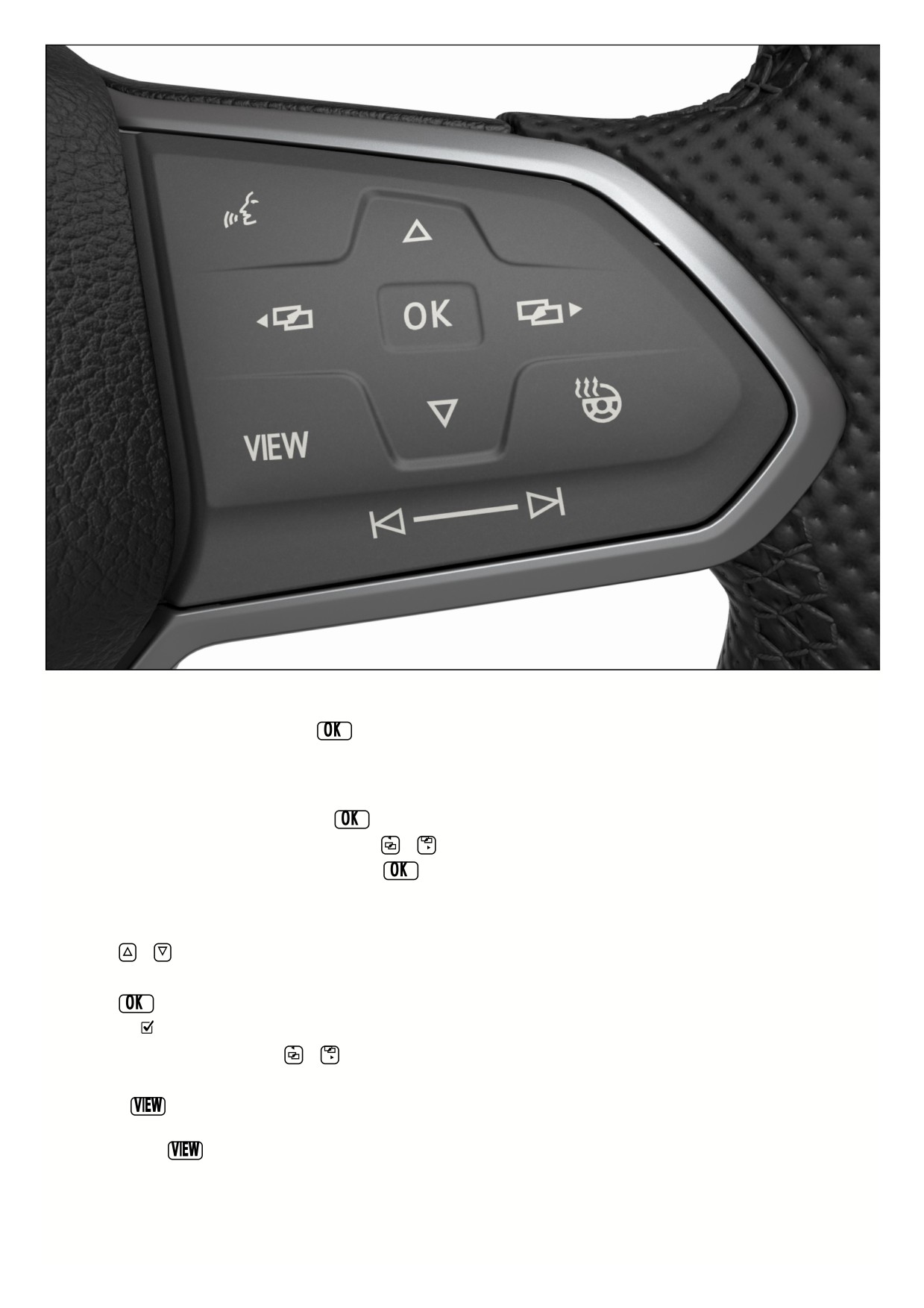

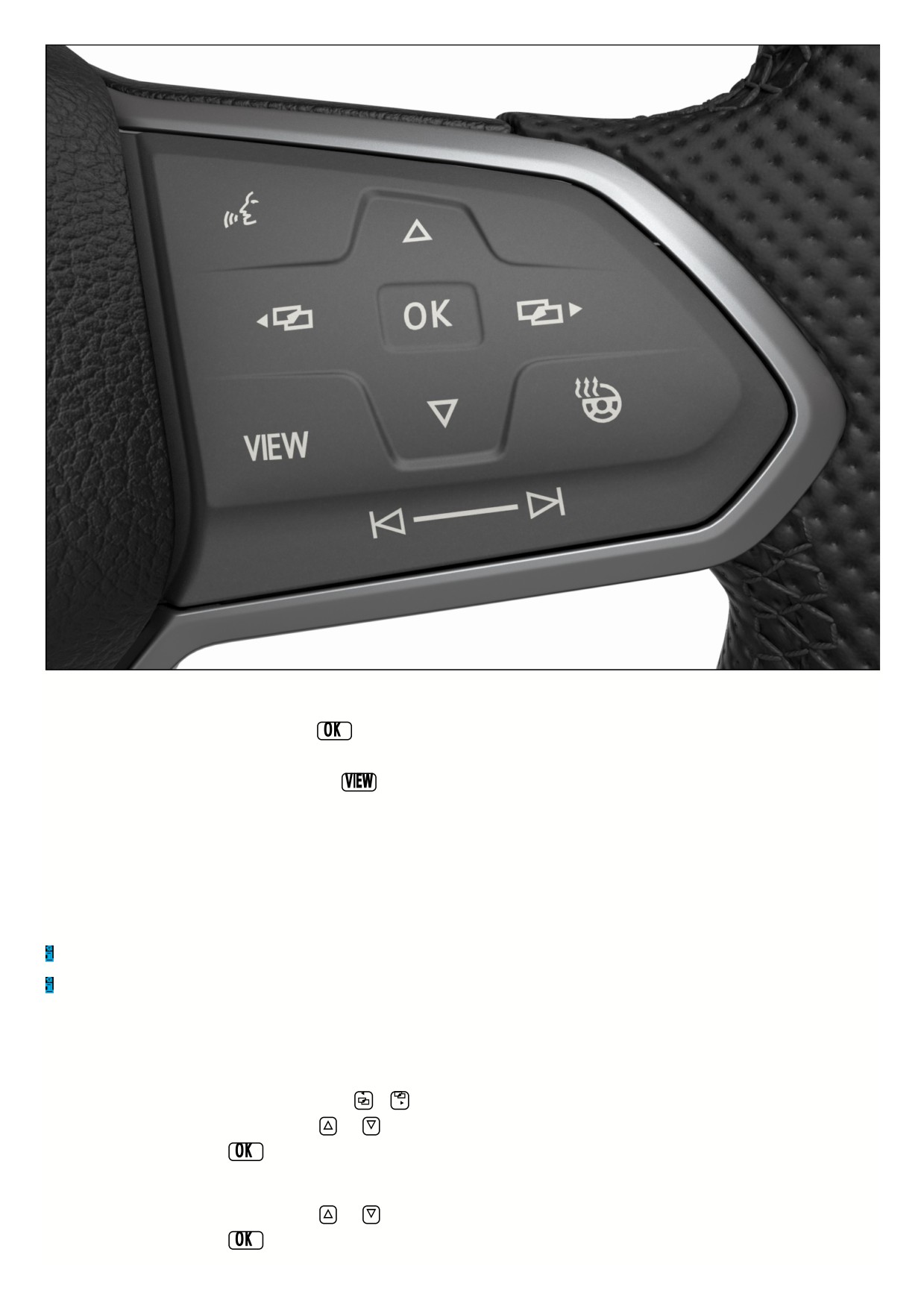

Multi-function steering wheel controls:
For driver assistance systems Driver assistance systems
For menu selection Operating the Volkswagen Digital Cockpit Pro
For accepting telephone calls
Mobile phone interface
For audio, navigation
,
Infotainment system, Navigation
For adjusting the volume
First steps
For voice operation activation
(may not function depending on the equipment) Voice control
In order to switch between the current and previous menus
Operating the Volkswagen Digital Cockpit Pro
Horn
Ignition switch Ignition switch
Pedals Information on the pedals
Installation location of driver’s front airbag Airbag system
Lever for adjusting the steering wheel position Steering wheel
Center console
1

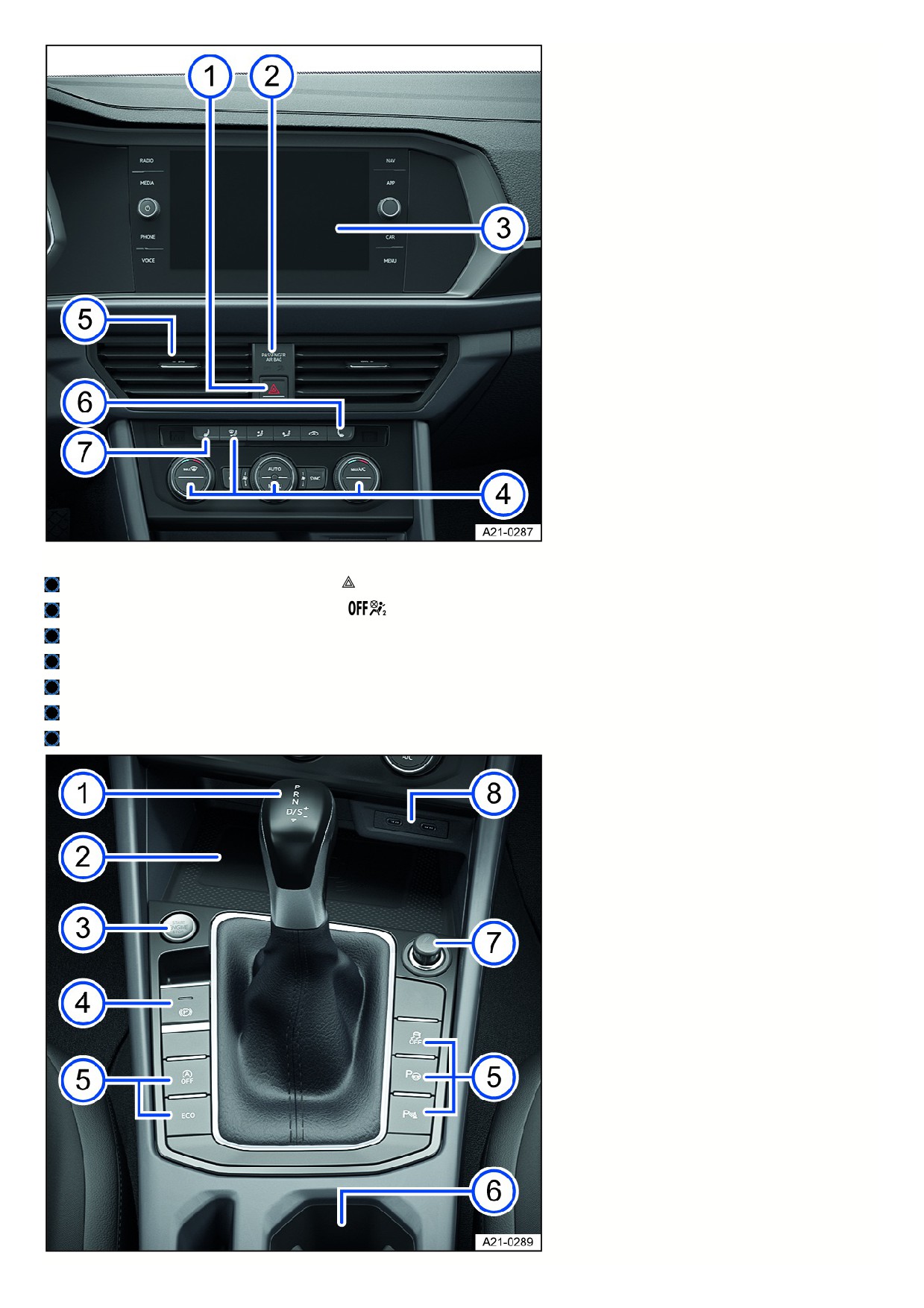

Fig. 6 Overview of the upper section of the center console.
Button for switching the emergency flashers on or off
In case of an emergency
Indicator light for front passenger’s airbag deactivation
Indicator light for front passenger’s front airbag
Infotainment system First steps
Controls for the air conditioning system Heating and air conditioning system
Vent Air distribution and blower speed
Button for right seat heating Seat heating and seat ventilation
Button for the left seat heating and the steering wheel heating
Steering wheel heating
11
Fig. 7 Overview of the lower section of the center console.
Lever:
For DSG® automated transmission Automatic transmission
or automatic gearbox Automatic transmission
or manual transmission Manual transmission
Storage compartment with function for wireless charging according to QI standard Charging Options for Mobile Devices
Button to start and stop the engine (Keyless Access with push-button start)
Starter button
Electronic parking brake Electronic parking brake
Buttons:
For start/stop system Start/Stop system
For parking and maneuvering assist systems Parking and maneuvering
For ECO mode Selecting the driving mode
For Driving Mode Selection Driving Mode Selection
Storage compartment with cup holders
12 V socket Sockets
USB sockets with charge function for external device rechargeable batteries (depending on the vehicle equipment)
Wired and wireless connections,
Charging Options for Mobile Devices
Passenger’s side

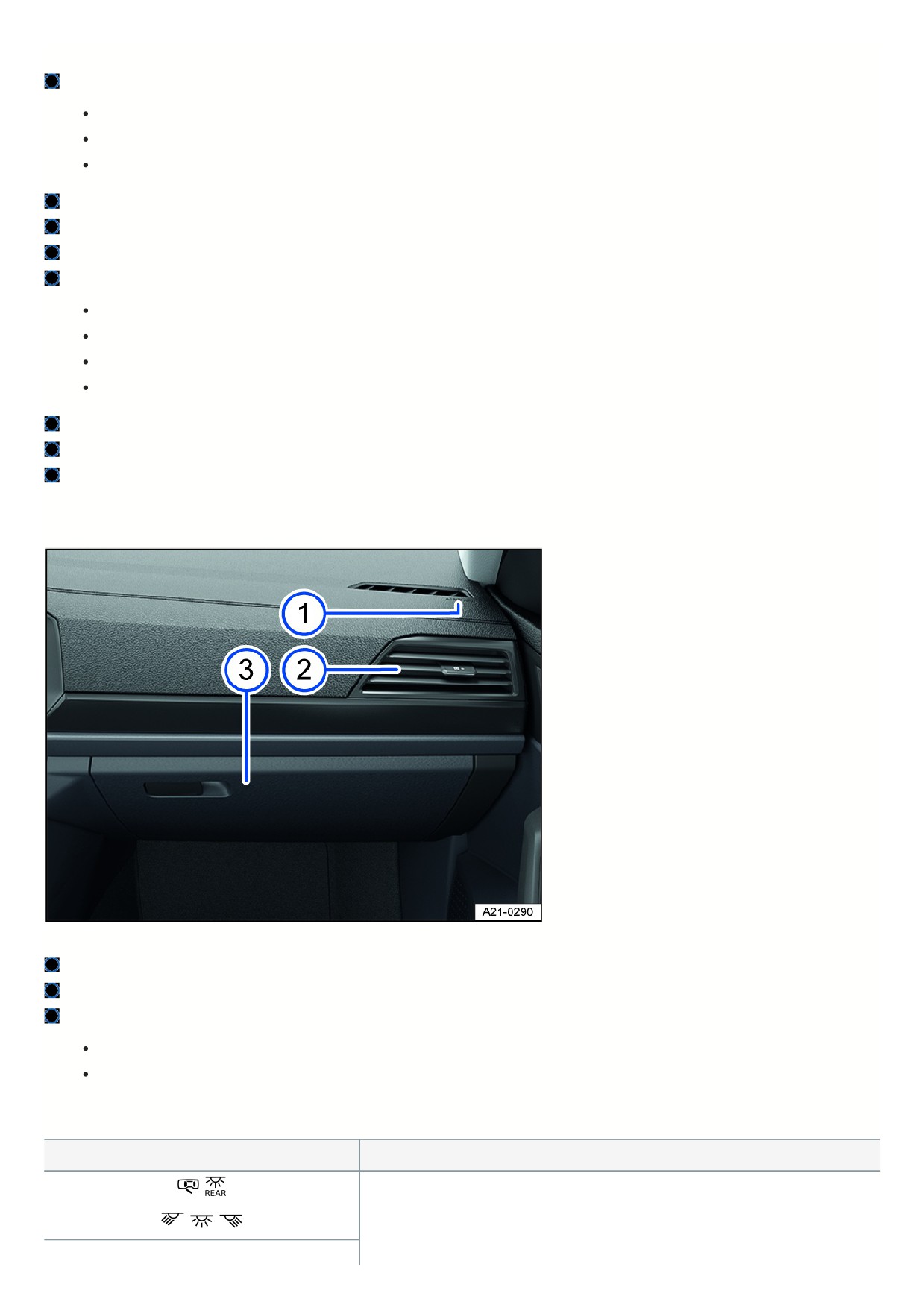

Fig. 8 Passenger's side: instrument panel overview
Installation location of the front passenger’s airbag in the instrument panel
Airbag system
Vent Air distribution and blower speed
Glove compartment:
With handle
With media drives for the Infotainment system Media drives

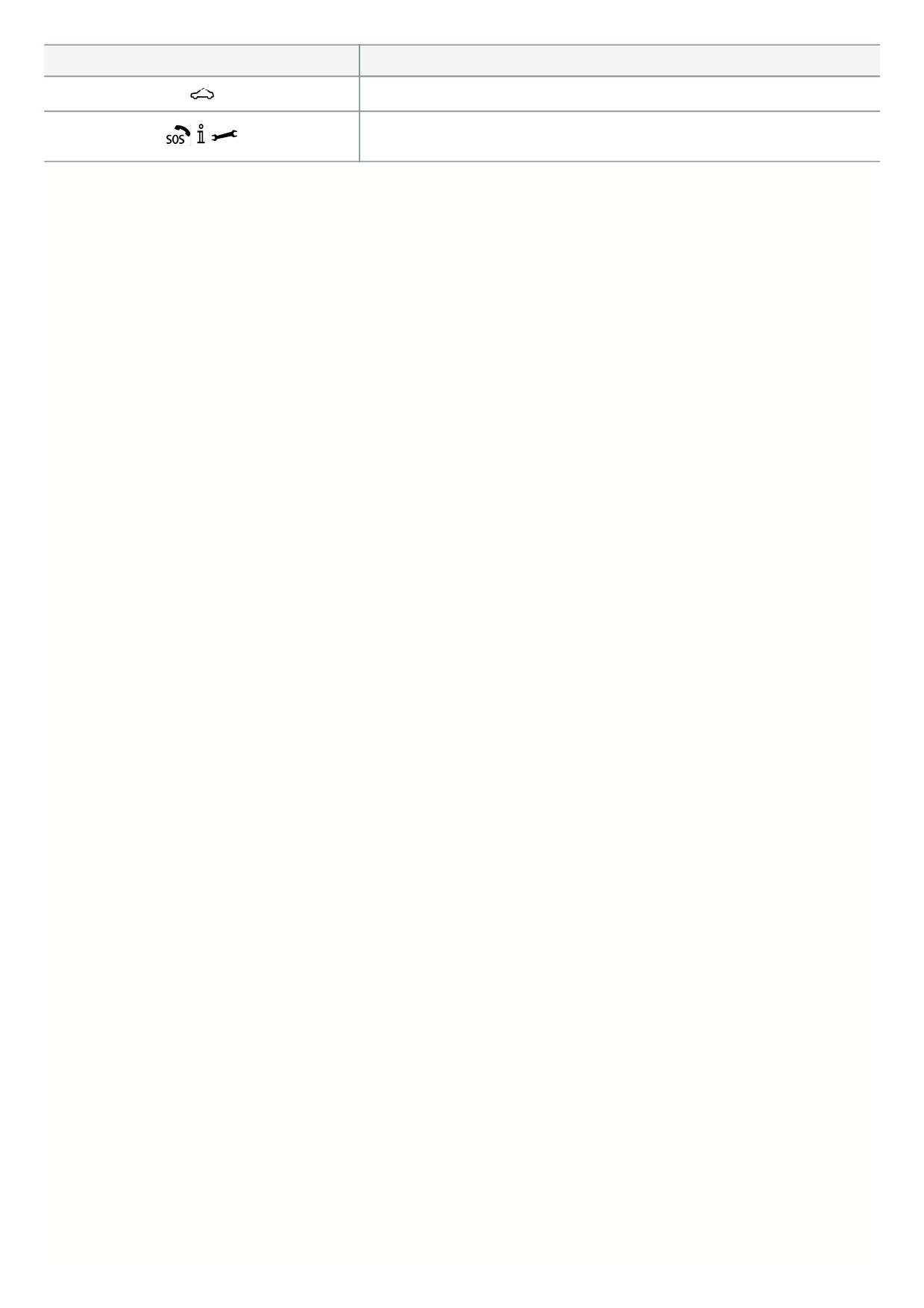

Controls in the headliner
Symbol
Meaning
Buttons for interior/reading lights Interior/reading lights, ambient lighting.
12
Symbol
Meaning
Sunroof switch Sunroof.
Buttons for Emergency Call, Information Call and Roadside Assistance Call
Information Call,
Roadside Assistance Call and Emergency Call Service.
13
Driver information

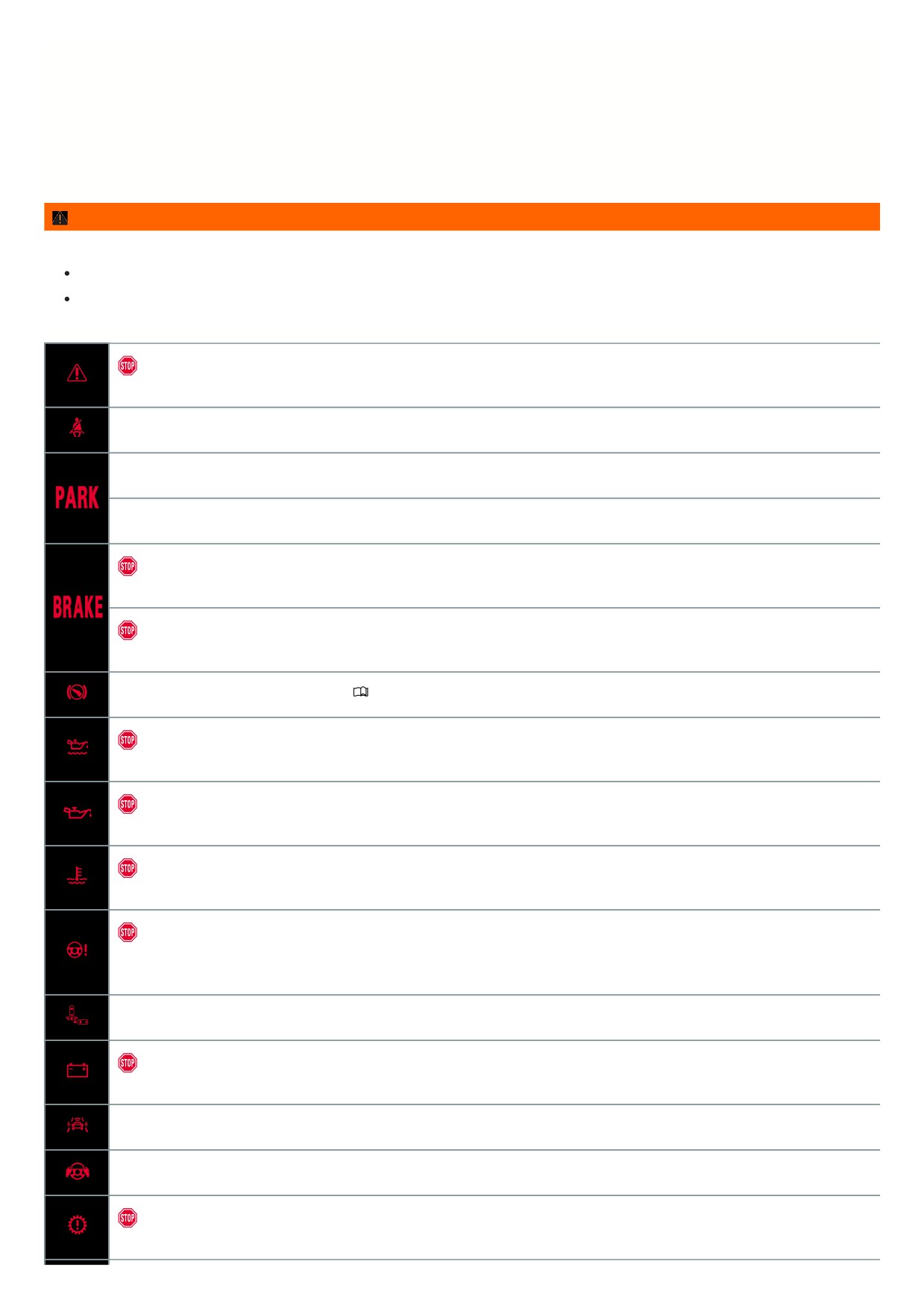

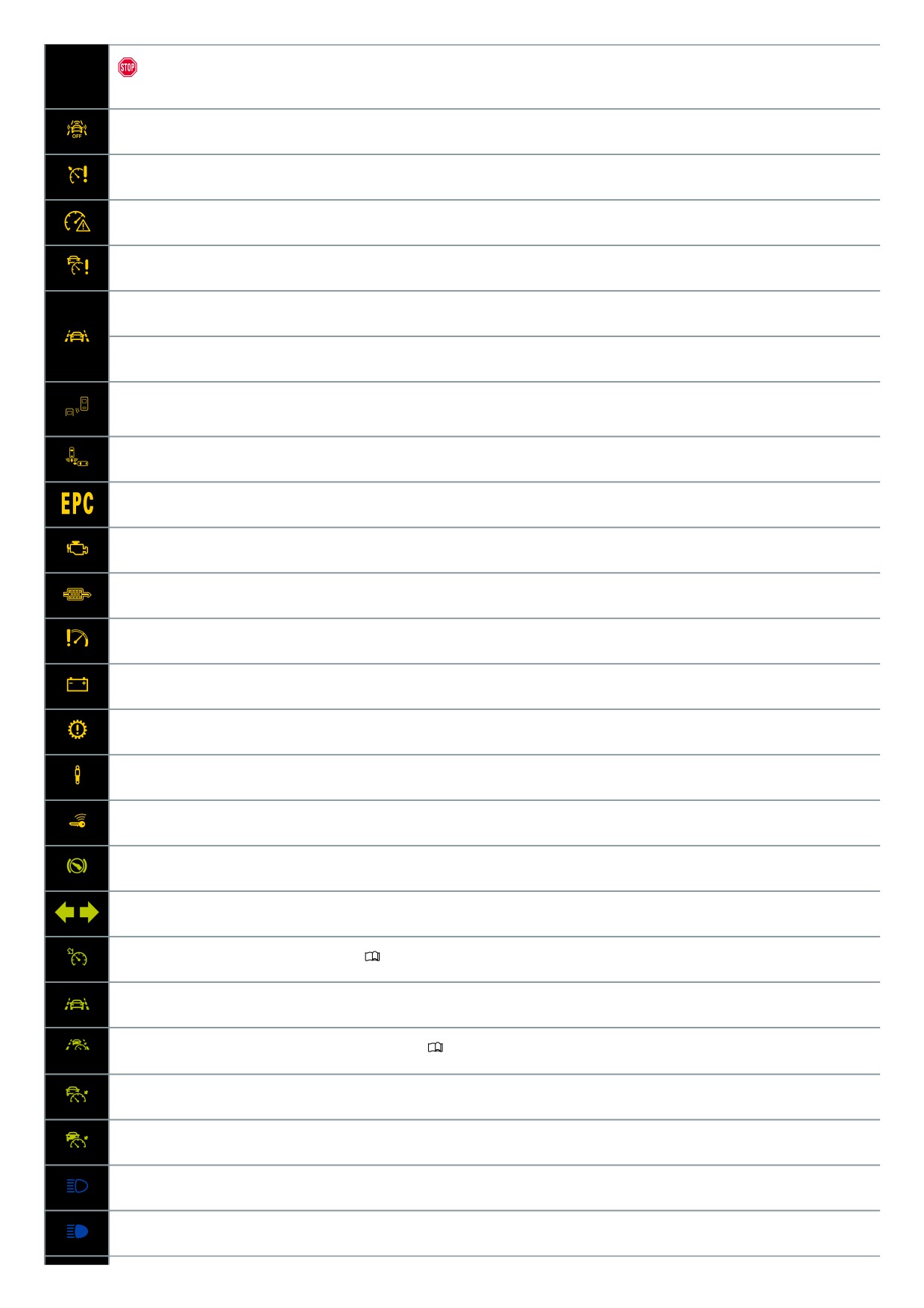

Symbols in the instrument cluster
The warning and indicator lights can turn on individually or in combination with each other and indicate warnings, malfunctions and certain functions. Some warning
and indicator lights come on when you switch the ignition on and must turn off after some time.
Indicator lights that turn on in the light switch are described in the “Lights” chapter Switching the lights on and off .
WARNING
Failure to respond to illuminated warning lights and messages may result in a vehicle breakdown, accidents and serious injuries or death.
Never ignore illuminated warning lights and messages.
Stop the vehicle as soon as it is safe to do so.
Do not continue driving!
Central warning light Priority 1 warning message

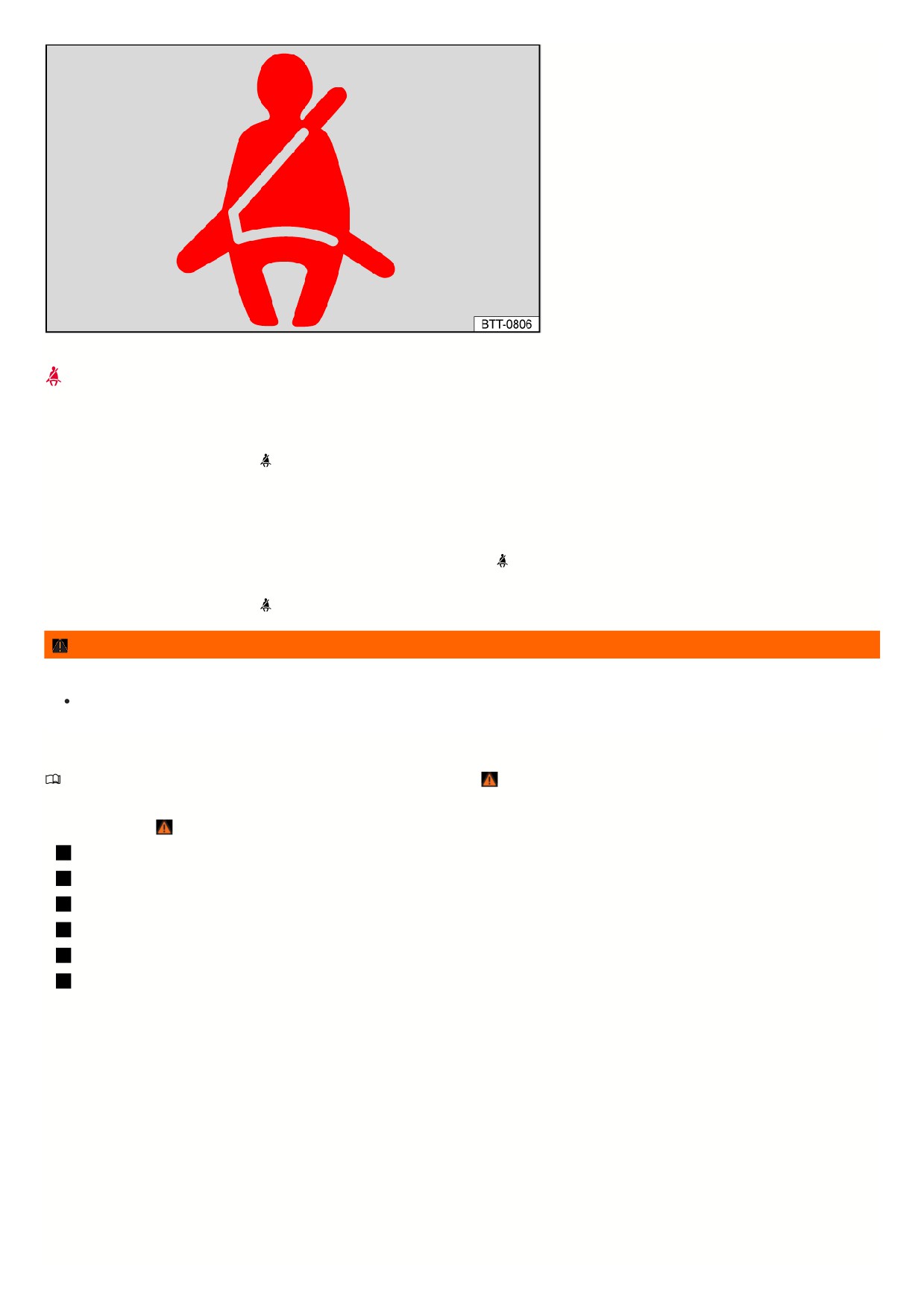

Fasten safety belt Fasten seat belts reminder and seat belt safety indicator
Electronic parking brake switched on Electronic parking brake
Holding force of the electronic parking brake too low The holding force is too low for the current situation
Do not continue driving!
Brake system malfunction Brake system malfunction
Do not continue driving!
Brake fluid level too low Brake fluid level
Take over steering and be ready to brake.
Introduction
Do not continue driving!
Engine oil level too low Engine oil level very low
Do not continue to drive!
Engine oil pressure too low Engine oil pressure too low
Do not continue to drive!
Engine coolant system malfunction Engine coolant
Do not continue driving!
Steering malfunction Steering malfunction
Rear Traffic Alert has detected an obstacle to the rear Rear Traffic Alert
Do not continue driving!
12 V energy supply malfunction 12-volt power supply
Collision warning Warning levels and braking support
Take over the steering immediately Take over the steering immediately
Do not continue to drive!
Transmission overheating Transmission overheating
14

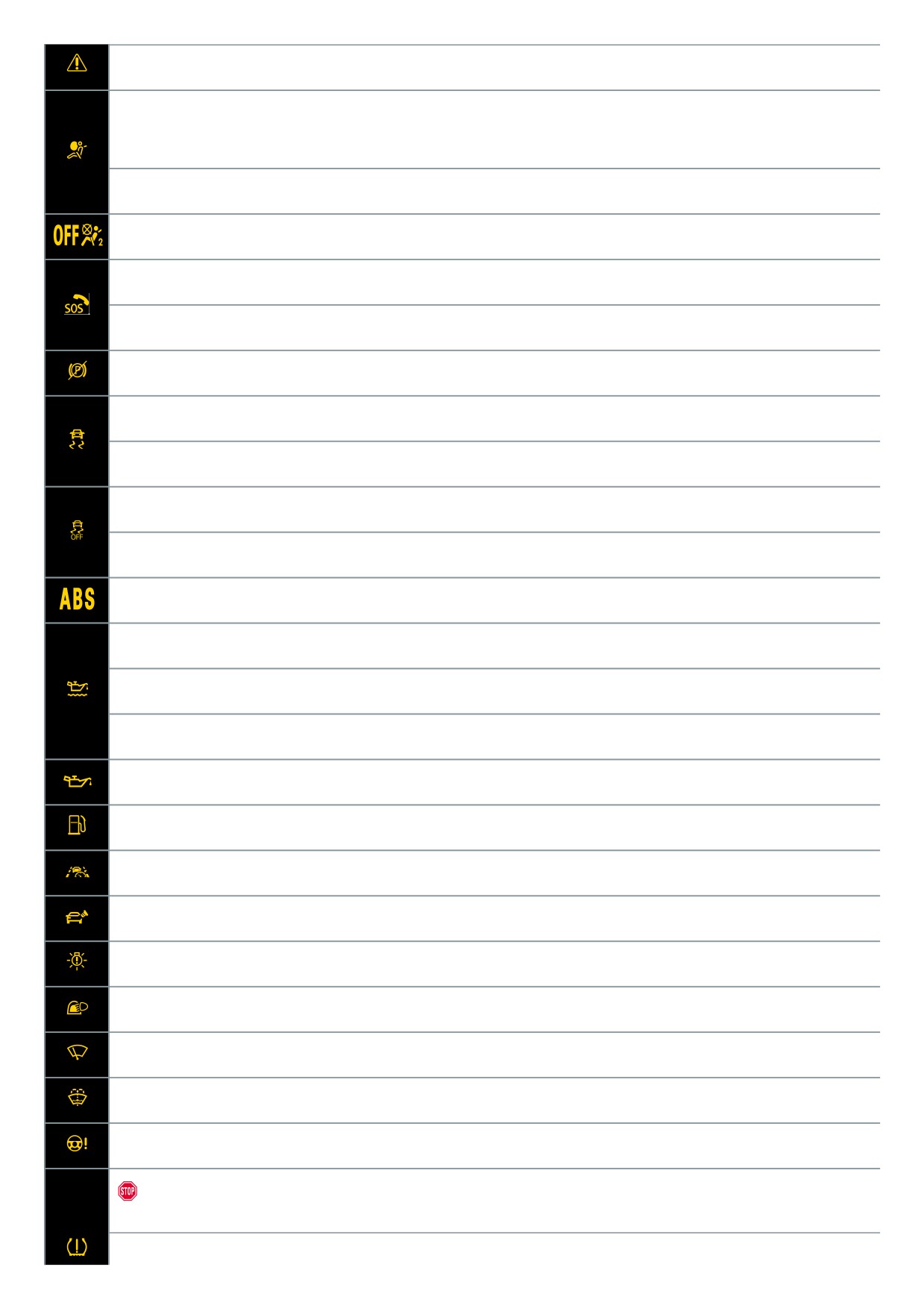

Central warning light Priority 2 warning message
Airbag or safety belt pretensioner system deactivated with diagnostic equipment
Airbag or safety belt pretensioner system deactivated with
diagnostic equipment
Airbag system or safety belt pretensioner malfunction Airbag system or safety belt pretensioners malfunction
Front passenger's front airbag deactivated Front passenger's front airbag switched off
Emergency Call Service limited Emergency Call Service limited

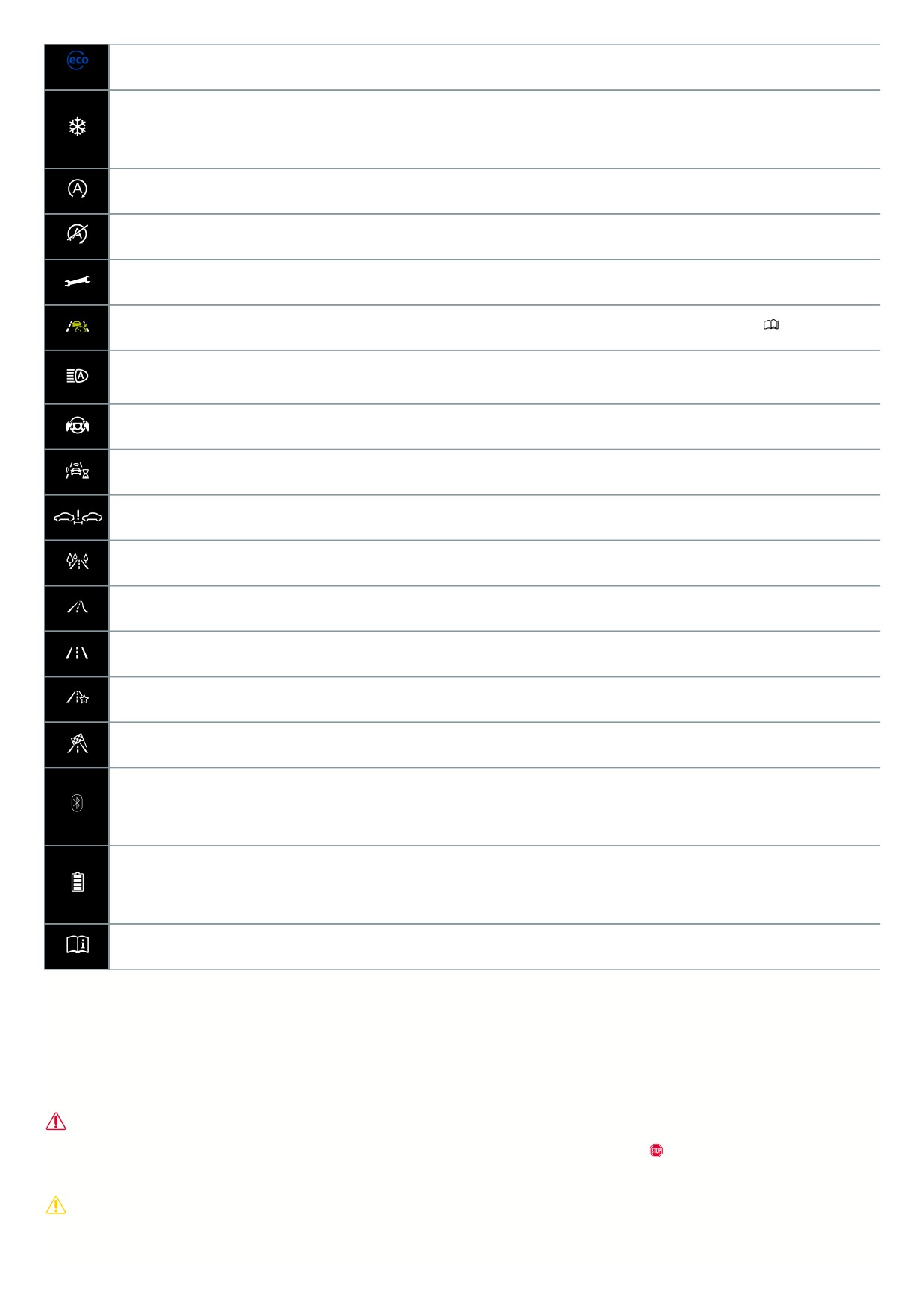

Emergency Call Service malfunctioning Emergency Call Service malfunction
Electronic parking brake malfunction Electronic parking brake malfunction
Comes on: Electronic Stability Control (ESC) malfunction ESC malfunction
Flashes: Electronic Stability Control (ESC) or Anti-slip regulation (ASR) in operation
Electronic Stability Control (ESC)
ESC Sport switched on ESC Sport
Anti-Slip Regulation (ASR) switched off ASR
Anti-Lock Braking System (ABS) malfunction ABS failure or malfunction
Engine oil system malfunction Engine oil system malfunction
Engine oil level too low Engine oil level too low
Engine oil level too high Engine oil level too high
Engine oil system malfunction Engine oil system malfunction

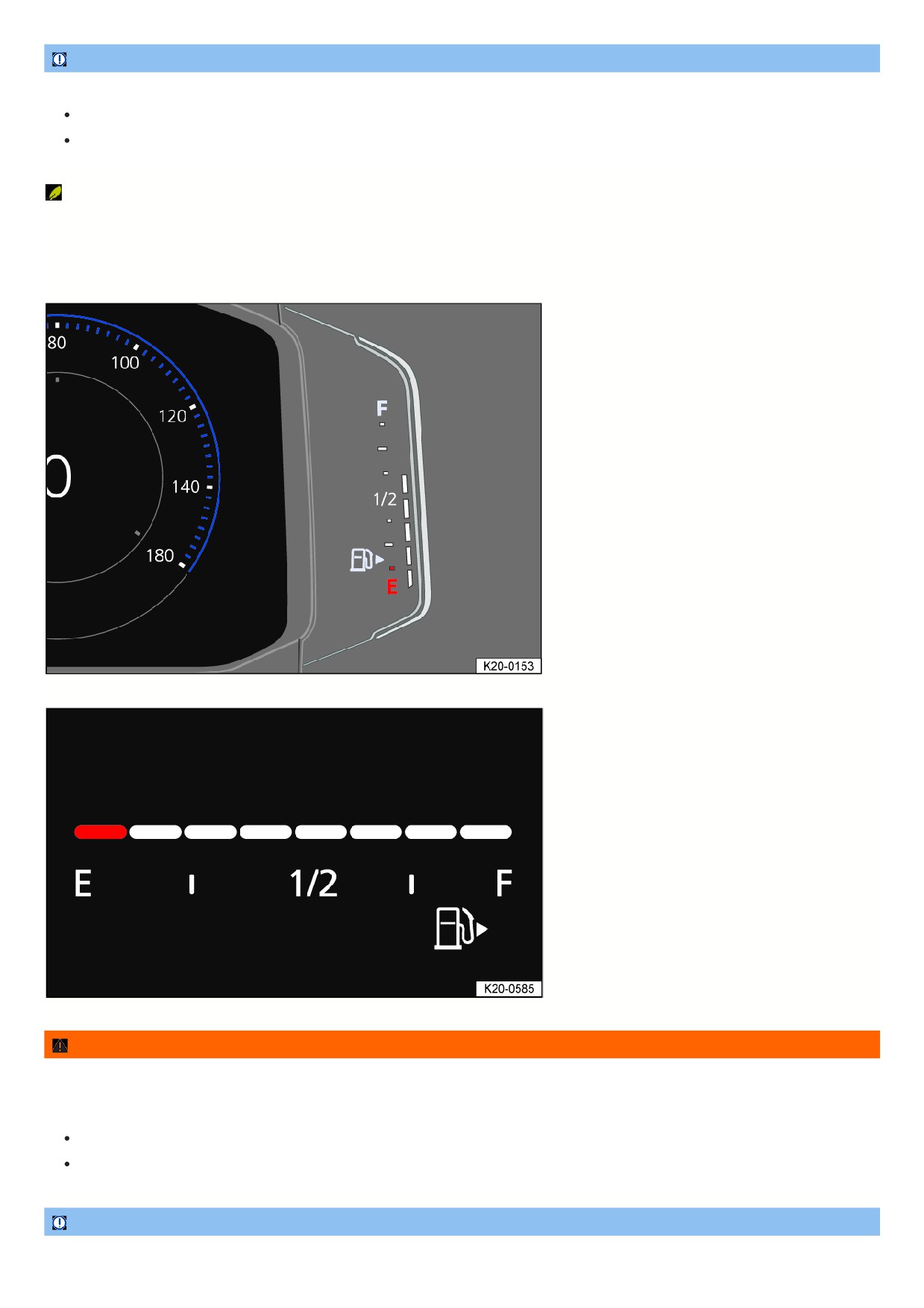

Tank almost empty Fuel tank almost empty
Semi-automated driving assistance (Travel Assist) not available Travel Assist is not available or is not functioning as expected
Tank cap not closed Fuel tank cap open
Driving light failure Exterior lighting malfunction
Rain/light sensor malfunction Rain/light sensor malfunction, Rain/light sensor malfunction
Windshield wiper malfunction Windshield wiper malfunction
Washer fluid level too low Washer fluid level too low
Steering malfunction Steering malfunction
Do not continue to drive!
Tire pressure low Tire pressure low
15
Do not continue to drive!
Tire pressure monitoring system malfunction Tire Pressure Monitoring System malfunction
Autonomous Emergency Braking (Front Assist) switched off Using Front Assist
Cruise control system malfunction Cruise control system malfunction
Speed warning Driving data menu
Adaptive cruise control (ACC) not available ACC is not available
Semi-automatic vehicle control in a medical emergency (Emergency Assist) is functioning Driving with Emergency Assist
Lane Assist in control Driving with Lane Assist
Blind Spot Monitor active “Blind Spot” Monitor malfunction
Rear Traffic Alert brakes Rear Traffic Alert
Engine control malfunction Engine control malfunction
Exhaust system malfunction Exhaust-related malfunction
Particulate filter clogged with soot Particulate filter clogged with soot
Engine RPM limited Engine speed limited
12-volt power supply malfunction 12-volt power supply
Transmission malfunction Clutch “slips”, Transmission overheating
Adaptive chassis control (DCC) malfunction Adaptive chassis control malfunction
Vehicle key not in vehicle Valid vehicle key cannot be detected
Press the brake pedal. The engine is not starting, Driving is restricted by the selector lever lock
Turn signals Turn signal indicator light
Cruise control switched on, regulation active
Introduction
Lane Assist active Driving with Lane Assist
Semi-automated driving assistance (Travel Assist) active
Introduction
Adaptive Cruise Control (ACC) regulates, no vehicle driving ahead is detected Switching ACC on and off
Adaptive Cruise Control (ACC) regulates, vehicle driving ahead is detected Switching ACC on and off
High beams or headlight flasher Switching the high beam headlights on and off
High beam or headlight flasher Switching the high beam headlights on and off
16
Fuel-efficient driving Fuel-efficient driving
Outside temperature is below +39 °F (+4 °C) Volkswagen Digital Cockpit Pro Information Displays , Volkswagen Digital Cockpit Basic
Information Displays
Start/Stop system active Start-stop system
Start/Stop system not available Start-stop system
Service due Service interval display
Semi-automated driving assistance (Travel Assist) active, Adaptive Cruise Control active, adaptive lane guidance inactive
Introduction
High beam control active Switching on high beam control
Take over the steering Take over the steering
Autonomous Emergency Braking (Front Assist) starts Front Assist starts
Distance warning Warning levels and braking support
Eco driving mode Driving mode properties
Comfort driving mode Driving mode properties
Normal driving mode Driving mode properties
Individual driving mode Driving mode properties
Sport driving mode Driving mode properties
Mobile phone connected via Bluetooth® Volkswagen Digital Cockpit Pro Information Displays , Volkswagen Digital Cockpit Basic Information
Displays
Mobile phone battery charge level Volkswagen Digital Cockpit Pro Information Displays , Volkswagen Digital Cockpit Basic Information
Displays
Note about information in the Owner's Manual Note about information in the Owner's Manual
Warning and information texts
The status of some functions inside the vehicle and vehicle components are checked when the ignition is switched on or while driving. Malfunctions are indicated by
red and yellow warning symbols in the instrument cluster display and may also be signaled audibly in some cases. The appearance of texts and symbols may vary
depending on the instrument cluster version.
Any malfunctions currently occurring can also be manually called up. To do this, open the Vehicle status or Vehicle menu
Vehicle settings menu.
Priority 1 warning message
The red central warning light flashes or comes on, in some cases together with warning tones or additional symbols.
Do not continue driving! There is a haza
Check the malfunction. Contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility immediately for assistance.
Priority 2 warning message
The yellow central warning light flashes or comes on, in some cases together with warning tones or additional symbols. Malfunctions or insufficient operating fluids
can cause vehicle damage and vehicle malfunctions. Check the malfunction as soon as possible. Immediately contact an authorized Volkswagen dealer or
17
authorized Volkswagen Service Facility to have the system checked. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized
Volkswagen Service Facility.
Note about information in the Owner's Manual
You can find more information about the existing warning message in the Owner's Manual.
Informational text
Information about various processes in the vehicle.
If there are multiple warning messages, the symbols will appear consecutively for several seconds. The symbols will appear until the malfunction is corrected.
If warning messages about malfunctions appear when the ignition is switched on, settings or information displays may not appear as described. If the
malfunction persists, contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen
Service Facility.
Introduction to the instrument cluster
The vehicle is equipped with a Volkswagen Digital Cockpit. The instrument cluster shows essential information, such as speed.
In addition, the following functions, among others, are available depending on the equipment:
Various menus, such as for the driver assistance systems.
Status displays for the driver assistance systems.
Display messages.
Warning and indicator lights.
Information about economy and range.
Content can be individually adapted and settings can be changed in the menus.
WARNING
Operating the Volkswagen Digital Cockpit and Infotainment system can distract you from traffic. If the driver is distracted while driving, accidents and serious or
fatal injuries can occur.
Always drive attentively and responsibly.
Never operate the instrument cluster while driving.
Only adjust any settings in the instrument cluster or Infotainment system when the vehicle is stationary.
WARNING
If there is a serious fault in the instrument cluster, the display may be turned off. The warning light
may also come on here. No further warnings can be
displayed. This may result in vehicle breakdowns while driving, accidents and serious or fatal injuries.
Safely stop the vehicle.
See an authorized Volkswagen dealer or authorized Volkswagen Service Facility for assistance.
After starting the engine when the 12 V vehicle battery is severely drained or when it has been replaced or jump-started, the system settings, e.g. personal
convenience settings and programming, and user profiles may be changed or erased. Check and correct the settings after the 12 V vehicle battery is sufficiently
recharged.
Volkswagen Digital Cockpit Pro
Overview of the Volkswagen Digital Cockpit Pro
The Volkswagen Digital Cockpit Pro is a digital instrument cluster with a high-resolution TFT color display. By selecting different information profiles, other displays
can be shown in addition to the standard dials, such as the tachometer. The term Volkswagen Digital Cockpit Pro is used to refer to the “Pro digital instrument
cluster” in the following.
18

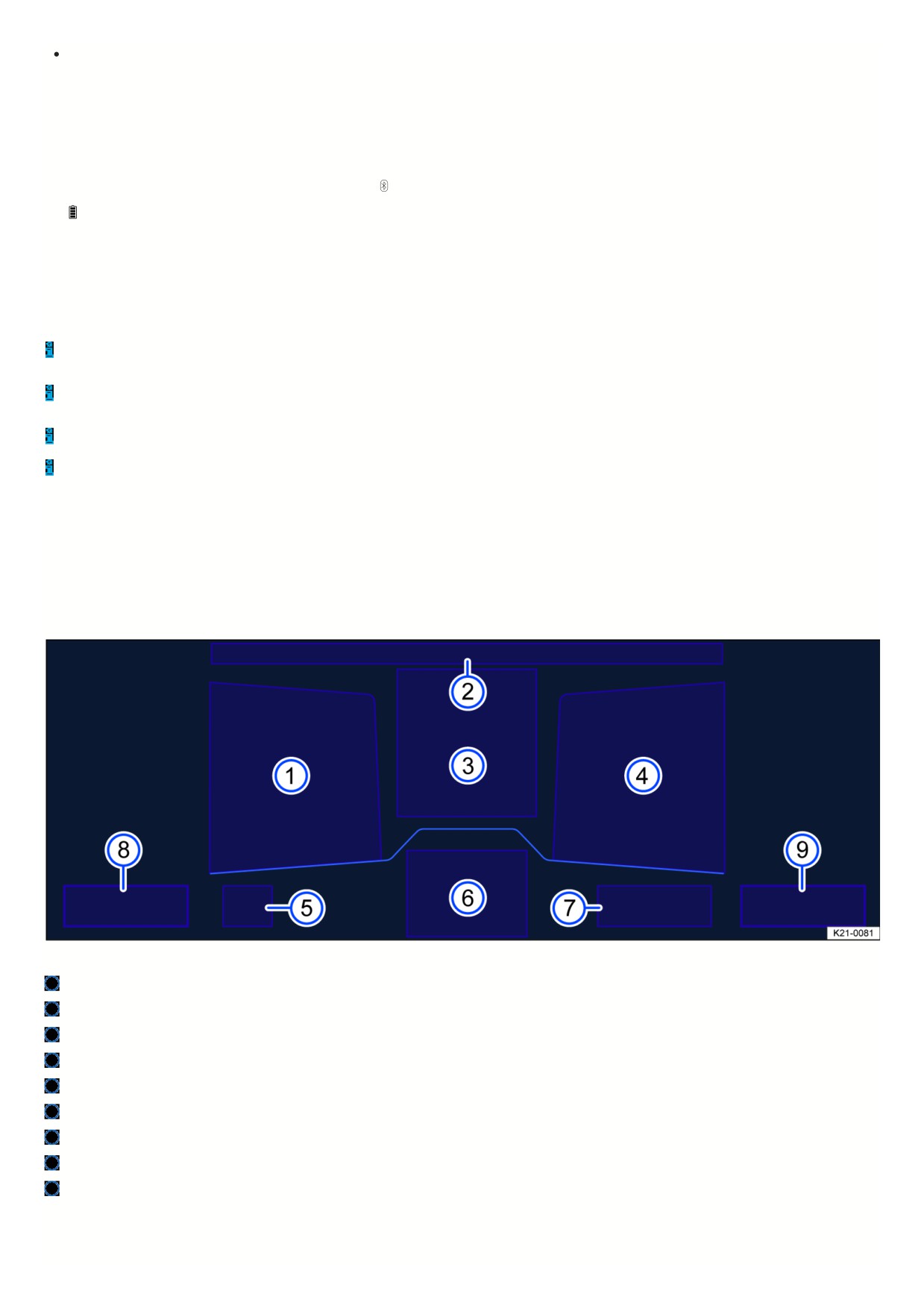

Fig. 9 Volkswagen Digital Cockpit Pro in the instrument panel (general example).
Tachometer (RPM of the running engine).
Currently engaged gear or selector lever level
Driving.
Displays Operating the Volkswagen Digital Cockpit Pro .
Speedometer.
Digital speed display.
Operating the Volkswagen Digital Cockpit Pro
Fig. 10 Right side of the multi-function steering wheel: Operating the Volkswagen Digital Cockpit Pro (variant 1).
19
Fig. 11 Right side of the multi-function steering wheel: Operating the Volkswagen Digital Cockpit Pro (variant 2).
Vehicles with multi-function steering wheel: Menus cannot be accessed when a priority 1 warning message is displayed page , Warning and information texts.
You can confirm and hide some messages using the
button on the multi-function steering wheel fig. 10, fig. 11.
Selecting a menu or information display
Vehicles with multi-function steering wheel:
1. Switch the ignition on.
2. If a message or vehicle icon is displayed, press the
button, repeatedly if necessary.
3. To display a menu and to scroll through the menu, press the
or
button.
4. To open the displayed menu or information display, press the
button or wait until the menu or the information display opens automatically after several
seconds.
Applying settings in the menus
Vehicles with multi-function steering wheel:
1. Press the
or
arrow button in the displayed menu until the preferred menu item is highlighted.
The item is marked with a frame around it.
2. Press the
button to apply the desired changes.
A check mark
indicates that the respective function is switched on.
3. To return to the menu selection, press the
or
button.
VIEW button on multi-function steering wheel
You can use the
button to switch between the classic display of dials, the large platform without information profiles, and the enhanced view with highlighted
information profiles. The classic display shows the large dials on the right and left side, and the selected information profile is displayed in the center.
1. Press and hold the
button to select from the preset information profiles in the list:
Classic
View without information profiles.
Automatic The information profiles adjust to the selected driving mode. Only for vehicles with Driving Mode Selection.
Preset 1 Individual selection of information profiles
2
Preset 2 Individual selection of information profiles
Preset 3 Only on vehicles with standard factory-installed navigation system.
Navigation map in the Volkswagen Digital Cockpit Pro
Depending on the vehicle equipment, the Volkswagen Digital Cockpit Pro may display a detailed navigation map.
The navigation map can be displayed in three sizes. With the larger map view, the navigation map is shown across the entire display. To select the desired map
size, proceed as follows:
1. Select menu item Navigation.
2. Press the
button on the multi-function steering wheel to switch between the map sizes.
3. Press the
or
arrow buttons on the multi-function steering wheel to zoom in or out.
4. When zooming manually, press the
button on the multi-function steering wheel to switch to auto-zoom.
Depending on the equipment, navigation will be shown on two screens or only on one screen. The navigation map may appear in the Volkswagen Digital Cockpit
Pro and in the Infotainment system or just in the Infotainment system. If the navigation map is shown in the Infotainment system, only navigation arrows are shown
the Volkswagen Digital Cockpit.
If warning messages about malfunctions appear when the ignition is switched on, settings or information displays may not appear as described. If the
malfunction persists, contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen
Service Facility.
WARNING
Operating the Volkswagen Digital Cockpit and Infotainment system can distract you from traffic. If the driver is distracted while driving, accidents and serious or
fatal injuries can occur.
Always drive attentively and responsibly.
Never operate the instrument cluster while driving.
Only adjust any settings in the instrument cluster or Infotainment system when the vehicle is stationary.
Volkswagen Digital Cockpit Pro Information Displays
Information profiles
Using the Digital Cockpit menu item in the vehicle Infotainment system vehicle settings, you can select different, topic-specific information profiles
Vehicle
settings menu. Depending on the selected information profile, the Volkswagen Digital Cockpit Pro may show additional information in the center of the dials or the
dials may be hidden and the additional information shown across the entire display. The following information profiles can be selected:
Audio. Digital display of the current audio playback
Comfort drive Travel Assist. Visual display of various driver assistance systems
Driver assistance systems.
Distance Display of the distance driven.
Gear indicator Display of the current gear or the selected gear.
Speed Display of the speed.
Navigation Graphic display of arrow navigation
Range. Display of the range.
Consumption Graphic display of the current consumption and the digital display of the average consumption
Destination arrival information. Display of remaining driving time, the distance to the destination, and the estimated arrival time.
Depending on the equipment, the number and scope of the information profiles that can be selected may vary.
Possible displays in the Volkswagen Digital Cockpit Pro
Depending on the vehicle equipment, different information may be shown in the Volkswagen Digital Cockpit Pro:
Outside temperature display.
Driver assistance systems.
Driving data menu and menus for various settings.
Gear recommendation Gear recommendation.
Speed warnings.
Speed warning for winter tires.
Open doors, hood and trunk lid.
Infotainment system and navigation information.
21
Odometer displays.
Compass display.
Radiator fan run-on.
Engine code ().
Service interval display.
Status display for the start-stop system Start/Stop system.
Phone information.
Time.
Selector lever position.
Warning and information texts.
Warning and indicator lights Symbols in the instrument cluster .
Outside temperature display
When outside temperatures are colder than approximately +4°C (+39°F), a snowflake symbol also appears on the outside temperature display . This symbol
remains on until the outside temperature rises above +6 °C (+43 °F).
In the following situations, the temperature displayed may be higher than the actual outside temperature due to heat radiating from the engine:
When the vehicle is stationary
When the driving speed is very low
The measurement range is from -45 °C (-49 °F) to +76 °C (+169 °F)
WARNING
Roads may be icy when outside temperatures are low, even if they are above the freezing point. There is an increased risk of an accident on icy roads. This
could result in serious or fatal injuries.
If the
symbol is displayed in the instrument cluster display, drive with extra caution.
Always adapt your speed and driving style to the visibility, weather, road and traffic conditions.
Never rely solely on the outside temperature display.
Gear recommendation
A recommendation to select a fuel-saving gear may be displayed in the Volkswagen Digital Cockpit while driving
Gear recommendation.
Open doors, hood and trunk lid
If, after unlocking the vehicle and while driving, any doors and/or the hood or trunk lid are open, this is displayed in the Volkswagen Digital Cockpit and an audible
signal may also sound.
Speed warning for winter tires
If the set maximum speed is exceeded, this will be shown in the digital instrument cluster.
Settings for the speed warning can be adjusted in the vehicle settings in the Infotainment system
Winter tires.
Compass display
When the ignition is switched on, the instrument cluster display shows an abbreviation to indicate the direction the vehicle is currently traveling, for example “NW”
for northwest.
If the Infotainment system is switched on and route guidance is not active, the graphic display of a compass is also available.
Odometer displays
The odometer registers the total distance that the vehicle has driven.
The trip trip odometer shows the miles that were driven since the trip odometer was last reset.
1. Reset the odometer via the Infotainment system or the service menu Service menu.
Radiator fan run-on
This indicator appears after the ignition has been switched off, if the radiator fan continues to run.
The radiator fan may continue running due to:
Exhaust gas post-treatment, through particulate filter regeneration, for example.
Active brake cooling after descent.
22
Dissipation of engine heat after high load, e.g. trailer mode.
Engine code (EC)
1. Open the service menu Service menu.
2. Select the Engine code menu item.
Phone information
If a cell phone is connected via Bluetooth, the Bluetooth symbol
will be displayed in the Volkswagen Digital Cockpit.
The symbol also indicates the charge level of the mobile device.
Selector lever position
The selector lever position that is engaged is shown on the left side of the selector lever and in the Volkswagen Digital Cockpit.
If necessary, the respective gear is displayed in the Volkswagen Digital Cockpit when in the D/S selector lever position and when in tiptronic mode
Automatic
transmission: selecting the selector lever position.
Suitably qualified professionals can program or modify additional functions depending on the vehicle equipment. Volkswagen recommends contacting an
authorized Volkswagen dealer or authorized Volkswagen Service Facility.
There are different instrument clusters; therefore the versions and appearances of the displays may vary. Malfunctions will only be indicated by indicator lights
if the display does not have warning or information texts.
Some displays in the Volkswagen Digital Cockpit may be hidden due to events that occur suddenly, e.g. incoming phone calls.
Depending on the equipment, some settings and displays may also appear in the Infotainment system.
Volkswagen Digital Cockpit Basic
Overview of the Volkswagen Digital Cockpit Basic
The Digital Cockpit is a digital instrument cluster with a high-resolution TFT color display. By selecting different views, e.g. tachometer, and different displays in the
main display area and in the secondary display areas, further content can be shown. The term “Volkswagen Digital Cockpit” is used to refer to the digital instrument
cluster in the following.
Fig. 12 Volkswagen Digital Cockpit Basic in the instrument panel (general example).
Secondary display area.
Time, compass and temperature.
Main display area.
Secondary display area.
Currently engaged gear or selector lever level.
Active driver assistance.
Range.
Coolant temperature gauge.
Fuel gauge.
Operating the Volkswagen Digital Cockpit Basic
23
Fig. 13 Right side of the multi-function steering wheel: Operating the Volkswagen Digital Cockpit Basic (variant 1).
24
Fig. 14 Right side of the multi-function steering wheel: Operating the Volkswagen Digital Cockpit Basic (variant 2).
Vehicles with multi-function steering wheel: Menus cannot be accessed when a priority 1 warning message is displayed page , Warning and information texts.
You can confirm and hide some messages using the
button on the multi-function steering wheel fig. 13, fig. 14.
Views in the main display area
1. Vehicles with multi-function steering wheel: Press the
button to switch the main display.
The following views can be shown in the display area:
Digital view
Digital speedometer with secondary displays.
Speed Classic display of the speedometer as a dial.
Tachometer Classic display of the tachometer as a dial.
Depending on the vehicle equipment, the amount of information shown and the scope thereof may vary.
After switching off the ignition, a display is shown with information on the vehicle status, e.g. total mileage.
In the speed and tachometer views, an additional secondary display can be configured in the center of the dial.
Selecting secondary displays
Vehicles with multi-function steering wheel: The secondary displays can be configured or hidden independently of each other. Various driving data, navigation
information or information about audio playback or phone interfaces can be shown on the secondary displays. To select the secondary displays, proceed as follows
1. Select the right or left secondary display area using the
or
buttons.
2. Select the preferred secondary display using the
and
arrow buttons.
3. Confirm your selection with the
button.
Selecting secondary displays in the dial
Vehicles with multi-function steering wheel:
1. Select the preferred secondary display using the
and
arrow buttons.
2. Confirm your selection with the
button.
25
If warning messages about malfunctions appear when the ignition is switched on, settings or information displays may not appear as described. If the
malfunction persists, contact a suitably qualified professional. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen
Service Facility.
WARNING
Operating the Volkswagen Digital Cockpit and Infotainment system can distract you from traffic. If the driver is distracted while driving, accidents and serious or
fatal injuries can occur.
Always drive attentively and responsibly.
Never operate the instrument cluster while driving.
Only adjust any settings in the instrument cluster or Infotainment system when the vehicle is stationary.
Volkswagen Digital Cockpit Basic Information Displays
Possible displays
Depending on the vehicle equipment, different information may be shown in the main display and secondary display areas of the Volkswagen Digital Cockpit Basic:
Outside temperature display.
Time and date.
Digital speed.
Driver assistance systems.
Driving data menu, e.g. Travel time/distance driven.
Gear recommendation Gear recommendation.
Speed warning for winter tires.
Open doors, hood and trunk lid.
Odometer displays.
Compass display.
Radiator fan run-on.
Engine code ().
Navigation information.
Engine oil temperature.
Radio information.
Service interval display.
Status display for the start-stop system Start/Stop system.
Phone information.
Selector lever position.
Warning and information texts.
Warning and indicator lights.
Depending on the vehicle equipment: Fuel-efficient driving
. Status display for Active Cylinder Management (ACT ) Eco tips.
Destination information.
You can adjust further settings in the submenu.
Outside temperature display
When outside temperatures are colder than approximately +4 °C (+39 °F), a snowflake symbol also appears on the outside temperature display
. This symbol
remains on until the outside temperature rises above +6 °C (+43 °F).
In the following situations, the temperature displayed may be higher than the actual outside temperature due to heat radiating from the engine:
When the vehicle is stationary
When the driving speed is very low
The measurement range is from -45 °C (-49 °F) to +76 °C (+169 °F)
WARNING
Roads may be icy when outside temperatures are low, even if they are above the freezing point. There is an increased risk of an accident on icy roads. This
could result in serious or fatal injuries.
26
If the
symbol is displayed in the instrument cluster display, drive with extra caution.
Always adapt your speed and driving style to the visibility, weather, road and traffic conditions.
Never rely solely on the outside temperature display.
Gear recommendation
A recommendation to select a fuel-saving gear may be displayed in the Volkswagen Digital Cockpit while driving
Gear recommendation.
Open doors, hood and trunk lid
If, after unlocking the vehicle and while driving, any doors and/or the hood or trunk lid are open, this is displayed in the Volkswagen Digital Cockpit and an audible
signal may also sound.
Speed warning for winter tires
If the set maximum speed is exceeded, this will be shown in the digital instrument cluster.
Settings for the speed warning can be adjusted in the vehicle settings in the Infotainment system
Winter tires.
Compass display
If the Compass secondary display is activated, the direction in which you are currently driving is shown as a blue arrow with a depiction of the vehicle and a
compass.
Radiator fan run-on
This indicator appears after the ignition has been switched off, if the radiator fan continues to run.
The radiator fan may continue running due to:
Exhaust gas post-treatment, through particulate filter regeneration, for example.
Active brake cooling after descent.
Dissipation of engine heat after high load, e.g. trailer mode.
Engine code
1. Open the service menu Service menu.
2. Select the Engine code menu item.
Navigation information
When route guidance is activated, the Navigation instruction auxiliary display shows the direction of travel as an arrow.
An arrow behind the entry in the configuration menu indicates a submenu.
The submenu lists your home address and a list of your most recent destinations. Route guidance can be started with the
button.
Phone information
If the Phone secondary display is activated and a cell phone is connected via Bluetooth, the Bluetooth symbol
will be displayed in the Volkswagen Digital Cockp
The symbol also indicates the charge level of the mobile device.
In the submenu, a list of the most recent phone calls is shown and you have the option to call the displayed contacts back.
Selector lever position for automatic transmission
The selector lever position and, depending on the driving mode, the gear that is engaged, are shown on the selector lever and in the Volkswagen Digital Cockpit.
The gear shift pattern is displayed when the brake or the selector lever in the instrument cluster are actuated.
Fuel-efficient driving
If the vehicle is driving in a fuel-efficient manner, this will be indicated in the Volkswagen Digital Cockpit while driving
Destination information
When route guidance is activated, the Destination information secondary display shows the predicted journey time and distance from the destination.
Some displays in the Volkswagen Digital Cockpit may be hidden due to events that occur suddenly, e.g. incoming phone calls.
Depending on the equipment, some settings and displays may also appear in the Infotainment system.
Tachometer
The start of the red area on the tachometer indicates the maximum permissible engine speed for all gears when the engine is run in and at operating temperature.
Before reaching the red area, shift to the next highest gear, select the selector lever position D/S or take your foot off the accelerator pedal.
27
NOTICE
A heavy engine load, especially when the engine is cold, can lead to engine damage.
Avoid high engine speeds, full acceleration and heavy engine loads when the engine is cold.
To prevent engine damage, the tachometer indicator may only be in the red area of the scale briefly.
Shifting up early helps save fuel and reduce operating noises.
Fuel gauge
Digital fuel gauge
Fig. 15 Fuel gauge on the Volkswagen Digital Cockpit Pro (general example).
Fig. 16 Fuel gauge on the Volkswagen Digital Cockpit Basic (general example).
WARNING
If the fuel level is too low, this can result in an irregular fuel supply and “sputtering” or stalling of the engine, particularly when going uphill or downhill. This can
cause breakdowns in road traffic, accidents and serious or fatal injuries. The steering, all driver assistance systems and braking assistance systems will not
work if the engine cuts out due to fuel shortage or irregular fuel supply.
Make sure that the fuel tank is always sufficiently filled.
Always refill the fuel tank once it reaches a fill level of 1/4.
NOTICE
Irregular fuel supply can result in misfiring and unburnt fuel entering the exhaust system.
28
Never drive with a completely empty fuel tank.
The small arrow next to the fuel pump symbol on the fuel gauge indicates which side of the vehicle the fuel filler flap is on.
Troubleshooting
Fuel tank almost empty
The yellow indicator light turns on. The reserve supply (red marking ) is being used.
1. Refuel at the next opportunity.
Fuel tank cap open
The yellow indicator light turns on.
1. Close the fuel tank cap.
Engine coolant temperature gauge
Digital coolant temperature gauge

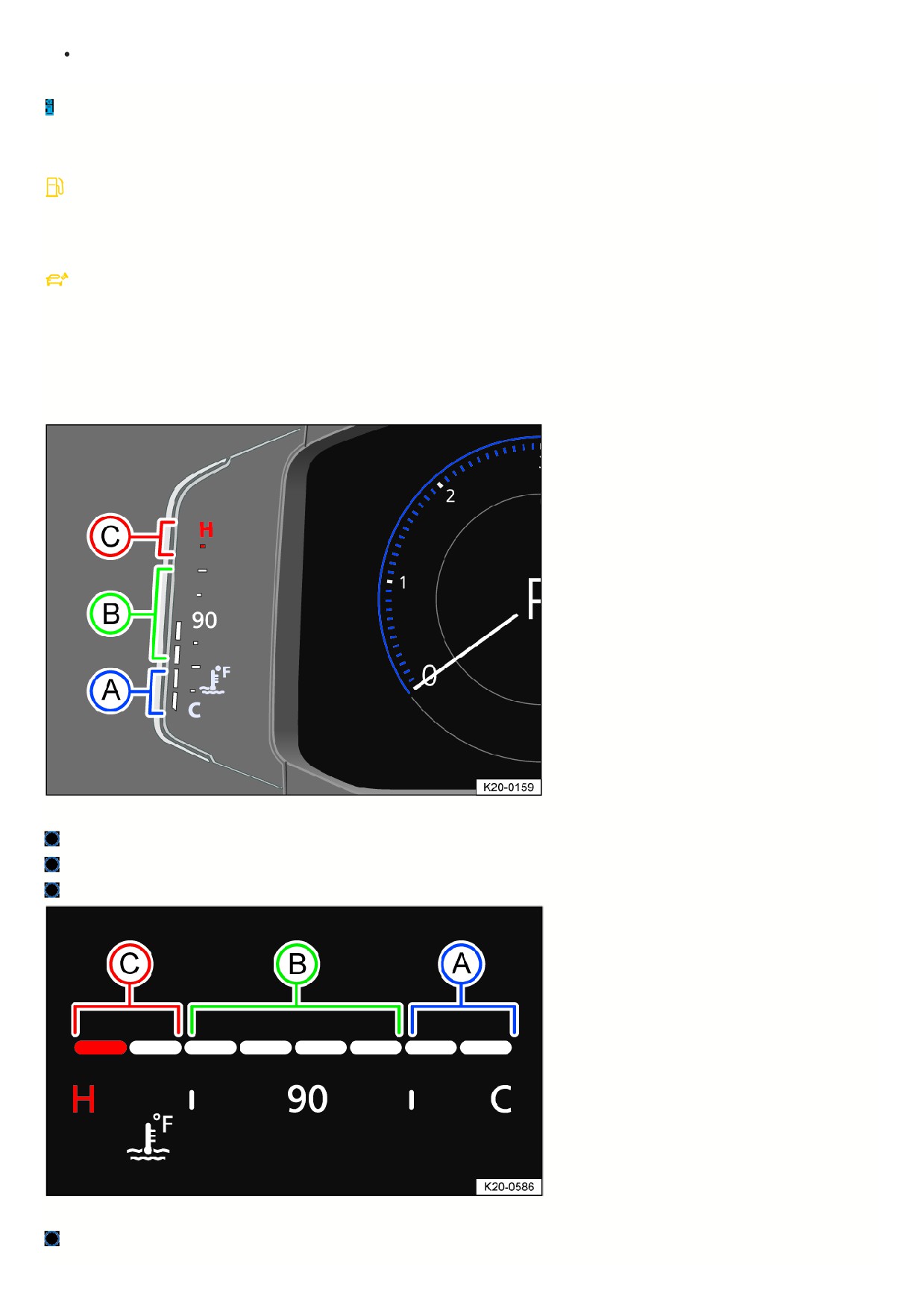

Fig. 17 Coolant temperature gauge in the Volkswagen Digital Cockpit Pro (general example).
Cold range. The engine is not at operating temperature yet. Avoid high engine RPMs and heavy engine load when the engine is not at operating temperature.
Normal range.
Warning range. The needle may move into the warning range when engine load is heavy, especially when outside temperatures are high.
Fig. 18 Coolant temperature gauge in the Volkswagen Digital Cockpit Basic (general example).
Cold range. The engine is not at operating temperature yet. Avoid high engine RPMs and heavy engine load when the engine is not at operating temperature.
29
Normal range.
Warning range. The needle may move into the warning range when engine load is heavy, especially when outside temperatures are high.
If the
warning light flashes, the coolant temperature is too high or the coolant level is too low
Troubleshooting.
Driving data menu
The driving data menu shows driving and consumption data. Depending on the vehicle equipment, various driving data can be displayed. The displayed driving
data is dependent on the current driving style, the vehicle status, e.g. particle filter regeneration, and the current driving situation, e.g. city traffic. The driving data is
determined as an average value over sections of different distances and the currently displayed value may therefore differ from the actual average value.
Since start memory
If the trip is interrupted for more than two hours, the memory is erased.
Since refuel memory
Display and memory of the collective driving and consumption data. The memory is erased when the vehicle is refueled.
Extended period memory
The memory collects the driving data up to 19 hours and 59 minutes or 99 hours and 59 minutes driving time or 1999.9 km (miles) or 9999.9 km (miles) distance
driven. If one of these maximum thresholds is met, the memory is erased. The maximum thresholds may vary depending on the version of the instrument cluster.
Volkswagen Digital Cockpit Pro Driving Data Menu
The driving data is available in the context menu of the Volkswagen Digital Cockpit Pro.
Switching Between the Displays in the Volkswagen Digital Cockpit Pro
Vehicles with multi-function steering wheel:
1. Press the
or
button on the multi-function steering wheel.
Switching Memories in the Volkswagen Digital Cockpit Pro
Vehicles with multi-function steering wheel:
1. Press the
button on the multi-function steering wheel.
Deleting Driving Data Memories in the Volkswagen Digital Cockpit Pro
Vehicles with multi-function steering wheel:
1. Select the memory to be erased.
2. Press the
button on the multi-function steering wheel.
Setting the Speed Warning in the Volkswagen Digital Cockpit Pro
Vehicles with multi-function steering wheel:
1. Select the Warning at --- km/h or Warning at --- mph display.
2. Press the
button on the multi-function steering wheel to save the current speed and to activate the warning.
3. Set the speed on the multi-function steering wheel within approximately five seconds by pressing the
and
arrow buttons. Then press the
button
or wait several seconds.
The speed will then be saved and the warning will be activated.
4. Press the
button again to deactivate.
The stored speed is erased.
The warning can be set for speeds between 30 km/h (18 mph) and 250 km/h (155 mph).
Depending on the country, a single warning tone sounds at speeds of over approximately 80 km/h (approximately 50 mph), and from approximately 120 km/h
(approximately 75 mph), a continuous warning tone sounds. The
indicator light will also be displayed in the instrument cluster display. This warning is required
by law and cannot be altered.
Volkswagen Digital Cockpit Basic Driving Data Menu
The driving data is available in the secondary display area of the Volkswagen Digital Cockpit Basic.
Selecting the Driving Data Menu in the Volkswagen Digital Cockpit Basic
Vehicles with multi-function steering wheel:
1. Select the right or left secondary display area using the
or
buttons.
2. Select your preferred driving data menu using the
and
arrow buttons.
3. Confirm your selection with the
button.
Resetting the Driving Data Menu in the Volkswagen Digital Cockpit Basic
Vehicles with multi-function steering wheel:
1. Press the
or
button.
2. Select the corresponding driving data menu in the configuration menu using the
and
arrow buttons.
3
An arrow behind the entry in the configuration menu indicates a submenu.
3. In the submenu, select Reset data and confirm by pressing the
button.
Driving Data in the Infotainment system
Driving Data can be displayed in the Infotainment system, in addition to being displayed in the instrument cluster.
Selecting Displays in the Infotainment System
You can select the driving data you would like to display using the vehicle settings in the Infotainment system
Vehicle settings menu.
Consumption
The average fuel consumption is displayed after approximately 300 m (approx. 984 ft).
Range
This indicates the approximate distance in km (miles) the vehicle can travel under the same driving conditions.
Speed
The average speed is displayed after approximately 100 m (approximately 328 ft).
WARNING
If the driver is distracted while driving, accidents and serious injuries can occur. Operating the Volkswagen Digital Cockpit and Infotainment system can distract
you from traffic.
Always drive attentively and responsibly.
Never operate the instrument cluster while driving.
Only adjust any settings in the instrument cluster or Infotainment system when the vehicle is stationary.
Service
Service menu
Depending on the equipment, settings can be applied in the service menu.
Opening the Service Menu in the Volkswagen Digital Cockpit Pro
1. Select the Range information profile.
2. Press and hold the
button on the multifunction steering wheel for approximately four seconds.
3. Navigate in the menu using the buttons on the multi-function steering wheel.
Opening the Service Menu in the Volkswagen Digital Cockpit Basic
1. Select the Travel time/distance driven secondary display.
2. Press and hold the
or
button on the multi-function steering wheel in the same direction for approximately six seconds.
3. Use the
and
arrow buttons to navigate the menu.
Resetting the service interval display
1. Select Service menu.
2. Follow the instructions in the instrument cluster display.
Resetting the oil change service
1. Select Reset oil change service menu.
2. Follow the instructions in the instrument cluster display.
Resetting the Trip Odometer on the Volkswagen Digital Cockpit Pro
1. Select Reset trip menu.
2. Follow the instructions in the instrument cluster display.
Displaying the engine code
1. Select Engine code menu.
The engine code is shown on the instrument cluster display.
Setting the time
1. Select Time menu.
2. Set the time with the
and
arrow buttons.
31
Displaying copyright information
1. Select the Copyright menu to access the copyright information.
Service interval display
Displays about service events appear in the instrument cluster display and in the Infotainment system. There are different versions of the instrument cluster and
Infotainment system; therefore, the appearances of the displays may vary.
Service appointments at Volkswagen are divided into oil change services and inspections. The service interval display informs the driver about the next service
appointment which includes an engine oil change and about the next inspection.
The service intervals are specified for vehicles with the fixed oil change service interval.
Intervals are determined individually on vehicles with the flexible oil change service interval. Oil change services only need to be performed if the vehicle requires it
The specific operating conditions and the personal driving style are also taken into consideration. The service early warning message is first displayed 30 days prio
to the calculated oil change service due date. The displayed remaining distance to be traveled is always rounded to 100 km (miles) and the remaining time is
rounded to whole days.
Service notification
If an oil change service or an inspection service is due in the near future, a service notification will be displayed when the ignition is switched on.
The specified mileage or time is the distance or time until the next service can be completed.
Service event
When an oil change service or an inspection service is due, a chime will sound when switching on the ignition and you can then see a wrench symbol
for a fe
seconds in the Volkswagen Digital Cockpit together with one of the following displays:
Inspection now!
Oil change now!
Oil change service and inspection now!
Checking a service due date in the Infotainment system
When the ignition is on, the engine is off, and the vehicle is stationary, the current service due date can be viewed at any time:
1. Depending on the vehicle equipment, press the
button or function key on the Infotainment system and select the Vehicle menu.
Or: depending on the vehicle equipment, press the
button or function key.
2. Depending on how your vehicle is equipped, select the Settings menu.
3. Select the Service menu item to display the service information.
Checking a service due date in the Volkswagen Digital Cockpit
When the ignition is on, the engine is off, and the vehicle is stationary, the current service due date can be viewed at any time:
1. Open the service menu Service menu.
Resetting the service interval display
If the service interval display was not reset after the oil change service or inspection service, the display can be reset as follows:
The service interval display can only be reset through the service menu Service menu.
Do not reset the service interval display between service intervals or incorrect information will be displayed.
If the oil change service interval was manually reset, the service interval display then also switches to a fixed service interval, even on vehicles with the flexible oil
change service interval.
The service message automatically disappears after a few seconds when the engine is running or by pressing the
button on the windshield wiper
lever or the
button on the multi-function steering wheel.
If the 12 V vehicle battery in a vehicle with the flexible service interval has been disconnected for an extended period, the time for the next oil change service
cannot be calculated. Therefore, the service interval displays may show incorrect calculations. If this is the case, follow the maximum permissible maintenance
intervals.
Time
Setting the time in the Infotainment system
1. Depending on the design, press the
button or function key and open the Vehicle menu.
Or: depending on the vehicle equipment, press the
button or function key.
2. Depending on how your vehicle is equipped, open the Settings menu.
3. Select the Time and date menu item to set the time.
Setting the Time in the Volkswagen Digital Cockpit Pro
32
1. Select the Range information profile.
2. Press and hold the
button on the multi-function steering wheel until the service menu is available in the instrument cluster display
Service menu.
3. Select Time menu.
4. Set the correct time using the
or
arrow buttons.
Setting the Time in the Volkswagen Digital Cockpit Basic
1. Open the service menu Service menu.
2. Select the Time menu.
3. Set the correct time with the
button.
Sport displays
Lap timer in the instrument cluster
The lap timer offers the option to
measure and save the individual lap
times on a race course manually in the
vehicle as well as compare these times
to the best times previously recorded.
Depending on the equipment, the lap timer can be displayed in the instrument cluster.
The following main menus can be displayed:
Lap timer.
Lap (with current lap specification).
Statistics.
Switching between menus
1. Press the
or
button on the multi-function steering wheel.
For example, the following list will show the layout of the menus in the instrument cluster display. The actual scope of the menus and the names of individual menu
items depend on the instrument cluster version and the vehicle electronics.
Menu displays and functions
Lap timer menu:
Start
The time measurement of a lap is started.
Since start
The time measurement begins when the vehicle begins to drive. If it is already moving, the time measurement starts when the vehicle comes to a
stop in the meantime.
StatisticsAn overview of the laps previously recorded is displayed.
Lap menu:
Stop
The active time measurement is paused. The lap is not finished.
Resume
The paused time measurement is resumed.
Split time
A split time is displayed for approximately five seconds. The active time measurement continues to run simultaneously.
New lap
The time of the current lap is stopped and a new lap is started. The time for the finished lap is transferred to the statistics.
Cancel lap
The time measurement is stopped and discarded. The current lap will not be recorded in the statistics.
End
The time measurement is finished. The lap will be recorded in the statistics.
Statistics menu:
Back
The display switches back to the previous menu.
Reset All saved statistics data is reset.
The previously driven lap times are displayed in the Statistics menu. If the maximum lap number of 99 laps or the maximum total duration of 99 hours, 59 minutes
and 59 seconds is reached, a new time measurement can be started before the statistics are reset.
WARNING
If the driver is distracted, accidents and serious injuries can occur. Operating the lap timer can distract you from traffic.
Only adjust lap timer presets and open the statistics when the vehicle is stationary.
Only operate the lap timer while driving if the driving situation is easy to control and monitor.
33
Infotainment system lap timer

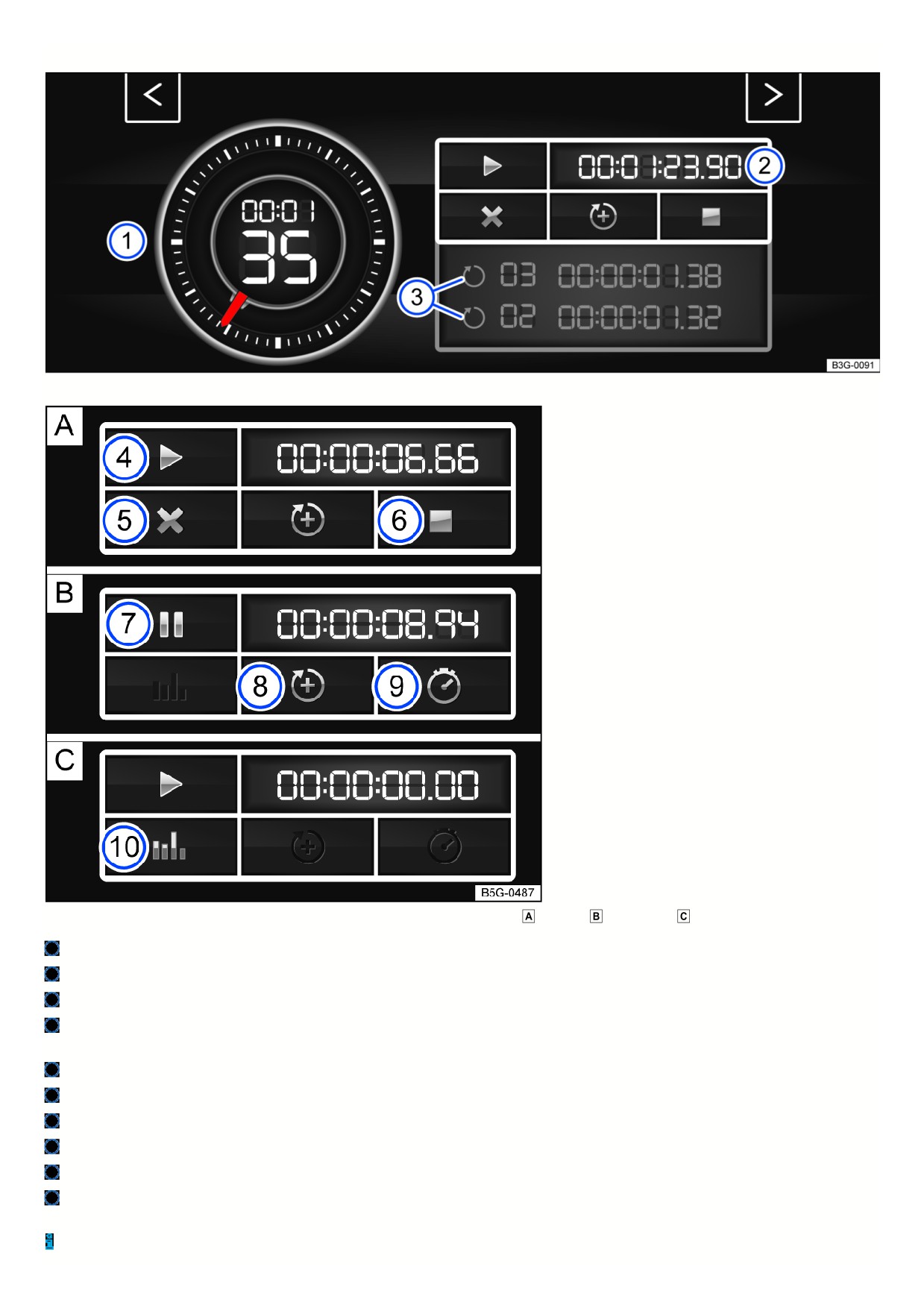

Fig. 19 On the Infotainment system screen: lap timer with stopwatch, function key, and lap times.
Fig. 20 Function key on the Infotainment system screen: time measurement when the lap is
stopped,
running, and
finished.
Stopwatch
Function key with current lap time
Saved lap times
Start or resume time measurement; this is only possible when the ignition is switched on. Tap Start to begin the time measurement. The time measurement
starts automatically once the vehicle moves forward. If the data has been reset in the statistics, a new first round can be started.
Cancel the current lap. The lap time is deleted. --: --:--.-- is displayed in the statistics.
End the time measurement.
Stop the time measurement or cancel the current lap when the time measurement is running.
Start new lap. The last lap time is saved and a new lap time starts. The total time of the laps is displayed in the statistics.
Display the split time. The stopwatch stops for several seconds and the split time is displayed.
Display the statistics after ending or canceling the time measurement: number of laps, total time, fastest and slowest lap, average lap time of all laps, all lap
times. Tap Reset to reset the statistics.
A maximum of 99 laps and a maximum duration of 99 hours, 59 minutes and 59 seconds can be recorded. If one of these limits is reached, data in the statistics
must be deleted before starting another time measurement.
34
Opening the lap timer
1. Depending on vehicle equipment, press the
button or function key.
Or: press the
button or function key.
Or: tap the
function key.
2. Tap the Vehicle function key.
Or: tap Auto function key.
3. Tap the Selection function key.
4. Tap the Sport function key.
The performance monitor will be displayed.
5. Tap one of the arrow buttons in the performance monitor to switch to the lap timer.
You can switch between the lap timer and performance monitor using the arrow buttons.
Measuring lap times
The stopwatch measures the lap time in two areas:
The red needle and the number in the center indicate the running time in seconds, and the smaller display in the inner area shows minutes and hours.
The display on the right side shows the current lap time with an accuracy of 1/100 of a second. If no laps with split times have been saved yet in the lap timer, then
there is no difference between the stopwatch and the lap time.
WARNING
If the driver is distracted, accidents and serious injuries can occur. Operating the lap timer can distract you from traffic.
Only adjust lap timer presets and open the statistics when the vehicle is stationary.
Only operate the lap timer while driving if the driving situation is easy to control and monitor.
Performance monitor

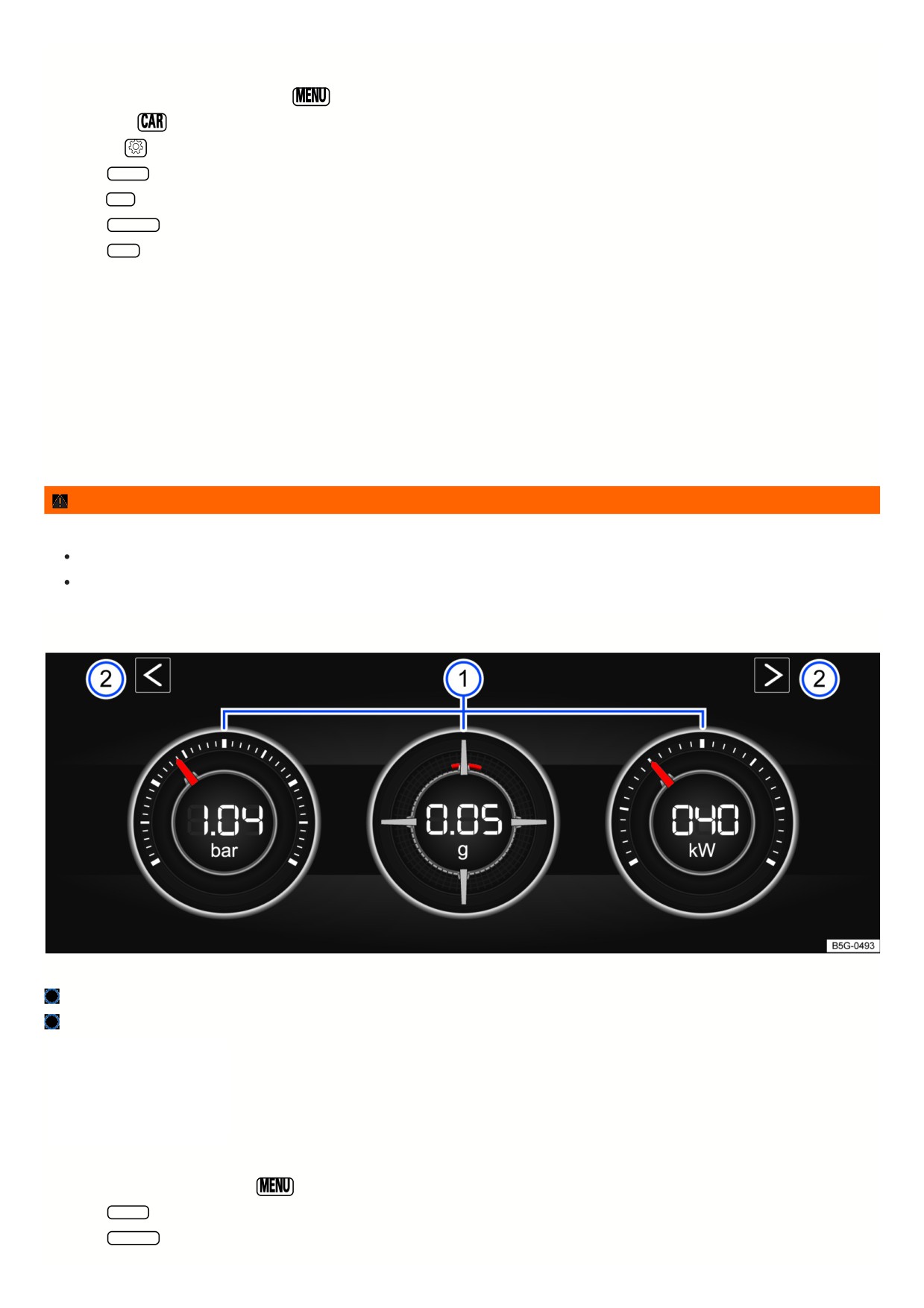

Fig. 21 On the Infotainment system screen: performance monitor.
Displays
Arrow buttons to switch to the lap timer
The performance monitor is a display
for sporty driving. The digital
instruments show values in real time for
engine power, temperature, and
acceleration that are determined by
sensors in the vehicle. This gives the
driver an overview of the driving
dynamics.
Opening the performance monitor
1. Depending on the version, press the
button or function key in the Infotainment system.
2. Tap the Vehicle function key.
3. Tap the Selection function key.
35
4. Tap the Sport function key.
If you want to switch between the performance monitor and the lap timer, tap one of the left or right arrow buttons above the instruments fig. 21.
Selecting instruments and adjusting units
The display can show a maximum of three instruments at the same time. Every instrument can be selected for any display area fig. 21 (left, center, right).
1. To switch between instruments, swipe up over the display.
The instrument that is currently selected will disappear and a new instrument will appear.
The units on some instruments can be adjusted in the Infotainment system
Vehicle settings menu.
The following instruments can be displayed:
Boost pressure indicator: the boost pressure indicator fig. 21 (left) displays the boost pressure between the turbocharger and the engine in bar. The farther
the right that the needle on the scale is, the more engine power is being used.
Accelerometer (g-meter): the accelerometer (g-meter) fig. 21 (center) displays the acceleration value in the center area in g. The red marking in the tab area
shows the intensity of the acceleration and the direction of the force. The force in effect is contrary to the physical laws. For example, if you drive to the left, the
red marking will move in the right area of the instrument and vice versa. When accelerating, the red marking will move downward. When braking, the red
marking will move upward. The intensity of acceleration is indicated by the position of the red marking from the inside to the outside. If you accelerate faster, th
red marking will disappear from the center area.
Power gauge: the power gauge fig. 21 (right) shows the engine power that is being currently used as a digital value displayed on the surrounding scale in kW
Engine coolant temperature gauge: when engine load is heavy and outside temperatures are high, the gauge may move farther to the right. This is not a
cause for concern as long as the
indicator light in the instrument cluster display is off or blinking
Checking the engine oil level and adding oil .
Oil temperature gauge: the needle stays in the center area under normal driving conditions. If the pointer is in the left, lower area, the engine operating
temperature has not yet been reached. If the engine operating temperature has not been reached yet, avoid excessive high speeds and acceleration. Engine
coolant temperature gauge: when engine load is heavy and outside temperatures are high, the gauge may move farther to the right. This is not a cause for
concern as long as the
indicator light in the instrument cluster display is off or blinking
Troubleshooting.
Adjusting the display areas to the driving situation
You can select the three instruments that best fit your individual driving style and the driving situation.
WARNING
If the driver is distracted, accidents and serious injuries can occur. Operating the Infotainment system can distract you from traffic.
Always drive attentively and responsibly.
Adjust settings in the Infotainment system only when the vehicle is stationary.
NOTICE
A heavy engine load, especially when the engine is cold, can lead to engine damage.
Avoid high engine speeds, full acceleration and heavy engine loads when the engine is cold.
To prevent engine damage, the tachometer indicator may only be in the red area of the scale briefly.
Because of the methods that are used to determine power in the vehicle, the displayed values may not be completely precise.
Vehicle settings menu
You can switch individual functions and
systems on and off and adjust settings
in the vehicle settings menu in the
Infotainment system.
Opening the Vehicle settings Menu
1. Switch the ignition on.
2. If necessary, switch on the Infotainment system.
3. Depending on the equipment, press the
button or function key and select the Vehicle menu.
Or: depending on the design, press the
button or function key and select the Settings menu.
Or: Tap the
function key and select the Car menu.
4. To open other menus in the Vehicle settings menu or to adjust settings to the menu items, tap the
function key and select the relevant function keys.
5. Tap the
function key to return to the previous menu.
A check mark
indicates that the respective function is switched on.
36
System settings and vehicle information display
Vehicle settings (setup)
Depending on vehicle equipment: Performance monitor Performance monitor.
Depending on vehicle equipment: Lap timer Infotainment system lap timer.
Volkswagen Digital Cockpit (Pro) Volkswagen Digital Cockpit Pro , Volkswagen Digital Cockpit Pro Information Displays .
Volkswagen Digital Cockpit (Basic) Volkswagen Digital Cockpit Basic, Volkswagen Digital Cockpit Basic Information Displays.
Active media.
Driving Data.
Vehicle status.
Radio station selection.
After starting the engine when the 12 V vehicle battery is severely drained or has been replaced or jump-started, system settings, e.g. personal convenience
settings and programming, may be adjusted or deleted. Check and correct the settings after the 12 V vehicle battery is sufficiently recharged.
WARNING
If the driver is distracted, accidents and serious injuries can occur. Operating the Infotainment system can distract you from traffic.
Always drive attentively and responsibly.
Adjust settings in the Infotainment system only when the vehicle is stationary.
37
Safety
General information
Driving preparations and driving safety
Observe the following points before and during every trip, for your own safety and for the safety of your passengers and others on the road
:
Make sure the vehicle lighting and turn signals are functioning correctly.
Check the tire pressure and fuel level Checking the tire pressure, Fuel gauge.
Check the washer fluid level Washer fluid.
Ensure that the windows are clear and provide good visibility Exterior care and cleaning.
The air intake for the engine must not be blocked. The engine must not be covered with covers or insulation
Safety precautions for working in the engine
compartment.
Secure all objects and luggage in the storage compartments and the luggage compartment
Transporting.
It must be possible to press the pedals without interference.
Secure children with child restraint systems that are appropriate for their weight and height
Transporting children safely.
Adjust the front seats, head restraints, and mirrors according to the size of the occupants
Seating position, Mirrors.
Wear shoes that give your feet good grip for operating the pedals.
The floormat in the driver side footwell must be kept clear from the pedal area and be secured.
Assume the correct seating position before driving and remain that way while driving. This also applies to all passengers
Seating position.
Fasten the safety belt correctly before you begin driving and keep it fastened while driving. This also applies to all passengers
Safety belts.
The number of passengers must not exceed the number of seats and safety belts.
Never drive when impaired, for example by medication, alcohol, or drugs.
Never allow yourself to be distracted from traffic, such as by adjusting settings, by opening menus, by passengers, or by phone calls.
Always adapt your speed and driving style to the current visual, weather, road, and traffic conditions.
Follow driving rules and posted speed limits.
Take regular breaks on long trips. You should take a break at least every two hours.
Secure animals in the vehicle restraint systems that are appropriate for their weight and size.
Driving in other countries
Some countries have special safety standards and regulations that differ from the vehicle configuration. Volkswagen recommends that you inform yourself about
legal regulations and about the following points from an authorized Volkswagen dealer or authorized Volkswagen Service Facility before driving in other countries.
Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
Do technical modifications need to be made to the vehicle before driving in other countries, such as covering or adjusting the headlights?
Are the tools, diagnostic equipment, and replacement parts that are needed for maintenance and repair work available?
Is there an authorized Volkswagen dealer or authorized Volkswagen Service Facility in the country where you will be driving?
Are fluids that meet Volkswagen specifications available in the country where you will be driving
Operating fluids and operating equipment ?
Will the navigation function in the factory-installed Infotainment system work with the existing navigation data in the country where you will be driving?
Are special tires needed in the country where you will be driving?
Is a fire extinguisher required in the country where you will be driving?
What are the requirements for a safety vest?
Is fuel with sufficient quality available Fuel and emissions control system?
Checks when refueling
Only perform work on the engine and in the engine compartment if you are familiar with the necessary steps and the general safety precautions, and if the correct
operating equipment, fluids, and suitable tools are available Safety precautions for working in the engine compartment ! Have all work performed by suitably
qualified professionals. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Make sure that the
following items are checked regularly:
Washer fluid level Washer fluid.
Engine oil level Engine oil.
Engine coolant level Engine coolant.
Brake fluid level Brake fluid specifications.
Tire inflation pressure Checking the tire pressure .
38
Vehicle lighting Headlights which is necessary for traffic safety:
Information on changing bulbs Exterior lighting.
DANGER
Read and heed the important safety instructions for the front passenger's front airbag
Safety notes on using child restraints .
WARNING
Alcohol, drugs, medication, and prescription narcotics can considerably impair perception, reaction times, and driving safety, which can result in loss of vehicle
control. This can cause accidents and serious or fatal injuries.
Do not drive under the influence of alcohol, drugs, medication or prescription narcotics.
WARNING
Not paying attention to road traffic can cause accidents and serious or fatal injuries.
Always comply with the applicable driving regulations and speed limits and think ahead while driving.
Take regular breaks on long drives. You should take a break at least every two hours.
NOTICE
Volkswagen is not responsible for damage to the vehicle caused by substandard fuel, insufficient maintenance, or unsuitable replacement parts.
Volkswagen recommends the use of Volkswagen original parts or Volkswagen original accessories, which you can acquire from an authorized
Volkswagen dealer or authorized Volkswagen Service Facility.
Having the vehicle serviced regularly not only maintains the value of the vehicle, but also contributes to operational safety and roadworthiness. Therefore, have
maintenance procedures performed according to Volkswagen instructions. Under extreme operating conditions, some work may need to be performed before the
next service is due. Extreme operating conditions can include frequent stop-and-go driving or driving in areas with a lot of dust in the air. For further information,
contact an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting an authorized Volkswagen dealer or
authorized Volkswagen Service Facility.
Seating position
Introduction
Number of seats
The vehicle has a total of five seats: two seats in the front and three seats in the back.
Every seat is equipped with a safety belt.
WARNING
Sitting incorrectly in the vehicle can increase the risk of serious or fatal injuries during sudden driving or braking maneuvers, in the event of a collision or
accident, and if the airbags are deployed.
Before the vehicle starts to move, all vehicle occupants must always be in the correct seating position and maintain it while driving. Safety belts must
also be fastened and remain fastened.
The number of persons in the vehicle must not exceed the number of seats with safety belts.
Always secure children in the vehicle with an approved and suitable child restraint system according to the child's body size and weight
Transporting
children safely and Airbag system.
Always keep feet in the footwell while driving. For example, never rest feet on the seat or on the instrument panel and never hold feet out of the window.
Otherwise, if the airbag and the safety belt deploy, they could increase the risk of injury in the event of an accident instead of providing protection.
Risk of injury due to an incorrect seating position
Please read the introductory information and heed the Warnings and Notice
Introduction.
The risk of serious or fatal injuries will increase if safety belts are not worn or are incorrectly fastened. Safety belts can only achieve the optimum protection if they
are routed correctly. An incorrect seating position significantly impairs the protective function of the safety belt. This could result in serious or fatal injuries. The risk o
serious or fatal injuries increases even more if a deployed airbag strikes a passenger who is sitting in an incorrect seating position. The driver is responsible for all
vehicle occupants and especially for children who are being transported in the vehicle.
The following list includes examples of seating positions that could be dangerous for all vehicle occupants.
39
The following points always apply when the vehicle is in motion:
Never stand inside the vehicle.
Never stand on the seats.
Never kneel on the seats.
Never tilt your seat backrest too far back.
Never lean against the instrument panel.
Never lay down in the seats in the vehicle interior or on the rear bench seat.
Never sit only on the front section of the seat.
Never sit sideways on the seat.
Never lean against the window.
Never place your feet out of the window.
Never place your feet on the instrument panel.
Never place your feet on the seat cushion or on the seat backrest.
Never ride in the footwell.
Never sit on the armrests.
Never drive or ride in a seat without fastening your safety belt.
Never ride in the trunk.
WARNING
Incorrect seating positions in the vehicle increase the risk of serious or fatal injuries in the event of an accident or sudden driving and braking maneuvers,
especially if the airbags are deployed and exert force on a vehicle occupant who is not sitting correctly.
All vehicle occupants must always sit in the correct seating position and have their own safety belts correctly fastened while driving.
Correct seating position
Please read the introductory information and heed the Warnings and Notice
Introduction.

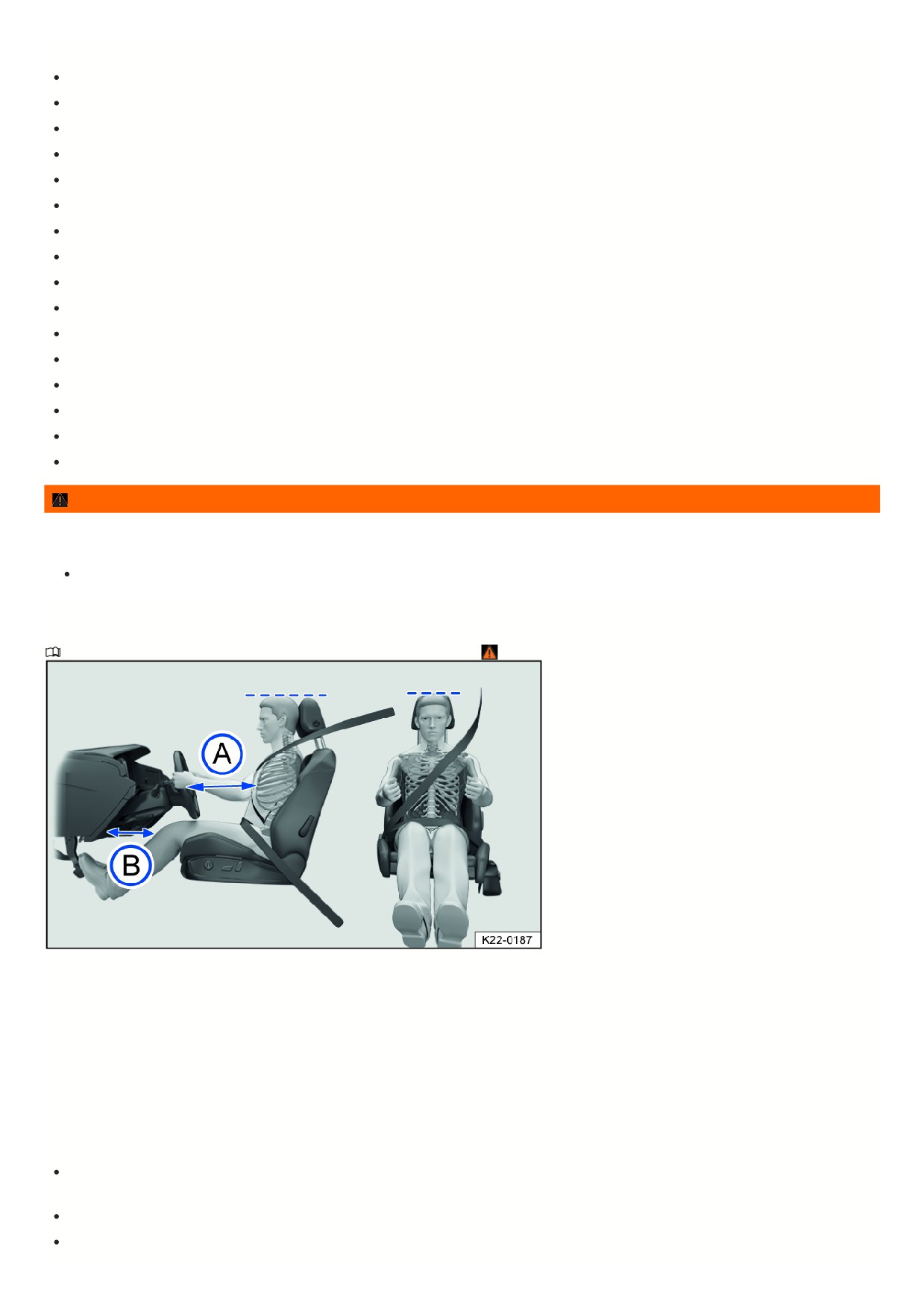

Fig. 22 General example: correct distance between the driver and the steering wheel, correct safety belt routing and correct head restraint adjustment.
The correct seating positions for the driver and passengers are specified in the information that follows. The safety belt and airbags only provide the optimum
protection when vehicle occupants are seated in a correct seating position.
If you have a physical impairment that prevents you from sitting correctly on the driver seat with a correctly worn safety belt and reaching the pedals, special
modifications to your vehicle may be necessary. For information on possible changes to your vehicle, contact an authorized Volkswagen dealer or authorized
Volkswagen Service Facility qualified for this. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
Alternatively, contact the Volkswagen Customer CARE Center at +00 (1) 800 822 8987.
For your safety and to reduce the risk of injuries in the event of a sudden braking maneuver or accident, Volkswagen recommends the following seating positions:
The following applies to all vehicle occupants:
Adjust the head restraint so that the upper edge of the head restraint is in line with the upper portion of the head as much as possible, but not lower than eye
level. Position the back of the head as close as possible to the head restraint fig. 22.
For shorter individuals, slide the head restraint all the way downward, even if the head is then below the upper edge of the head restraint.
For taller individuals, move the head restraint upward all the way.
4
Keep both feet in the footwell while driving.
Adjust and fasten the safety belts correctly Safety belts.
The following additional points apply to the driver:
Adjust the forward/back position of the driver seat so that you can press the pedals while your legs are slightly bent and there is at least 10 cm (around
4 inches) of space between the instrument panel and your knees fig. 22.
Adjust the driver seat so that the top point of the steering wheel can be reached.
Position the seat backrest in an upright position, so that your back rests completely on the seat backrest.
Adjust the steering wheel so that the distance between the steering wheel and your chest is at least 25 cm (around 10 inches) fig. 22 and you can hold the
steering wheel firmly at the sides with both hands and your elbows slightly bent.
When adjusted, the steering wheel must always face your chest and not be directed toward your face.
In vehicles with head restraints that can be moved forward or back, position the head restraint so that it is as close as possible to the back of the head.
Always keep both feet in the footwell to keep control of the vehicle at all times.
The following additional points apply to the front passenger:
In vehicles with head restraints that can be moved forward or back, position the head restraint so that it is as close as possible to the back of the head.
Position the seat backrest in an upright position, so that your back rests completely on the seat backrest.
Move the front passenger seat back as far as possible so that the airbag can provide optimum protection if it deploys.
Safety belts
Introduction
Check the condition of all of the safety belts regularly. If there is damage to the belt fabric, the belt connections, the automatic safety belt retractor or the buckle,
have the affected safety belt replaced immediately by suitably qualified professionals
. The authorized Volkswagen dealer or authorized Volkswagen Service
Facility must use the correct parts for the vehicle, equipment and model year. Volkswagen recommends contacting an authorized Volkswagen dealer or authorized
Volkswagen Service Facility.
WARNING
The risk of serious and fatal injuries increases if the safety belts are not worn or are worn incorrectly.
Safety belts are the most effective way to reduce the risk of serious and fatal injuries in a collision. Before every trip, vehicle occupants must therefore
seat themselves correctly, fasten the safety belt that belongs to the seat they are using, and keep it fastened while the vehicle is in motion. This applies to
all passengers and at all times, including during city driving.
Secure only one person with a safety belt.
Secure children in the vehicle with a child restraint that is appropriate for their weight and height and with the safety belt used correctly
Transporting
children safely.
Never allow children or infants to ride on anyone's lap and never strap children or infants to another person with the same safety belt.
Only ever insert and latch the buckle tongue in the belt buckle for the corresponding seat. Using a buckle from another seat reduces the protection
provided by the safety belt and can cause serious injuries.
Do not wear extremely bulky, loose clothing in the vehicle, such as a coat over a sports jacket, because this could impair the fit and function of the safety
belt.
WARNING
If the belt webbing or other parts of the safety belts are damaged, the safety belts could tear during a collision or sudden braking maneuver and cause serious or
fatal injuries.
Never damage the safety belts by trapping them or chafing them on sharp edges.
Have damaged safety belts replaced immediately with new safety belts that are approved for the vehicle by Volkswagen. Safety belts that are stretched
during a collision must be replaced by an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting
an authorized Volkswagen dealer or authorized Volkswagen Service Facility. It may be necessary to replace them even if there is no visible damage.
Check the safety belts' anchorage points as well.
Never try to repair, modify, or remove the safety belts yourself. Have all repairs to safety belts, safety belt retractors, and buckle components performed
only by an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Volkswagen recommends contacting an authorized Volkswagen
dealer or authorized Volkswagen Service Facility.
Fasten seat belts reminder and seat belt safety indicator
Please read the introductory information and heed the Warnings and Notice
Introduction.
41
Fig. 23 In the instrument cluster display: warning light.
The driver or front passenger has not fastened their safety belt. Fasten all safety belts.
When the ignition is switched on, several warning and indicator lamps light up temporarily as a function check. They then turn off after a few seconds.
A chime also sounds.
When the ignition is switched on, the red
warning light comes on for six seconds. A chime also sounds for up to six seconds if the driver safety belt is not
fastened. The chime ends when the driver fastens their safety belt. The warning lamps and chime go off when the driver and front passenger have fastened their
safety belts.
If the driver and front passenger do not both fasten their safety belts within 10 seconds after the warning chime has ended and the vehicle is driving at a speed
above approx. 25 km/h (approx. 15 mph), the chime sounds again for approx. 6 seconds, then stops for approx. 24 seconds, and then sounds again for approx. 6
seconds. The same happens if one of the safety belts is released while driving. The red
warning light comes on. A warning chime also sounds for up to two
minutes at 24-second intervals. The chime does not sound at speeds below approx. 8 km/h (approx. 5 mph).
When the ignition is switched on, the red
warning light comes on until the driver and front passenger have both fastened their safety belts.
WARNING
The risk of serious and fatal injuries increases if the safety belts are not worn or are worn incorrectly.
Fasten the safety belts and use them correctly to ensure that they provide optimum protection.
Using safety belts
Please read the introductory information and heed the Warnings and Notice
Introduction.
Checklist
Using safety belts
:
Check the condition of all of the safety belts regularly.
Keep safety belts clean.
Always keep foreign objects and fluids far away from the safety belt, the safety belt buckle, and the slot in the safety belt buckle.
Do not pinch or damage the safety belt and/or belt buckle, for example closing it in a door.
Never remove, modify, or repair the safety belt and belt fastening elements.
Always fasten the safety belt correctly before you begin driving and keep it fastened while driving.
Twisted safety belt
If the safety belt is difficult to pull out of the belt guide, the safety belt may have been pulled out too quickly when positioning the belt and may have become twisted
within the side trim panel:
1. Slowly and carefully pull the safety belt out completely by the belt buckle.
2. Untwist any twisted sections of the safety belt and guide the belt back slowly by hand.
If you cannot untwist the safety belt, fasten the safety belt anyway. The twist must not be in a section of the belt that rests directly on the body. Go to an authorized
Volkswagen dealer or authorized Volkswagen Service Facility immediately to have the belt untwisted. Volkswagen recommends contacting an authorized
Volkswagen dealer or authorized Volkswagen Service Facility.
Lockable safety belt
The safety belts on the rear seats and the safety belt on the front passenger seat are lockable and have an emergency locking function. With the locking function,
you can adjust the safety belt so that a child restraint is properly installed Securing a child restraint with a safety belt .
42

















Content      ..      1       2         ..



//////////////////////////////////////////
