Toyota C-HR (2019 year). Manual - part 9





129

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

Note for the entry function

Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near

the ground, or in a high place when the doors are locked or unlocked.

• The electronic key is near the ground or in a high place, or too close to

the rear bumper center when the back door is opened.

• The electronic key is on the instrument panel, luggage cover or floor, or in

the door pockets or glove box when the engine is started or engine switch
modes are changed.

Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
door will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.

As long as the electronic key is within the effective range, the doors may be
unlocked or locked by anyone.

Even if the electronic key is not inside the vehicle, it may be possible to start
the engine if the electronic key is near the window.

The doors may unlock if a large amount of water splashes on the door han-
dle, such as in the rain or in a car wash when the electronic key is within the
effective range. (The door will automatically be locked after approximately
60 seconds if the doors are not opened and closed.)

If the wireless remote control is used to lock the doors when the electronic
key  is  near  the  vehicle,  there  is  a  possibility  that  the  door  may  not  be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)

130

3-2. Opening, closing and locking the doors

Touching the door lock sensor while wearing gloves may delay or prevent
lock operation. Remove the gloves and touch the lock sensor again.

If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. In this case, follow the
following correction procedures to wash the vehicle.
• Place the electronic key in a location 6 ft. (2 m) or more away from the

vehicle. (Take care to ensure that the key is not stolen.)

• Set electronic key to battery-saving mode to disable the smart key sys-

tem. (

P. 127)

If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information dis-
play and a buzzer will sound outside the vehicle. To turn off the alarm, lock
all the doors.

The  lock  sensor  may  not  work  properly  if  it  comes  into  contact  with  ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again.

A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the origi-
nal position and check that the doors unlock before pulling the door handle
again.

If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the door handle is gripped.

Fingernails may scrape against the door during operation of the door han-
dle. Be careful not to injure fingernails or damage the surface of the door.

131

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

When the vehicle is not driven for extended periods

To prevent theft  of the vehicle, do not  leave the  electronic  key within 6  ft.
(2 m) of the vehicle.

The smart key system can be deactivated in advance. (

P. 486)

To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention may not operate.)

If the smart key system does not operate properly

Locking and unlocking the doors: Use the mechanical key. (

P. 448)

Starting the engine system:

P. 449

Customization
Settings (e.g. smart key system) can be changed.
(Customizable features:

P. 486

If the smart key system has been deactivated in a customized setting

Unlocking and locking the doors:
Use the wireless remote control or mechanical key. (

P. 112, 448)

Starting the engine and changing engine switch modes:

P. 449

Stopping the engine:

P. 176

132

3-2. Opening, closing and locking the doors

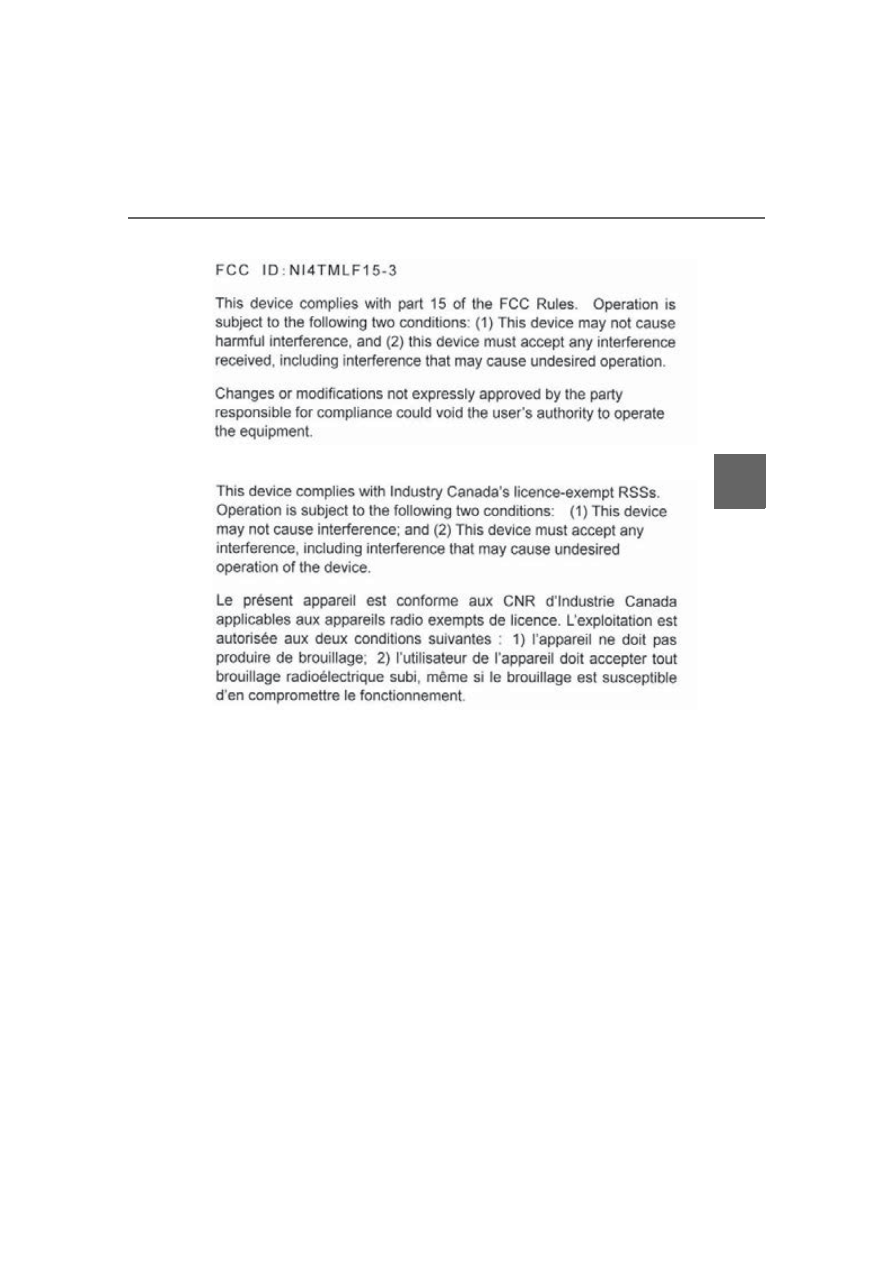

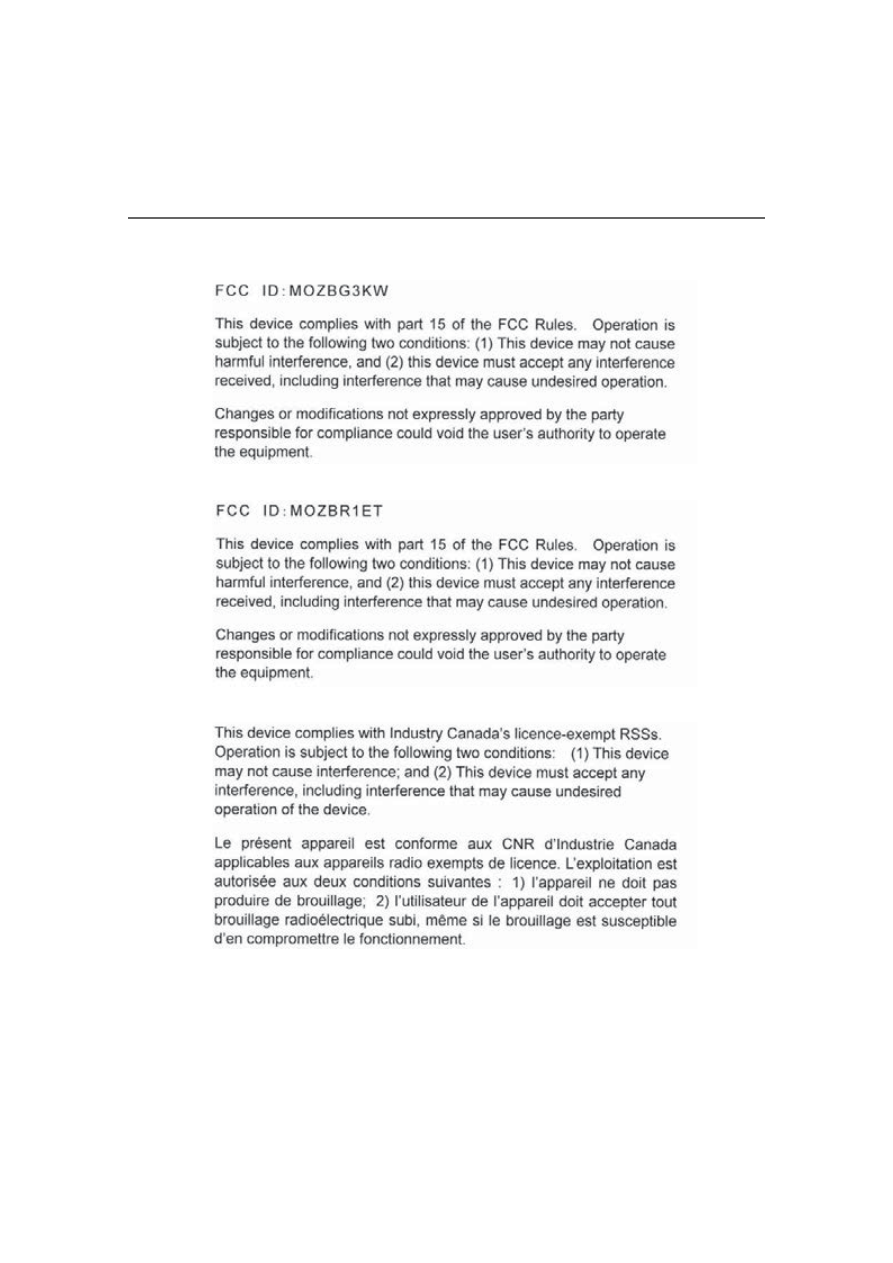

Certification for the smart key system

For vehicles sold in the U.S.A.

For vehicles sold in the U.S.A.

For vehicles sold in Canada

133

3-2. Opening, closing and locking the doors

3

Op
eration

 o

f each

 compo

nen
t

For vehicles sold in the U.S.A.

For vehicles sold in Canada

134

3-2. Opening, closing and locking the doors

WARNING

Caution regarding interference with electronic devices

People  with  implantable  cardiac  pacemakers,  cardiac  resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should keep
away from the smart key system antennas. (

P. 125)

The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask your Toyota dealer for details, such
as  the  frequency  of  radio  waves  and  timing  of  the  emitted  radio  waves.
Then, consult your doctor to see if you should disable the entry function.

Users  of  any  electrical  medical  device  other  than  implantable  cardiac
pacemakers,  cardiac  resynchronization  therapy-pacemakers  or  implant-
able  cardioverter  defibrillators  should  consult  the  manufacturer  of  the
device  for  information  about  its  operation  under  the  influence  of  radio
waves.
Radio  waves  could  have  unexpected  effects  on  the  operation  of  such
medical devices.

Ask your Toyota dealer for details on disabling the entry function.

135

3-3. Adjusting the seats

3

Op
eration

 o

f each

 compo

nen
t

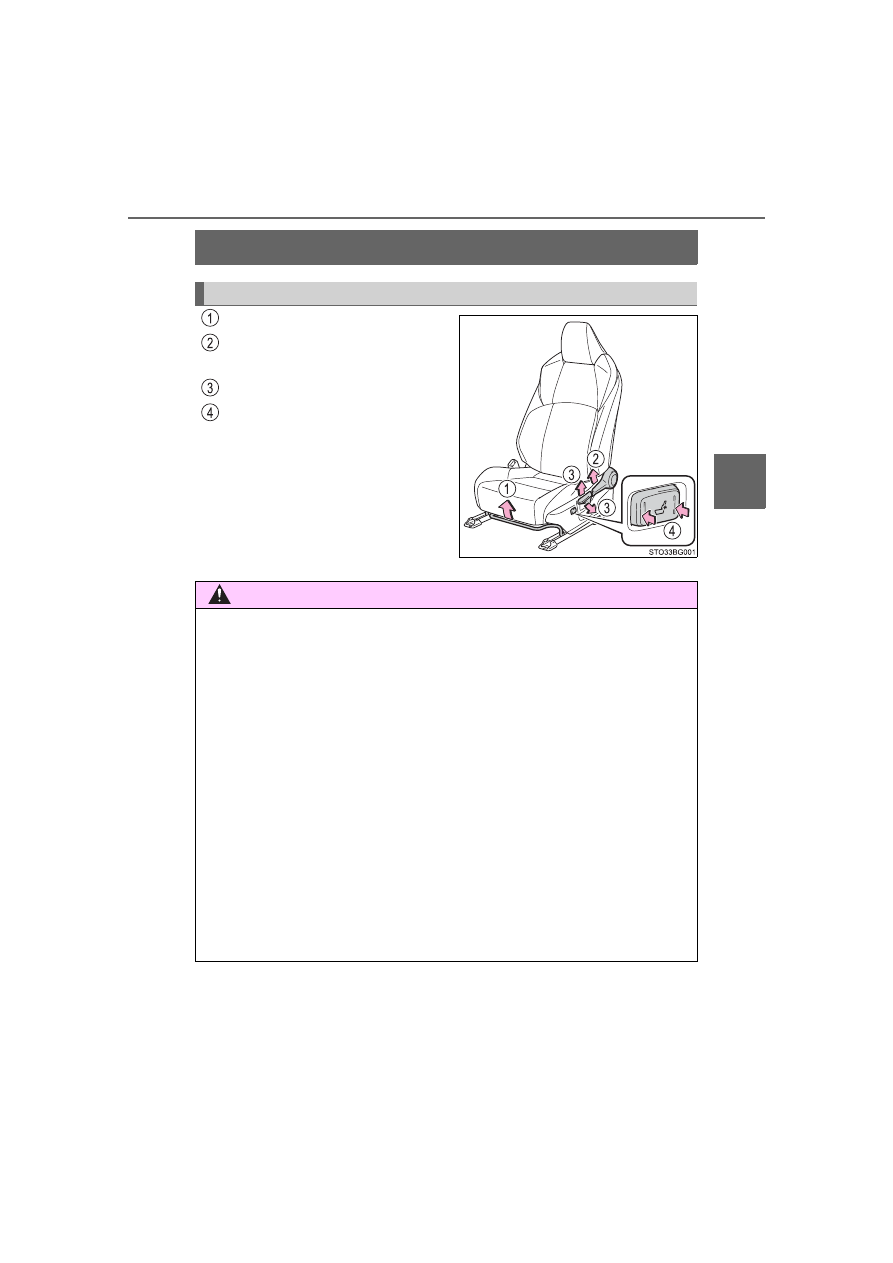

Front seats

Seat position adjustment lever
Seatback  angle  adjustment
lever
Vertical height adjustment lever
Lumbar  support  adjustment
switch (if equipped)

Adjustment procedure

WARNING

When adjusting the seat position

Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.

Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.

Make sure to leave enough space around the feet so they do not get stuck.

Seat adjustment

Be careful that the seat does not hit passengers or luggage.

To  reduce  the risk  of sliding  under  the lap  belt during a  collision,  do  not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint  forces  directly  to  the  abdomen,  or  your  neck  may  contact  the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.

After adjusting the seat, make sure that the seat is locked in position.

136

3-3. Adjusting the seats

Rear seats

Park the vehicle in a safe place.

Apply the parking brake firmly and shift the shift lever to P. (

P. 181)

Adjust the position of the front seat and the angle of the seatback.
(

P. 135)

Depending on the position of the front seat, if the seatback is folded
backward, it may interfere with the operation of the rear seat.
Lift  up  and  push  down  the  head  restraints  of  the  rear  outboard
seats, and lower the head restraint of the rear center seat.
(

P. 138)

Pull  the  seatback  lock  release
lever and fold the seatback down.

To  avoid  trapping  the  seat  belt
between the seat and the inside of
the  vehicle,  pass  the  seat  belt
inside the seat belt guide and then
return  the  seatback  securely  to
the locked position.

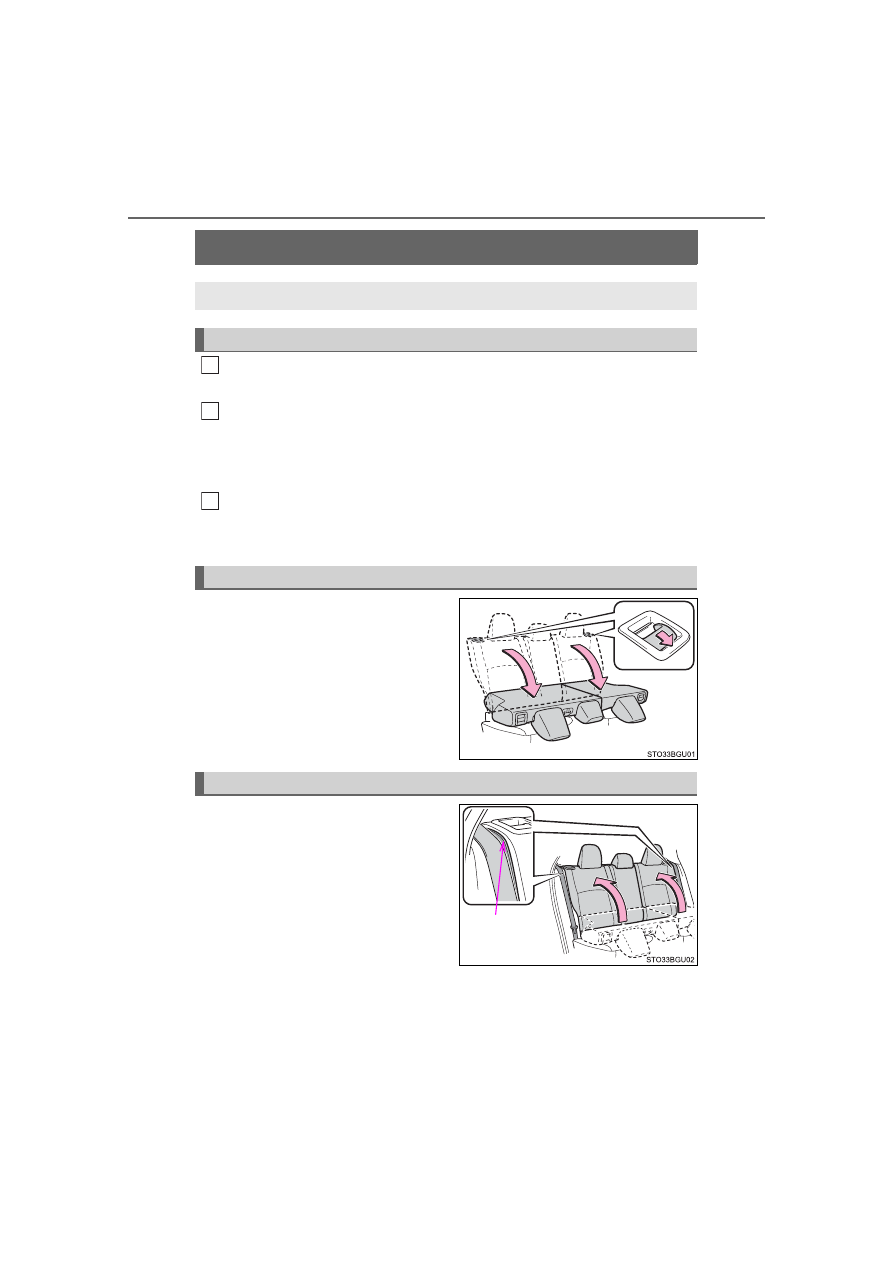

The seatbacks of the rear seats can be folded down.

Before folding down the seatbacks

Folding down the seatbacks

1

2

3

Returning the rear seatbacks

Seat belt

guide

137

3-3. Adjusting the seats

3

Op
eration

 o

f each

 compo

nen
t

WARNING

Observe  the  following  precautions.  Failure  to  do  so  may  result  in  death  or
serious injury.

When folding the rear seatbacks down

Do not fold the seatbacks down while driving.

Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P.

Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.

Do not allow children to enter the luggage compartment.

Do not allow anyone to sit on the rear center seat if the rear right seat is
folded down, as the seat belt buckle for the rear center seat belt is then
concealed under the folded seat and cannot be used.

Be careful not to get your hand caught when folding the rear seatbacks.

Adjust  the  position  of  the  front  seats  before  folding  down  the  rear  seat-
backs so that the front seats do not interfere with the rear seatbacks when
folding down the rear seatbacks.

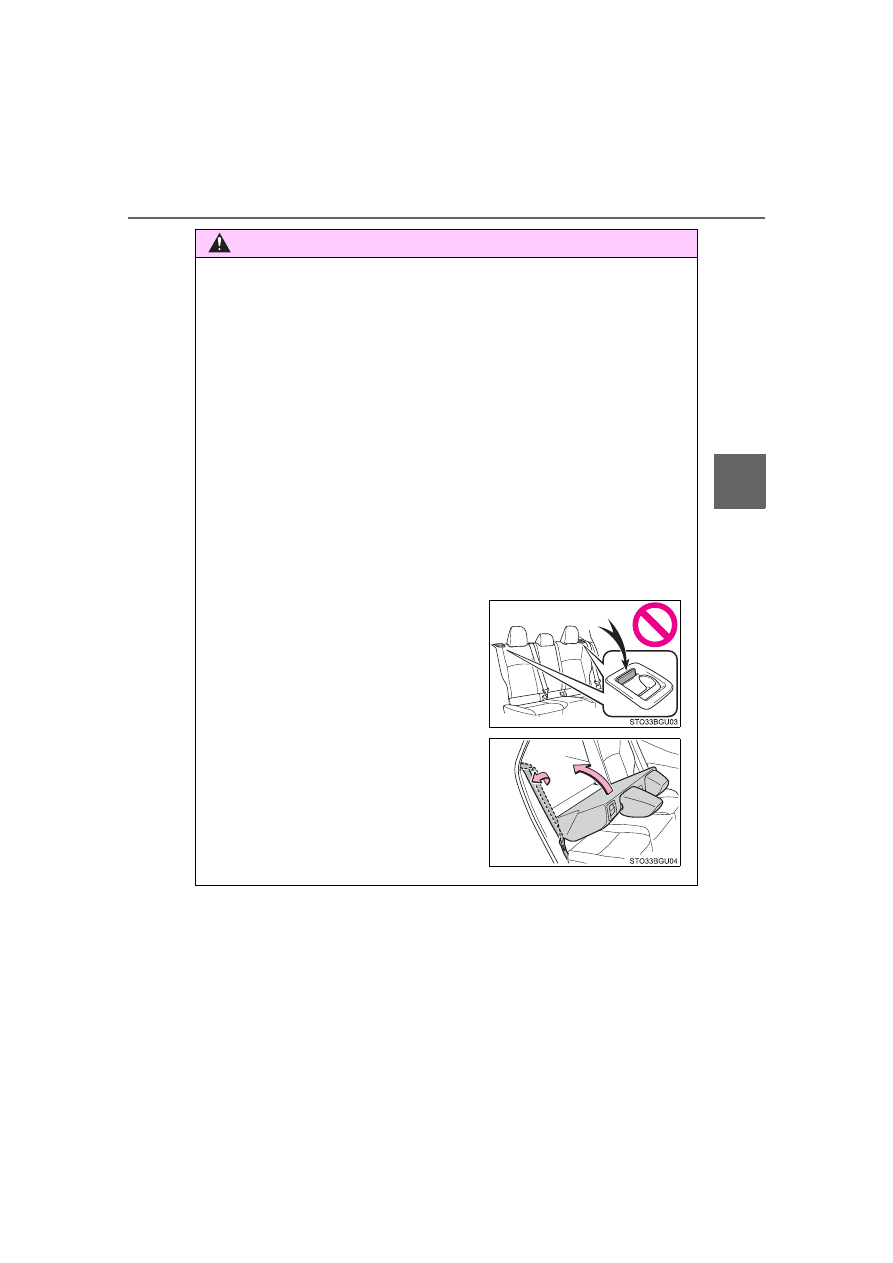

After returning the rear seatback to the upright position

Make sure that the seatback is securely
locked  in  position  by  lightly  rocking  it
back and forth.
If  the  seatback  is  not  securely  locked,
the  red  marking  will  be  visible  on  the
seatback lock release knob. Make sure
that the red marking is not visible.

Check that the seat belts are not twisted
or caught in the seatback.
If the seat belt gets caught between the
seatback’s  securing  hook  and  latch,  it
may damage the seat belt.

138

3-3. Adjusting the seats

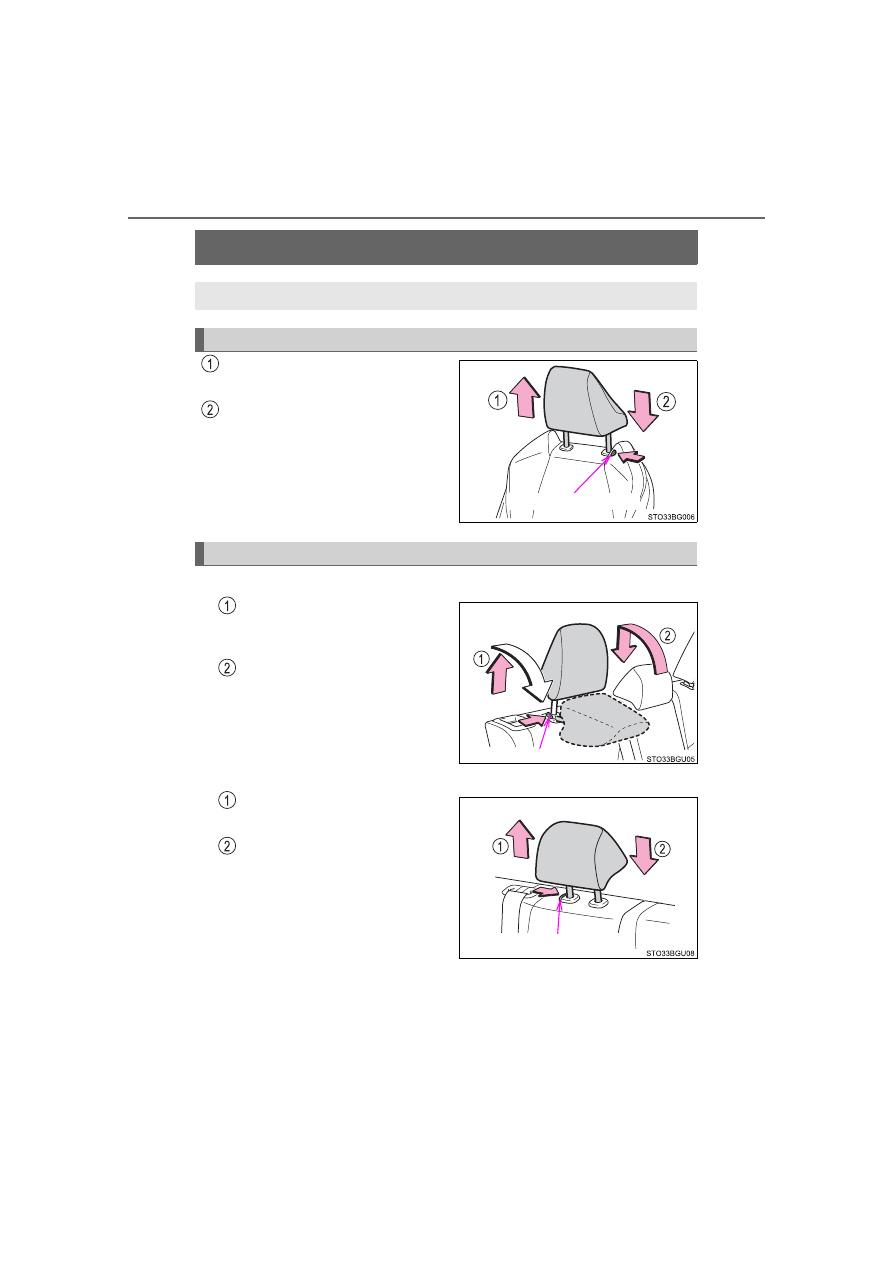

Head restraints

Up

Pull the head restraints up.

Down

Push the head restraint down while
pressing the lock release button.

Rear outboard seats

To fold

Pull  the  head  restraint  up  while
pressing the lock release button.

To use

Lift up and push down the head
restraint to the lowest lock posi-
tion.

Rear center seat

Up

Pull the head restraints up.

Down

Push  the  head  restraint  down
while  pressing  the  lock  release
button.

Head restraints are provided for all seats.

Front seats

Lock release button

Rear seats

Lock release button

Lock release button

139

3-3. Adjusting the seats

3

Op
eration

 o

f each

 compo

nen
t

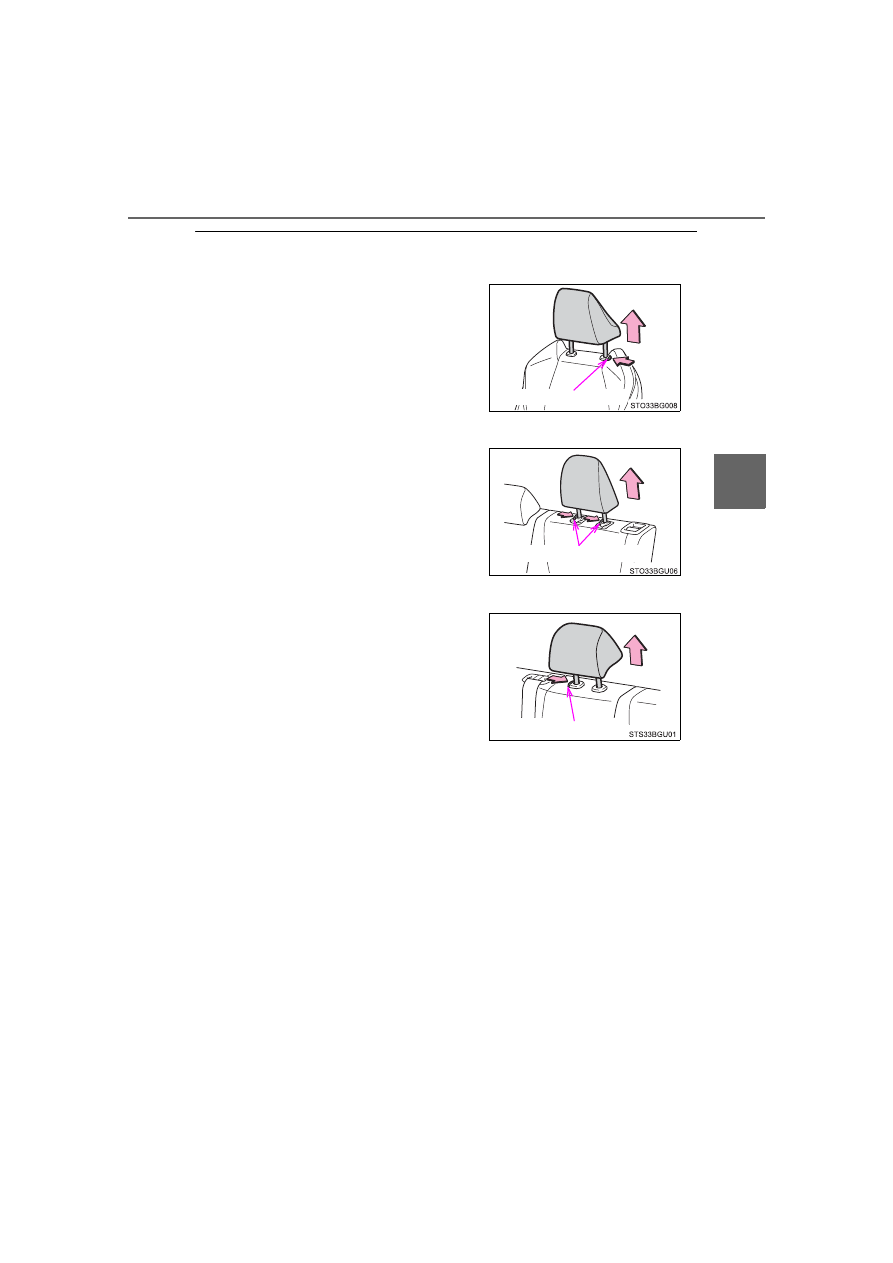

Removing the head restraints

Front seats

Rear outside seats

Rear center seat

Pull  the  head  restraint  up  while  pressing
the lock release button.

Pull  the  head  restraint  up  while  pressing
the both lock release buttons.

Pull  the  head  restraint  up  while  pressing
the lock release button.

Lock release button

Lock release button

Lock release button

140

3-3. Adjusting the seats

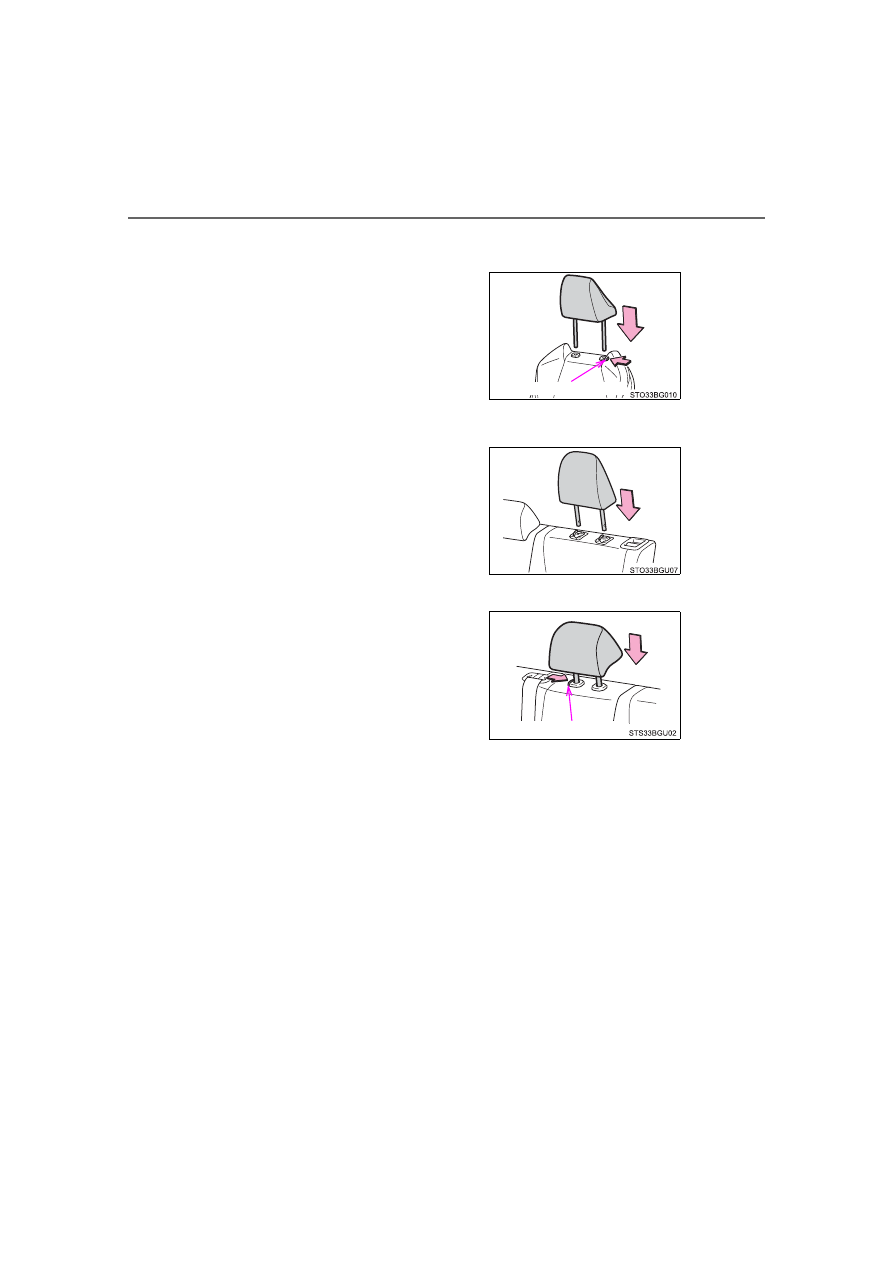

Installing the head restraints

Front seats

Rear outside seats

Rear center seat

Align  the  head  restraint  with  the  installa-
tion  holes  and  push  it  down  to  the  lock
position.
Press  and  hold  the  lock  release  button
when lowering the head restraint.

Align  the  head  restraint  with  the  installa-
tion  holes  and  push  it  down  to  the  lock
position.

Align  the  head  restraint  with  the  installa-
tion  holes  and  push  it  down  to  the  lock
position.
Press  and  hold  the  lock  release  button
when lowering the head restraint.

Lock release button

Lock release button

141

3-3. Adjusting the seats

3

Op
eration

 o

f each

 compo

nen
t

Adjusting the height of the front seat head restraints

Adjusting the rear center seat head restraint
Always  raise  the  head  restraint  one  level  from  the  stowed  position  when
using.

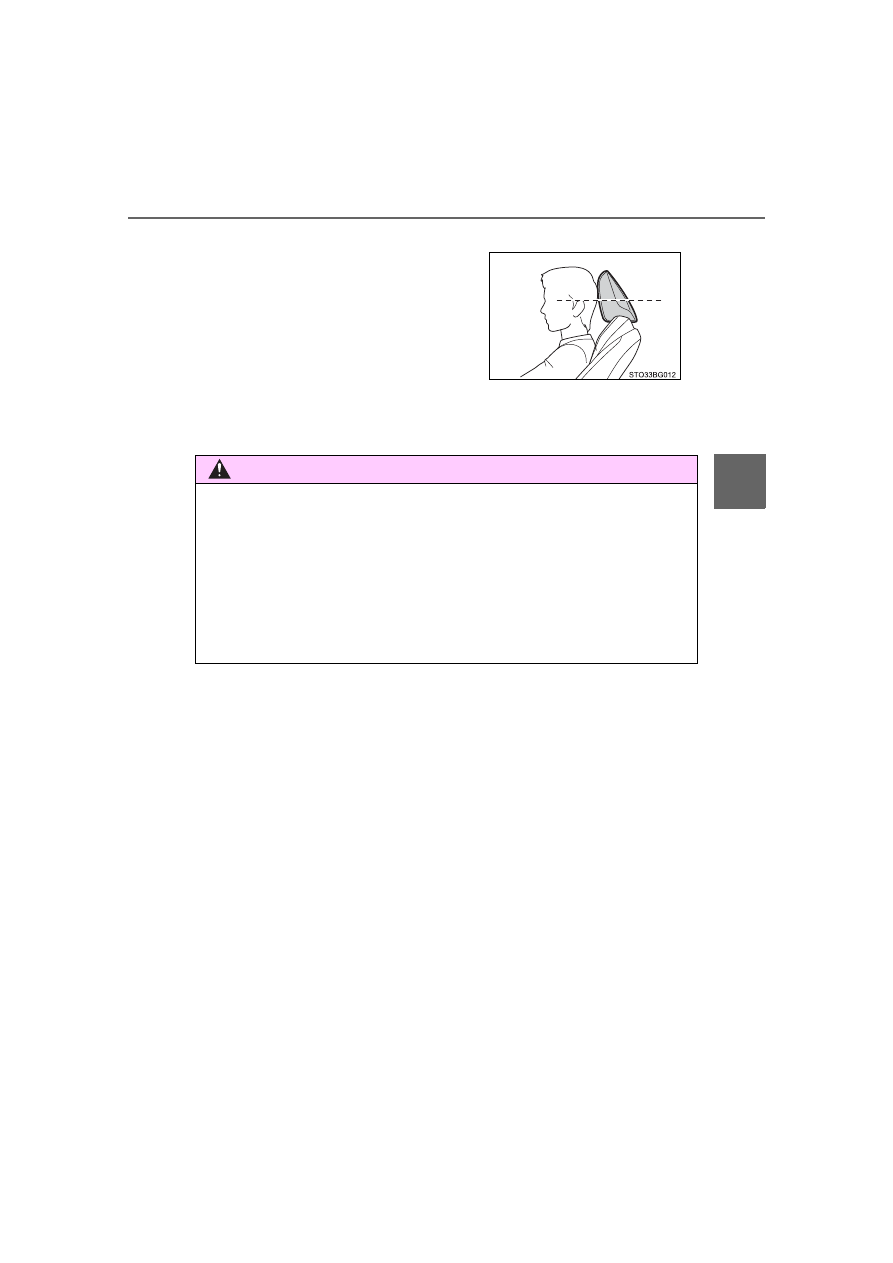

Make  sure  that  the  head  restraints  are
adjusted  so  that  the  center  of  the  head
restraint is closest to the top of your ears.

WARNING

Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.

Use the head restraints designed for each respective seat.

Adjust the head restraints to the correct position at all times.

After  adjusting  the  head  restraints,  push  down  on  them  and  make  sure
they are locked in position.

Do not drive with the head restraints removed.

142

3-4. Adjusting the steering wheel and mirrors

Steering wheel

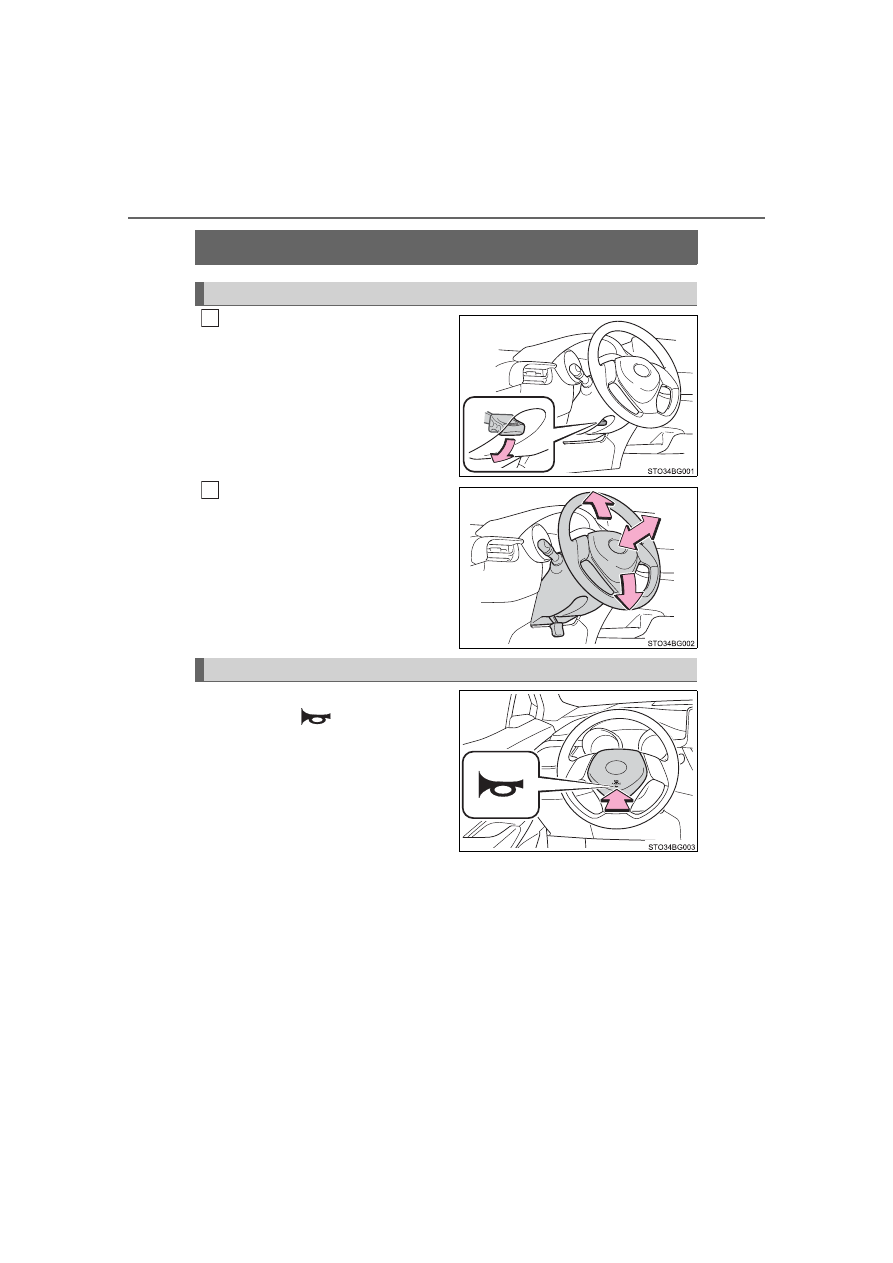

Hold  the  steering  wheel  and
push the lever down.

Adjust  to  the  ideal  position  by
moving the steering wheel hori-
zontally and vertically.

After  adjustment,  pull  the  lever  up
to secure the steering wheel.

To  sound  the  horn,  press  on  or
close to the

 mark.

Adjustment procedure

1

2

Horn

143

3-4. Adjusting the steering wheel and mirrors

3

Op
eration

 o

f each

 compo

nen
t

After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.

WARNING

Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.

After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise,  the  steering  wheel  may  move  suddenly,  possibly  causing  an
accident, resulting in death or serious injury. Also, the horn may not sound if
the steering wheel is not securely locked.

144

3-4. Adjusting the steering wheel and mirrors

Inside rear view mirror

The height of the rear view mirror can be adjusted to suit your driving
posture.

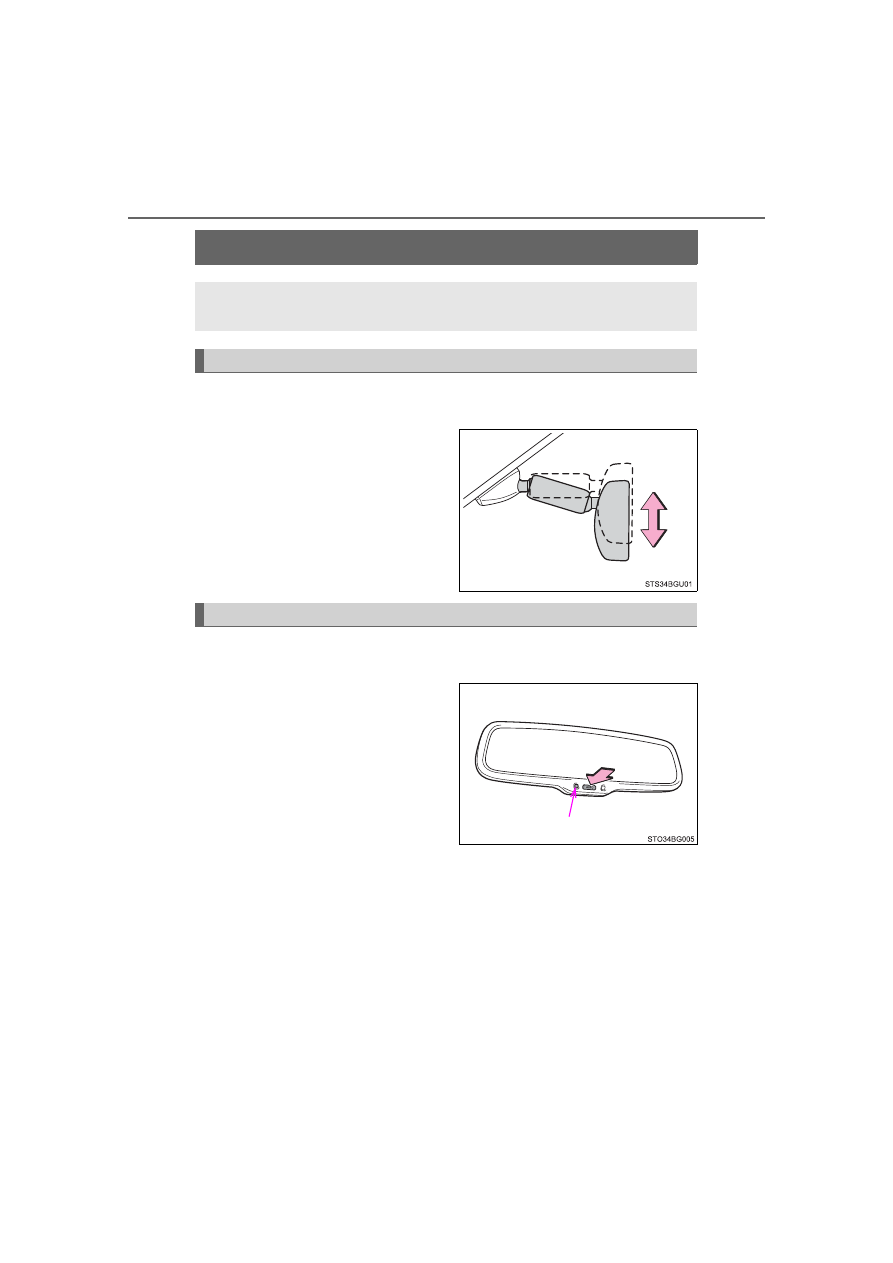

Adjust the height of the rear view
mirror by moving it up and down.

Responding  to  the  level  of  brightness  of  the  headlights  of  vehicles
behind, the reflected light is automatically reduced.
Changing  automatic  anti-glare
function mode
On/off

When  the  automatic  anti-glare
function is in on mode, the indica-
tor illuminates.
Vehicles  without  a  smart  key  sys-
tem: The function will be set to on
mode each time the engine switch
is turned to the “ON” position.
Vehicles with a smart key system: The function will be set to on mode each
time the engine switch is turned to IGNITION ON mode.
Pressing the button turns the function to off mode. (The indicator also turns
off.)

The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.

Adjusting the height of rear view mirror

Anti-glare function

Indicator















Content   ..  7  8  9  10   ..
