BONNET (1/2)

6

5

4

1

3

2

To open the bonnet, open a door and

Unlocking the bonnet catch

Opening the bonnet

pull the 1 handle, located on the left-

To unlock, push tab 2 at the same time

Lift the bonnet and release stay 5 from

hand side of the dashboard.

as opening the bonnet.

its holder 6 using the handle 4. For

your own safety, it is very important

to fix the stay into the retainer 3 in the

bonnet.

Before carrying out any

action in the engine com-

Please note when work-

partment, you must switch

ing close to the engine that

off the ignition. ➥ 2.4.

it may be hot. The engine

cooling fan may also start

When working in the engine

at any moment. The 

label

compartment, ensure that

in the engine compartment reminds

the windscreen wiper stalk

you of this.

Do not press down on the

is in the park position.

bonnet: there is a risk that

Risk of injury.

Risk of injury.

the bonnet may accidentally

close.

4.2

CarManuals2.co

BONNET (2/2)

6

5

Ensure that the bonnet is

properly locked.

Check that nothing is pre-

venting the catch from lock-

ing (gravel, cloth, etc.).

Closing the bonnet

After any procedure in the

Before closing the bonnet, make sure

engine compartment, make

that nothing has been left in the engine

sure that you do not forget

compartment.

anything (cloth, tools, etc.).

To close the bonnet, replace the stay 5

These may damage the engine or

in its holder 6. Hold the middle of the

cause a fire.

bonnet and guide it down to one foot

(30 cm) above the closed position, then

release. It will latch automatically under

its own weight.

In the event of even a slight

impact involving the radi-

ator grille or bonnet, have

the bonnet lock checked by

an approved dealer as soon as pos-

sible.

4.3

CarManuals2.co

ENGINE OIL LEVEL: general information

It is normal for an engine to use oil for

Adding engine oil

lubrication and cooling of moving parts

and it is normal to top up the level be-

B

Use a funnel or protect the

tween oil changes.

A

filling neck area to avoid

engine oil escaping onto a

However, contact your approved

hot part of the engine compartment

Dealer if more than 0.5 litres is being

B

or a sensitive part (e.g. electrical

consumed every 600 miles (1 000 km)

A

components).

after the running in period.

B

Fire hazard.

Oil change frequency: check the oil

level from time to time and certainly

C

A

before any long journey to avoid the

risk of damaging your engine.

Reading the oil level

Exceeding the maximum

The oil level should be read with the ve-

- Remove the dipstick and wipe with a

engine oil level

hicle on level ground, after the engine

clean, lint-free cloth;

Under no circumstances

has been switched off for some time.

should the maximum fill-

- push the dipstick in as far as it will go

The dipstick must be used to read

ing level B be exceeded: this could

(for vehicles equipped with a captype

the exact oil level and make sure that

damage the engine and anti-pollu-

dipstick C, screw the cap in as far as

the maximum level has not been ex-

tion system. If the level exceeds the

it will go);

ceeded (risk of engine damage).

maximum level, do not start your

- take out the dipstick again;

vehicle and contact an authorised

Depending on the vehicle, the instru-

- read the level: it should never fall

dealer.

ment panel display only alerts the driver

below the “mini” mark A and never

when the oil level is at its minimum.

exceed the “maxi” B mark.

Once the operation has been com-

pleted, ensure that the dipstick is

Before carrying out any

pushed in as far as it will go or that

action in the engine com-

the “cap-type dipstick” is completely

partment, you must switch

screwed in.

off the ignition

➥ 2.4 or

➥ 2.6.

4.4

CarManuals2.co

ENGINE OIL LEVEL: topping up, filling, oil change (1/3)

1

1

2

1

2

2

Topping up/filling

- Unscrew cap 1;

The vehicle must be parked on level

- top up the level (capacity between

ground and the engine should be cold

“mini” and “maxi” of the gauge 2 and

(for instance, before the engine is

between 0.9 to 2 litres according to

started up for the first time in the day).

the engine);

- wait for approximately 20 minutes to

Adding engine oil

allow the oil to flow into the engine;

Before carrying out any

Use a funnel or protect the

action in the engine com-

- check the level using the dipstick 2

filling neck area to avoid

partment, you must switch

(as described above).

engine oil escaping on to a

off the ignition.

➥ 2.4 or

Once the operation has been com-

hot part of the engine compartment

➥ 2.6.

pleted, ensure that the dipstick is

or a sensitive part (e.g. electrical

pushed in as far as it will go or that the

components).

cap-type dipstick is completely screwed

Fire hazard.

in.

Do not exceed the “maxi” level and

do not forget to refit the cap 1 and

the dipstick 2.

4.5

CarManuals2.co

ENGINE OIL LEVEL: topping up, filling, oil change (2/3)

2

1

Oil change

Service interval: refer to the

Maintenance Service Booklet for your

vehicle.

Exceeding the maximum

Oil change capacity

engine oil level

Please refer to the maintenance doc-

ument for your vehicle, or contact an

Under no circumstances

authorised dealer. Always check the

should the maximum fill-

engine oil level using the dipstick, as

ing level be exceeded: this could

explained previously (it should never

damage the engine and the emis-

fall below the minimum level, or be over

sion control system.

the maximum level on the dipstick).

If the oil level exceeds the maximum

Engine oil change: if you

level, do not start your vehicle and

are changing the oil when

contact an approved Dealer.

Engine oil grade

the engine is hot, be careful

Refer to the Maintenance Service

not to scald yourself if the

Booklet for your vehicle.

oil overflows.

4.6

CarManuals2.co

ENGINE OIL LEVEL: topping up, filling, oil change (3/3)

Consult your approved dealer at

once if you notice an abnormal or

repeated drop in any of the fluid

levels.

When working in the engine

compartment, ensure that

the windscreen wiper stalk

is in the park position.

Risk of injury.

Please note when work-

ing close to the engine that

it may be hot. The engine

Filling and/or checking

cooling fan may also start

the oil level: when topping

at any moment. The 

label

up or checking the oil level,

in the engine compartment reminds

ensure that no oil leaks onto

you of this.

the engine components.

Risk of injury.

Do not forget to properly close the

cap and refit the dipstick to prevent

any oil spatter on hot engine com-

ponents.

Fire hazard.

Never run the engine in an

enclosed space as exhaust

gases are poisonous.

4.7

CarManuals2.co

LEVELS, FILTERS (1/3)

Frequency of checking coolant level

Replacement interval

Check the coolant level regularly

Refer to the Maintenance Document for

(very severe damage is likely to be

your vehicle.

caused to the engine if it runs out of

coolant).

1

If the level needs to be topped up, only

use products approved by our Technical

Department which ensure:

- protection against freezing;

When working in the engine

- an anti-corrosion protection for the

compartment, ensure that

cooling system.

the windscreen wiper stalk

is in the park position.

Risk of injury.



Coolant

With the engine switched off and on

level ground, the level when cold must

be between the “MINI” and “MAXI”

Consult your approved dealer at

marks on coolant reservoir 1.

once if you notice an abnormal or

Top this level up when cold before it

repeated drop in any of the fluid

reaches the MINI mark.

levels.

No operations should be

carried out on the cooling

Before carrying out any

circuit when the engine is

action in the engine com-

hot.

partment, you must switch

off the ignition.

➥ 2.4 or

Risk of burns.

➥ 2.6.

4.8

CarManuals2.co

LEVELS, FILTERS (2/3)

Level 2

It is normal for the level to drop as the

brake shoes become worn, but it must

never drop lower than the “MINI" warn-

ing line.

If you wish to check the disc and drum

wear yourself, you should obtain the

document explaining the checking pro-

2

cedure from the manufacturer’s net-

work or website.

Topping up

After any operation on the hydraulic cir-

cuit, a specialist must replace the brake

fluid.

Only use fluids approved by our



Brake fluid

Technical Department (and taken from

a sealed container).

This should be checked frequently,

and immediately if you notice even the

Replacement interval

slightest loss in braking efficiency.

Refer to the Maintenance Document for

The level should be read with the engine

your vehicle.

switched off and on level ground.

Please

note when work-

ing close to the engine that

it may be hot. The engine

cooling fan may also start

at any moment. The 

label

in the engine compartment reminds

you of this.

Consult your approved dealer at

Risk of injury.

once if you notice an abnormal or

repeated drop in any of the fluid

levels.

4.9

CarManuals2.co

LEVELS, FILTERS (3/3)

Liquid

Filters

Windscreen washer fluid. In winter, use

The replacement of filter components

anti-freeze product. Use products rec-

(air filter, cabin filter, diesel filter, etc.)

ommended by an authorised dealer.

is scheduled in the maintenance opera-

tions for your vehicle.

Note: do not use pure water (risk of

damage to the priming pump, limescale

Replacement intervals for filter el-

3

building up on the pump and the jets).

ements: refer to the Maintenance

Document for your vehicle.

Jets

To adjust the height of the windscreen

washer jets, please consult an author-

ised dealer.

When working in the engine

compartment, ensure that

the windscreen wiper stalk



Windscreen washer

is in the park position.

reservoir

Risk of injury.

Topping up

With the engine switched off, open the

cap 3. Fill until you can see the fluid,

then replace the cap.

Please note when work-

ing close to the engine that

Note: check the reservoir level regu-

it may be hot. The engine

larly and top up the liquid before taking

cooling fan may also start

a trip.

at any moment. The 

label

Before carrying out any

in the engine compartment reminds

action in the engine com-

you of this.

partment, you must switch

Risk of injury.

off the ignition.

➥ 2.4 or

➥ 2.6.

4.10

CarManuals2.co

TYRE PRESSURE (1/2)

Vehicle fitted with a tyre pressure

loss warning system

In the event of under-inflation (punc-

A

tures, under-inflation etc.), the 

warning light appears on the instrument

B

panel. ➥ 2.40.

C

D E

C

D

E

A

F

Label A

B: dimension of the tyres fitted to the

vehicle.

Open the driver’s door to read it.

C: intended driving speed.

Tyre pressures should be checked

when the tyres are cold.

D: front tyre pressure.

If the tyre pressures cannot be checked

E: rear tyre pressure.

when the tyres are cold, increase the

F: tyre pressure for the emergency

pressures from 0.2 to 0.3 bar (or 3 PSI).

spare wheel.

Never deflate a hot tyre.

4.11

CarManuals2.co

BATTERY (1/2)

Depending on the vehicle, a system

continuously checks the battery charge

status. If this decreases, the “Battery

1

Now In Standby Mode” message ap-

pears on the instrument panel followed

by “Battery Low Start Engine”. In this

case, start the engine and the message

on the instrument panel will disappear.

Note: the message “Battery Now In

Standby Mode” may be displayed after

5 to 30 minutes of vehicle use with the

engine stopped to warn the user that

power consuming functions (interior

lighting, radio, navigation, ventilation,

accessories power supply, etc.) may be

automatically cut off.

Before

carrying

out

any

Battery 1 does not require any mainte-

The charge status of your battery can

action in the engine com-

nance. You should not open it or add

decrease especially if you use your ve-

partment, you must switch

any fluid.

hicle:

off the ignition.

➥ 2.4

- for short journeys;

➥ 2.6.

Handle the battery with care

- for driving in town;

as it contains sulphuric acid

- when the temperature drops;

which must not come into

- after extended use of energy-con-

contact with the eyes or

suming devices (radio, etc.) with the

Please note when work-

skin. If it does, wash the affected

engine switched off.

ing close to the engine that

area with plenty of cold water. If

it may be hot. In addition,

necessary, consult a doctor.

the engine cooling fan may

Ensure that naked flames, red hot

start at any moment. The 

objects and sparks do not come into

warning light in the engine compart-

contact with the battery as there is a

ment reminds you of this.

risk of explosion.

Risk of injury.

4.13

CarManuals2.co

BATTERY (2/2)

A

2

3

4

For your own safety and for

the proper operation of the

vehicle's electrical equip-

ment

(lights, windscreen

wipers, ABS, etc.), any intervention

7

6

5

on the battery (removal, disconnec-

tion, etc.) must categorically be per-

Label A

formed by a specialist professional.

Observe the indications on the battery:

Risk of serious burns or electric

- 2 naked flames and smoking are for-

shocks.

bidden;

You must respect the replacement

- 3 eye protection required;

intervals (without exceeding them)

as stated in the maintenance doc-

- 4 keep away from children;

ument.

- 5 explosive materials;

The battery is a specific type.

- 6 refer to the handbook;

Please ensure it is replaced with the

same type.

- 7 corrosive materials.

Call an approved Dealer.

4.14

CarManuals2.co

SECONDARY BATTERY

A

2

3

4

1

7

6

5

For your own safety and for

Depending on the vehicle, a secondary

Label A

the proper operation of the

battery 1 is located under the front pas-

vehicle's electrical equip-

Label A is located on the battery 1:

senger seat in a specific compartment:

ment

(lights, windscreen

it supplies the energy required to oper-

- 2 naked flames and smoking are for-

wipers, ABS, etc.), any intervention

ate some equipment.

bidden;

on the battery (removal, disconnec-

- 3 eye protection required;

tion, etc.) must categorically be per-

The secondary battery 1 does not re-

formed by a specialist professional.

quire any maintenance. You should

- 4 keep away from children;

not open it or add any fluid.

Risk of serious burns or electric

- 5 flammable materials;

shocks.

- 6 please consult the vehicle user

The battery is a specific type.

manual;

Please ensure it is replaced with the

- 7 corrosive substances.

same type.

Call an approved Dealer.

4.15

CarManuals2.co

PUNCTURE, EMERGENCY SPARE WHEEL (1/2)

If the emergency spare wheel has been stored for several years, have it

checked by your Dealer to ensure that it is safe to use.

Vehicle fitted with an emergency spare wheel that differs from the

other wheels:

-

Never fit more than one emergency spare wheel to the same vehicle.

A

-

Replace the emergency spare wheel as soon as possible with a wheel identi-

cal to the original one.

-

When this is fitted to the vehicle, which must only be a temporary measure, the

driving speed must not exceed the speed indicated on the label on the wheel.

-

Fitting an emergency spare wheel may alter the way the vehicle usually runs.

Avoid sudden acceleration or deceleration and reduce your speed when cor-

nering.

-

If you need to use snow chains, fit the emergency spare wheel to the rear axle

In case of puncture

and check the tyre pressure.

Depending on the vehicle, a tyre infla-

tion kit A or a spare wheel B is provided

(refer to the following pages).

Vehicle fitted with a tyre pressure

loss warning system

In the event of under-inflation (punc-

If the vehicle is parked on the hard shoulder, you must warn other road

users of your vehicle’s presence with a warning triangle or with other de-

tures, under-inflation etc.), the 

vices as per the legislation applying to the country you are in.

warning light appears on the instrument

panel. ➥ 2.40.

5.2

CarManuals2.co

PUNCTURE, EMERGENCY SPARE WHEEL (2/2)

Note: in the absence of an emergency

1

spare wheel or tyre inflation kit, do not

load the bottom of the luggage com-

partment.

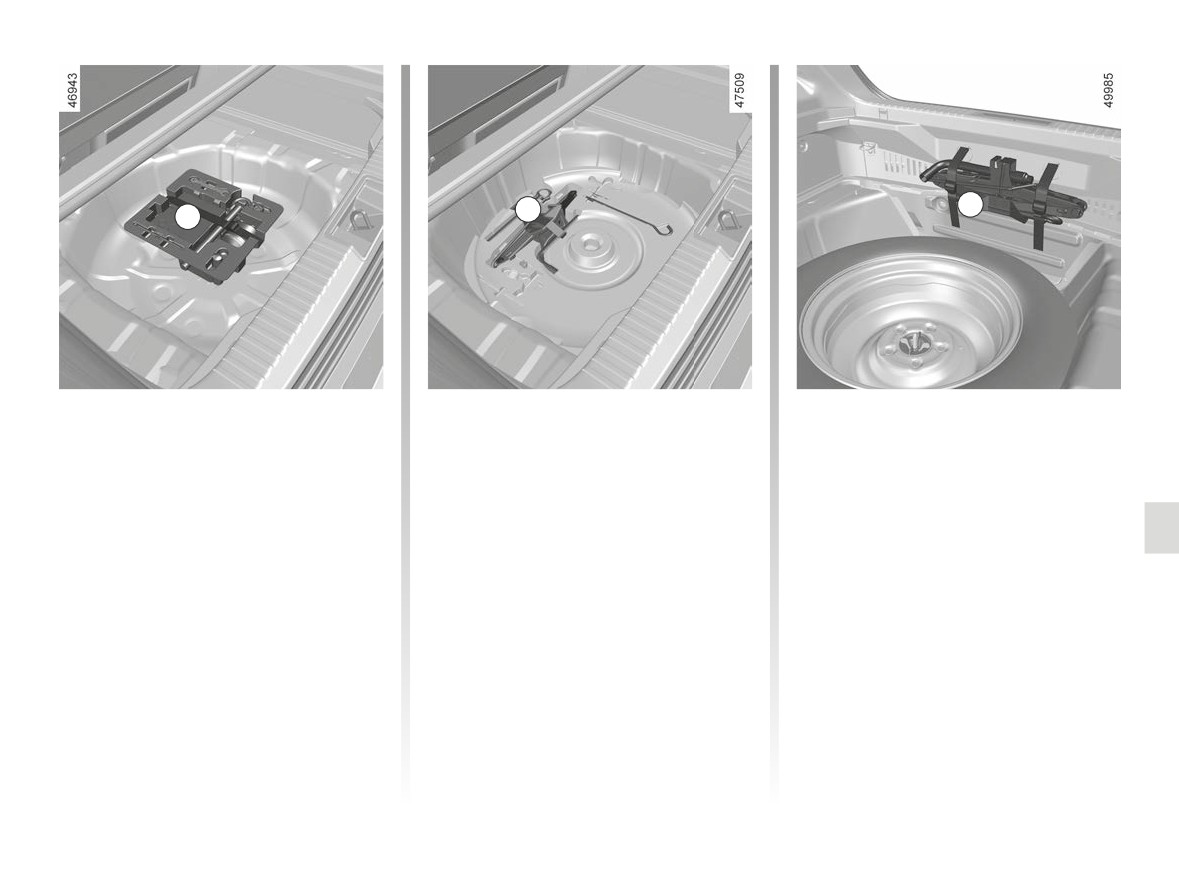

Depending on the vehicle, the tool

block is located under or above the

2

B

spare wheel, attached to the wall under

the luggage compartment carpet

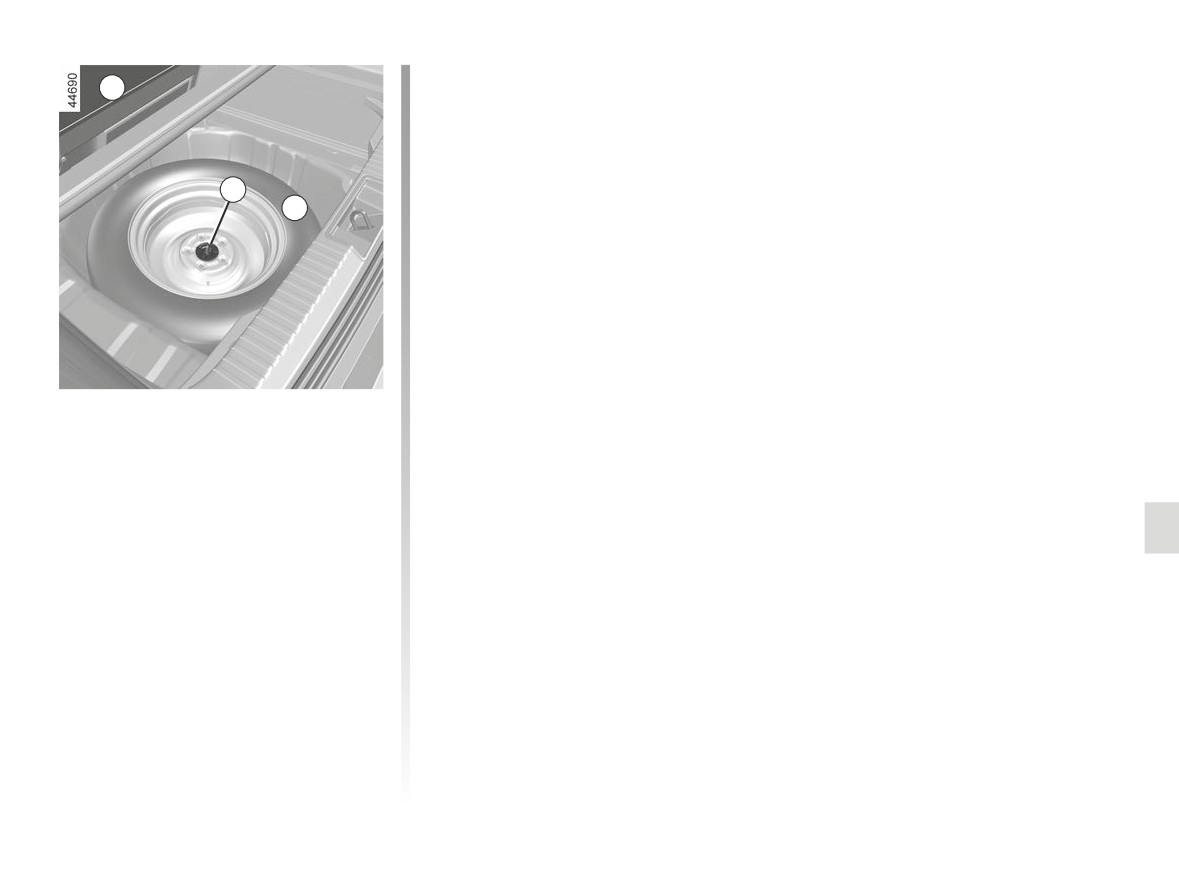

Emergency spare wheel

To get to it:

- open the boot;

- depending on the vehicle, lift up the

movable floor and the boot mat 1

➥ 3.39;

- unscrew the central mounting 2 in

the centre of the emergency spare

wheel;

- remove the spare wheel B.

Depending on the vehicle, to store a

punctured wheel in the boot, move the

bench seat forwards ➥ 3.35.

5.3

CarManuals2.co

TYRE PRESSURE KIT (1/3)

Do not attempt to use the

The kit is only approved for

B

inflation kit if the tyre has

inflating the tyres of the ve-

been damaged as a result

hicle originally equipped

of driving with a puncture.

with the kit.

You should therefore carefully check

It must never be used to inflate

A

the condition of the tyre sidewalls

the tyres of another vehicle, or any

before any operation.

other inflatable object (rubber ring,

rubber boat, etc.).

Driving with underinflated, flat or

punctured tyres can be dangerous

Avoid spillage on skin when han-

and may make the tyre impossible

dling the repair product bottle. If

to repair.

droplets do leak out, rinse them off

with plenty of water.

This repair is temporary.

Keep the repair kit away from chil-

A tyre which has been punctured

dren.

should always be inspected (and re-

paired, where possible) as soon as

Do not dispose of the empty bottle

The kit repairs tyres when

possible by a specialist.

in the countryside. Return it to your

tread A has been dam-

approved dealer or to a recycling or-

aged by objects smaller

When taking a tyre which has been

ganisation.

than 4 mm. It cannot repair

repaired using this kit to be replaced,

all types of puncture, such as cuts

you must inform the specialist.

The bottle has a limited service

larger than 4 mm, or cuts in tyre

life which is indicated on its label.

When driving, vibration may be felt

sidewall B.

Check the expiry date.

due to the presence of the repair

Ensure also that the wheel rim is in

product injected into the tyre.

Contact an approved dealer to re-

good condition.

place the inflation tube and repair

product bottle.

Do not pull out the foreign body

causing the puncture if it is still in

the tyre.

5.4

CarManuals2.co

TYRE PRESSURE KIT (2/3)

Engine running, handbrake applied:

If a minimum pressure of 1.8 bar is

- Disconnect any accessories previ-

not reached after 15 minutes, repair

ously connected to the vehicle’s ac-

is not possible; do not drive the ve-

cessories sockets;

hicle but contact an approved dealer.

2

- refer to the information on the in-

flation kit compressor located in

the luggage compartment of the ve-

1

hicle and follow the instructions;

- inflate the tyre to the recommended

pressure ➥ 4.11 ;

- after a maximum of 15 minutes, stop

inflating and read the pressure (on

pressure gauge 2).

Before using this kit, park

the vehicle at a sufficient

Note: while the bottle is emptying

distance from traffic, switch

(approximately

30 seconds), the

on the hazard warning

pressure gauge 2 will briefly indicate

Depending on the vehicle, in the event

lights, apply the handbrake, ask all

a pressure of 6 bar, then the pres-

of a puncture, use the kit located in the

passengers to leave the vehicle and

sure drops;

boot or underneath the luggage com-

keep them away from traffic.

partment carpet.

- Adjust the pressure: to increase it,

continue inflation with the kit. To

Vehicle fitted with a tyre pressure

reduce it, press the button 1.

loss warning system

In the event of under-inflation (punc-

If the vehicle is parked on

tures, under-inflation etc.), the 

the hard shoulder, you must

warning light appears on the instrument

warn other road users of

panel. ➥ 2.40.

your vehicle’s presence

with a warning triangle or with other

devices as per the legislation apply-

ing to the country you are in.

5.5

CarManuals2.co

TYRE PRESSURE KIT (3/3)

- Start immediately and drive at a

speed between 12 to 37 mph (20 to

60 km/h) in order to distribute the

product evenly in the tyre; after driv-

3

ing a distance of 2 miles (3 km), stop

and check the pressure.

- If the pressure is higher than 1.3 bar

Please be aware that a

but lower than the recommended

poorly tightened or miss-

pressure (refer to the label affixed to

ing valve cap can make the

the edge of the driver’s door), adjust

tyres less airtight and may

it. Otherwise, contact an approved

lead to pressure loss.

dealer: the tyre cannot be repaired.

Always use valve caps identical to

those fitted originally and tighten

them fully.

Precautions when using the

kit

Once the

tyre is

correctly inflated,

The kit should not be operated for more

remove the kit: unscrew the inflation

than 15 consecutive minutes.

adapter slowly from the container 3 to

The container must be replaced after

Following repair with the kit,

prevent any product spatter and store

the first use even if liquid remains

do not travel further than

the container in plastic packaging to

inside.

120 miles (200 km). In addi-

prevent product leaks.

tion, reduce your speed and

- Affix the driving recommendation

under no circumstances exceed

label (located under the container) to

48 mph (80 km/h). The sticker,

the dashboard where the driver can

which you must affix in a prominent

see it.

position on the dashboard, reminds

- Put the kit away.

you of this.

Nothing should be placed

- At the end of this initial inflation op-

Depending on the country or local

around the driver’s feet

eration, air will still escape from the

legislation, a tyre repaired with the

as such objects may slide

tyre. You must drive a short distance

inflation kit may need to be replaced.

under the pedals during

in order to seal the hole.

sudden braking manoeuvres and

obstruct their use.

5.6

CarManuals2.co

TOOLS (1/2)

B

C

A

The tools included in the tool kit A B

The tool kit B is located in the tray

The tool kit C is located on the storage

or C depend on the vehicle.

under the spare wheel

compartment wall.

After use, ensure the tools are correctly

stored.

5.7

CarManuals2.co

TOOLS (2/2)

Hubcap tool 3

2

This tool is used to remove the wheel

trims.

Wheel bolt guide 4

1

To finish loosening or starting to tighten

the wheel bolts.

6

3

Tow eye 5

➥ 5.36

4

5

Wheelbrace 6

Locks or unlocks the wheel bolts and

Lever 1

tow eye 5.

This tightens or releases the tow eye 5.

Jack 2

Fold it correctly before refitting it in its

housing (ensure that the wheelbrace is

correctly positioned).

Do not leave the tools unsecured inside the vehicle as they may come

loose under braking. After use, check that all the tools are correctly

clipped into the tool kit, then position it correctly in its housing: risk of

injury.

If bolts are supplied with the emergency spare wheel, you must use these bolts

only for the emergency spare wheel.

The jack is designed for wheel changing purposes only. Under no circumstances

should it be used for carrying out repairs underneath the vehicle or to gain access

to the underside of the vehicle.

5.8

CarManuals2.co

WHEEL TRIMS - WHEEL

1

A

2

B

C

D

Remove the wheel trim using hubcap

tool 1 (located in the tool kit) by en-

gaging the hook in the opening near

valve 2.

To refit it, align it with valve 2. Push the

retaining hooks in fully, starting with

side A near the valve, followed by B

Do not leave the tools un-

and C, finishing at D opposite the valve.

secured inside the vehicle

as they may come loose

under braking. After use,

check that all the tools are correctly

clipped into the tool kit, then position

it correctly in its housing.

Risk of injury.

5.9

CarManuals2.co

CHANGING A WHEEL (1/2)

Vehicles equipped with a jack

Start cranking the jack by hand, posi-

tioning the 4 jack support plate in the

and wheelbrace

slightly indented groove underneath

If necessary, remove the wheel trim.

the vehicle, located between the two

5

Use the wheelbrace 1 to slacken off the

notches 5 and in the direction of the

wheel bolts. Position it so as to be able

arrow 3.

4

1

to push from above.

Continue to crank the jack so that the

Place the jack 2 horizontally; the jack

baseplate is correctly positioned

(it

3

head must be lined up with the sill clos-

should be underneath the vehicle and

est to the wheel concerned, as shown

aligned with the jack head).

by an arrow 3.

Turn it a few times to lift the wheel off

3

the ground.

2

Switch on the hazard warn-

ing lights.

Keep the vehicle away from

traffic and on a level surface

where it will not slip.

Apply the parking brake and engage

a gear (first or reverse, or P for auto-

If the vehicle is parked on

matic transmissions).

the hard shoulder, you must

Ask all the passengers to leave the

warn other road users of

vehicle and keep them away from

your vehicle’s presence

traffic.

with a warning triangle or with other

devices as per the legislation apply-

ing to the country you are in.

5.10

CarManuals2.co

TYRES (1/3)

Tyre and wheel safety

Tyre pressures

The tyres are the only contact between

Adhere to the tyre pressures (including

the vehicle and the road, so it is essen-

the emergency spare wheel). The tyre

tial to keep them in good condition.

pressures should be checked at least

2

once a month and additionally before

You must make sure that your tyres

any long journey (refer to the label af-

con- form to local road traffic regula-

fixed to the edge of the driver’s door).

tions.

1

Maintaining the tyres

The tyres must be in good condition

and the tread form must have sufficient

depth; tyres approved by our Technical

Department have wear warning strips 1

Incorrect tyre pressures

which are indicators moulded into

lead to abnormal tyre wear

the tread at several points.

and unusually hot running.

When the tyre tread has been worn

These are factors which

to the level of the warning strips, they

may seriously affect safety and lead

become visible 2: it is then neces-

to:

sary to replace your tyres because the

tread rubber is now only 1.6 mm deep

- poor road holding;

at most, resulting in poor road hold-

- risk of bursting or tread separa-

ing on wet roads.

tion.

An overloaded vehicle, long journeys

The pressure depends on the load

by motorway, particularly in very hot

Incidents which occur when

and the speed of use. Adjust the

weather, or continual driving on poorly

driving, such as striking the

pressure according to the condi-

surfaced minor roads will lead to more

kerb, may damage the tyres

tions of use (refer to the label affixed

rapid tyre wear and affect safety.

and wheel rims, and could

to the edge of the driver’s door).

also lead to misalignment of the

front or rear axle geometry. In this

case, have the condition of these

checked by an approved dealer.

5.12

CarManuals2.co

HEADLIGHTS: changing bulbs

2

1

Your vehicle is fitted with lights with

LED, contact an Approved Dealer for

replacement.

Direction indicators/dipped

beam headlights/LED main

Any operation on (or modi-

beam headlights 1

fication to) the electrical

Please see an authorised dealer.

system must be performed

by an approved dealer

since an incorrect connection might

LED daytime running lights/

damage the electrical equipment

side lights 2

(harness, components and in par-

ticular the alternator). In addition,

Please see an authorised dealer.

your Dealer has all the parts re-

quired for fitting these units.

5.15

CarManuals2.co

REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (1/3)

1

4

3

2

LED side light/brake light 1

Direction indicators 2

- release the light assembly from out-

side the vehicle by pulling towards

Consult an approved dealer

- Open the boot;

the rear;

- remove the trim 3;

- remove the 5 bulb holder by un-

- unscrew the nut 4;

screwing it a quarter of a turn, then

replace the bulb.

Bulb type: WY16W.

The bulbs are under pres-

To comply with current legislation, or

sure and can break when

as a precaution, you can obtain an

replaced.

emergency kit from your approved

Risk of injury.

dealer containing a set of spare

bulbs and fuses.

5.16

CarManuals2.co

REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (2/3)

5

7

6

Refitting

Fog lights and LED reversing

High-level LED brake light 7

To refit, proceed in the reverse order,

lights 6

Consult an approved dealer.

taking care not to damage the wiring.

Consult an approved dealer

5.17

CarManuals2.co

REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (3/3)

9

11

8

10

LED number plate lights 8

Number plate lights 9

LED side repeaters 11

(depending on the vehicle)

- Unclip the light by pressing the

Consult an approved dealer.

Consult an approved Dealer.

tab 10

- remove the light cover to gain access

to the bulb.

Bulb type: W5W.

The bulbs are under pres-

sure and may break when

replaced.

Risk of injury.

5.18

CarManuals2.co

INTERIOR LIGHTING: changing bulbs (1/3)

A

B

C

Courtesy light A

Map reading light B

LED reading lights C

- Unclip the lens (using a flat-blade

- Unclip the cover (using a flat-blade

Consult an authorised dealer.

screwdriver or similar);

screwdriver or similar);

- remove the bulb concerned.

- remove the bulb concerned.

Bulb type: W5W.

Bulb type: W5W.

The bulbs are under pres-

sure and can break when

replaced.

Risk of injury.

5.19

CarManuals2.co

INTERIOR LIGHTING: changing bulbs (2/3)

D

E

Courtesy light D

LED reading lights E

- Unclip the lens (using a flat-blade

Consult an authorised dealer.

screwdriver or similar);

- remove the bulb concerned.

Bulb type: W5W.

5.20

CarManuals2.co

INTERIOR LIGHTING: changing bulbs (3/3)

3

1

2

Luggage compartment light

Glovebox light

Courtesy mirror lights 3

– Unclip the light 1 by pressing the tab

- Unclip the light 2 by pressing the tab

Please consult an authorised dealer.

on its left side (using a flat-bladed

on its left side (using a flat-bladed

screwdriver or similar);

screwdriver or similar);

Ambient lighting

- remove the bulb concerned.

- remove the bulb concerned.

Please consult an authorised dealer.

Bulb type: W5W.

Bulb type: W5W.

5.21

CarManuals2.co

REMOTE CONTROL KEY: BATTERY: battery (1/2)

2

1

Replacing the battery

Note: It is not advisable to touch the

electronic circuit in the key cover when

Open the case at slot 1 using a flat-

replacing the battery.

blade screwdriver or similar, and re-

place the battery 2, observing the type

When refitting, ensure that the cover is

and polarity shown on the back of the

correctly clipped on and the screw tight-

cover.

ened.

If they need to be replaced,

be sure to use the same

The batteries are available from ap-

or equivalent type of bat-

proved Dealers, and their service

tery (consult an Approved

life approximately two years.

Dealer).

Check that there is no dye on the

battery: risk of an incorrect electri-

cal contact.

5.22

CarManuals2.co

REMOTE CONTROL KEY: BATTERY: battery (2/2)

Operating faults

If the battery is too weak to ensure cor-

rect operation, you will still be able to

start and lock/unlock the vehicle

➥ 1.16.

Do not throw away your used bat-

Precautions relating to

teries; give them to an organisation

batteries:

responsible for collecting and recy-

- keep (new or used) bat-

cling batteries.

teries out of reach of chil-

dren;

- do not swallow batteries;

When replacing:

Risk of chemical burns which

- make sure that the batter-

may lead to death.

ies are correctly inserted.

- if ingested or inserted into any

part of the body, consult a doctor

Risk of explosion.

as soon as possible.

- if the flap does not close cor-

rectly, do not use and keep out of

reach of children.

5.23

CarManuals2.co

Content      ..     7      8      9      10     ..
