“HANDS-FREE” CARD: battery (1/2)

1

A

The batteries are available from ap-

proved Dealers, and their service

life approximately two years. Check

that there is no dye on the battery:

risk of an incorrect electrical con-

tact.

2

If they need to be replaced,

Replacing the battery

When refitting, proceed in the reverse

be sure to use the same

order, then press one of the buttons on

When the message “Keycard Battery

or equivalent type of bat-

the card four times, close to the vehicle:

Low” appears on the instrument panel,

tery (consult an Approved

the next time the vehicle is started, the

replace the battery in the card:

Dealer).

message will disappear.

- slide the rear casing 1 downwards

while pressing on zone A;

Check that the cover is clipped shut.

- remove the battery cover 2;

Note: Do not touch the electronic circuit

- remove the battery by pressing on

or contacts on the card when replacing

one side and lifting the other;

the battery.

When replacing:

- replace it according to the direc-

tion and template shown inside the

- make sure that the batter-

cover.

ies are correctly inserted.

Risk of explosion.

- if the flap does not close cor-

rectly, do not use and keep out of

reach of children.

5.24

CarManuals2.co

“HANDS-FREE” CARD: battery (2/2)

Operating faults

If the battery is too weak to ensure cor-

rect operation, you will still be able to

start and lock/unlock the vehicle

➥ 1.16.

Precautions relating to

batteries:

- keep (new or used) bat-

teries out of reach of chil-

dren;

- do not swallow batteries;

Risk of chemical burns which

may lead to death.

- if ingested or inserted into any

part of the body, consult a doctor

as soon as possible.

Do not throw away your used bat-

teries; give them to an organisation

responsible for collecting and recy-

cling batteries.

5.25

CarManuals2.co

BATTERY: troubleshooting (1/3)

To avoid all risk of sparks:

Connecting a battery charger

-

Ensure that any power consumers

The battery charger must be com-

(courtesy lights, etc.) are switched

patible with a battery with nominal

off before disconnecting or recon-

voltage of 12 volts.

necting a battery;

Do not disconnect the battery when the

-

when charging, stop the charger

engine is running. Follow the instruc-

before connecting or disconnecting

tions given by the manufacturer of

the battery;

the battery charger you are using.

-

do not place metal objects on the

Handle the battery with care

battery as this could create a short

as it contains sulphuric acid,

circuit between the terminals;

which must not come into

contact with eyes or skin. If

-

always wait at least five minutes

it does, wash the affected area with

after the engine has been switched

plenty of cold water. If necessary,

off before disconnecting a battery;

consult a doctor.

-

make sure that you reconnect the

Keep naked flames, red hot objects

battery terminals after refitting.

and sparks away from the battery

components as there is a risk of

explosion.

Special procedures may be

Please note when working close to

required to charge some

the engine that it may be hot. In ad-

batteries. Contact your ap-

dition, the engine cooling fan may

proved dealer.

Avoid all risk of sparks which may

start at any moment. The 

cause an immediate explosion, and

warning light in the engine compart-

charge the battery in a well venti-

ment reminds you of this.

lated area.

Risk of injury.

Before carrying out any

Risk of serious injury.

action in the engine com-

partment, you must switch

off the ignition.

➥ 2.4

➥ 2.6.

5.26

CarManuals2.co

BATTERY: troubleshooting (2/3)

Starting the vehicle using the

battery from another vehicle

If you have to use the battery from an-

other vehicle to start, obtain suitable

jump leads (with a large cross section)

2

3

from an approved dealer or, if you al-

ready have jump leads, ensure that

they are in perfect condition.

The two batteries must have an iden-

tical nominal voltage: 12 volts. The

battery supplying the current should

have a capacity (amp-hours, Ah) which

is at least the same as that of the dis-

1

charged battery.

Ensure that there is no risk of contact

Battery in engine compartment

between the two vehicles (risk of short

circuiting when the positive terminals

The battery is not directly accessible.

are connected) and that the discharged

Use the terminal 1 (+) and the termi-

battery is properly connected. Switch

nal 2 (-) in the engine compartment.

off your vehicle ignition.

Raise the cover 3 of the terminal 1 (+).

5.27

CarManuals2.co

BATTERY: troubleshooting (3/3)

Start the engine of the vehicle supply-

ing the current and run it at an interme-

diate engine speed.

2

If your vehicle’s engine does not start

1

immediately, switch off the ignition and

wait a few seconds before repeating

the operation.

B

With the engine running, disconnect

the A and B cables in the reverse order

A

(2 - 4 - 5 - 1).

Reposition the cover 3 of the termi-

5

nal 1 (+).

4

Attach the positive cable A to the ter-

minal 1 (+) then to the terminal 5 (+) of

the battery supplying the current.

Attach the negative cable B to the ter-

minal 4 (-) of the battery supplying the

current and then to the terminal 2 (-).

Check that there is no con-

tact between leads A and B

and that the positive lead A

is not touching any metal

parts on the vehicle supplying the

current.

Risk of injury and/or damage to

the vehicle.

5.28

CarManuals2.co

FITTING A RADIO

1

2

-

In all cases, it is very important to

follow the manufacturer’s instruc-

tions carefully.

-

The specifications of the brack-

Radio location 1

Front door speakers 2

ets and wires (available from our

Unclip the blanking cover. The connec-

To install any equipment, please con-

network) vary depending on the

tions: ( + aerial) and ( - supply and

sult an authorised dealer.

equipment level of your vehicle

speaker) are located behind it.

and the type of radio.

Consult an approved Dealer to

find out the correct part number.

-

No work may be carried out on

the vehicle’s electrical or radio

circuits, except by approved

dealers: an incorrectly connected

system may result in damage

being caused to the electrical

equipment and/or the compo-

nents connected to it.

5.29

CarManuals2.co

FUSES (1/3)

1

3

B

A

2

Fuse box

Fuses located in the passenger

Tweezers 3

compartment behind a flap in the B

If any electrical component does not

Remove the fuse using the tweezers 3

glovebox

work, check the condition of the fuses.

on the back of the flap.

Unclip the access flap 2.

To remove the fuse from the tweezers,

Passenger compartment fuses A

slide the fuse to the side.

Unclip the access flap 1.

It is not advisable to use the free fuse

locations.

Check the fuse in question and replace it, if necessary, by a fuse of the

same rating.

To comply with current legislation, or

If a fuse is fitted with too high a rating, it may cause the electrical circuit

as a precaution, you can obtain an

to overheat (risk of fire) in the event of an item of equipment using an ex-

emergency kit from your approved

cessive amount of current.

dealer containing a set of spare

bulbs and fuses.

5.31

CarManuals2.co

FUSES (3/3)

4

C

Fuses in engine compartment C

4 fuse: LPG circuit shut-off.

Please note when work-

Some functions are protected by fuses

ing close to the engine that

located in the engine compartment

it may be hot. In addition,

(unit C).

the engine cooling fan may

However, because of their reduced

start at any moment. The 

accessibility, we advise you to have

warning light in the engine compart-

your fuses replaced by an approved

ment reminds you of this.

Dealer.

Risk of injury.

Before carrying out any

action in the engine com-

partment, you must switch

off the ignition.

➥ 2.4 or

➥ 2.6.

5.33

CarManuals2.co

WIPER BLADES: replacement (1/2)

A

1

B

2

3

4

Replacing the windscreen

To refit

wiper blades 2

To refit the wiper blade 2, insert it in its

To replace the wipers, first put them in

housing in the arm 3, then clip it until

the service positionB.

you hear a click. Make sure that the

Engine running or ignition on;

blade is correctly locked in position.

- set the stalk 1 to position A twice in

To return the blades to lowered posi-

succession (single sweep): the wiper

Check the condition of the wiper

tion, make sure that the blades are

blades will stop in the service posi-

blades. You are responsible for their

folded down onto the windscreen then

tion B away from the bonnet;

service life:

set the 1 stalk to position A (single

- lift the wiper arm 3;

- clean the blades, windscreen and

sweep): the windscreen wiper blades

- lower the 4 tab then remove the

rear screen regularly with soapy

will fold into the bonnet when the igni-

blade 2.

water;

tion is switched on.

- do not use them when the wind-

screen or rear screen are dry;

- free them from the windscreen or

rear screen when they have not

been used for a long time.

5.34

CarManuals2.co

WIPER BLADES: replacement (2/2)

To refit

To refit the wiper blade, proceed in re-

verse order to removal. Make sure that

5

the blade is correctly locked in position.

C

6

– In frosty weather, make

sure that the wiper blades

are not stuck by ice

(to

avoid the risk of the motor

overheating).

- Check the condition of the wiper

blades. Replace the wiper blades

Rear screen wiper blade 5

as soon as they begin to lose ef-

Stalk in stop position (deactivated):

ficiency

(approximately once a

- lift the wiper arm 6;

year).

- turn the blade horizontally 5 (move-

When changing the blade, when it

ment C) until it unclips;

has been removed, do not let the

Check the condition of the wiper

- remove the blade by pulling it.

wiper arm fall against the window:

blades.

risk of breaking the window.

- clean the blades, windscreen and

rear screen regularly with soapy

water;

- do not use them when the wind-

screen or rear screen are dry;

Before changing the rear

wiper blade, make sure the

- free them from the windscreen or

stalk is in the stop position

rear screen when they have not

(deactivated).

been used for a long time.

Risk of injury.

5.35

CarManuals2.co

TOWING: breakdown recovery (1/2)

Before carrying out any towing, posi-

The speed specified by current legis-

tion the gearbox in neutral position (po-

lation for towing must always be ob-

sition N on vehicles equipped with an

served. If you are driving the towing

automatic gearbox), unlock the steering

vehicle, do not exceed the permissible

column then release the parking brake.

towing weight for your vehicle. ➥ 6.9.

1

Steering column unlocking

Towing a vehicle with an

Insert the key into the ignition, set to

automatic transmission,

“On” ON 2 position or, depending on

the vehicle, with the card in the pas-

mechanical lever

2

senger compartment, press the engine

Transport the vehicle on a trailer or tow

start button for approximately two sec-

it with the front wheels off the ground.

onds.

In exceptional circumstances, you

Reposition the lever to neutral (position

may tow it with all four wheels on the

N for vehicles fitted with an automatic

ground, only in a forward gear, with the

gearbox).

gearbox in neutral position N, over a

When setting off, if the lever is locked in

The steering column unlocks, the ac-

maximum distance of 50 miles (80 km)

position P even though you are press-

cessory functions are powered: you

and not exceeding a speed of 16 mph

ing the brake pedal, the lever can be re-

can use the vehicle’s lights (direction

(25 km/h).

leased manually in order to unlock the

indicators, brake lights, etc.). At night

drive wheels.

the vehicle must have its lights on.

To do this, unclip the base of the gaiter

Depending on the vehicle, once you

and press the 2 button while simultane-

have finished towing, press the engine

ously pressing the 1 button on the lever

start button twice (risk of running down

to unlock the lever.

the battery).

Contact an authorised dealer as soon

as possible.

Leave the card in the vehi-

cle during towing.

Risk of the steering

column locking.

5.36

CarManuals2.co

TOWING: breakdown recovery (2/2)

Tighten the towing hitch 5 fully: first

by hand until it stops, then finish by

locking it with the wheel brace or, de-

D

B

pending on the vehicle, the lever.

Only use the towing hitch 5 and the

4

6

wheelbrace or lever provided with the

tools. ➥ 5.7.

A

C

7

3

- Use a rigid towing bar.

If a rope or cable is used

5

(where the law allows this),

5

the vehicle being towed

Only use the front 3 and rear 7 towing

Access to towing points

must be able to brake.

points (never use the driveshafts or any

-

A vehicle must not be towed if it is

other part of the vehicle). These towing

Front towing point

not fit to be driven.

points may only be used for pulling.

Press zone A and keep depressed

-

Avoid accelerating or braking

They must never be used for lifting the

while pulling zone B to open flap 4.

suddenly when towing, as this

vehicle directly or indirectly.

may result in damage being

Rear towing point

caused to the vehicle.

Press zone C and keep depressed

-

In all cases, it is advisable not to

while pulling zone D to open flap 6.

exceed 15.5 mph (25 km/h).

When the engine is

Ensure that the towing eye

Do not leave the tools unse-

stopped, steering and brak-

is bolted correctly.

cured inside the vehicle as

ing assistance are not oper-

they may come loose under

Risk of losing the towed

ational.

braking.

object.

5.37

CarManuals2.co

VEHICLE IDENTIFICATION PLATES

A

1

2

3

4

5

A

10

6

9

7

8

The information shown on the ve-

4

MMAC (Maximum permissible

hicle identification plate should be

all-up weight).

quoted on all correspondence or

5

MTR (Gross train weight: vehicle

orders.

fully loaded, with trailer).

6

MMTA (Maximum Permissible

The presence and location of the in-

Weight) front axle.

formation depends on the vehicle.

7

MMTA rear axle.

8

Reserved for related or additional

Vehicle identification plate A

entries.

1

Manufacturer name.

9

Diesel exhaust emissions.

2

EC design number or approval

Depending on the vehicle, this

number.

information is not indicated on

3

Identification number.

B

the manufacturer’s plate but on

Depending on the vehicle, this

the engine smoke opacity label

information is also given on

➥ 2.18.

marking B.

10

Paint reference (colour code).

6.2

CarManuals2.co

TECHNICAL INFORMATION FOR THE EMERGENCY SERVICES

A

A

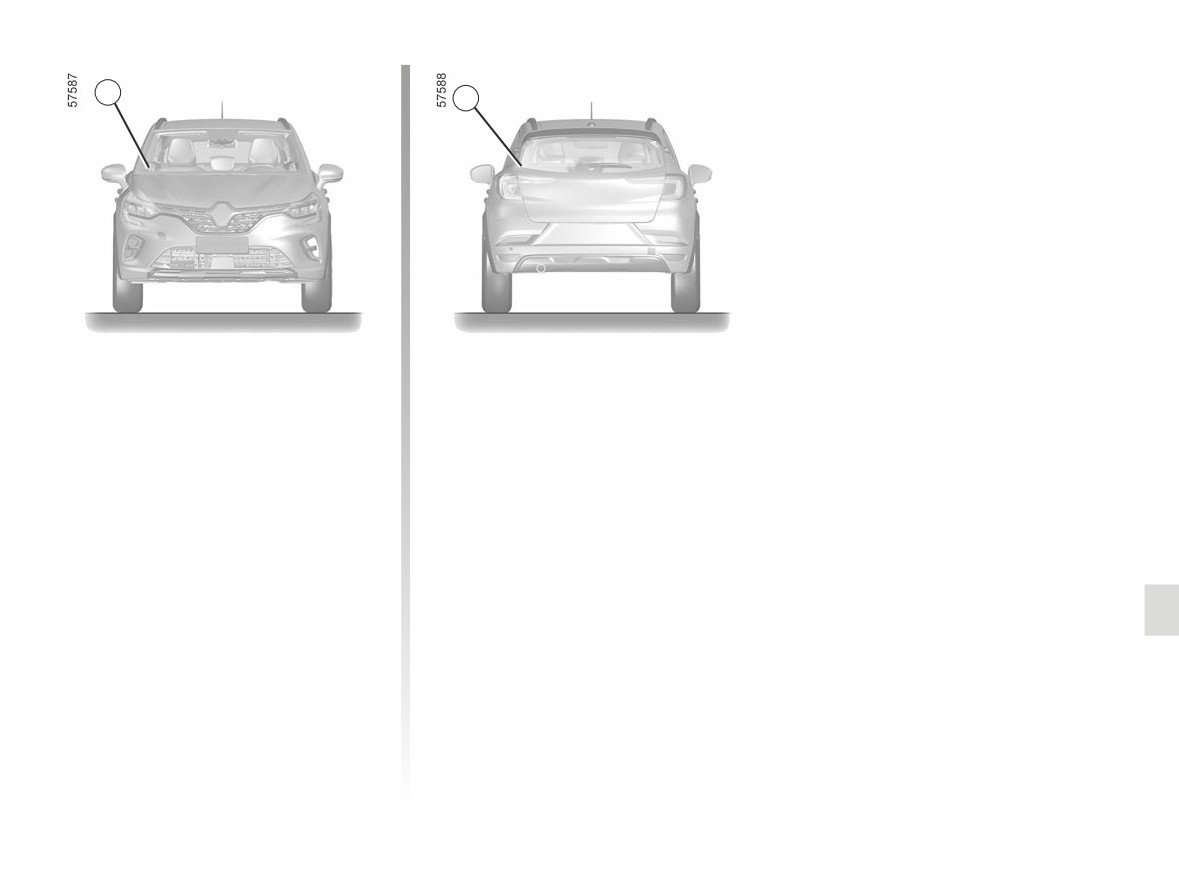

The QR Code on the A label allows

emergency workers using a tablet or

smartphone to immediately access the

technical information useful for working

on the vehicle in the event of an acci-

dent.

Ensure that the A label is always visible

and present on the windscreen as well

as the rear screen.

Any modification or damage would

prevent access to the information.

6.3

CarManuals2.co

ENGINE IDENTIFICATION

A

1

2

3

A

A

Please quote the engine identifica-

tion information in area A in all cor-

respondence or orders.

(Location varies depending on engine)

1

Engine type.

2

Engine suffix.

3

Engine serial number.

A

A

6.4

CarManuals2.co

DIMENSIONS (in metres)

0,876

2,639

0,712

1,554

4,227

1,576* à 1,585*

1,541

2,003

* unladen

6.5

CarManuals2.co

ENGINE SPECIFICATIONS (1/3)

Versions

1.6 SCe

1.0 TCe

1.3 TCe

1.5 dCi

Engine type

H4M

H4D Turbo

H5H Turbo

K9K Turbo

(see engine plate)

Cubic capacity (cc)

1598

999

1 330

1461

Type of fuel

Petrol

Diesel

Octane rating

You must use unleaded petrol with the octane

The label located in the fuel filler flap indicates

rating stated on the label inside the fuel filler

the authorised fuels.

flap. ➥ 1.108.

6.6

CarManuals2.co

ENGINE SPECIFICATIONS (2/3)

Versions

1.6 SCe

1.0 TCe

1.3 TCe

1.5 dCi

Engine type

H4M

H4D Turbo

H5H Turbo

K9K Turbo

(see engine plate)

Cubic capacity (cc)

1598

999

1 330

1461

Fuel types that meet

European standards and are

compatible with the engines

Unleaded petrol compliant with

Diesel fuel compliant with stand-

of vehicles sold in Europe

standard EN 228 contains up

ard EN 590 contains up to 7%

(in any other case, contact an

to 5% ethanol in volume.

fatty acid methyl ester in volume.

Approved Dealer).

Unleaded petrol compliant with

Diesel fuel compliant with stand-

standard EN 228 contains up

ard EN 16734 contains up to 10%

to 10% ethanol in volume.

fatty acid methyl ester in volume.

Diesel fuel compliant with stand-

ard EN 15940 contains up to 7%

acid methyl ester in volume.

6.7

CarManuals2.co

ENGINE SPECIFICATIONS (3/3)

Versions

1.6 SCe

1.0 TCe

1.3 TCe

1.5 dCi

Engine type

H4M

H4D Turbo

H5H Turbo

K9K Turbo

(see engine plate)

Cubic capacity (cc)

1598

999

1 330

1461

Spark plugs

Only use the spark plugs specified for your vehicle’s

engine.

The type should be marked on a label affixed inside

the engine compartment. If it is not then contact an

approved Dealer.

Fitting spark plugs other than those specified may

-

damage the engine.

6.8

CarManuals2.co

Content      ..     8      9      10
