"PHONE" MENU

"SETUP" MENU

DIAL NUMBER

SETTINGS

Select ring tone

Phone/Ring tone volume

Enter mailbox number

SYSTEM LANGUAGE *

Deutsch

English

Español

Français

Italiano

Nederlands

Polski

Portuguese

DATE & TIME *

Set date & time

Date format

Time format

Dark blue

Map colour

Day mode for map

Night mode for map

Auto. Day/Night for map

VEHICLE *

Vehicle information

Alert log

Status of functions

DISPLAY

Brightness

Colour

Pop titanium

Toffee

Blue steel

Technogrey

UNITS

Temperature

Celsius

Fahrenheit

Metric/Imperial

Kilometres (Consumption: l/100)

Kilometres (Consumption: km/l)

Miles (Consumption: MPG)

SYSTEM

Factory reset

Software version

Automatic scrolling

DIAL FROM ADDRESS BOOK

CALL LISTS

CONNECT PHONE

Search phone

Phones connected

Disconnect phone

Rename phone

Delete pairing

Delete all pairings

Show details

* Available according to model.

198

sound quality between
the different audio

sources (radio, CD...).

Check that the audio settings (Volume, Bass,

Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set

the AUDIO functions (Bass, Treble, Front-Rear

Balance, Left-Right Balance) to the middle

position, select the Linear musical ambience
and set the loudness correction to the "Active"

position in CD mode or to the "Inactive" position

in radio mode.

For optimum sound quality, the audio settings (Volume, Bass, Treble,

Ambience, Loudness) can be adapted to the different sound sources,

which may result in audible differences when changing source (radio,

CD...).

The CD is ejected

automatically or is not
played by the player.

- Check that the CD is inserted in the player the

right way up.

- Check the condition of the CD: the CD cannot

be played if it is too damaged.

- Check the content in the case of a recorded

CD: consult the advice in the Audio section.

- The audio equipment's CD player does not

play DVDs.

- Because of their quality level, certain writeable

CDs will not be played by the audio system.

The CD is inserted upside down, is unplayable, does not contain any audio

data or contains an audio format which the player cannot play.

The CD is protected by an anti-pirating protection system which is not

recognised by the audio equipment.

The CD player sound
is poor.

Insert good quality CDs and store them in
suitable conditions.

The CD used is scratched or of poor quality.

The audio equipment settings (bass, treble, ambiences) are unsuitable.

Set the treble or bass level to 0, without selecting

an ambience.

QUESTION

SOLUTION

ANSWER

FREQUENTLY ASKED QUESTIONS

199

SOLUTION

ANSWER

The quality of reception
of the radio station
listened to gradually
deteriorates or the
stored stations do

not function (no
sound, 87.5 Mhz is

displayed...).

The vehicle is too far from the transmitter used by the station listened to or

there is no transmitter in the geographical area through which the vehicle
is travelling.

The environment (hills, buildings, tunnels, basement car parks...) block

reception, including in RDS mode.

The aerial is absent or has been damaged (for example when going

through a car wash or into an underground car park).

Activate the RDS function to enable the system

to check whether there is a more powerful

transmitter in the geographical area.

This phenomenon is normal and does not

indicate a failure of the audio equipment.

Have the aerial checked by a PEUGEOT dealer.

Sound cut-outs of 1

to 2 seconds in radio

mode.

During this brief sound cut-out, the RDS searches for any frequency

permitting better reception of the station.

Deactivate the RDS function if the phenomenon

is too frequent and always on the same route.

With the engine off,

the audio equipment
switches off after a few

minutes of use.

When the engine is switched off, the audio equipment operating time
depends on the battery charge.

The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery.

Start the vehicle's engine to increase the battery
charge.

The stored stations do

not function (no sound,

87.5 Mhz is displayed...).

An incorrect waveband is selected.

Press the BAND AST button to return to the

waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.

200

QUESTION

SOLUTION

ANSWER

The TA box is ticked.

However, certain trafﬁ c

jams along the route
are not indicated in real

time.

On starting, it is several minutes before the system begins to receive the

trafﬁ c information.

Wait until the trafﬁ c information is being received

correctly (displaying of the trafﬁ c information

symbols on the map).

In certain countries, only major routes (motorways...) are listed for the

trafﬁ c information.

The time taken to
calculate a route

sometimes seems
longer than usual.

This phenomenon is normal. The system is

dependent on the trafﬁ c information available.

The performance of the system may slow down temporarily if a CD is

being copied onto the Jukebox at the same time as a route is being
calculated.

Wait until the CD has been copied or stop the
copying before starting the guidance function.

I receive a speed

camera alert for a

camera which is not on

my route.

The system announces all speed cameras located in a conical zone

forward of the vehicle. It may detect speed cameras on nearby or parallel
roads.

Zoom the map to view the exact position of the

speed camera.

The audible speed

camera alert is not
working.

Audible alerts are not active.

The altitude is not
displayed.

On starting, the initialisation of the GPS may take up to 3 minutes to

receive more than 3 satellites correctly.

Wait until the system has started up completely.
Check that there is a GPS coverage of at least

3 satellites (long press on the SETUP button,

then select GPS coverage).

Depending on the geographical environment (tunnel...) or the weather, the

conditions of reception of the GPS signal may vary.

This phenomenon is normal. The system is
dependent on the conditions of reception of the
GPS signal.

The route is not
calculated successfully.

The exclusion criteria may conﬂ ict with the current location (exclusion of

toll roads on a motorway with tolls).

Check the exclusion criteria.

The alert volume level is set to minimum.

Activate audible alerts in Navigation Menu,

Settings, Set parameters for risk areas.
Increase the speed camera alert volume.

201

There is a long waiting

time after inserting a CD.

When a new medium is inserted, the system reads a certain amount of

data (directory, title, artist, etc.).

This may take a few seconds.

This phenomenon is normal.

I cannot connect my
Bluetooth telephone.

A telephone connected
by Bluetooth is
inaudible.

The telephone's Bluetooth function may be deactivated or the equipment

may not be visible.

The volume level depends on both the system and the telephone.

- Check that your telephone's Bluetooth function

is activated.

- Check that your telephone is visible.

Increase the Peugeot Connect Navigation volume

setting, possibly to maximum, and increase the

telephone volume level if necessary.

QUESTION

SOLUTION

ANSWER

203

Peugeot Connect Sound

CONTENTS

01 First steps

02 Steering mounted controls p.

03 Main menu

04 Audio

05 Peugeot Connect USB

06 Bluetooth

07 Conﬁ guration

08 Trip computer

09 Screen menu map

Frequently asked questions

Your Peugeot Connect Sound is coded in such a way that
it will only operate in your vehicle. If it is to be installed
in another vehicle, contact your PEUGEOT dealer for

conﬁ guration of the system.

For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent

discharging of the battery, the audio equipment may

switch off after a few minutes.

AUDIO EQUIPMENT/BLUETOOTH

Connect Sound

204

205

206

207

210

213

215

216

217

219

204

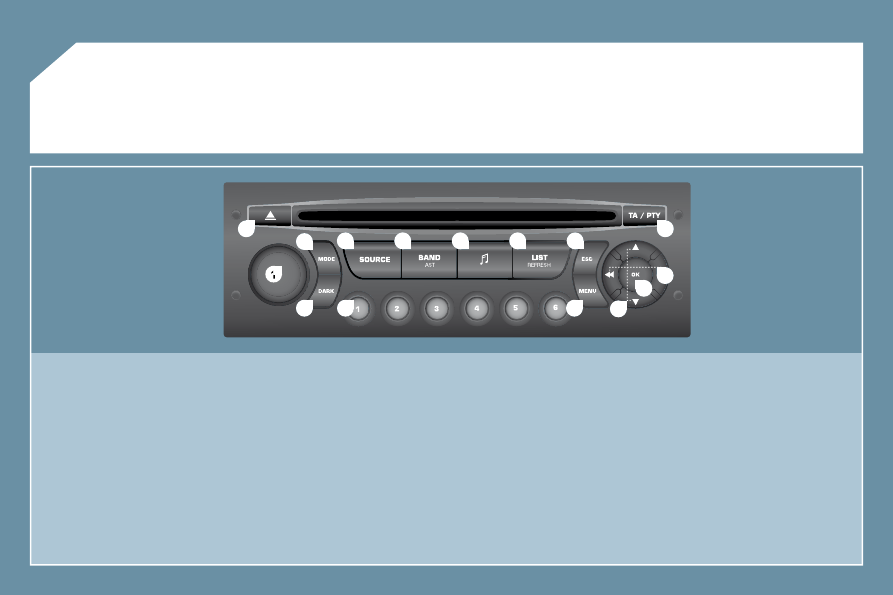

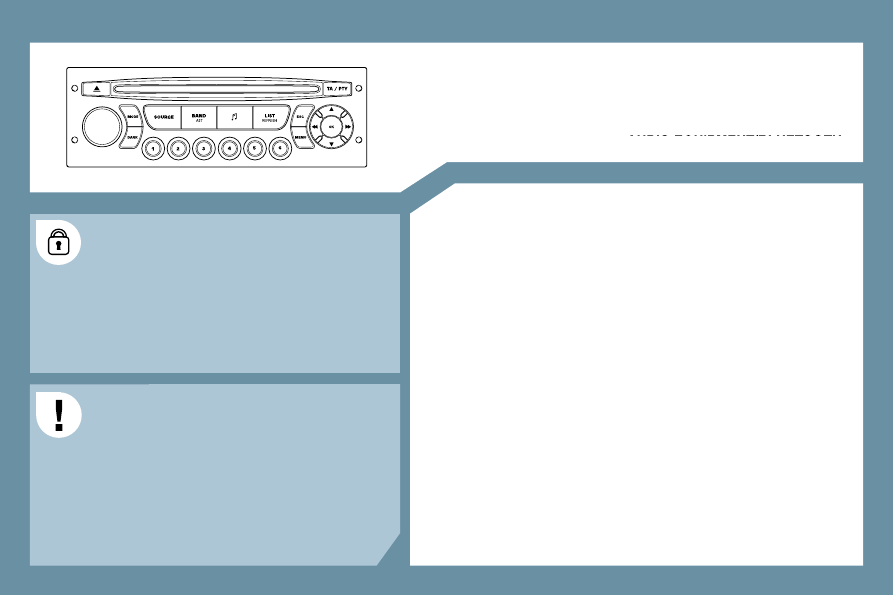

01 FIRST STEPS

1.   On/Off and volume adjustment.
  2.   CD eject.
  3.   Selection of the display on the screen from the following

modes:

Audio (AUDIO), Trip Computer (TRIP) and Telephone (TEL)

functions.

4. Selection of source:

radio, audio CD/MP3 CD, USB, Jack connection, Streaming.

5. Selection of FM1, FM2, FMast and AM wavebands.
6. Setting audio options: front/rear balance, left/right balance,

loudness, sound ambience.

7. Display the list of local stations, of the tracks on the CD or of

the MP3 folders.

8. Abandon current operation.
9. TA (Trafﬁ c Announcement) function on/off.

Long press: access to the PTY (Types of radio programme)

mode.

10. Conﬁ rmation.
11. Automatic search for a lower/higher frequency.

Selection of previous/next CD, MP3 or USB track.

12. Selection of a lower/higher radio frequency.

Selection of the previous/next MP3 folder.

Selection of the previous/next USB equipment folder/genre/

artist/playlist.

13. Display the general menu.
14. Buttons 1 to 6:

Selection of a stored radio station.

Long press: store a station.

15. The DARK button changes the display on the screen to

improve driving comfort at night.

1st press: lighting the upper band only.

2nd press: display of a black screen.

3rd press: return to the standard display.

205

RADIO: selection of the previous stored
station.

USB: selection of the previous genre/artist/

directory from the classiﬁ cation list.

Selection of the previous item on a menu.

RADIO: automatic search for a higher frequency.

CD/MP3/USB: selection of the next track.

CD/USB: continuous press: fast forwards play.

Selection of the previous item.

RADIO: automatic search for a lower frequency.

CD/MP3/USB: selection of the previous track.

CD/USB: continuous press: fast reverse.

Selection of the next item.

Volume increase.

Volume decrease.

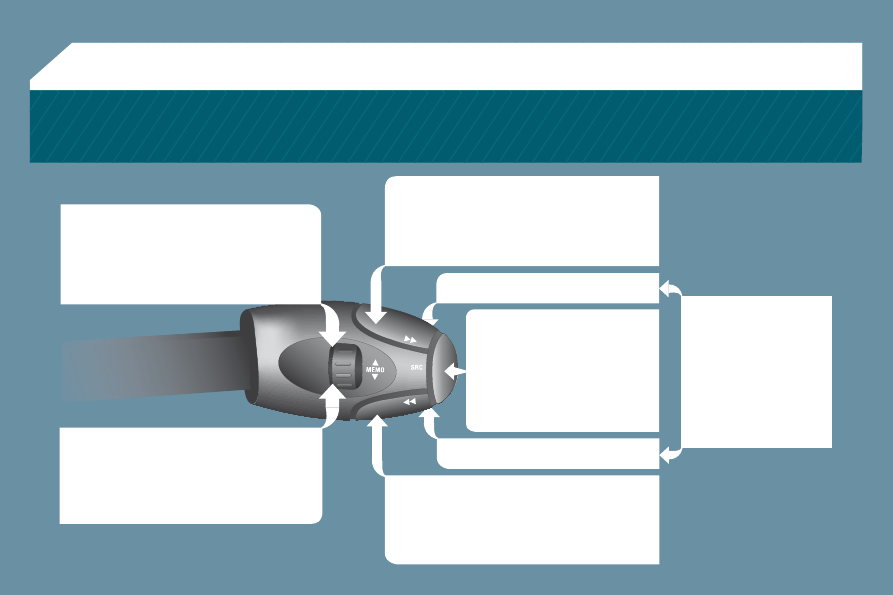

STEERING MOUNTED CONTROLS

Mute: press the volume
increase and decrease

buttons simultaneously.

The sound is restored by
pressing one of the two

volume buttons.

- Change of sound source.

- Conﬁ rmation of a selection.
- Pick up/Hang up the

telephone.

- Press for more than 2 seconds:

access to the telephone menu.

RADIO: selection of the next stored station.

USB: selection of the next genre/artist/

directory from the classiﬁ cation list.

Selection of the next item on a menu.

206

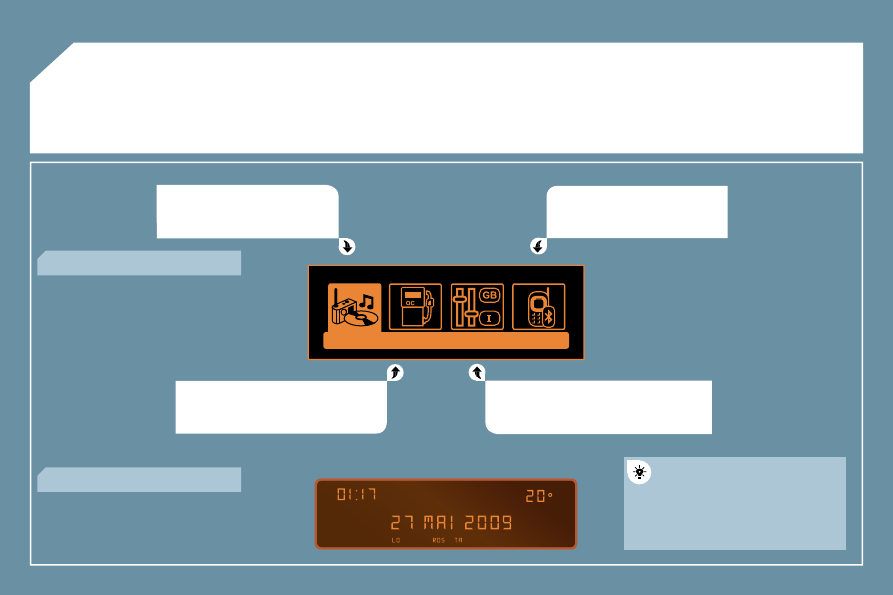

03 MAIN MENU

AUDIO FUNCTIONS : radio,

CD, USB, options.

TRIP COMPUTER : entering of

TRIP COMPUTER

distances, alerts, status of functions.

TELEPHONE : Bluetooth

hands-free, pairing,

management of a call.

PERSONALISATION-

CONFIGURATION : vehicle parameters,

display, languages.

> MONOCHROME SCREEN C

> MONOCHROME SCREEN A

For a detailed global view of the

menus available, refer to the

"Screen menu map" section of
this chapter.

207

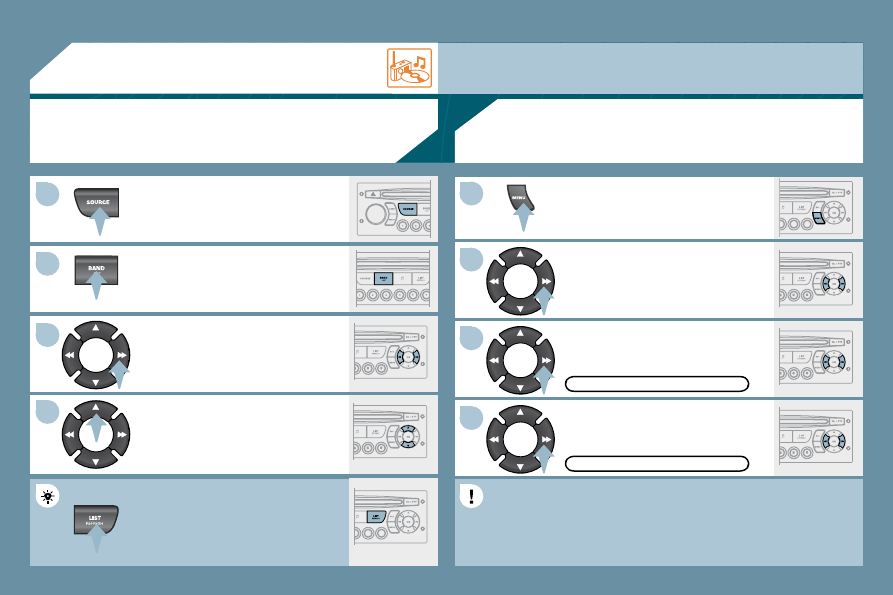

04 AUDIO

Press the SOURCE button several

times in succession and select the
radio.

Press the BAND AST button to select

a waveband: FM1, FM2, FMast, AM.

Brieﬂ y press one of the buttons to

carry out an automatic search of the
radio stations.

Press one of the buttons to carry out a

manual search of the radio stations.

Press the LIST REFRESH button to
display the list of stations received

locally (30 stations maximum).

To update this list, press for more than
two seconds.

Select ACTIVATE FREQUENCY

FOLLOWING (RDS) then press OK.

RDS appears on the display.

Select the FM WAVEBAND

PREFERENCES function then press

OK.

Select AUDIO FUNCTIONS then

press OK.

Press the MENU button.

FM WAVEBAND PREFERENCES

ACTIVATE FREQUENCY FOLLOWING (RDS)

The external environment (hills, buildings, tunnels, basement car parks) may block reception, including
in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not
indicate any failure of the audio equipment.

RDS

The RDS, if displayed, enables you to continue listening to the same

station by automatic retuning to alternative frequencies. However, in

certain conditions, coverage of an RDS station may not be assured
throughout the country as radio stations do not cover 100 % of the
territory. This explains the loss of reception of the station during a

journey.

RADIO

SELECTING A STATION

208

Insert circular compact discs only.

Some anti-pirating systems, on original discs or CDs

copied using a personal recorder, may cause faults

which are no reﬂ ection on the quality of the original
player.
Without pressing the EJECT button, insert a CD in the

player, play begins automatically.

To play a disc which has already been

inserted, press the SOURCE button

several times in succession and
select CD.

Press one of the buttons to select a
track on the CD.

Press the LIST REFRESH button to
display the list of tracks on the CD.
Press and hold one of the buttons for
fast forward or backward.

Insert an MP3 compilation in the player.

The audio equipment searches for all of the music

tracks, which may take anything between a few
seconds and several tens of seconds, before play
begins.

On a single disc, the CD player can read up to 255 MP3 ﬁ les spread

over 8 directory levels. However, it is advisable to keep to a limit of

two levels to reduce the access time before the CD is played.

While the CD is being played, the directory ﬂ ow chart is not followed.

All of the ﬁ les are displayed on a single level.

To play a disc which has already been

inserted, press the SOURCE button

several times in succession and
select CD.

Press one of the buttons to select a
track on the CD.

Press the LIST REFRESH button to
display the list of directories of the

MP3 compilation.
Press and hold one of the buttons for
fast forward or backward play.

PLAYING A CD

MP3 CD

PLAYING AN MP3 COMPILATION

AUDIO

209

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer

3, is an audio compression standard which permits the recording of

several tens of music ﬁ les on a single disc.

In order to be able to play a recorded CDR or CDRW, when recording

In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select standards ISO 9660 level 1.2 or

1.2 or Joliet.

If the disc is recorded in another format, it may not be played

If the disc is recorded in another format, it may not be played
correctly.

It is recommended that the same recording standard is always used

for an individual disc, with as low a speed as possible (4x maximum)

for optimum sound quality.

In the particular case of a multi-session CD, the Joliet standard is

recommended.

The audio equipment will only play ﬁ les with the extension ".mp3"

with a sampling rate of 22.05 KHz or 44.1 KHz. No other type of ﬁ le

(.wma, .mp4, .m3u...) can be played.

It is advisable to restrict ﬁ le names to 20 characters without using

It is advisable to restrict ﬁ le names to 20 characters without using
special characters (e.g. " ? ; ù) to avoid any playing or d

g or displaying

problems.

MP3 CD

INFORMATION AND ADVICE

AUDIO

Empty CDs are not recognised and may damage the system.

210

The system puts together playlists (temporary memory) created over

a period which depends on the capacity of the USB equipment.

The other sources are available during this time.

The playlists are updated each time the ignition is switched off or

each time a USB memory stick is connected.

When connecting for the ﬁ rst time, the classiﬁ cation suggested is by

folder. When you reconnect, the classiﬁ cation selected previously is
retained.

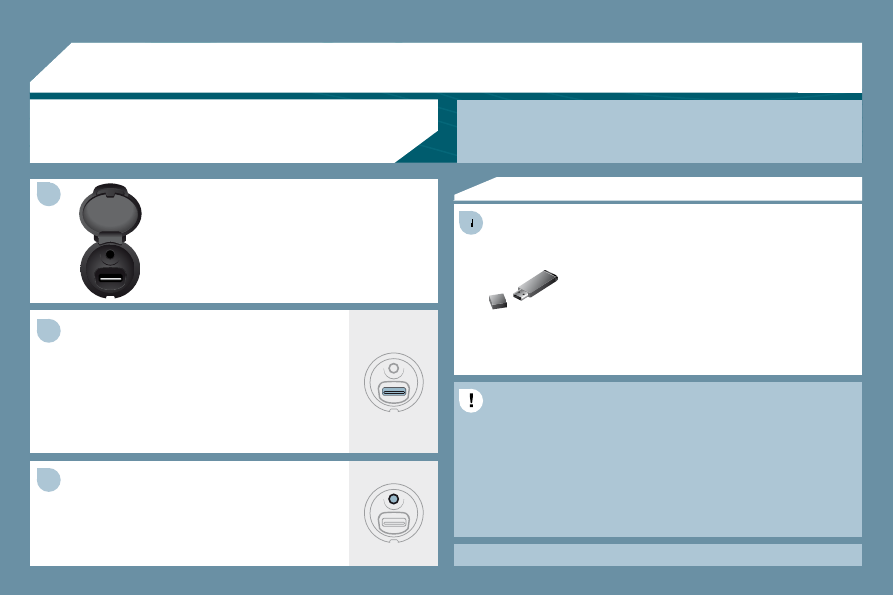

Connect the memory stick to the port, directly or

using a lead. If the audio equipment is switched
on, the USB source is detected as soon as it

is connected. Play begins automatically after a
delay which depends on the capacity of the USB
stick.

The ﬁ le formats recognised are .mp3 (mpeg1

layer 3 only), .wma (standard 9 only, 128 kbits/

sec compression), .wav and .ogg.

The playlists types accepted are m3u, .pls, .wpl.

This unit consists of a USB port and a Jack

socket * . The audio ﬁ les are transmitted from

portable equipment such as a digital player or

a USB memory stick to your Peugeot Connect
Sound to be listened to via the vehicle's speakers.

USB key (1.1, 1.2 and 2.0) or iPod

of generation

5 or later:

- USB memory sticks should be formatted FAT

or FAT 32 (NTFS not supported),

- the iPod

lead is essential,

- navigation through the ﬁ le database is by

means of the steering wheel controls,

- the iPod

software should be regularly updated

for the best connection.

Other iPod

players of earlier generations and

players using the MTP protocol * :
- play via Jack-Jack lead only (not supplied),

- navigation through the ﬁ le database is from the

portable equipment.

The list of compatible equipment and the compression rates supported are available from
PEUGEOT dealers.

USING THE PEUGEOT CONNECT USB

CONNECTING A USB MEMORY STICK

* According to vehicle.

PEUGEOT CONNECT USB

211

PEUGEOT CONNECT USB

USING THE PEUGEOT CONNECT USB

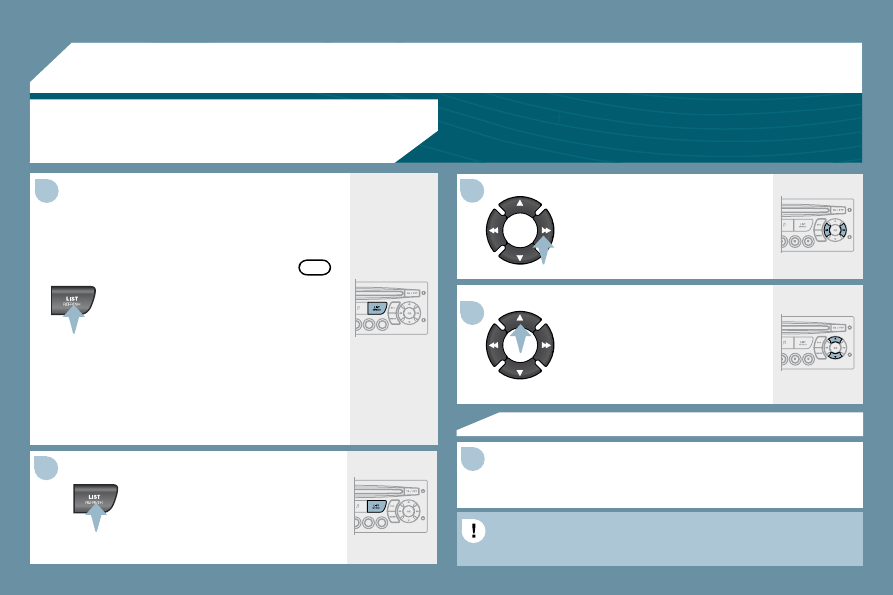

Press LIST brieﬂ y to display the

previously selected classiﬁ cation.
Navigate through the list using the
left/right and up/down buttons.

Conﬁ rm the selection by pressing OK.

The lists available are Artist, Genre and Playlist (as deﬁ ned on the
iPod

Selection and Navigation are described in steps 1 to 5 above.

Do not connect a hard disk or USB devices other than audio

equipment to the USB port. This could damage your installation.

CONNECTING AN IPOD

VIA THE USB PORT

Press one of these buttons to gain
access to the previous/next track on

the classiﬁ cation list currently being
played.
Press and hold one of the buttons for
fast forward or backward play.

Press one of these buttons to gain
access to the previous/next Genre,
Folder, Artist or Playlist on the

classiﬁ cation list currently being
played.

Press and hold LIST to display the

different classiﬁ cations.
Select by Folder/Artist/Genre/Playlist,

press OK to select the classiﬁ cation

required, then press OK again to conﬁ rm.

- by Folder: all folders containing audio

ﬁ les recognised on the peripheral

device, classiﬁ ed in alphabetical order

without following the ﬂ ow chart.

- by Artist: all of the artist names

deﬁ ned in the ID3 Tags, classiﬁ ed in
alphabetical order.

- by Genre: all of the genres deﬁ ned in

the ID3 Tags.

- by Playlist: in accordance with the

playlists recorded on the USB device.

212

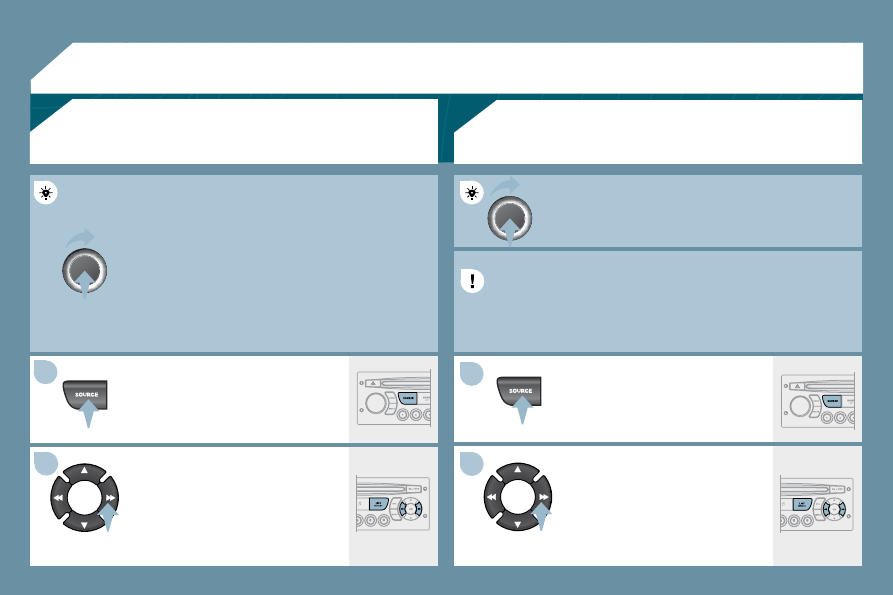

The controls are displayed and managed via the

portable equipment.

First adjust the volume of your portable equipment.

Then adjust the volume of your audio

equipment.

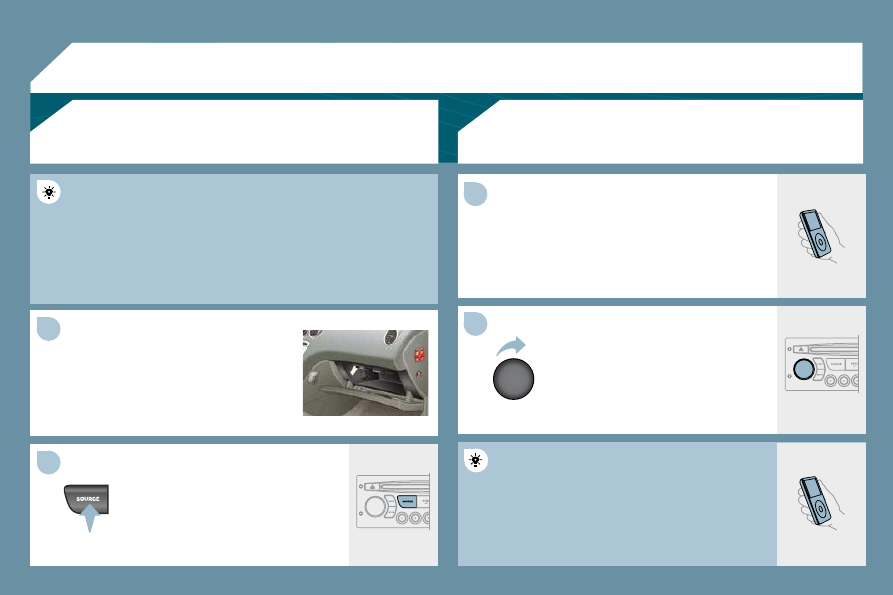

The RCA auxiliary socket permits the connection of portable

equipment (MP3 player...).

Connect the portable equipment (MP3
player…) to the audio sockets (white

and red, RCA type) using a suitable
cable (not supplied).

Press the SOURCE button several

times in succession and select AUX.

USING THE AUXILIARY SOCKET (AUX)

RCA SOCKET

ADJUSTING THE VOLUME

OF THE AUXILIARY SOURCE

PEUGEOT CONNECT USB

213

Saisir code authentiication

Del

2 3 4 5 6 7 8 9

BLUETOOTH

For safety reasons and because they require prolonged attention
on the part of the driver, the operations for pairing of the Bluetooth

mobile telephone with the Bluetooth hands-free system of your audio

equipment must be carried out with the vehicle stationary and the
ignition on.

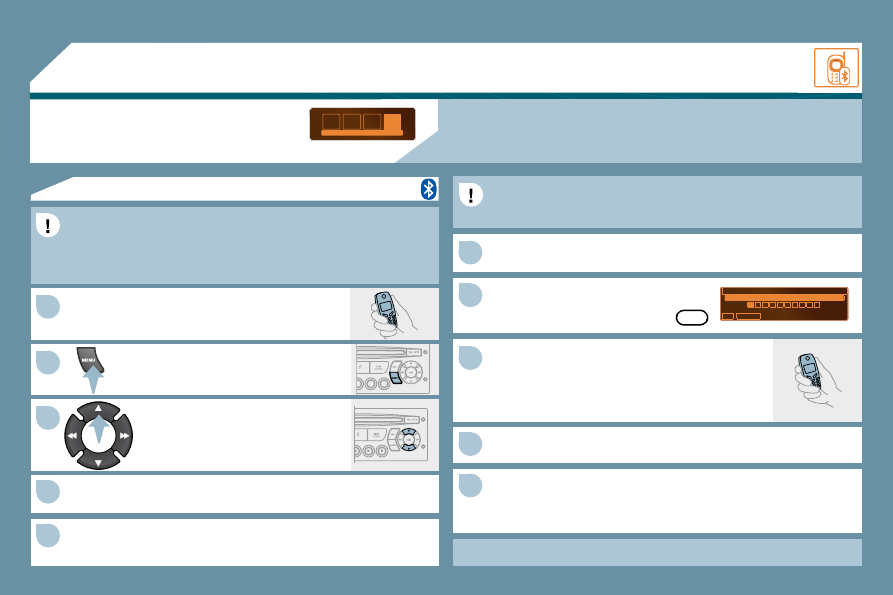

Press the MENU button.

A window is displayed with "Searching...".

Activate the telephone's Bluetooth function.

In the menu, select:
- Bluetooth telephone function - Audio

- Bluetooth conﬁ guration

- Perform a Bluetooth search

The services offered depend on the network, the SIM card and the compatibility of the Bluetooth
equipment used.
Consult your telephone's manual and your operator to ﬁ nd out which services are available to you.
A list of mobile telephones which offer the best range of services is available from the network. Consult
a PEUGEOT dealer.

BLUETOOTH TELEPHONE

SCREEN C

The TELEPHONE menu permits access to the following functions in

particular: Directory * , Call list, Pairing management.

The ﬁ rst 4 telephones recognised are displayed in this window.

A virtual keypad is displayed on the screen:
enter a code with at least 4 digits.

Conﬁ rm by pressing OK.

If pairing fails, the number of attempts is not limited.

Select the telephone to be connected from the list. Only one

telephone can be connected at a time.

A message is displayed on the screen of the

telephone chosen: to accept the pairing, enter

the same code on the telephone, then conﬁ rm by

pressing OK.

"Pairing of Name_telephone successful" appears on the screen.

The automatic connection authorised is only active after the

telephone has been conﬁ gured.
The directory and the call list can be accessed after the
synchronisation period.

synchronisation period.

PAIRING A TELEPHONE

The pairing can also be initiated from the telephone.

* If your telephone is fully compatible.

Peugeot 207 Dag (2010 year). Manual - part 13
