Peugeot 207 Dag (2010 year). Manual

168

TECHNICAL DATA

SALOON WEIGHTS AND TOWED LOADS (in kg)

Diesel engines

1.4 litre Turbo

HDI 70 hp

1.6 litre Turbo

HDI 90 hp

16 litre Turbo HDI

90 hp 99g

1.6 litre Turbo

HDI 110 hp

Gearboxes

Manual

Kerb weight

1 261 - 1 251 - 1 269 1 280 - 1 272 - 1 290

1 260 - 1 279

1 328 - 1 319 - 1 358

Payload

399 - 369 - 341

420 - 408 - 340

445 - 450

382 - 391 - 323

Gross vehicle weight (GVW)

1 660 - 1 620 - 1 610 1 700 - 1 680 - 1 630

1 630 - 1 654

1 710 - 1 710 - 1 681

Gross train weight (GTW)

on a 12 % gradient

2 600

2 650

1 630 - 1654

2 690

Braked trailer (within GTW limit)

on a 10 % or 12 % gradient

940 - 980 - 990

950 - 970 - 1 020

980

on an 8 % gradient

940 - 980

980 - 1 000

1 030

Braked trailer ** (with load transfer within
GTW limit)

1 150

Unbraked trailer

600

Recommended nose weight

The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.

** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

164

TECHNICAL DATA

SW WEIGHTS AND TOWED LOADS (in kg)

Petrol engines

1.4 litre 75 hp

1.4 litre VTi 16V 95 hp

Gearboxes

Manual

Kerb weight

1 271

1 290

Payload

371

401

Gross vehicle weight (GVW)

1 642

1 691

Gross train weight (GTW)

on a 12 % gradient

2 422

2 591

Braked trailer (within GTW limit)

on a 10 % or 12 % gradient

780

900

on an 8 % gradient

800

900

Braked trailer *** (with load transfer within
GTW limit)

1 045

1 150

Unbraked trailer

600

Recommended nose weight

*** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

165

SW WEIGHTS AND TOWED LOADS (in kg)

Petrol engines

1.6 litre VTi 16V 120 hp

Gearboxes

Manual

Auto.

Kerb weight

1 302

1 335

Payload

403

402

Gross vehicle weight (GVW)

1 705

1 737

Gross train weight (GTW)

on a 12 % gradient

2 605

2 687

Braked trailer (within GTW limit)

on a 10 % or 12 % gradient

900

950

on an 8 % gradient

950

Braked trailer *** (with load transfer within
GTW limit)

1 150

Unbraked trailer

600

Recommended nose weight

*** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

169

SW WEIGHTS AND TOWED LOADS (in kg)

Diesel engines

1.6 litre Turbo HDI 90 hp

1.6 litre Turbo HDI 110 hp

Gearboxes

Manual

Kerb weight

1 339

1 350

Payload

402

408

Gross vehicle weight (GVW)

1 741

1 758

Gross train weight (GTW)

on a 12 % gradient

2 691

2 708

Braked trailer (within GTW limit)

on a 10 % or 12 % gradient

950

on an 8 % gradient

980

1 000

Braked trailer ** (with load transfer within
GTW limit)

1 150

Unbraked trailer

600

Recommended nose weight

** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

TECHNICAL DATA

SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)

Petrol engines

1.4 litre VTi 16V

95 hp

1.6 litre VTi 16V 120 hp

Gearboxes

Manual

Auto.

Kerb weight

1 330

1 378

1 415

Payload

391

354

351

Gross vehicle weight (GVW)

1 721

1 732

1 766

Gross train weight (GTW)

on a 12 % gradient

2 572

2 582

2 716

Braked trailer (within GTW limit)

on a 10 % or 12 % gradient

900

850

950

on an 8 % gradient

900

950

Braked trailer *** (with load transfer within
GTW limit)

1 150

Unbraked trailer

600

Recommended nose weight

*** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

170

TECHNICAL DATA

SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)

Diesel engines

1.6 litre Turbo HDI 90 hp

1.6 litre Turbo HDI 110 hp

Gearboxes

Manual

Kerb weight

1 387

1 431

Payload

378

352

Gross vehicle weight (GVW)

1 765

1 783

Gross train weight (GTW)

on a 12 % gradient

2 715

2 733

Braked trailer (within GTW limit)

on a 10 % or 12 % gradient

950

on an 8 % gradient

950

Braked trailer ** (with load transfer within
GTW limit)

1 150

Unbraked trailer

600

Recommended nose weight

** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

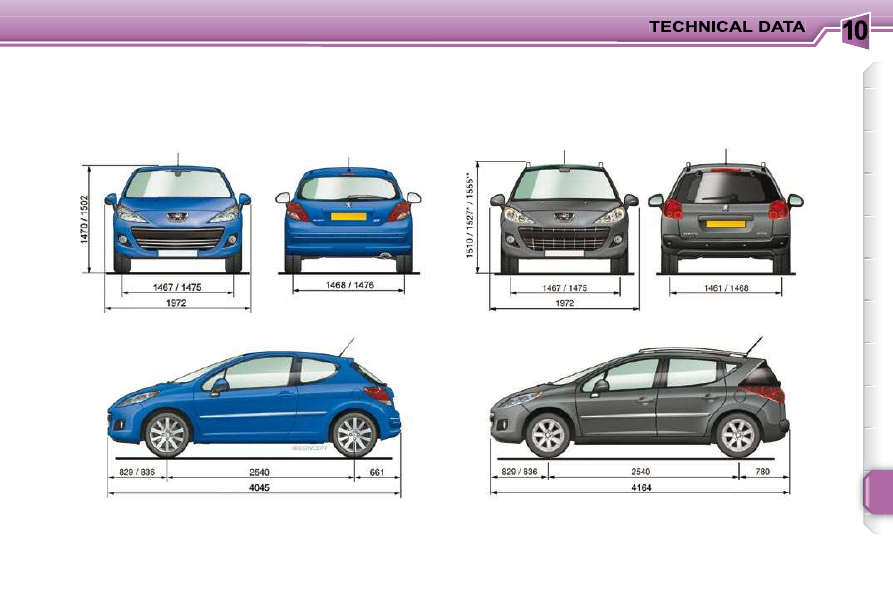

172

TECHNICAL DATA

IDENTIFICATION MARKINGS

Various visible markings for the identiﬁ -

cation of your vehicle.

Wheels which are ﬁ tted with 205/45

R17 and, only on SW Outdoor,
with 205/55 R16 tyres, cannot be

ﬁ tted with snow chains. For further

information, contact a PEUGEOT
dealer.

If the inﬂ ation pressures are too low,

this increases fuel consumption.

The inﬂ ation pressures must be

checked when the tyres are cold,
at least once a month.

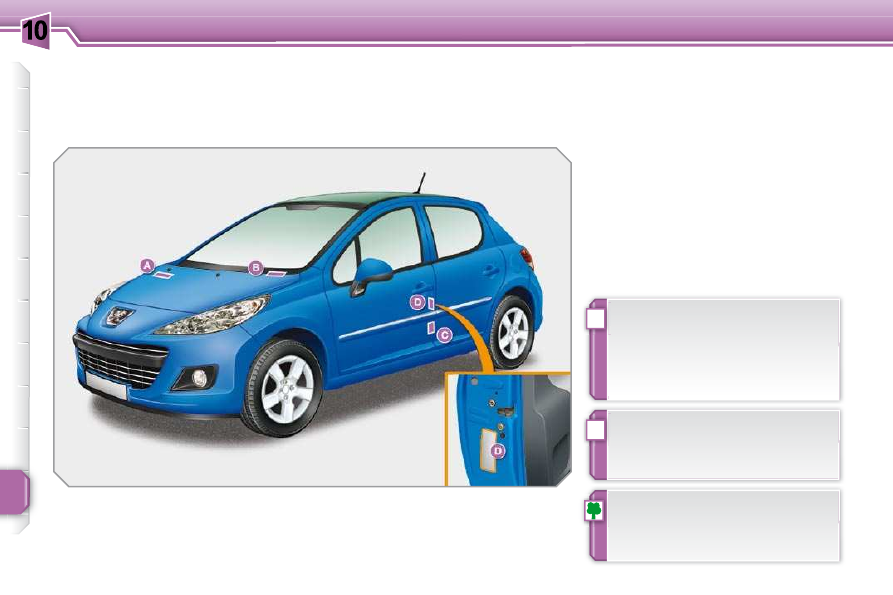

A. Vehicle identiﬁ cation (VIN) num-

ber under the bonnet.

This number is etched on the bodywork

near the passenger compartment ﬁ lter.

  B. Visible VIN on the dashboard.
This  number  is  indicated  on  a  self-
adhesive  label  which  is  visible  through
the windscreen.

C. VIN on the chassis.
This number is indicated on a self-

destroying label afﬁ xed to the centre

pillar, near the driver’s door striker.

D. Manufacturer’s label.

This label is afﬁ xed to the edge of the

door on the driver’s side.
It bears the following information:
-

the wheel rim and tyre sizes,

the brands of tyre recommended by
the manufacturer,

- the associated inﬂ ation pressures,
-

the paint colour code.

173

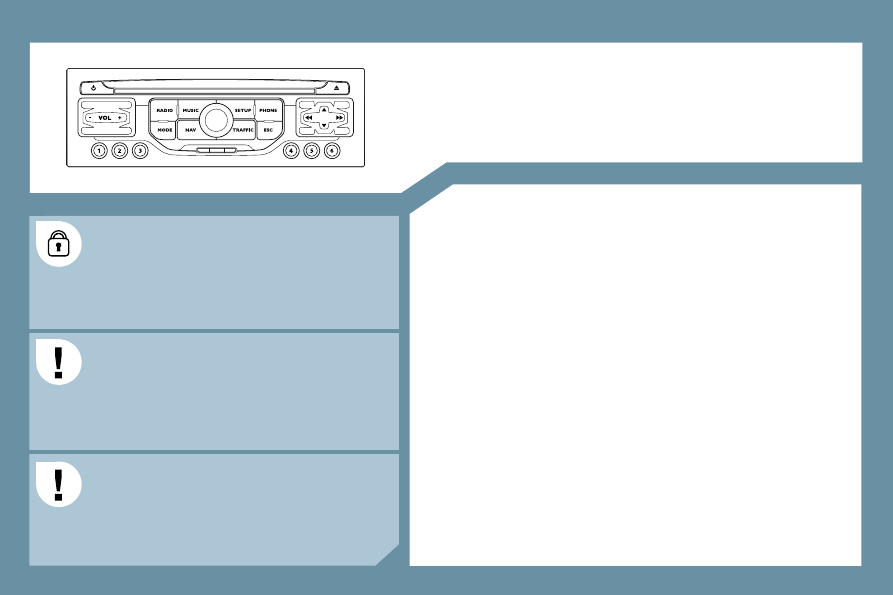

The Peugeot Connect Navigation is protected in such a
way that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact a PEUGEOT dealer

for conﬁ guration of the system.

Certain functions described in this handbook will become
available during the year.

Peugeot Connect Navigation

CONTENTS

01 First steps

02 Steering mounted controls p.

03 General operation

04 Navigation - Guidance

05 Trafﬁ c information

06 Radio

07 Music media players

08 Bluetooth telephone

09 Conﬁ guration

10 Trip computer/vehicle parameters p.

11 Screen menu map

Frequently asked questions

For safety reasons, it is imperative that the driver carries
out operations which require prolonged attention while
the vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the Peugeot Connect
Navigation switches off following the activation of the

Energy Economy mode.

MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE

GPS EUROPE BY SD CARD

174

175

176

178

185

187

188

191

193

194

195

198

174

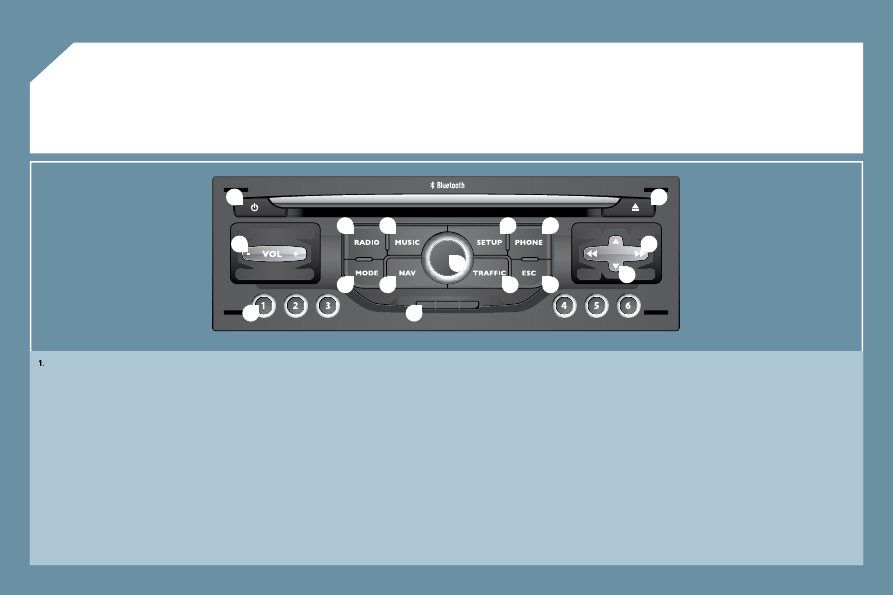

Engine not running

- Short press: on/off.

- Long press: CD pause, mute for the radio.

Engine running

- Short press: CD pause, mute for the radio.

- Long press: reinitialisation of the system.

2. Volume adjustment (each source is independent, including

also navigation messages and alerts) .

3. Access to the "Radio" Menu. Display the list of stations.
4. Access to the "Music" Menu. Display the tracks.

6. Access to the "Phone" Menu. Display the call list.
7. Access to the "MODE" menu.

Selection of the successive display of:

Radio, Map, NAV (if navigation is in progress), Telephone (if a

conversation is in progress), Trip computer.

Long press: display of a black screen (DARK).

8.   Access to the "Navigation" Menu. Display the last destinations.
9.   Access to the "Trafﬁ c" Menu. Display the current trafﬁ c alerts.
10.   ESC: abandon the operation in progress.
11.   CD eject.
12.   Selection of the previous/next radio station from the list.

Selection of the previous/next MP3 directory.

Selection of the previous/next page of a list.

13. Selection of the previous/next radio station.

Selection of the previous/next CD or MP3 track.

Selection of the previous/next line of a list.

14. Buttons 1 to 6:

Selection of the stored radio station.

Long press: store the current radio station.

15. SD card reader (navigation SD card only).
16. Dial for selection of the screen display and according to the

context of the menu

Short press: contextual menu or conﬁ rmation.

Long press press: contextual menu speciﬁ c to the list

displayed.

Peugeot Connect Navigation CONTROL PANEL

3 - 4. Long press: access to the audio settings: front/rear and left/

right balance, bass/treble, equalizer, loudness, automatic

volume adjustment, initialise the settings.

5. Access to the "SETUP" menu.

Long press: access to the GPS coverage and the

demonstration mode.

FIRST STEPS

175

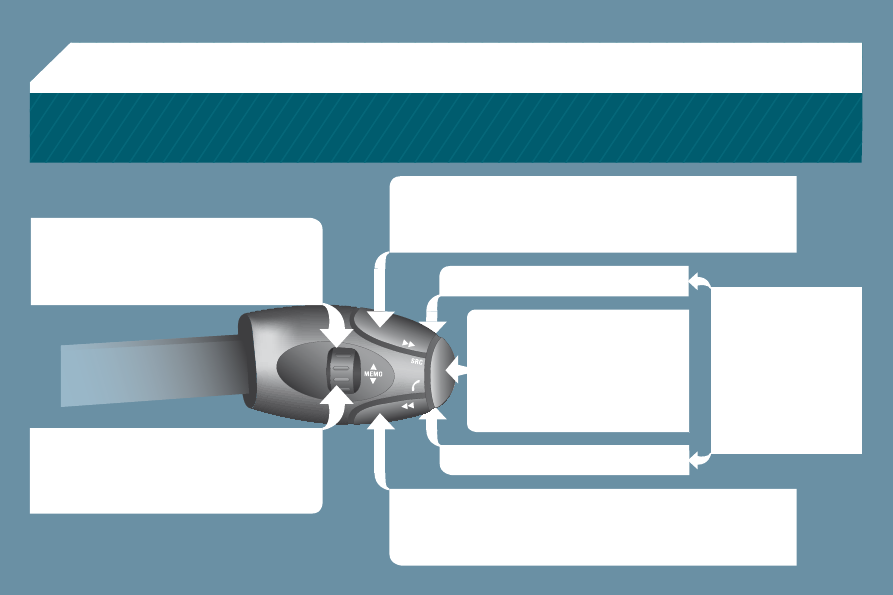

RADIO: selection of the previous stored station.
Selection of the previous entry in the address book.

RADIO: selection of the next stored station.
Selection of the next entry in the address book.

RADIO: change to the next radio station on the list.

Long press: automatic search for a higher frequency.
CD: selection of the next track.
CD: continuous press: fast forward play.

RADIO: change to the previous radio station on the List.

Long press: automatic search for a lower frequency.
CD: selection of the previous track.
CD: continuous press: fast reverse.

- Change the sound source.

- Make a call from the address book.
- Pick up/Hang up the telephone.

- Press for more than 2 seconds:

access to the address book.

Volume increase.

Volume decrease.

Mute: function activated

by pressing the volume
increase and decrease

buttons simultaneously.

Restore the sound by
pressing one of the two

volume buttons.

STEERING MOUNTED CONTROLS

176

03 GENERAL OPERATION

For a detailed global view of the menus available, refer to the "Screen

menu map" section.

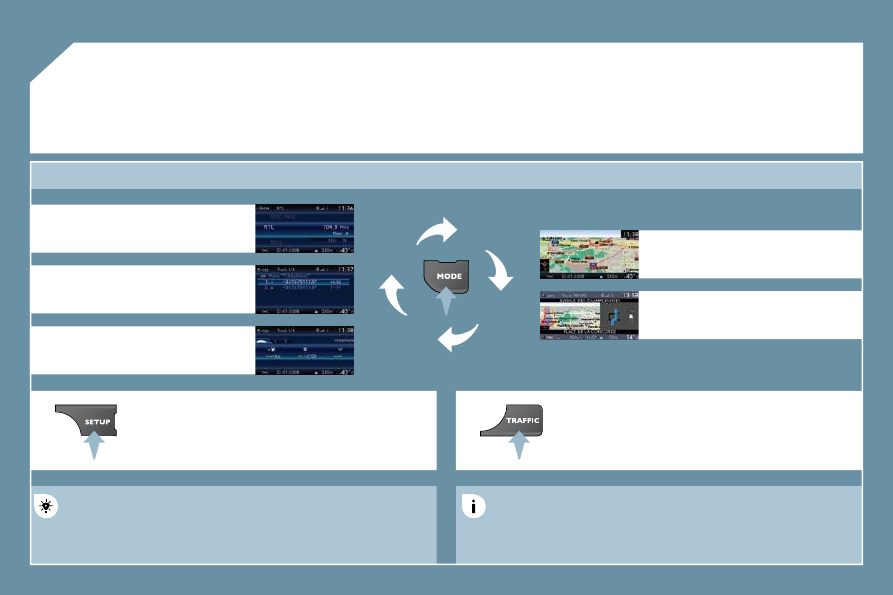

Press the MODE button several times in succession for access to the following menus:

For cleaning the screen, the use of a soft, non-abrasive cloth

(spectacles cloth) is recommended, with no additional product.

RADIO /MUSIC MEDIA PLAYERS

TELEPHONE

(If a conversation is in progress)

FULL SCREEN MAP

NAVIGATION

(If guidance is in progress)

SETUP:

system language * , date and time * , display,

vehicle settings * , unit and system settings, "Demo

mode".

TRAFFIC:

TMC information and messages.

* Available according to model.

TRIP COMPUTER

177

A press on the OK dial gives access to

short-cut menus according to the display
on the screen.

MUSIC MEDIA PLAYERS:

NAVIGATION (IF GUIDANCE IS IN PROGRESS):

ABORT GUIDANCE

REPEAT ADVICE

BLOCK ROAD

ROUTE INFO

SHOW DESTINATION

TRIP INFO

Route type

Avoid

Satellites

ZOOM/SCROLL

VOICE ADVICE

ROUTE OPTIONS

RADIO:

IN FM MODE

TRAFFIC INFO (TA)

RDS

RADIOTEXT

REGIONAL PROG.

IN AM MODE

REFRESH AM LIST

DISPLAY ACCORDING TO THE CONTEXT

TRAFFIC INFO (TA)

PLAY OPTIONS

NORMAL ORDER

RANDOM TRACK

REPEAT FOLDER

SCAN

SELECT MUSIC

TELEPHONE:

END CALL

HOLD CALL

DIAL

DTMF-TONES

PRIVATE MODE

MICRO OFF

GENERAL OPERATION

FULL SCREEN MAP:

ABORT GUIDANCE /RESUME GUIDANCE

SET DESTINATION

POIS NEARBY

POSITION INFO

MAP SETTINGS

ZOOM/SCROLL

178

NAVIGATION - GUIDANCE

SELECTING A DESTINATION

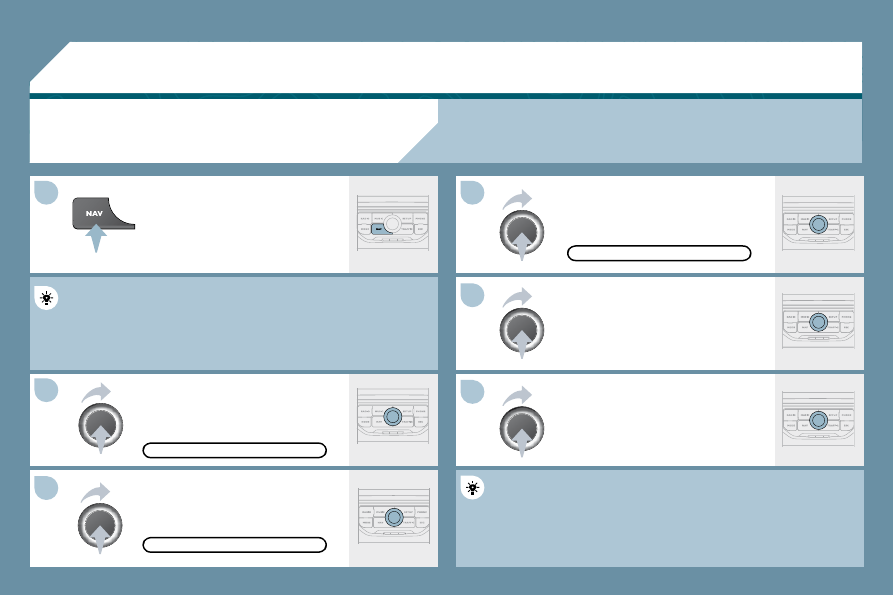

Press the NAV button again or select
the Navigation Menu function and

press the dial to conﬁ rm.

Select the "Destination input" function

and press the dial to conﬁ rm.

Press the NAV button.

Select the letters of the town one by

one conﬁ rming each time by pressing
the dial.

Once the country has been selected,
turn the dial and select the town

function. Press the dial to conﬁ rm.

NAVIGATION MENU

DESTINATION INPUT

Insert the SD card in the front panel reader and leave it there to use the Navigation functions.
The navigation SD card data must not be modiﬁ ed.
Map data updates are available from PEUGEOT dealers.

A pre-set list (by entering the ﬁ rst few letters) of the towns in the

A pre-set list (by entering the ﬁ rst few letters) of the towns in the
country selected can be accessed via the LIST button on

tton on the virtual

keypad.

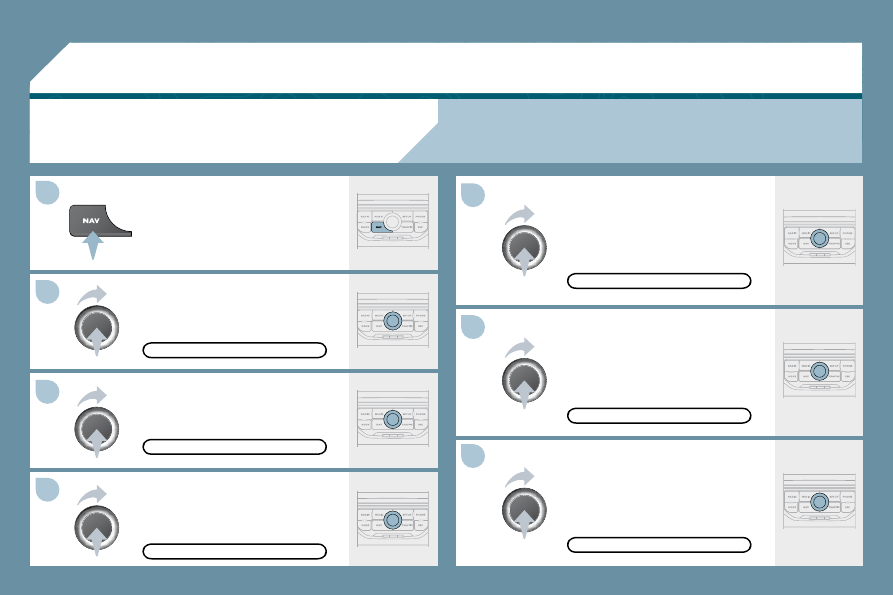

Select the "Address input" function

and press the dial to conﬁ rm.

ADDRESS INPUT

The list of the last 20 destinations appears under the Navigation

The list of the last 20 destinations appears under the Navigation
Menu function.

179

To clear a destination; from steps 1 to 3, select "Choose from last destinations".
A long press on one of the destinations displays a list of actions from which you can select:
Delete entry

Delete list

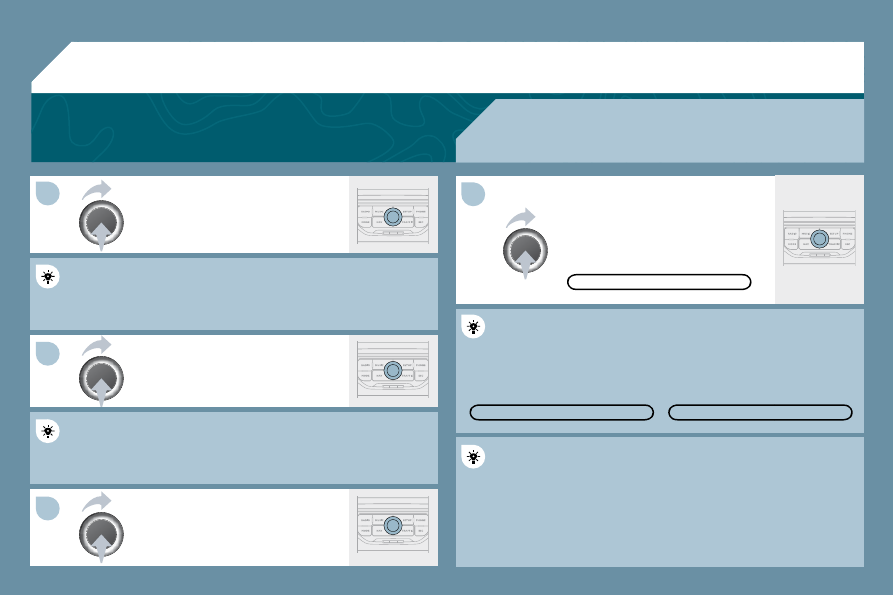

Repeat steps 5 to 7 for the "Street"

and "House number" functions.

Turn the dial and select OK.

Press the dial to conﬁ rm.

Select the "Save to address book" function to record th

ord the address

entered in a directory ﬁ le. Press the dial to conﬁ rm the selection.

Peugeot Connect Navigation allows up to 500 contact ﬁ les to be

Peugeot Connect Navigation allows up to 500 contact ﬁ les to be
recorded.

To speed up the process, the post code can be entered

tered directly after

selecting the "Postal code" function.
Use the virtual keypad to enter the letters and digits.

Then select "Start route guidance"

and the press the dial to conﬁ rm.

During guidance, pressing the end
of the lighting stalk repeats the last
guidance instruction.

You can zoom in/zoom out on the map using the dial.

It is possible to scroll the map or select its orientation via the short-cut

menu of the FULL SCREEN MAP. Press the dial then select "Map

menu of the FULL SCREEN MAP. Press the dial then select "Map
settings".

Select the route type:

"Fast route", "Short route" or "Optimized route" and press the dial to

conﬁ rm.

It is also possible to select a destination via "Choose from address

book" or "Choose from last destinations".

CHOOSE FROM LAST DESTINATIONS

CHOOSE FROM ADDRESS BOOK

START ROUTE GUIDANCE

NAVIGATION - GUIDANCE

180

NAVIGATION - GUIDANCE

ROUTE OPTIONS

Select the "Route dynamics" function.
This function gives access to the

"Trafﬁ c independent" or "Semi-

dynamic" options.

Select the "Avoidance criteria"
function. This function provides
access to the AVOID options

(motorways, toll roads, ferries).

Turn the dial and select the
"Recalculate" function to take into
account the route options selected.

Press the dial to conﬁ rm.

Press the NAV button.

Press the NAV button again or select
the Navigation Menu function and

press the dial to conﬁ rm.

Select the "Route type" function and

press the dial to conﬁ rm. This function
allows you to change the route type.

Select the "Route options" function

and press the dial to conﬁ rm.

RECALCULATE

AVOIDANCE CRITERIA

ROUTE DYNAMICS

ROUTE TYPE

ROUTE OPTIONS

NAVIGATION MENU

The route selected by the Peugeot Connect Navigation audio/telephone depends directly on the route

options.
Changing these options may change the route completely.

Peugeot 207 Dag (2010 year). Manual - part 11
