Peugeot 207 Dag (2010 year). Manual

149

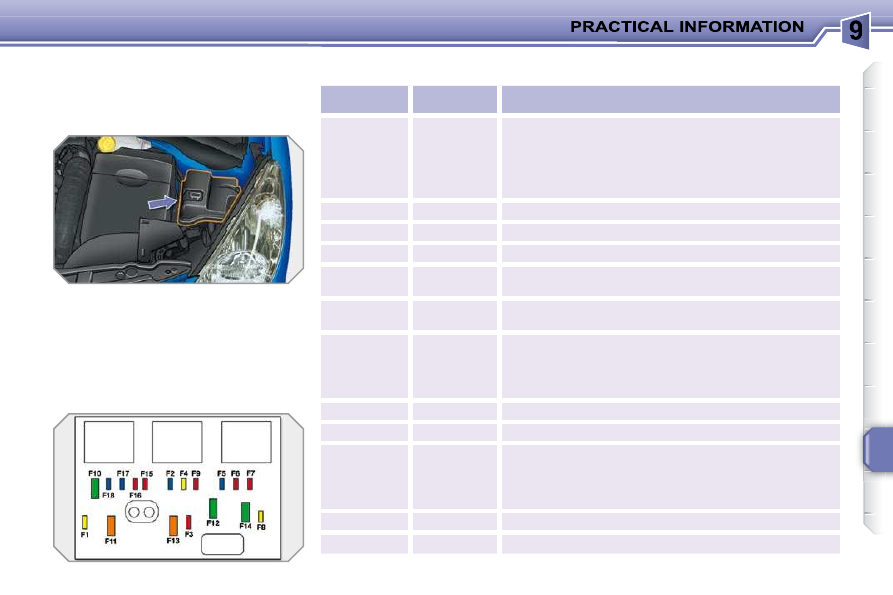

Engine compartment fuses

The fusebox is placed in the engine

compartment, near the battery (left-

hand side).

  Access to the fuses
      Unclip the cover.
     Replace  the  fuse  (refer  to  the  cor-

responding paragraph).



When you have ﬁ nished, carefully

close the cover carefully to ensure

correct sealing of the fusebox.

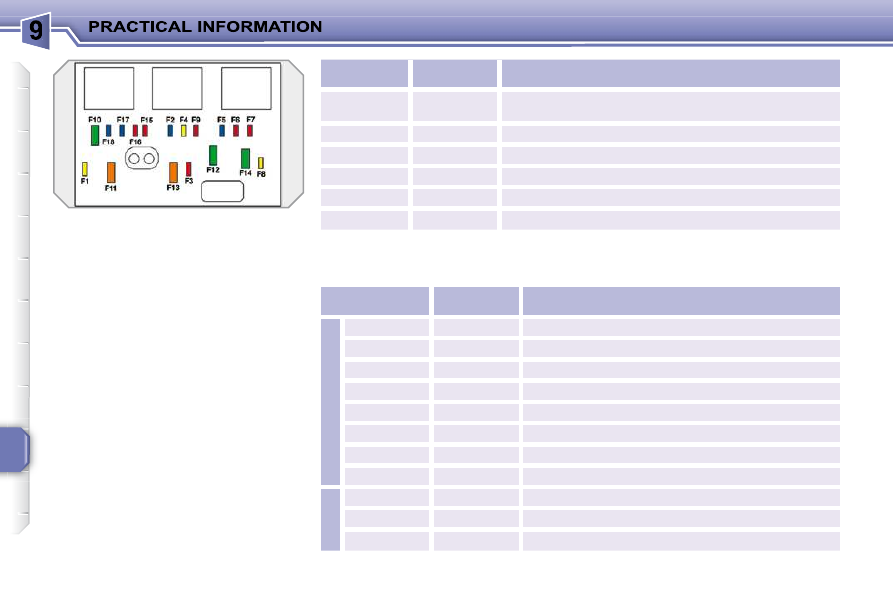

Fuse table

Fuse N°

Rating

Functions

20 A

Engine control unit and fan assembly control relay
supply, timing and canister electrovalves (1.6 l

16V THP), air ﬂ ow sensor (Diesel), injection pump

(Diesel), water in diesel sensor (Diesel), EGR

electrovalves, air heating (Diesel).

15 A

Horn.

10 A

Front and rear screenwash.

20 A

Headlamp wash.

15 A

Fuel pump (petrol), Turbo electrovalves (1.6 l 16V THP).

10 A

Vehicle speed sensor, automatic gearbox.

10 A

Electric power steering, directional headlamps,
directional headlamps control relay, switching and

protection unit (Diesel).

25 A

Starter motor control.

10 A

ABS/ESP control unit, brake pedal switch.

F10

30 A

Engine control unit actuators (petrol: ignition coils,

electrovalves, oxygen sensors, injectors, heaters,

electronic thermostat) (Diesel: electrovalves,

heaters).

F11

40 A

Air conditioning blower.

F12

30 A

Windscreen wipers Low/High speed.

150

Fuse N°

Rating

Functions

F13

40 A

Built-in systems interface supply (ignition positive).

F14

30 A

Diesel heater (Diesel).

F15

10 A

Left main beam headlamp.

F16

10 A

Right main beam headlamp.

F17

15 A

Left dipped beam headlamp.

F18

15 A

Right dipped beam headlamp.

* The maxi-fuses provide additional pro-

tection for the electrical systems. All

work on the maxi-fuses must be car-

ried out by a PEUGEOT dealer.

Maxi-fuse table

Fuse N°

Rating

Functions

MF1 *

70 A

Fan assembly.

MF2 *

20 A/30 A

ABS/ESP pump.

MF3 *

20 A/30 A

ABS/ESP electrovalves.

MF4 *

60 A

Built-in systems interface supply.

MF5 *

60 A

Built-in systems interface supply.

MF6 *

30 A

Additional fan assembly (1.6 l 16V THP).

MF7 *

80 A

Dashboard fusebox.

MF8 *

30 A

"2 Tronic" gearbox control unit.

MF9 *

80 A

Heating unit (Diesel).

MF10 *

80 A

Electric power steering.

MF11 *

40 A

Valvetronic electric motor (1.6 l 16V THP).

151

BATTERY

Procedure for charging your battery

when it is ﬂ at or for starting the engine

using another battery.

Access to the battery

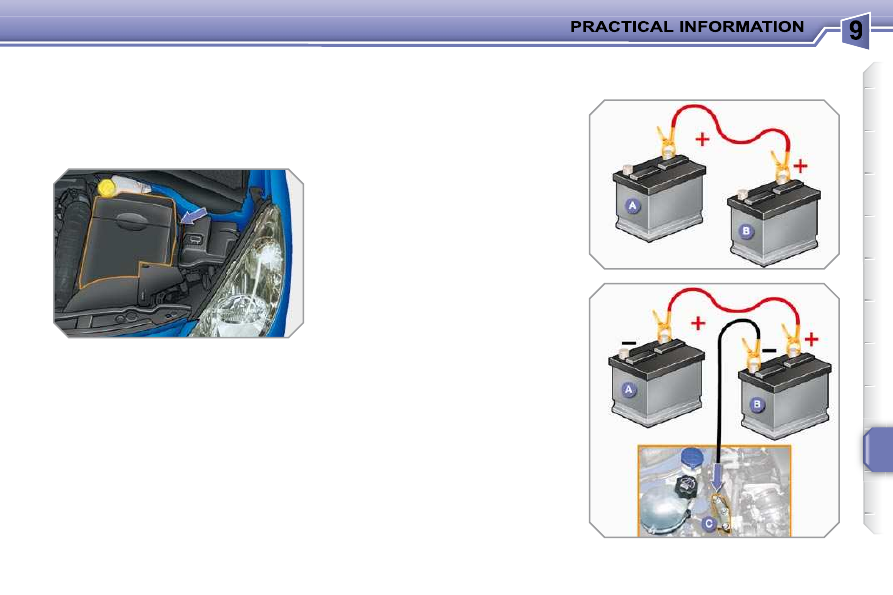

Starting using another battery

 Connect the red cable to the posi-

tive terminal (+) of the ﬂ at battery A ,

then to the positive terminal (+) of

the slave battery B .

 Connect one end of the green or

black cable to the negative terminal

(-) of the slave battery B .

 Connect the other end of the green

or black cable to an earth point C on
the broken down vehicle, as far as

possible from the battery (for exam-

ple, right-hand engine mounting).

 Operate the starter, let the engine run.
 Wait until the engine returns to idle

and disconnect the cables.

The battery is located under the bonnet
on the left.
To gain access to it:
 open the bonnet using the interior

lever, then the exterior lever,

 secure the bonnet strut,
 remove the plastic cover to gain ac-

cess to the two terminals.

152

Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without

disconnecting the terminals ﬁ rst.
Do not push the vehicle to start the

engine if it is ﬁ tted with a "2 Tronic"

gearbox.

The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They  must  be  disposed  of  in
accordance  with  regulations  and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and  vehicle  batteries  to  a  special
collection point.

Charging the battery using a
battery charger

 Disconnect the battery from the

vehicle.

 Follow the instructions for use pro-

vided by the manufacturer of the
charger.

 Reconnect starting with the nega-

tive terminal (-).

 Check that the terminals and connec-

tors are clean. If they are covered with

sulphate (whitish or greenish deposit),

remove them and clean them.

It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month.

  Before disconnecting the
battery
Wait  2  minutes  after  switching  off
the  ignition  before  disconnecting
the battery.
Close  the  windows  and  the  doors
before disconnecting the battery.

Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit ini-
tialisation of the electronic systems.

However, if slight difﬁ culties are en-

countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding section,

you must yourself reinitialise:
-

the remote control key,

the one-touch electric windows,

the GPS satellite navigation
system.

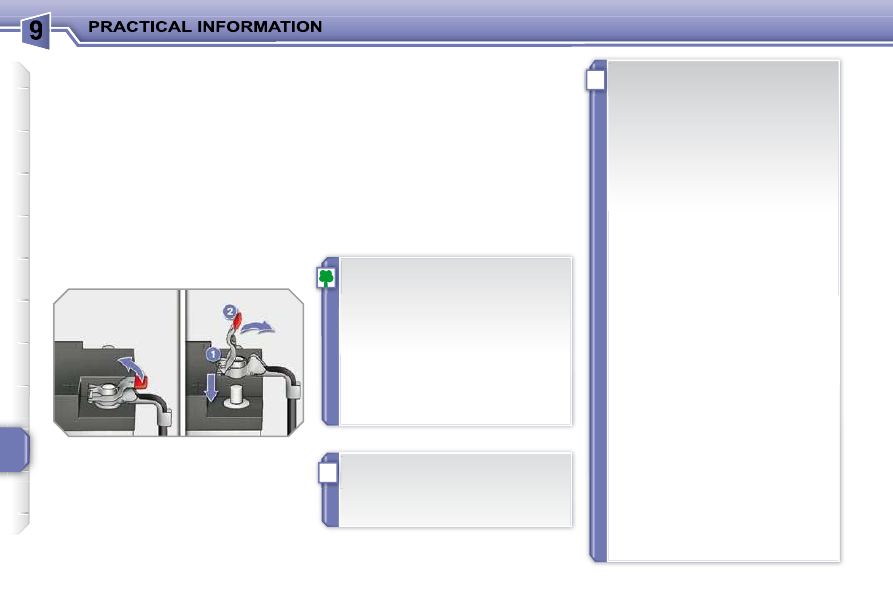

Disconnecting the cables

Reconnecting the cables

 Position the open clip 1 of the cable

on the positive terminal (+) of the

battery.

 Press vertically on the clip 1 to posi-

tion it correctly against the battery.

     Lock the clip by lowering the tab  2 .
Do not force the tab as locking will not
be  possible  if  the  clip  is  not  positioned
correctly; start the procedure again.

 Raise the locking tab fully.

153

LOAD REDUCTION MODE

System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air condition-
ing, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.

A ﬂ at battery prevents the engine

from starting (refer to the corre-

sponding paragraph).

If  the  telephone  is  being  used  at
this  time,  it  will  be  maintained  for
5  minutes  with  your  PEUGEOT
Connect Sound's Bluetooth system.

System which manages the duration of
use of certain functions to conserve a

sufﬁ cient level of charge in the battery.
After  the  engine  has  stopped,  you  can
still  use  functions  such  as  the  audio
equipment, windscreen  wipers,  dipped
beam  headlamps, courtesy  lamps,  etc.

for a maximum combined duration of

thirty minutes.

Exiting economy mode

These functions are reactivated auto-

matically next time the vehicle is driven.
 In order to resume the use of these

functions immediately, start the en-
gine and let it run for a few minutes.

The time available to you will then be
double the duration for which the engine
is left running. However, this period will al-

ways be between ﬁ ve and thirty minutes.

Switching to economy mode

Once  the  thirty  minutes  are  over,  a
message  appears  on  the  multifunction
screen  indicating  that  the  vehicle  has
switched to economy mode and the ac-
tive functions are put on standby.

CHANGING A WIPER BLADE

Procedure for replacing a worn wiper
blade with a new one without the use
of tools.

Removing a front or rear wiper
blade

 Raise the corresponding wiper arm.
 Unclip the wiper blade and remove it.

Fitting a front or rear wiper
blade

 At the front, check the size of the

wiper blade as the shorter blade is

ﬁ tted on the right-hand side of the

vehicle.

 Put the corresponding new wiper

blade in place and clip it.

 Fold down the wiper arm carefully.

154

TOWING THE VEHICLE

Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.

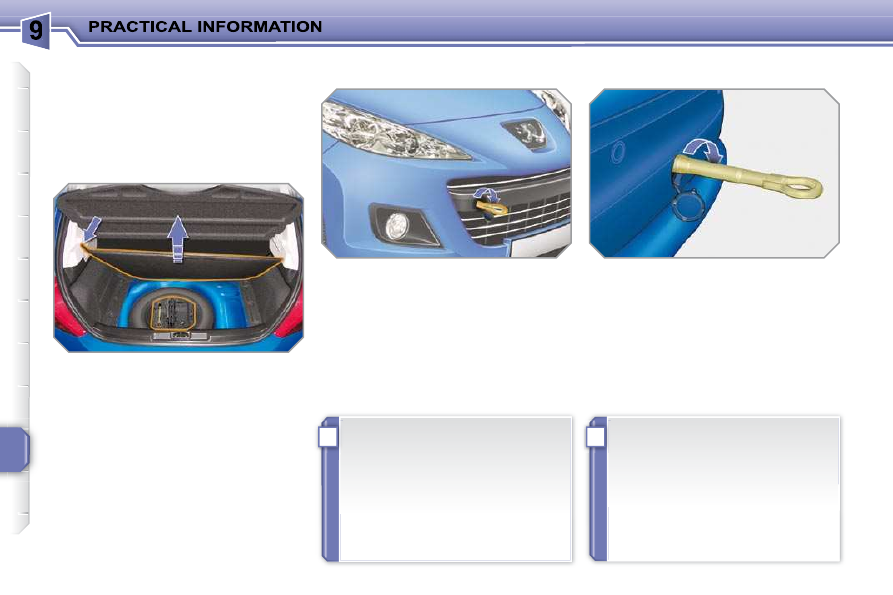

Access to the tools

Towing your vehicle

 On the front bumper, pull on the cov-

er to unclip it.

     Screw the towing eye in fully.
     Install the towing bar.
     Switch on the hazard warning lamps

on the towed vehicle.

 On the rear bumper, unclip the cover

by pressing at the bottom.

     Screw the towing eye in fully.
     Install the towing bar.
     Switch on the hazard warning lamps

on the towed vehicle.

Towing another vehicle

The towing eye is stowed in the boot

under the ﬂ oor.

To gain access to it:
 open the boot,


raise the ﬂ oor,

 secure it by hooking its cord on the

hook on the rear parcel shelf support,

 remove the towing eye from the

holder.

When  towing  with  all  four  wheels
on  the  ground,  always  use  a  tow-
ing bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When  towing  with  the  engine  off,
there  is  no  longer  any  braking  or
steering assistance.

 Place the gear lever in neutral

(position N on the 2 Tronic or

automatic gearbox).

Failure to comply with this special
requirement may result in damage
to certain braking components and
the absence of braking assistance

the next time the engine is started.

155

* The bicycle carrier cannot be attached

to your vehicle's tailgate.

TOWBAR 207 99G

Towbar suitable only for the attachment
of a bicycle carrier. *

TOWING A TRAILER,
A CARAVAN, ETC.

Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer.

Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.

We  recommend  the  use  of  genuine
PEUGEOT  towbars  and  their  har-
nesses  that  have  been  tested  and
approved  from  the  design  stage  of

your vehicle, and that the ﬁ tting of the

towbar is entrusted to a PEUGEOT
dealer.
If the trailer is not ﬁ tted by a PEUGEOT

dealer, it is imperative that it is ﬁ tted

using the electrical pre-equipment
installed at the rear of the vehicle, in
accordance with the manufacturer's
instructions.

The  rear  parking  sensors  will  be
deactivated automatically if a gen-
uine PEUGEOT towbar is used.
We  recommend  that  you  do  not
drive  up  onto  high  kerbs  (risk  of

damaging your vehicle).

Driving advice

Distribution of loads

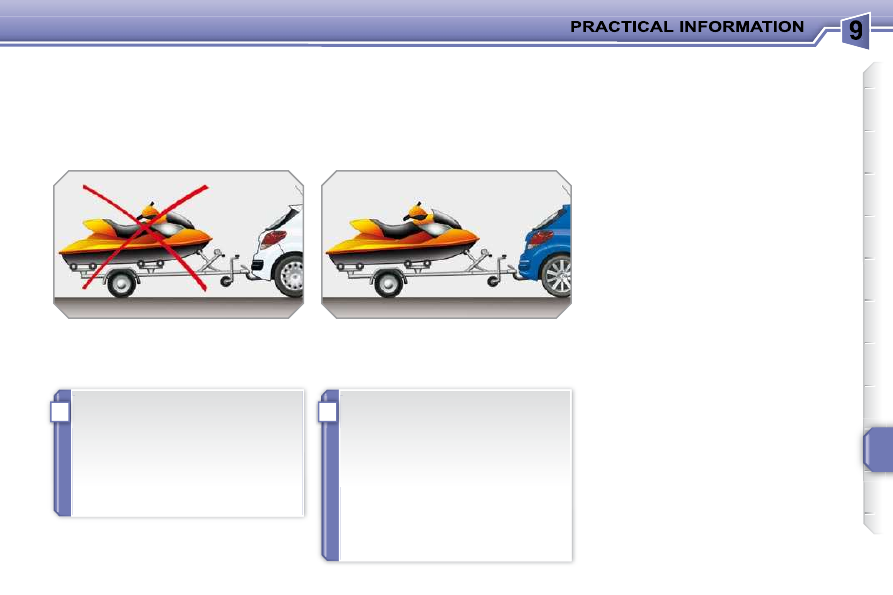

 Distribute the load in the trailer so

that the heaviest items are as close

as possible to the axle and the nose

weight approaches the maximum

permitted without exceeding it.

Air density decreases with altitude, thus
reducing engine performance. Above

1 000 metres, the maximum towing load

must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.

Side wind
 Take into account the increased

sensitivity to side wind.

  Cooling
Towing  a  trailer  on  a  slope  increases
the temperature of the coolant.
As  the  fan  is  electrically  controlled,  its
cooling  capacity  is  not  dependent  on
the engine speed.
      To  lower  the  engine  speed,  reduce

your speed.

Driving with a trailer subjects the towing

vehicle to more signiﬁ cant stress and its

driver must be particularly careful.

156

The maximum towing load on a long

slope depends on the gradient and the
ambient temperature.
In all cases, pay attention to the coolant
temperature.

  Braking
Towing  a  trailer  increases  the  braking
distance.

Tyres
 Check the tyre pressures of the

towing  vehicle  and  of  the  trailer,
observing  the  recommended  pres-
sures.

Lighting
 Check the electrical lighting and

signalling on the trailer.

The rear parking sensors will be
deactivated automatically if a gen-
uine PEUGEOT towbar is used.

 If the warning lamp and the

STOP   warning  lamp  come
on,  stop  the  vehicle  and
switch  off  the  engine  as
soon as possible.

157

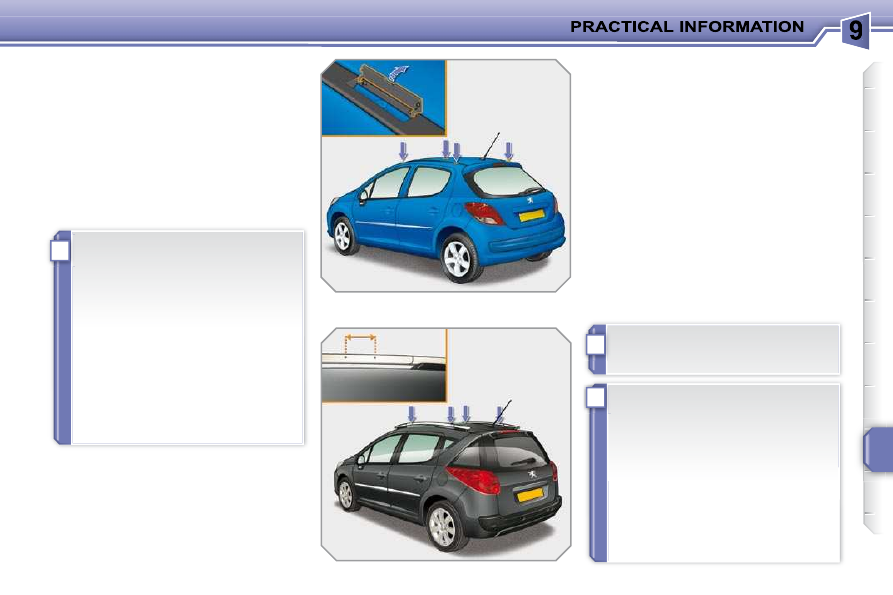

FITTING ROOF BARS (SALOON)

When ﬁ tting transverse roof bars, use

the four quick-ﬁ t ﬁ xings provided for this

purpose:


lift the concealing ﬂ aps,



adjust the roof bar quick-ﬁ t ﬁ xings.

Maximum authorised weight on the

roof rack, for a loading height not

exceeding 40 cm (with the excep-

tion of bicycle carriers): 65 kg.

If the height exceeds 40 cm, adapt

the speed of the vehicle to the pro-

ﬁ le of the road to avoid damaging

the roof bars and the ﬁ xings on the

roof.
Be sure to refer to national legis-
lation in order to comply with the
regulations for transporting objects
which are longer than the vehicle.

FITTING ROOF BARS (SW)

Consult a PEUGEOT dealer for the in-
stallation of longitudinal roof bars.
When ﬁ tting transverse roof bars, en-

sure  that  they  are  positioned  correctly
as shown  by marks  on  the  longitudinal
roof bars.
Use  accessories  recommended  by
PEUGEOT  and  follow  the  accessory

manufacturer's ﬁ tting instructions.
In order to place a load on the roof, your

vehicle must be ﬁ tted with longitudinal

roof bars with transverse roof bars ﬁ tted

on top of these.
The longitudinal roof bars cannot be re-
moved.

Maximum authorised weight on the

roof bars, for a loading height not

exceeding 40 cm (except bicycle

carriers): 75 kg.

If the height exceeds 40 cm, adapt

the speed of the vehicle to the con-
dition of the road, to avoid damag-

ing the roof bars and the ﬁ xings on

the roof.
Please refer to national legislation
to comply with the regulations re-
garding the transportation of objects
which are longer than the vehicle.

Lashing the straps through the
ends of the longitudinal roof bars is
prohibited.

158

The ﬁ tting of electrical equipment

or  accessories  which  are  not  re-
commended  by  PEUGEOT  may
result  in  a  failure  of  your  vehicle's
electronic system.
Please  note  this  speciﬁ c  warning.

You are advised to contact a repre-
sentative of the Marque to be shown
the range of recommended equip-
ment and accessories.

ACCESSORIES

You can obtain a wide range of accesso-
ries and original parts from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and

beneﬁ t from PEUGEOT's recommenda-

tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 catego-

ries: PROTECTION - TOURING - IN-CAR

TECHNOLOGY - STYLING - UNIVERSAL.

"Protection":

"Touring":

"In-car technology":

"Styling":

"Universal":

You can obtain "Van" conversion kits to
transform a private vehicle into a van.

To avoid any risk of jamming of the

pedals:

- ensure that the mat is positioned

and secured correctly,

- never ﬁ t one mat on top of another.

Depending on the country in which
the  vehicle  is  sold,  it  is  compulso-
ry  to  have  a  high  visibility  jacket,
warning  triangle  and  spare  bulbs
available in the vehicle.

anti-theft alarm, window en-
graving, wheel security bolts,

breathalyzer, ﬁ rst aid kit,

warning triangle, high visibility
jacket,  stolen  vehicle  tracking
system,  temporary  puncture
repair  kit,  snow  chains,  non-
slip covers.

mats * , boot tray, luggage net,

ﬁ xed coat hook on head re-

straint, lighter, aluminium or
PVC door sills.
For leisure pursuits: roof bars,

bicycle carrier on towbar, bi-
cycle carrier on roof bars,

ski carrier, roof box, booster

seats  and  child  seats,  side  blinds  and
rear  blind,  front  centre  armrest,  under
shelf storage.
Trailer  towbar  which  must  be  ﬁ tted  by

the PEUGEOT network.

audio

systems,

satellite

navigation

systems,

Blue-

tooth

hands-free

system,

CD changer, speakers, DVD
player, connection kit for MP3
player or portable CD player,

USB Box, front and rear park-

ing sensors.

seat covers compatible with
lateral airbags, aluminium gear
lever knob, foglamps, door de-

ﬂ ectors, spoiler, styling strips,

alloy wheels, trims, chromed
mirror shells, body kit.

screenwash, interior and exte-

rior maintenance and cleaning
products.

159

* Not available on SW and SW Outdoor.

MODELS:

ENGINES AND GEARBOXES

PETROL ENGINES

1.4 litre 75 hp

1.4 litre 16V 90 hp *

1.4 litre VTi 16V 95 hp

Cubic capacity (cc)

1 360

1 397

Bore x stroke (mm)

75 x 77

Maximum power: EU standard (kW)

Maximum power engine speed (rpm)

5 400

5 250

6 000

Maximum torque: EU standard (Nm)

118

133

136

Maximum torque engine speed (rpm)

3 300

3 250

4 000

Fuel

Unleaded

Catalytic converter

Yes

GEARBOXES

Manual

(5-speed)

2 Tronic

(5-speed)

Manual

(5-speed)

OIL CAPACITIES (in litres)

Engine (with ﬁ lter replacement)

3.25

4.25

Gearbox - Final drive

1.9

160

TECHNICAL DATA

MODELS:

ENGINES AND GEARBOXES

PETROL ENGINES

1.6 litre VTi 16V 120 hp

1.6 litre THP 16V 150 hp *

Cubic capacity (cc)

1 598

Bore x stroke (mm)

77 x 85.8

Maximum power: EU standard (kW)

115

Maximum power engine speed (rpm)

6 000

5 800

Maximum torque: EU standard (Nm)

160

240

Maximum torque engine speed (rpm)

4 250

1 400

Fuel

Unleaded

Catalytic converter

Yes

GEARBOXES

Manual

(5-speed)

Auto

(4-speed)

Manual

(6-speed)

OIL CAPACITIES (in litres)

Engine (with ﬁ lter replacement)

4.25

Gearbox - Final drive

1.9

* Not available on SW and SW Outdoor.
PEUGEOT recommends the use of RON 98 unleaded petrol for optimum engine performance.

167

MODELS:

ENGINES AND GEARBOXES

DIESEL ENGINES

1.4 litre Turbo HDI

70 hp *

1.6 litre Turbo HDI

90 hp

1.6 litre Turbo HDI

90 hp 99g *

1.6 litre Turbo HDI

110 hp

Cubic capacity (cc)

1 398

1 560

Bore x stroke (mm)

73.7 x 82

75 x 88.3

Maximum power: EU standard (kW)

Maximum power engine speed (rpm)

4 000

Maximum torque: EU standard (Nm)

160

215

230

215

270

Maximum torque engine speed (rpm)

2 000

1 750

Fuel

Diesel

Catalytic converter

Yes

Particle emission ﬁ lter

Yes

GEARBOXES

Manual

(5-speed)

Manual

(5-speed)

Manual

(5-speed)

Manual

(6-speed)

OIL CAPACITIES (in litres)

Engine (with ﬁ lter replacement)

3.75

3.25

Gearbox - Final drive

1.9

* Not available on SW and SW Outdoor.

161

The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.

SALOON WEIGHTS AND TOWED LOADS (in kg)

Petrol engines

1.4 litre 75 hp

1.4 litre 16V 90 hp

Gearboxes

Manual

"2 Tronic"

Kerb weight

1 300 - 1 288 - 1 232

1 241 - 1 231

Payload

320 - 292 - 338

409 - 399

Gross vehicle weight (GVW)

1 620 - 1 580 - 1 570

1 650 - 1 630

Gross train weight (GTW)

on a 12 % gradient

2 400

2 580

Braked trailer (within GTW limit)

on a 10 % or 12 % gradient

780 - 820 - 830

930 - 950

on an 8 % gradient

830 - 870

950 - 970

Braked trailer *** (with load transfer within
GTW limit)

950

1 150

Unbraked trailer

600 - 600 - 590

600

Recommended nose weight

38 - 38 - 46

*** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

162

TECHNICAL DATA

SALOON WEIGHTS AND TOWED LOADS (in kg)

Petrol engines

1.4 litre VTi 16V 95 hp

Gearboxes

Manual

Kerb weight

1 253 - 1 240

Payload

387 - 400

Gross vehicle weight (GVW)

1 640

Gross train weight (GTW)

on a 12 % gradient

2 580

Braked trailer (within GTW limit)

on a 10 % or 12 % gradient

940

on an 8 % gradient

Braked trailer *** (with load transfer within
GTW limit)

1 150

Unbraked trailer

600

Recommended nose weight

*** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

163

SALOON WEIGHTS AND TOWED LOADS (in kg)

Petrol engines

1.6 litre VTi 16V 120 hp

1.6 litre THP 16V

150 hp

Gearboxes

Manual

Auto.

Manual

Kerb weight

1 275

1 321 - 1 312

1 370 - 1 356

Payload

375 - 365

374 - 366

340 - 344

Gross vehicle weight (GVW)

1 650 - 1 640

1 695 - 1 678

1 710 - 1 700

Gross train weight (GTW)

on a 12 % gradient

2 600

2 645 - 2 638

2 640

Braked trailer (within GTW limit)

on a 10 % or 12 % gradient

950 - 960

930

on an 8 % gradient

1 000 - 1 010

1 000

Braked trailer *** (with load transfer within
GTW limit)

1 150

Unbraked trailer

600

Recommended nose weight

*** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced

by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

Peugeot 207 Dag (2010 year). Manual - part 10
