Nissan Qashqai (2007-2010). Manual - part 906





HA-194

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (K9K)]

LOW-PRESSURE FLEXIBLE HOSE AND PIPE 2

LOW-PRESSURE FLEXIBLE HOSE AND PIPE 2

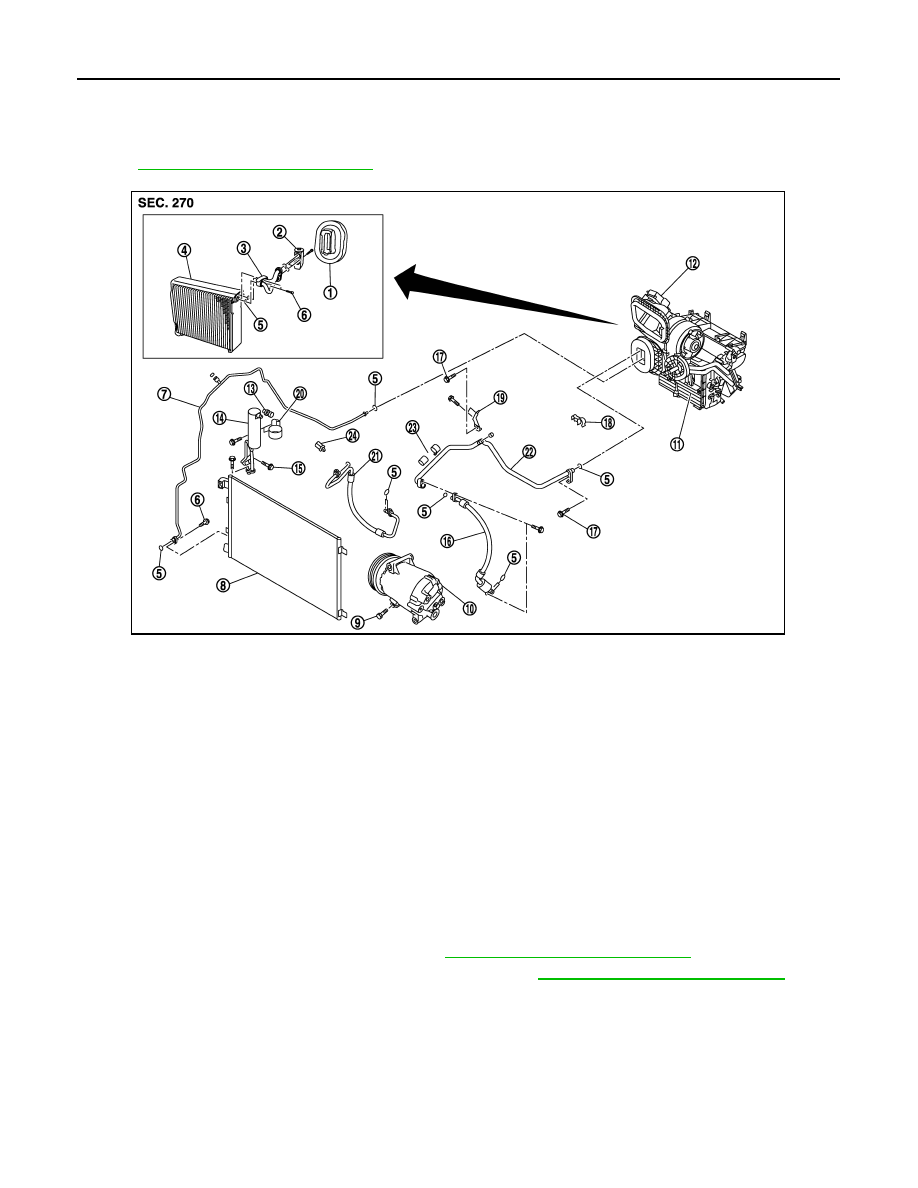

Exploded View

INFOID:0000000001098292

Refer to

HA-171, "Refrigerant Connection"

.

Removal and Installation

INFOID:0000000001098293

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove upper engine cover ornament. Refer to

EM-266, "Removal and Installation"

.

3.

Remove air intake hose (RH side), and air duct (LH). Refer to

EM-265, "Removal and Installation"

.

1.

Heater sealing

2.

Expansion valve

3.

Low pressure pipe 1 and high pres-
sure pipe 2 assembly

4.

Evaporator

5.

O-ring

6.

Connector pipe fixing bolt

7.

High pressure pipe 1

8.

Condenser assembly

9.

Fixing bolt

10. Compressor

11.

Heater & cooling unit assembly

12. Heater & blower unit assembly

13. Refrigerant pressure sensor

14. Liquid tank

15. Liquid tank fixing screw

16. Low pressure flexible hose

17. Fixing bolt

18. Pipes fixing clip

19. Low & high pressure pipe bracket

20. Liquid tank fixing bracket

21. High pressure flexible hose

22. Low pressure pipe 2

23. Low pressure pipe fixing clamp as-

sembly

24. Pipe mantening clip

E1KIA0063GB

LOW-PRESSURE FLEXIBLE HOSE AND PIPE 2

HA-195

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (K9K)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

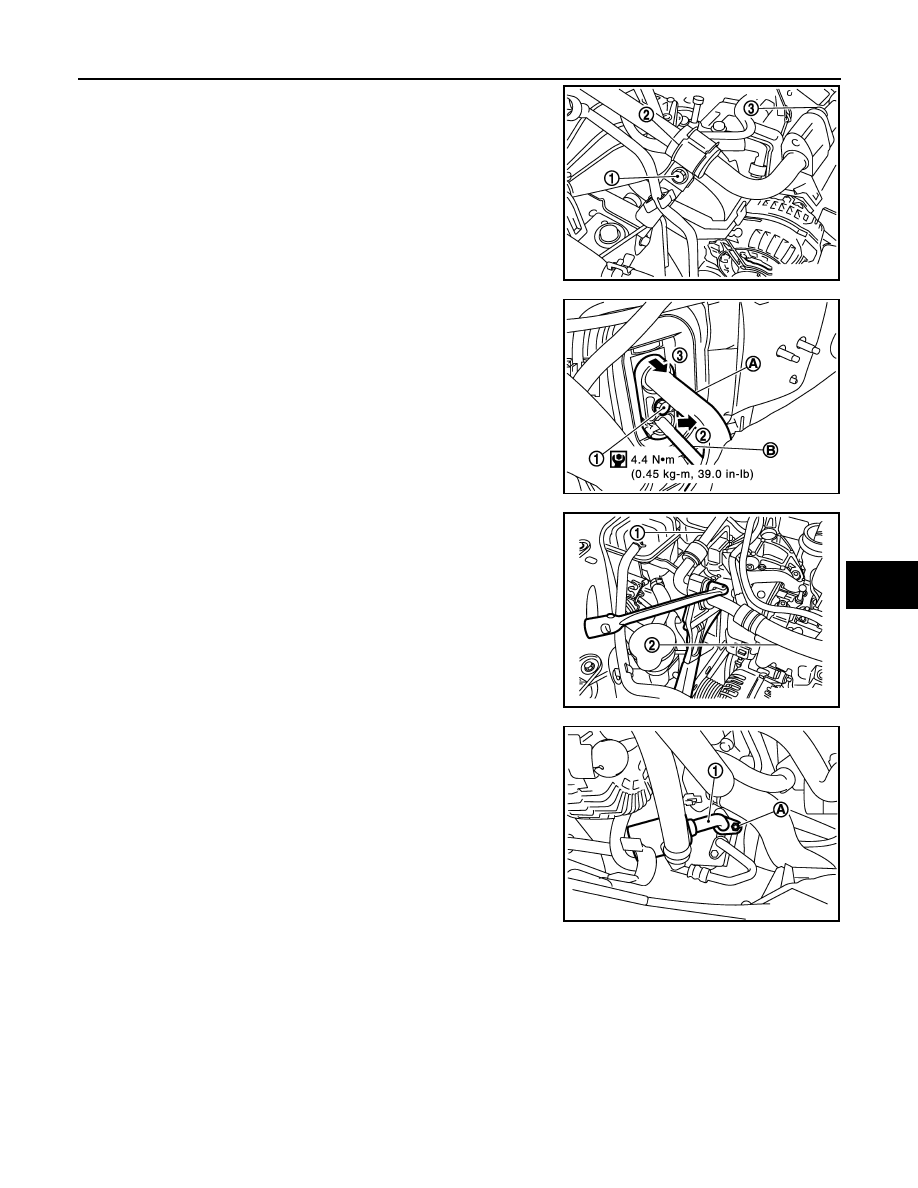

4.

Remove mounting bolt (1) and clamp (2), from low pressure pipe
bracket support.

5.

Remove low and high-pressure maintaining clip, from both
pipes, then remove fixing bolt (3) from low-pressure flexible
hose and low-pressure pipe 2.

6.

Remove engine room insulator fixing clip from cowl top.

7.

Pull engine room insulator, then remove pipes bracket fixing bolt
(1), from expansion valve, and release pipes fixing bracket, as
shown in order (1) to (3), from high pressure pipe 1 (B), to
remove low pressure flexible hose and pipe 2 (A) from expan-
sion valve.

CAUTION:

Cap or wrap the joint of the low pressure then remove fixing
bolt (3) pipe 2, and expansion valve exit with suitable mate-
rial such as vinyl tape to avoid the entry of air.

8.

Remove low pressure pipe 2 connector fixing nut, with suitable
tools, then remove low pressure pipe 2 (1) from low pressure
flexible hose (2).

CAUTION:

Cap or wrap the joint of the low pressure pipe 2 connector,
and low pressure flexible hose, with suitable material such
as vinyl tape to avoid the entry of air.

9.

Remove low pressure flexible hose fixing bolt (A), from air condi-
tioner compressor, and remove low pressure flexible hose (1).

CAUTION:

Cap or wrap the joint of low-pressure flexible hose with
suitable material such as vinyl tape to avoid the entry of air.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of low-pressure flexible hose and low-pressure pipe 2 with new ones, and then

apply compressor oil to it when installing it.

• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• When recharging refrigerant, check for leaks.

E1KIA0040ZZ

E1IIA0011GB

E1KIA0041GB

Pipe bracket fixing bolt to expansion valve

: 4.4 N·m (0.45 kg-m, 39 in-lb)

Low pressure flexible pipe fixing bolt to compressor

: 8.0 N·m (0.8 kg-m, 71 in-lb)

JMIIA0001ZZ

HA-196

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (K9K)]

HIGH-PRESSURE FLEXIBLE HOSE

HIGH-PRESSURE FLEXIBLE HOSE

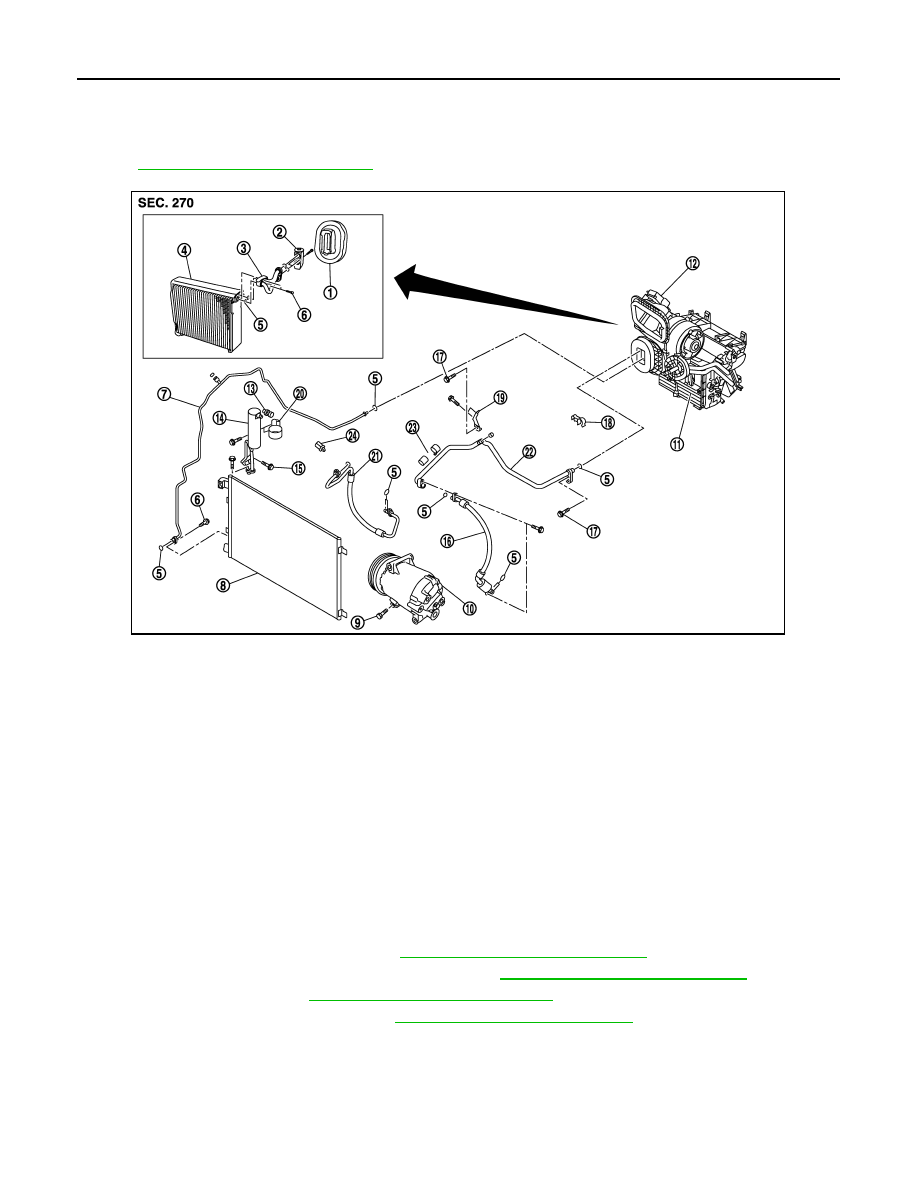

Exploded View

INFOID:0000000001098294

Refer to

HA-171, "Refrigerant Connection"

.

Removal and Installation

INFOID:0000000001098295

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove engine cover ornament. Refer to

EM-266, "Removal and Installation"

.

3.

Remove air intake hose (RH) and air duct (LH). Refer to

EM-265, "Removal and Installation"

.

4.

Remove front grille. Refer to

EXT-17, "Removal and Installation"

.

5.

Remove radiator air guide (RH). Refer to

CO-56, "Removal and Installation"

.

1.

Heater sealing

2.

Expansion valve

3.

Low pressure pipe 1 and high pres-
sure pipe 2 assembly

4.

Evaporator

5.

O-ring

6.

Connector pipe fixing bolt

7.

High pressure pipe 1

8.

Condenser assembly

9.

Fixing bolt

10. Compressor

11.

Heater & cooling unit assembly

12. Heater & blower unit assembly

13. Refrigerant pressure sensor

14. Liquid tank

15. Liquid tank fixing screw

16. Low pressure flexible hose

17. Fixing bolt

18. Pipes fixing clip

19. Low & high pressure pipe bracket

20. Liquid tank fixing bracket

21. High pressure flexible hose

22. Low pressure pipe 2

23. Low pressure pipe fixing clamp as-

sembly

24. Pipe mantening clip

E1KIA0063GB

HIGH-PRESSURE FLEXIBLE HOSE

HA-197

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (K9K)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

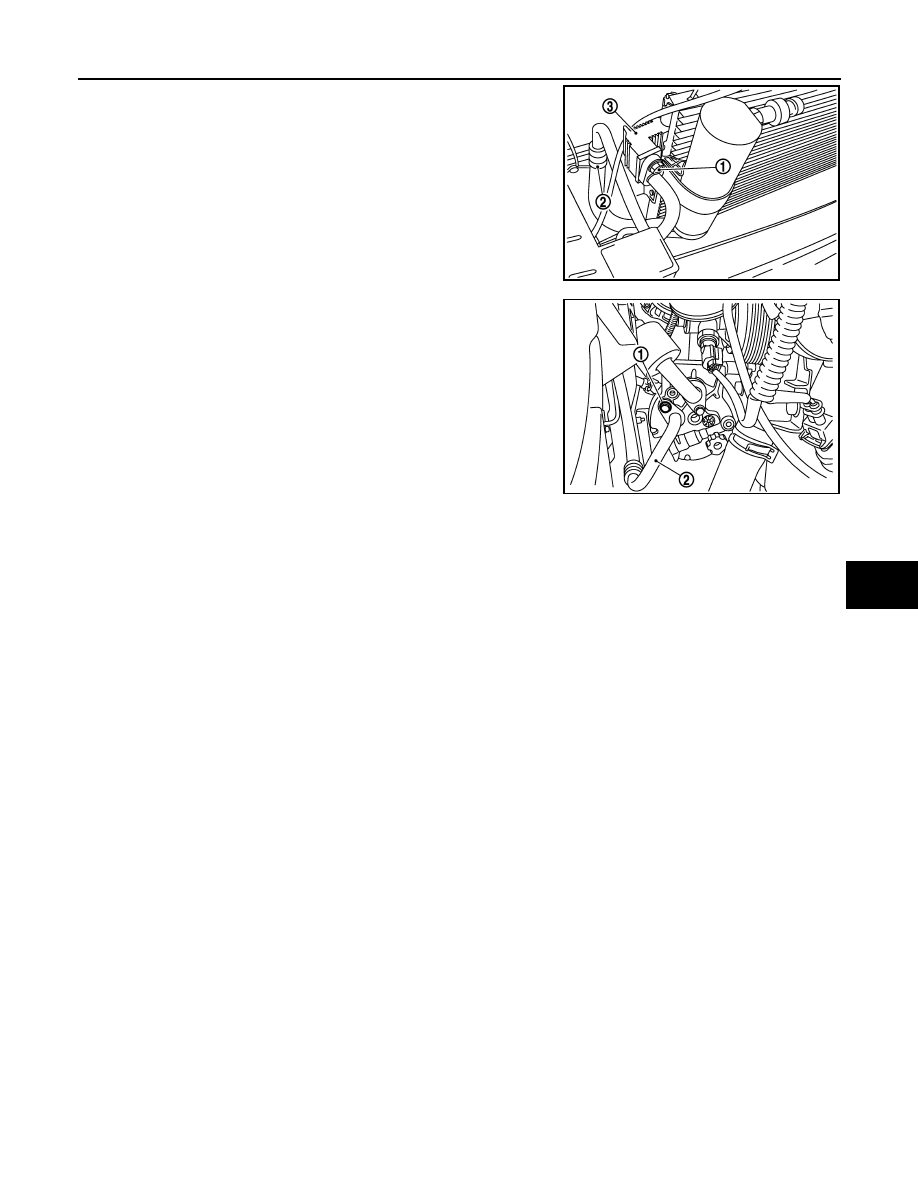

6.

Remove high pressure flexible hose fixing bolt (1) from con-
denser (3), then pull high pressure flexible hose (2) to remove it
from condenser.

CAUTION:

Cap or wrap the joint of high-pressure flexible hose and
condenser assembly with suitable material such as vinyl
tape to avoid the entry of air.

7.

Remove high pressure flexible hose fixing bolt (1) from com-
pressor, then pull high pressure flexible hose (2) to remove it
from compressor.Remove high pressure flexible hose.

CAUTION:

Cap or wrap the joint of compressor and high-pressure flex-
ible hose with suitable material such as vinyl tape to avoid
the entry of air.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of high-pressure flexible hose with new ones, and then apply compressor oil to it

when installing it.

• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• When recharging refrigerant, check for leaks.

E1KIA0043GB

High pressure fixing bolt to condensor

: 4.4 N·m (0.45 kg-m, 39 in-lb)

High pressure fixing bolt to compressor

: 8 N·m (0.8 kg-m, 71 in-lb)

E1KIA0044GB
