HA-190

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (K9K)]

REFRIGERATION SYSTEM

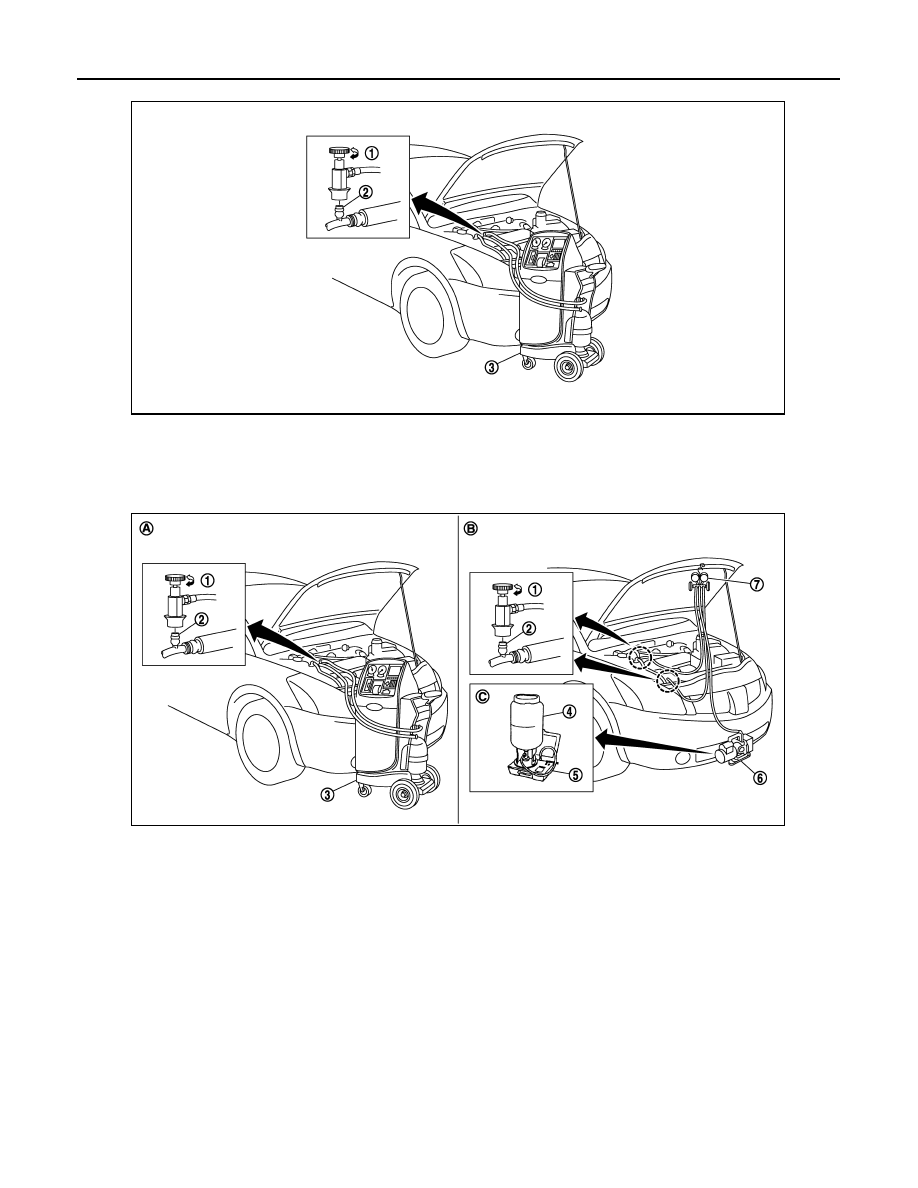

Evacuating System and Charging Refrigerant

1.

Shut-off valve

2.

A/C service valve

3.

Recovery/Recycling/Recharging
equipment

JSIIA0238ZZ

1.

Shut-off valve

2.

A/C service valve

3.

Recovery/Recycling/Recharging
equipment

4.

Refrigerant container (HFC-134a)

5.

Weight scale (J-39650)

6.

Vacuum pump (J-39649)

7.

Manifold gauge set (J-39183)

A.

Preferred (best) method

B.

Alternative method

C.

For charging

JSIIA0239ZZ

REFRIGERATION SYSTEM

HA-191

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (K9K)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

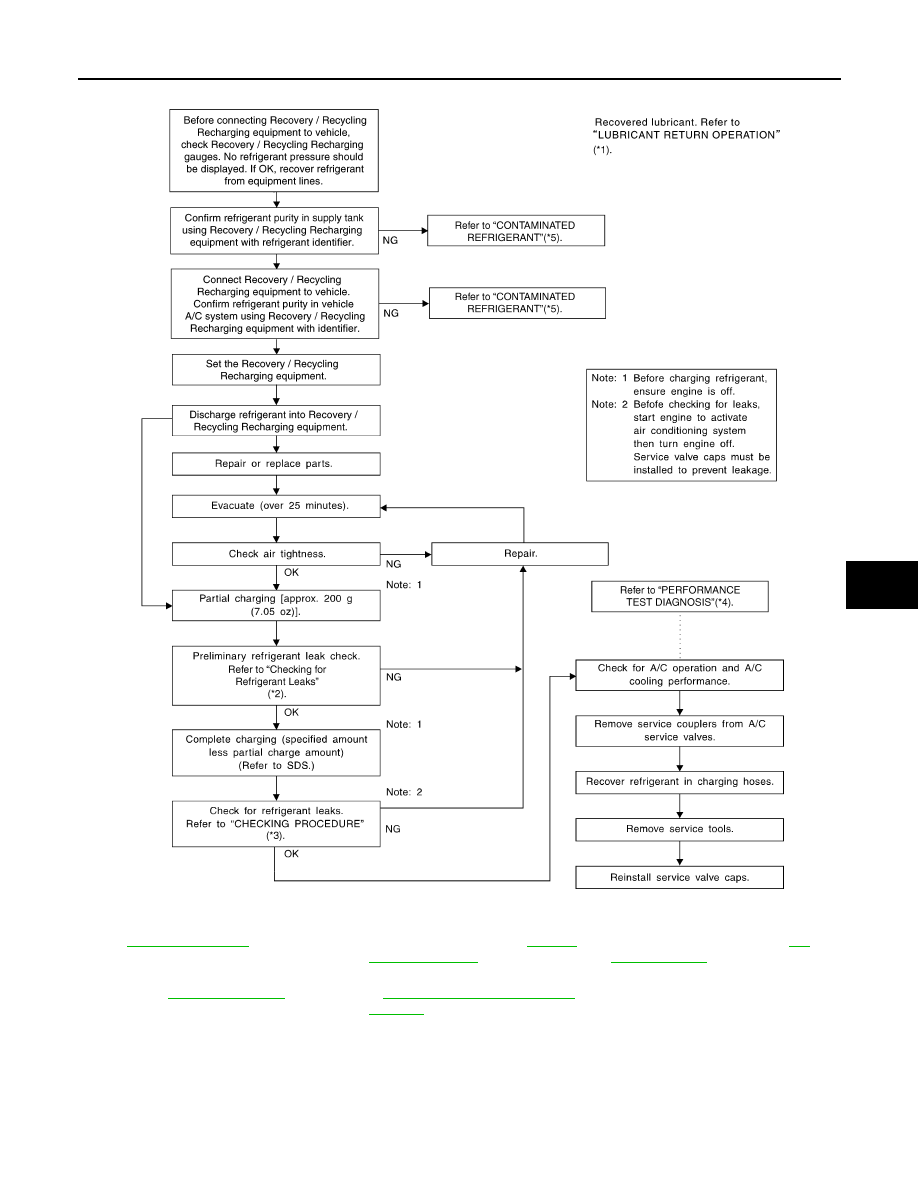

*1

HA-180, "Adjustment"

*2

“REFRIGERANT LEAKS” in

HA-183,

"Refrigerant Leaks"

.

*3

“CHECKING PROCEDURE” in

HA-

182, "Inspection"

.

*4

“PERFORMANCE TEST DIAGNO-
SIS” in

HA-182, "Inspection"

.

*5

“CONTAMINATED REFRIGERANT”
in

HA-170, "Working with HFC-134a

(R-134a)"

.

SJIA1275E

HA-192

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (K9K)]

COMPRESSOR

COMPRESSOR

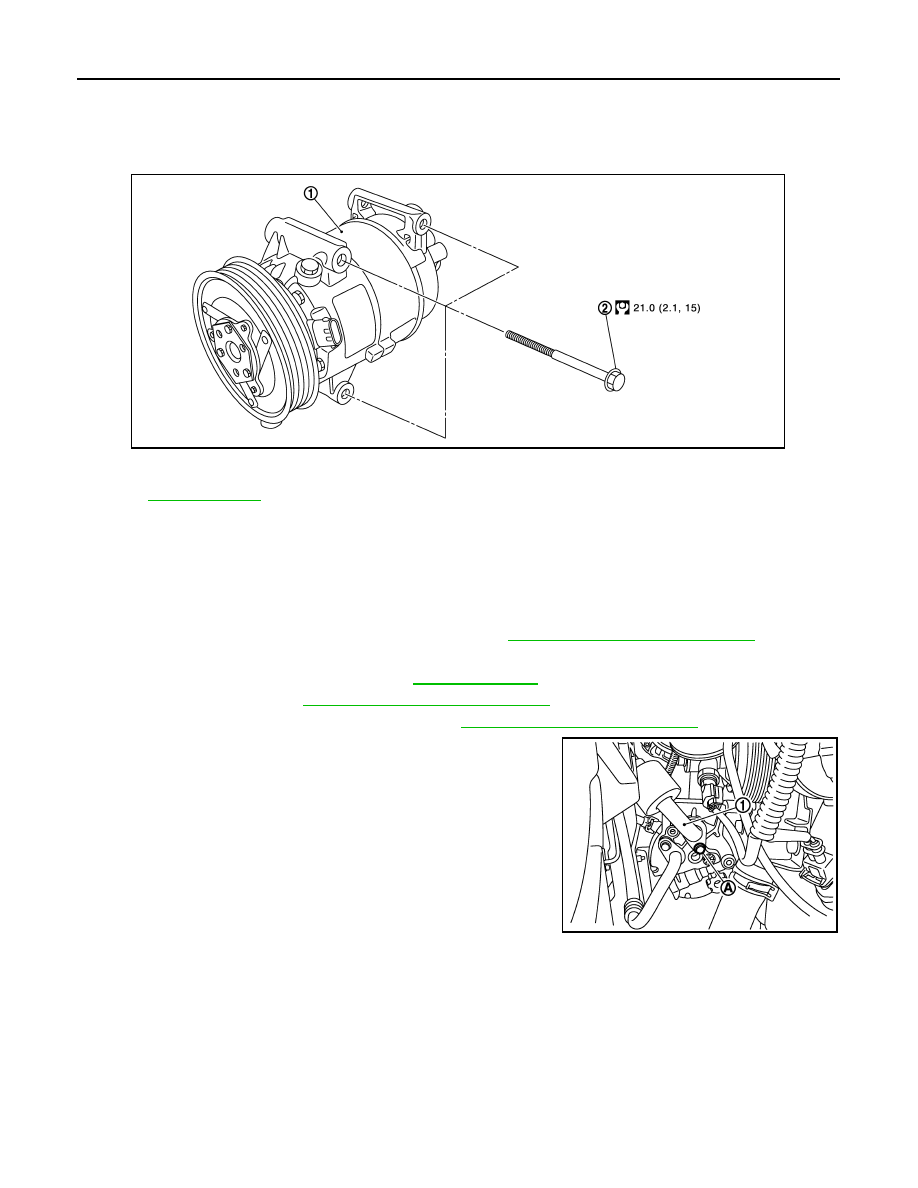

Exploded View

INFOID:0000000001098289

Removal and Installation

INFOID:0000000001098290

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove engine cover ornament.

3.

Remove air intake hoses (RH) and air duct (LH). Refer to

EM-265, "Removal and Installation"

.

4.

Remove engine undercover, using power tools.

5.

Drain engine coolant from radiator. Refer to

CO-52, "Draining"

.

6.

Remove drive belt. Refer to

EM-259, "Removal and Installation"

.

7.

Remove lower radiator hose from engine. Refer to

CO-56, "Removal and Installation"

.

8.

Remove fixing bolts (A) and (B) from low-pressure flexible hose
(1) and high-pressure flexible hose (2).

9.

Remove low-pressure flexible hose and high-pressure flexible
hose from compressor.

CAUTION:

Cap or wrap the joint of compressor, low-pressure flexible
hose and high-pressure flexible hose with suitable material
such as vinyl tape to avoid the entry of air.

10. Disconnect harness connector from compressor.

1.

Compressor

2.

Compressor fixing bolt

Refer to

GI-4, "Components"

 for symbols in the figure.

E1KIA0035GB

E1KIA0036GB

COMPRESSOR

HA-193

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (K9K)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

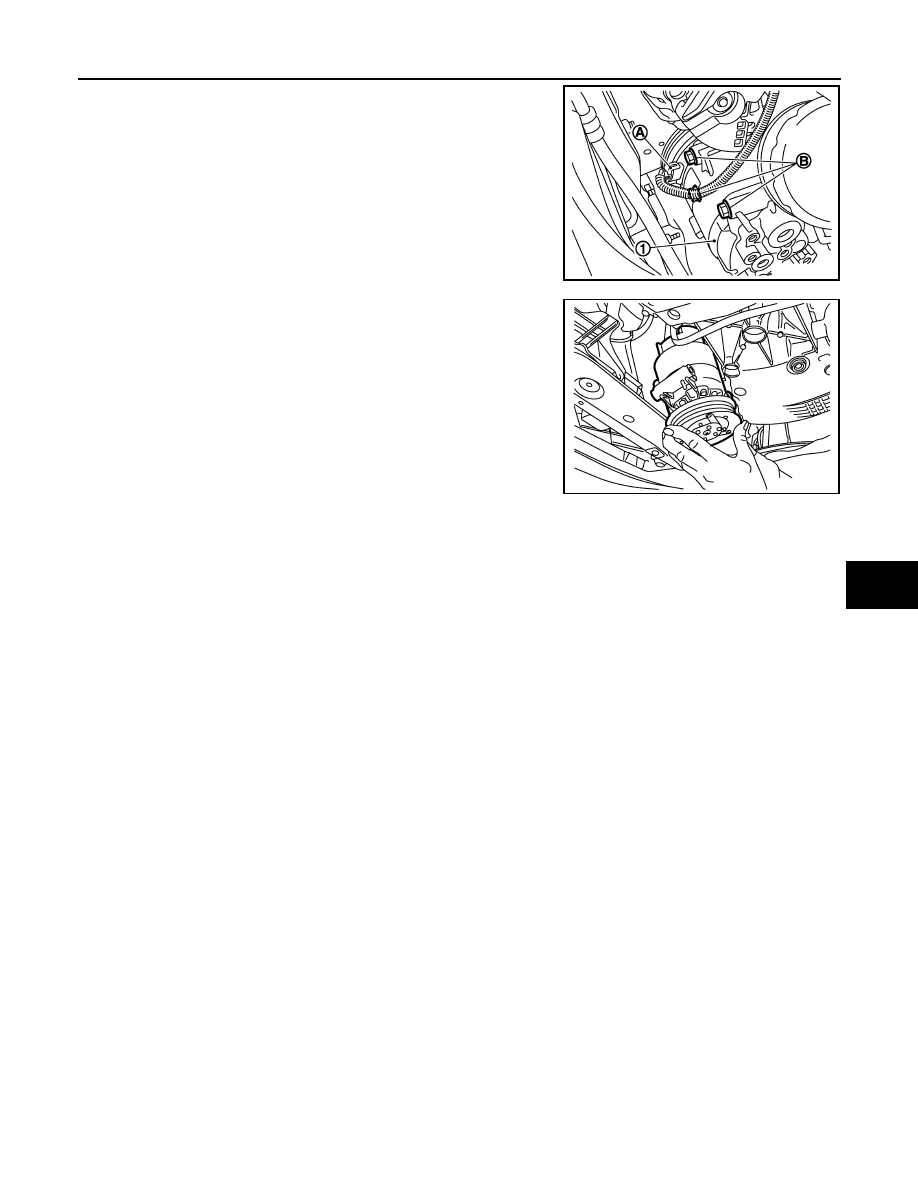

11. Remove compressor harness connector (A), then remove

mounting bolts (B) from compressor (1), using power tools.

12. Remove the compressor from the vehicle.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of low-pressure flexible hose and high-pressure flexible hose with new ones, and

then apply compressor oil to it when installing it.

• When recharging refrigerant, check for leaks.

E1KIA0038ZZ

Compressor fixing bolt to engine

: 21 N·m (2.2 kg-m, 15.5 ft-lb)
