HA-198

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (K9K)]

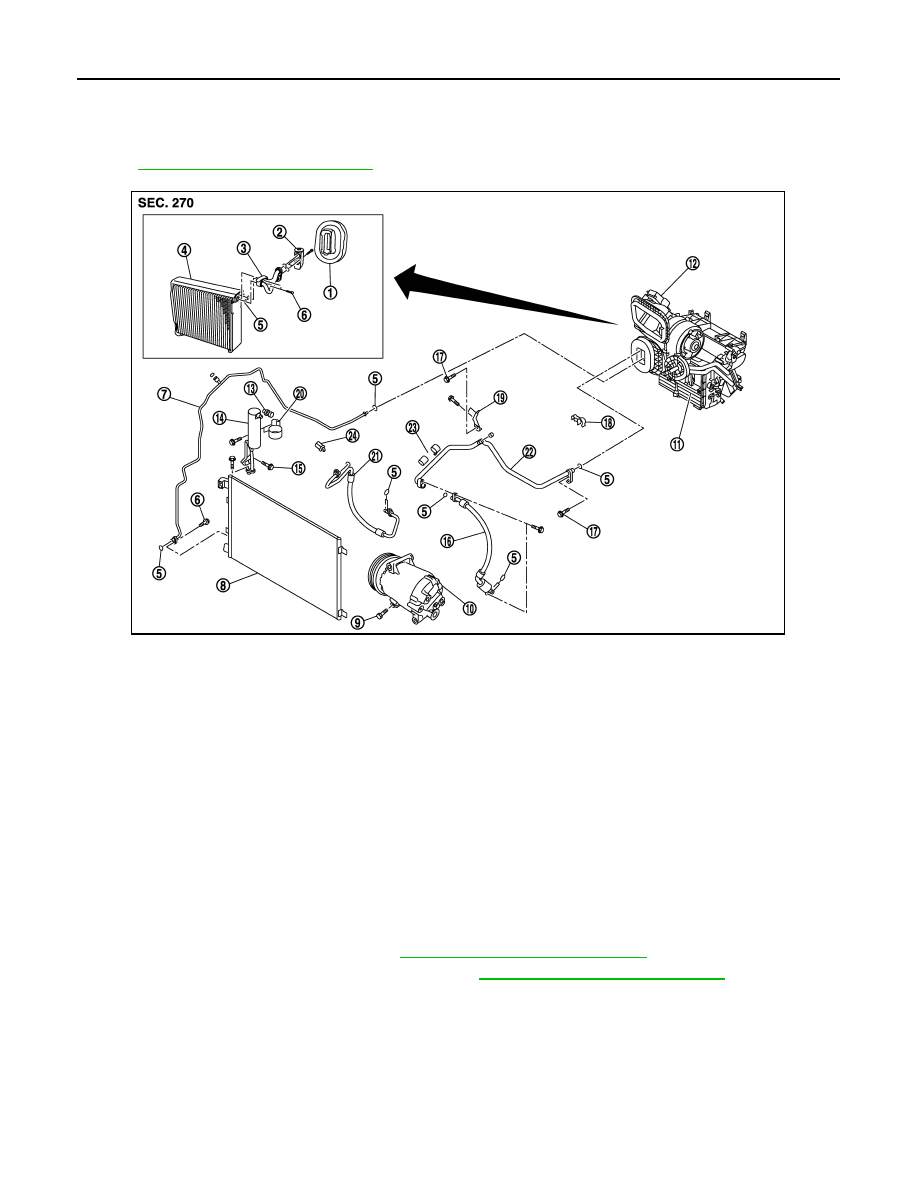

HIGH-PRESSURE PIPE 1 (ENGINE COMPARTMENT)

HIGH-PRESSURE PIPE 1 (ENGINE COMPARTMENT)

Exploded View

INFOID:0000000001098296

Refer to

HA-171, "Refrigerant Connection"

.

Removal and Installation

INFOID:0000000001098297

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove engine cover ornament. Refer to

EM-266, "Removal and Installation"

.

3.

Remove intake hose (RH) and air duct (LH). Refer to

EM-265, "Removal and Installation"

.

1.

Heater sealing

2.

Expansion valve

3.

Low pressure pipe 1 and high pres-
sure pipe 2 assembly

4.

Evaporator

5.

O-ring

6.

Connector pipe fixing bolt

7.

High pressure pipe 1

8.

Condenser assembly

9.

Fixing bolt

10. Compressor

11.

Heater & cooling unit assembly

12. Heater & blower unit assembly

13. Refrigerant pressure sensor

14. Liquid tank

15. Liquid tank fixing screw

16. Low pressure flexible hose

17. Fixing bolt

18. Pipes fixing clip

19. Low & high pressure pipe bracket

20. Liquid tank fixing bracket

21. High pressure flexible hose

22. Low pressure pipe 2

23. Low pressure pipe fixing clamp as-

sembly

24. Pipe mantening clip

E1KIA0063GB

HIGH-PRESSURE PIPE 1 (ENGINE COMPARTMENT)

HA-199

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (K9K)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

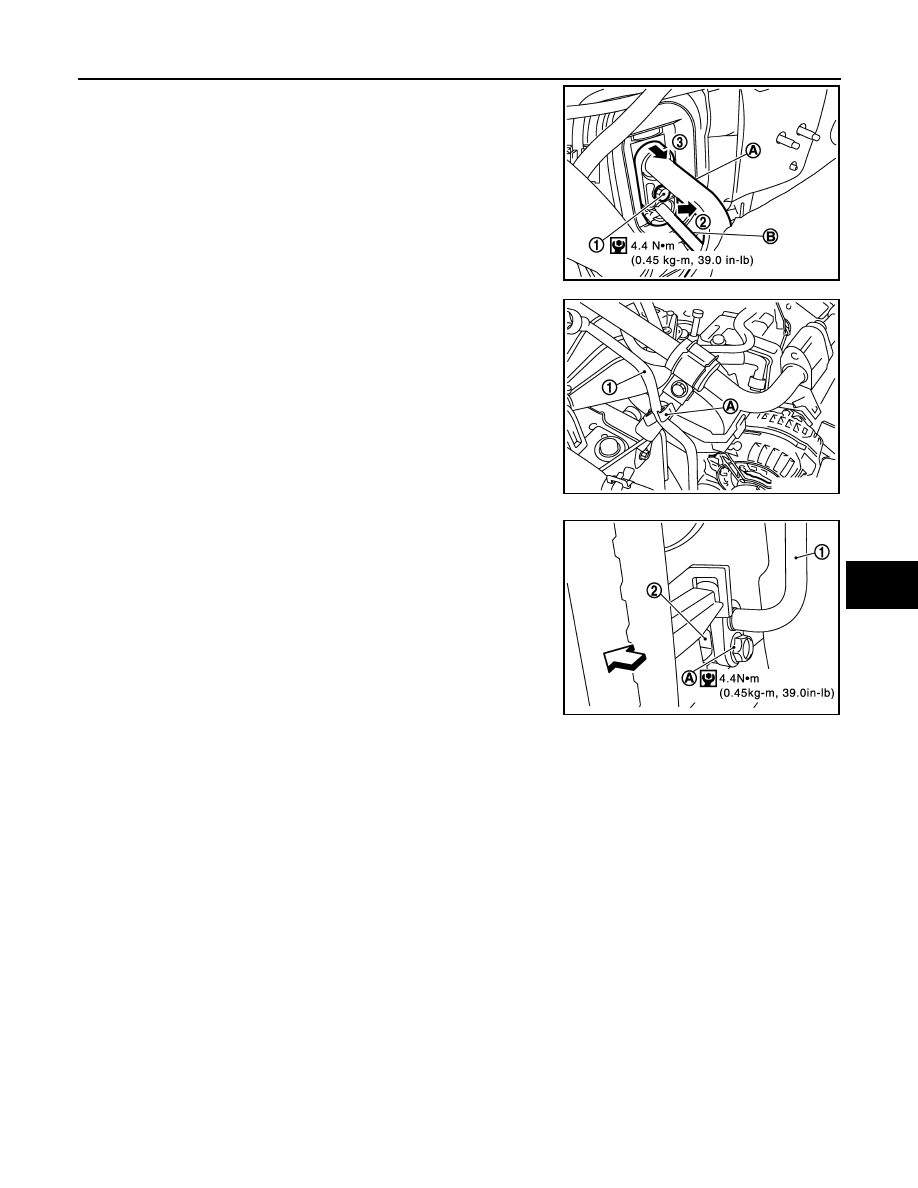

4.

Pull engine room insulator, then remove pipes bracket fixing
bolt, from expansion valve, then release pipe fixing bracket from
high pressure pipe 1, to disconnect it from expansion valve.

CAUTION:

Cap or wrap the joint of the high pressure pipe 1, and
expansion valve in, with suitable material such as vinyl tape
to avoid the entry of air.

5.

Remove high pressure pipe 1 (1) from clip (A).

• Remove high-pressure pipe 1 mounting bolt (A) from con-

denser (2).

• Remove high pressure pipe 1 (1).

CAUTION:

Cap or wrap the joint of the high pressure pipe 1, and con-
denser, with suitable material such as vinyl tape to avoid
the entry of air.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of high-pressure pipe 1 with new ones, and then apply compressor oil to it when

installing it.

• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• When recharging refrigerant, check for leaks.

E1IIA0011GB

E1KIA0045ZZ

E1KIA0047GB

HA-200

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (K9K)]

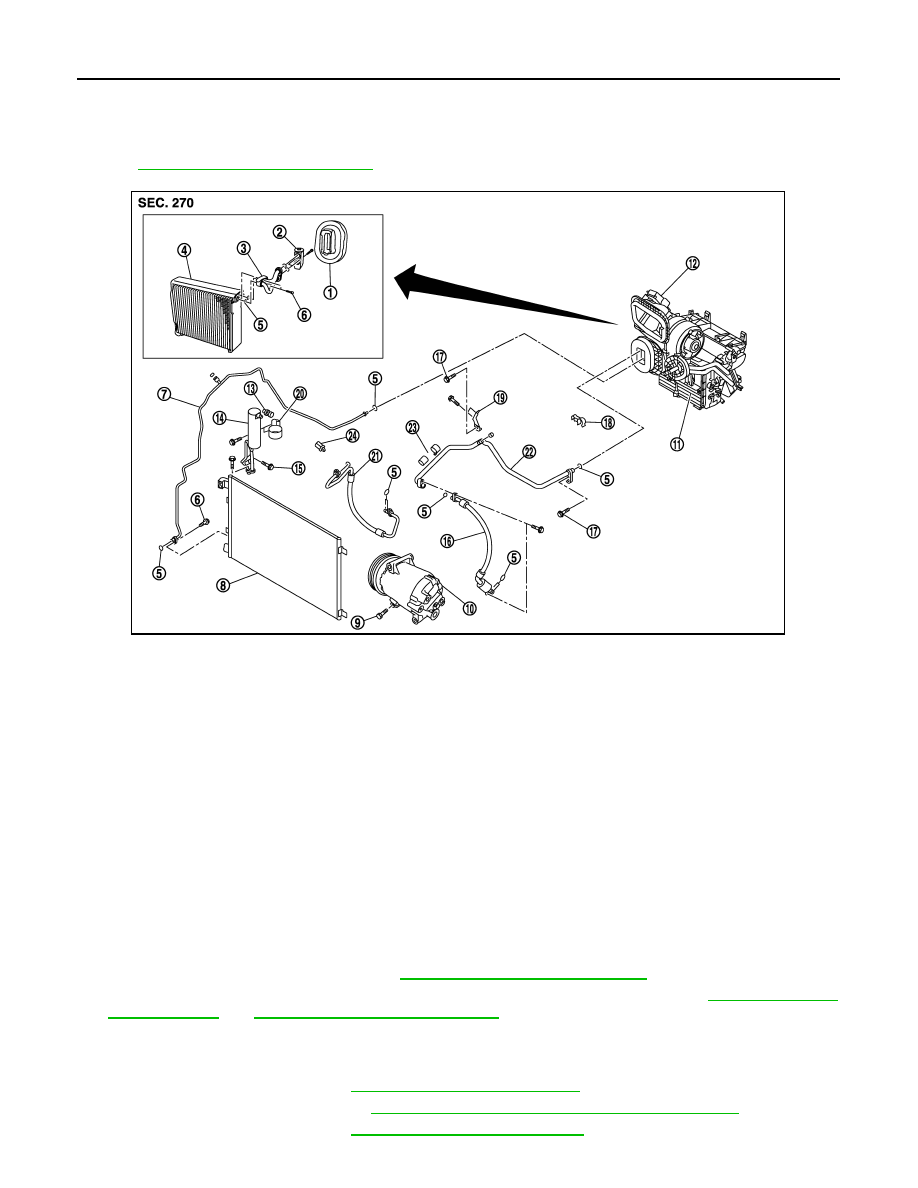

LOW-PRESSURE PIPE 1 AND HIGH-PRESSURE PIPE 2

LOW-PRESSURE PIPE 1 AND HIGH-PRESSURE PIPE 2

Exploded View

INFOID:0000000001098298

Refer to

HA-171, "Refrigerant Connection"

.

Removal and Installation

INFOID:0000000001098299

REMOVAL

1.

Set the temperature at 18

°

C (60

°

F), and then disconnect the battery cable from the negative terminal.

2.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

3.

Remove engine cover ornament. Refer to

EM-266, "Removal and Installation"

.

4.

Remove high-pressure pipe 1 and low pressure pipe 2 from expansion valve. Refer to

HA-194, "Removal

and Installation"

 and

HA-198, "Removal and Installation"

.

CAUTION:

Cap or wrap the joint of the, high-pressure pipe 1, low-pressure pipe 2, and the expansion valve
with suitable material such as vinyl tape to avoid the entry of air.

5.

Remove instrument panel.Refer to

IP-12, "Removal and Installation"

.

6.

Remove foot duct (RH / LH). Refer to

VTL-95, "FLOOR DUCTS : Removal and Installation"

.

7.

Remove steering column. Refer to

ST-10, "Removal and Installation"

.

1.

Heater sealing

2.

Expansion valve

3.

Low pressure pipe 1 and high pres-
sure pipe 2 assembly

4.

Evaporator

5.

O-ring

6.

Connector pipe fixing bolt

7.

High pressure pipe 1

8.

Condenser assembly

9.

Fixing bolt

10. Compressor

11.

Heater & cooling unit assembly

12. Heater & blower unit assembly

13. Refrigerant pressure sensor

14. Liquid tank

15. Liquid tank fixing screw

16. Low pressure flexible hose

17. Fixing bolt

18. Pipes fixing clip

19. Low & high pressure pipe bracket

20. Liquid tank fixing bracket

21. High pressure flexible hose

22. Low pressure pipe 2

23. Low pressure pipe fixing clamp as-

sembly

24. Pipe mantening clip

E1KIA0063GB

LOW-PRESSURE PIPE 1 AND HIGH-PRESSURE PIPE 2

HA-201

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (K9K)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

8.

Remove steering member. Refer to

ST-15, "Removal and Installation"

.

9.

Remove heater and cooling assembly. Refer to

VTL-82, "Removal and Installation"

.

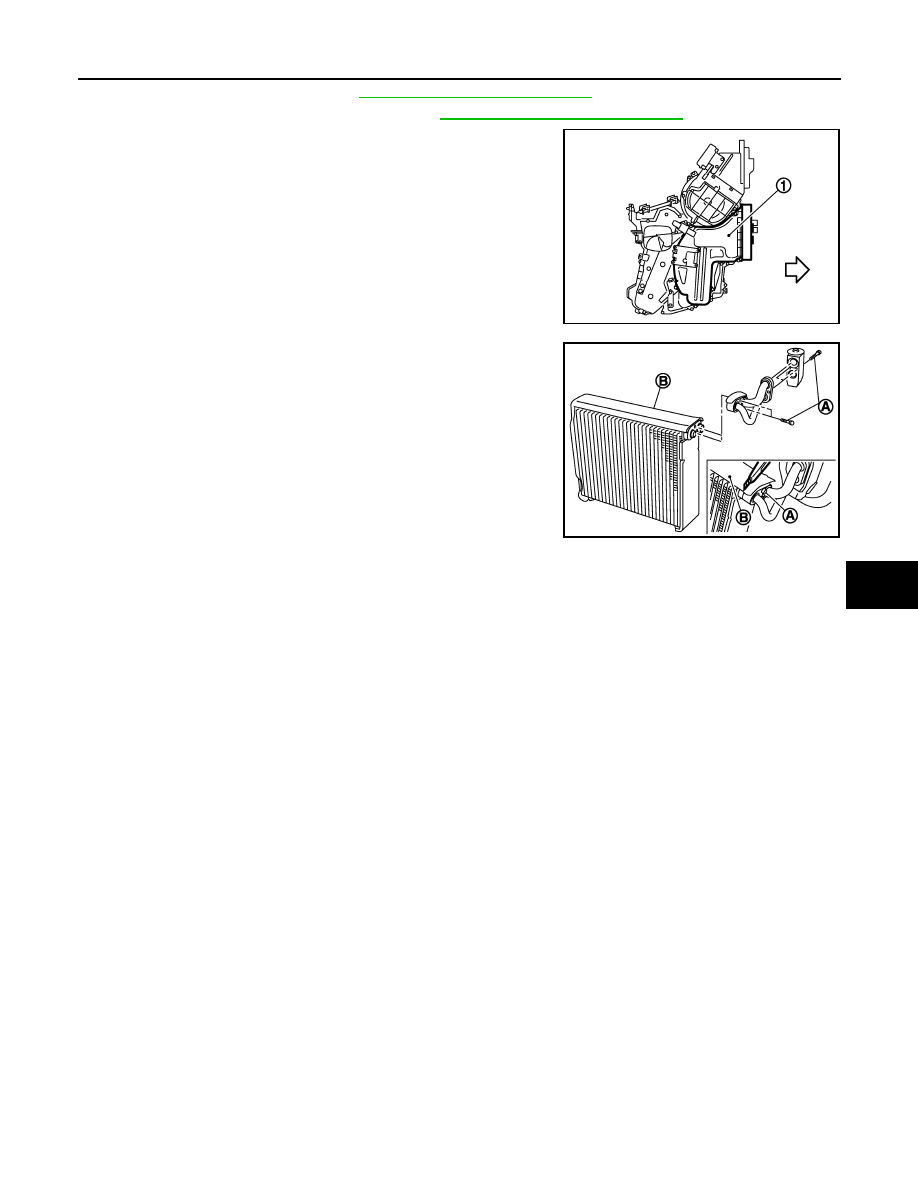

10. Remove mounting screws, and then remove evaporator cover

(1).

11. Using a thin cutter, cut the evaporator insulator (B), and remove

fixing bolt (A) then remove low-pressure pipe 1 and high-pres-
sure pipe 2 assembly.

CAUTION:

Cap or wrap the joint of expansion valve, high-pressure
pipe 2 and low-pressure pipe 1 with suitable material such
as vinyl tape to avoid the entry of air.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of high-pressure pipe 1, 2 and low-pressure pipe 1, 2 with new ones, and then apply

compressor oil to it when installing it.

• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• When recharging refrigerant, check for leaks.

E1KIA0048ZZ

E1KIA0049ZZ
