REFRIGERANT PRESSURE SENSOR

REFRIGERANT PRESSURE SENSOR

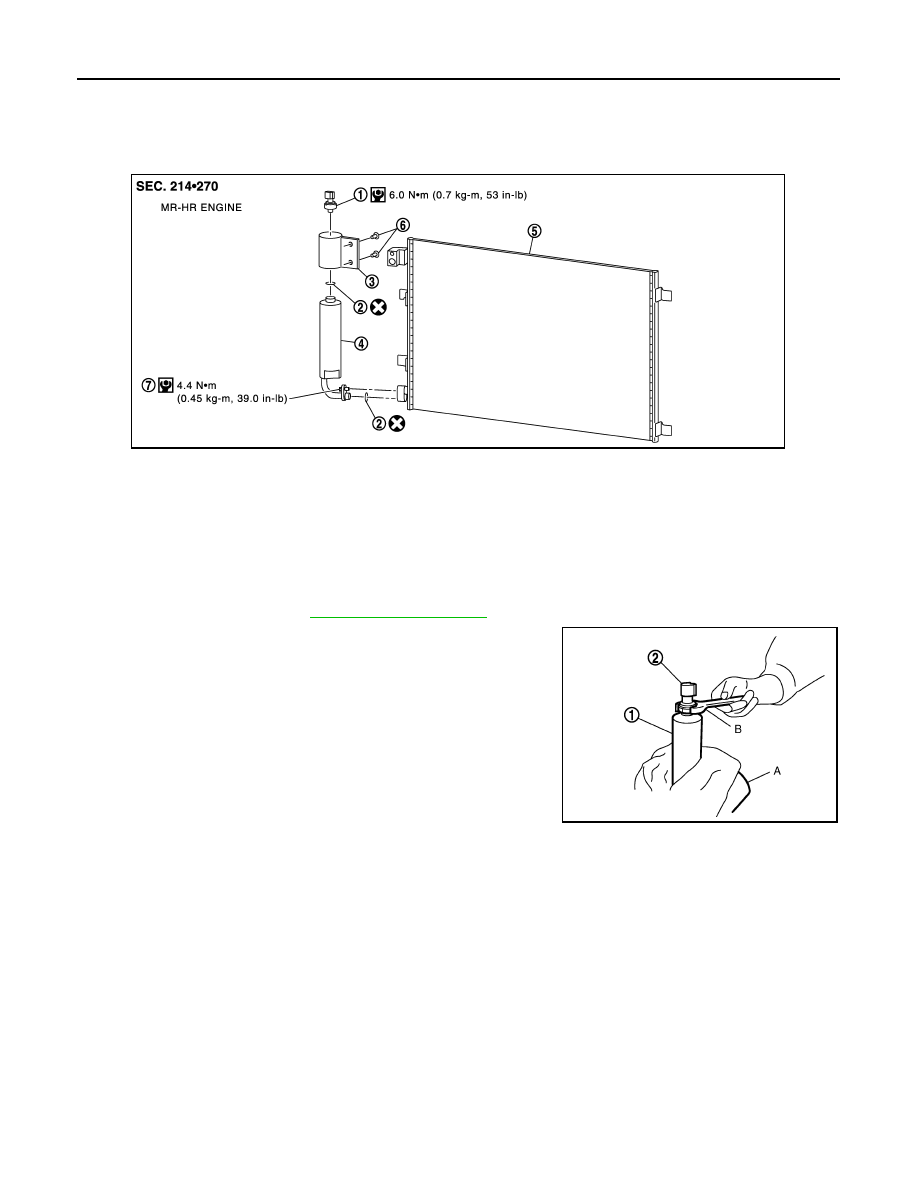

Exploded View

INFOID:0000000001098180

Removal and Installation

INFOID:0000000001098181

REMOVAL

1.

Remove liquid tank. Refer to

HA-153, "Exploded View"

.

2.

Fix the liquid tank (1) with a vise (A). Remove the refrigerant
pressure sensor (2) with a wrench (B).

CAUTION:

Be careful not to damage liquid tank.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Apply compressor oil to O-ring of refrigerant pressure sensor when installing it.
• When recharging refrigerant, check for leaks.

1.

Refrigerant pressure sensor

2.

O-ring

3.

Liquid tank bracket

4.

Liquid tank

5.

Condenser

6.

Liquid tank fixing screw

7.

Liquid tank pipe fixing bolt

E1KIA0050GB

JSIIA0075ZZ

EVAPORATOR

HA-155

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (HR/MR)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

EVAPORATOR

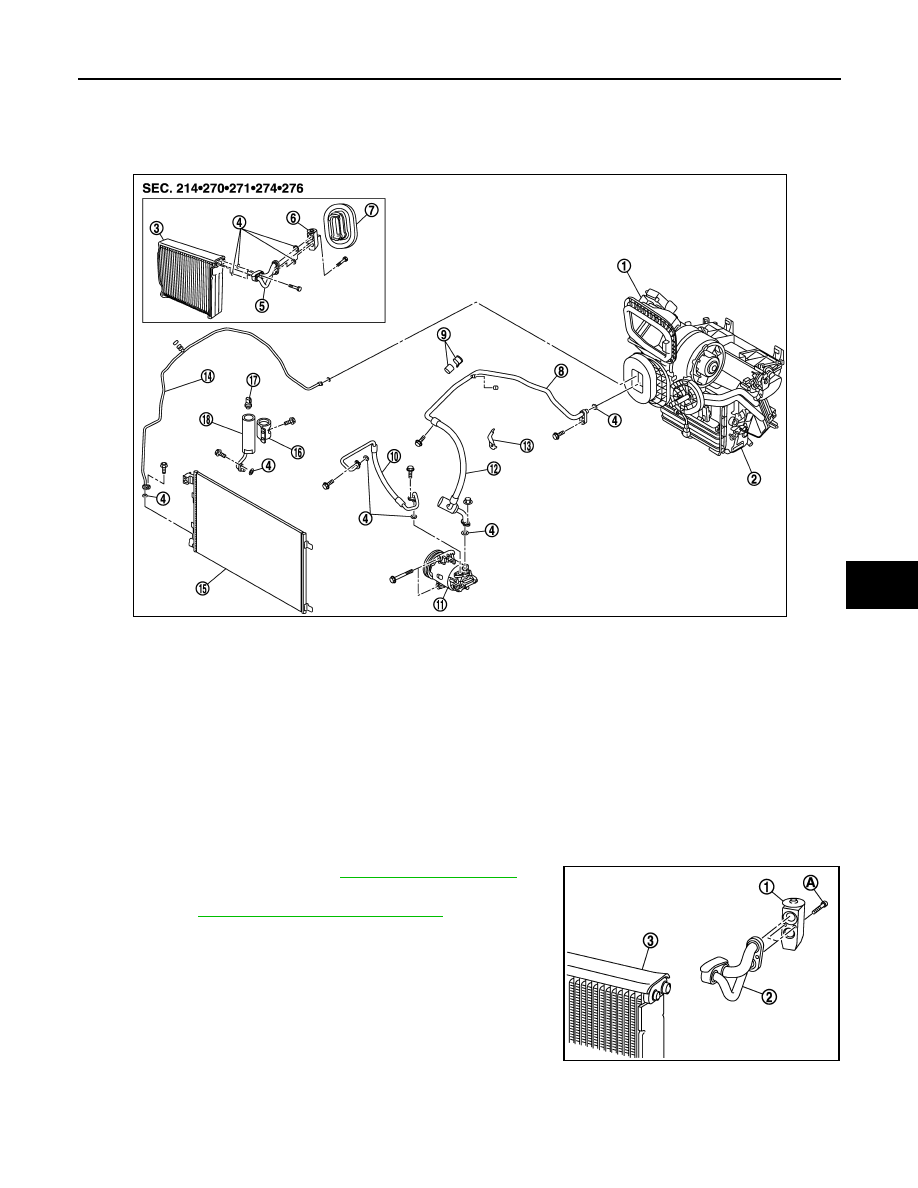

Exploded View

INFOID:0000000001098182

Removal and Installation

INFOID:0000000001098183

REMOVAL

1.

Remove low-pressure pipe 2 and high-pressure pipe 1 from expansion valve. Refer to

HA-143, "Removal

and Installation"

,

HA-147, "Removal and Installation"

.

CAUTION:

Cap or wrap the joint of expansion valve, low-pressure pipe 2 and high-pressure pipe 1 with suit-
able material such as vinyl tape to avoid the entry of air.

2.

Remove heater and cooling fixing clamp and hoses. Refer to

VTL-82, "Removal and Installation"

.

3.

Remove heater and cooling unit assembly. Refer to

VTL-82, "Removal and Installation"

.

4.

Remove evaporator cover fixing screws and cover. Refer to

HA-155, "Exploded View"

.

1.

Heater & blower unit assembly

2.

Heater & cooling unit assembly

3.

Evaporator

4.

O-ring

5.

Low pressure pipe 1 and high pres-
sure pipe 2 assembly

6.

Expansion valve

7.

Heater sealing

8.

Low pressure flexible hose and pipe
2

9.

Low pressure pipe 2 fixing clamp as-
sembly

10. High pressure flexible hose

11.

Compressor

12. Low pressure flexible hose

13. Low & high pipe bracket support

14. High pressure pipe 1

15. Condenser assembly

16. Liquid tank fixing bracket

17. Refrigerant pressure sensor

18. Liquid tank

E1KIA0037GB

HA-156

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (HR/MR)]

EVAPORATOR

5.

Slide evaporator (1) and intake sensor (2) from heater and cool-
ing unit assembly.

6.

Remove evaporator assembly.

7.

Cut upper insulator (3) and remove mounting bolt (A), expansion
valve and pressure pipe assembly(2), from evaporator.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of low-pressure pipe 1 and high-pressure pipe 2 with new ones, and then apply

compressor oil to it when installing it.

• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• O-rings are different from low-pressure flexible hose (high-pressure pipe 1) and low-pressure pipe 1

(high-pressure pipe 2).

• Mark the mounting position of intake sensor bracket prior to removal so that the reinstalled sensor

can be located in the same position.

• When recharging refrigerant, check for leaks.

E1KIA0061ZZ

E1KIA0062ZZ

EXPANSION VALVE

HA-157

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (HR/MR)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

EXPANSION VALVE

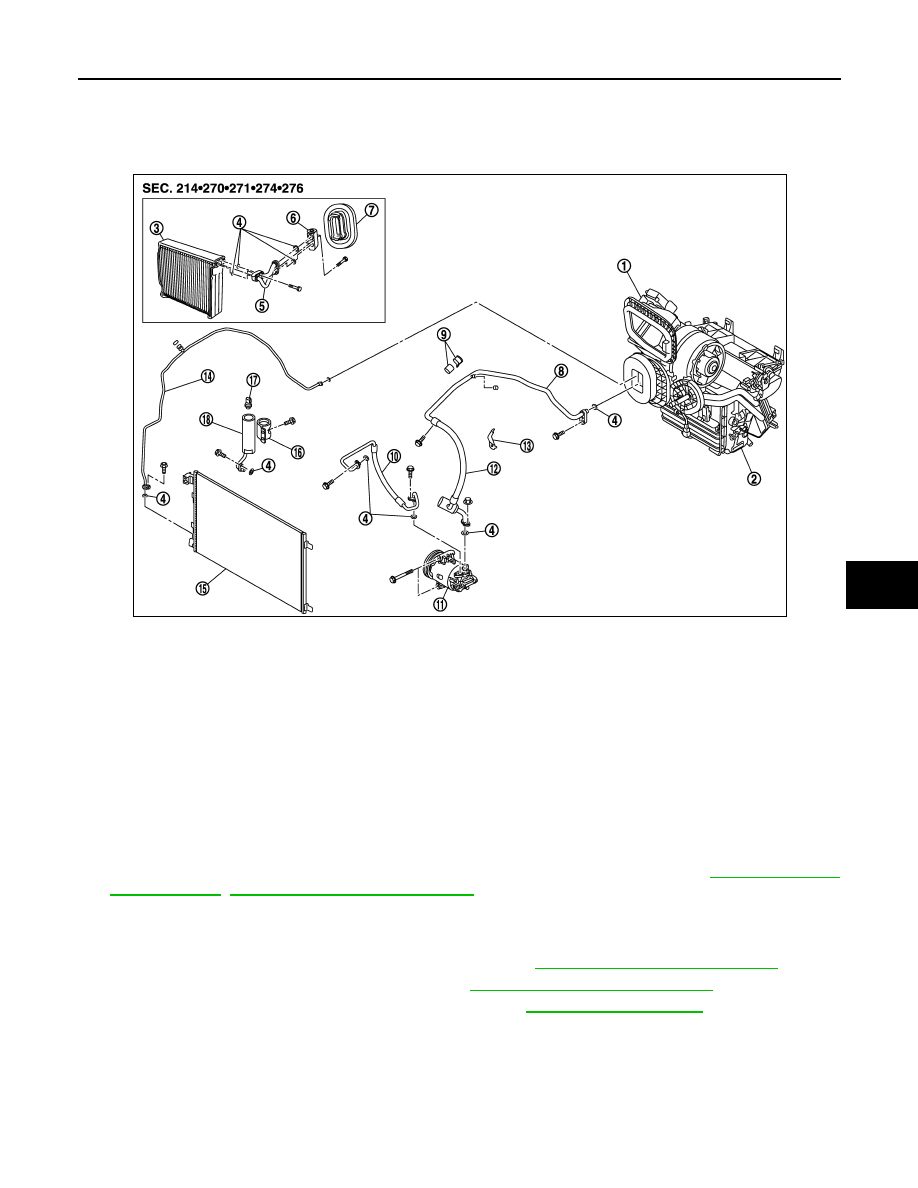

Exploded View

INFOID:0000000001098184

Removal and Installation

INFOID:0000000001098185

REMOVAL

1.

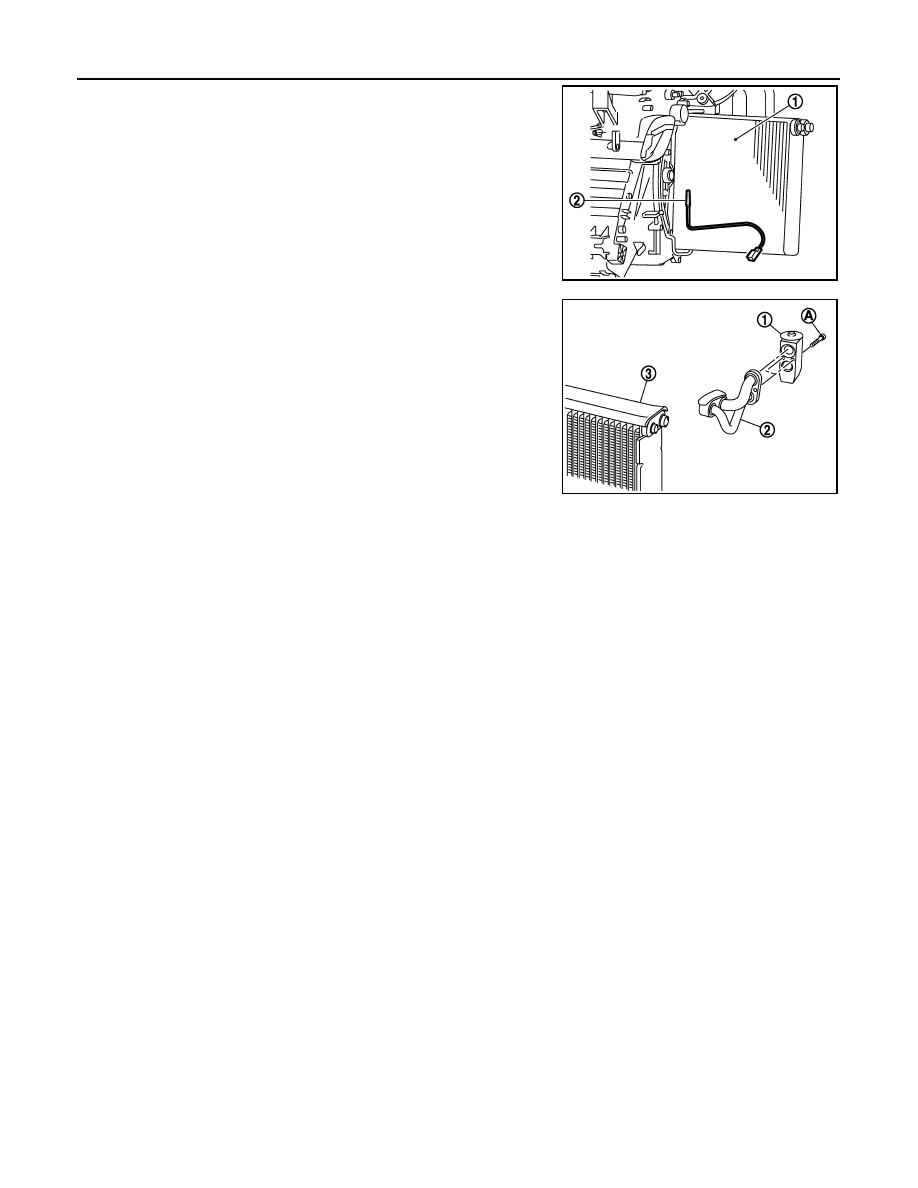

Remove evaporator (3). Refer to

HA-155, "Exploded View"

.

2.

Remove low pressure pipe 1 and high pressure pipe 2 assembly
(2). Refer to

HA-149, "Removal and Installation"

.

3.

Remove mounting bolts (A), and then remove expansion valve
(1) from low and high pressure pipe assembly (2).

CAUTION:

Cap or wrap the joint of expansion valve, low and high pres-
sure pipe assembly, evaporator and expansion valve with
suitable material such as vinyl tape to avoid the entry of air.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of evaporator with new ones, and then apply compressor oil to it when installing it.

1.

Heater & blower unit assembly

2.

Heater & cooling unit assembly

3.

Evaporator

4.

O-ring

5.

Low pressure pipe 1 and high pres-
sure pipe 2 assembly

6.

Expansion valve

7.

Heater sealing

8.

Low pressure flexible hose and pipe
2

9.

Low pressure pipe 2 fixing clamp as-
sembly

10. High pressure flexible hose

11.

Compressor

12. Low pressure flexible hose

13. Low & high pipe bracket support

14. High pressure pipe 1

15. Condenser assembly

16. Liquid tank fixing bracket

17. Refrigerant pressure sensor

18. Liquid tank

E1KIA0037GB

E1KIA0062ZZ
