LOW-PRESSURE PIPE 1 AND HIGH-PRESSURE PIPE 2

9.

Disconnect Heater and cooling unit harness connectors from steering member main harness.

10. Remove steering member.
11. Remove heater and cooling assembly. Refer to

VTL-32, "Removal and Installation"

.

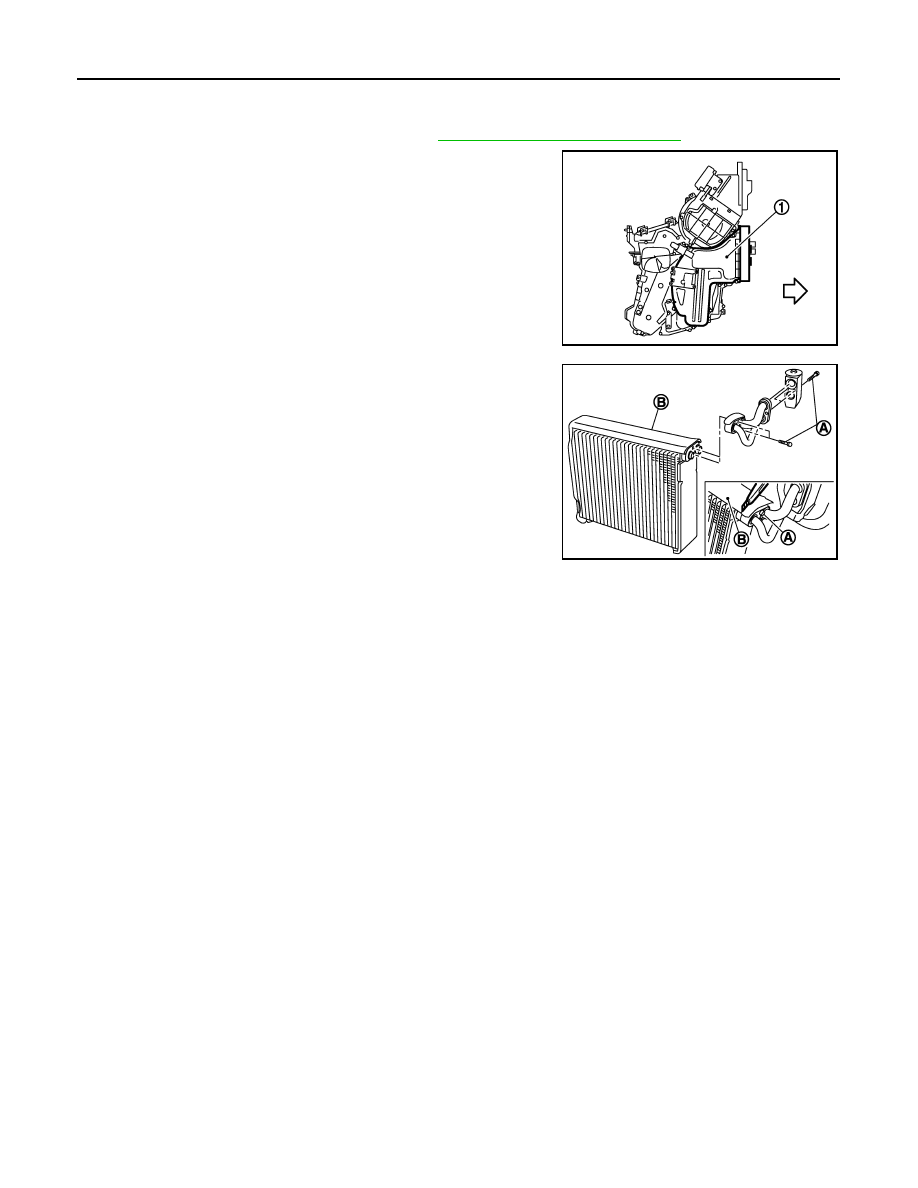

12. Remove mounting screws, and then remove evaporator cover

(1).

13. Using a thin cutter, cut the evaporator insulator (B), and then

remove fixing bolt (A) and low-pressure pipe 1 and high-pres-
sure pipe 2 assembly.

CAUTION:

Cap or wrap the joint of expansion valve, high-pressure
pipe 2 and low-pressure pipe 1 with suitable material such
as vinyl tape to avoid the entry of air.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of high-pressure pipe 1, 2 and low-pressure pipe 1, 2 with new ones, and then apply

compressor oil to it when installing it.

• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• When recharging refrigerant, check for leaks.

E1KIA0048ZZ

E1KIA0049ZZ

CONDENSER

HA-151

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (HR/MR)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

CONDENSER

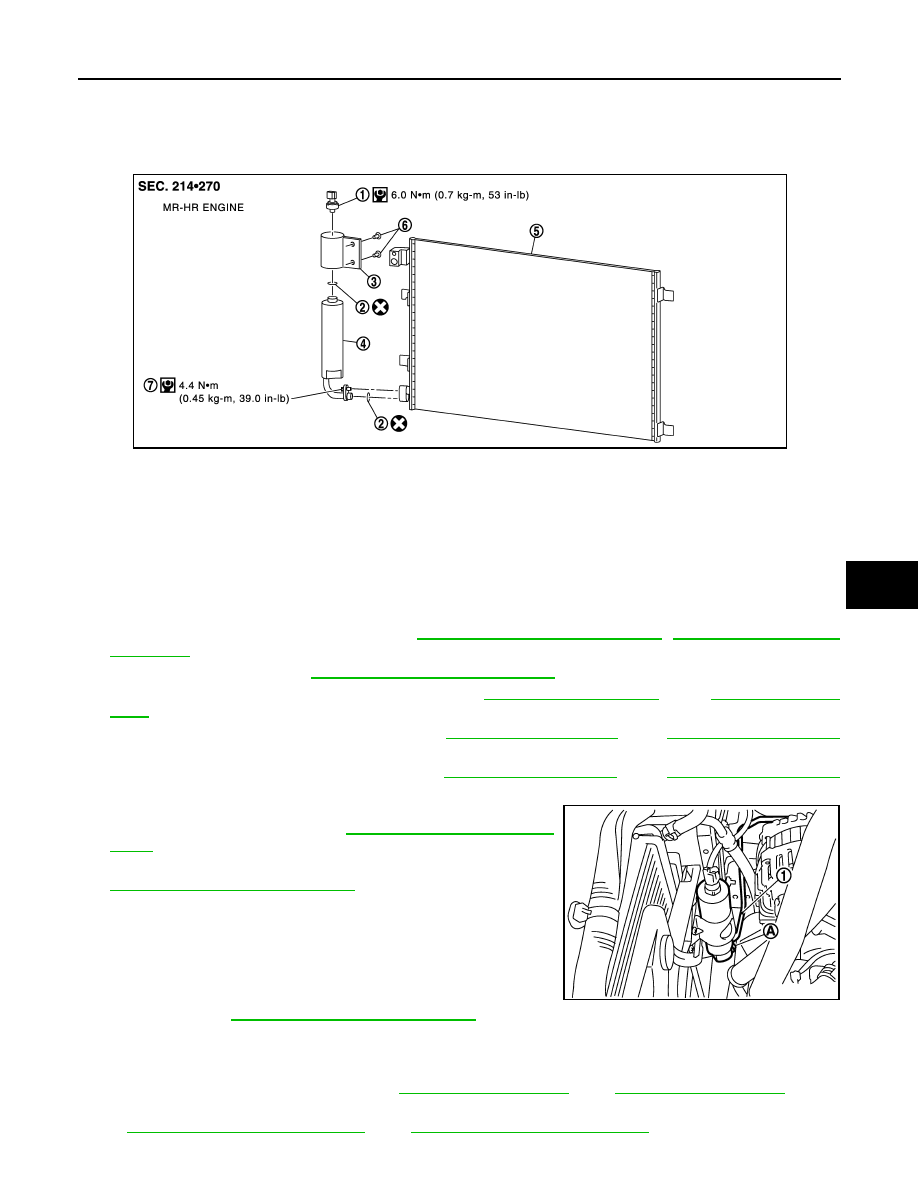

Exploded View

INFOID:0000000001098174

Removal and Installation

INFOID:0000000001098175

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove engine cover ornament. Refer to

EM-27, "Removal and Installation"

,

EM-144, "Removal and

Installation"

.

3.

Remove front grille. Refer to

EXT-17, "Removal and Installation"

.

4.

Remove radiator hose, and drain coolant. Refer to

CO-13, "Exploded View"

 (HR),

CO-34, "Exploded

View"

 (MR).

5.

Remove upper radiator fixing bracket. Refer to

CO-13, "Exploded View"

 (HR),

CO-34, "Exploded View"

(MR).

6.

Remove radiator air-guide duct (RH). Refer to

CO-13, "Exploded View"

 (HR),

CO-34, "Exploded View"

(MR).

7.

Remove high-pressure pipe 1 fixing bolt (A) and high pressure
pipe (1) from liquid tank. Refer to

HA-147, "Removal and Instal-

lation"

.

8.

Remove high-pressure flexible pipe 1 from condenser. Refer to

HA-145, "Removal and Installation"

.

CAUTION:

Cap or wrap the joint of low and high-pressure pipe 1 and
condenser with suitable material such as vinyl tape to avoid
the entry of air.

9.

Remove harness connector from refrigerant pressure sensor.

10. Remove liquid tank pipes and liquid tank from condenser and

radiator. Refer to

HA-153, "Removal and Installation"

.

CAUTION:

Cap or wrap the joint of liquid tank pipes and condenser with suitable material such as vinyl tape
to avoid the entry of air.

11. Remove radiator fixing brackets. Refer to

CO-13, "Exploded View"

 (HR),

CO-34, "Exploded View"

 (MR).

12. Release radiator maintaining pawls, then pull-up the condenser assembly to release it from radiator. Refer

to

CO-13, "Removal and Installation"

 (HR),

CO-35, "Removal and Installation"

 (MR).

1.

Refrigerant pressure sensor

2.

O-ring

3.

Liquid tank bracket

4.

Liquid tank

5.

Condenser

6.

Liquid tank fixing screw

7.

Liquid tank pipe fixing bolt

E1KIA0050GB

JMIIA0002ZZ

HA-152

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (HR/MR)]

CONDENSER

13. Maintain radiator pushing back.

14. Pull upward to remove condenser.

CAUTION:

Take care do not damaged condenser or radiator.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of high-pressure flexible hose and high-pressure pipe 1 with new ones, and then

apply compressor oil to it when installing it.

• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• When recharging refrigerant, check for leaks.

LIQUID TANK

HA-153

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (HR/MR)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

LIQUID TANK

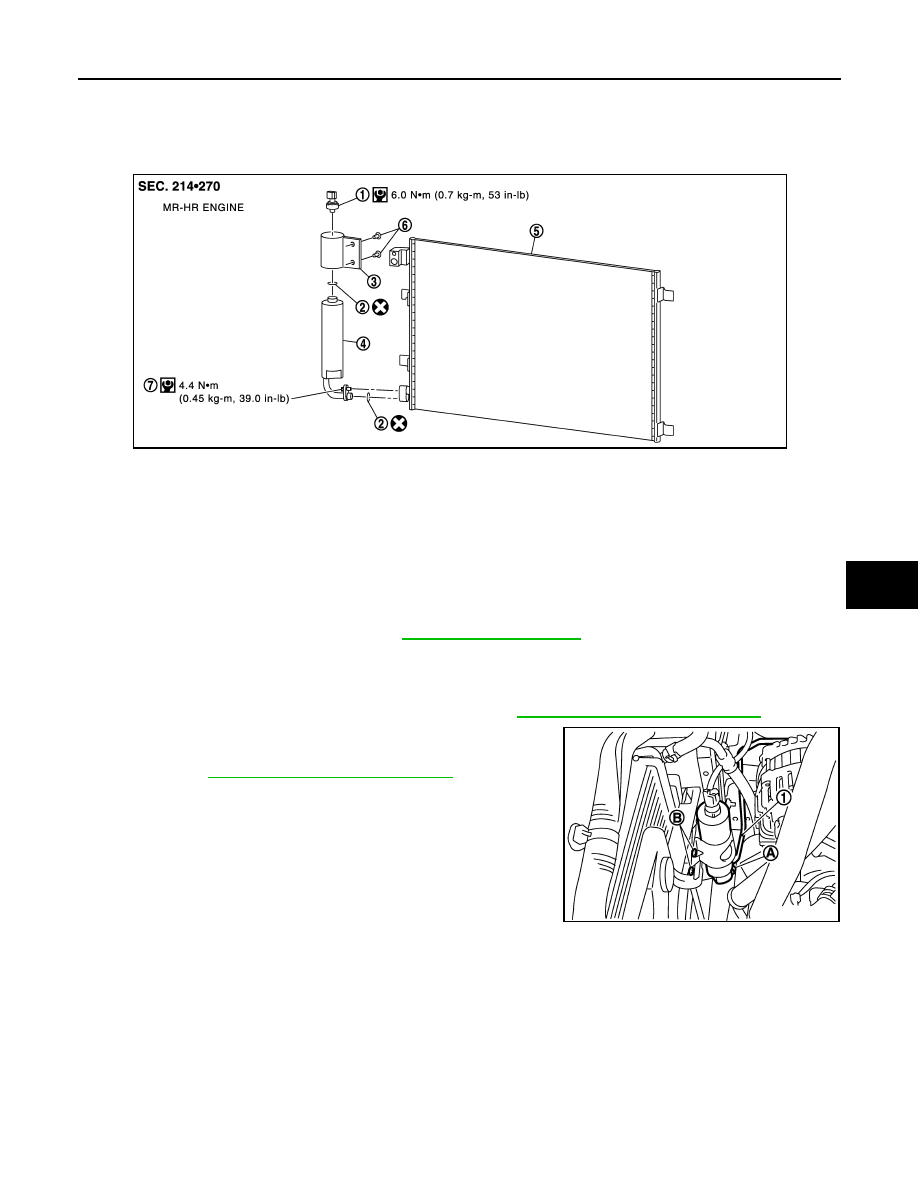

Exploded View

INFOID:0000000001098178

Removal and Installation

INFOID:0000000001098179

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove engine cover ornament. Refer to

EM-146, "Exploded View"

 (MR).

3.

Clean liquid tank and its surrounding area, and remove dust and rust from liquid tank.

CAUTION:

Be sure to clean carefully.

4.

Disconnect refrigerant sensor harness connector. Refer to

HA-154, "Removal and Installation"

.

5.

Remove liquid tank bracket support mounting screws (B).

6.

Remove high pressure pipe 1 (1) mounting bolt (A) from liquid
tank. Refer to

HA-147, "Removal and Installation"

.

7.

Remove liquid tank high pressure pipe mounting bolt (A) from
condenser.

8.

Remove liquid tank pipe bracket fixing screw.

CAUTION:

Cap or wrap the joint of high pressure pipe, liquid tank
pipes and condenser with suitable material such as vinyl
tape to avoid the entry of air.

9.

Remove liquid tank assembly.

INSTALLATION

 Install liquid tank, and then install liquid tank bracket on condenser.

CAUTION:

• Make sure liquid tank bracket is securely installed at protrusion of condenser. (Make sure liquid tank

bracket does not move to a position below center of liquid tank.)

• Replace O-rings of A/C piping with new ones, and then apply compressor oil to it when installing it.
• When recharging refrigerant, check for leaks.

1.

Refrigerant pressure sensor

2.

O-ring

3.

Liquid tank bracket

4.

Liquid tank

5.

Condenser

6.

Liquid tank fixing screw

7.

Liquid tank pipe fixing bolt

E1KIA0050GB

E1KIA0068ZZ
