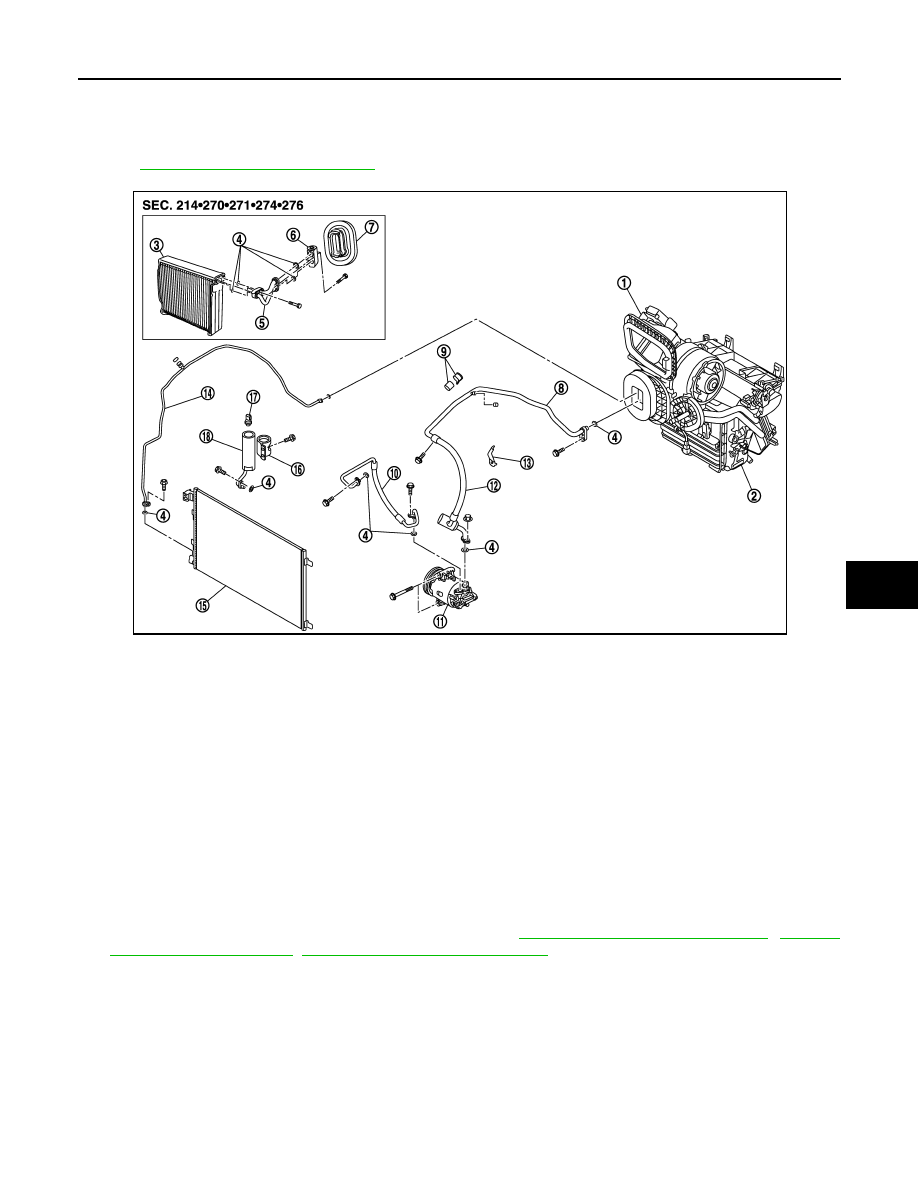

HIGH-PRESSURE FLEXIBLE HOSE
6.

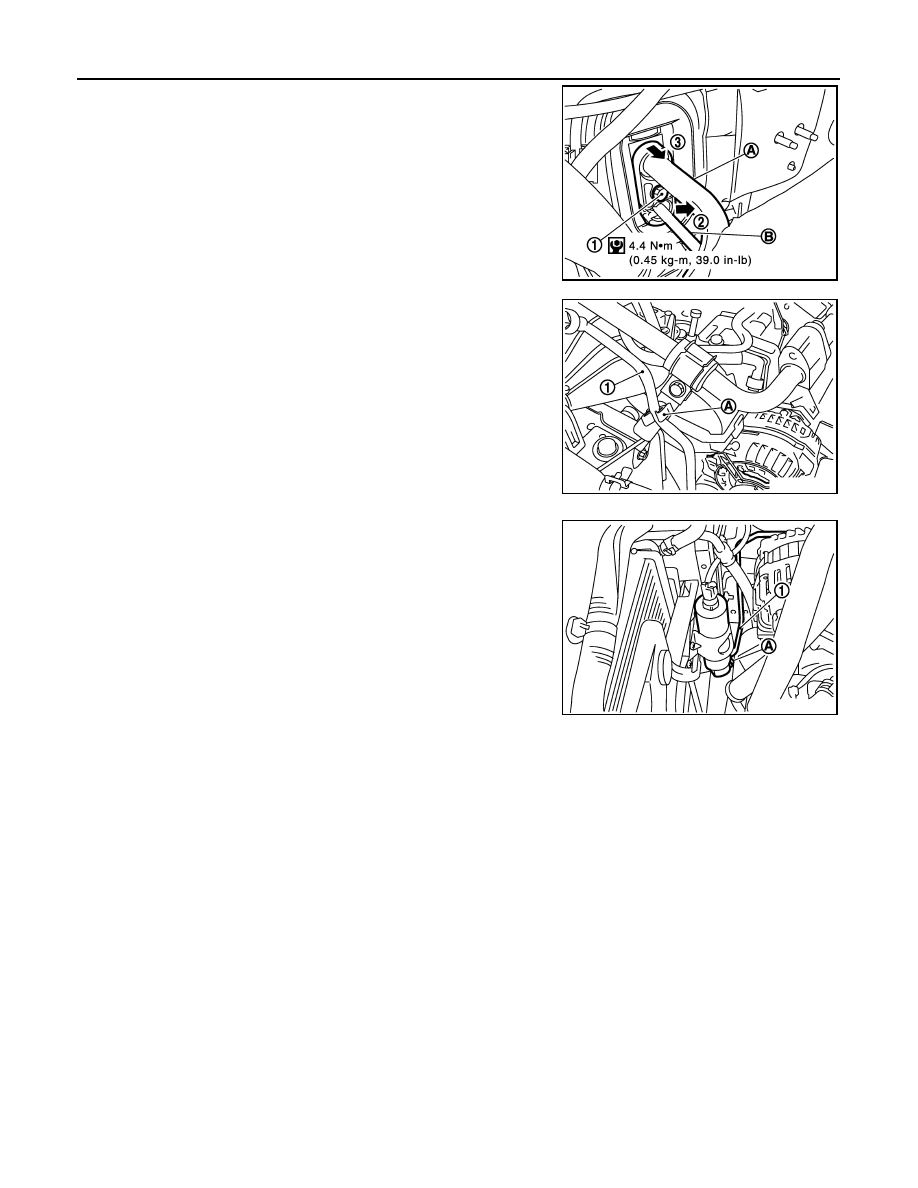

Remove high pressure flexible hose fixing bolt (1) from con-
denser (3), then pull high pressure flexible hose (2) to remove it
from condenser.
CAUTION:
Cap or wrap the joint of high-pressure flexible hose and
condenser assembly with suitable material such as vinyl
tape to avoid the entry of air.
7.

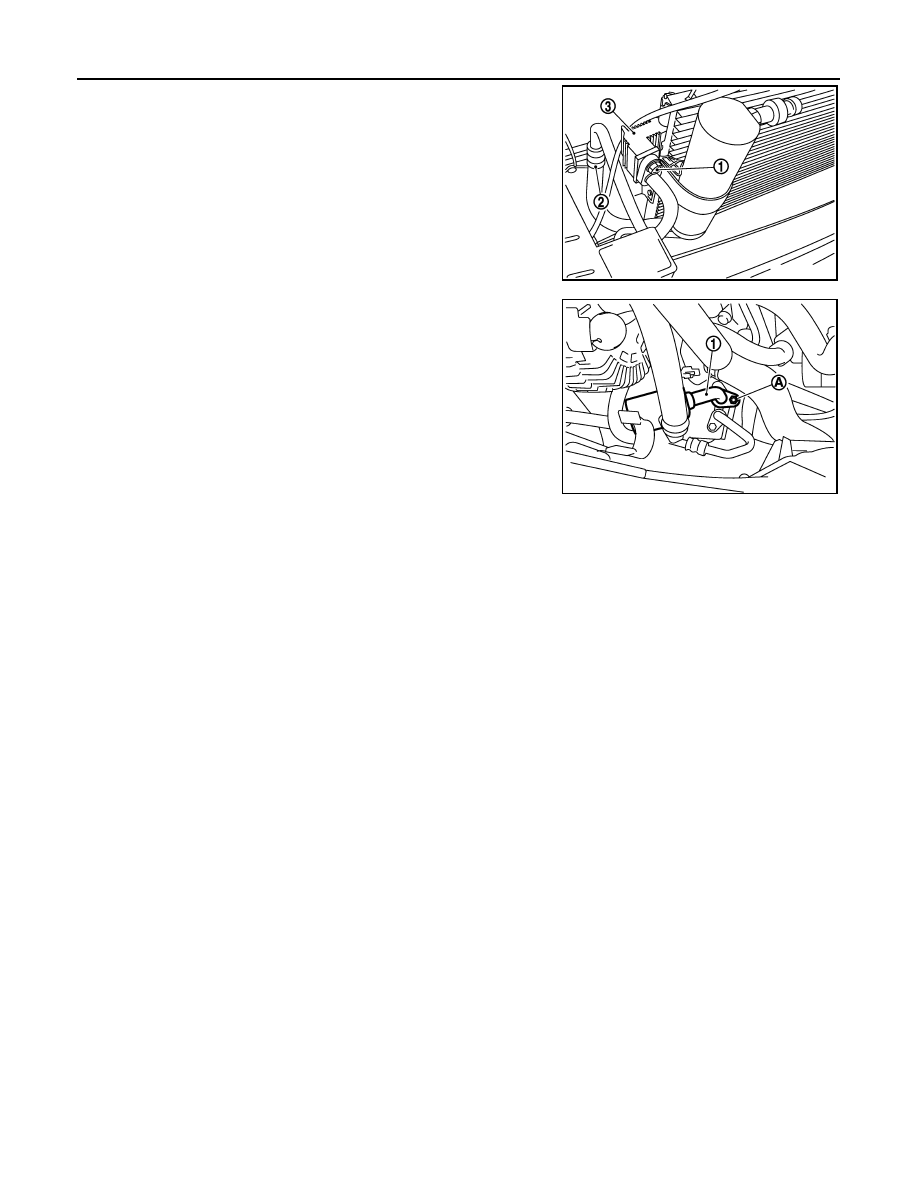

Remove high pressure flexible hose fixing nut (A) from compres-
sor, then pull high pressure flexible hose (1) to remove it from
compressor. Remove high pressure flexible hose.
CAUTION:
Cap or wrap the joint of compressor and high-pressure flex-
ible hose with suitable material such as vinyl tape to avoid
the entry of air.
INSTALLATION
Installation is basically the reverse order of removal.
CAUTION:
• Replace O-rings of high-pressure flexible hose with new ones, and then apply compressor oil to it
when installing it.
• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping
straight in axial direction.
• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection
does not come loose.
• When recharging refrigerant, check for leaks.
E1KIA0043GB
High pressure fixing bolt to condenser
: 4.4 N·m (0.45 kg-m, 39 in-lb)
High pressure fixing bolt to compressor
: 4.4 N·m (0.45 kg-m, 39 in-lb)
