Nissan Qashqai (2007-2010). Manual - part 893

HA-142

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (HR/MR)]

COMPRESSOR

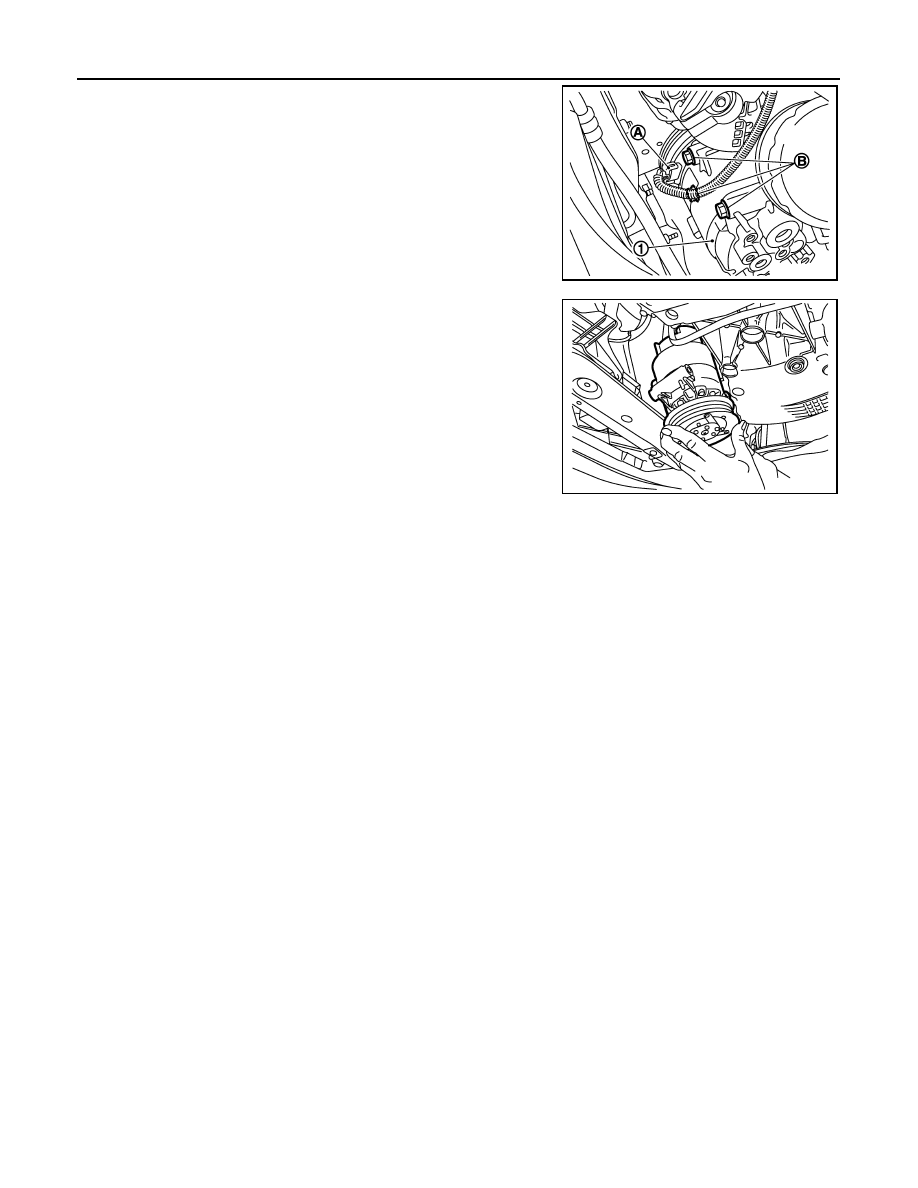

11. Remove compressor harness connector (A), then remove

mounting bolts (B) from compressor (1), using power tools.

12. Remove the compressor from the vehicle.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of low-pressure flexible hose and high-pressure flexible hose with new ones, and

then apply compressor oil to it when installing it.

• When recharging refrigerant, check for leaks.

E1KIA0038ZZ

Compressor fixing bolt to engine

: 25 N·m (2.6 kg-m, 18.5 ft-lb)

E1KIA0039ZZ

LOW-PRESSURE FLEXIBLE HOSE AND PIPE 2

HA-143

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (HR/MR)]

LOW-PRESSURE FLEXIBLE HOSE AND PIPE 2

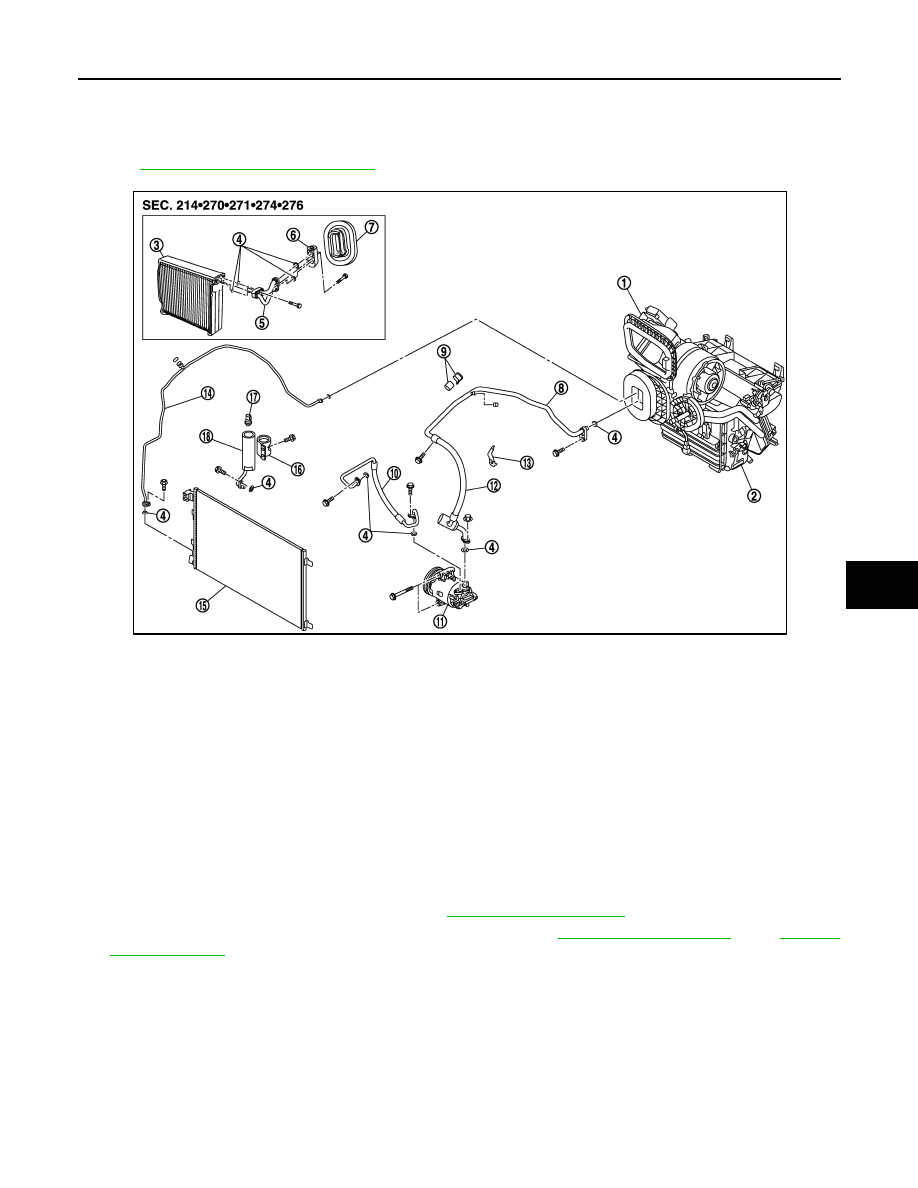

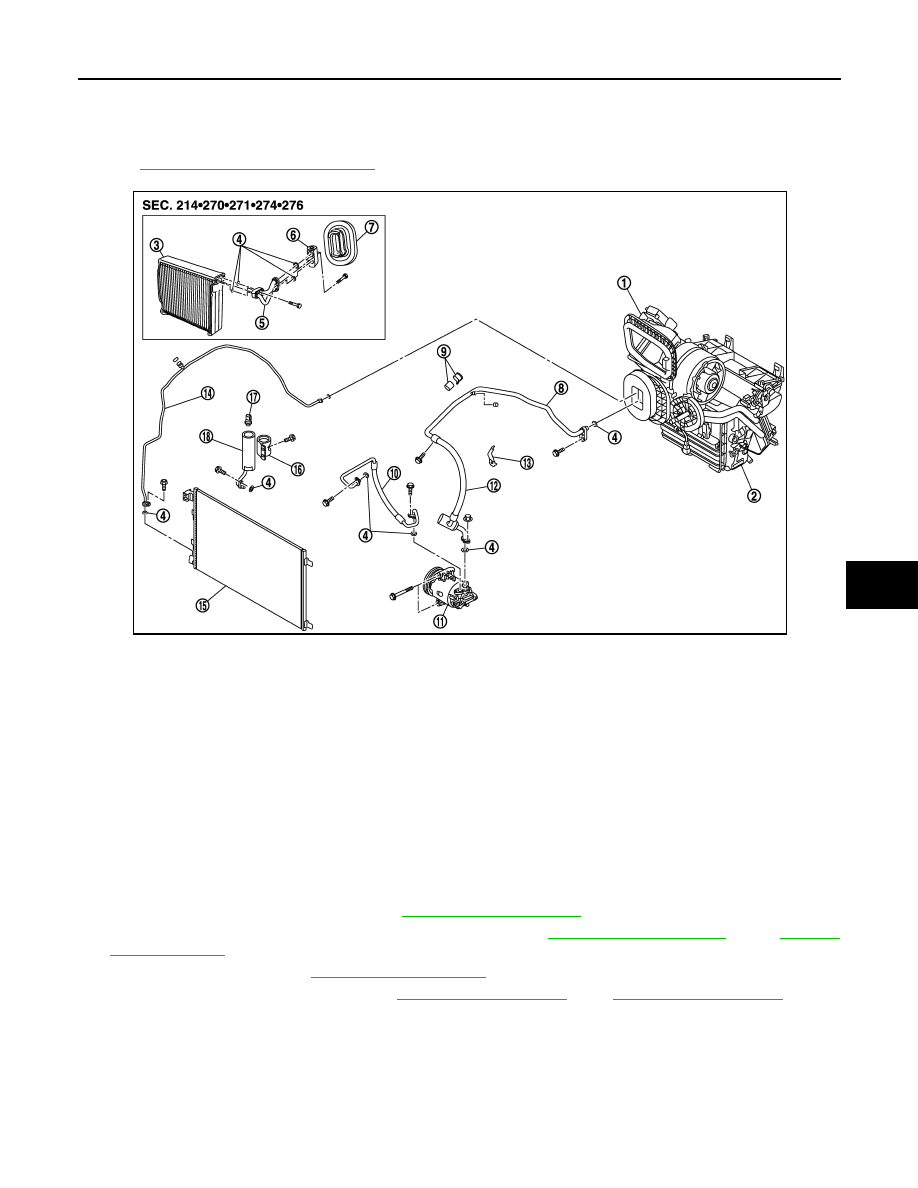

Exploded View

INFOID:0000000001098166

Refer to

HA-171, "Refrigerant Connection"

Removal and Installation

INFOID:0000000001098167

REMOVAL

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

Remove upper engine cover ornament. Refer to

EM-146, "Exploded View"

(MR).

Remove air intake hose (RH side), and air duct (LH). Refer to

EM-27, "Exploded View"

(HR),

EM-144,

"Exploded View"

(MR).

Heater & blower unit assembly

Heater & cooling unit assembly

Evaporator

O-ring

Low pressure pipe 1 and high pres-
sure pipe 2 assembly

Expansion valve

Heater sealing

Low pressure flexible hose and pipe
2

Low pressure pipe 2 fixing clamp as-
sembly

10. High pressure flexible hose

11.

Compressor

12. Low pressure flexible hose

13. Low & high pipe bracket support

14. High pressure pipe 1

15. Condenser assembly

16. Liquid tank fixing bracket

17. Refrigerant pressure sensor

18. Liquid tank

E1KIA0037GB

HA-144

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (HR/MR)]

LOW-PRESSURE FLEXIBLE HOSE AND PIPE 2

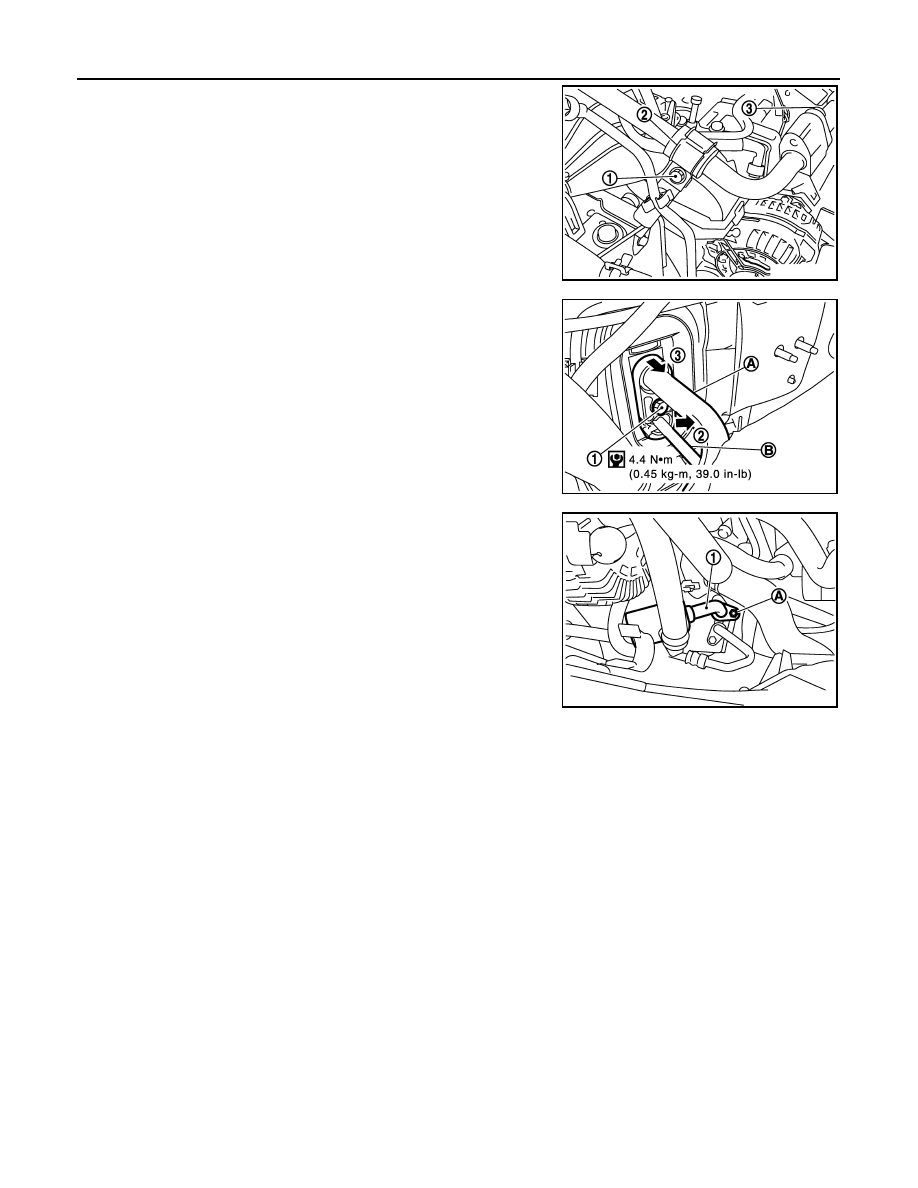

Remove mounting bolt (1) and clamp (2), from low pressure pipe
bracket support.

Remove low and high-pressure maintaining clip, from both pipes
then remove fixing bolt (3).

Remove engine room insulator fixing clip from cowl top.

Pull engine room insulator, then remove pipes bracket fixing bolt
(1), from expansion valve, and release pipes fixing bracket as
shown in order (1) to (3) from high pressure pipe 1 (B), to
remove low pressure flexible hose and pipe 2 (A) from expan-
sion valve.

CAUTION:

Cap or wrap the joint of the low pressure then remove fixing
bolt (3) pipe 2, and expansion valve exit with suitable mate-
rial such as vinyl tape to avoid the entry of air.

Remove low pressure flexible hose fixing nut (A), from air condi-
tioner compressor, and remove low pressure flexible hose (1).

CAUTION:

Cap or wrap the joint of low-pressure flexible hose with
suitable material such as vinyl tape to avoid the entry of air.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of low-pressure flexible hose and low-pressure pipe 2 with new ones, and then

apply compressor oil to it when installing it.

• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.
