HA-158

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER (HR/MR)]

EXPANSION VALVE

• O-rings are different from low-pressure pipe 1 (high-pressure pipe 1) and low-pressure pipe 2 (high-

pressure pipe 2).

• When recharging refrigerant, check for leaks.

SERVICE DATA AND SPECIFICATIONS (SDS)

HA-159

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MANUAL AIR CONDITIONER (HR/MR)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Compressor

INFOID:0000000001098186

Lubricant

INFOID:0000000001098187

Refrigerant

INFOID:0000000001098188

Engine Idling Speed

INFOID:0000000001098189

Refer to

EC-29, "IDLE SPEED : Description"

 (HR with EURO-OBD),

EC-368, "IDLE SPEED : Description"

 (HR

without EURO-OBD),

EC-646, "IDLE SPEED : Description"

 (MR with OBD),

EC-990, "IDLE SPEED : Descrip-

tion"

 (MR without EURO-OBD).

Belt Tension

INFOID:0000000001098190

Refer to

EM-15, "Tension Adjustment"

 (HR),

EM-134, "Tension Adjustment"

 (MR).

Model

CALSONICKANSEI

Type

Variable displacement swash plate

Displacement

cm

3

 (cu in)/rev

Max.

120 (7.32)

Min.

6 (0.37)

Cylinder bore

×

 stroke (Max.)

mm (in.)

32

×

 29 (1.26

×

 1.14)

Direction of rotation

Clockwise (viewed from clutch)

Drive belt

Poly V 7 groove (HR engine),

Poly V 6 groove (MR engine)

Model

CALSONICKANSEI

Name

Nissan A/C System Oil Type S (DH-PS)

Capacity

m

 (US fl oz, lmp fl oz)

Total in system

150 (5.03, 5.3)

Compressor (Service part) charging
amount

150 (5.03, 5.3)

Type

HFC-134a (R-134a)

Capacity
kg (lb)

—

HA-160

< BASIC INSPECTION >

[MANUAL AIR CONDITIONER (K9K)]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000001098254

DETAILED FLOW

1.

LISTEN TO CUSTOMER COMPLAINT

Listen to customer complaint. (Get detailed information about the conditions and environment when the symp-
tom occurs.)

>> GO TO 2.

2.

VERIFY THE SYMPTOM WITH OPERATIONAL CHECK

Verify the symptom with operational check. Refer to

HAC-126, "Description & Inspection"

.

>> GO TO 3.

3.

GO TO APPROPRIATE TROUBLE DIAGNOSIS

Go to appropriate trouble diagnosis (Refer to

HAC-187, "Diagnosis Chart By Symptom"

).

>> GO TO 4.

4.

REPAIR OR REPLACE

Repair or replace the specific parts

>> GO TO 5.

5.

FINAL CHECK

Final check.
Is the inspection result normal?

YES

>> CHECK OUT

NO

>> GO TO 3.

REFRIGERATION SYSTEM

HA-161

< FUNCTION DIAGNOSIS >

[MANUAL AIR CONDITIONER (K9K)]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

FUNCTION DIAGNOSIS

REFRIGERATION SYSTEM

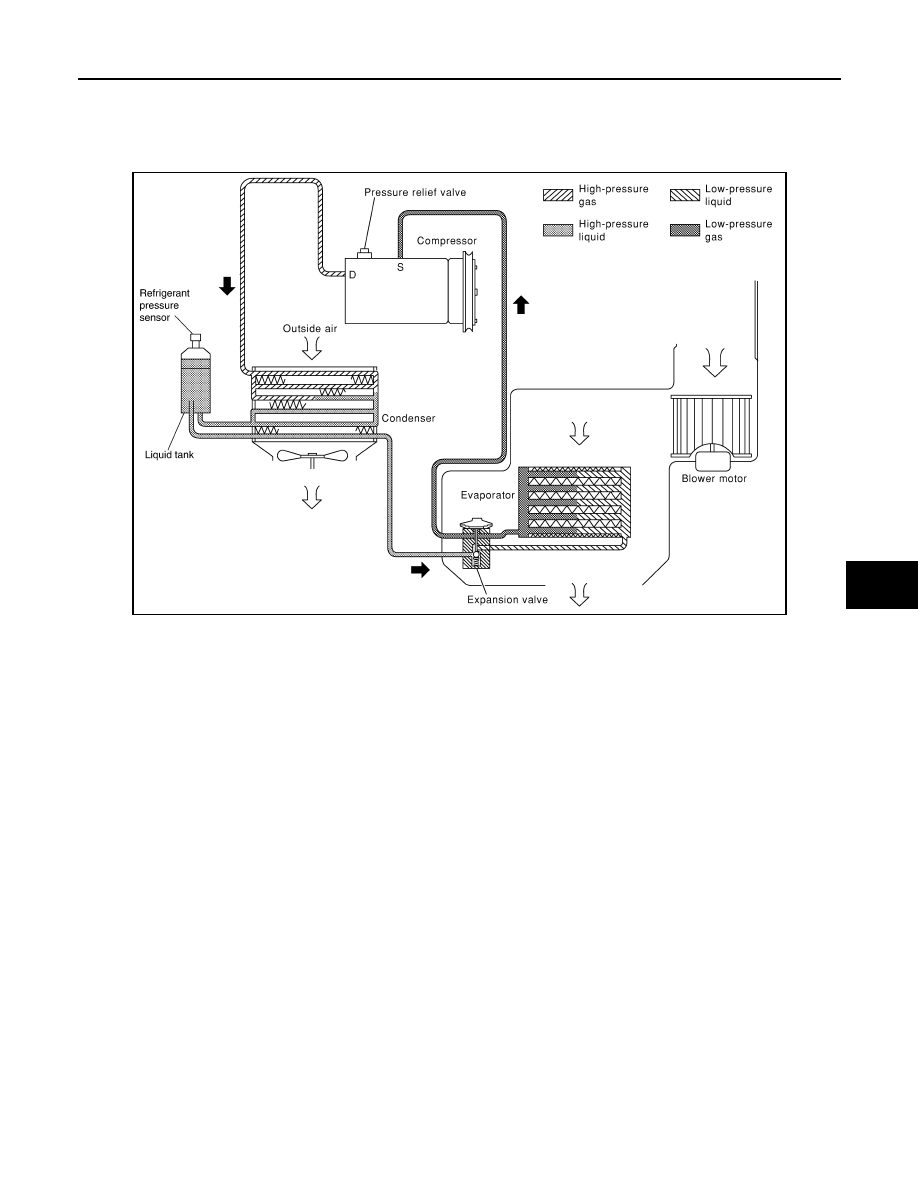

System Diagram

INFOID:0000000001098255

System Description

INFOID:0000000001098256

REFRIGERANT CYCLE

Refrigerant Flow

The refrigerant flows from the compressor, through the condenser with liquid tank, through the evaporator, and
back to the compressor. The refrigerant evaporation in the evaporator is controlled by an externally equalized
expansion valve, located inside the evaporator case.

Freeze Protection

To prevent evaporator frozen up, the evaporator air temperature is monitored, and the voltage signal to the
display and A/C auto amp. will make the A/C relay go OFF and stop the compressor.

REFRIGERANT SYSTEM PROTECTION

Refrigerant Pressure Sensor

The refrigerant system is protected against excessively high- or low-pressures by the refrigerant pressure sen-
sor, located on the condenser. If the system pressure rises above, or falls below the specifications, the refrig-
erant pressure sensor detects the pressure inside the refrigerant line and sends the voltage signal to the ECM.
ECM makes the A/C relay go OFF and stops the compressor when pressure on the high-pressure side
detected by refrigerant pressure sensor is over about 3,119 kPa (31.8 kg/cm

2

, 452 psi), or below about 118

kPa (1.2 kg/cm

2

, 17 psi).

Pressure Relief Valve

The refrigerant system is also protected by a pressure relief valve, located in the rear head of the compressor.
When the pressure of refrigerant in the system increases to an unusual level [more than 3,628 kPa (37 kg/
cm

2

, 526 psi)], the release port on the pressure relief valve automatically opens and releases refrigerant into

the atmosphere.

LUBRICANT

RJIA1552E
