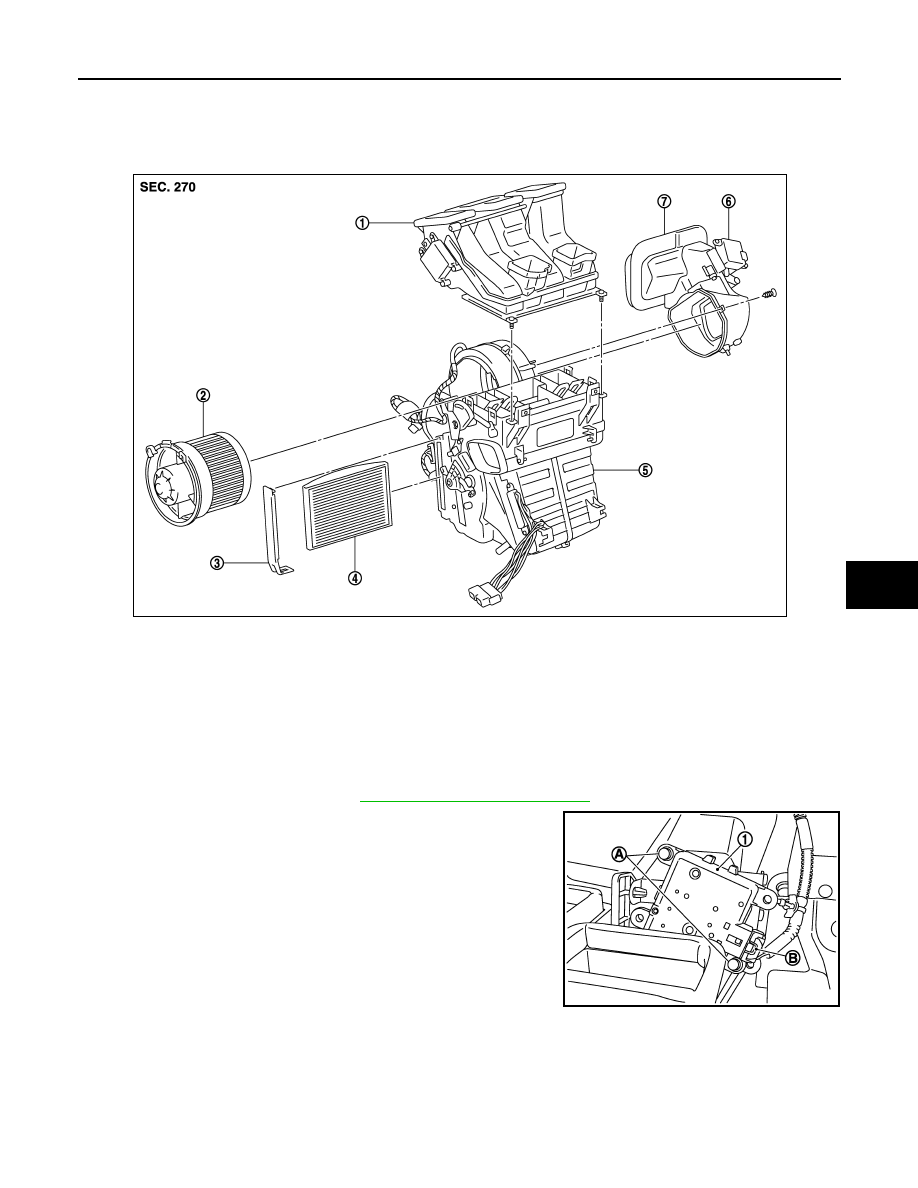

BLOWER MOTOR

Exploded View

INFOID:0000000001093716

Removal and Installation

INFOID:0000000001093717

REMOVAL

LHD MODEL

1.

Remove driver lower instrument panel. Refer to

IP-12, "Removal and Installation"

.

2.

Remove driver foot duct fixing screw, and remove it.

3.

Remove accelerator pedal, and disconnect harness connector. Refer to

ACC-3, "Removal and Installa-

tion"

.

4.

Remove brake and clutch pedal assembly, disconnect harness connectors. Refer to

BR-17, "Removal

and Installation"

 (Brake pedal),

CL-8, "Removal and Installation"

 (Clutch pedal).

5.

Remove blower motor harness connector.

6.

Remove motor fixing screw, then remove blower motor.

7.

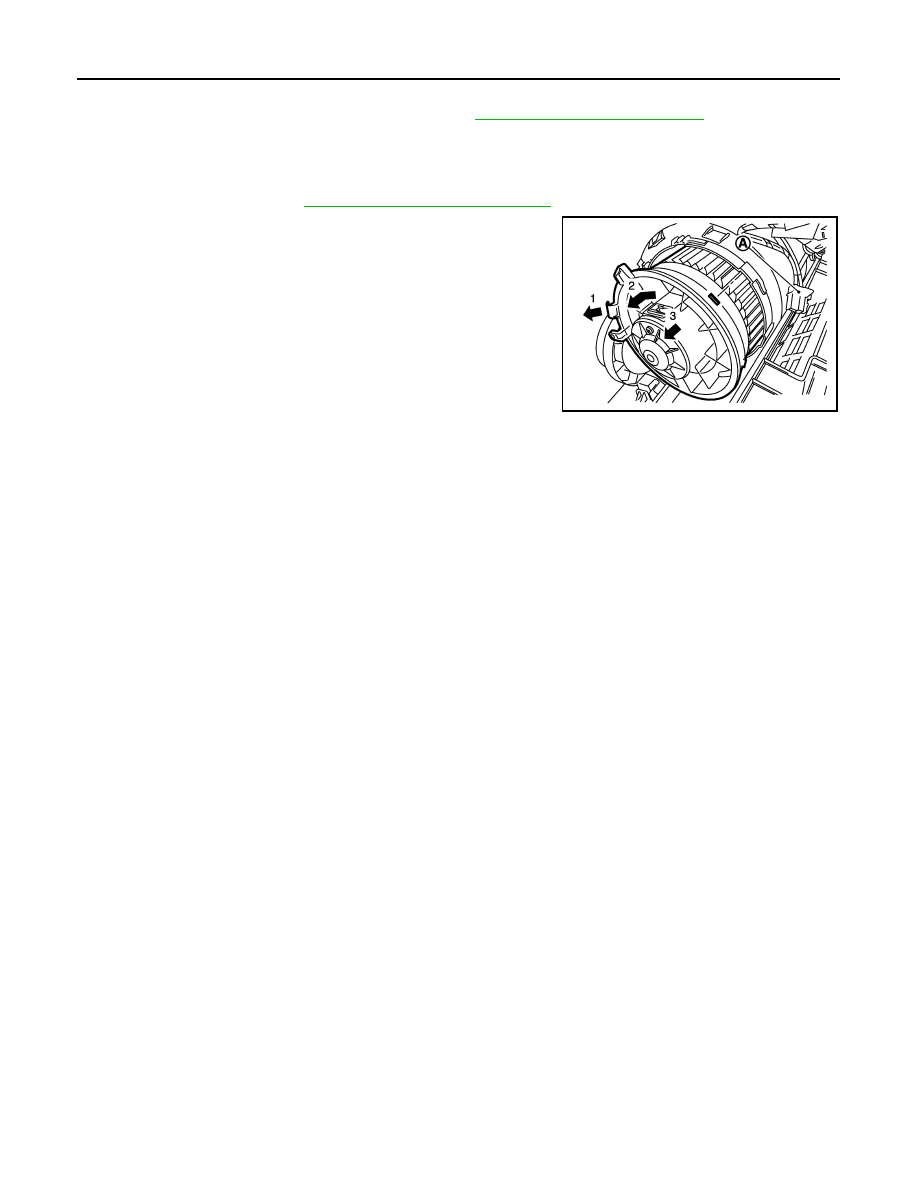

Remove blower motor assembly, as shown.
• Remove fixing screw.
• Disconnect harness connector (A).
• Release maintaining pawl (1) then turn counter clockwise (2)

blower motor assembly.

• Pull outside (3) and remove it.

CAUTION:

Take care of harness connectors around blower motor.

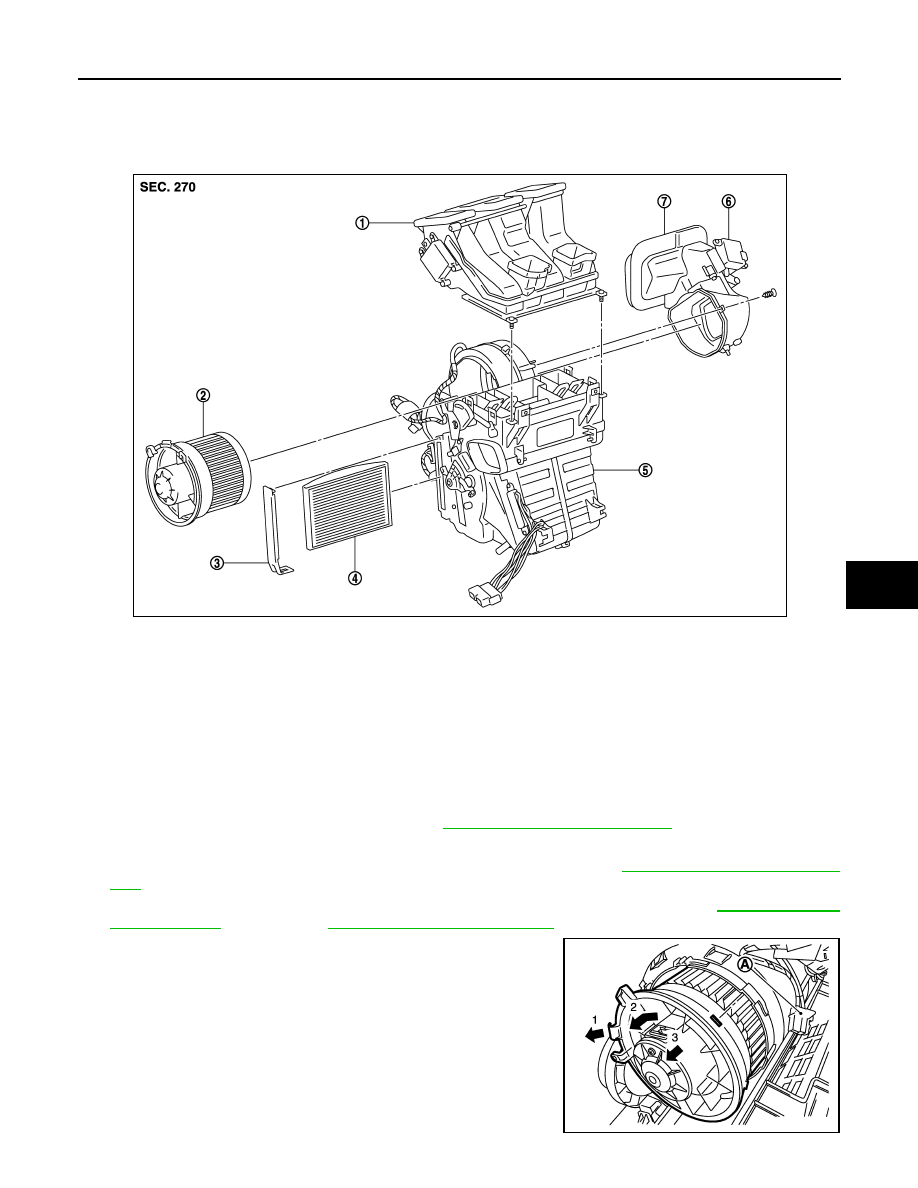

1.

Hi-Level ventilation door unit assem-
bly

2.

Blower motor assembly

3.

Filter cover

4.

In-cabin microfilter

5.

Blower unit

6.

Intake door motor

7.

Intake door unit assembly

E1IIA0002GB

E1IIA0009ZZ

VTL-30

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

BLOWER MOTOR

RHD MODEL

1.

Remove passenger lower instrument panel. Refer to

IP-12, "Removal and Installation"

.

2.

Remove glove Box.

3.

Remove passenger foot duct fixing screw, and remove it.

4.

Remove glove box duct fixing screw, and remove it.

5.

Remove BCM unit. Refer to

BCS-64, "Removal and Installation"

.

6.

Remove blower motor harness connector.

7.

Remove blower motor assembly, as shown

8.

Remove fixing screw.
• Disconnect harness connector (A).
• Release maintaining pawl (1) then turn counter clockwise (2)

blower motor assembly.

• Pull outside (3) and remove it.

CAUTION:

Take care of harness connectors around blower motor.

INSTALLATION

Installation is basically the reverse order of removal.

E1IIA0009ZZ

INTAKE DOOR MOTOR

VTL-31

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

INTAKE DOOR MOTOR

Exploded View

INFOID:0000000001093718

Removal and Installation

INFOID:0000000001093719

REMOVAL

1.

Remove Instrument Panel. Refer to

IP-12, "Removal and Installation"

.

2.

Disconnect intake door motor connector (B).

3.

Remove harness connector fixing clip.

4.

Remove intake door motor fixing screws (A).

5.

Remove intake door motor (1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Hi-Level ventilation door unit assem-
bly

2.

Blower motor assembly

3.

Filter cover

4.

In-cabin microfilter

5.

Blower unit

6.

Intake door motor

7.

Intake door unit assembly

E1IIA0002GB

E1IIA0017ZZ

VTL-32

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

HEATER & COOLING UNIT ASSEMBLY

HEATER & COOLING UNIT ASSEMBLY

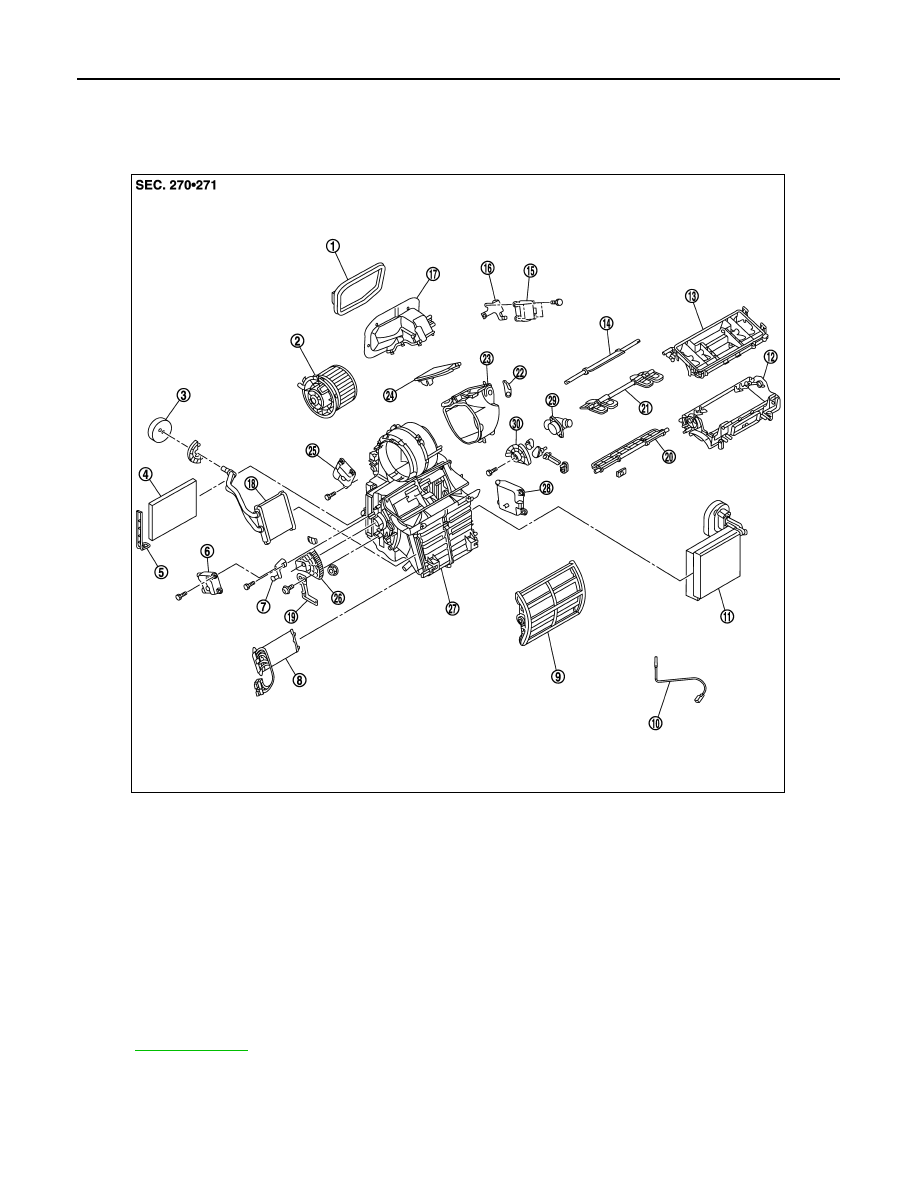

Exploded View

INFOID:0000000001093720

Removal and Installation

INFOID:0000000001093721

REMOVAL

1.

Intake connector seal

2.

Blower motor assembly

3.

Heater pipe seal

4.

Air conditioner filter

5.

Air conditioner filter cover

6.

Air mix door motor (left)

7.

Air mix door lever

8.

Electrical heater

9.

Air mix door (slide door)

10. Intake sensor

11.

Evaporator and expansion valve unit

12.

Center case (lower)

13. Center case (upper)

14.

Defroster door

15.

Intake door motor

16. Intake motor bracket

17.

Intake connector

18.

Heater core

19. Air mix door link bracket

20.

Front ventilator door

21.

Side ventilator door

22. Intake door lever

23.

Intake door box

24.

Intake door

25. Mode door motor

26.

Air mix door link (left)

27.

Heater and cooling unit case

28. Air mix door motor (right)

29.

Aspirator

30.

Air mix door link (right)

*

With left and right ventilation temperature separately system.

Refer to

GI-4, "Components"

 for symbols in the figure.

E1IIA0008GB
