Nissan Qashqai (2007-2010). Manual - part 839

AUTO AMP.

VTL-21

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

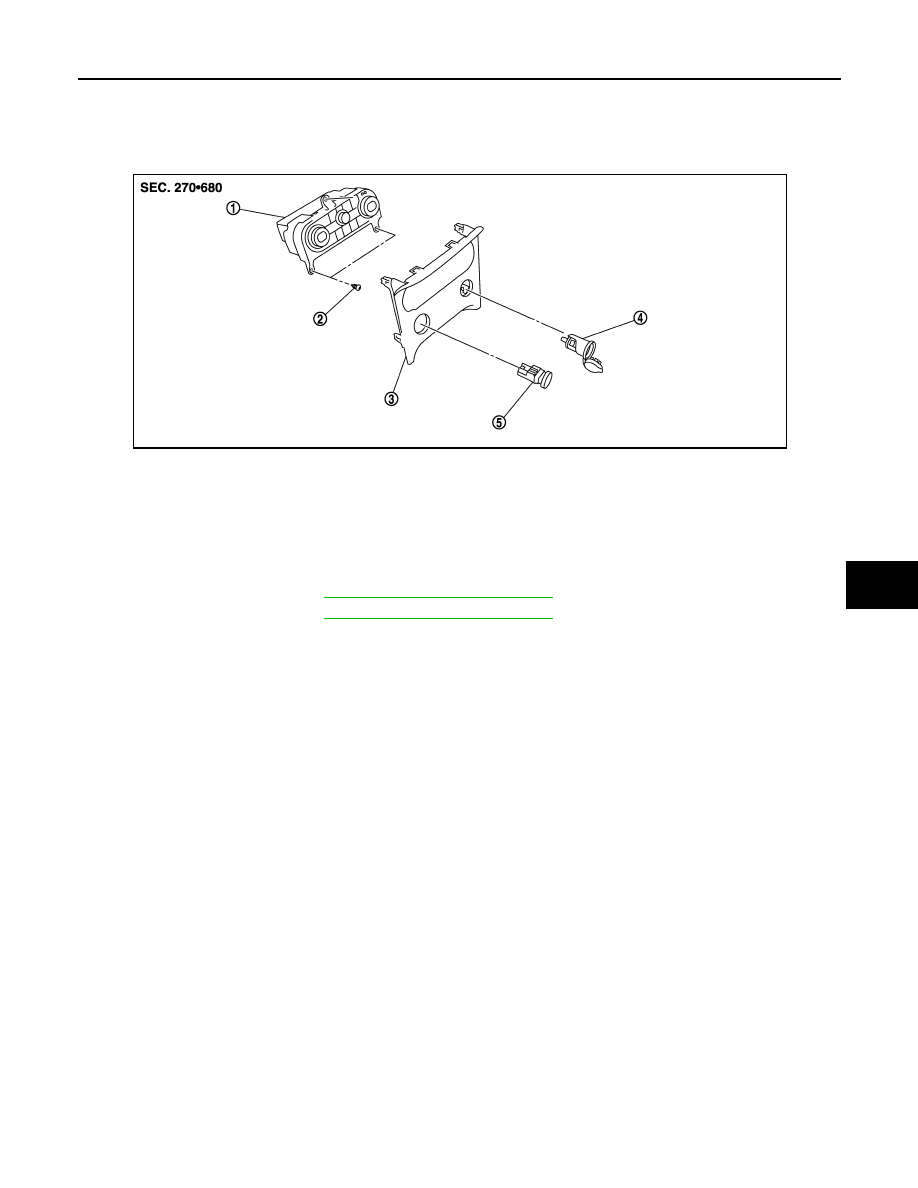

AUTO AMP.

Exploded View

INFOID:0000000001093704

Removal and Installation

INFOID:0000000001093705

REMOVAL

1.

Remove cluster lid D. Refer to

IP-12, "Removal and Installation"

.

2.

Remove cluster lid C. Refer to

IP-12, "Removal and Installation"

.

3.

Remove auto amp. fixing screws from instrument panel, then pull auto amp. assembly, and disconnect
harness connectors.

4.

Remove auto amp. assembly.

INSTALLATION

Installation is basically the reverse order of removal.

1.

Auto amp.

2.

Preset switch fixing screw

3.

Cluster lid D

4.

Power socket

5.

Button

E1IIA0004ZZ

VTL-22

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

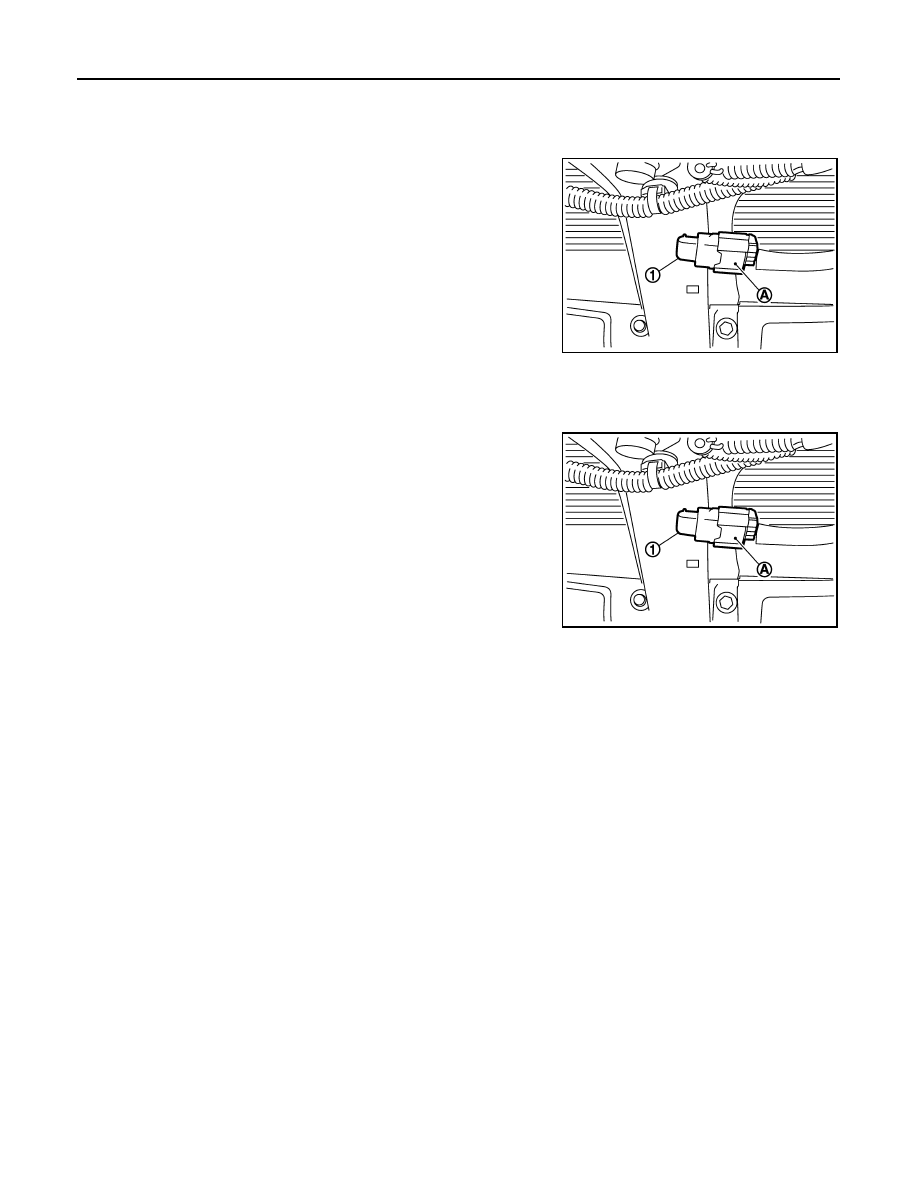

AMBIENT SENSOR

AMBIENT SENSOR

Exploded View

INFOID:0000000001093706

Removal and Installation

INFOID:0000000001093707

REMOVAL

1.

Disconnect ambient sensor connector (A), and then remove
ambient sensor(1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Ambient sensor

E1IIA0005ZZ

E1IIA0005ZZ

IN-VEHICLE SENSOR

VTL-23

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

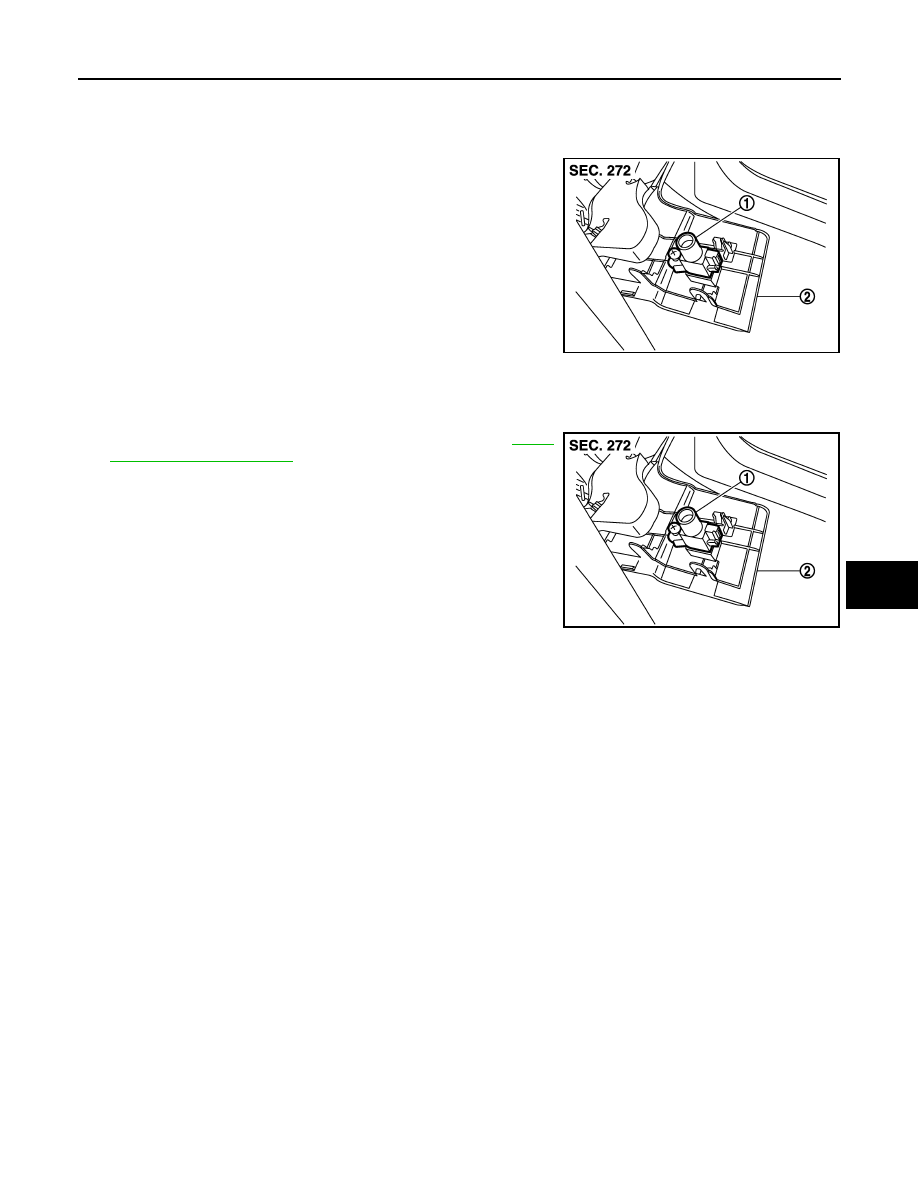

IN-VEHICLE SENSOR

Exploded View

INFOID:0000000001093708

Removal and Installation

INFOID:0000000001093709

REMOVAL

1.

Remove instrument driver lower panel (2). Refer to

IP-12,

"Removal and Installation"

.

2.

Disconnect harness connector.

3.

Remove hose tube from in-vehicle sensor (1).

4.

Remove mounting screws, and then remove in-vehicle sensor.

INSTALLATION

Installation is basically the reverse order of removal.

1.

In-vehicle sensor

2.

instrument driver lower panel

E1IIA0006ZZ

E1IIA0006ZZ

VTL-24

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

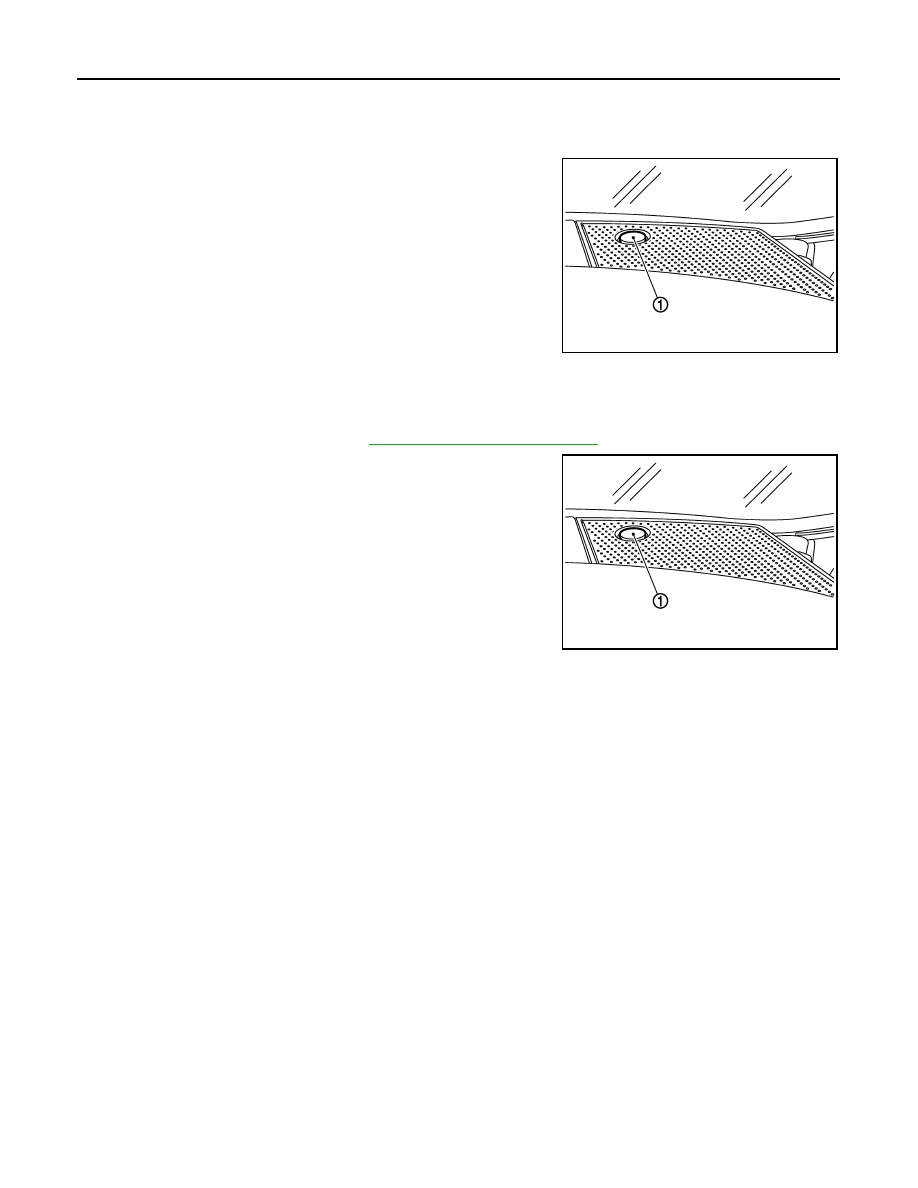

SUNLOAD SENSOR

SUNLOAD SENSOR

Exploded View

INFOID:0000000001093710

Removal and Installation

INFOID:0000000001093711

REMOVAL

1.

Remove speaker grille (left). Refer to

IP-12, "Removal and Installation"

.

2.

Disconnect sunload sensor connector, and then remove sunload
sensor (1).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Sunload sensor

E1IIA0007ZZ

E1IIA0007ZZ
