INTAKE SENSOR

VTL-25

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

INTAKE SENSOR

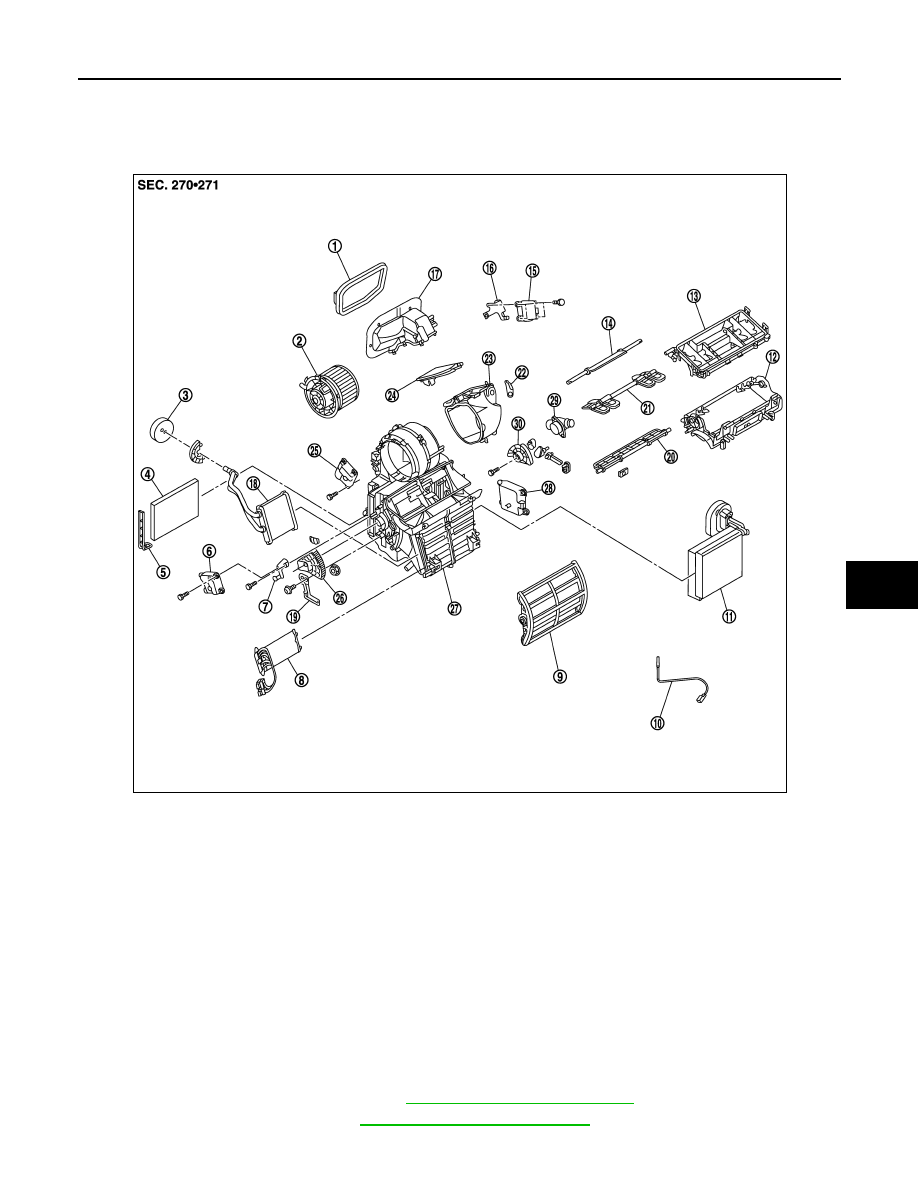

Exploded View

INFOID:0000000001093714

Removal and Installation

INFOID:0000000001093715

REMOVAL

1.

Remove passenger front Air Bag. Refer to

SR-8, "Removal and Installation"

.

2.

Remove Instrument Panel. Refer to

IP-12, "Removal and Installation"

.

1.

Intake connector seal

2.

Blower motor assembly

3.

Heater pipe seal

4.

Air conditioner filter

5.

Air conditioner filter cover

6.

Air mix door motor (left)

7.

Air mix door lever

8.

Electrical heater

9.

Air mix door (slide door)

10. Intake sensor

11.

Evaporator and expansion valve unit 12. Center case (lower)

13. Center case (upper)

14.

Defroster door

15. Intake door motor

16. Intake motor bracket

17.

Intake connector

18. Heater core

19. Air mix door link bracket

20.

Front ventilator door

21. Slide ventilator door

22. Intake door lever

23.

Intake door box

24. Intake door

25. More door motor

26.

Air mix door link (left)

27. Heater and cooling unit case

28. Air mix door motor (right)

29.

Aspirator

30. Air mix door link (right)

E1IIA0008GB

VTL-26

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

INTAKE SENSOR

3.

Remove heater and cooling unit case.

4.

Remove low-pressure pipe 1 and high-pressure pipe 2. Refer to

HA-47, "Removal and Installation"

 (MR/

HR),

HA-98, "Removal and Installation"

 (K9K).

CAUTION:

Cap or wrap the joint of low-pressure pipe 1, 2 and high-pressure pipe 1, 2 with suitable material such
as vinyl tape to avoid the entry of air.

5.

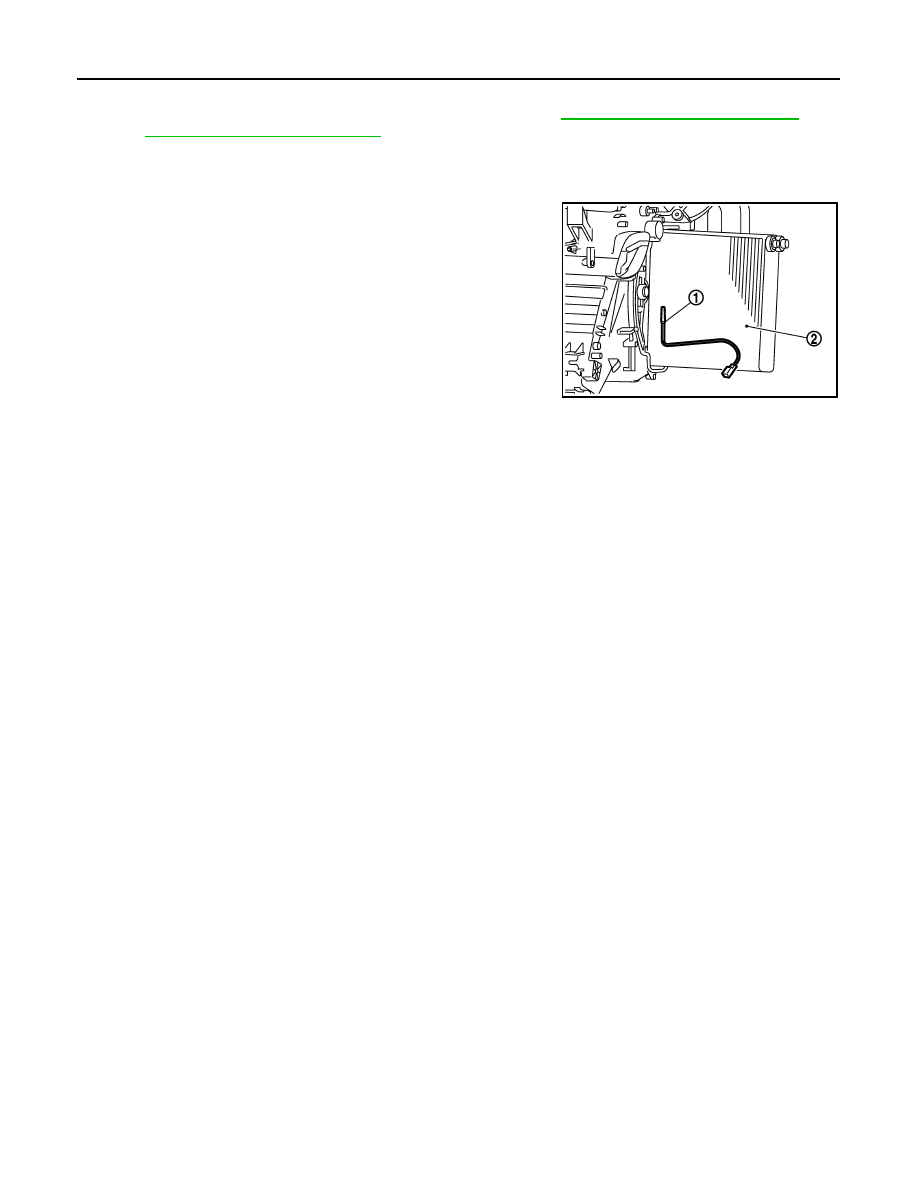

Slide evaporator (2) to passenger side, and then remove intake
sensor (1).

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings of low-pressure pipe 1, 2 and high-pressure pipe 1, 2 with new ones, and then apply

compressor oil to it when installing it.

• Mark the mounting position of intake sensor bracket prior to removal so that the reinstalled sensor

can be located in the same position.

• Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping

straight in axial direction.

• Insert piping securely until a click is heard.
• After piping connection is completed, pull male-side piping by hand to make sure that connection

does not come loose.

• When recharging refrigerant, check for leaks.

JPIIA0030ZZ

BLOWER UNIT

VTL-27

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

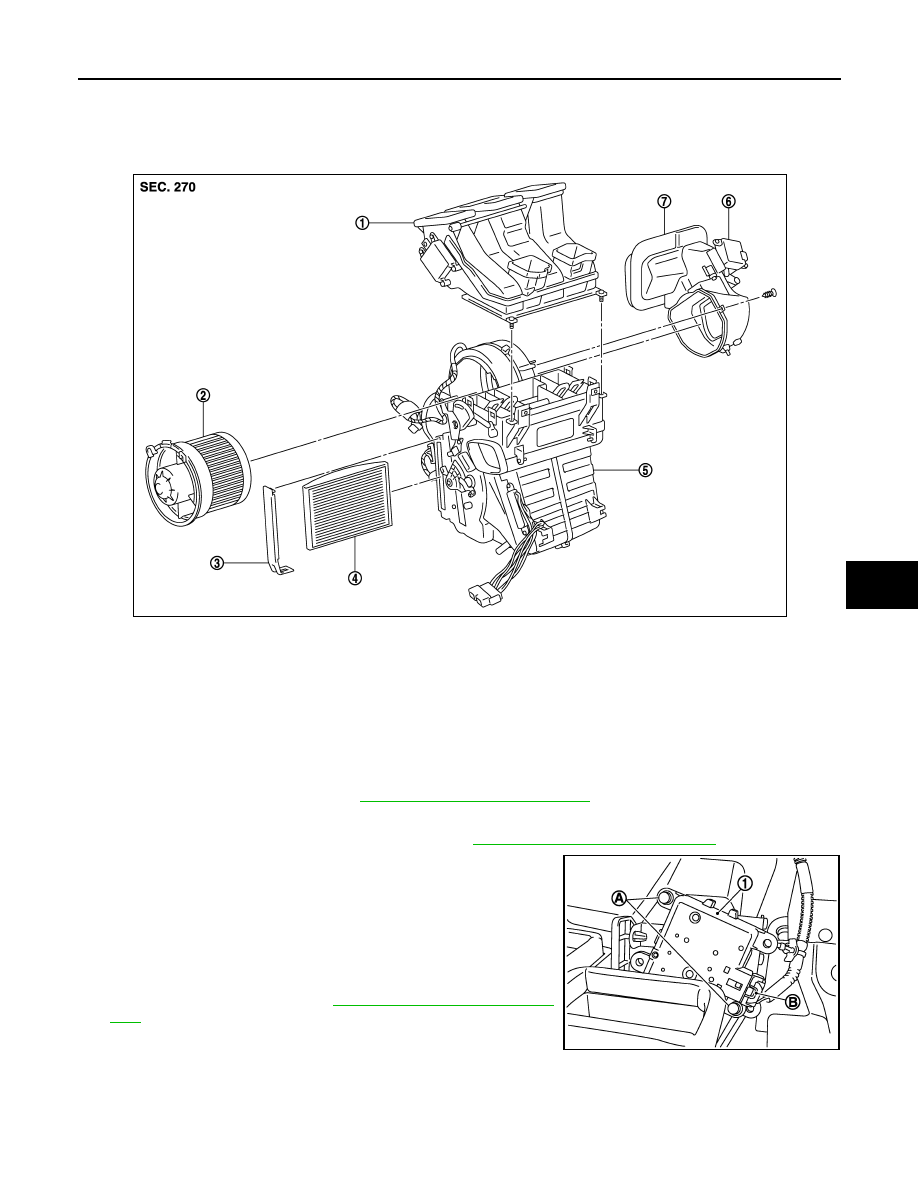

BLOWER UNIT

Exploded View

INFOID:0000000001115961

Removal and Installation

INFOID:0000000001115962

REMOVAL

1.

Remove Instrument Panel. Refer to

IP-12, "Removal and Installation"

.

2.

Remove steering member.

3.

Remove Heater and cooling unit assembly. Refer to

VTL-32, "Removal and Installation"

.

4.

Remove harness fixing clip from upper intake box.

5.

Remove door motor harness connector (B).

6.

Remove lower intake box fixing screw from heater and cooling
case.

7.

Remove intake door motor (1).
• Remove fixing screws (A).
• Remove bracket support fixing screws and bracket support.

8.

Remove blower motor.Refer to

VTL-29, "Removal and Installa-

tion"

.

CAUTION:

Move blower unit rightward, and remove locating pin (1
part) and joint. Then remove blower unit downward.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

1.

Hi-Level ventilation door unit assem-
bly

2.

Blower motor assembly

3.

Filter cover

4.

In-cabin microfilter

5.

Blower unit

6.

Intake door motor

7.

Intake door unit assembly

E1IIA0002GB

E1IIA0017ZZ

VTL-28

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

BLOWER UNIT

Make sure locating pin are securely inserted.
