AV-210

< ON-VEHICLE REPAIR >

[AUDIO WITH NAVIGATION]

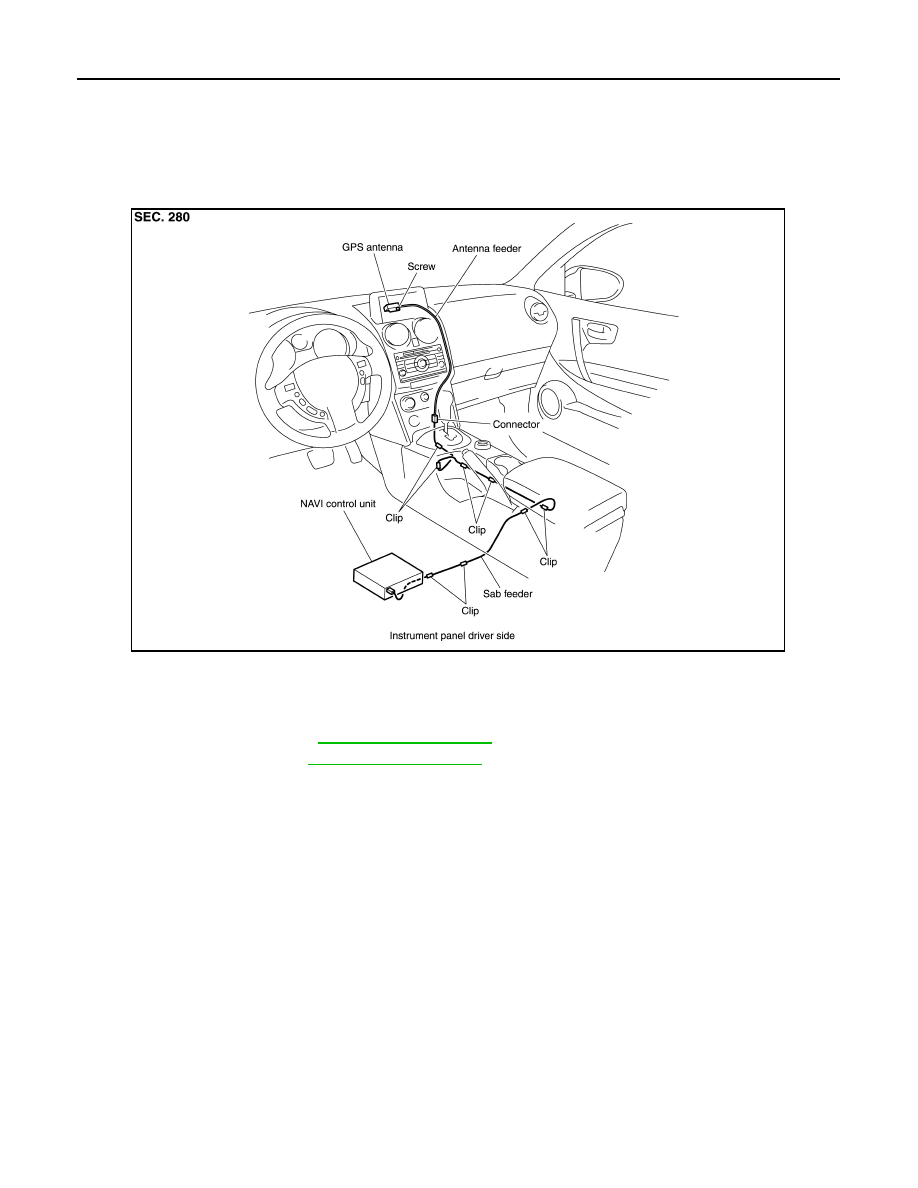

GPS ANTENNA

GPS ANTENNA

Harness Layout

INFOID:0000000000947181

NOTE:
As for right-hand drive vehicles, install GPS antenna feeder between the center console and the instrument
panel in the reverse of left-handle drive vehicles.

Removal and Installation

INFOID:0000000000947182

REMOVAL

1.

Remove display unit. Refer to

AV-203, "Exploded View"

.

2.

Remove audio unit. Refer to

AV-202, "Exploded View"

.

JSNIA0361GB

AV

GPS ANTENNA

AV-211

< ON-VEHICLE REPAIR >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

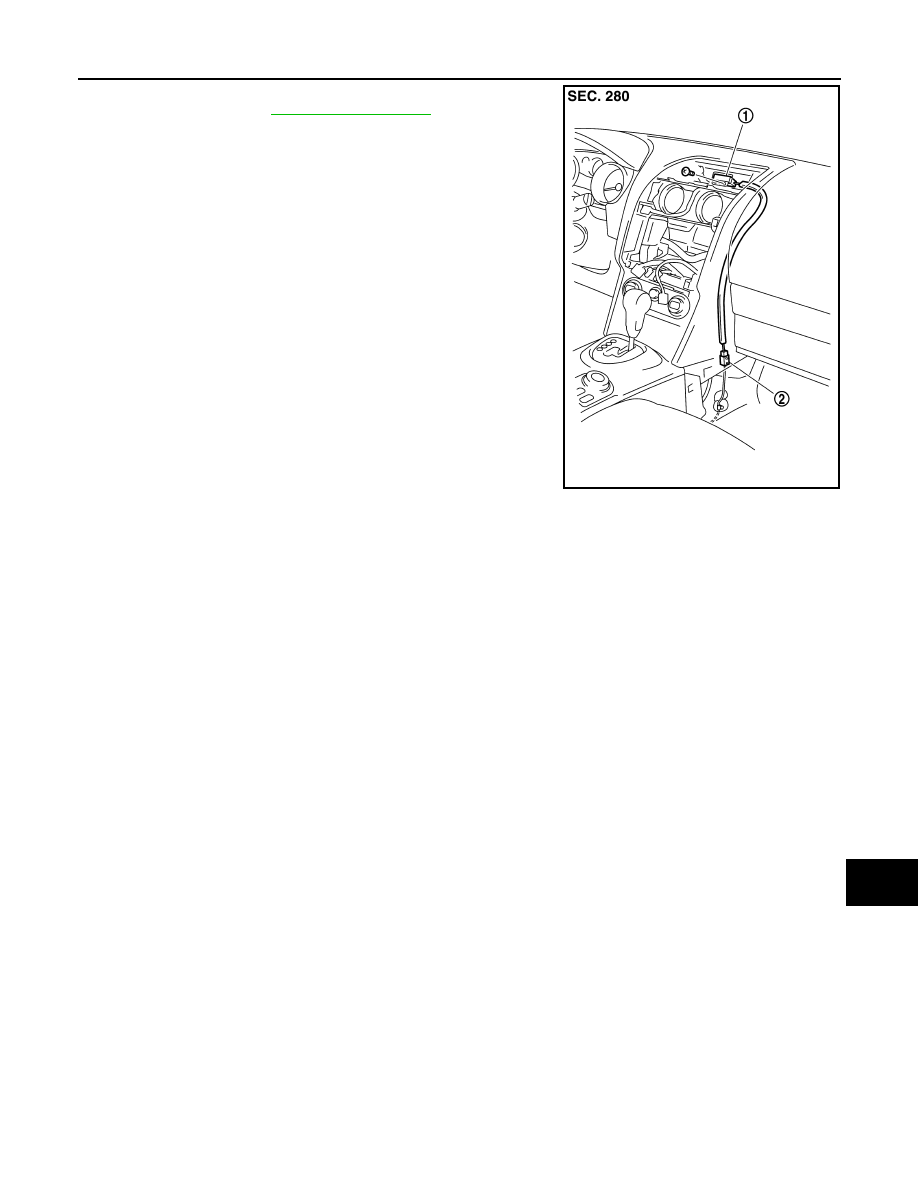

3.

Remove instrument lower panel RH. Then remove GPS antenna
connector (2). Refer to

IP-11, "Exploded View"

.

4.

Remove GPS antenna (1).

INSTALLATION

Install in the reverse order of removal.

JSNIA0362ZZ

AV-212

< ON-VEHICLE REPAIR >

[AUDIO WITH NAVIGATION]

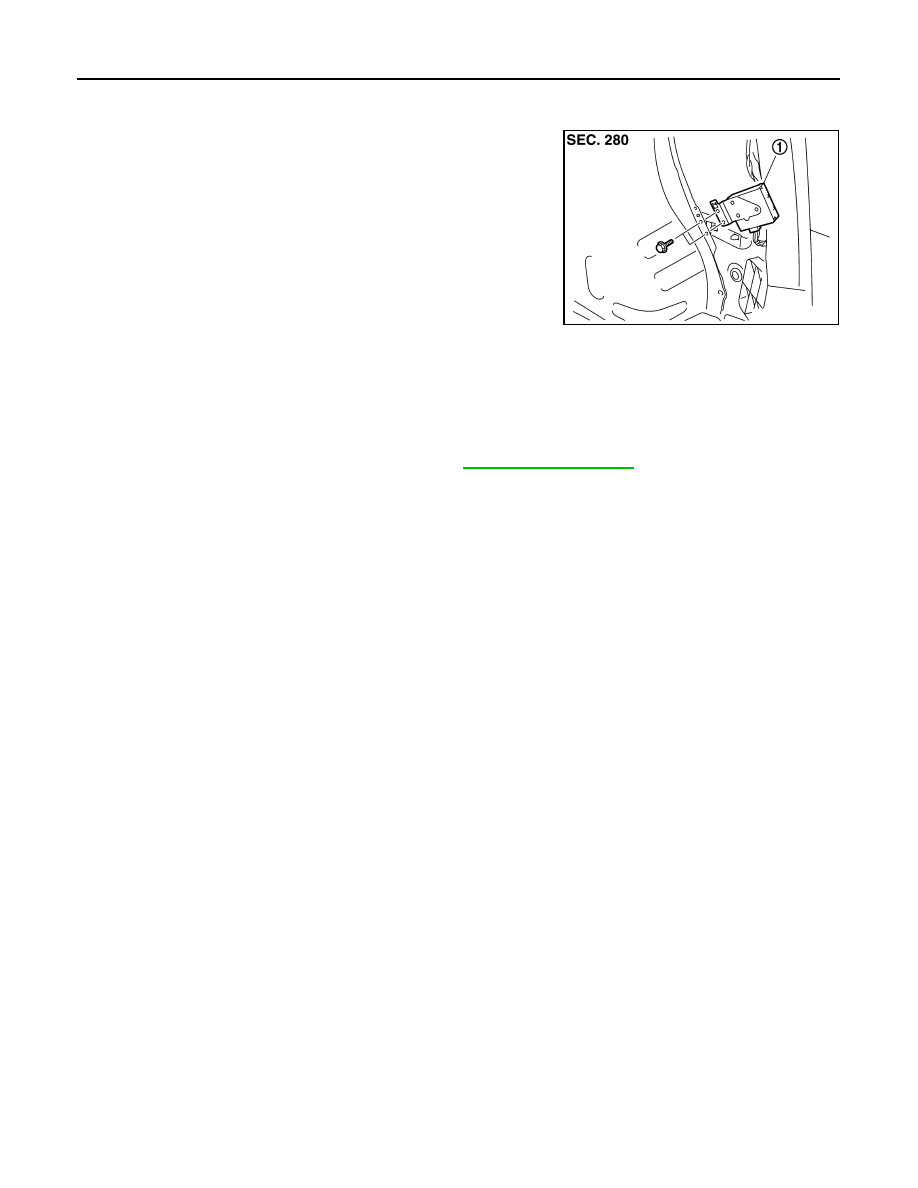

CAMERA CONTROL UNIT

CAMERA CONTROL UNIT

Exploded View

INFOID:0000000000947183

Removal and Installation

INFOID:0000000000947184

REMOVAL

1.

Remove luggage side lower finisher (RH). Refer to

INT-24, "Exploded View"

.

2.

Remove camera control unit.

INSTALLATION

Install in the reverse order of removal.

JSNIA0364ZZ

1.

Camera control unit

AV

REAR VIEW CAMERA

AV-213

< ON-VEHICLE REPAIR >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

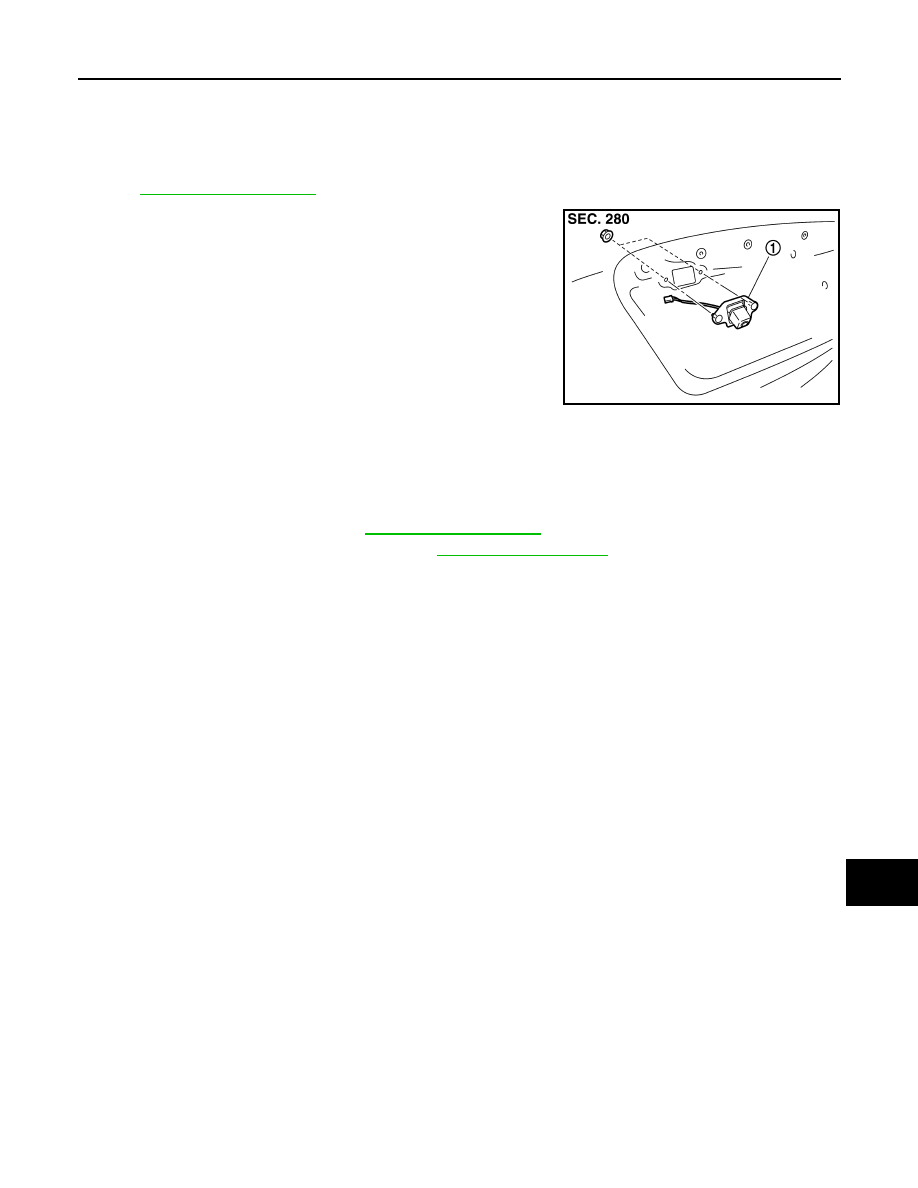

REAR VIEW CAMERA

Exploded View

INFOID:0000000000947186

REMOVAL

Refer to

EXT-31, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000947187

REMOVAL

1.

Remove back door finisher. Refer to

EXT-31, "Exploded View"

.

2.

Remove back door trim finisher lower. Refer to

INT-26, "Exploded View"

.

3.

Remove rear view camera.

INSTALLATION

Install in the reverse order of removal.

Adjustment

INFOID:0000000000970728

DESCRIPTION

CONSULT-III is used to modify the guideline position that shows the width of vehicle and the distance from
rear end of vehicle on the rear view monitor. These can be caused by condition variations of body assembly
and camera installation.

VEHICLE WIDTH AND DISTANCE GUIDING LINE CORRECTION PROCEDURE

JSNIA0365ZZ

1.

Rear view camera
