AV-206

< ON-VEHICLE REPAIR >

[AUDIO WITH NAVIGATION]

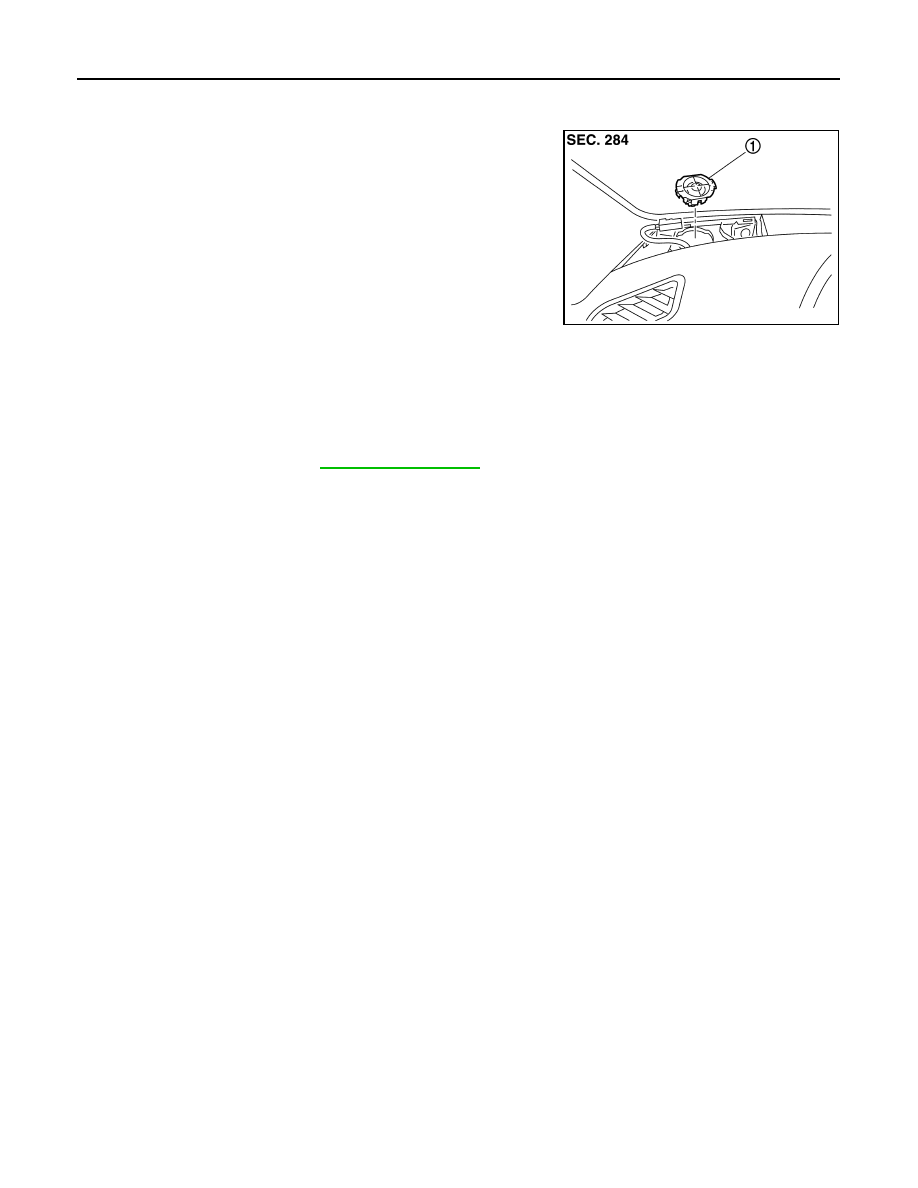

TWEETER

TWEETER

Exploded View

INFOID:0000000000947156

Removal and Installation

INFOID:0000000000947157

REMOVAL

1.

Remove tweeter grill. Refer to

IP-11, "Exploded View"

.

2.

Remove tweeter.

INSTALLATION

Install in the reverse order of removal.

JSNIA0359ZZ

1.

Tweeter

AV

STEERING SWITCH

AV-207

< ON-VEHICLE REPAIR >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Exploded View

INFOID:0000000000947172

Refer to

ST-9, "Exploded View"

.

Removal and Installation

INFOID:0000000000947173

REMOVAL

Refer to

ST-9, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

AV-208

< ON-VEHICLE REPAIR >

[AUDIO WITH NAVIGATION]

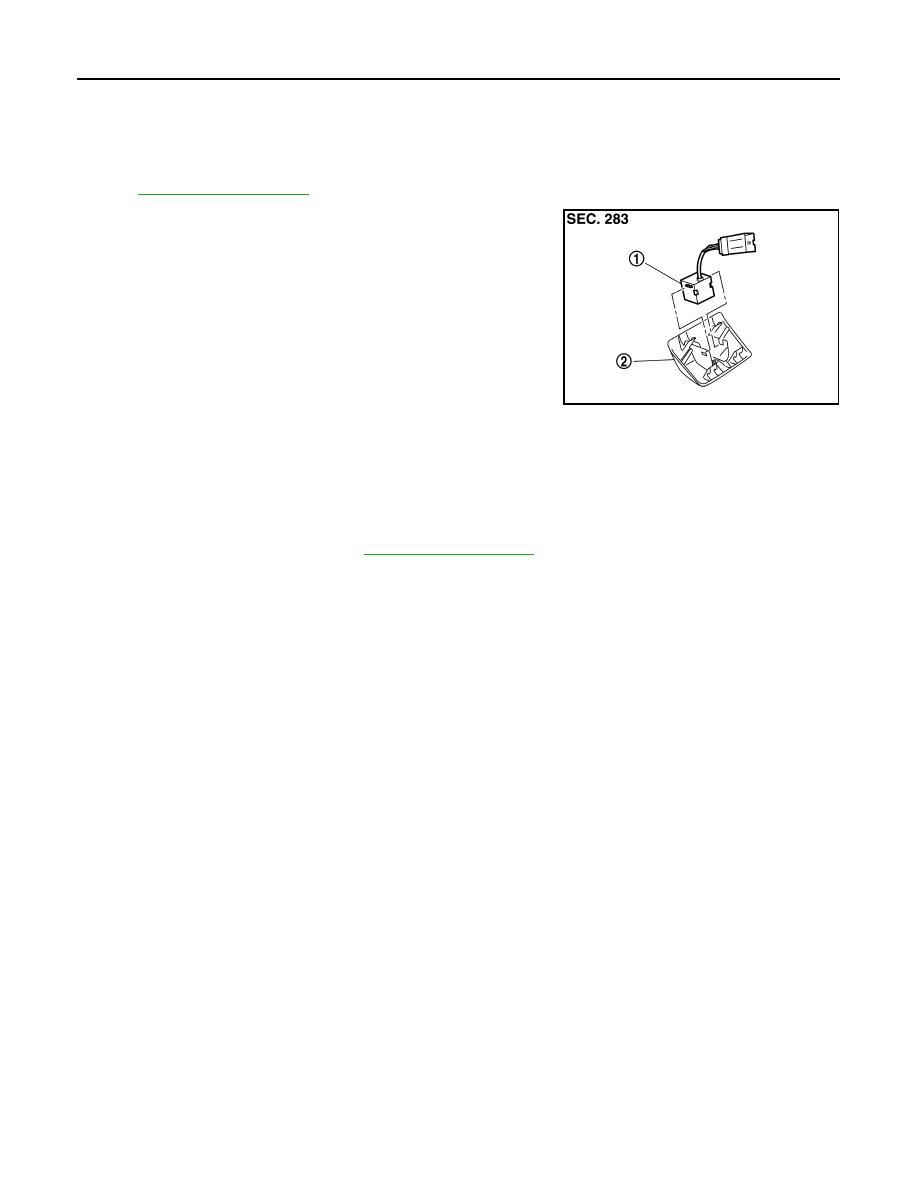

MICROPHONE

MICROPHONE

Exploded View

INFOID:0000000000947178

REMOVAL

Refer to

INT-20, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000947179

REMOVAL

1.

Remove microphone cover. Refer to

INT-20, "Exploded View"

.

2.

Remove microphone.

INSTALLATION

Install in the reverse order of removal.

JSNIA0360ZZ

1.

Microphone

2.

Microphone cover

AV

RADIO ANTENNA

AV-209

< ON-VEHICLE REPAIR >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

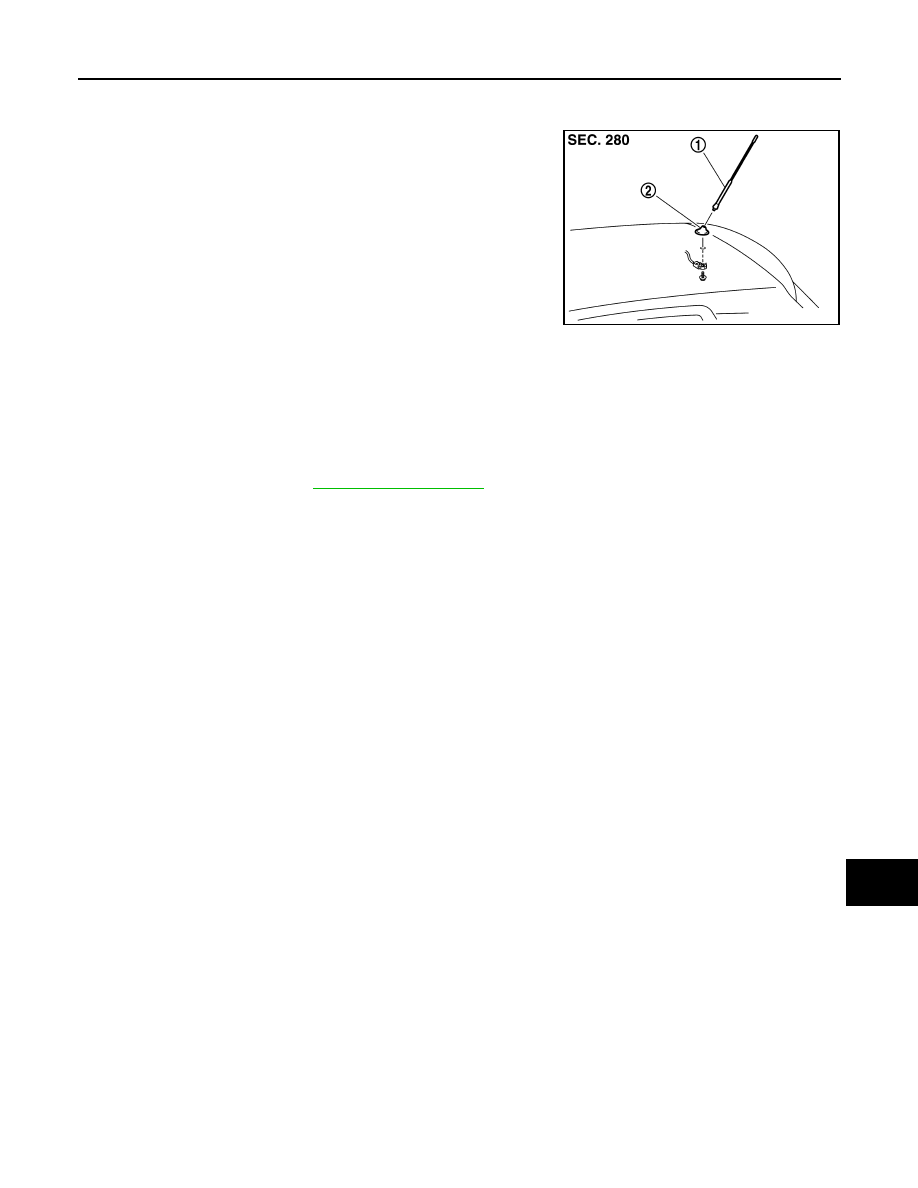

RADIO ANTENNA

Exploded View

INFOID:0000000000967694

Removal and Installation

INFOID:0000000000967695

REMOVAL

1.

Remove headlining. Refer to

INT-20, "Exploded View"

.

2.

Remove antenna base and antenna rod.

INSTALLATION

Install in the reverse order of removal.

JSNIA0363ZZ

1.

Rod antenna

2.

Antenna base
