AV-202

< ON-VEHICLE REPAIR >

[AUDIO WITH NAVIGATION]

AUDIO UNIT

AUDIO UNIT

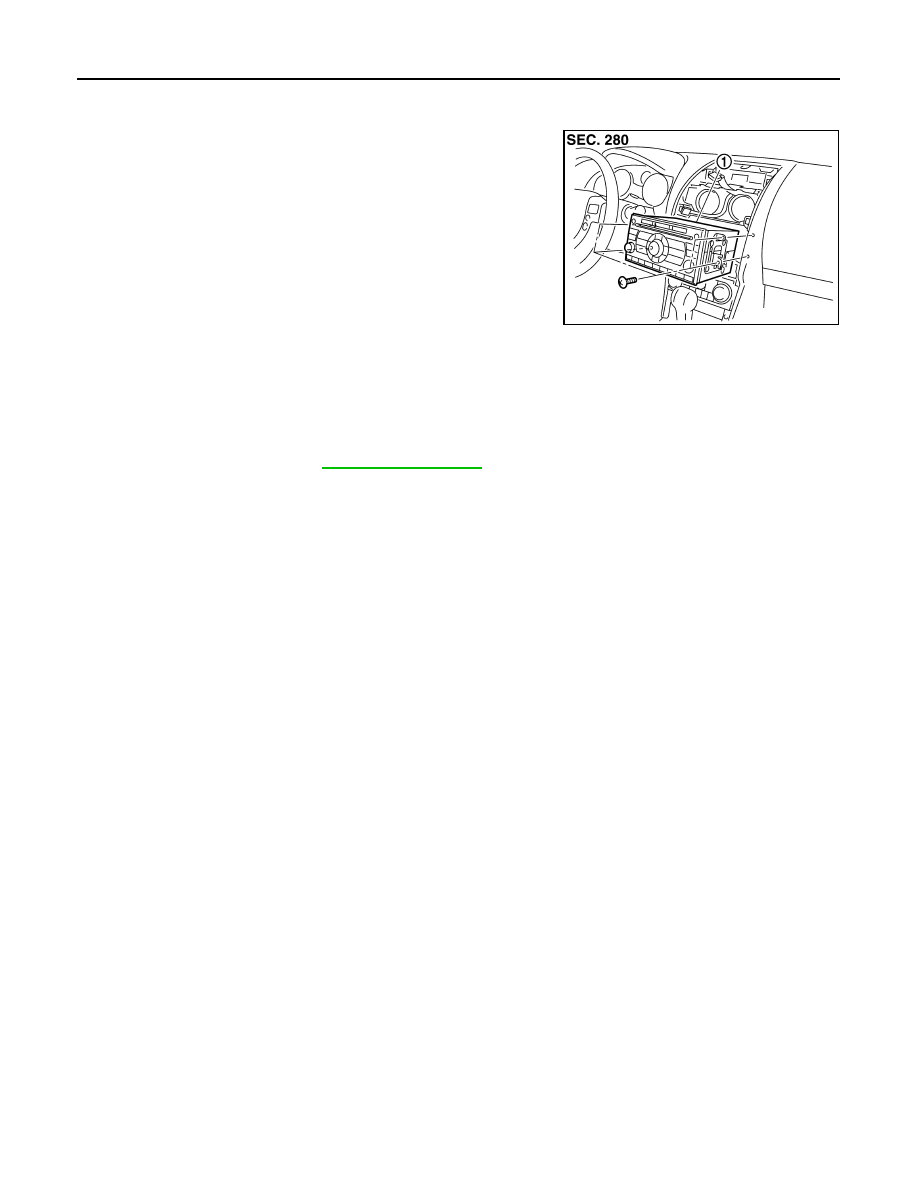

Exploded View

INFOID:0000000000954534

Removal and Installation

INFOID:0000000000954535

REMOVAL

1.

Remove cluster lid C. Refer to

IP-11, "Exploded View"

.

2.

Remove audio unit with bracket.

INSTALLATION

Install in the reverse order of removal.

JSNIA0355ZZ

1.

Audio unit

AV

DISPLAY UNIT

AV-203

< ON-VEHICLE REPAIR >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DISPLAY UNIT

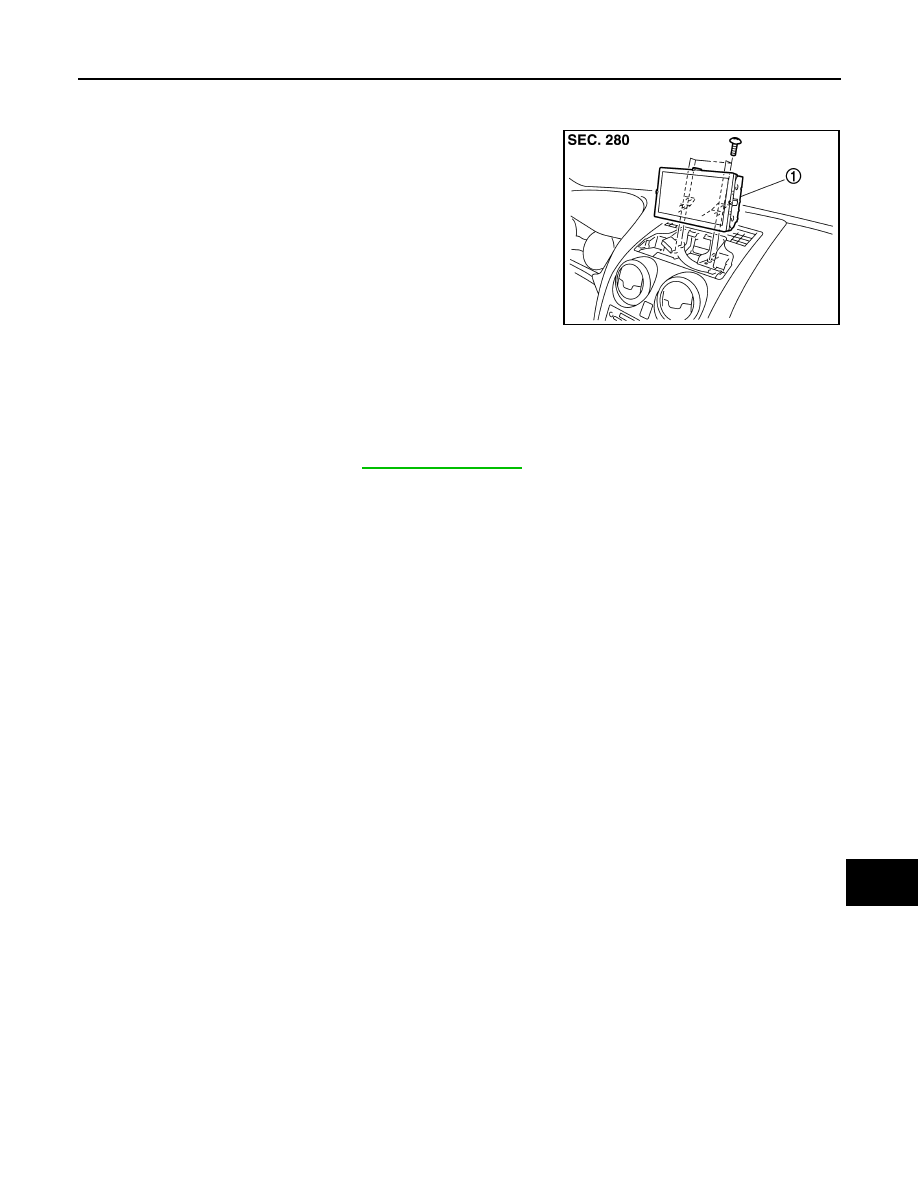

Exploded View

INFOID:0000000000947148

Removal and Installation

INFOID:0000000000947149

REMOVAL

1.

Remove display unit cover. Refer to

IP-11, "Exploded View"

.

2.

Remove display unit with bracket.

INSTALLATION

Install in the reverse order of removal.

JSNIA0356ZZ

1.

Display unit

AV-204

< ON-VEHICLE REPAIR >

[AUDIO WITH NAVIGATION]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

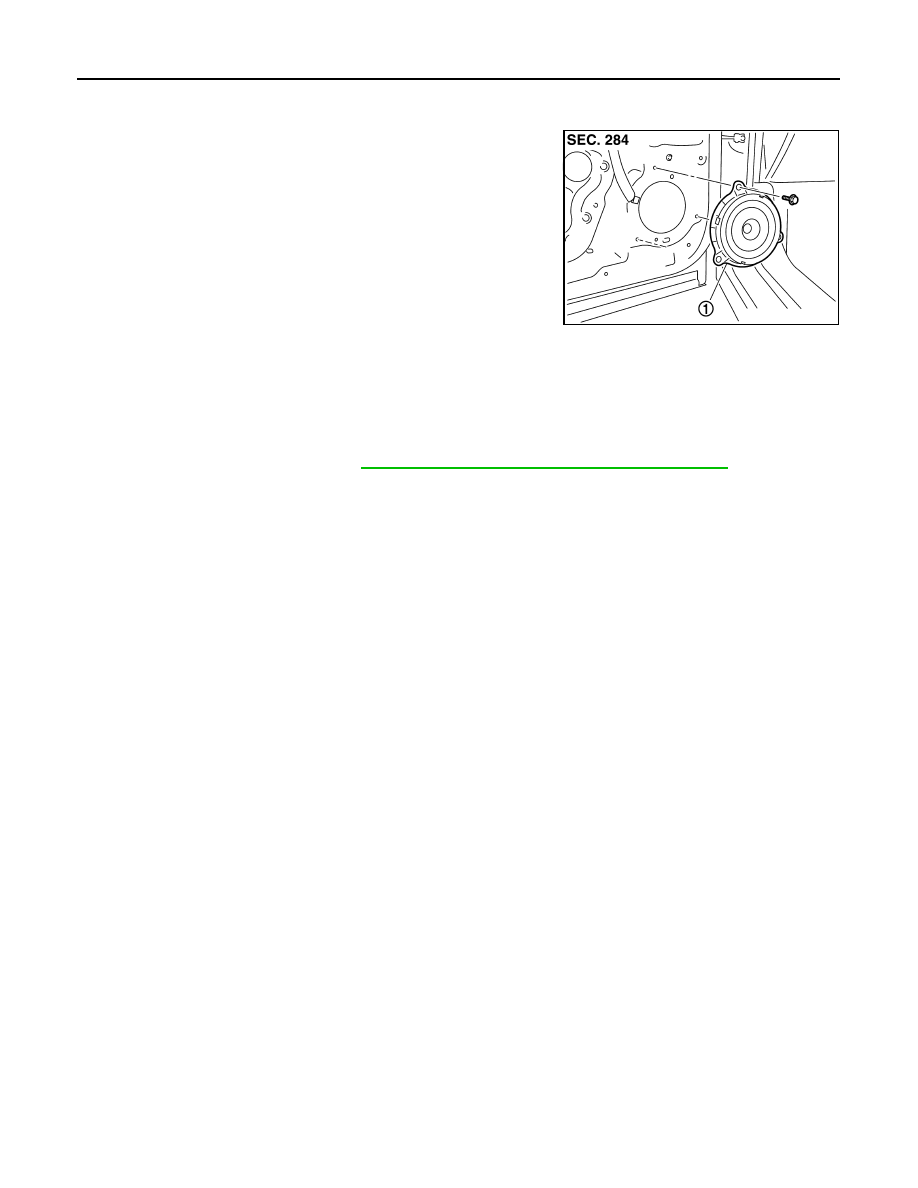

Exploded View

INFOID:0000000000947152

Removal and Installation

INFOID:0000000000947153

REMOVAL

1.

Remove front door finisher. Refer to

INT-10, "FRONT DOOR FINISHER : Exploded View"

.

2.

Remove front door speaker.

INSTALLATION

Install in the reverse order of removal.

JSNIA0357ZZ

1.

Front door speaker

AV

REAR DOOR SPEAKER

AV-205

< ON-VEHICLE REPAIR >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

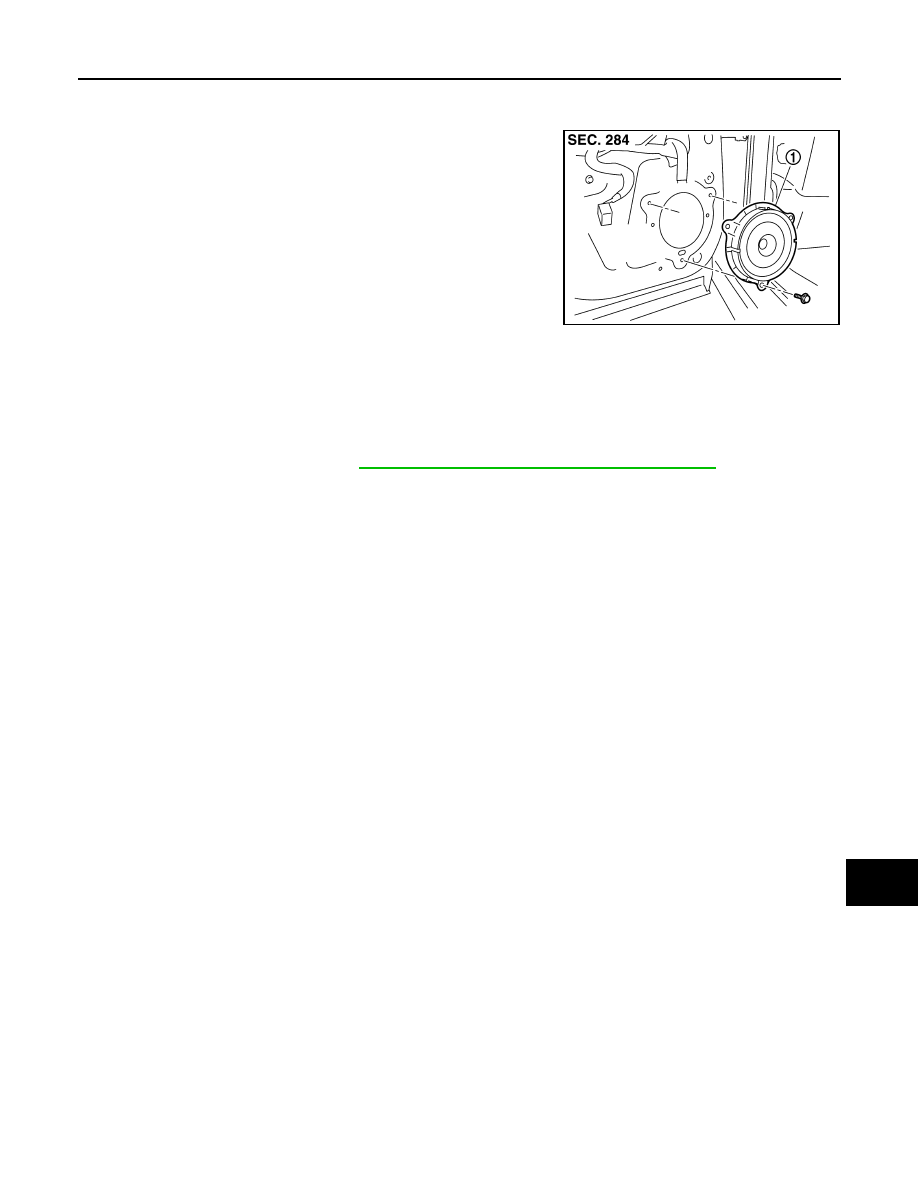

Exploded View

INFOID:0000000000947154

Removal and Installation

INFOID:0000000000947155

REMOVAL

1.

Remove rear door finisher. Refer to

INT-12, "REAR DOOR FINISHER : Exploded View"

.

2.

Remove rear door speaker.

INSTALLATION

Install in the reverse order of removal.

JSNIA0358ZZ

1.

Rear door speaker
