AV-38

< ON-VEHICLE REPAIR >

[AUDIO WITHOUT NAVIGATION]

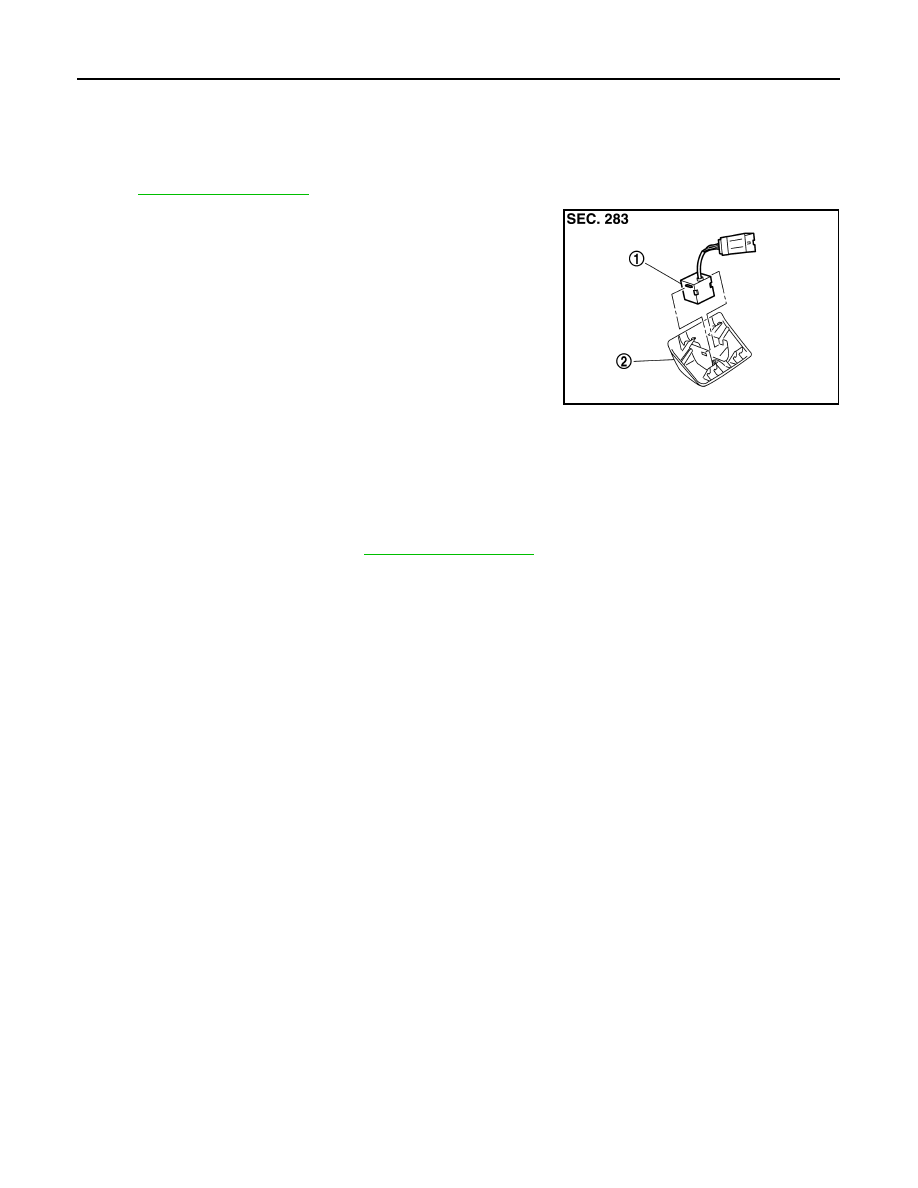

MICROPHONE

MICROPHONE

Exploded View

INFOID:0000000000996514

REMOVAL

Refer to

INT-20, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000996515

REMOVAL

1.

Remove microphone cover. Refer to

INT-20, "Exploded View"

.

2.

Remove microphone.

INSTALLATION

Install in the reverse order of removal.

JSNIA0360ZZ

1.

Microphone

2.

Microphone cover

AV

RADIO ANTENNA

AV-39

< ON-VEHICLE REPAIR >

[AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

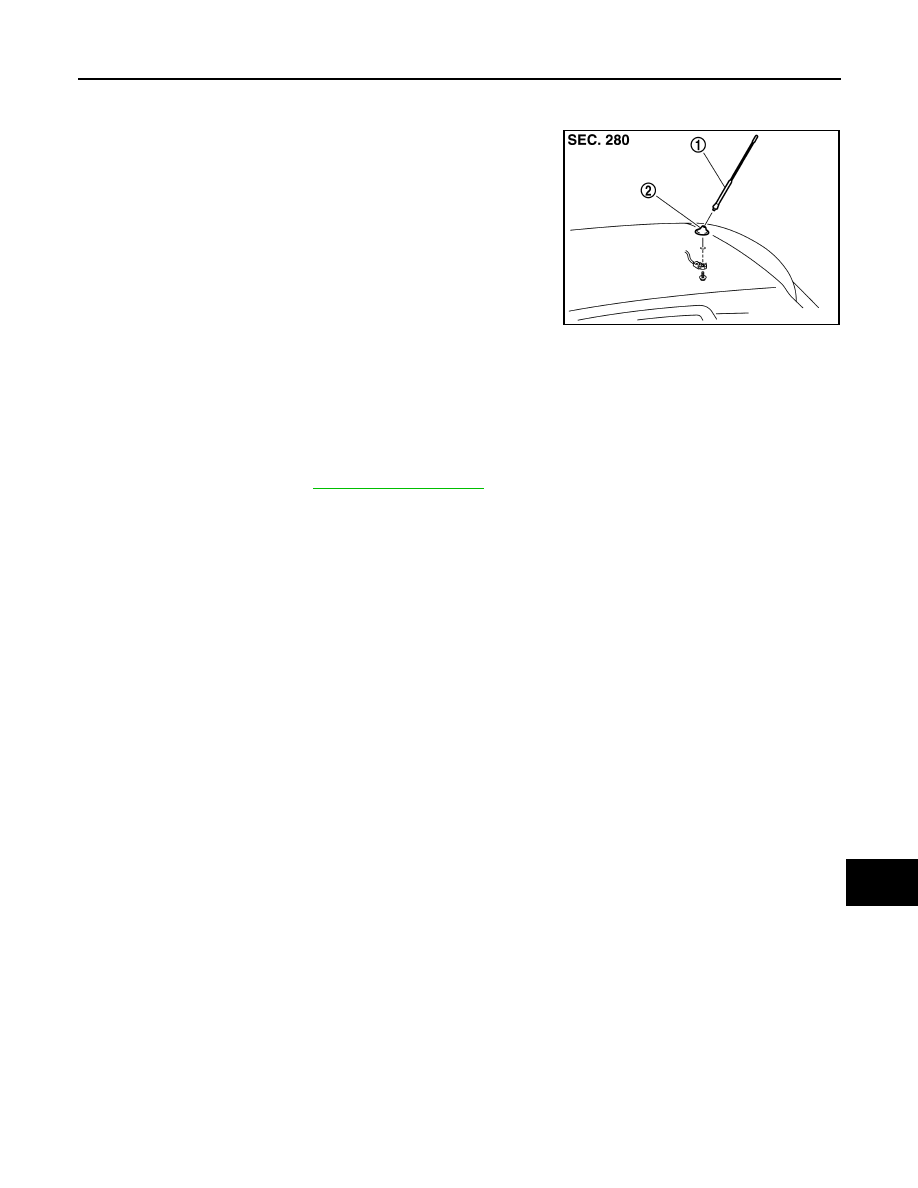

RADIO ANTENNA

Exploded View

INFOID:0000000000996516

Removal and Installation

INFOID:0000000000996517

REMOVAL

1.

Remove headlining. Refer to

INT-20, "Exploded View"

.

2.

Remove antenna base and antenna rod.

INSTALLATION

Install in the reverse order of removal.

JSNIA0363ZZ

1.

Antenna rod

2.

Antenna base

AV-40

< ON-VEHICLE REPAIR >

[AUDIO WITHOUT NAVIGATION]

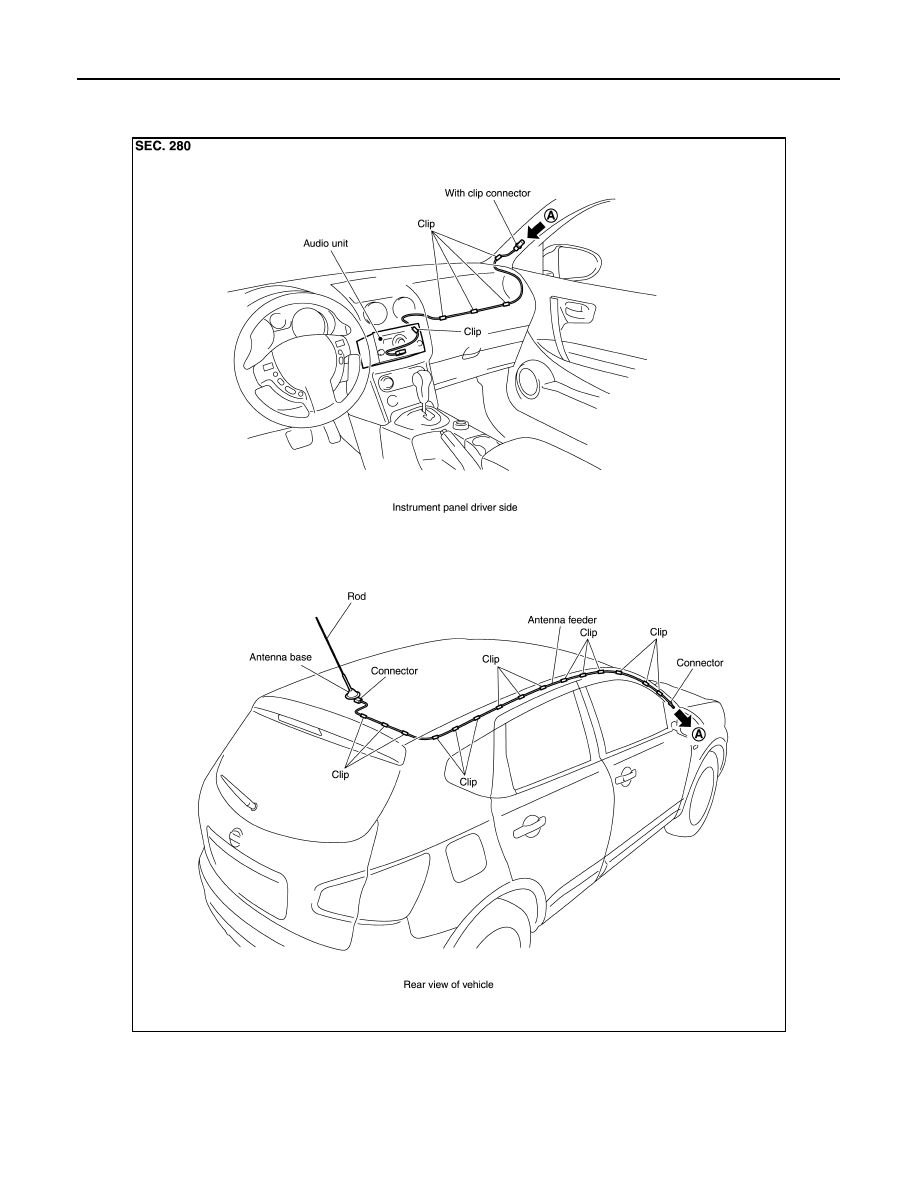

ANTENNA FEEDER (RADIO)

ANTENNA FEEDER (RADIO)

Harness Layout

INFOID:0000000000996531

JPNIA0225GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-41

< BASIC INSPECTION >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

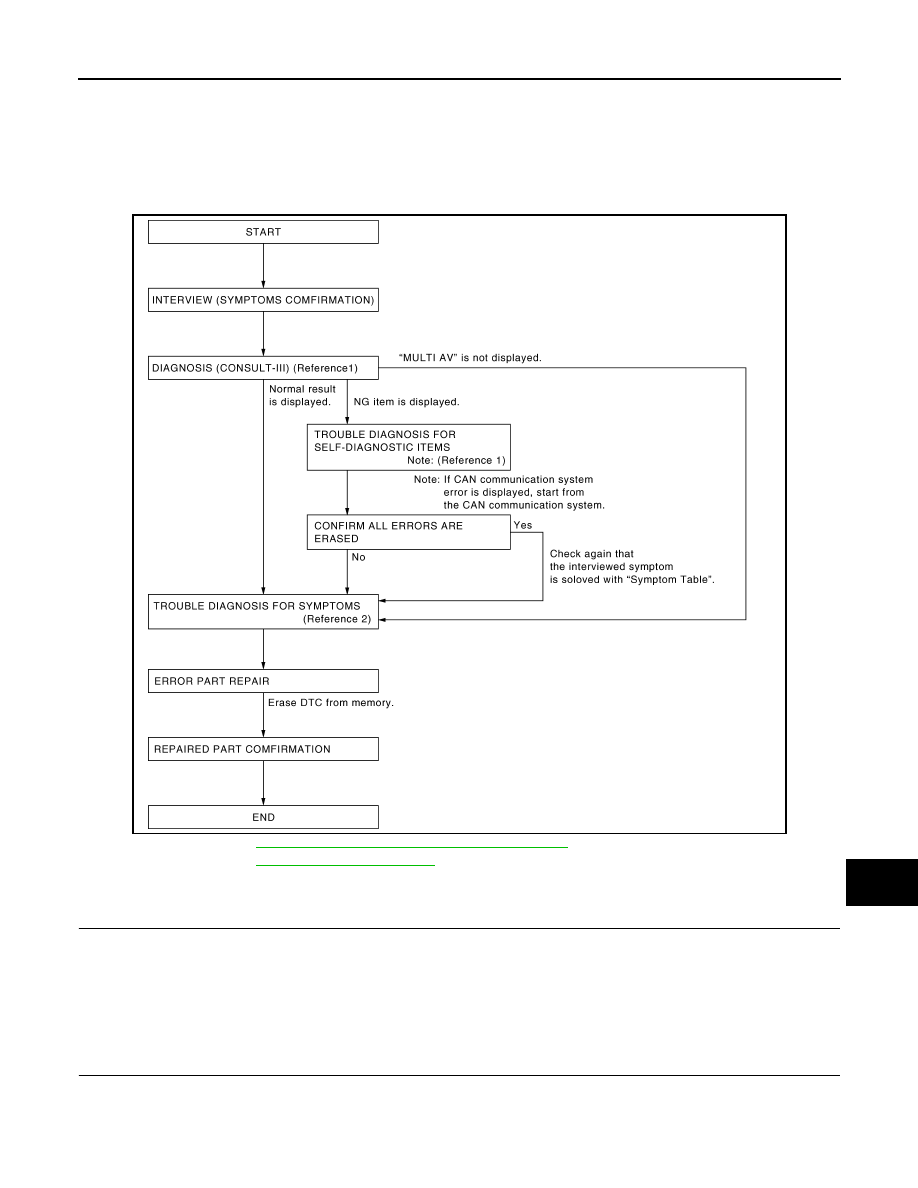

Work Flow

INFOID:0000000000946996

OVERALL SEQUENCE

• Reference 1··· Refer to

AV-65, "CONSULT - III Function (MULTI AV)"

.

• Reference 2··· Refer to

AV-189, "Symptom Table"

.

DETAILED FLOW

1.

CHECK SYMPTOM

Check the malfunction symptoms by performing the following items.
• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.

>> GO TO 2.

2.

SELF-DIAGNOSIS (CONSULT-III)

1.

Connect CONSULT-III and perform a self-diagnosis for “MULTI AV”.
NOTE:
Skip to step 4 of the diagnosis procedure if “MULTI AV” is not displayed.

2.

Check that any DTC No. is displayed in the self-diagnosis results.

JSNIA0039GB
