DIAGNOSIS AND REPAIR WORKFLOW

Is any DTC No. displayed?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

CHECK SELF-DIAGNOSIS RESULTS (CONSULT-III)

1.

Check the DTC No. indicated in the self-diagnosis results.

2.

Perform the relevant diagnosis referring to the DTC Index. Refer to

AV-137, "DTC Index"

.

NOTE:
Start with the diagnosis for the CAN communication system if “CAN COMM CIRCUIT [U1000] and CONTROL
UNIT CAN [U1010]” is displayed.

>> GO TO 5.

4.

PERFORM DIAGNOSIS BY SYMPTOM

Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to

AV-189, "Symptom

Table"

.

>> GO TO 5.

5.

REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace the identified malfunctioning parts.
NOTE:
Erase the stored self-diagnosis results after repairing or replacing the relevant components if any DTC No. has
been indicated in the self-diagnosis results.

>> GO TO 6.

6.

CHECK AFTER REPAIR

1.

Perform a self-diagnosis for “MULTI AV” with CONSULT-III after repairing or replacing the malfunctioning
parts.

2.

Check that any DTC No. is displayed in the self-diagnosis results.

Is any DTC No. displayed?

YES

>> GO TO 3.

NO

>> GO TO 7.

7.

FINAL CHECK

Perform the operation to check that the malfunction symptom is solved or any other symptoms are present.
Is there any symptom?

YES

>> GO TO 4.

NO

>> INSPECTION END

AV

MULTI AV SYSTEM

AV-43

< FUNCTION DIAGNOSIS >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FUNCTION DIAGNOSIS

MULTI AV SYSTEM

System Diagram

INFOID:0000000000947003

System Description

INFOID:0000000000947004

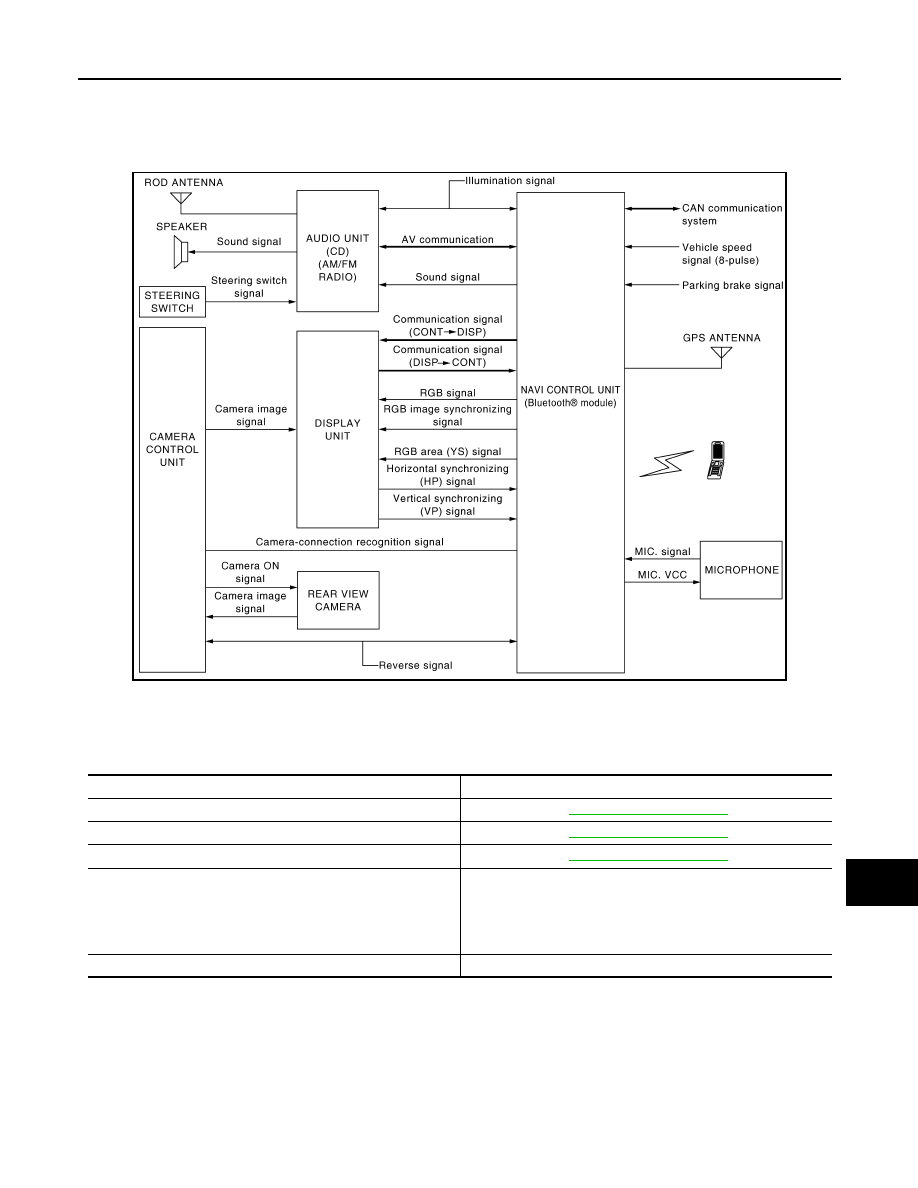

Multi AV system means that the following systems are integrated.

• Two AV communication lines (H, L) connect between units that configure MULTI AV system. NAVI control

unit controls by sending/receiving data one by one with each unit (slave unit) that configures them com-
pletely as a master unit.

• Two AV communication lines (H, L) adopt a twisted pair line that is resistant to noise.
• NAVI control unit is connected by CAN communication, and it receives data signal from ECM, combination

meter. It computes and displays fuel economy information value with the obtained information. Sending/
receiving of data signal is performed by BCM. Also, it sends the required signal of vehicle setting and
receives the response signal.

JPNIA0153GB

System name

System explanation

NAVIGATION SYSTEM

AV-47, "System Description"

AUDIO SYSTEM

AV-53, "System Description"

REAR VIEW MONITOR SYSTEM

AV-51, "System Description"

VEHICLE INFORMATION SYSTEM

• Status of audio, fuel economy, maintenance and navigation is

displayed.

• NAVI control unit displays the fuel consumption status and trip

computer status while receiving data signal through CAN com-
munication from ECM, combination meter and BCM.

HANDS-FREE PHONE SYSTEM

Refer to the following “HANDS-FREE PHONE SYSTEM”.

AV-44

< FUNCTION DIAGNOSIS >

[AUDIO WITH NAVIGATION]

MULTI AV SYSTEM

• NAVI control unit is connected with display and serial communication, and it sends the required signal of dis-

play and display control and receives the response signal from front display. Also, it is connected with satel-
lite radio by serial communication, and it sends the operating signal and receives the display signal.

NOTE:
NAVI control unit can perform CONSULT-III self-operating function and on board self-diagnosis.
• CONSULT-III self diagnosis: Refer to

AV-65, "CONSULT - III Function (MULTI AV)"

.

• On board self diagnosis: Refer to

AV-55, "Diagnosis Description"

.

HANDS-FREE PHONE SYSTEM

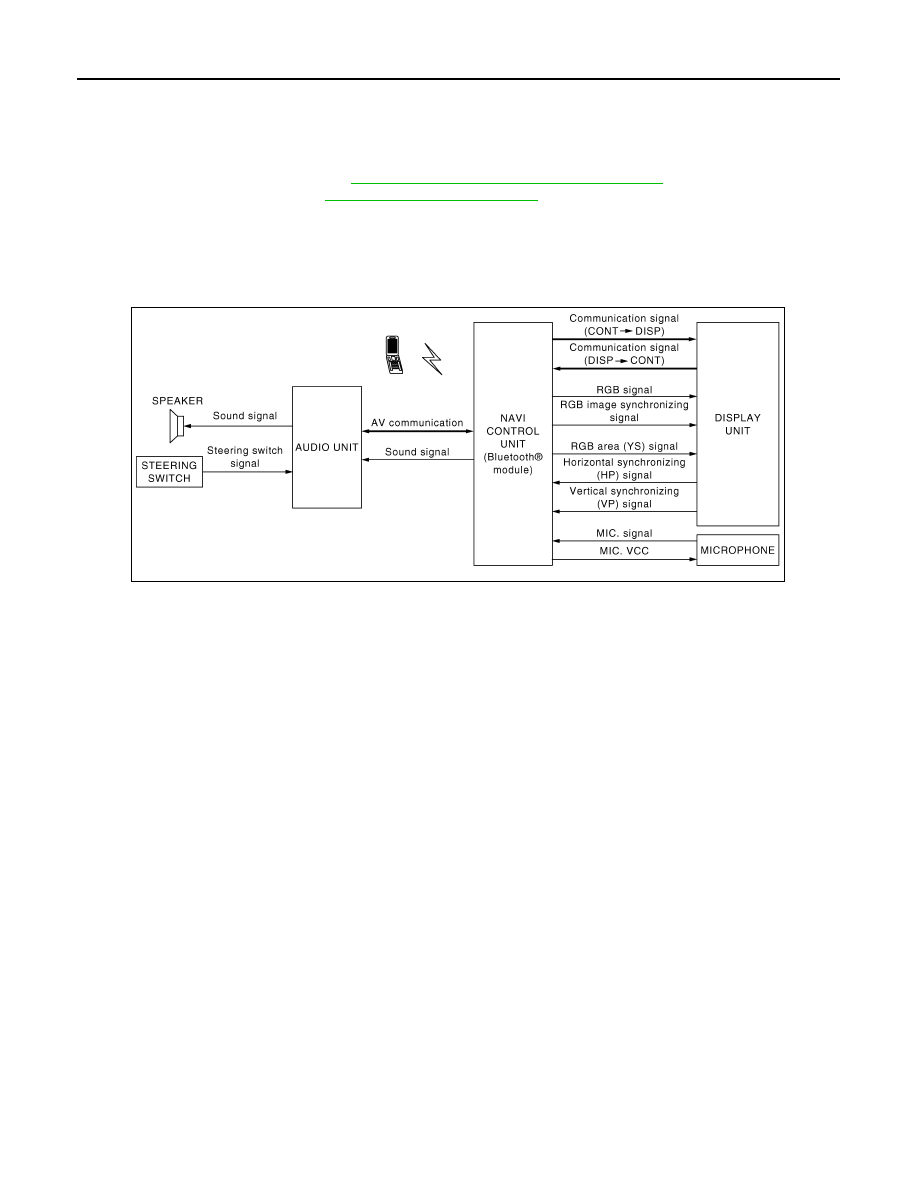

• Hands-free communication can be operated by connecting using Bluetooth

®

 with cellular phone.

• Operation is performed by steering switch, and operating condition is indicated on display.
• Guide sound that is heard during operation is input from NAVI control unit to audio unit and is output from

front speaker.

When a call is originated

Spoken voice sound output from the microphone (Mic. Signal) is input to NAVI control unit. NAVI control unit
outputs to cellular phone with Bluetooth

®

 communication as a TEL voice signal. Voice sound is then heard at

the other party.

When receiving a call

Voice sound is input to own cellular phone from the other party. TEL voice signal is output to front speaker, and
the signal is input to audio unit via NAVI control unit by establishing Bluetooth

®

 communication from cellular

phone.

Component Parts Location

INFOID:0000000000947005

NOTE:
As for right-hand drive vehicles, install GPS antenna feeder between the center console and the instrument
panel in the reverse of left-handle drive vehicles.

JPNIA0155GB

AV

MULTI AV SYSTEM

AV-45

< FUNCTION DIAGNOSIS >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000000947006

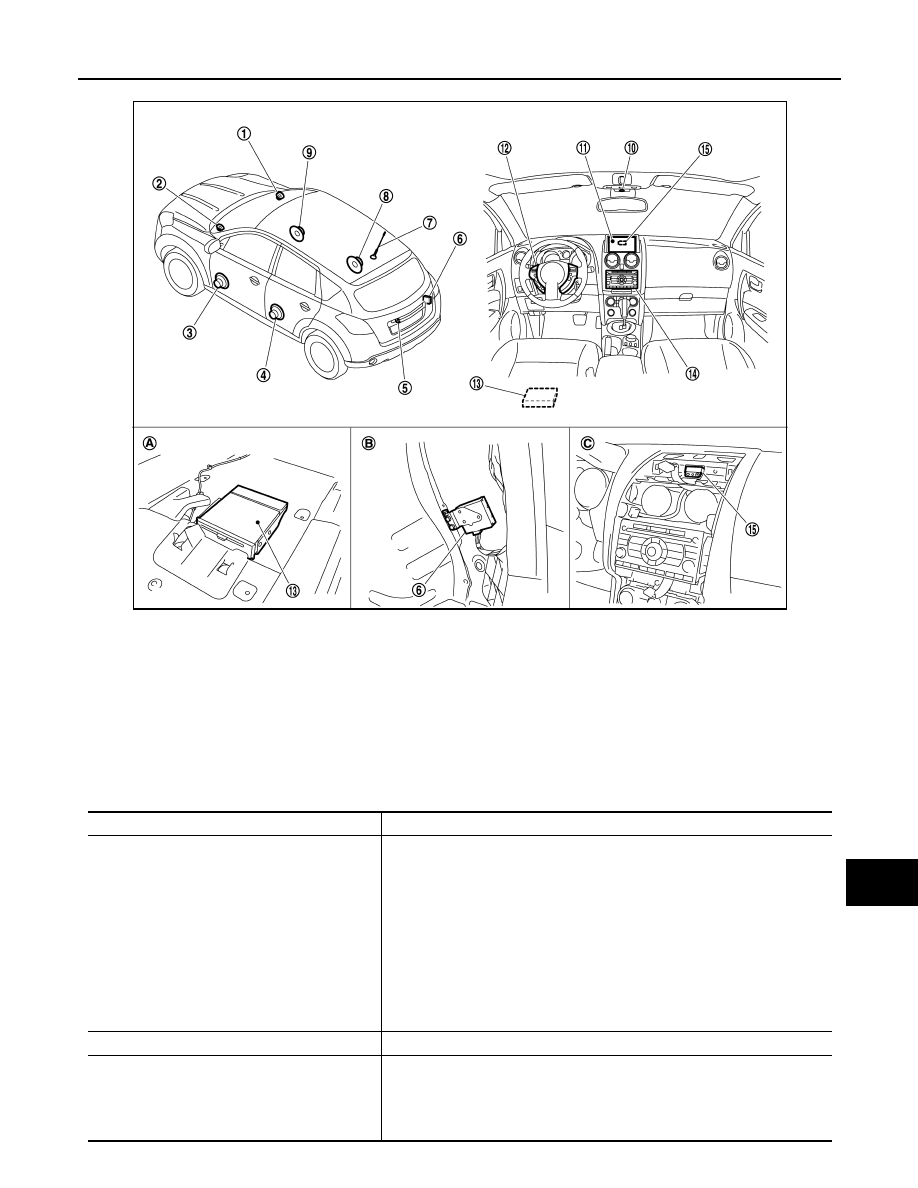

1.

Tweeter RH

2.

Tweeter LH

3.

Front door speaker LH

4.

Rear door speaker LH

5.

Rear view camera

6.

Camera control unit

7.

Radio antenna

8.

Rear door speaker RH

9.

Front door speaker RH

10. Microphone

11. Display unit

12. Steering switch

13. NAVI control unit

14. Audio unit

15. GPS antenna

A.

A bottom of a front seat LH

B.

Luggage side RH

C.

Back of a display unit

JSNIA0349ZZ

Part name

Description

NAVI CONTORL UNIT

• Map data can be read from the Map DVD-ROM by installing Map DVD-ROM.
• It is the master unit of the MULTI AV system, and it is connected to each con-

trol unit by means of communication. It operates each system according to
communication signals from the NAVI control unit.

• The NAVI control unit includes the audio, hands-free phone, navigation, and

vehicle information functions.

• It is connected to ECM and combination meter via CAN communication to ob-

tain necessary information for the vehicle information function.

• It inputs the illumination signals that are required for the display dimming con-

trol.

• It inputs the signals for driving status recognition (vehicle speed, reverse and

parking brake).

MAP DVD-ROM

A collection of Map data.

DISPLAY UNIT

• Display image is controlled by the serial communication from NAVI control

unit.

• RGB image signal is input from NAVI control unit (RGB, RGB area and RGB

synchronizing). Camera image signal is input from camera control unit.

• Synchronize signal (HP, VP) is output to NAVI control unit.
