FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

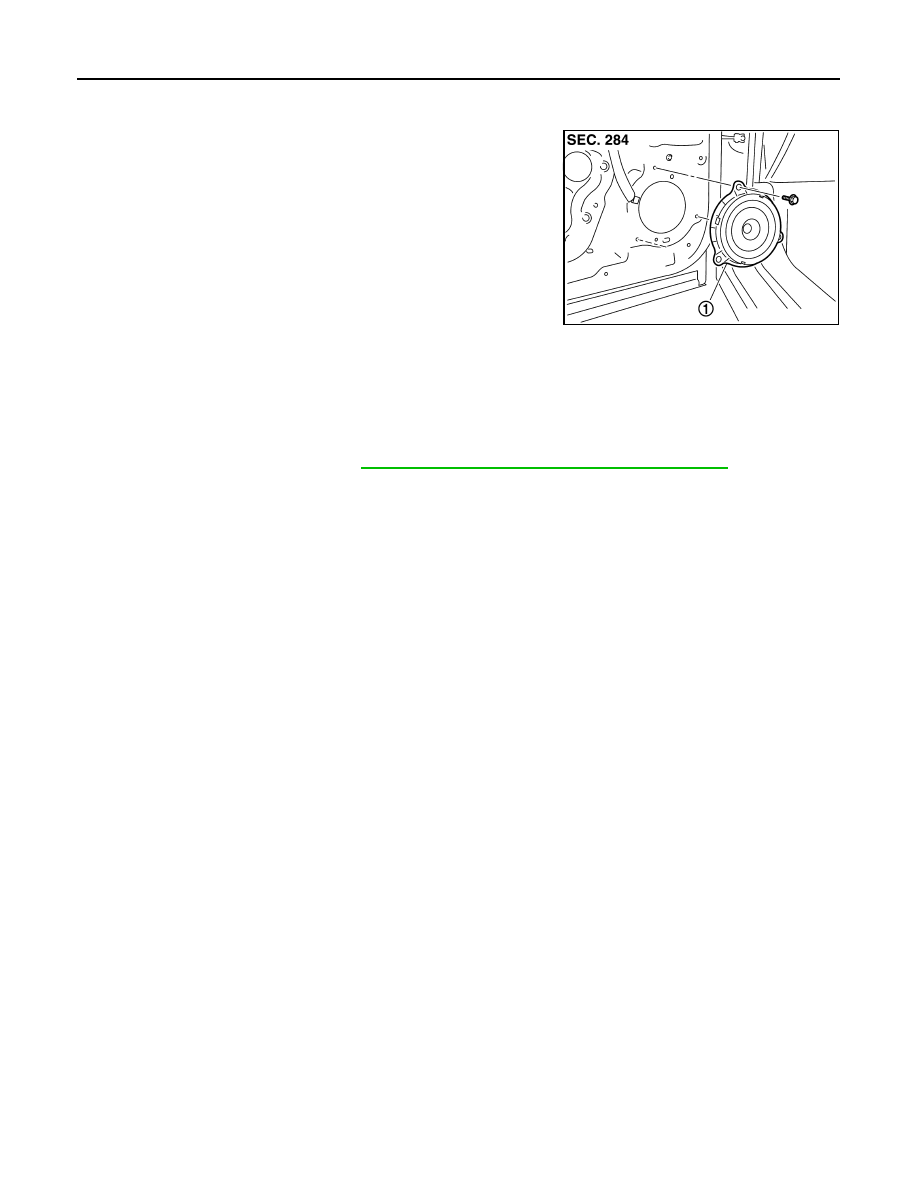

Exploded View

INFOID:0000000000996488

Removal and Installation

INFOID:0000000000996489

REMOVAL

1.

Remove front door finisher. Refer to

INT-10, "FRONT DOOR FINISHER : Exploded View"

.

2.

Remove front door speaker.

INSTALLATION

Install in the reverse order of removal.

JSNIA0357ZZ

1.

Front door speaker

AV

REAR DOOR SPEAKER

AV-35

< ON-VEHICLE REPAIR >

[AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

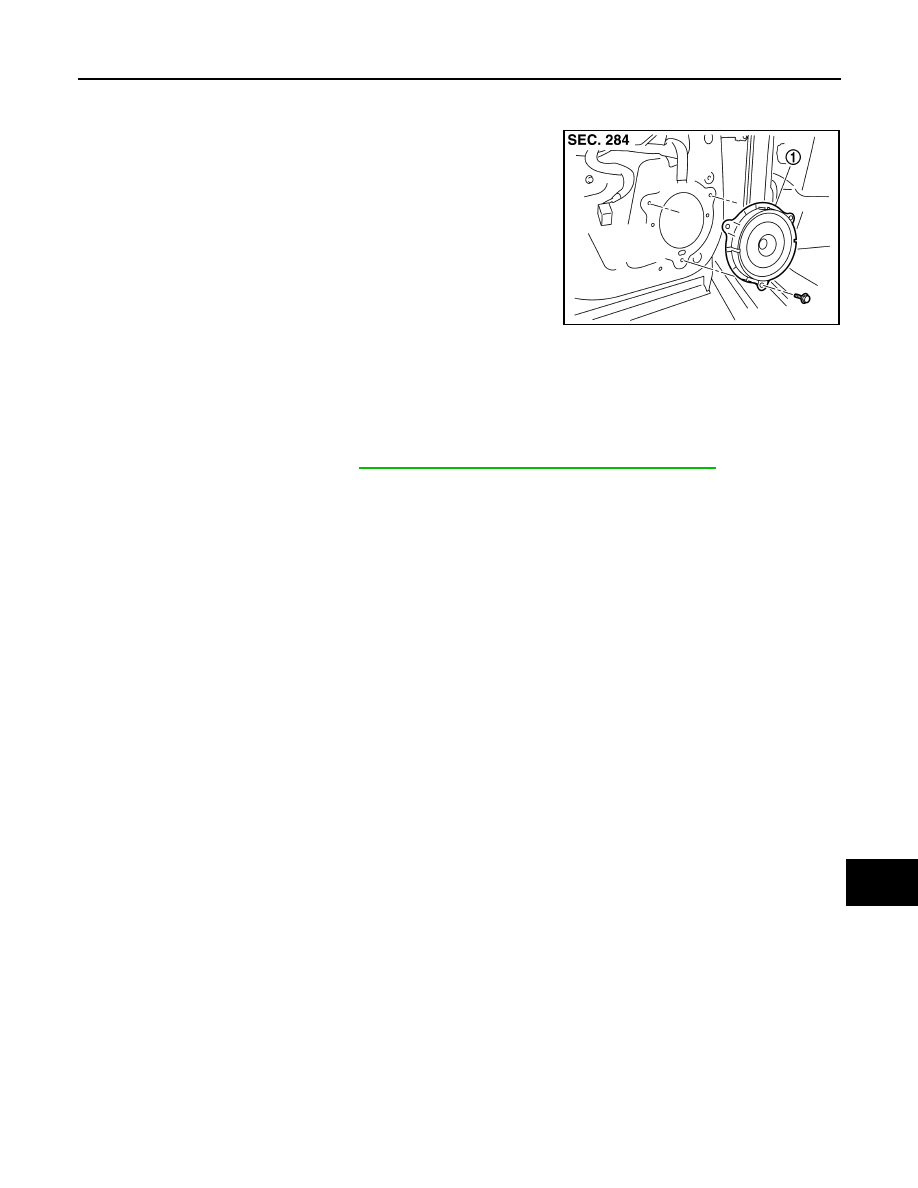

Exploded View

INFOID:0000000000996490

Removal and Installation

INFOID:0000000000996491

REMOVAL

1.

Remove rear door finisher. Refer to

INT-12, "REAR DOOR FINISHER : Exploded View"

.

2.

Remove rear door speaker.

INSTALLATION

Install in the reverse order of removal.

JSNIA0358ZZ

1.

Rear door speaker

AV-36

< ON-VEHICLE REPAIR >

[AUDIO WITHOUT NAVIGATION]

TWEETER

TWEETER

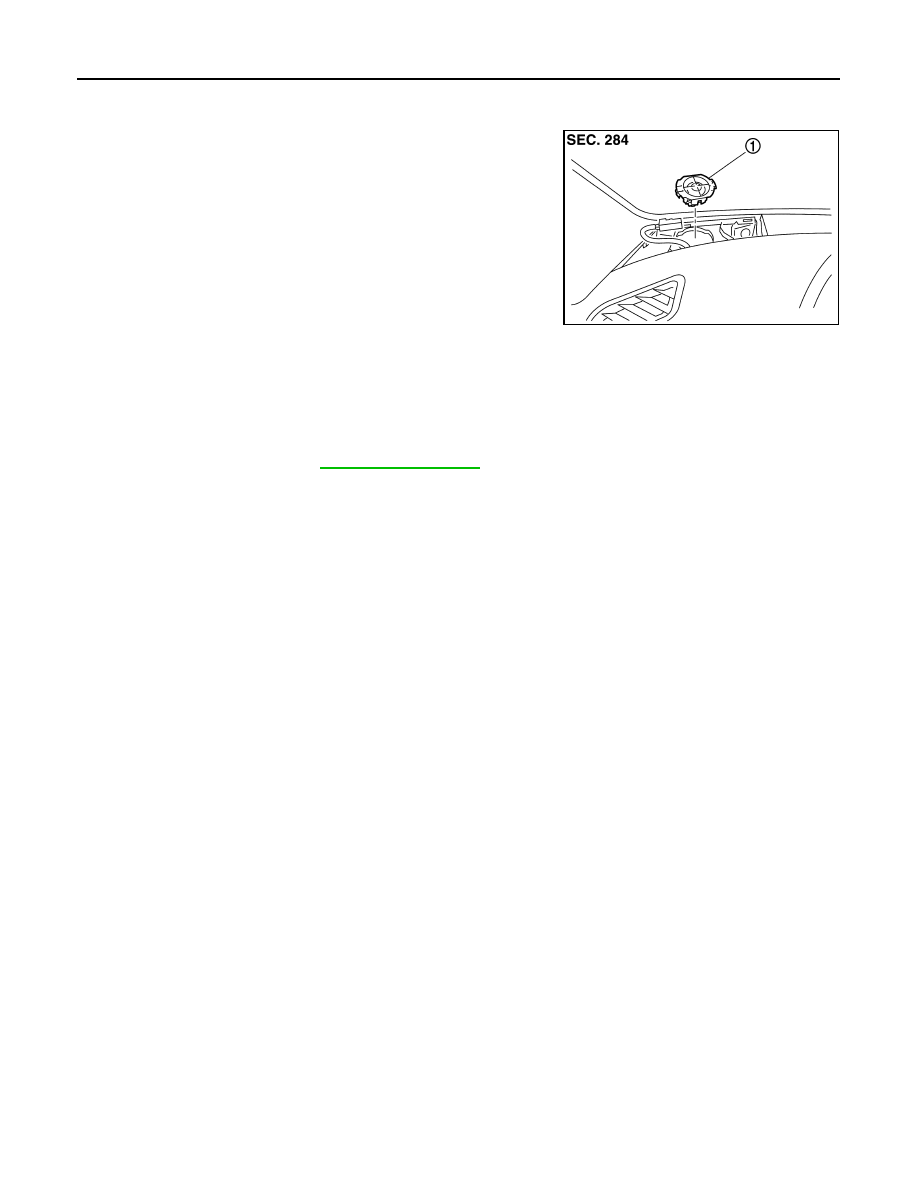

Exploded View

INFOID:0000000000996492

Removal and Installation

INFOID:0000000000996493

REMOVAL

1.

Remove tweeter grill. Refer to

IP-11, "Exploded View"

.

2.

Remove tweeter.

INSTALLATION

Install in the reverse order of removal.

JSNIA0359ZZ

1.

Tweeter

AV

STEERING SWITCH

AV-37

< ON-VEHICLE REPAIR >

[AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Exploded View

INFOID:0000000000996508

Refer to

ST-9, "Exploded View"

.

Removal and Installation

INFOID:0000000000996509

REMOVAL

Refer to

ST-9, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.
