REAR WASHER NOZZLE AND TUBE

WW-115

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

3.

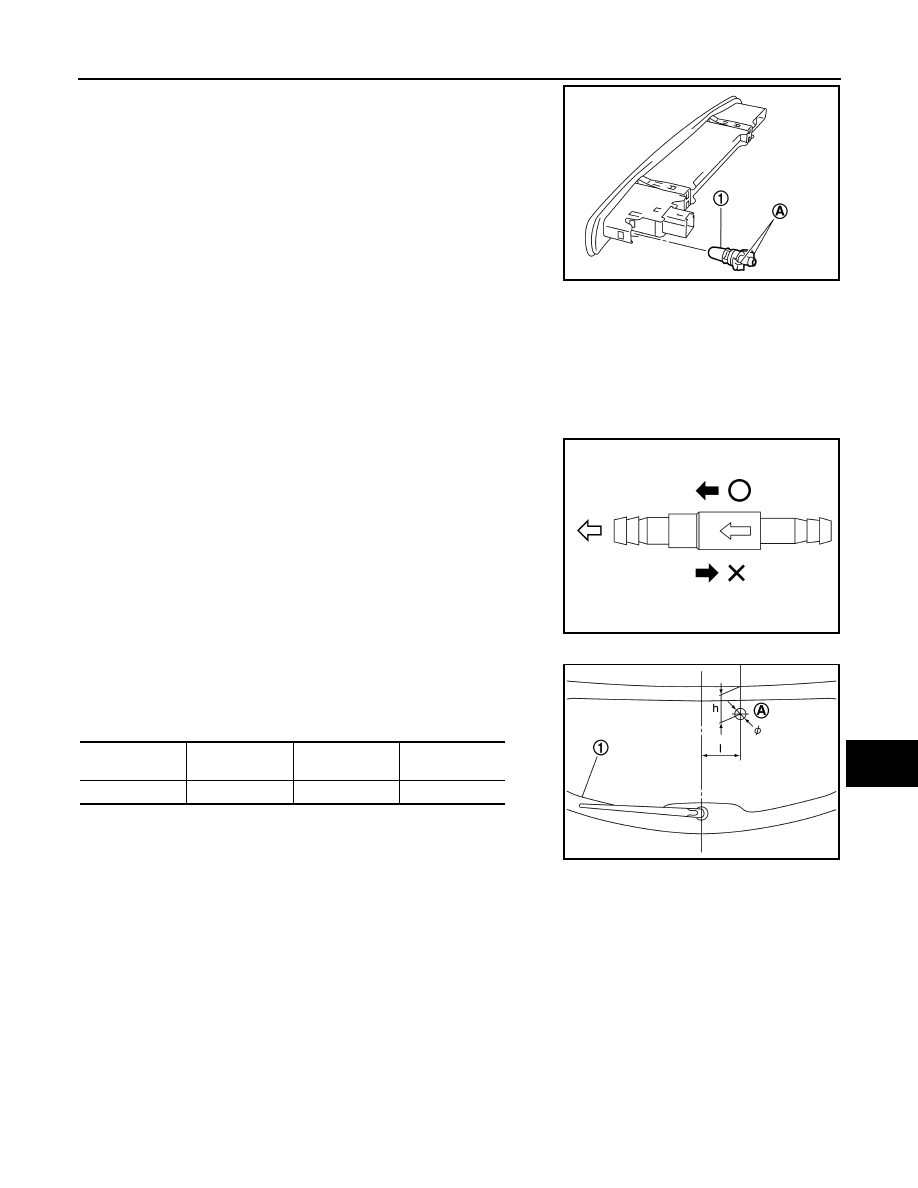

Push pawl (A), and remove the rear washer nozzle (1) from the
high-mounted stop lamp.

INSTALLATION

Install in the reverse order of removal.

Inspection

INFOID:0000000000936394

INSPECTION

Washer Nozzle Inspection

Check that air can pass through the hose by blowing forward (toward
the nozzle), and check that air cannot pass through by sucking.

Washer Nozzle Spray Position

Check spray positions to match the positions shown in the figure.

Unit: mm (in)

NOTE:
If wax or dust gets into the nozzle, remove wax or dust with a needle
or small pin.

JPLIA0284ZZ

: To rear washer nozzle

JPLIA0285ZZ

1

: Black printed frame line

Spray position

h (Height)

I (width)

φ

 (Spray position

area)

A

43 (1.69)

93.6 (3.69)

30 (1.18)

JPLIA0286ZZ

DEF-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

DEF

A

B

DEF

N

O

P

CONTENTS

DEFOGGER

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

FUNCTION DIAGNOSIS ...............................

4

REAR WINDOW DEFOGGER SYSTEM .............

4

System Diagram ........................................................

4

System Description  ...................................................

4

Component Parts Location ........................................

4

Component Description .............................................

5

DIAGNOSIS SYSTEM (BCM)  .............................

6

COMMON ITEM  ...........................................................

6

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .......................................................

6

REAR WINDOW DEFOGGER .....................................

6

REAR WINDOW DEFOGGER : CONSULT-III
Function (BCM - REAR DEFOGGER)  ......................

6

DIAGNOSIS SYSTEM (IPDM E/R) ......................

8

Diagnosis Description  ...............................................

8

CONSULT - III Function (IPDM E/R) .......................

10

COMPONENT DIAGNOSIS  .........................

13

REAR WINDOW DEFOGGER SWITCH  ............

13

WITH AUTO A/C ........................................................

13

WITH AUTO A/C : Description  ................................

13

WITH AUTO A/C : Component Function Check  .....

13

WITH AUTO A/C : Diagnosis Procedure .................

13

WITHOUT AUTO A/C  ................................................

14

WITHOUT AUTO A/C : Description  ........................

14

WITHOUT AUTO A/C : Component Function
Check ......................................................................

14

WITHOUT AUTO A/C : Diagnosis Procedure  .........

15

WITHOUT AUTO A/C : Component Inspection  ......

16

REAR WINDOW DEFOGGER POWER SUP-
PLY AND GROUND CIRCUIT  ..........................

17

Description ...............................................................

17

Component Function Check  ....................................

17

Diagnosis Procedure  ...............................................

17

Component Inspection .............................................

18

DRIVER SIDE DOOR MIRROR DEFOGGER ...

19

Description ...............................................................

19

Component Function Check  ....................................

19

Diagnosis Procedure  ...............................................

19

Component Inspection .............................................

20

PASSENGER SIDE DOOR MIRROR DEFOG-
GER ...................................................................

21

Description ...............................................................

21

Component Function Check  ....................................

21

Diagnosis Procedure  ...............................................

21

Component Inspection .............................................

22

REAR WINDOW DEFOGGER ON SIGNAL  .....

23

WITH AUTO A/C  ........................................................

23

WITH AUTO A/C : Description  ................................

23

WITH AUTO A/C : Component Function Check ......

23

WITH AUTO A/C : Diagnosis Procedure  .................

23

WITHOUT AUTO A/C  ................................................

23

WITHOUT AUTO A/C : Description .........................

23

WITHOUT AUTO A/C : Component Function
Check ......................................................................

24

WITHOUT AUTO A/C : Diagnosis Procedure  .........

24

ECU DIAGNOSIS .........................................

25

BCM (BODY CONTROL MODULE)  .................

25

Reference Value ......................................................

25

Wiring Diagram - DEFOGGER CONTROL SYS-
TEM (LHD MODELS) -  ............................................

41

Wiring Diagram - DEFOGGER CONTROL SYS-
TEM (RHD MODELS) -  ...........................................

45

Fail Safe ..................................................................

48

DEF-2

DTC Inspection Priority Chart ..............................

49

DTC Index ..............................................................

50

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM)  .................

51

Reference Value  .....................................................

51

Wiring Diagram - DEFOGGER CONTROL SYS-
TEM (LHD MODELS) -  ...........................................

57

Wiring Diagram - DEFOGGER CONTROL SYS-
TEM (RHD MODELS) -  ..........................................

61

Fail Safe .................................................................

64

DTC Index ..............................................................

66

SYMPTOM DIAGNOSIS  .............................

67

REAR WINDOW DEFOGGER DOES NOT
OPERATE ..........................................................

67

Diagnosis Procedure  ..............................................

67

REAR WINDOW DEFOGGER AND DOOR
MIRROR DEFOGGER DO NOT OPERATE.  .....

68

Diagnosis Procedure  ..............................................

68

REAR WINDOW DEFOGGER DOES NOT
OPERATE BUT BOTH OF DOOR MIRROR
DEFOGGER OPERATE.  ...................................

69

Diagnosis Procedure  ..............................................

69

DRIVER SIDE DOOR MIRROR DEFOGGER
DOES NOT OPERATE.  .....................................

70

Diagnosis Procedure ...............................................

70

PASSENGER SIDE DOOR MIRROR DEFOG-
GER DOES NOT OPERATE.  ............................

71

Diagnosis Procedure ...............................................

71

REAR WINDOW DEFOGGER SWITCH DOES
NOT LIGHT, BUT REAR WINDOW DEFOG-
GER OPERATES ...............................................

72

Diagnosis Procedure ...............................................

72

PRECAUTION ............................................

73

PRECAUTIONS  .................................................

73

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

73

ON-VEHICLE MAINTENANCE ..................

74

PRE-INSPECTION FOR DIAGNOSTIC  ............

74

Basic Inspection ......................................................

74

ON-VEHICLE REPAIR  ...............................

75

FILAMENT .........................................................

75

Inspection and Repair  .............................................

75

DIAGNOSIS AND REPAIR WORKFLOW

DEF-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000000951256

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-
tion occurred) as much as possible when the customer brings the vehicle in.

>> GO TO 2.

2.

CHECK DTC

Perform self diagnosis with CONSULT-III
Is any DTC detected?

YES

>> Refer to

BCS-61, "DTC Index"

.

NO

>> GO TO 3.

3.

REPRODUCE THE MALFUNCTION INFORMATION

Check the malfunction on the vehicle that the customer describes.
Inspect the relation of the symptoms and the condition when the symptoms occur.

>> GO TO 4.

4.

PERFORM “BASIC INSPECTION”

Perform the basic inspection.Refer to

DEF-74, "Basic Inspection"

.

>> GO TO 5.

5.

IDENTIFY THE MALFUNCTIONING SYSTEM WITH “SYMPTOM DIAGNOSIS”

Use “Symptom diagnosis” from the symptom inspection result in step 3. Then identify where to start perform-
ing the diagnosis based on possible causes and symptoms.

>> GO TO 6.

6.

IDENTIFY MALFUNCTIONING PARTS WITH “COMPONENT DIAGNOSIS”

Perform the diagnosis with “Component diagnosis” of the applicable system.

>> GO TO 7.

7.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 8.

8.

FINAL CHECK

Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,
referring to the symptom inspection result in step 3.

Is the malfunctioning part repaired or replaced?

YES

>> Trouble diagnosis is completed.

NO

>> GO TO 4.
