WIPER AND WASHER SWITCH

WW-111

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WIPER AND WASHER SWITCH

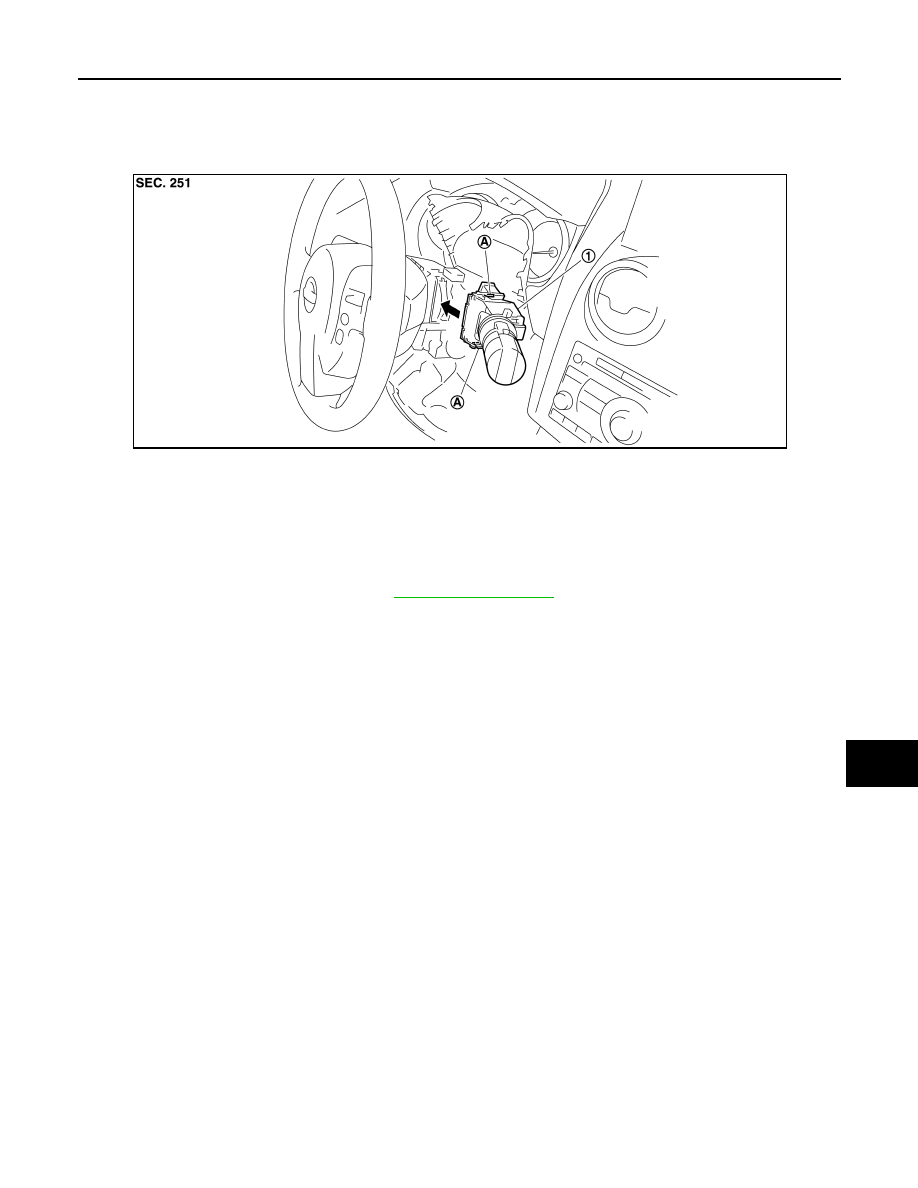

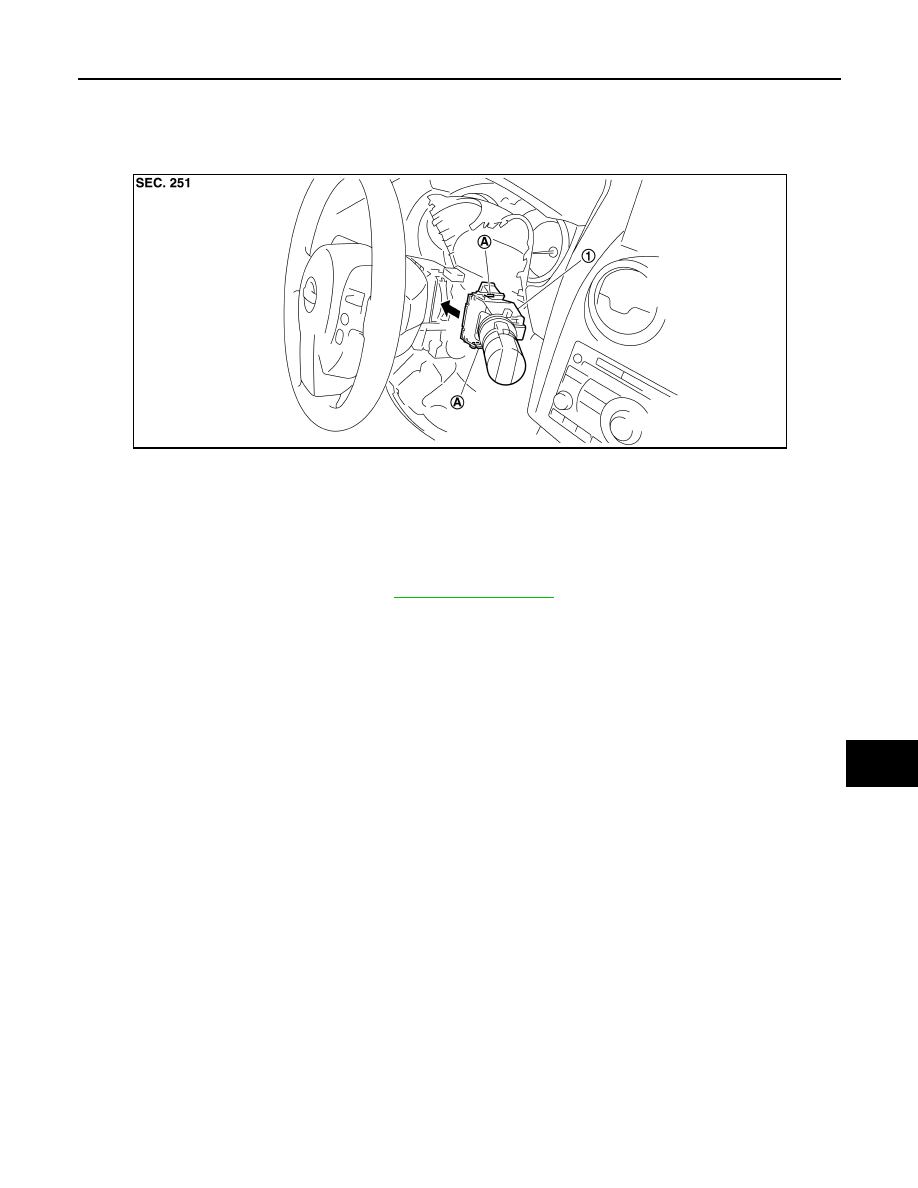

Exploded View

INFOID:0000000001083113

Removal and Installation

INFOID:0000000001083114

REMOVAL

1.

Remove steering column cover. Refer to

IP-11, "Exploded View"

.

2.

While pressing pawls, pull the wiper & washer switch. And disconnect from the switch base.

INSTALLATION

Installation is the reverse order of removal.

1.

Wiper & washer switch

A.

Pawl

JPLIA0311ZZ

WW-112

< ON-VEHICLE REPAIR >

REAR WIPER MOTOR

REAR WIPER MOTOR

Exploded View

INFOID:0000000000926247

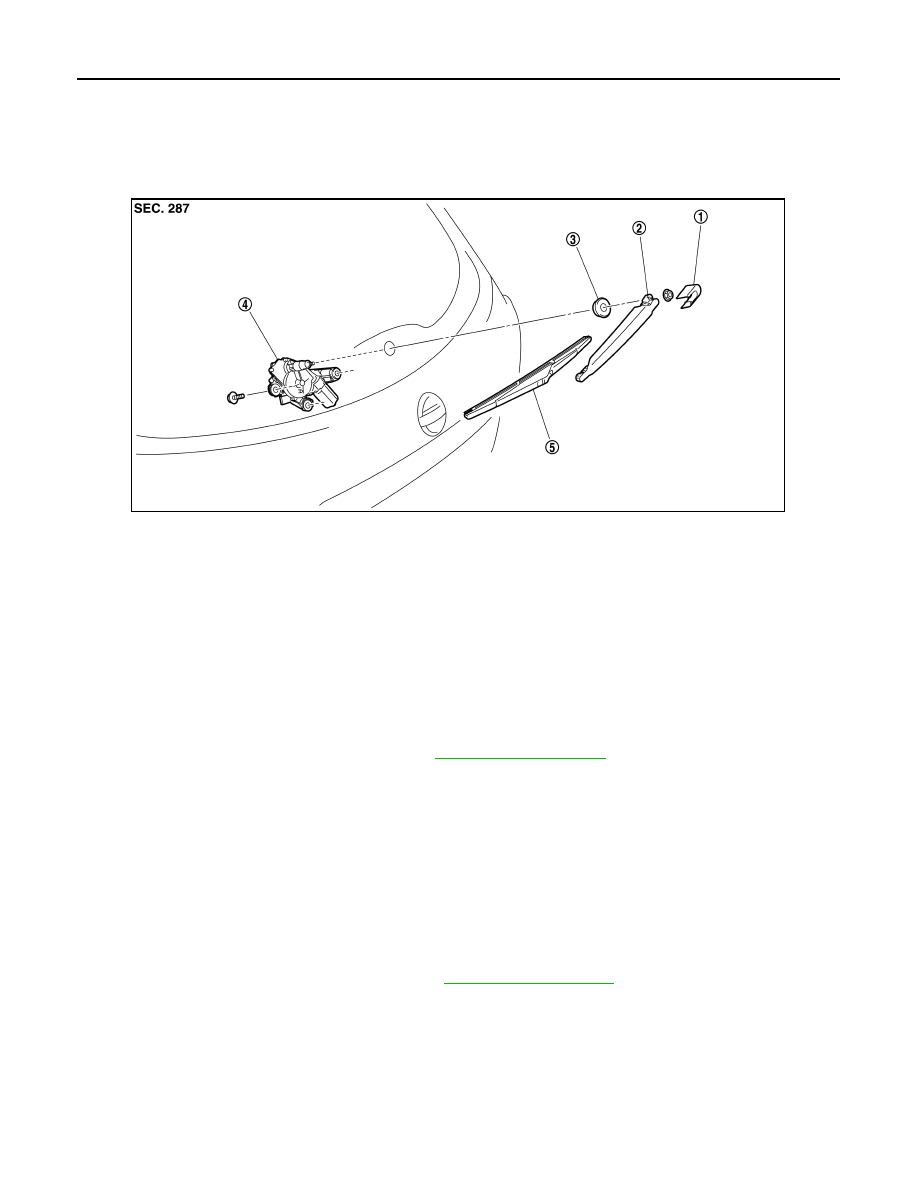

REMOVAL VIEW

Removal and Installation

INFOID:0000000000926248

REMOVAL

1.

Operate the rear wiper to the auto stop position.

2.

Remove rear wiper arm cover.

3.

Remove the rear wiper arm mounting nut.

4.

Raise rear wiper arm, and remove wiper arm from the vehicle.

5.

Remove back door trim finisher lower. Refer to

INT-26, "Exploded View"

.

6.

Disconnect the rear wiper motor connector.

7.

Remove bolts.

8.

Remove rear wiper motor from the vehicle.

9.

Remove pivot seal.

INSTALLATION

1.

Install the pivot seal.

2.

Install the rear wiper motor to the vehicle.

3.

Connect the rear wiper motor connector.

4.

Operate the rear wiper to the auto stop position.

5.

Install the back door trim finisher lower. Refer to

INT-26, "Exploded View"

.

1.

Rear wiper arm cover

2.

Rear wiper arm

3.

Pivot seal

4.

Rear wiper motor

5.

Rear wiper blade

JPLIA0290ZZ

REAR WIPER MOTOR

WW-113

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

6.

Clean wiper arm mount as shown in the figure to prevent nut
from being loosened.

7.

Operate the rear wiper motor to the auto stop position.

8.

Adjust the rear wiper blade position. Refer to

WW-113, "Adjustment"

.

9.

Install the rear wiper arm by tightening the mounting nut.

10. Inject the washer fluid.
11. Operate the rear wiper to the auto stop position.

12. Check that the rear wiper blades stop at the specified position.

13. Install rear wiper arm cover.

Adjustment

INFOID:0000000000926251

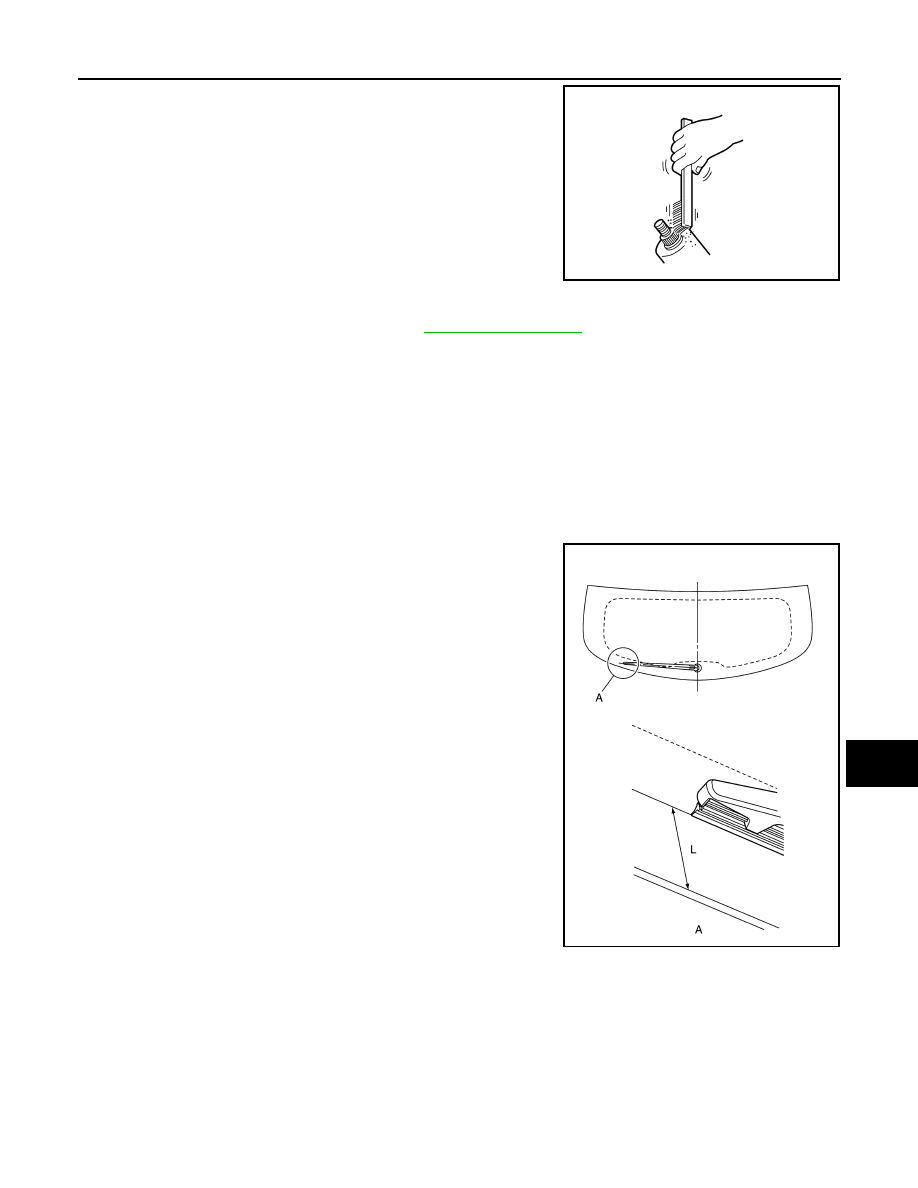

REAR WIPER BLADE POSITION ADJUSTMENT

Clearance between the end of back door glass and the top of wiper blade center.

Standard clearance

SKIA0082J

L

: 26.5

±

10.3 mm (1.04

±

 0.406 in)

JPLIA0289ZZ

WW-114

< ON-VEHICLE REPAIR >

REAR WASHER NOZZLE AND TUBE

REAR WASHER NOZZLE AND TUBE

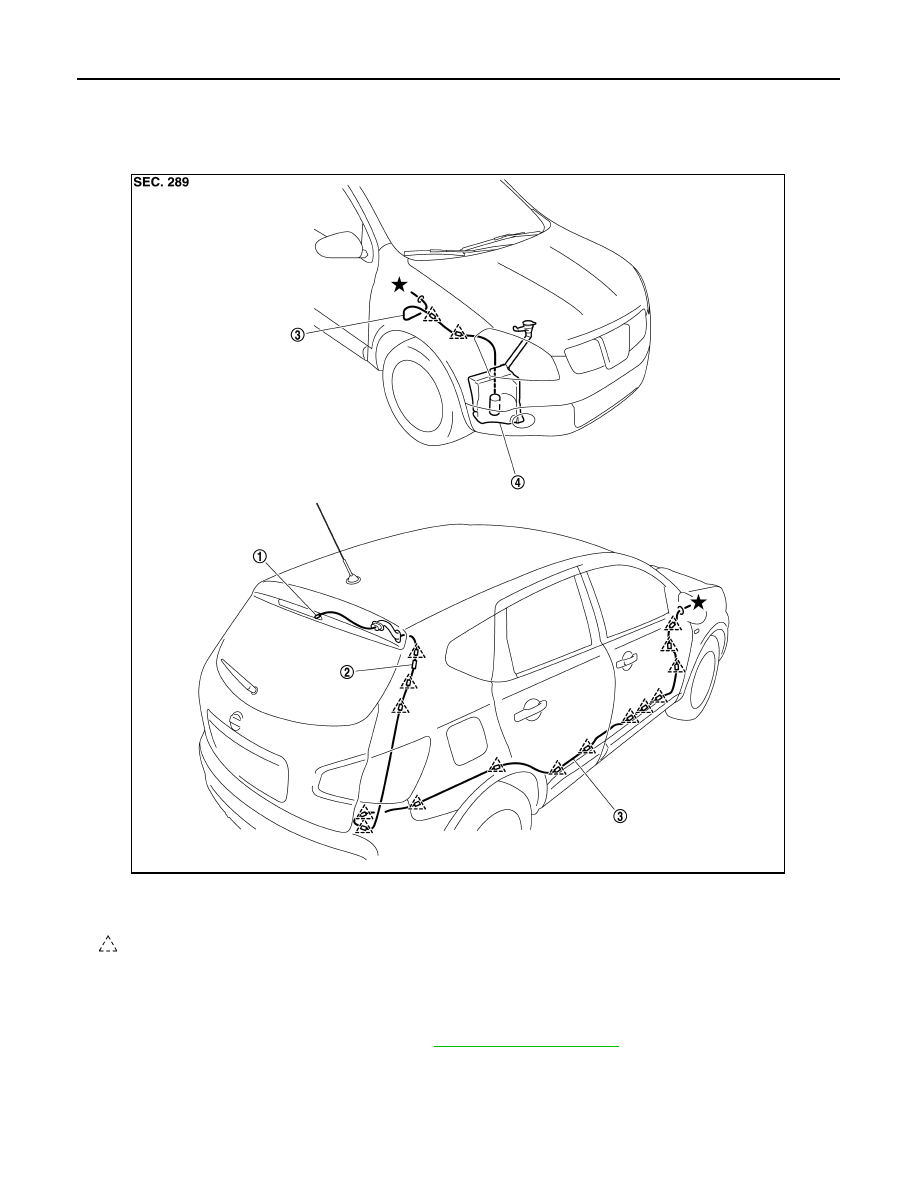

Hydraulic Layout

INFOID:0000000000926252

Removal and Installation

INFOID:0000000000926253

REMOVAL

1.

Remove the high-mounted stop lamp. Refer to

EXL-183, "Exploded View"

.

2.

Remove the rear washer tube from the rear washer nozzle.

1.

Rear washer nozzle

2.

Check valve

3.

Rear washer tube

4.

Washer tank

: Clip

JPLIA0283ZZ
