FRONT WASHER NOZZLE AND TUBE

WW-103

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

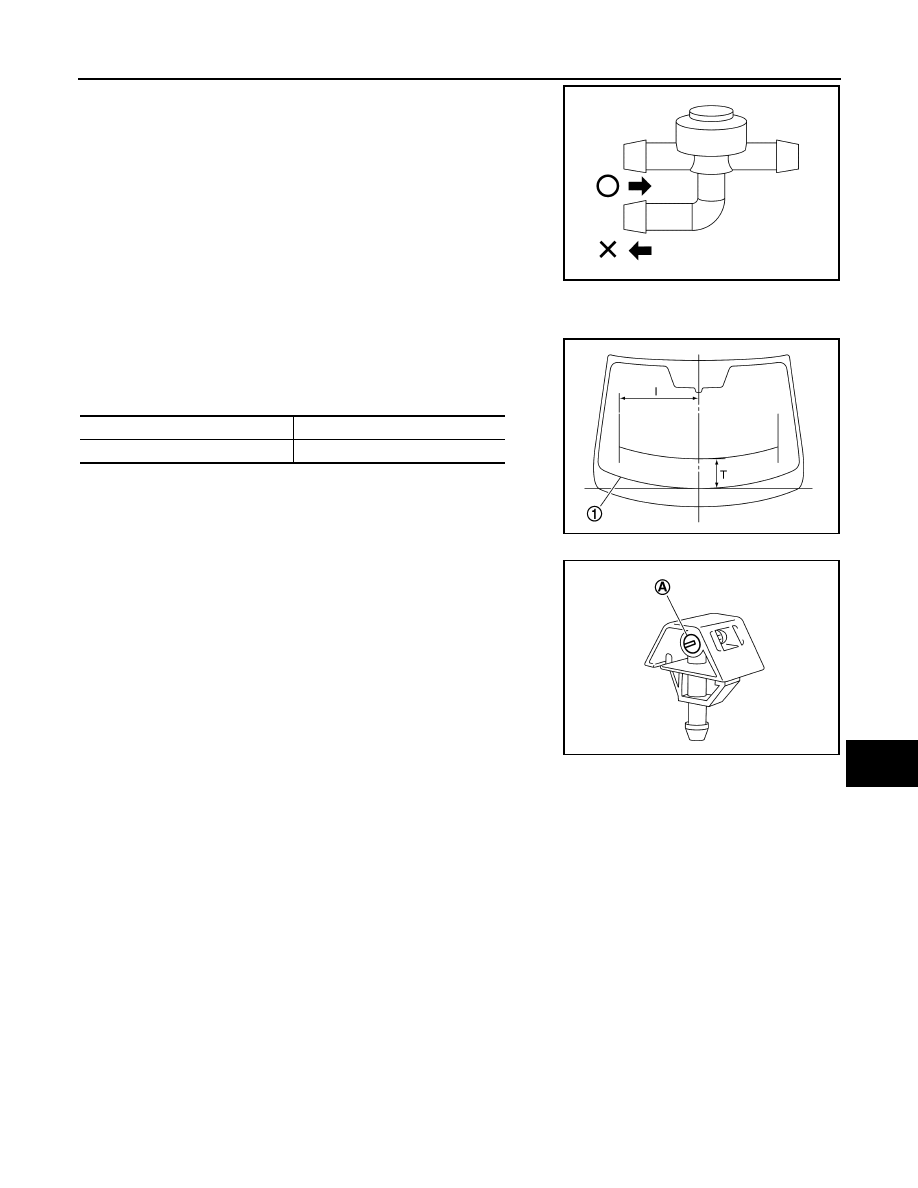

Check that air can pass through the hose by blowing forward (toward
the nozzle), and check that air cannot pass through by sucking.

ADJUSTMENT

Washer Nozzle Spray Position Adjustment

Adjust spray positions to match the positions shown in the figure.

Unit: mm (in)

NOTE:
Check the width is within the limit as it cannot be adjusted.

Turn an adjustment screw (A) to adjust a spray position.
NOTE:
If wax or dust gets into the nozzle, remove wax or dust with a needle
or small pin.

JPLIA0275ZZ

1

: Black printed frame line

T (Standard)

I (Width)

200 (7.87)

522 (20.55)

JPLIA0276ZZ

JPLIA0277ZZ

WW-104

< ON-VEHICLE REPAIR >

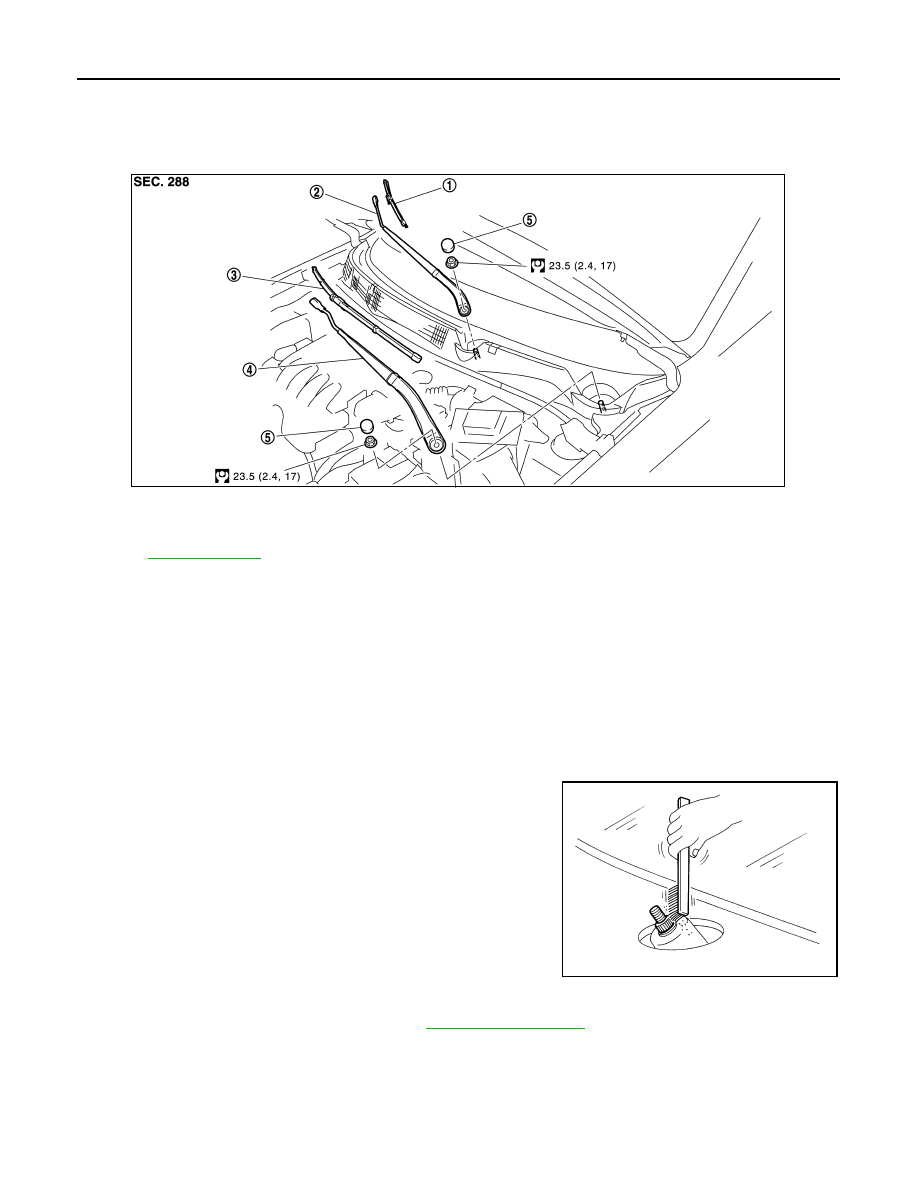

FRONT WIPER ARM

FRONT WIPER ARM

Exploded View

INFOID:0000000000924466

Removal and Installation

INFOID:0000000000924467

REMOVAL

1.

Operate the front wiper to move it to the auto stop position.

2.

Open the hood.

3.

Remove front wiper arm caps.

4.

Remove the front wiper arm mounting nuts.

5.

Raise front wiper arm, and remove front wiper arm from the vehicle.

INSTALLATION

1.

Clean wiper arm mount as shown in the figure to prevent nuts
from being loosened.

2.

Operate the front wiper motor to move the front wiper to the auto stop position.

3.

Adjust the front wiper blade position. Refer to

WW-105, "Adjustment"

.

4.

Install the front wiper arm by tightening the mounting nut.

5.

Inject the washer fluid.

6.

Operate the front wiper to move it to the auto stop position.

7.

Check that the front wiper blades stop at the specified position.

8.

Install wiper arm cap.

1.

Front wiper blade (RH)

2.

Front wiper arm (RH)

3.

Front wiper blade (LH)

4.

Front wiper arm (LH)

5.

Front wiper arm cap

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA0278GB

ELH0717D

FRONT WIPER ARM

WW-105

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

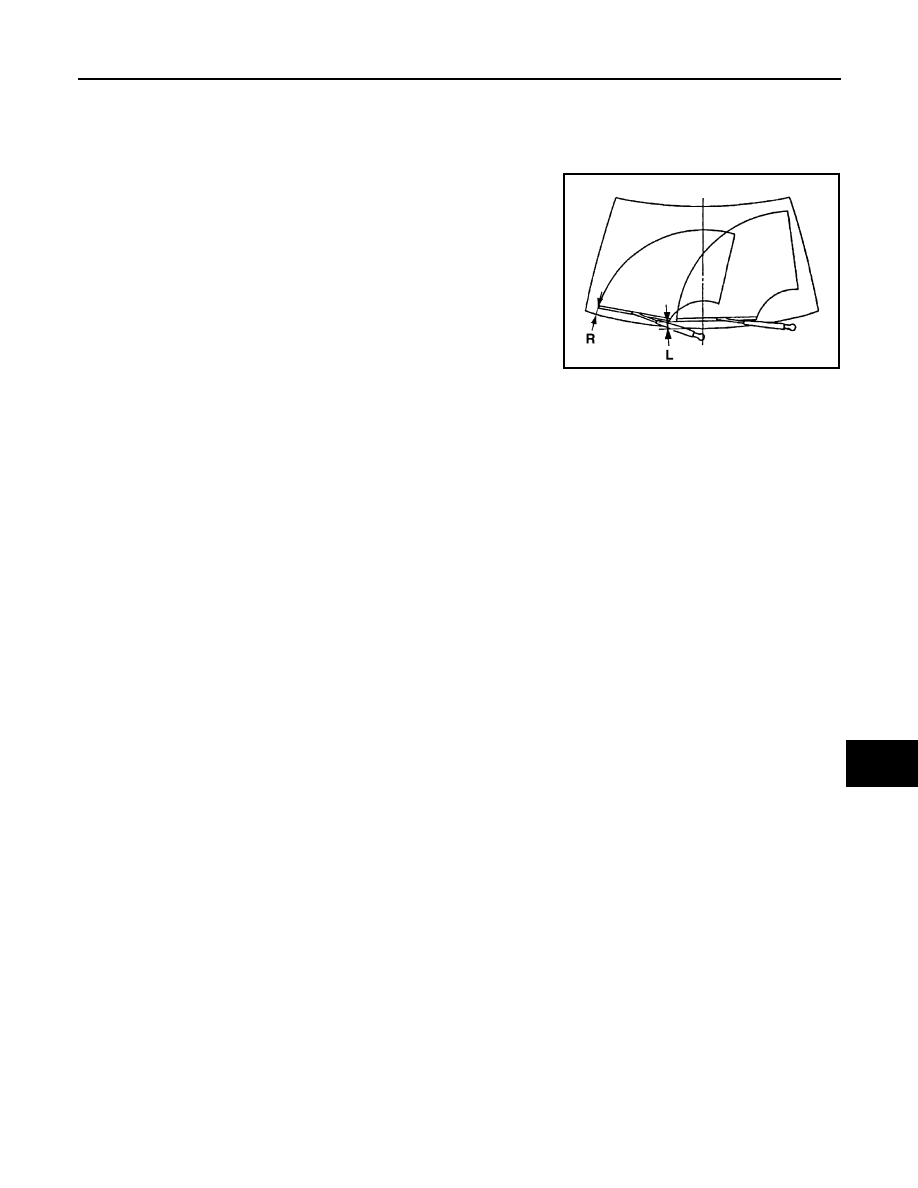

Adjustment

INFOID:0000000000924468

WIPER BLADE POSITION ADJUSTMENT

Clearance between the end of cowl top cover and the top of front wiper blade center

Standard clearance

R

: 57.5

±

10.3 mm (2.26

±

 0.406 in)

L

: 56.1

±

10.3 mm (2.21

±

 0.406 in)

JPLIA0082ZZ

WW-106

< ON-VEHICLE REPAIR >

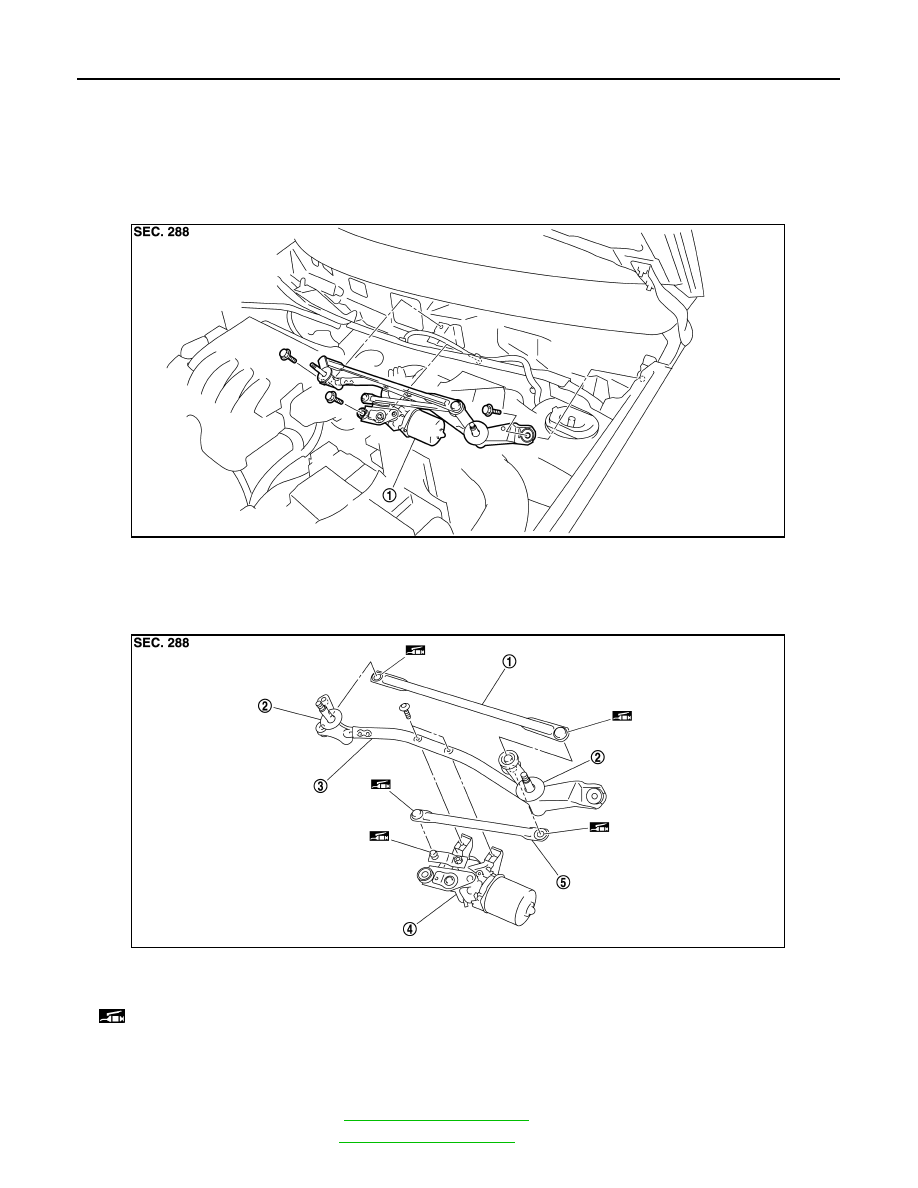

FRONT WIPER DRIVE ASSEMBLY

FRONT WIPER DRIVE ASSEMBLY

LHD MODELS

LHD MODELS : Exploded View

INFOID:0000000000924469

REMOVAL VIEW

DISASSEMBLY VIEW

LHD MODELS : Removal and Installation

INFOID:0000000000924470

REMOVAL

1.

Remove front wiper arm. Refer to

WW-104, "Exploded View"

.

2.

Remove cowl top cover. Refer to

EXT-19, "Exploded View"

.

1.

Front wiper drive assembly

JPLIA0279ZZ

1.

Front wiper linkage 1

2.

Shaft seal

3.

Front wiper frame

4.

Front wiper motor

5.

Front wiper linkage 2

: Multi

−

purpose grease or an equivalent.

JPLIA0280ZZ
