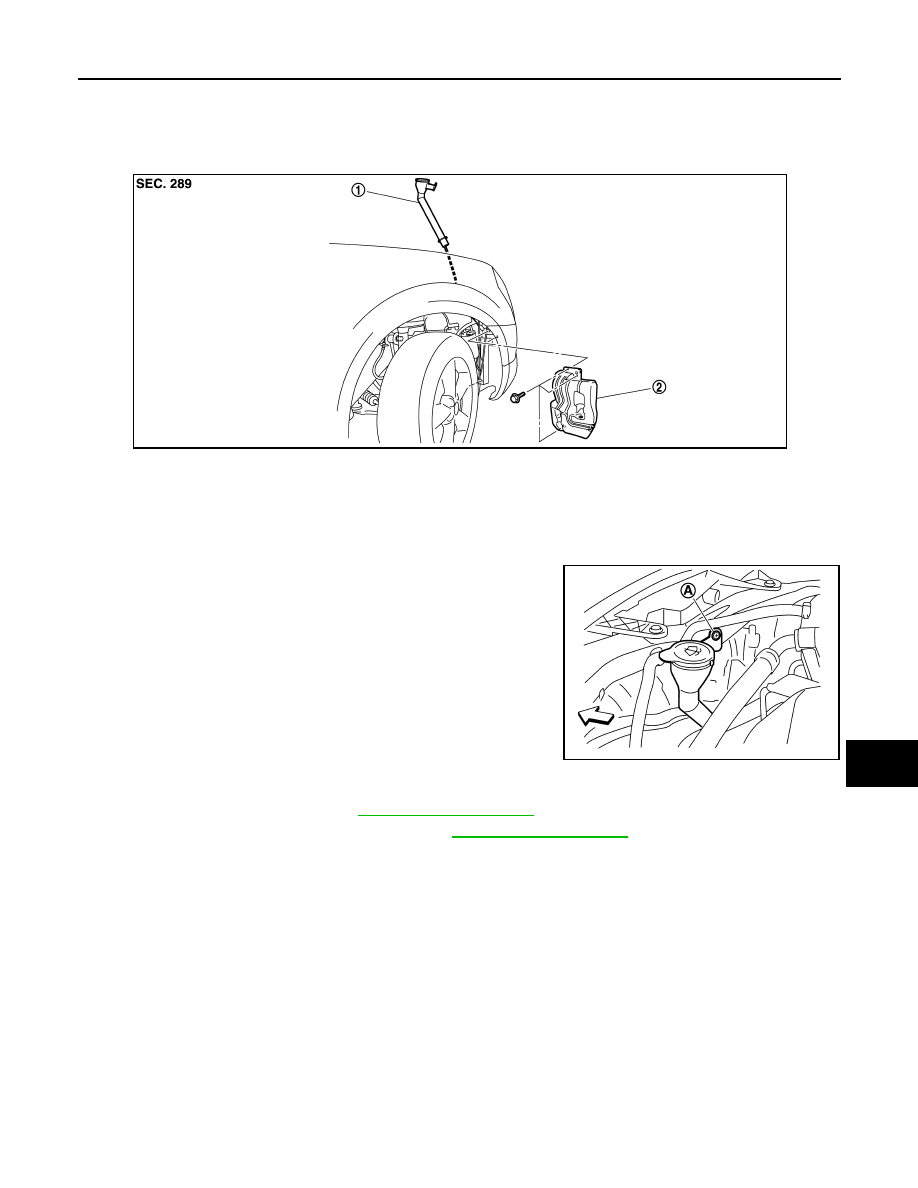

WASHER TANK

Exploded View

INFOID:0000000000896788

Removal and Installation

INFOID:0000000000896789

REMOVAL

1.

Remove the clip (A).

2.

Pull out the washer tank inlet from the washer tank.

3.

Remove the splash guard. Refer to

EXT-21, "Exploded View"

.

4.

Remove the fender protector RH (front). Refer to

EXT-21, "Exploded View"

.

5.

Disconnect washer pump connector.

6.

Disconnect headlamp washer pump connector.

7.

Remove all washer tubes.

8.

Remove washer tank mounting bolts.

9.

Remove the washer tank from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Add water up to the top of the washer tank inlet after installing. Check that there is no leakage.

1.

Washer tank inlet

2.

Washer tank

JPLIA0270ZZ

: Vehicle front

JPLIA0271ZZ

WW-100

< ON-VEHICLE REPAIR >

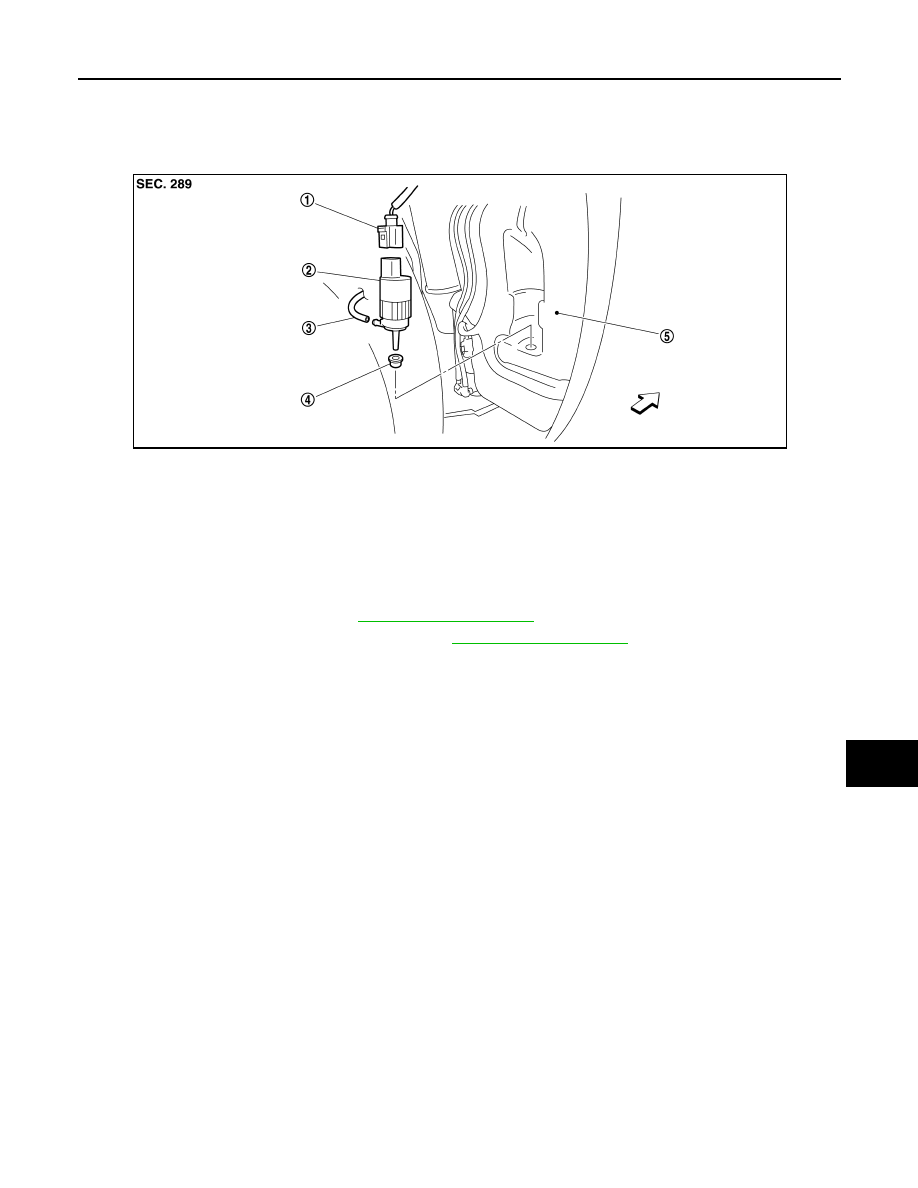

WASHER PUMP

WASHER PUMP

Exploded View

INFOID:0000000000896790

Removal and Installation

INFOID:0000000000896791

REMOVAL

1.

Remove the splash guard. Refer to

EXT-21, "Exploded View"

.

2.

Remove the fender protector RH (front). Refer to

EXT-21, "Exploded View"

.

3.

Disconnect washer pump connector.

4.

Remove front washer tube and rear washer tube.

5.

Remove washer pump from the washer tank.

6.

Remove the packing from the washer tank.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Never twist the packing when installing the washer pump.

1.

Washer pump connector

2.

Front washer tube

3.

Rear washer tube

4.

Washer pump

5.

Packing

6.

Washer tank

: Vehicle front

JPLIA0272ZZ

HEADLAMP WASHER PUMP

WW-101

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

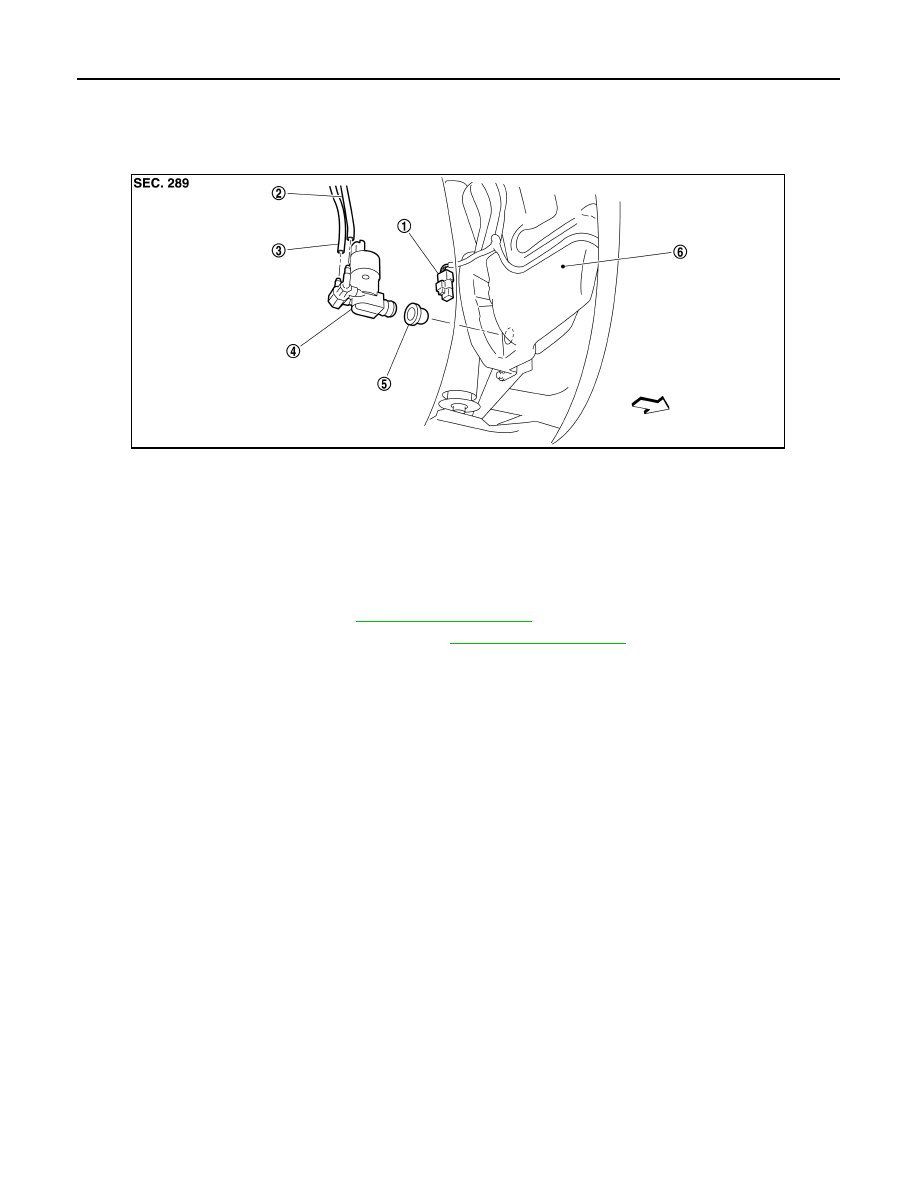

HEADLAMP WASHER PUMP

Exploded View

INFOID:0000000000936071

Removal and Installation

INFOID:0000000000936072

REMOVAL

1.

Remove the splash guard. Refer to

EXT-21, "Exploded View"

.

2.

Remove the fender protector RH (front). Refer to

EXT-21, "Exploded View"

.

3.

Disconnect the headlamp washer pump connector.

4.

Remove headlamp washer tube.

5.

Remove headlamp washer pump from the washer tank.

6.

Remove the packing from the washer tank.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Never twist the packing when installing the washer pump.

1.

Headlamp washer pump connector

2.

Headlamp washer pump

3.

Headlamp washer tube

4.

Packing

5.

Washer tank

: Vehicle front

JPLIA0291ZZ

WW-102

< ON-VEHICLE REPAIR >

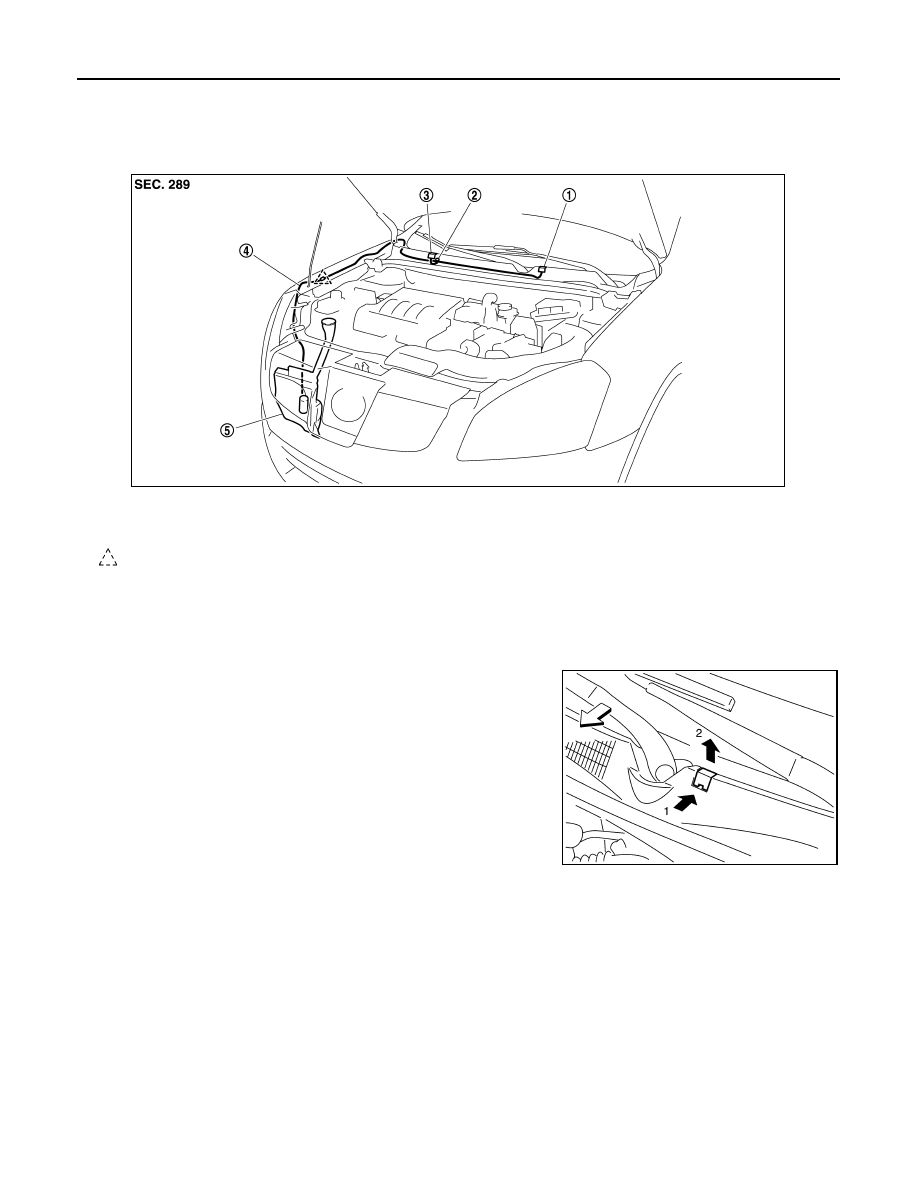

FRONT WASHER NOZZLE AND TUBE

FRONT WASHER NOZZLE AND TUBE

Hydraulic Layout

INFOID:0000000000896792

Removal and Installation

INFOID:0000000000896793

REMOVAL

1.

Open the hood.

2.

Remove front washer nozzle in numerical order shown in the fig-
ure.

3.

Remove the front washer tube from the front washer nozzle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

The spray positions differ, check that left and right nozzles are installed correctly.

Inspection and Adjustment

INFOID:0000000000926151

INSPECTION

Washer Nozzle Inspection

1.

Front washer nozzle (LH)

2.

Check valve

3.

Front washer nozzle (RH)

4.

Front washer tube

5.

Washer tank

: Clip

JPLIA0273ZZ

: Vehicle front

JPLIA0274ZZ
