HEADLAMP WASHER DOES NOT OPERATE

WW-95

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

HEADLAMP WASHER DOES NOT OPERATE

Description

INFOID:0000000001115040

Headlamp washer does not operate linked to front washer operation.

Diagnosis Procedure

INFOID:0000000000904271

1.

CHECK IPDM E/R

CONSULT-III DATA MONITOR

1.

Turn the lighting switch 2ND.

2.

Select "HL WASHER REQ" of IPDM E/R data monitor item.

3.

Operate the headlamp washer.

4.

Check the status of "HL WASHER REQ".

Is the status of item normal?

YES

>> Refer to

WW-39, "Component Function Check"

.

NO

>> GO TO 2.

2.

CHECK COMBINATION SWITCH

1.

Perform the inspection of the combination switch. Refer to

BCS-63, "Symptom Table"

.

Is combination switch normal?

YES

>> Replace BCM. Refer to

BCS-64, "Exploded View"

.

NO

>> Repair or replace the applicable parts.

Monitor item

 Condition

Monitor

status

HL WASHER REQ

Headlamp washer

Operat-

ing

ON

Stopped

OFF

WW-96

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001102412

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRC and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRC section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

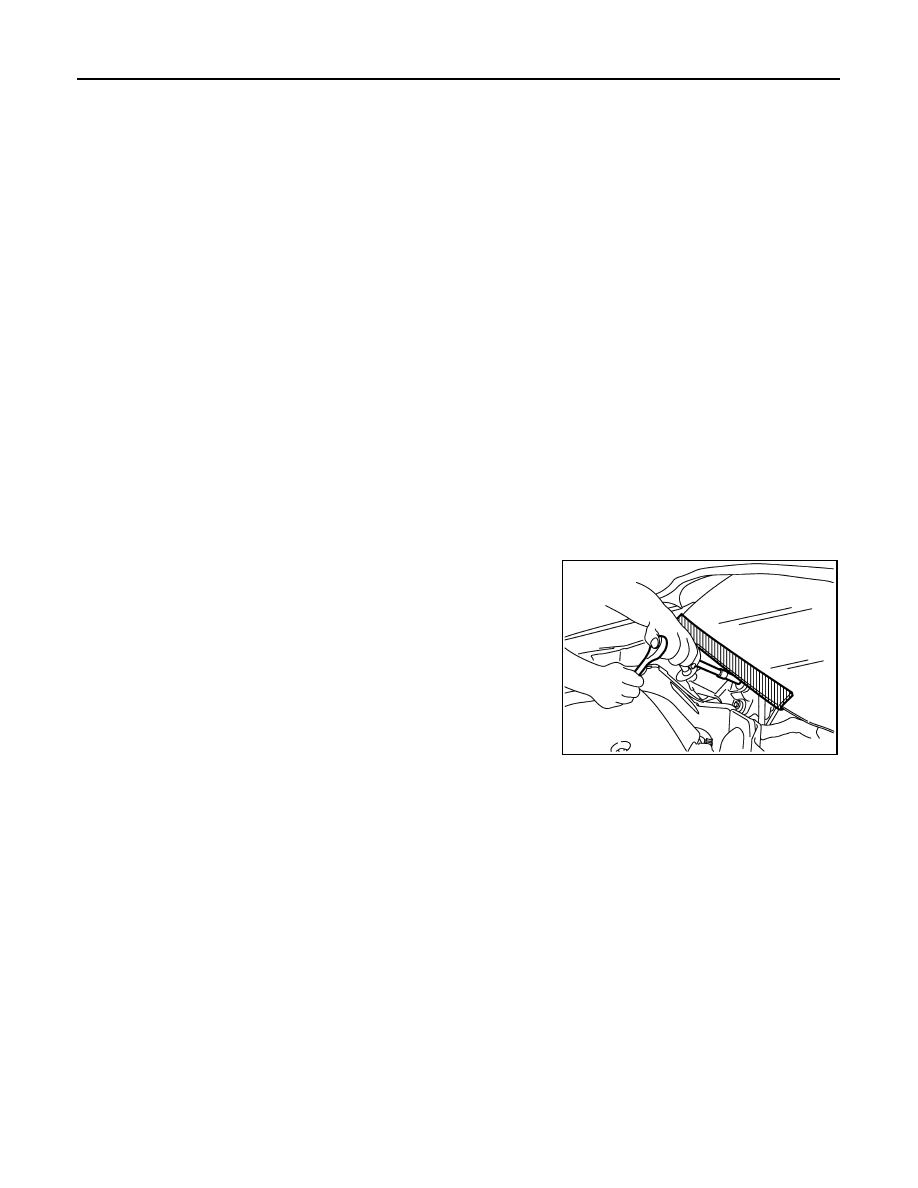

Precaution for Procedure without Cowl Top Cover

INFOID:0000000001102413

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

PIIB3706J

HEADLAMP WASHER NOZZLE AND TUBE

WW-97

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

ON-VEHICLE REPAIR

HEADLAMP WASHER NOZZLE AND TUBE

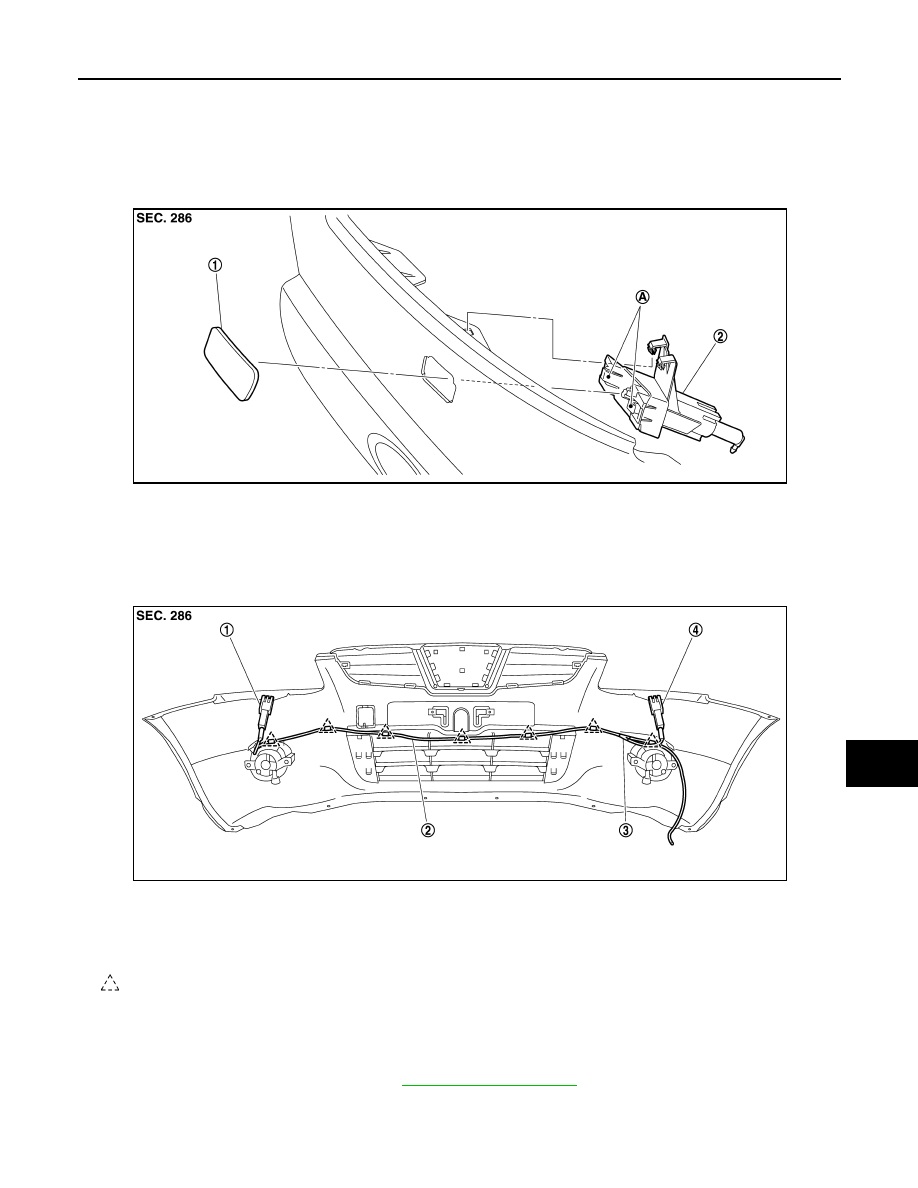

Exploded View

INFOID:0000000000926336

Hydraulic Layout

INFOID:0000000000926340

Removal and Installation

INFOID:0000000000926337

REMOVAL

1.

Remove the front bumper fascia. Refer to

EXT-11, "Exploded View"

.

2.

Remove headlamp washer tube from headlamp washer nozzle assembly.

1.

Headlamp washer nozzle cover

2.

Headlamp washer nozzle assembly

A.

Pawl

JPLIA0293ZZ

1.

 Headlamp washer nozzle assembly
(LH)

2.

Headlamp washer tube

3.

Headlamp washer tube joint

4.

Headlamp washer nozzle assembly
(RH)

: Clip

JPLIA0292ZZ

WW-98

< ON-VEHICLE REPAIR >

HEADLAMP WASHER NOZZLE AND TUBE

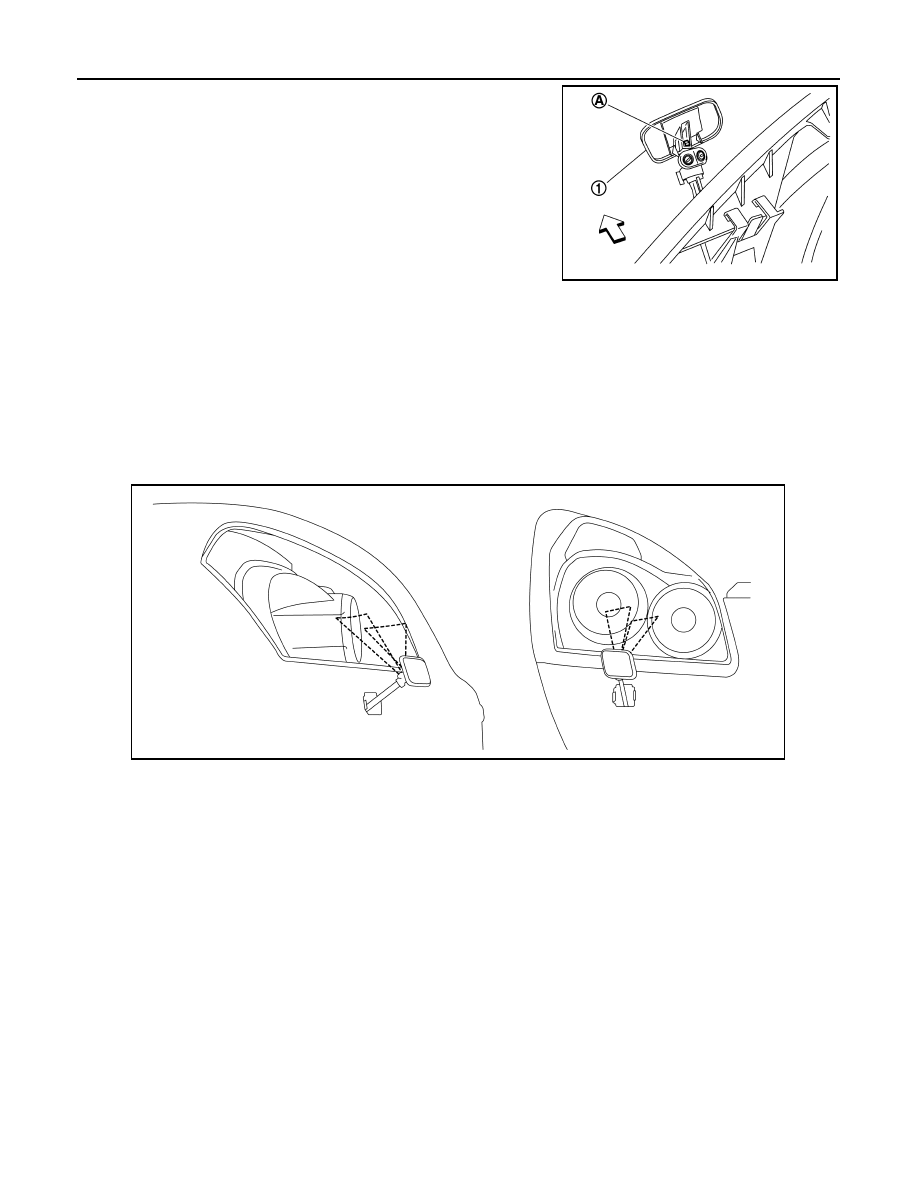

3.

Push pawl (A), and remove headlamp washer nozzle cover (1).

4.

Push pawl, and remove headlamp washer nozzle assembly from the front bumper fascia.

INSTALLATION

Note the following, and install in the reverse order of removal.

Inspection

INFOID:0000000000906858

HEADLAMP WASHER NOZZLE SPLAY POSITION INSPECTION

Check that the headlamp washer injection is certainly on the headlamp (LO) illuminating area. If the injection is
out of the area, check the headlamp washer tube and headlamp washer nozzle leakages.

: Vehicle front

JPLIA0294ZZ

JPLIA0295ZZ
