REAR FOG LAMP
EXL-341
< ON-VEHICLE REPAIR >
[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
M
A
B
EXL
N
O
P
REAR FOG LAMP

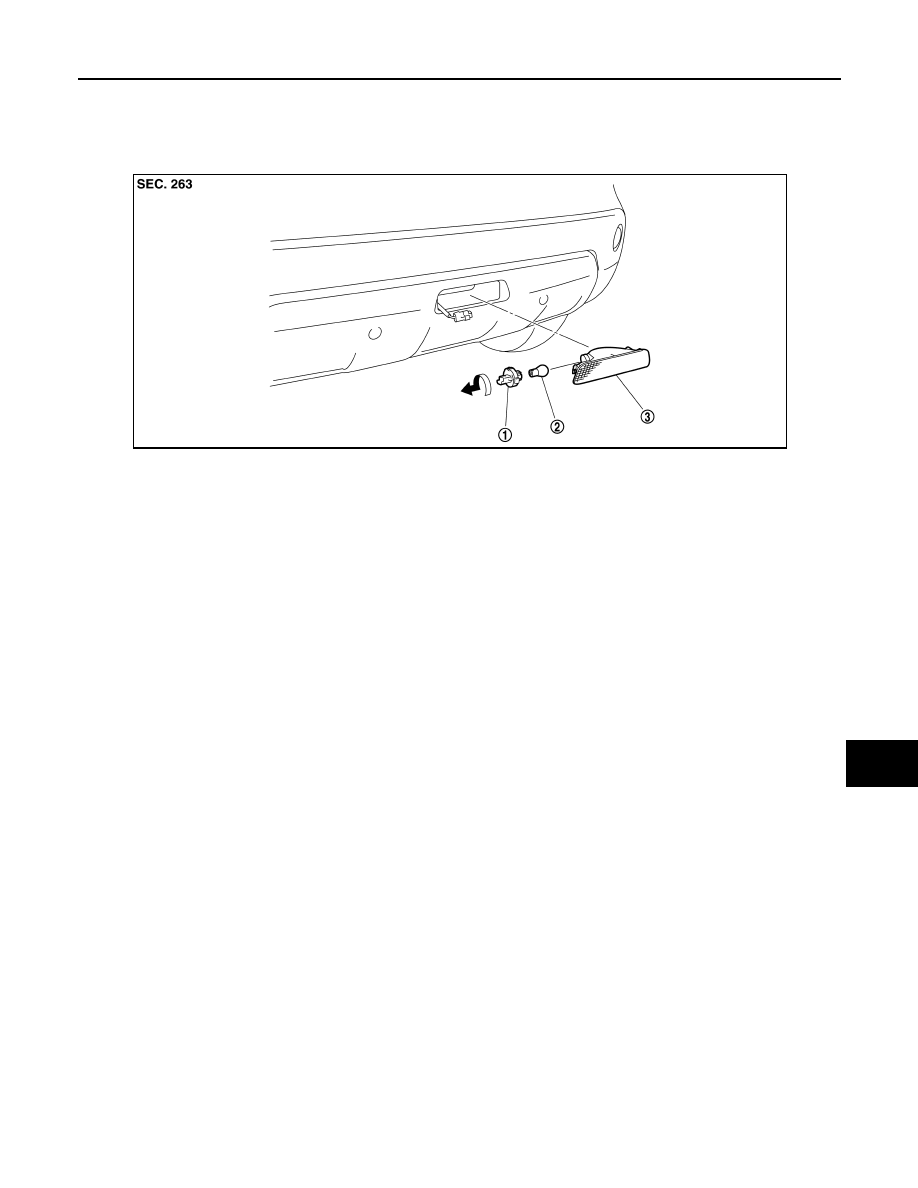

Exploded View
INFOID:0000000001099416
Removal and Installation
INFOID:0000000001099417
CAUTION:
Disconnect battery negative terminal or remove the fuse.
REMOVAL
1.
Insert any appropriate tool into the gap between the rear fog lamp housing. And pull off the rear fog lamp
from the vehicle.
2.
Disconnect rear fog lamp connector.
INSTALLATION
Installation is the reverse order of removal.
Replacement
INFOID:0000000001099418
CAUTION:
Disconnect battery negative terminal or remove the fuse.
REAR FOG LAMP BULB
1.
Remove the rear fog lamp.
2.
Turn the bulb socket counterclockwise and unlock it.
3.
Remove the bulb from its socket.
1.
Rear fog lamp bulb socket
2.
Rear fog lamp bulb
3.
Rear fog lamp housing
JPLIA0263ZZ
