REAR COMBINATION LAMP

EXL-337

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

CAUTION:

Disconnect the battery negative terminal or the fuse.

TAIL LAMP BULB

1.

Remove the rear combination lamp.

2.

Remove the bulb cover.

3.

Turn the tail lamp bulb counterclockwise, and remove it.

REAR TURN SIGNAL LAMP BULB

1.

Remove the rear combination lamp.

2.

Remove the bulb cover.

3.

Turn the rear turn signal lamp bulb counterclockwise, and remove it.

EXL-338

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

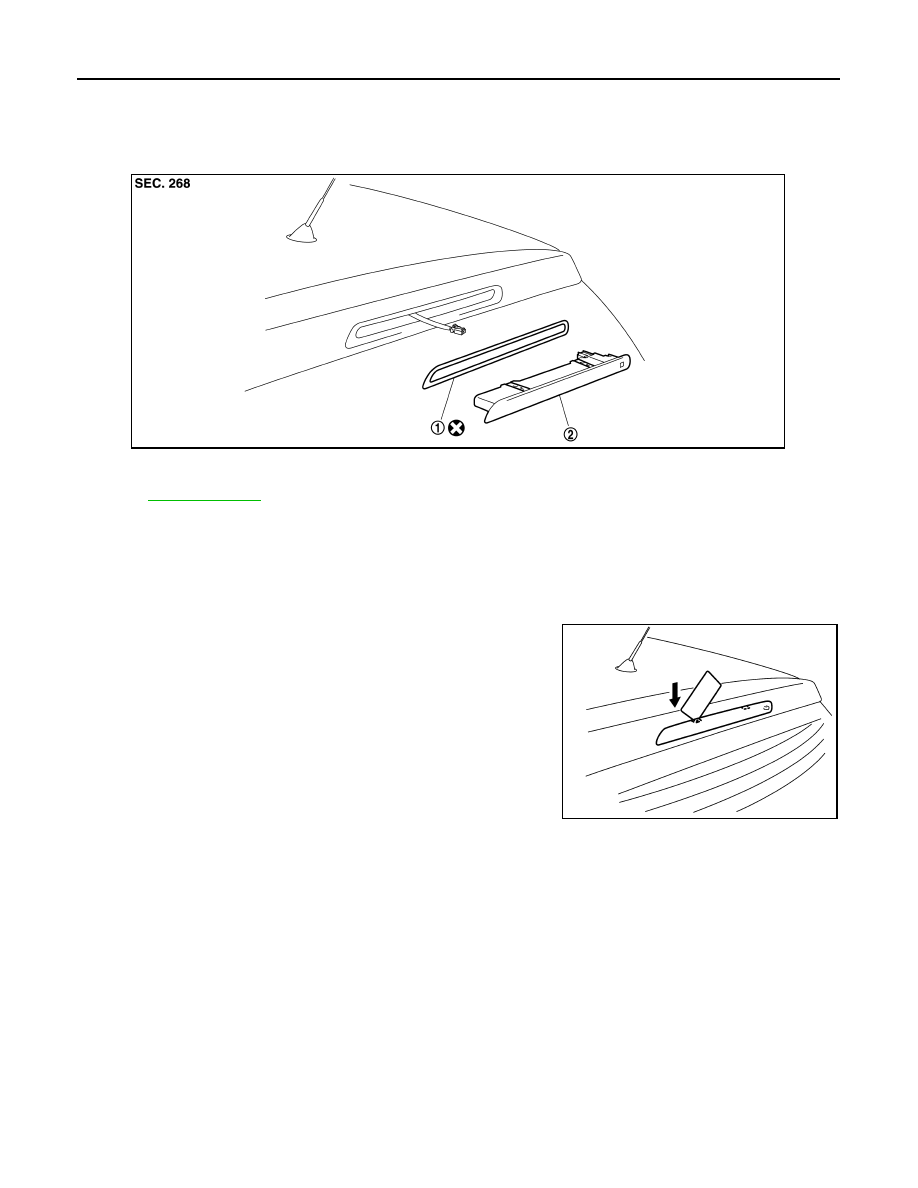

HIGH-MOUNTED STOP LAMP

HIGH-MOUNTED STOP LAMP

Exploded View

INFOID:0000000001099408

Removal and Installation

INFOID:0000000001099409

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REMOVAL

1.

Insert a cards upper the high-mounted stop lamp. While pushing
the metal clip of the lamp, pull off the lamp from the vehicle.

2.

Disconnect the high-mounted stop lamp connector.

3.

Remove the rear washer tube.

INSTALLATION

Install in the reverse order of removal.

1.

Seal packing

2.

High-mounted stop lamp

Refer to

GI-4, "Components"

 for symbols not described above.

JPLIA0258ZZ

JPLIA0259ZZ

BACK-UP LAMP

EXL-339

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

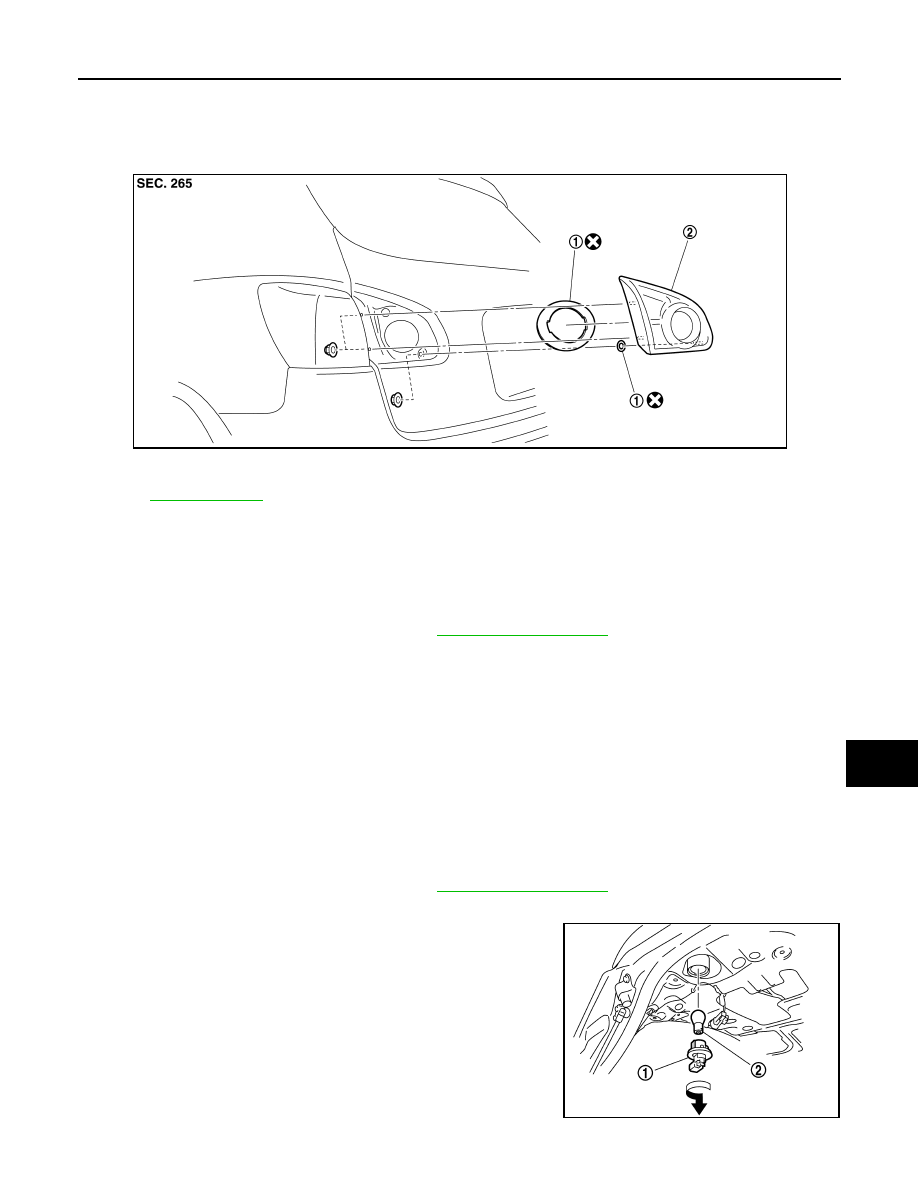

BACK-UP LAMP

Exploded View

INFOID:0000000001099410

Removal and Installation

INFOID:0000000001099411

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Remove back door trim finisher lower. Refer to

INT-26, "Exploded View"

.

2.

Disconnect back-up lamp connector.

3.

Remove back-up lamp mounting nuts. And then remove back-up lamp.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Seal packing cannot be reused.

Replacement

INFOID:0000000001099412

CAUTION:

Disconnect the battery negative terminal or the fuse.

BACK-UP LAMP BULB

1.

Remove back door trim finisher lower. Refer to

INT-26, "Exploded View"

.

2.

Disconnect the back-up lamp connector.

3.

Turn the bulb socket (1) counterclockwise and unlock it.

4.

Remove the bulb (2) from the socket.

1.

Seal packing

2.

Back-up lamp

Refer to

GI-4, "Components"

 for symbols not described above.

JPLIA0260ZZ

JPLIA0261ZZ

EXL-340

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

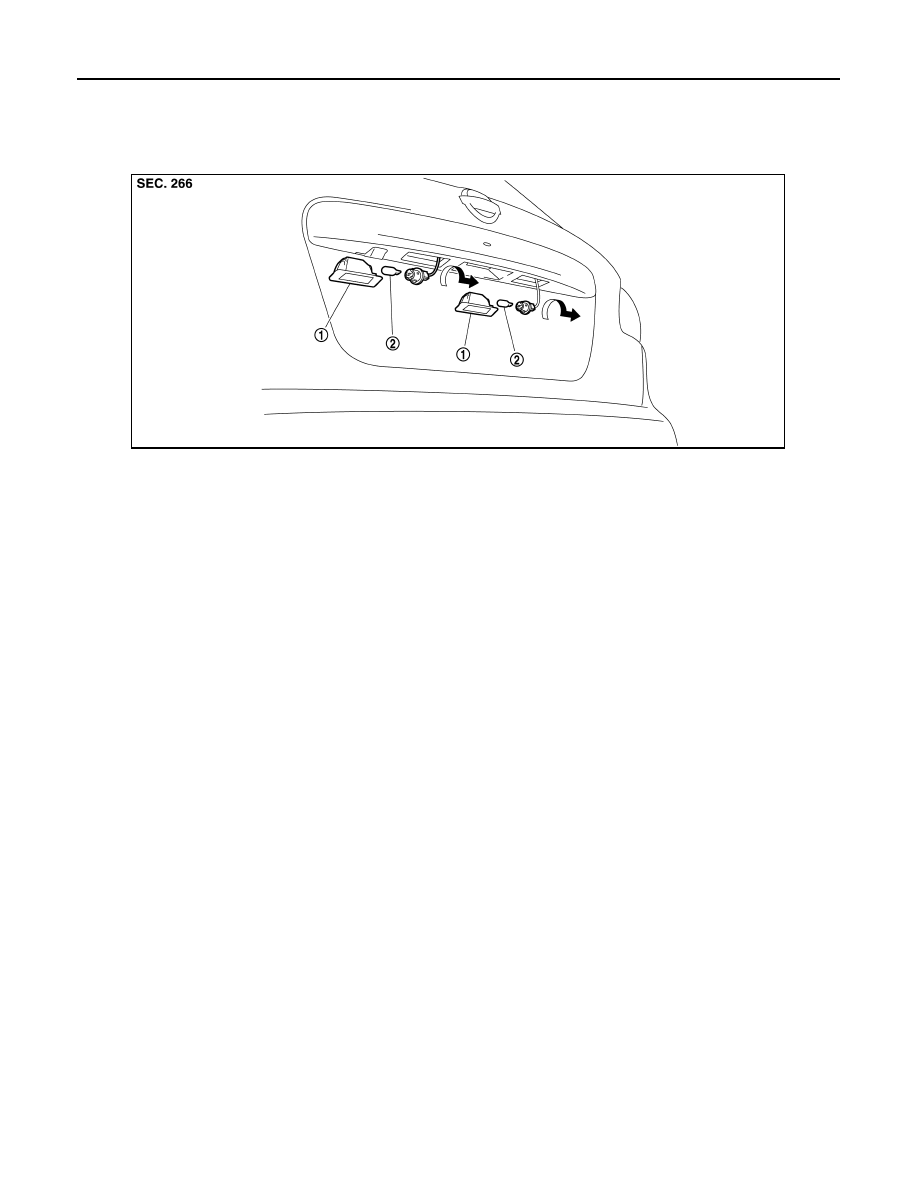

LICENSE PLATE LAMP

LICENSE PLATE LAMP

Exploded View

INFOID:0000000001099413

Removal and Installation

INFOID:0000000001099414

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

While pressing the license plate lamp to direction right side, pull it to direction outside and then remove it.

2.

Disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000001099415

CAUTION:

Disconnect the battery negative terminal or the fuse.

LICENSE PLATE LAMP BULB

1.

Remove license plate lamp.

2.

Turn the bulb socket counterclockwise and unlock it.

3.

Remove the bulb from the socket.

1.

License plate lamp housing

2.

License plate lamp bulb

JPLIA0262ZZ
