FRONT FOG LAMP

EXL-329

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

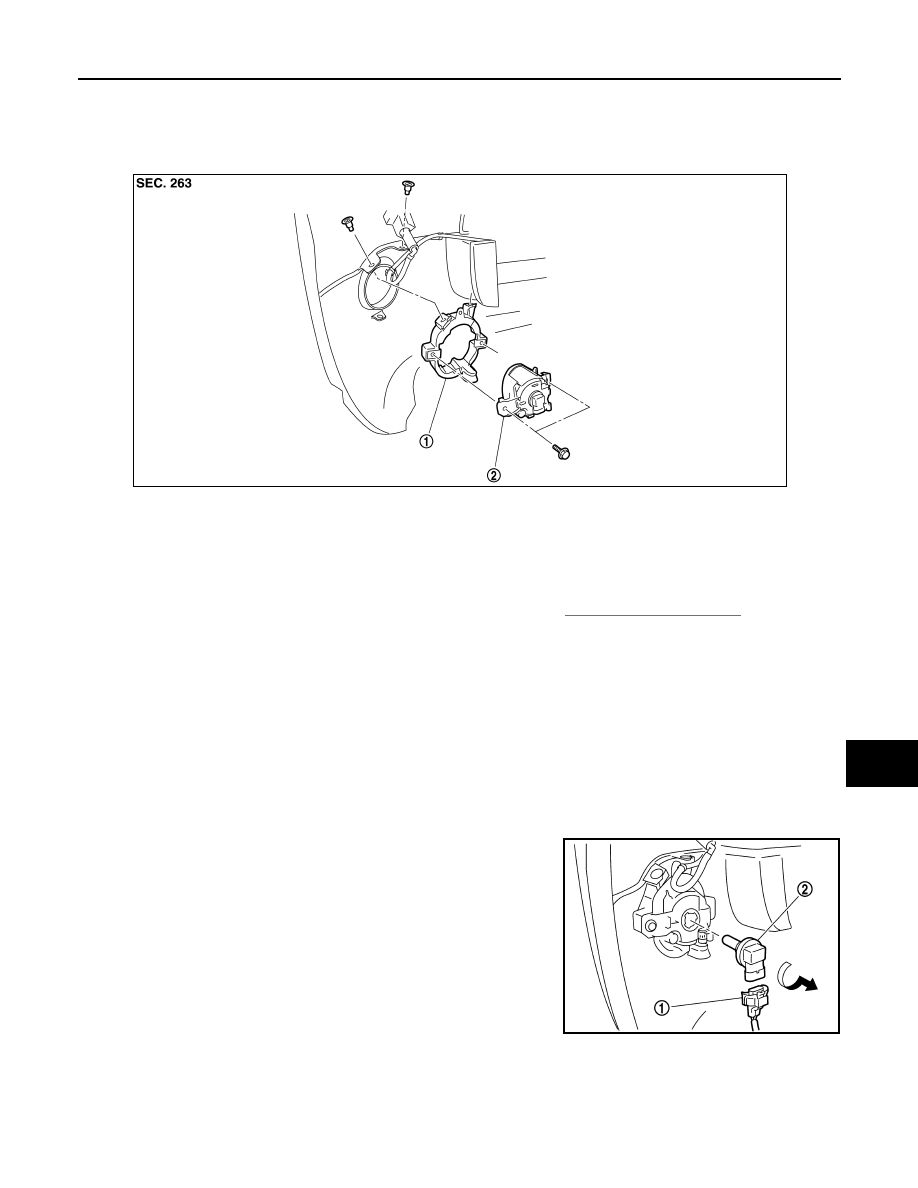

FRONT FOG LAMP

Exploded View

INFOID:0000000001099392

Removal and Installation

INFOID:0000000001099393

REMOVAL

1.

Remove the inner fender protector. Keep a service area. Refer to

EXT-21, "Exploded View"

.

2.

Remove the front fog lamp connector.

3.

Remove the screw. Remove the front fog lamp.

4.

Remove the clip. Remove the front fog lamp bracket.

INSTALLATION

Installation is the reverse order of removal.

Replacement

INFOID:0000000001099394

CAUTION:

Disconnect the battery negative terminal or the fuse.

1.

Remove the fender protector. Keep the service area.

2.

Remove the front fog lamp bulb connector (1).

3.

Rotate the bulb (2) counterclockwise and unlock it.

1.

Front fog lamp bracket

2.

Front fog lamp

JPLIA0251ZZ

JPLIA0252ZZ

EXL-330

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

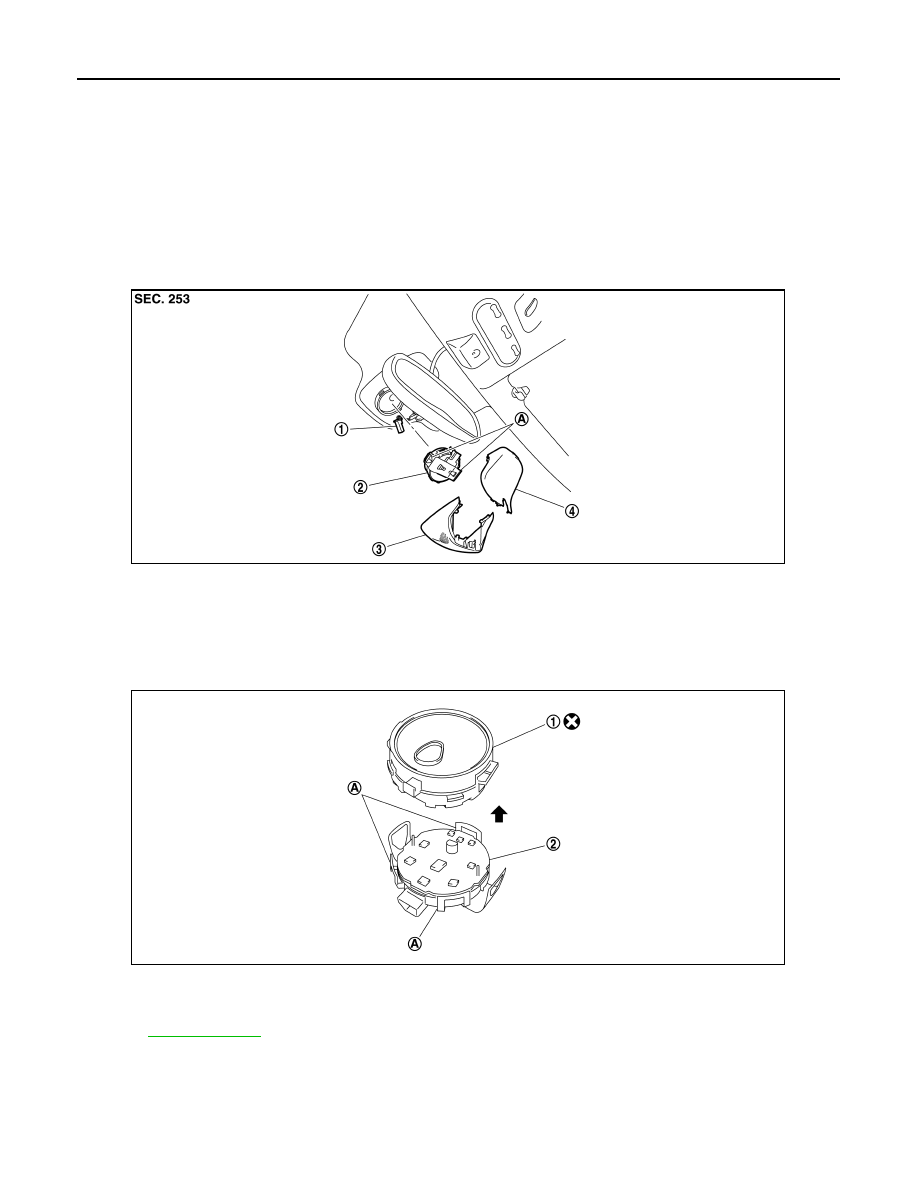

LIGHT & RAIN SENSOR

LIGHT & RAIN SENSOR

Exploded View

INFOID:0000000001099396

CAUTION:

• When the light & rain sensor is removed from windshield, gel/adhesive part of housing should not be

re-used.

• When re-using the light & rain sensor (i.e. after windshield replacement), replace the light & rain sen-

sor housing.

REMOVAL

DISASSEMBLY

CAUTION:

Never touch the electronic circuit board.

Removal and Installation

INFOID:0000000001099397

1.

Light & rain sensor connector

2.

Light & rain senor

3.

Inside mirror cover (lower)

4.

Inside mirror cover (upper)

A.

Metal spring clip

JPLIA0301ZZ

1.

Light & rain senor housing

2.

Light & rain senor

A.

Pawl

Refer to

GI-4, "Components"

 for symbols not described above.

JSLIA0096ZZ

LIGHT & RAIN SENSOR

EXL-331

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

CAUTION:

• When the light & rain sensor is removed from windshield, gel/adhesive part of housing should not be

re-used.

• When re-using the light & rain sensor (i.e. after windshield replacement), replace the light & rain sen-

sor housing.

REMOVAL

1.

Remove the inside mirror cover (upper and lower). Refer to

MIR-37, "Exploded View"

.

2.

Disengage the both sides of metal spring clips, and remove the light & rain sensor from the windshield.

3.

Disconnect light & rain sensor connector.

NOTE:
When replacing the light & rain sensor housing;
Disengage the pawls, and remove the light & rain sensor housing from the light & rain sensor.

CAUTION:

Never touch the electronic circuit board.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Surface of windshield should be cleaned.
• Never touch gel/adhesive of new part.

EXL-332

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

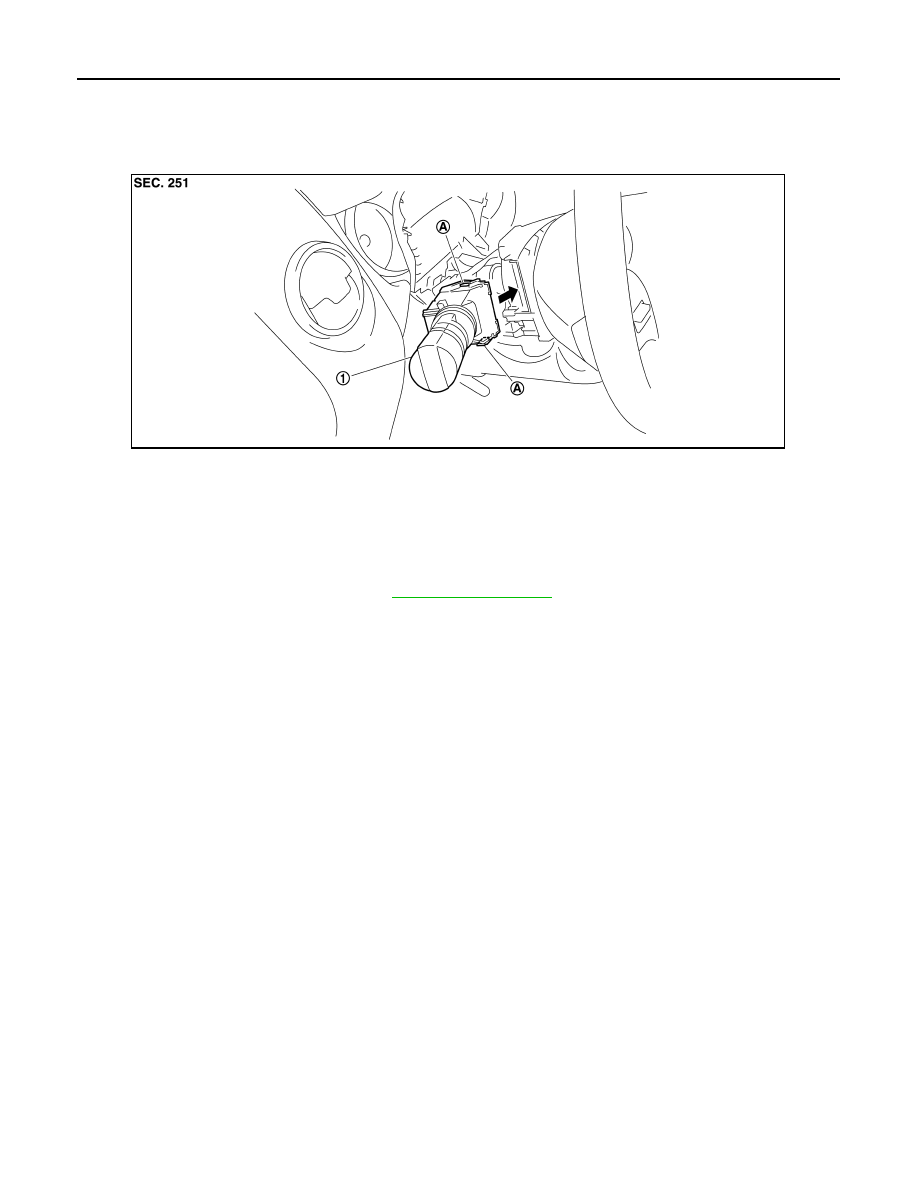

LIGHTING & TURN SIGNAL SWITCH

LIGHTING & TURN SIGNAL SWITCH

Exploded View

INFOID:0000000001099398

Removal and Installation

INFOID:0000000001099399

REMOVAL

1.

Remove steering column cover. Refer to

IP-11, "Exploded View"

.

2.

While pressing pawls, pull the light & turn signal switch. And disconnect from the switch base.

INSTALLATION

Installation is the reverse order of removal.

1.

Light & turn signal switch

A.

Pawl

JSLIA0092ZZ
