FRONT FOG LAMP AIMING ADJUSTMENT

EXL-325

< ON-VEHICLE MAINTENANCE >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

C.

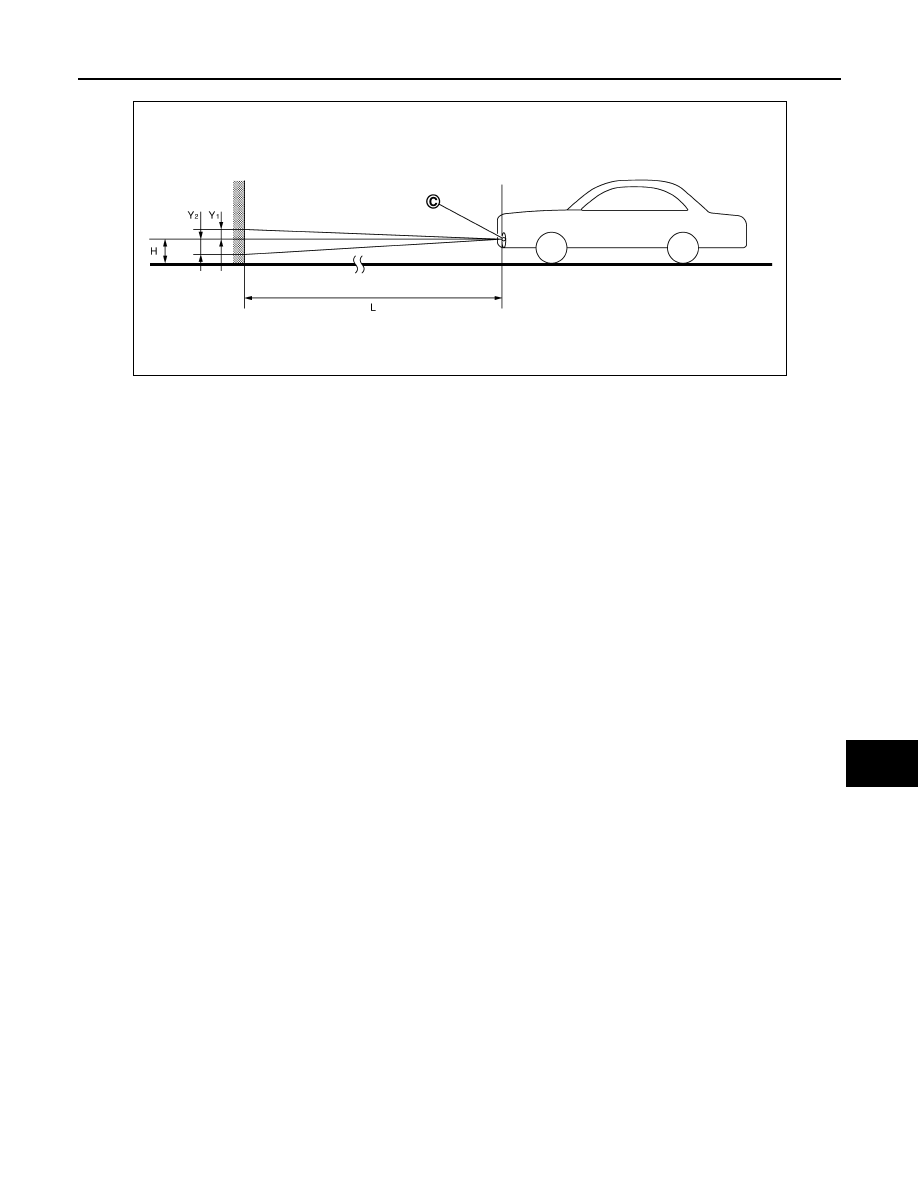

Vertical center line of front fog
lamp

H.

Horizontal center line of front fog
lamp

L.

Distance from front fog lamp center to screen

Y

1

.

Aiming adjustment area
(Upper)

Y

2

.

Aiming adjustment area
(Lower)

Distance from headlamp center to screen (L)

: 10 m (32.8 ft)

JPLIA0303ZZ

EXL-326

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

FRONT COMBINATION LAMP

ON-VEHICLE REPAIR

FRONT COMBINATION LAMP

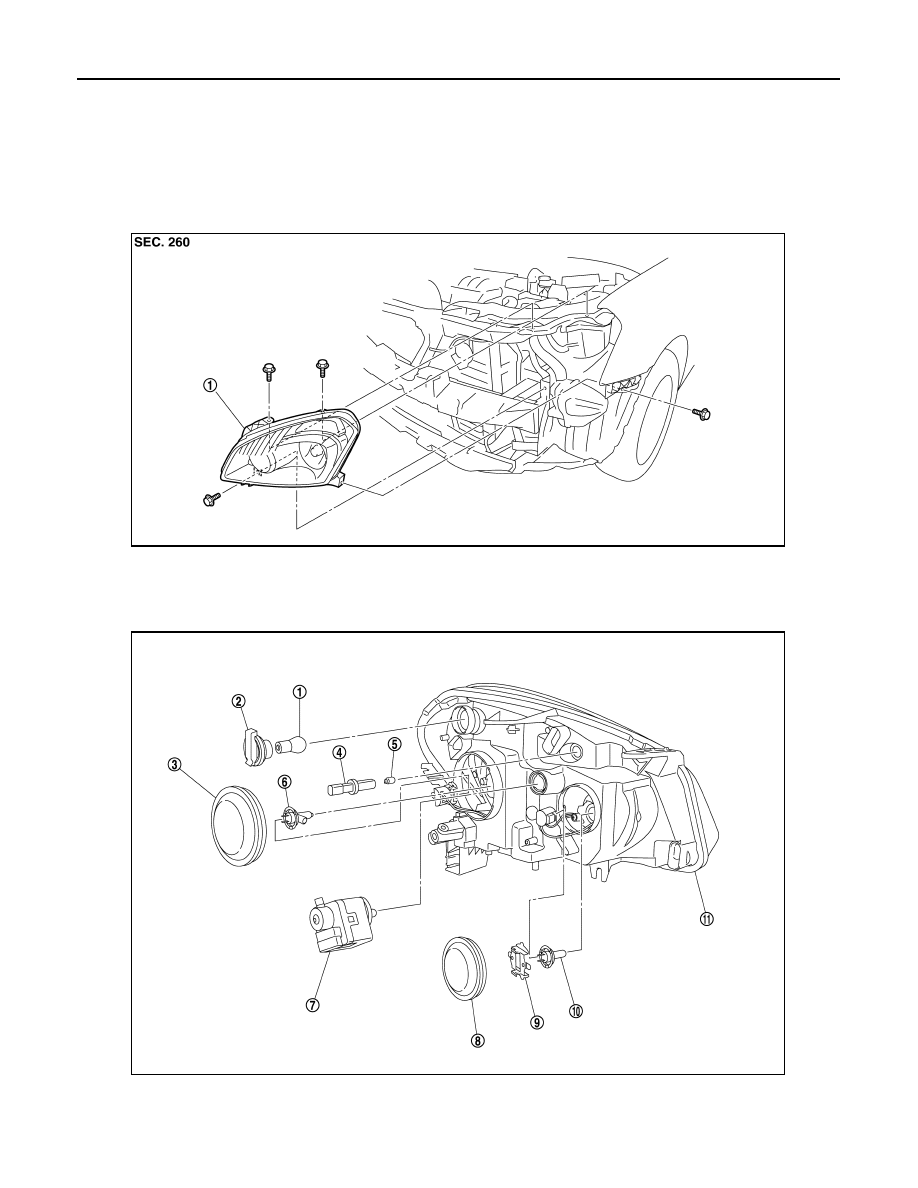

Exploded View

INFOID:0000000001026274

REMOVAL

DISASSEMBLY

1.

Front combination lamp

JPLIA0247ZZ

1.

Front turn signal lamp bulb

2.

Front turn signal lamp bulb socket

3.

Resin cap

4.

Parking lamp bulb socket

5.

Parking lamp bulb

6.

Halogen bulb (LO)

JPLIA0184ZZ

FRONT COMBINATION LAMP

EXL-327

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Removal and Installation

INFOID:0000000001026275

REMOVAL

CAUTION:

Disconnect the battery negative terminal or the fuse.
1.

Remove front bumper fascia. Refer to

EXT-11, "Exploded View"

.

2.

Remove the headlamp mounting bolts.

3.

Pull out the headlamp assembly forward the vehicle.

4.

Disconnect the connector before removing the headlamp assembly.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to

EXL-320, "Description"

.

Replacement

INFOID:0000000001026276

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.

HEADLAMP BULB (LO)

1.

Remove the air duct (when replace a left). Keep a service area.

2.

Rotate the resin cap counterclockwise and unlock it.

3.

Disconnect the bulb socket.

4.

Remove the retaining spring lock. Remove the bulb from the headlamp.

HEADLAMP BULB (HI)

1.

Remove the air duct (when replace a left). Keep a service area.

2.

Rotate the back cover counterclockwise and unlock it.

3.

Rotate the retaining plate counterclockwise and unlock it.

4.

Remove the bulb from the headlamp.

PARKING LAMP BULB

1.

Rotate the bulb socket clockwise and unlock it.

2.

Remove the bulb from the bulb socket.

FRONT TURN SIGNAL LAMP BULB

1.

Rotate the bulb socket counterclockwise and unlock it.

2.

Remove the bulb from the bulb socket.

Disassembly and Assembly

INFOID:0000000001026277

DISASSEMBLY

1.

Rotate the resin cap counterclockwise and unlock it.

2.

Rotate the terminal which connect to a socket.

3.

Rotate the halogen bulb (LO) socket.

4.

Remove the retaining spring lock. Remove the halogen bulb (LO).

5.

Rotate the back cover. Rotate the halogen bulb (HI) socket.

6.

Remove the retaining plate counterclockwise and unlock it. Remove halogen bulb (HI).

7.

Rotate the parking lamp bulb socket clockwise and unlock it.

8.

Remove the bulb from the parking lamp bulb socket.

9.

Rotate the front turn signal lamp bulb socket counterclockwise and unlock it.

7.

Aiming motor

8.

Back cover

9.

Retaining plate

10.

Halogen bulb (HI)

11. Headlamp housing assembly

EXL-328

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

FRONT COMBINATION LAMP

10. Remove the bulb from the front turn signal lamp bulb socket.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION:

• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.
