PARKING, LICENSE PLATE AND TAIL LAMPS ARE NOT TURNED ON

Description

INFOID:0000000001099388

The parking, license plate, tail lamps and each illumination are not turned ON in any condition.

Diagnosis Procedure

INFOID:0000000001099389

1.

CHECK FUSE

Check that the following fuse is fusing.

Is the fuse fusing?

YES

>> Repair the applicable circuit. And then replace the fuse.

NO

>> GO TO 2.

2.

COMBINATION SWITCH INSPECTION

Check the combination switch. Refer to

BCS-63, "Symptom Table"

.

Is the combination switch normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning part.

3.

CHECK TAIL LAMP RELAY REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1.

Select "TAIL & CLR REQ" of IPDM E/R data monitor item.

2.

With operating the lighting switch, check the monitor status.

Is the item status normal?

YES

>> GO TO 4.

NO

>> Replace BCM. Refer to

BCS-64, "Exploded View"

.

4.

TAIL LAMP CIRCUIT INSPECTION

Check the tail lamp circuit. Refer to

EXL-233, "Component Function Check"

.

Is the tail lamp circuit normal?

YES

>> Replace IPDM E/R.

NO

>> Repair or replace the malfunctioning part.

Unit

Location

Fuse No.

Capacity

• Parking  lamp
• Tail lamp
• License plate lamp

IPDM E/R

#49

10 A

Monitor item

Condition

Monitor status

TAIL & CLR
REQ

Lighting switch

1ST

ON

OFF

OFF

EXL-318

< SYMPTOM DIAGNOSIS >

[HALOGEN TYPE]

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

Description

INFOID:0000000001099390

The front fog lamps are not turned ON in any condition.

Diagnosis Procedure

INFOID:0000000001099391

1.

CHECK FUSE

Check that the following fuse is fusing.

Is the fuse fusing?

YES

>> Repair the applicable circuit. And then replace the fuse.

NO

>> GO TO 2.

2.

COMBINATION SWITCH INSPECTION

Check the combination switch. Refer to

BCS-63, "Symptom Table"

.

Is the combination switch normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning part.

3.

CHECK FRONT FOG LAMP REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1.

Select "FR FOG REQ" of IPDM E/R data monitor item.

2.

With operating the front fog lamp switch, check the monitor status.

Is the item status normal?

YES

>> GO TO 4.

NO

>> Replace BCM. Refer to

BCS-64, "Exploded View"

.

4.

FRONT FOG LAMP CIRCUIT INSPECTION

Check the front fog lamp circuit. Refer to

EXL-221, "Component Function Check"

.

Is the front fog lamp circuit normal?

YES

>> Replace IPDM E/R.

NO

>> Repair or replace the malfunctioning part.

Unit

Location

Fuse No.

Capacity

Front fog lamp

IPDM E/R

#43

15 A

Monitor item

Condition

Monitor status

FR FOG REQ

Front fog lamp switch
(With lighting switch 1ST)

ON

ON

OFF

OFF

PRECAUTIONS

EXL-319

< PRECAUTION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001078107

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRC and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRC section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

EXL-320

< ON-VEHICLE MAINTENANCE >

[HALOGEN TYPE]

HEADLAMP AIMING ADJUSTMENT

ON-VEHICLE MAINTENANCE

HEADLAMP AIMING ADJUSTMENT

Description

INFOID:0000000001026278

PREPARATION BEFORE ADJUSTING

NOTE:
• For details, refer to the regulations in your own country.
• Perform aiming if the vehicle front body has been repaired and/or the headlamp assembly has been

replaced.

Before performing aiming adjustment, check the following.

• Adjust the tire pressure to the specification.
• Fill with fuel, engine coolant and each oil.
• Maintain the unloaded vehicle condition. (Remove luggage from the passenger compartment and the lug-

gage room.)
NOTE:
Do not remove the temporary tire, jack and on-vehicle tool.

• Wipe out dirt on the headlamp.

CAUTION:

Never use organic solvent (thinner, gasoline etc.)

• Ride alone on the driver seat.
• Headlamp aiming switch sets to “0”.

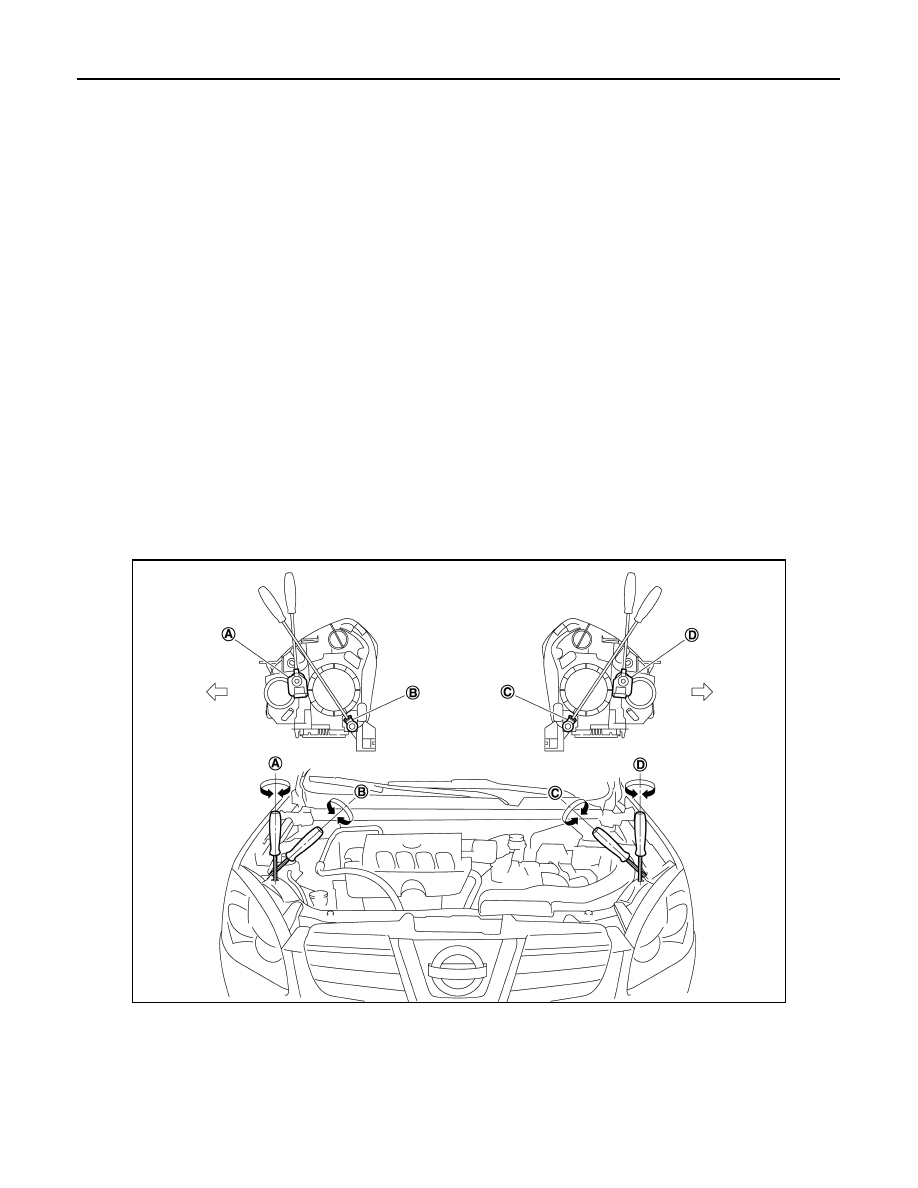

AIMING ADJUSTMENT SCREW

JPLIA0250ZZ

A.

Headlamp RH (UP/DOWN) adjust-
ment screw

B.

Headlamp RH (INSIDE/OUTSIDE)
adjustment screw

C.

Headlamp LH (INSIDE/OUTSIDE)
adjustment screw

D.

Headlamp LH (UP/DOWN) adjust-
ment screw

: Vehicle center
