SIDE TURN SIGNAL LAMP

EXL-333

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

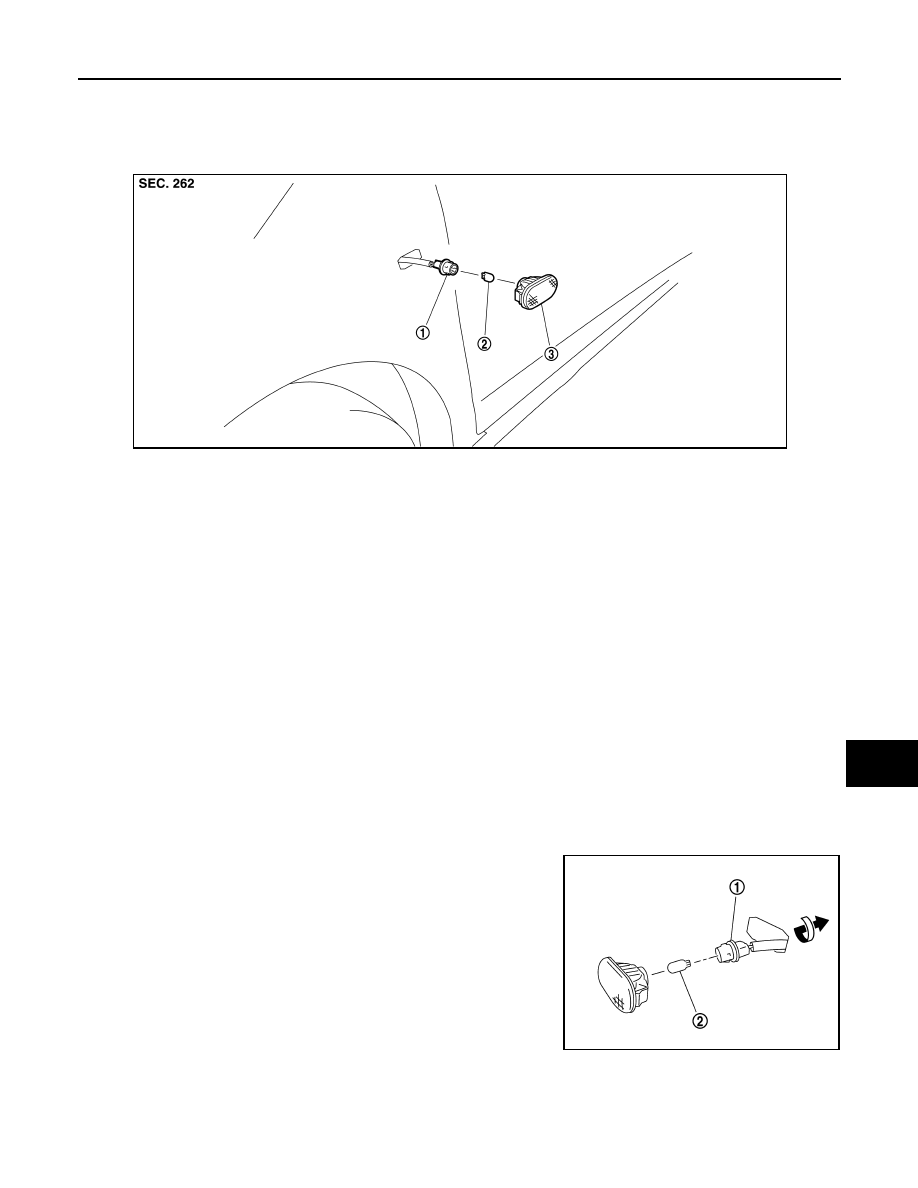

SIDE TURN SIGNAL LAMP

Exploded View

INFOID:0000000001099400

Removal and Installation

INFOID:0000000001099401

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REMOVAL

1.

Insert a spatula or the similar tool under the side turn signal lamp. While pushing the pawl of the lamp, pull
off the lamp from the vehicle.

2.

Disconnect side turn signal lamp connector.
NOTE:
Support side turn signal lamp harness with tape so that it won't fall into the front fender.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000001099402

CAUTION:

Disconnect battery negative terminal or remove the fuse.

SIDE TURN SIGNAL LAMP BULB

1.

Remove the side turn signal lamp.

2.

Rotate the bulb socket (1) counterclockwise and unlock it.
NOTE:
Support the vehicle-side harness of the side turn signal lamp
with tape so that it does not drop inside the front fender.

3.

Remove the bulb (2) from the bulb socket.

1.

Side turn signal lamp bulb socket

2.

Side turn signal lamp bulb

3.

Side turn signal lamp housing

JSLIA0094ZZ

JSLIA0095ZZ

EXL-334

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

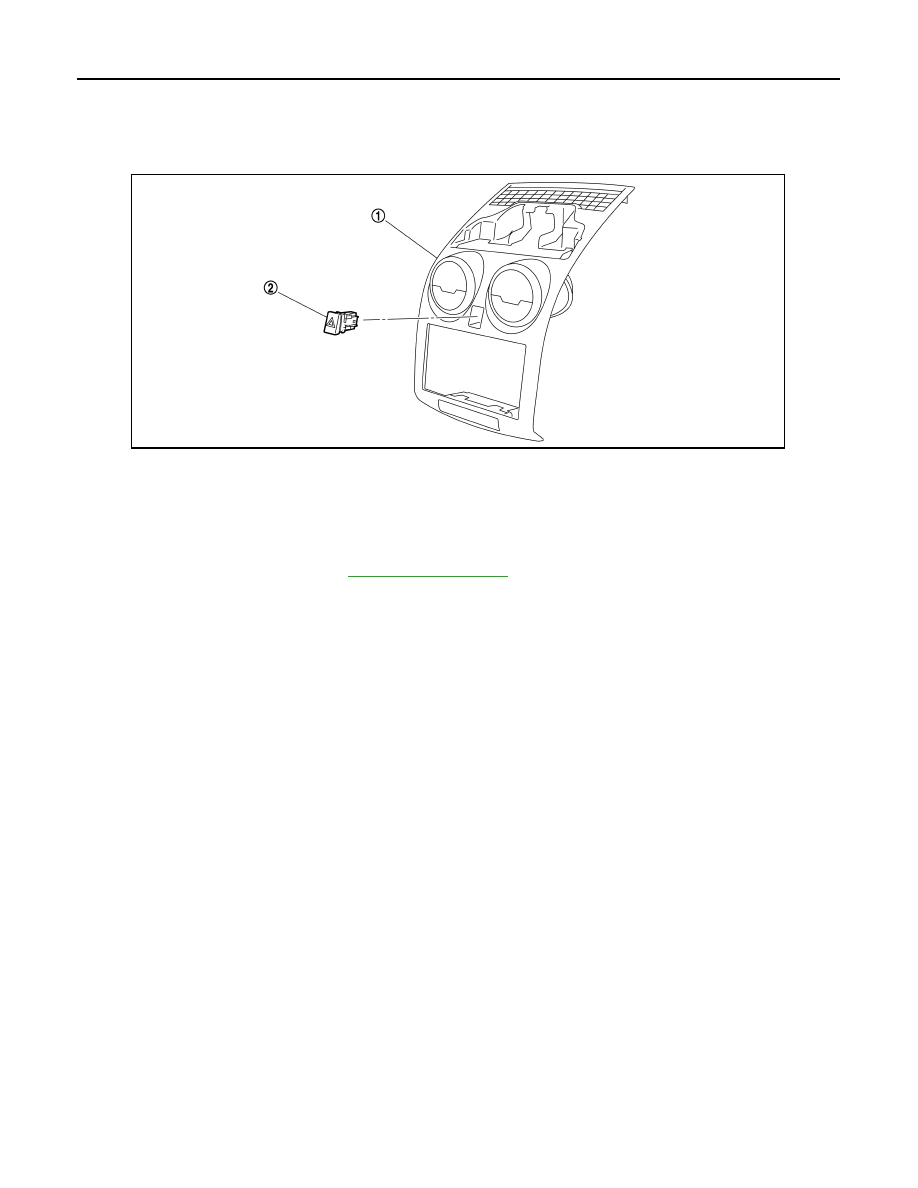

HAZARD SWITCH

HAZARD SWITCH

Exploded View

INFOID:0000000001099403

Removal and Installation

INFOID:0000000001099404

REMOVAL

1.

Remove the cluster lid C. Refer to

IP-11, "Exploded View"

.

2.

Widen the pawl. Remove hazard switch.

INSTALLATION

Install in the reverse order of removal.

1.

Cluster lid C

2.

Hazard switch

JPLIA0255ZZ

HEADLAMP AIMING SWITCH

EXL-335

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

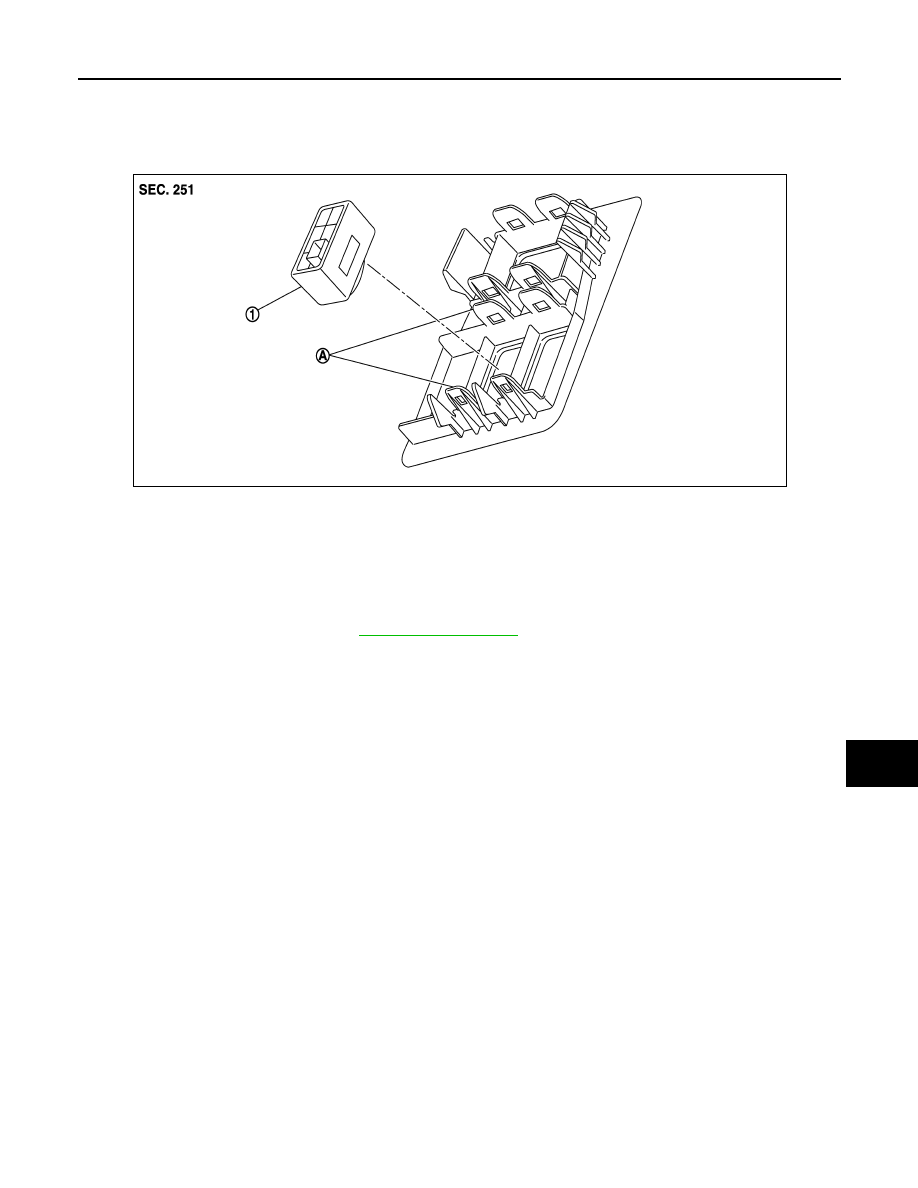

HEADLAMP AIMING SWITCH

Exploded View

INFOID:0000000001026294

Removal and Installation

INFOID:0000000001026295

Removal

1.

Remove the switch holder. Refer to

IP-11, "Exploded View"

.

2.

Widen the pawl. Remove headlamp aiming switch.

Installation

Install in the reverse order of removal.

1.

Headlamp aiming switch

A.

Pawls

JSLIA0074ZZ

EXL-336

< ON-VEHICLE REPAIR >

[HALOGEN TYPE]

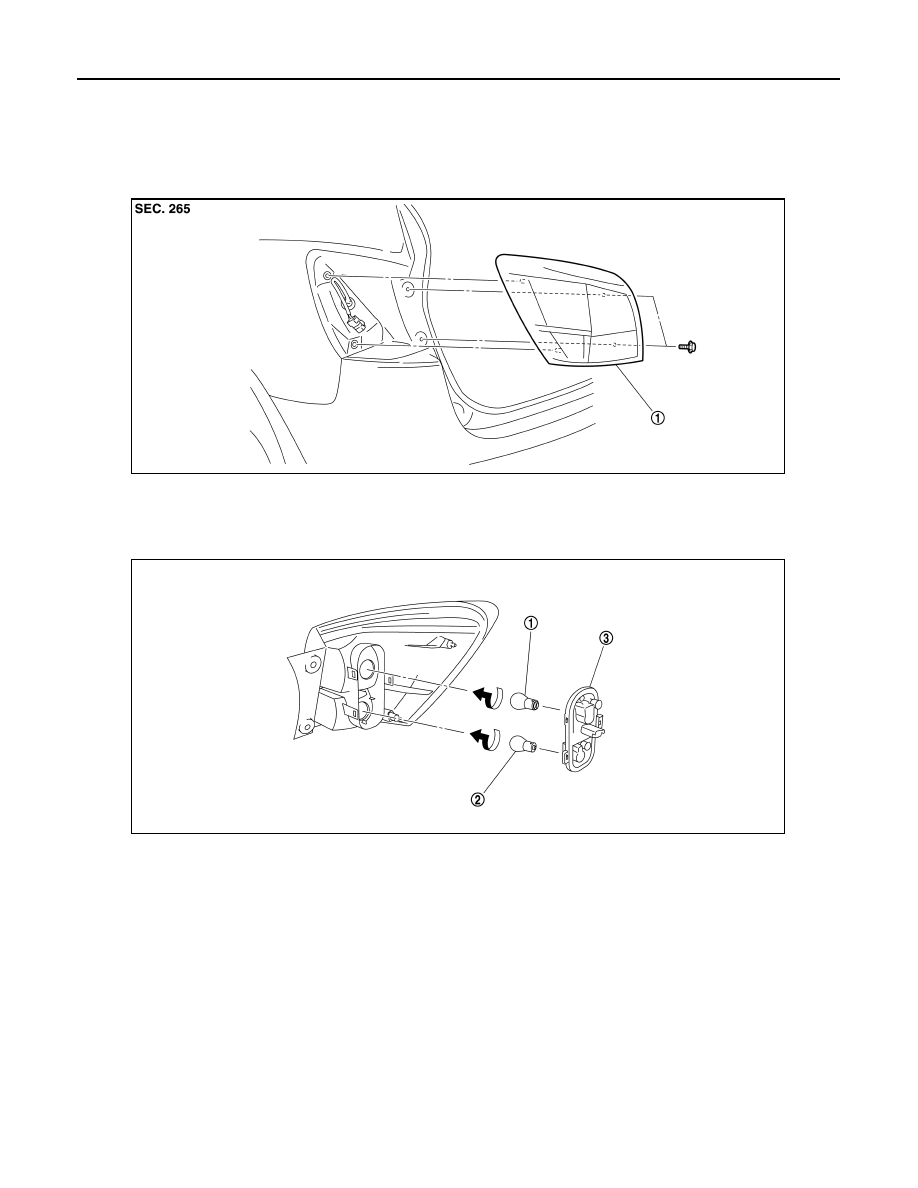

REAR COMBINATION LAMP

REAR COMBINATION LAMP

Exploded View

INFOID:0000000001099405

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000001099406

CAUTION:

Disconnect the battery negative terminal or the fuse.

REMOVAL

1.

Remove rear combination lamp mounting bolts.

2.

Pull the rear combination lamp toward rear of the vehicle. Remove the rear combination lamp.

3.

Disconnect rear combination lamp connector.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000001099407

1.

Rear combination lamp

JPLIA0256ZZ

1.

Tail lamp bulb

2.

Rear turn signal lamp bulb

3.

Bulb cover

JPLIA0257ZZ
