DIAGNOSIS AND REPAIR WORKFLOW

INL-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000001078335

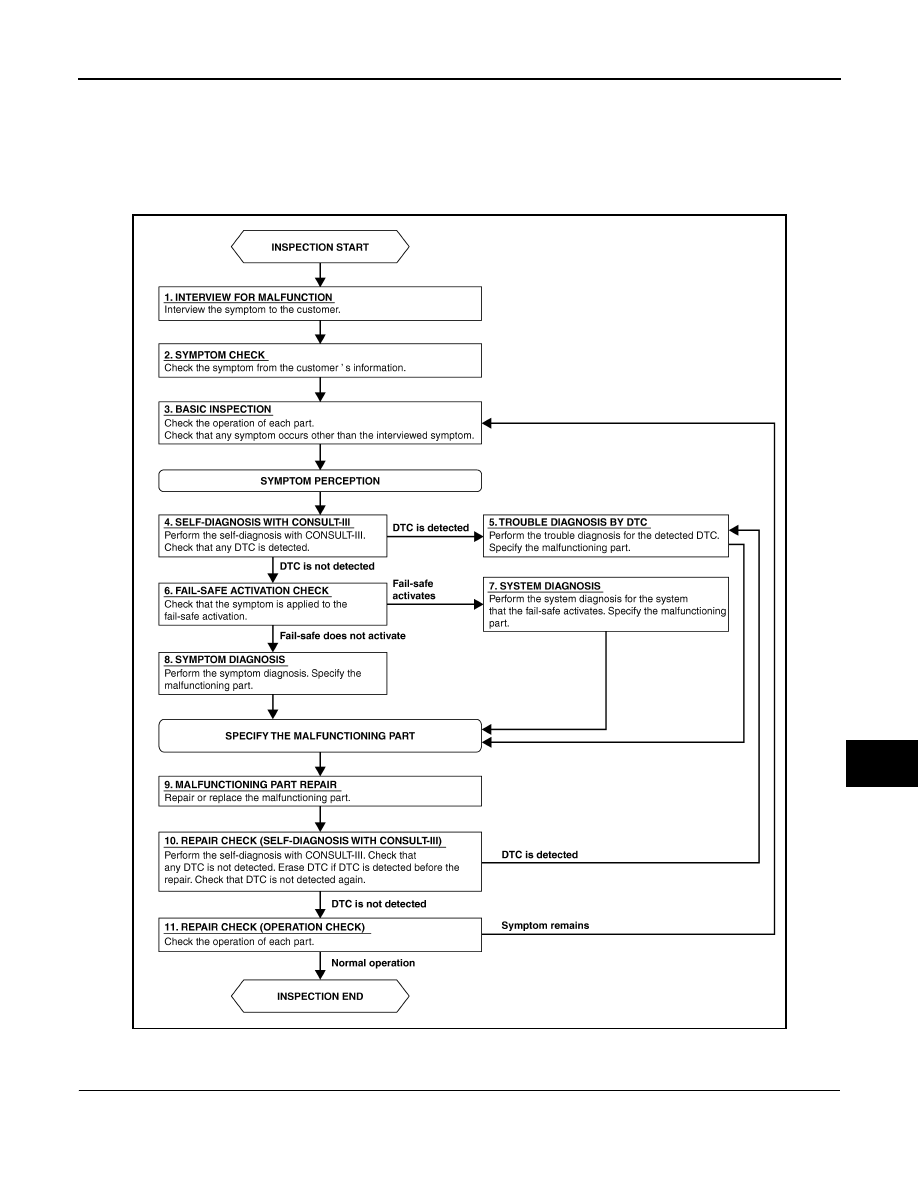

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Interview the symptom to the customer.

JPLIA0313GB

INL-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

>> GO TO 2.

2.

SYMPTOM CHECK

Check the symptom from the customer's information.

>> GO TO 3.

3.

BASIC INSPECTION

Check the operation of each part. Check that any symptom occurs other than the interviewed symptom.

>> GO TO 4.

4.

SELF-DIAGNOSIS WITH CONSULT-III

Perform the self-diagnosis with CONSULT-III. Check that any DTC is detected.
Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 9.

6.

FAIL-SAFE ACTIVATION CHECK

Check that the symptom is applied to the fail-safe activation.
Does the fail-safe activate?

YES

>> GO TO 7.

NO

>> GO TO 8.

7.

SYSTEM DIAGNOSIS

Perform the system diagnosis for the system that the fail-safe activates. Specify the malfunctioning part.

>> GO TO 9.

8.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 9.

9.

MALFUNCTION PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 10.

10.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)

Perform the self-diagnosis with CONSULT-III. Check that any DTC is not detected. Erase DTC if DTC is
detected before the repair. Check that DTC is not detected again.

Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 11.

11.

REPAIR CHECK (OPERATION CHECK)

Check the operation of each part.

Does it operate normally?

YES

>> INSPECTION END

DIAGNOSIS AND REPAIR WORKFLOW

INL-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

NO

>> GO TO 3.

INL-6

< FUNCTION DIAGNOSIS >

INTERIOR ROOM LAMP CONTROL SYSTEM

FUNCTION DIAGNOSIS

INTERIOR ROOM LAMP CONTROL SYSTEM

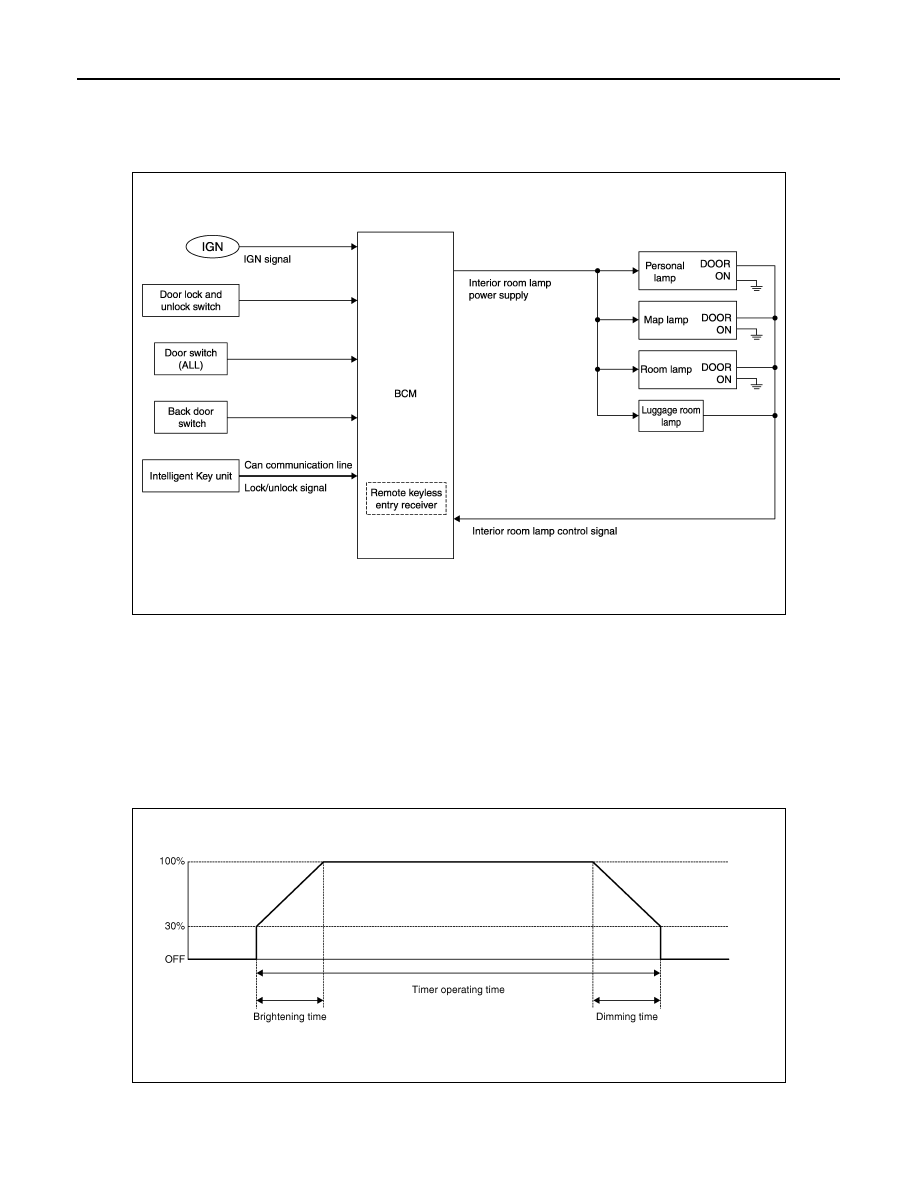

System Diagram

INFOID:0000000001033359

System Description

INFOID:0000000001033360

OUTLINE

Interior room lamps* are controlled by interior room lamp timer control function of BCM.
*: Map lamp, room lamp, personal lamp and luggage room lamp (when applicable lamp switch is in DOOR
position).

INTERIOR ROOM LAMP TIMER CONTROL

Interior Room Lamp Timer Basic Operation

• The interior room lamp turns ON and OFF (gradual brightening and dimming) by the interior room timer.
• BCM judges the vehicle condition with the following items. It activates the interior room lamp timer.
- Ignition switch status

JSLIA0075GB

JPLIA0093GB
