DOOR PARTING SEAL

EXT-29

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

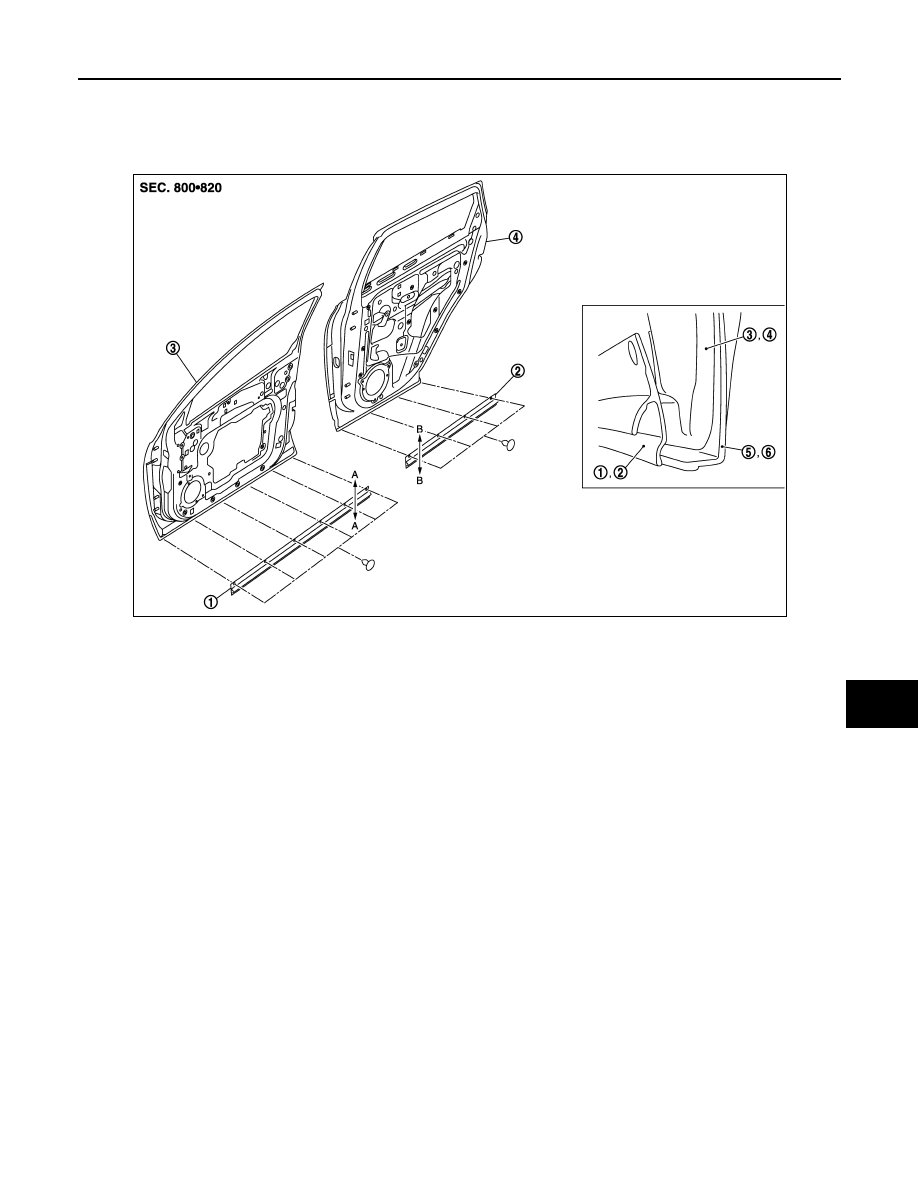

DOOR PARTING SEAL

Exploded View

INFOID:0000000001093664

Removal and Installation

INFOID:0000000001093665

REMOVAL

FRONT DOOR PARTING SEAL

1.

Fully open front door.

2.

Remove front door parting seal mounting plastic clips.

3.

Remove front door parting seal.

REAR DOOR PARTING SEAL

1.

Fully open rear door.

2.

Remove rear door parting seal plastic mounting clips.

3.

Remove rear door parting seal.

1.

Front door parting seal

2.

Rear door parting seal

3.

Front door panel

4.

Rear door panel

5.

Front door outside lower molding

6

Rear door outside lower molding

7.

Rear door side parting seal

E1KIA0052GB

EXT-30

< ON-VEHICLE REPAIR >

DOOR PARTING SEAL

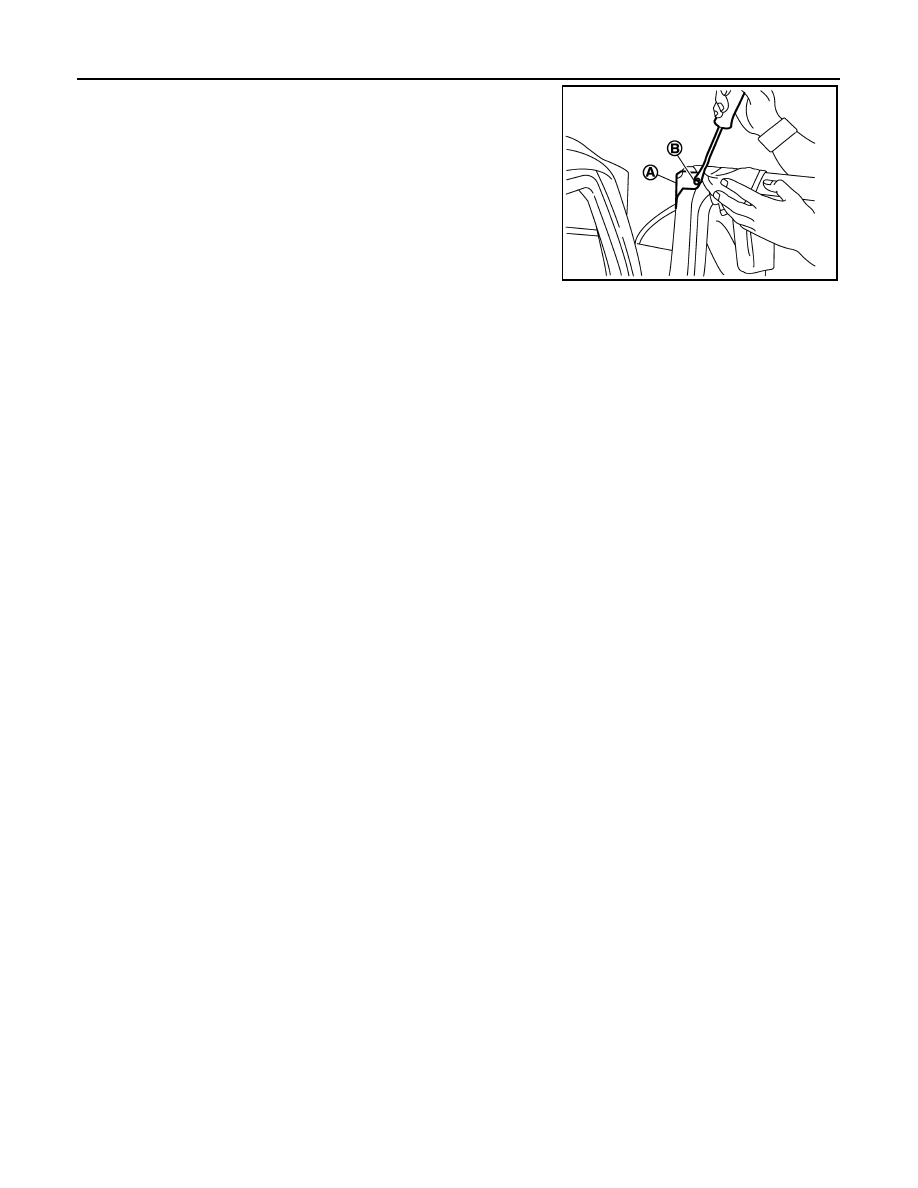

4.

Using clip remover, remove rear door side parting seal (A) upper
fixing clip (B).

5.

Using clip remover, remove rear door side parting seal side fix-
ing clips.

6.

Remove rear door side parting seal.

INSTALLATION

Install in the reverse order of removal.

E1KIA0069ZZ

BACK DOOR FINISHER

EXT-31

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

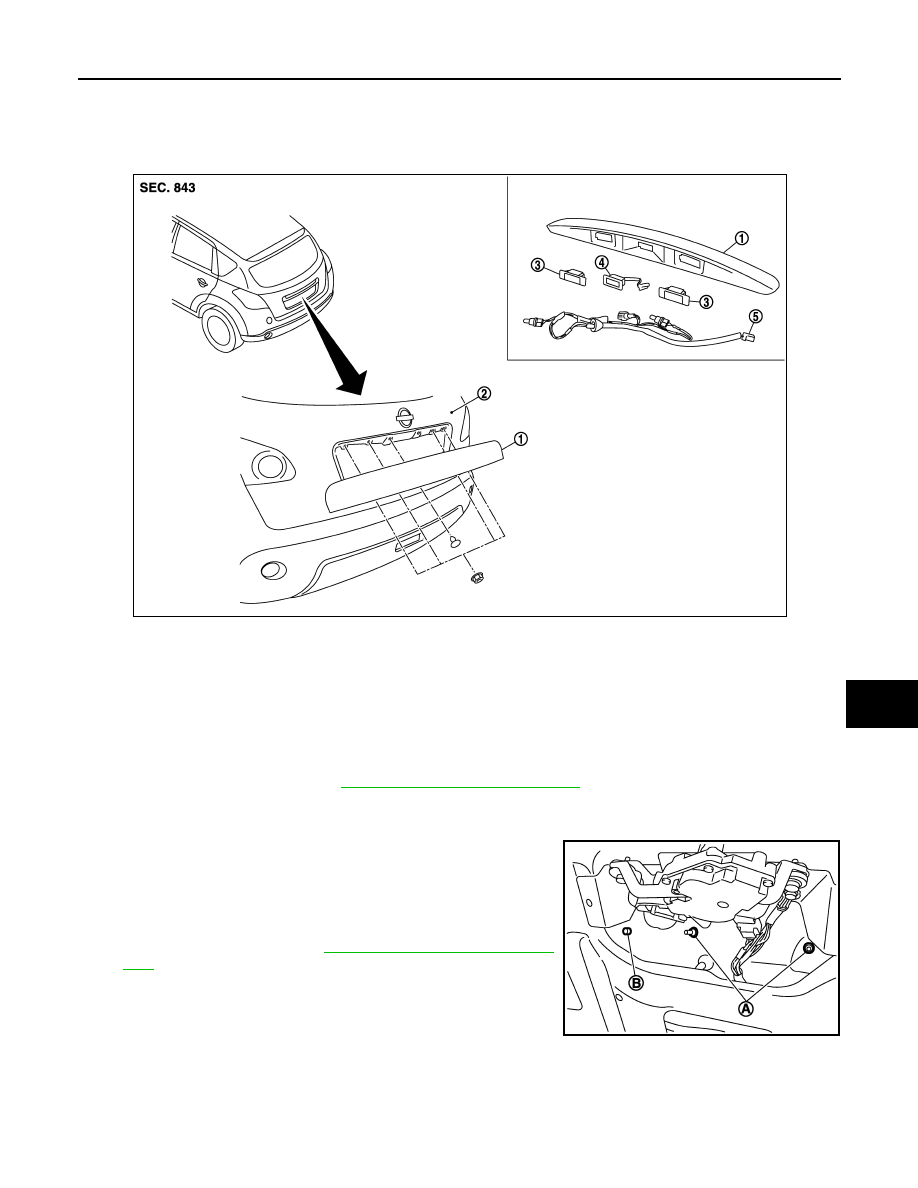

BACK DOOR FINISHER

Exploded View

INFOID:0000000001093666

Removal and Installation

INFOID:0000000001093667

REMOVAL

1.

Fully open back door.

2.

Remove back door trim. Refer to

INT-26, "Removal and Installation"

.

3.

Disconnect rear view camera harness connector (if equipped).

4.

Disconnect back door opener request switch, and license plate light harness connector.

5.

Remove back door finisher fixing nuts (A) and release back door
finisher fixing clip (B).

6.

Pull harness grommet outwards from back door to release it.

7.

Pull back door finisher to remove it.

8.

Remove the following parts after removing back door finisher.
• License plate light. Refer to

EXL-185, "Removal and Installa-

tion"

.

• Opener request switch harness connector.
• Opener request switch.
• Bulb harness and opener switch connector.
• Back door finisher fixing bolts.
• Back door finisher fixing clip.

INSTALLATION

Install in the reverse order of removal.

1.

Back door finisher

2.

Back door panel

3.

License plate light

4.

Back door opener switch assembly

5.

Harness

E1KIA0053GB

E1KIA0054GB

MIR-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

MIR

A

B

MIR

N

O

P

CONTENTS

MIRRORS

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

FUNCTION DIAGNOSIS ...............................

4

DOOR MIRROR SYSTEM ...................................

4

Component Description .............................................

4

INSIDE MIRROR SYSTEM ..................................

5

System Description  ...................................................

5

Component Description .............................................

5

COMPONENT DIAGNOSIS  ..........................

6

DOOR MIRROR REMOTE CONTROL
SWITCH ...............................................................

6

MIRROR SWITCH/CHANGEOVER SWITCH ..............

6

MIRROR SWITCH/CHANGEOVER SWITCH :
Description ................................................................

6

MIRROR SWITCH/CHANGEOVER SWITCH :
Component Function Check ......................................

6

MIRROR SWITCH/CHANGEOVER SWITCH : Di-
agnosis Procedure  ....................................................

6

MIRROR SWITCH/CHANGEOVER SWITCH :
Component Inspection  ..............................................

8

OPEN/CLOSE SWITCH  ............................................

10

OPEN/CLOSE SWITCH : Description .....................

10

OPEN/CLOSE SWITCH : Component Function
Check ......................................................................

10

OPEN/CLOSE SWITCH : Diagnosis Procedure  .....

10

OPEN/CLOSE SWITCH : Component Inspection

....

11

DOOR MIRROR MOTOR  ...................................

12

Description ..............................................................

12

Component Function Check ....................................

12

Diagnosis Procedure ...............................................

12

Component Inspection  ............................................

14

FOLDING MOTOR  .............................................

15

Description ...............................................................

15

Component Function Check  ....................................

15

Diagnosis Procedure  ...............................................

15

Component Inspection .............................................

16

AUTO ANTI-DAZZLING INSIDE MIRROR
CIRCUIT ............................................................

17

Description ...............................................................

17

Component Function Check  ....................................

17

Diagnosis Procedure  ...............................................

17

DOOR MIRROR  ................................................

18

Wiring Diagram - DOOR MIRROR SYSTEM (LHD
MODELS) -  ..............................................................

18

Wiring Diagram - DOOR MIRROR SYSTEM (RHD
MODELS) -  ..............................................................

20

AUTO ANTI-DAZZLING INSIDE MIRROR
SYSTEM ............................................................

22

Wiring Diagram - INSIDE MIRROR SYSTEM -  .......

22

SYMPTOM DIAGNOSIS  ..............................

24

NONE OF THE DOOR MIRROR CAN BE OP-
ERATED USING ANY SWITCH ........................

24

Diagnosis Procedure  ...............................................

24

DOOR MIRROR DOES NOT OPERATE  ..........

25

Diagnosis Procedure  ...............................................

25

ELECTRIC FOLDABLE DOOR MIRROR
DOES NOT OPERATE ......................................

26

Diagnosis Procedure  ...............................................

26

AUTO ANTI-DAZZLING INSIDE MIRROR
DOES NOT OPERATE ......................................

27

Diagnosis Procedure  ...............................................

27

SQUEAK AND RATTLE TROUBLE DIAGNO-
SIS .....................................................................

28

Work Flow ................................................................

28

Generic Squeak and Rattle Troubleshooting ...........

30
