DOOR SASH MOLDING

Exploded View

INFOID:0000000001093660

Removal and Installation

INFOID:0000000001093661

REMOVAL

REAR DOOR SASH MOLDING

1.

Pull rear door sash molding (A) from upper side to lower side.
NOTE:
If necessary, use a flat screwdriver.

CAUTION:

Always use shop cloth to avoid damaging the vehicle.

2.

Remove rear door sash molding.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Always clean body and parts before installation.

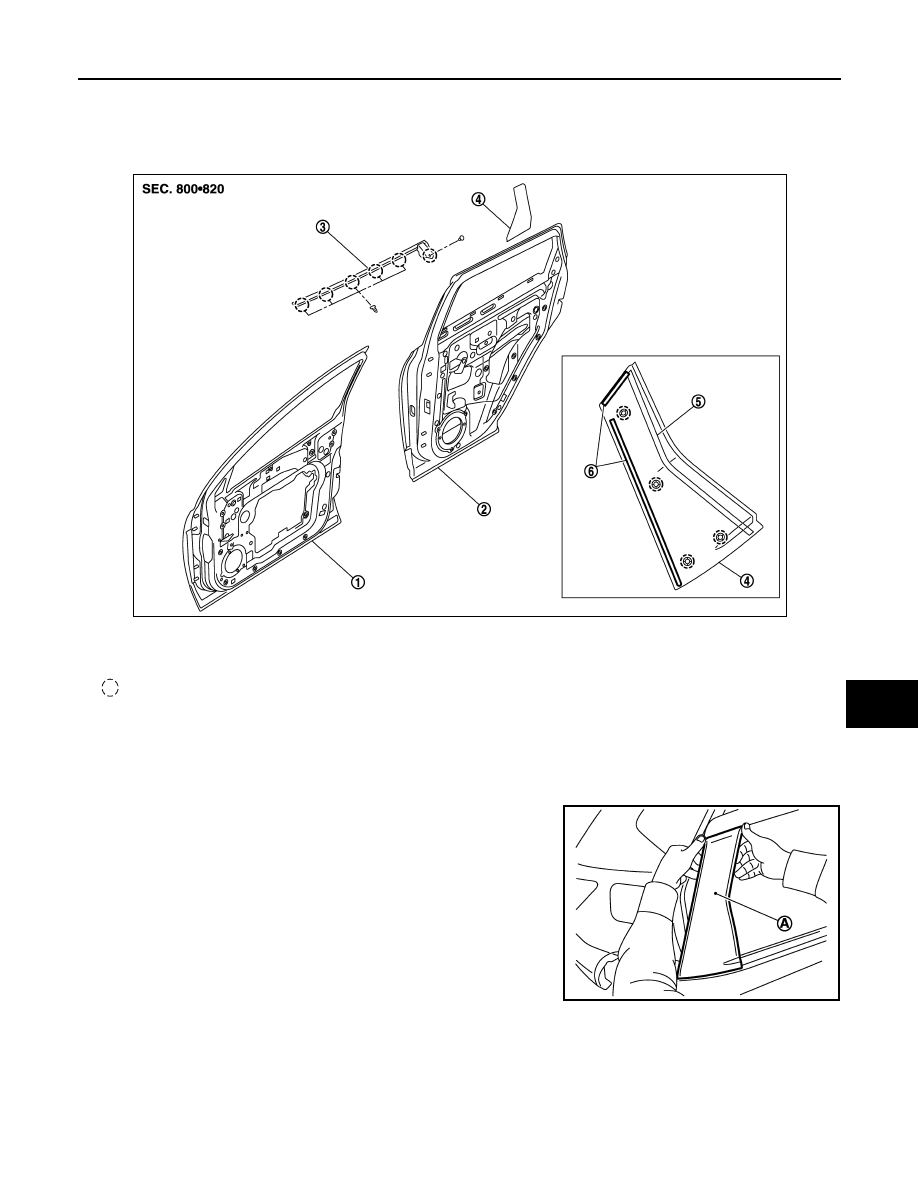

1.

Front door panel

2.

Rear door panel

3.

Rear door side parting seal

4.

Rear door sash molding

5.

Rear door sash molding seal

6.

Adhesive tape

Clip

E1KIA0032GB

E1KIA0025ZZ

EXT-26

< ON-VEHICLE REPAIR >

DOOR OUTSIDE MOLDING

DOOR OUTSIDE MOLDING

Exploded View

INFOID:0000000001093662

Removal and Installation

INFOID:0000000001093663

REMOVAL

FRONT DOOR OUTSIDE MOLDING

1.

Remove door trim. Refer to

INT-10, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Remove door mirror assembly. Refer to

MIR-39, "Removal and Installation"

.

3.

Fit front door glass to lower position.

4.

Remove front door lower weather strip upper end part fixing clip,
then release front door lower weather strip rear upper end part.

5.

Remove front door outside molding fixing screw adhesive cover.

6.

Remove front door outside molding fixing screw.

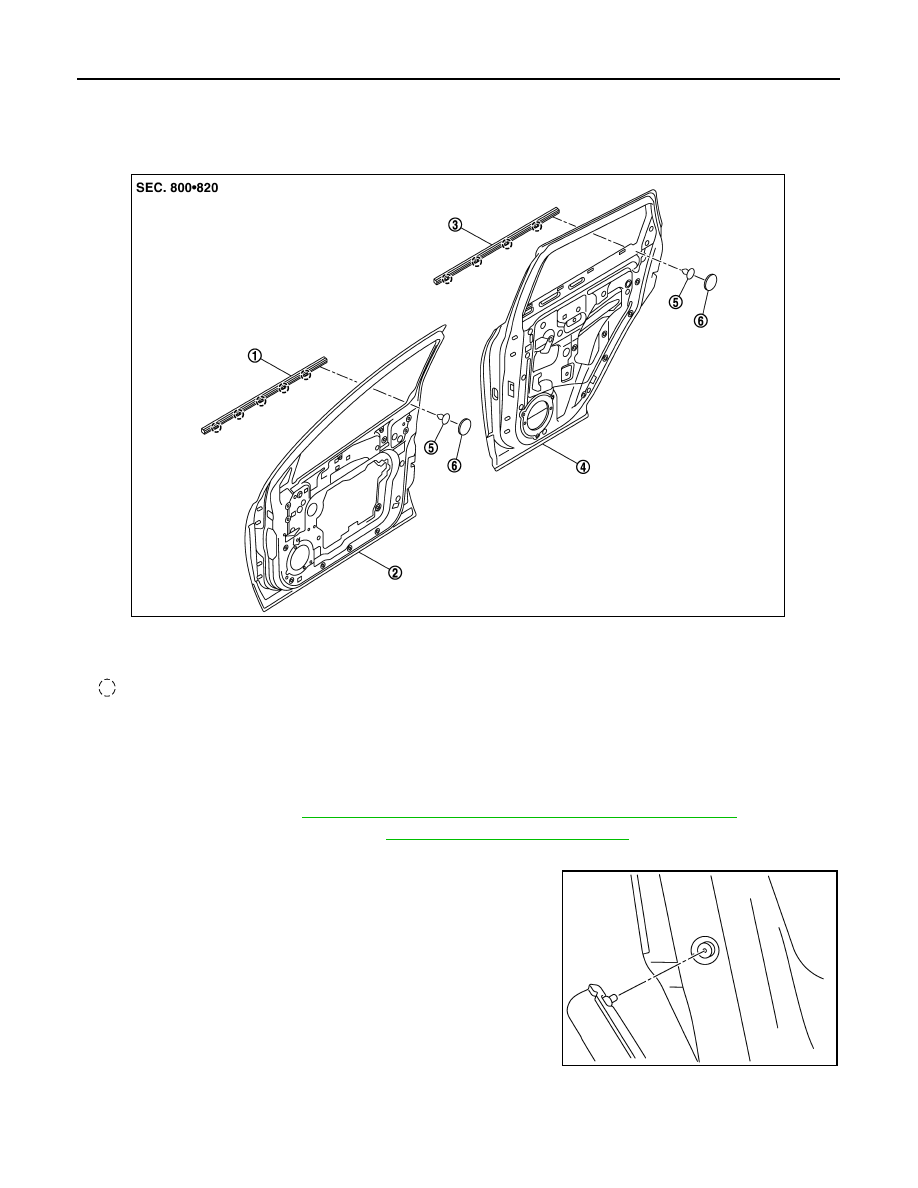

CAUTION:

1.

Front door outside molding

2.

Front door panel

3.

Rear door outside molding

4.

Rear door panel

5.

Fixing screw

6.

Fixing screw adhesive cover

Clip

E1KIA0026GB

E1KIA0027ZZ

DOOR OUTSIDE MOLDING

EXT-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Attention, the screw might fall into the door.

7.

Twist from rear to front and pull up to upper side, then remove front door outside molding.

REAR DOOR OUTSIDE MOLDING

1.

Fit front door glass to lower position.

2.

Remove rear door sash molding. Refer to

EXT-25, "Removal and Installation"

.

3.

Remove rear door outside molding fixing screw adhesive cover.

4.

Remove rear door outside molding fixing screw.

CAUTION:

Attention, the screw might fall into the door.

5.

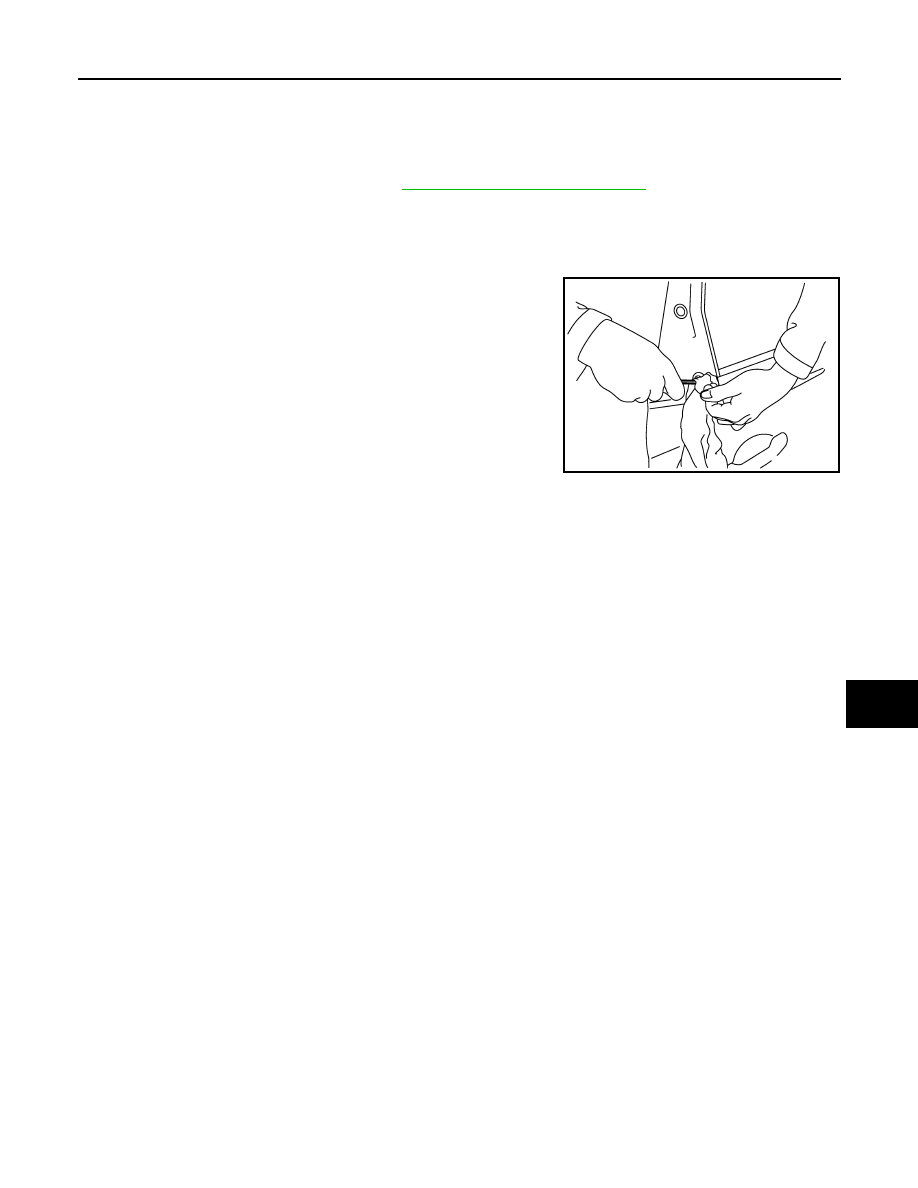

Twist from rear to front and pull up to upper side, then remove
front door outside molding.

INSTALLATION

Install in the reverse order of removal.

E1KIA0028ZZ

EXT-28

< ON-VEHICLE REPAIR >

DOOR OUTSIDE LOWER MOLDING

DOOR OUTSIDE LOWER MOLDING

Exploded View

INFOID:0000000001093654

Removal and Installation

INFOID:0000000001093655

REMOVAL

FRONT DOOR OUTSIDE LOWER MOLDING

1.

Using suitable tool, release adhesive tape from front door.

2.

Pull front door outside lower molding upper side outwards to release upper fixing clips.

3.

Pull front door outside lower molding outwards to release lower fixing clips.

4.

Remove front door outside lower molding.

REAR DOOR OUTSIDE LOWER MOLDING

1.

Using suitable tool, release adhesive tape from rear door.

2.

Pull rear door outside lower molding upper side outwards to release upper fixing clips.

3.

Pull rear door outside lower molding outwards to release lower fixing clips.

4.

Remove rear door outside lower molding.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Always clean body and parts before installation.

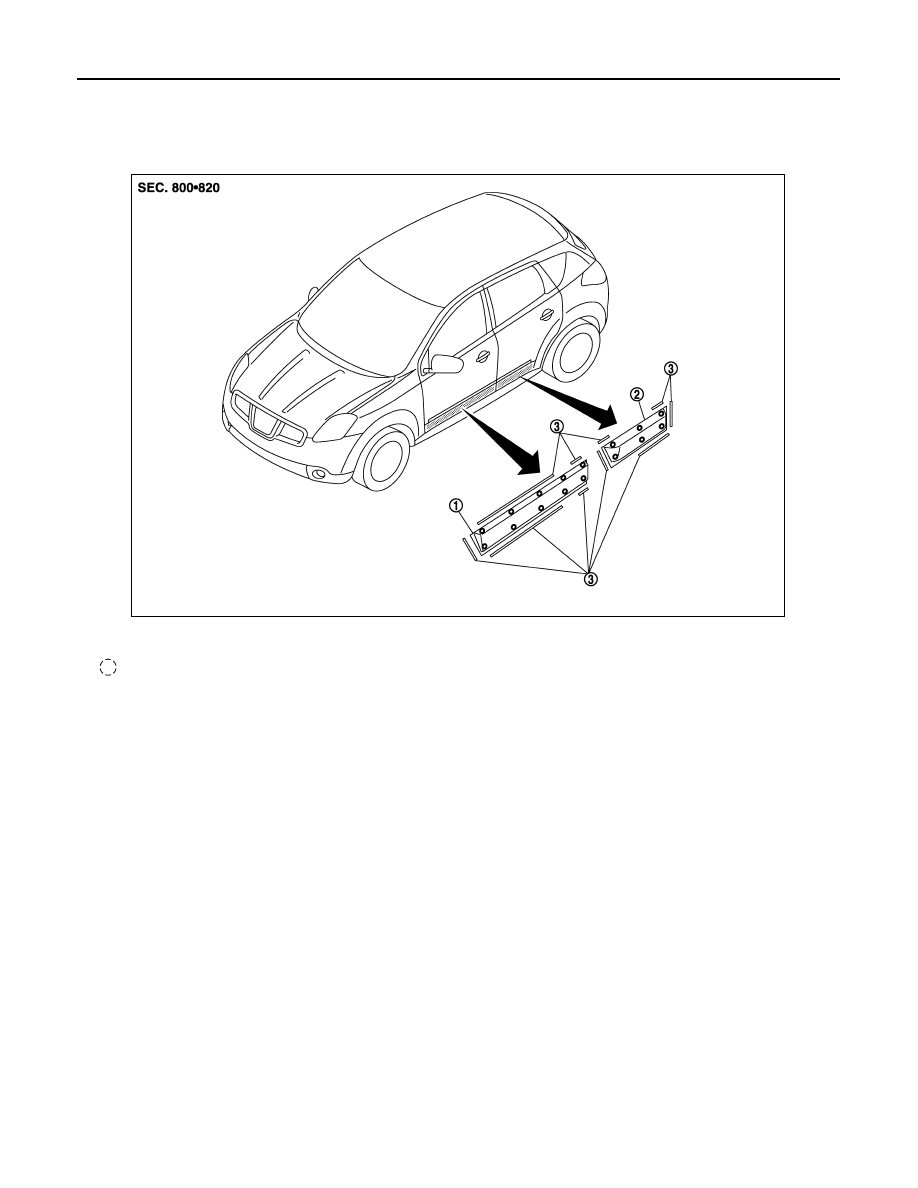

1

Front door outside lower molding

2

Rear door outside lower molding

3

Adhesive tape

clip

E1KIA0056GB
