FRONT GRILLE

EXT-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

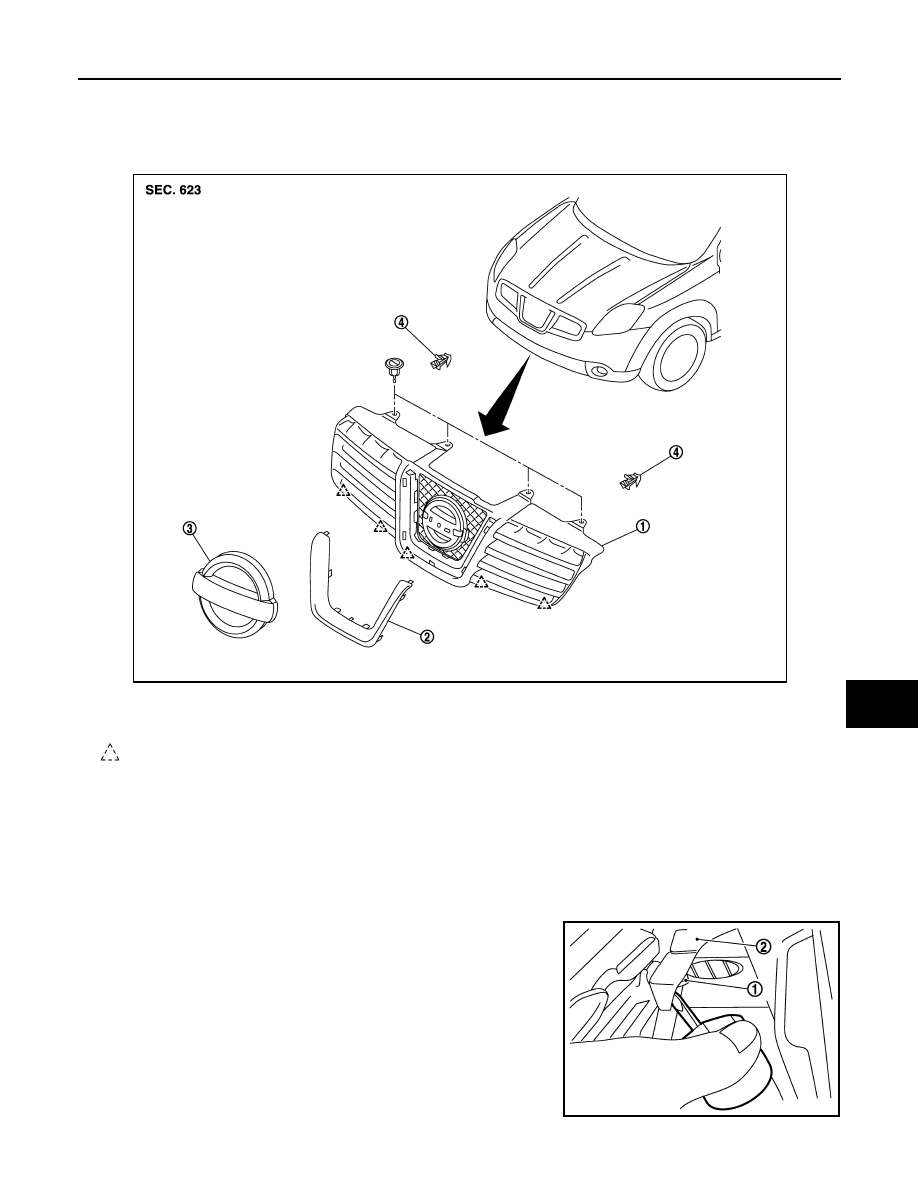

FRONT GRILLE

Exploded View

INFOID:0000000001093648

Removal and Installation

INFOID:0000000001093649

REMOVAL

CAUTION:

Apply protection tape around outer circumference of front grille (bumper fascia side).

1.

Fully open hood assembly.

2.

Remove front grille upper fixing clips.

3.

Slowly pull front grille upper side, and using a flat screwdriver,
remove clips (1) (LH/RH) from front bumper (2).

1.

Front grille

2.

Front grille molding

3.

Front emblem

4.

Fixing clip

Pawl

E1KIA0003ZZ

E1KIA0018ZZ

EXT-18

< ON-VEHICLE REPAIR >

FRONT GRILLE

4.

Release front grille lower pawls from front bumper.

5.

Remove front grille assembly.

6.

Remove the following parts after removing front grille.
• Front grille molding
• Front emblem

INSTALLATION

Install in the reverse order of removal.

COWL TOP

EXT-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

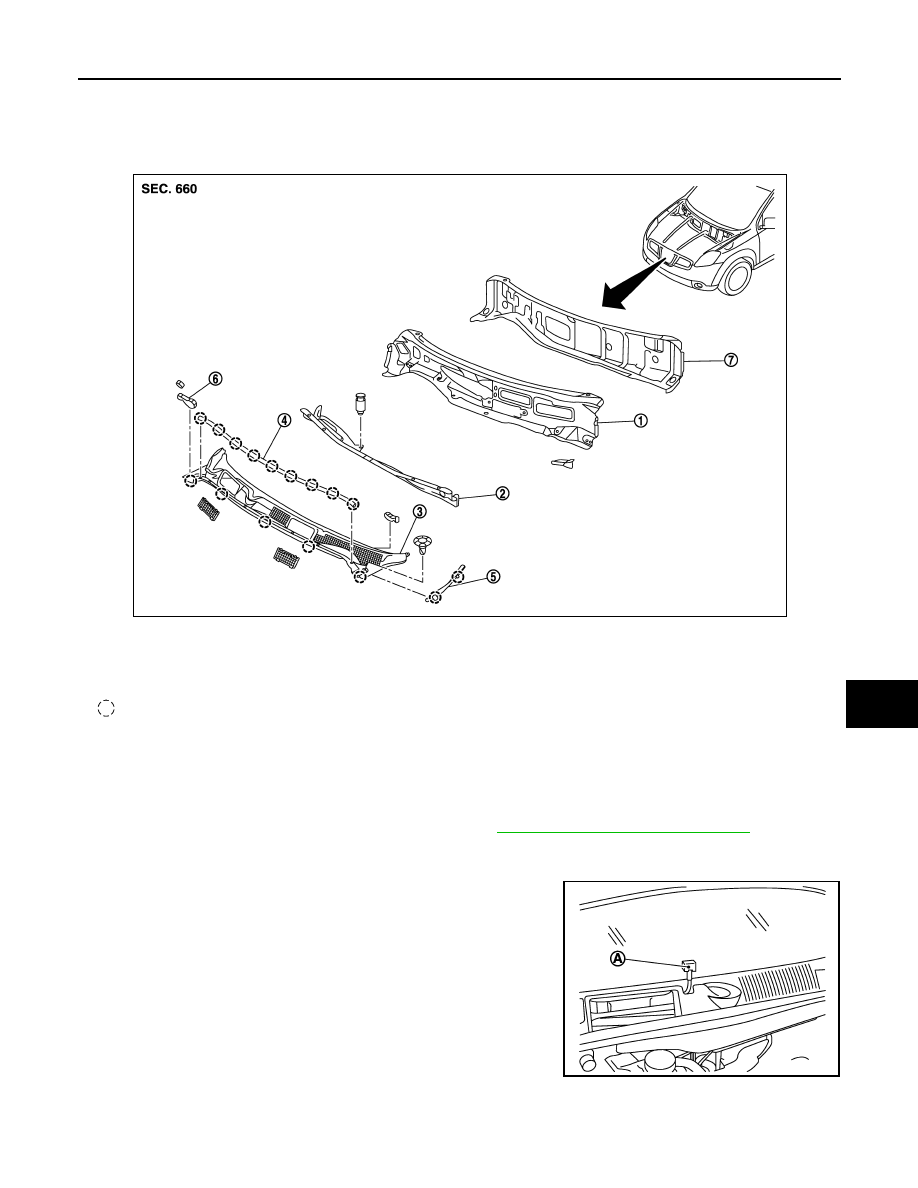

COWL TOP

Exploded View

INFOID:0000000001093650

Removal and Installation

INFOID:0000000001093651

REMOVAL

1.

Fully open hood assembly.

2.

Remove front wiper arm (LH/RH) from vehicle. Refer to

WW-104, "Removal and Installation"

.

3.

Remove cowl top grilles (LH/RH).

4.

Remove windscreen washer nozzle (LH/RH).
• Pull nozzle upwards (A)
• Disconnect washer nozzle tube.

CAUTION:

Fit cap on washer nozzle tube to avoid spills and contami-
nation.

1.

Cowl top assembly

2.

Cowl top cover grille

3.

Cowl top cover

4.

Cowl top seal

5.

Front fender cover

6.

Cowl top foam insulator

7.

Upper dash assembly

Clip

E1KIA0004ZZ

E1KIA0019ZZ

EXT-20

< ON-VEHICLE REPAIR >

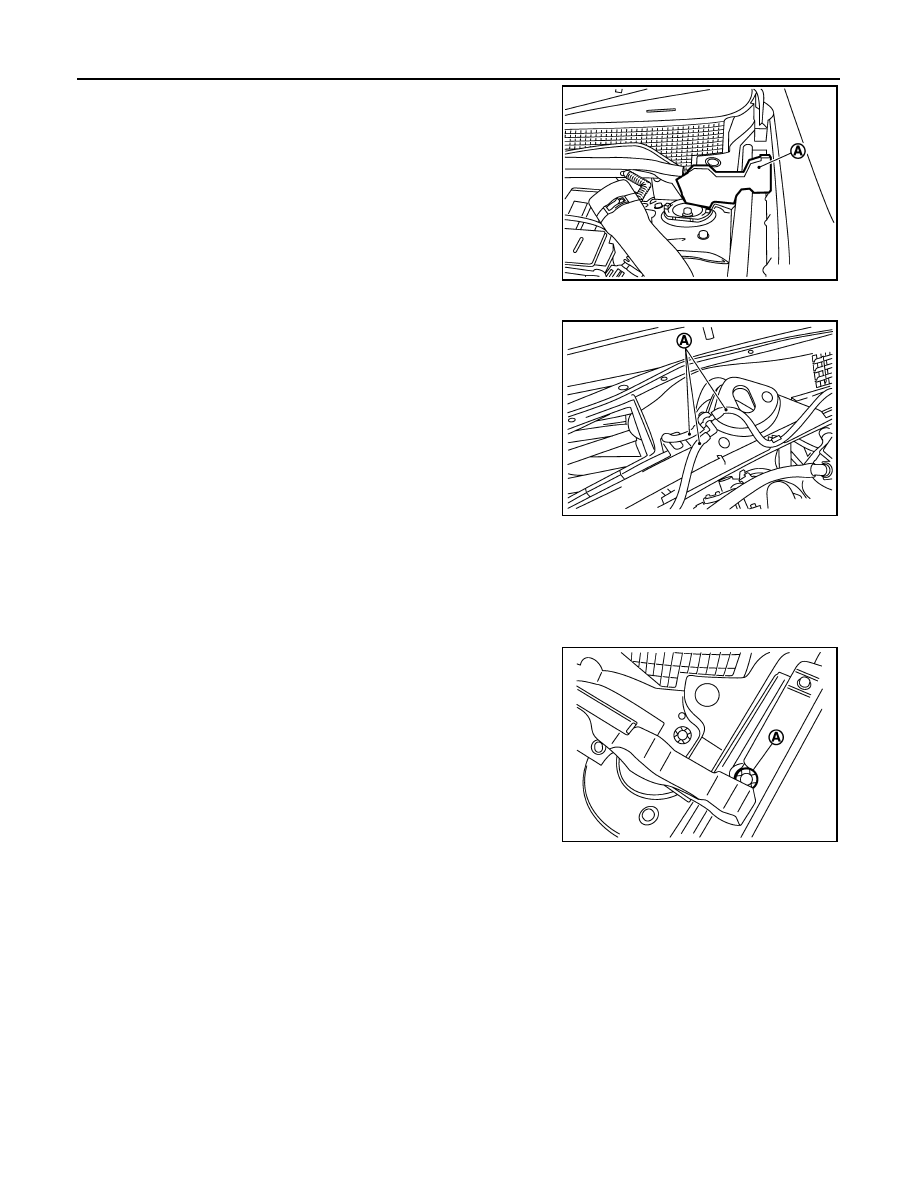

COWL TOP

5.

Release foam insulator (A) from front fender (LH/RH).

6.

Remove cowl top cover fixing clips, then pull forward to release cowl top cover from windscreen.

7.

Turn cowl top cover upside down to access main windscreen
washer tubes (A).

8.

Release main windscreen washer tubes. Remove main windscreen washer tubes.

CAUTION:

Fit cap on washer nozzle tube to avoid spills and contamination.

9.

Remove cowl top cover.
• Remove washer tube nozzles.
• Remove cowl top seal.

10. Remove front fender cover fixing clip (A).

• Push foam insulator to side to release front fender cover fixing

tape.

• Release front fender cover pawl from front pillar.

INSTALLATION

Install in the reverse order of removal.

E1KIA0020ZZ

E1KIA0021ZZ

E1KIA0022ZZ
