FRONT BUMPER

EXT-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

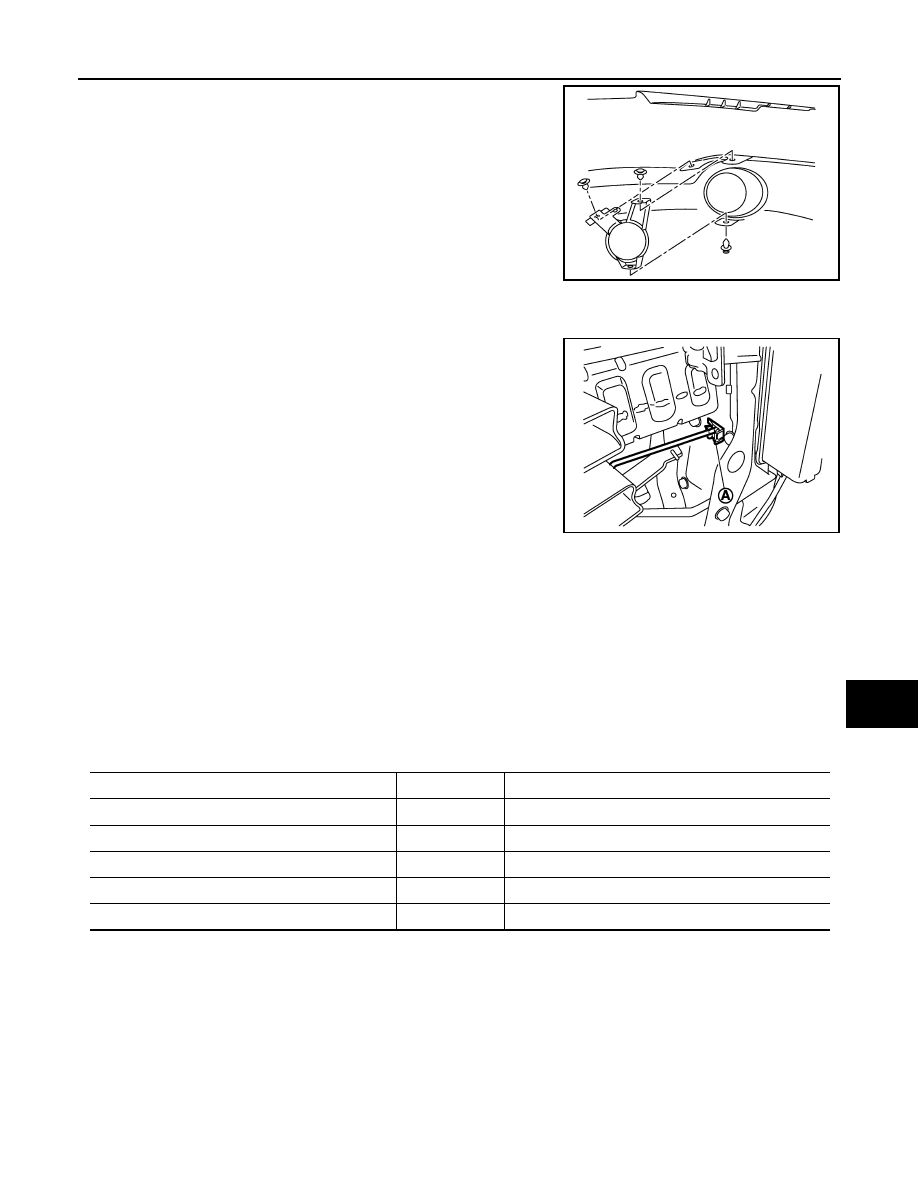

• Front fog lamp assembly

11. Remove front bumper upper energy absorber.
12. Remove front bumper lower energy absorber.

• Release front bumper lower energy absorber metal fasteners

(A).

• Pull front bumper lower energy absorber to remove it.

CAUTION:

Always use a suitable tool to release front bumper energy
absorber metal fasteners, to avoid damage to front
bumper energy absorber.

13. Remove front bumper upper reinforcement metal retainer clip and mounting bolts, and then remove front

bumper upper reinforcement.

14. Remove front bumper lower reinforcement.

• Remove front bumper lower reinforcement fixing clips.
• Remove front bumper lower reinforcement assembly.
• Remove front air guide fixing clips, then remove front air guide.
• Remove front bumper lower energy absorber metal clip fixing.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.

E1KIA0030ZZ

E1KIA0011ZZ

Portion

Clearance

Front bumper – Hood assembly

A – A

4.5 – 8.5 mm (0.177 – 0.335 in)

Front bumper – Front grille

B – B

0.7 – 4.3 mm (0.028 – 0.169 in)

Front bumper – Headlamp

C – C

3.5 – 6.5 mm (0.138 – 0.256 in)

Front bumper – Front bumper finisher

D – D

0.0 – 1.0 mm (0.000 – 0.039 in)

Front bumper – Front fender

E – E

1.5 – 3.5 mm (0.059 – 0.138 in)

EXT-14

< ON-VEHICLE REPAIR >

REAR BUMPER

REAR BUMPER

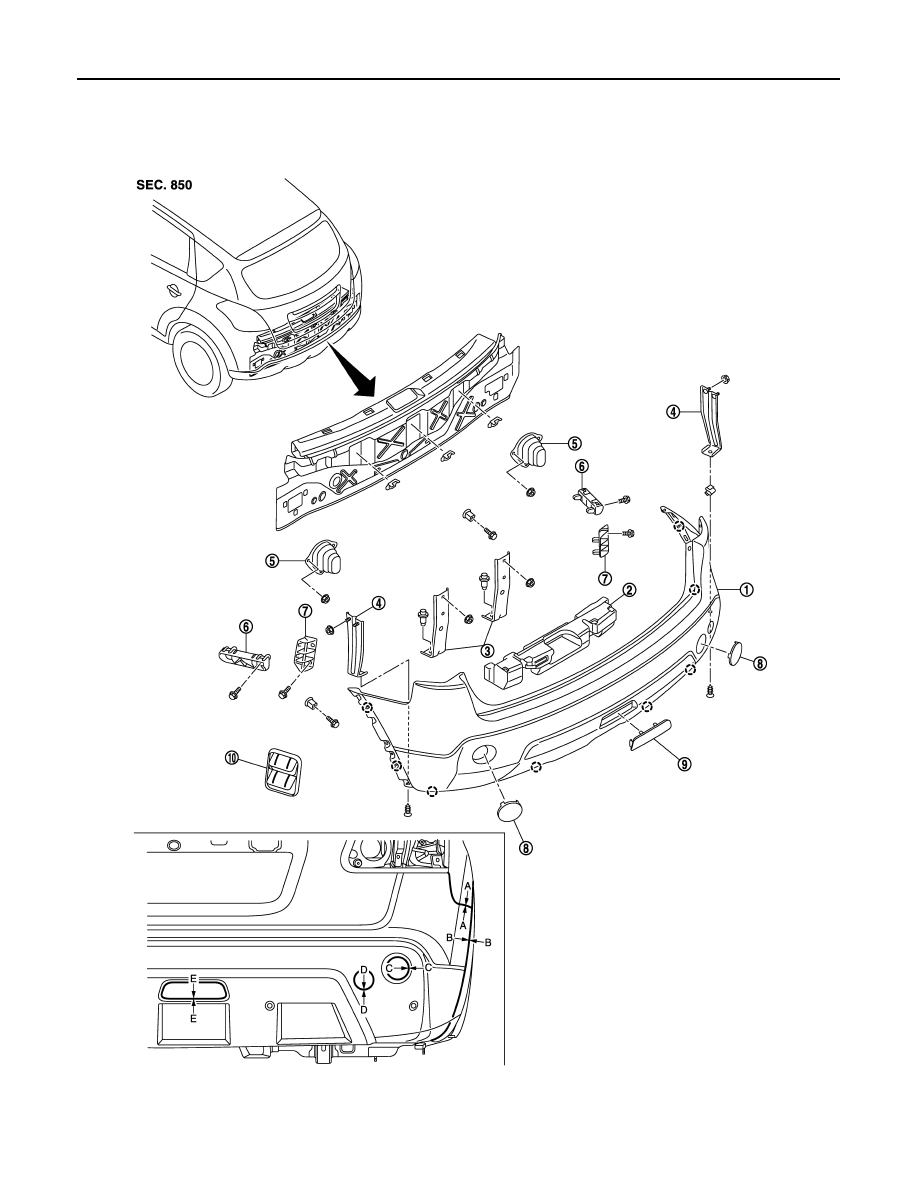

Exploded View

INFOID:0000000001093646

1.

Rear bumper fascia assembly

2.

Energy absorber

3.

Rear bumper center retainer

4.

Rear bumper side retainer

5.

Rear bumper stay

6.

Rear bumper side bracket A

7.

Rear bumper side bracket B

8.

Reflector

9.

Rear bumper center molding

E1KIA0002ZZ

REAR BUMPER

EXT-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

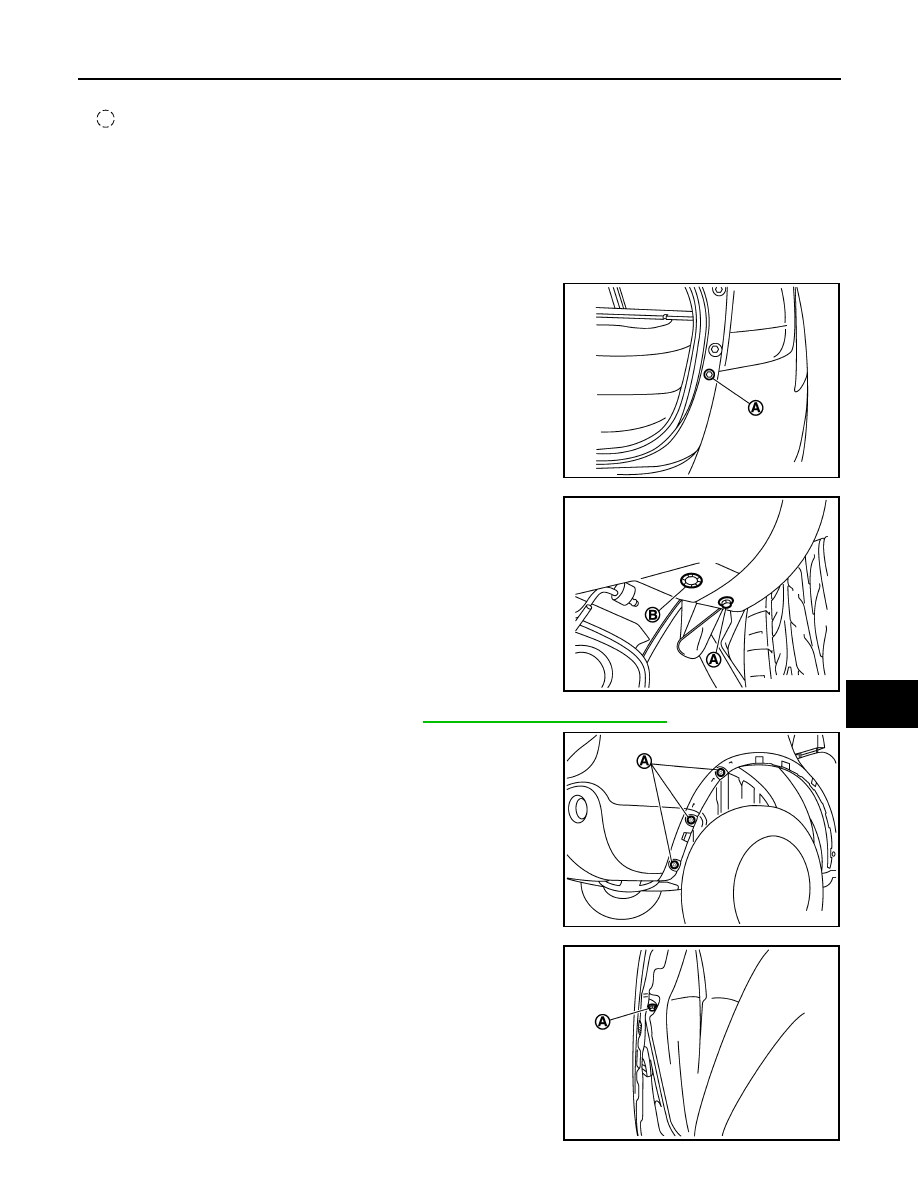

Removal and Installation

INFOID:0000000001093647

REMOVAL

CAUTION:

Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.

1.

Fully open trunk lid assembly.

2.

Remove rear bumper fixing screw (A) (LH/RH).

3.

Remove rear bumper lower fixing screw (A) and clip (B) (LH/
RH).

4.

Remove rear fillet molding (LH/RH). Refer to

EXT-23, "Removal and Installation"

.

5.

Remove rear fender protector fixing clips (A) (LH/RH).

6.

Remove rear bumper upper fixing screw (A) (LH/RH).

10. Rear air extractor

Clip

E1KIA0012ZZ

E1KIA0013ZZ

E1KIA0014ZZ

E1KIA0015ZZ

EXT-16

< ON-VEHICLE REPAIR >

REAR BUMPER

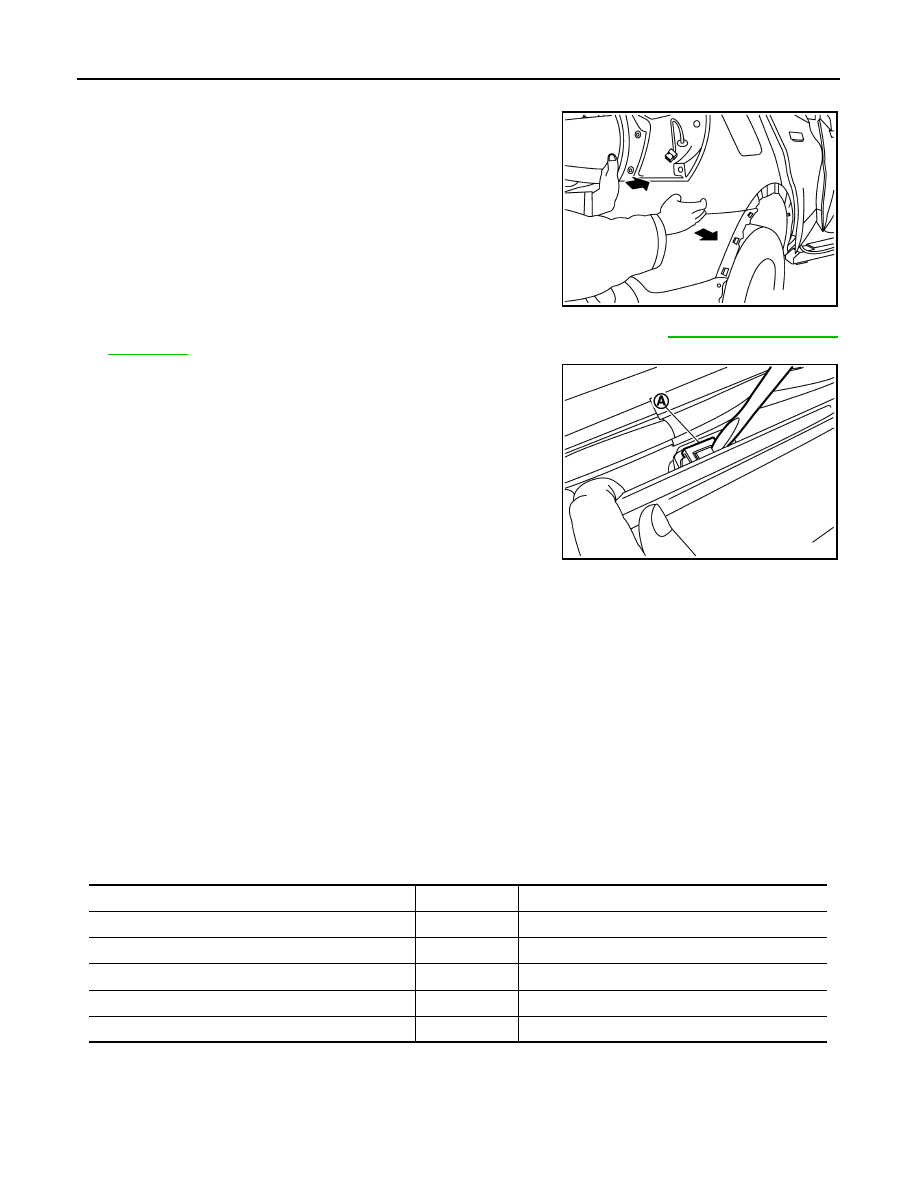

7.

Remove license plate if necessary.

8.

Push to release rear bumper from side bracket B.

9.

Remove rear fog lamp, then remove rear fog lamp harness connector. Refer to

EXL-186, "Removal and

Installation"

.

10. Release rear bumper clips (A).

11. Remove rear bumper fascia assembly.

CAUTION:

When removing bumper fascia, 2 workers are required so as to prevent it from dropping.

12. Remove the following parts after removing rear bumper fascia.

• Rear bumper energy absorber
• Rear bumper center retainer (LH/RH)
• Rear bumper side retainer (LH/RH)
• Rear bumper clips
• Rear bumper side bracket A (LH/RH)
• Rear bumper side bracket B (LH/RH)
• Rear bumper finisher assembly
• Reflector assembly (LH/RH)

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.

E1KIA0016ZZ

E1KIA0017ZZ

Portion

Clearance

Rear bumper – Rear fender

A – A

0.0 – 1.0 mm (0.000 – 0.039 in)

Rear bumper – Rear fillet molding

B – B

0.5 – 1.5 mm (0.020 – 0.059 in)

Rear bumper – Reflector

C – C

0.0 – 1.0 mm (0.000 – 0.039 in)

Rear bumper – Tow hook cover

D – D

0.2 – 1.2 mm (0.008 – 0.047 in)

Rear bumper – Fog lamp blank cover

E – E

0.2 – 1.2 mm (0.008 – 0.047 in)
