OUTSIDE KEY ANTENNA

DLK-275

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

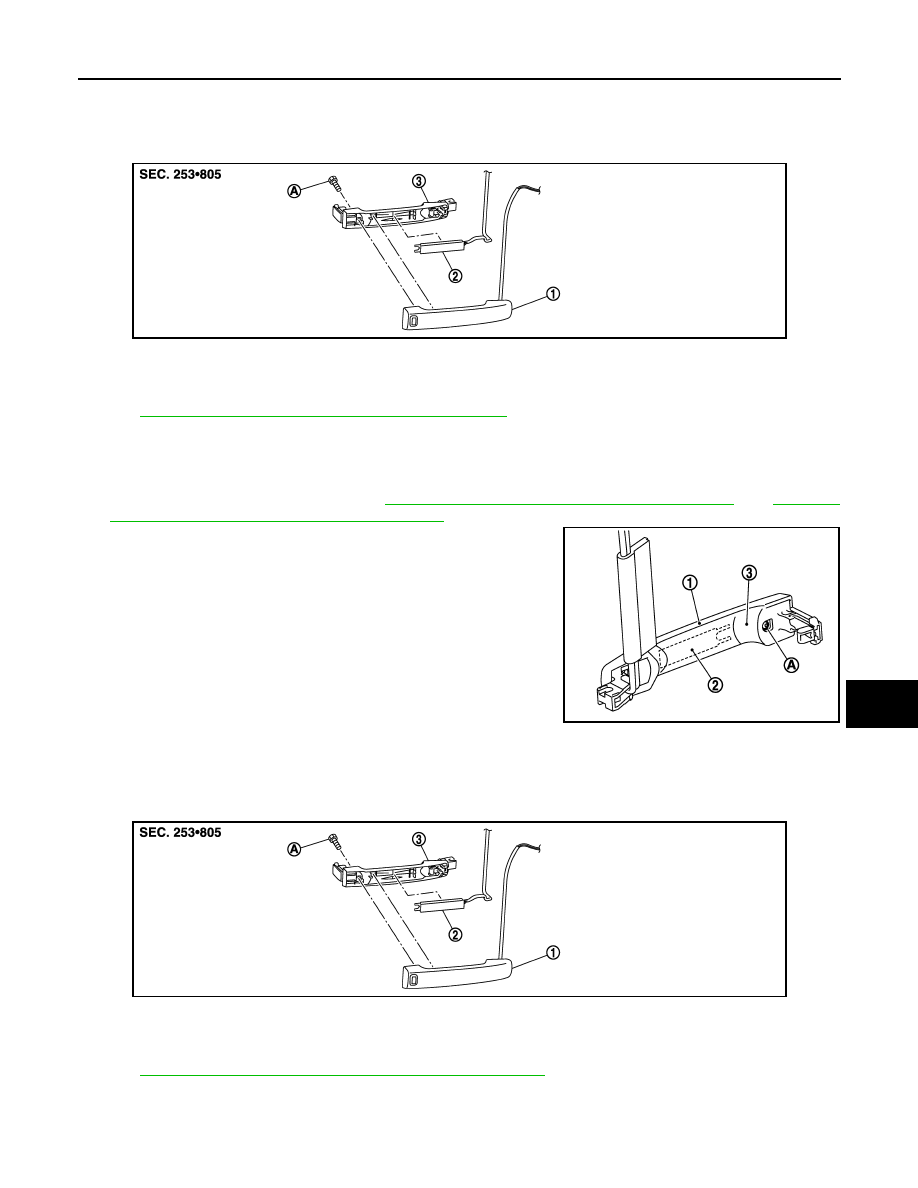

OUTSIDE KEY ANTENNA

DRIVER SIDE

DRIVER SIDE : Exploded View

INFOID:0000000000939242

Refer to

DLK-275, "DRIVER SIDE : Removal and Installation"

.

DRIVER SIDE : Removal and Installation

INFOID:0000000000939243

REMOVAL

1.

Remove the outside handle. Refer to

DLK-258, "OUTSIDE HANDLE : Exploded View"

 and

DLK-259,

"OUTSIDE HANDLE : Removal and Installation"

.

2.

Remove the bolt (A) from outside handle grip (1).

3.

Remove the outside key antenna (2) from outside handle
bracket (3).

INSTALLATION

Install in the reverse order of removal.

PASSENGER SIDE

PASSENGER SIDE : Exploded View

INFOID:0000000001102421

Refer to

DLK-275, "PASSENGER SIDE : Removal and Installation"

.

PASSENGER SIDE : Removal and Installation

INFOID:0000000001102422

REMOVAL

JMKIA0522ZZ

1.

Outside handle grip

2.

Outside key antenna

3.

Outside handle bracket

A.

Bolt

JMKIA0521ZZ

JMKIA0522ZZ

1.

Outside handle grip

2.

Outside key antenna

3.

Outside handle bracket

A.

Bolt

DLK-276

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

OUTSIDE KEY ANTENNA

1.

Remove the outside handle. Refer to

DLK-258, "OUTSIDE HANDLE : Exploded View"

 and

DLK-259,

"OUTSIDE HANDLE : Removal and Installation"

.

2.

Remove the bolt (A) from outside handle grip (1).

3.

Remove the outside key antenna (2) from outside handle
bracket (3).

INSTALLATION

Install in the reverse order of removal.

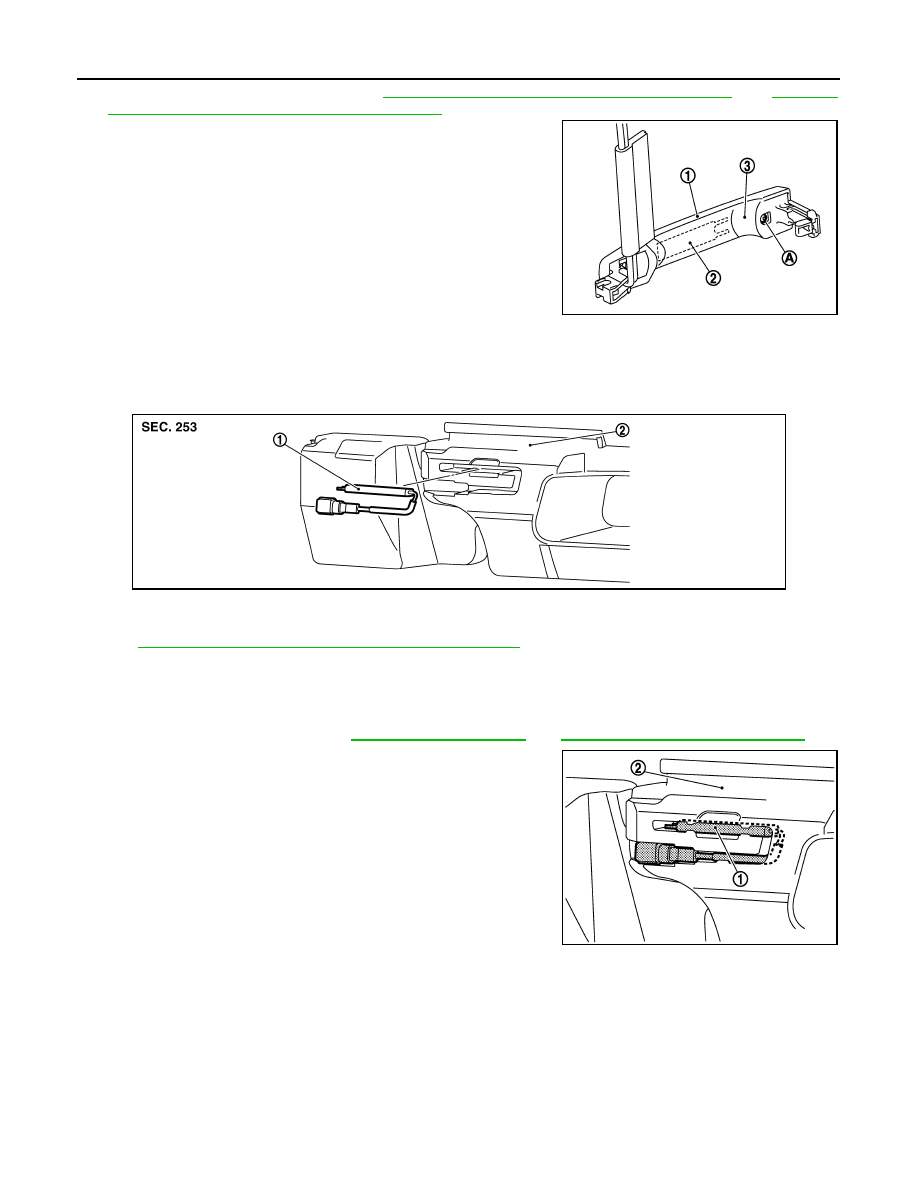

REAR BUMPER

REAR BUMPER : Exploded View

INFOID:0000000000939246

Refer to

DLK-276, "REAR BUMPER : Removal and Installation"

.

REAR BUMPER : Removal and Installation

INFOID:0000000000939247

REMOVAL

1.

Remove the rear bumper. Refer to

EXT-14, "Exploded View"

 and

EXT-15, "Removal and Installation"

.

2.

Remove the outside key antenna (rear bumper) (1) from rear
bumper energy absorber (2).

INSTALLATION

Install in the reverse order of removal.

JMKIA0521ZZ

JMKIA0475ZZ

1.

Outside key antenna (rear bumper)

2.

Rear bumper energy absorber

JMKIA0476ZZ

INTELLIGENT KEY WARNING BUZZER

DLK-277

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

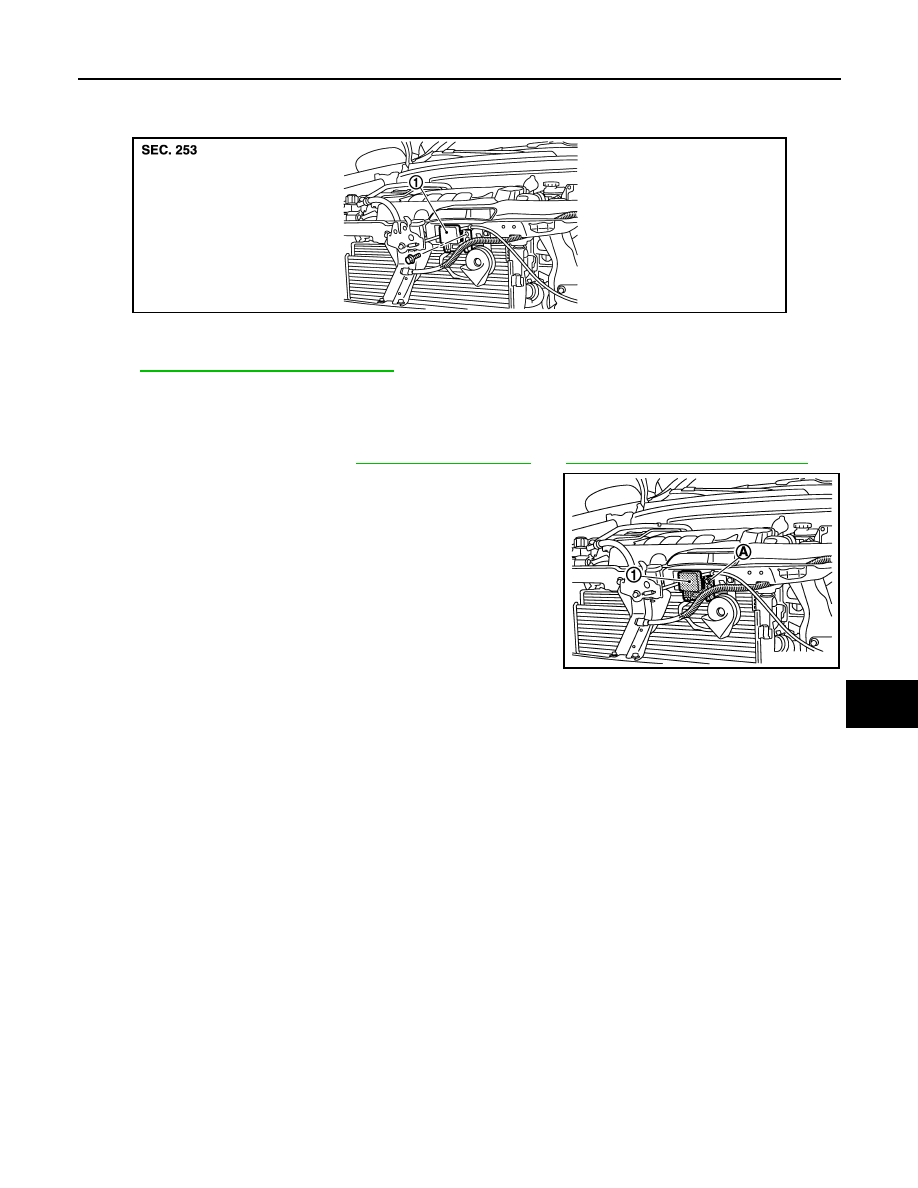

INTELLIGENT KEY WARNING BUZZER

Exploded View

INFOID:0000000000939248

Refer to

DLK-277, "Removal and Installation"

.

Removal and Installation

INFOID:0000000000939249

REMOVAL

1.

Remove the front bumper. Refer to

EXT-11, "Exploded View"

 and

EXT-11, "Removal and Installation"

.

2.

Remove the Intelligent Key warning buzzer mounting bolt (A),
and then remove the Intelligent Key warning buzzer (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA0457ZZ

1.

Intelligent Key warning buzzer

JMKIA0458ZZ

DLK-278

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

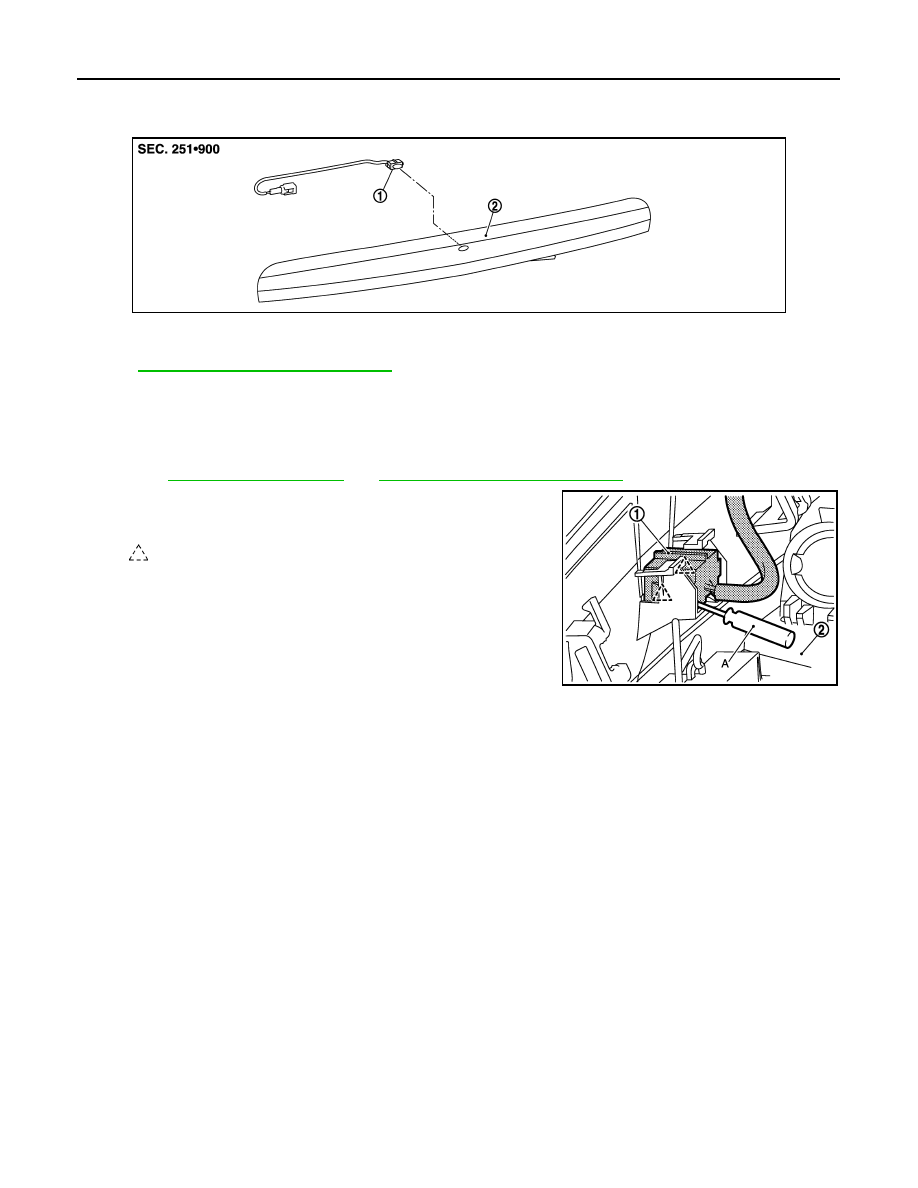

BACK DOOR REQUEST SWITCH

BACK DOOR REQUEST SWITCH

Exploded View

INFOID:0000000000939252

Refer to

DLK-278, "Removal and Installation"

.

Removal and Installation

INFOID:0000000000939253

REMOVAL

1.

Remove the back door finisher.
Refer to

EXT-31, "Exploded View"

 and

EXT-31, "Removal and Installation"

.

2.

Remove the back door request switch (1) from back door fin-
isher (2) using flat-bladed screw driver (A) etc.

3.

Remove the trunk lid request switch mounting screw (B), and then remove trunk lid request switch (3)
from inner bracket (2).

INSTALLATION

Install in the reverse order of removal.

JMKIA0517ZZ

1.

Back door request switch

2.

Back door finisher

: Pawl

JMKIA0518ZZ
