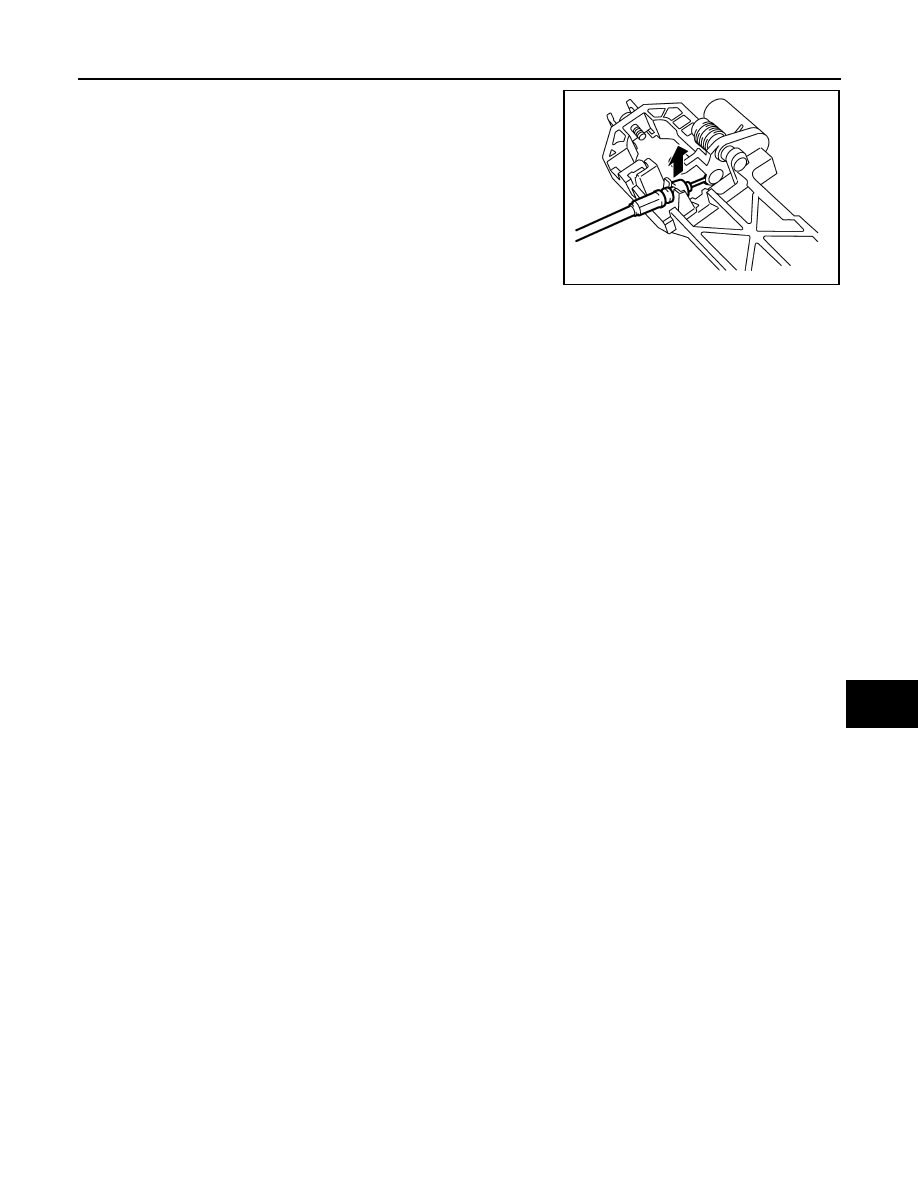

10. Reach in to separate the outside handle cable connection.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check the door lock/unlock operation after installation.
• Check the door open/close operation after installation.

PIIB5815E

DLK-268

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

BACK DOOR LOCK

BACK DOOR LOCK

DOOR LOCK

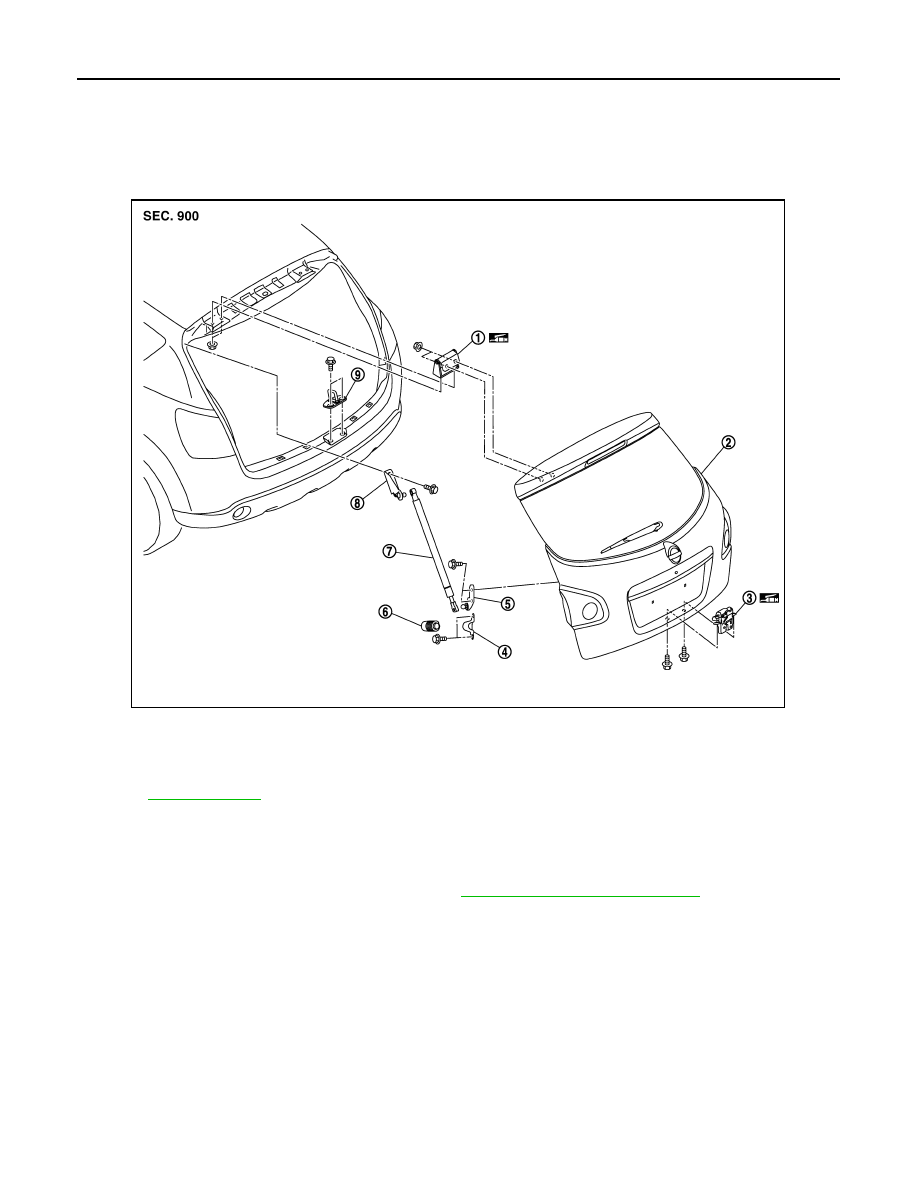

DOOR LOCK : Exploded View

INFOID:0000000001091305

DOOR LOCK : Removal and Installation

INFOID:0000000001091306

REMOVAL

1.

Remove the back door trim finisher lower. Refer to

INT-26, "Removal and Installation"

.

2.

Disconnect the back door lock assembly and back door opener switch connectors.

3.

Remove the back door lock mounting bolts, and then remove the back door lock and actuator.

INSTALLTION

Install in the reverse order of removal.

CAUTION:

Check the back door lock/unlock operation after installation.

1.

Back door hinge

2.

Back door assembly

3.

Back door lock assembly

4.

Bumper rubber bracket

5.

Back door stay bracket (lower)

6.

Bumper rubber

7.

Back door stay

8.

Back door stay bracket (upper)

9.

Back door striker

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0186ZZ

FUEL FILLER LID OPENER

DLK-269

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

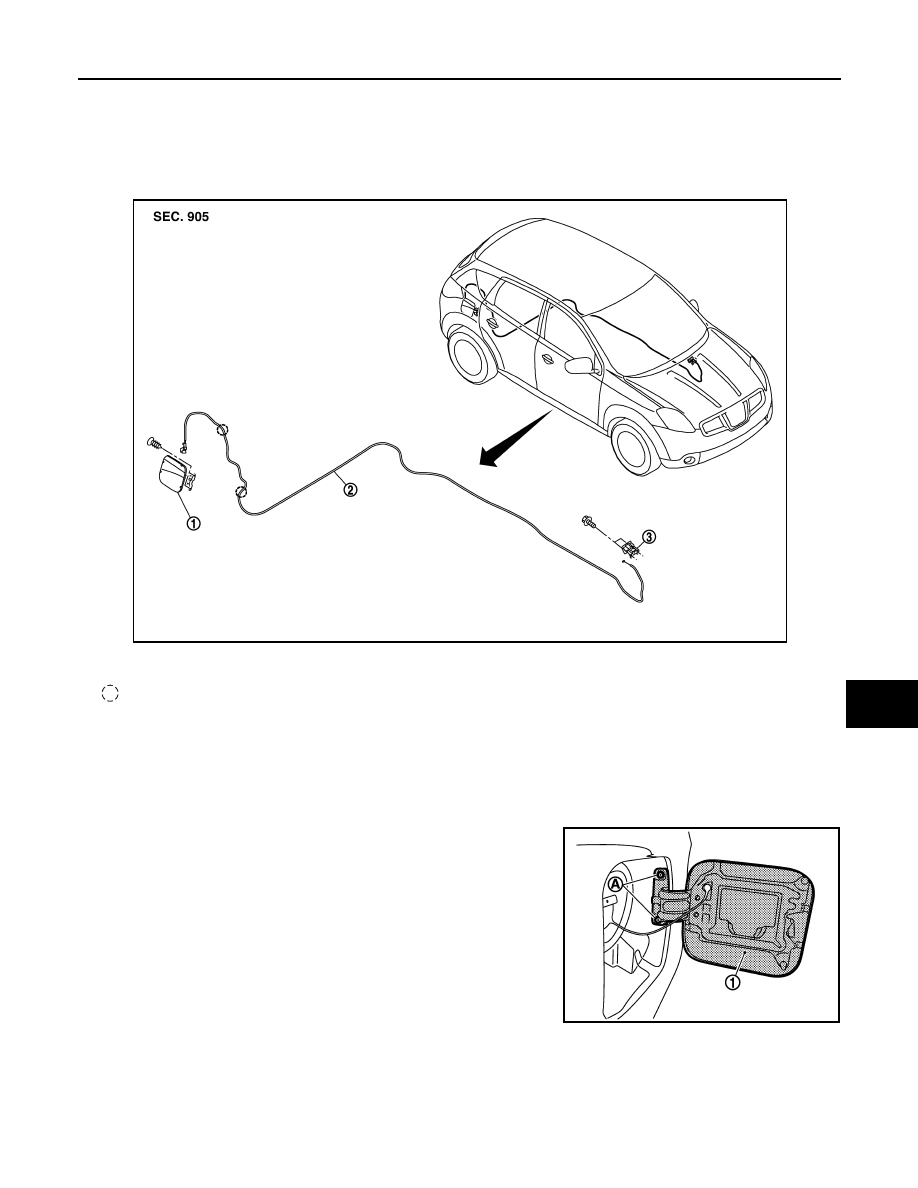

FUEL FILLER LID OPENER

FUEL FILLER LID

FUEL FILLER LID : Exploded View

INFOID:0000000001054835

FUEL FILLER LID : Removal and Installation

INFOID:0000000001054830

REMOVAL

1.

Fully open the fuel filler lid.

2.

Remove the filler cap.

3.

Remove the mounting screws (A), and then remove the fuel filler
lid (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

After installation, apply the touch-up paint (the body color) onto the head of the mounting screws.

FUEL FILLER OPENER CABLE

1.

Fuel filler lid assembly

2.

Fuel filler opener cable

3.

Fuel opener lever

: Clip

JMKIA0187ZZ

JMKIA0181ZZ

DLK-270

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

FUEL FILLER LID OPENER

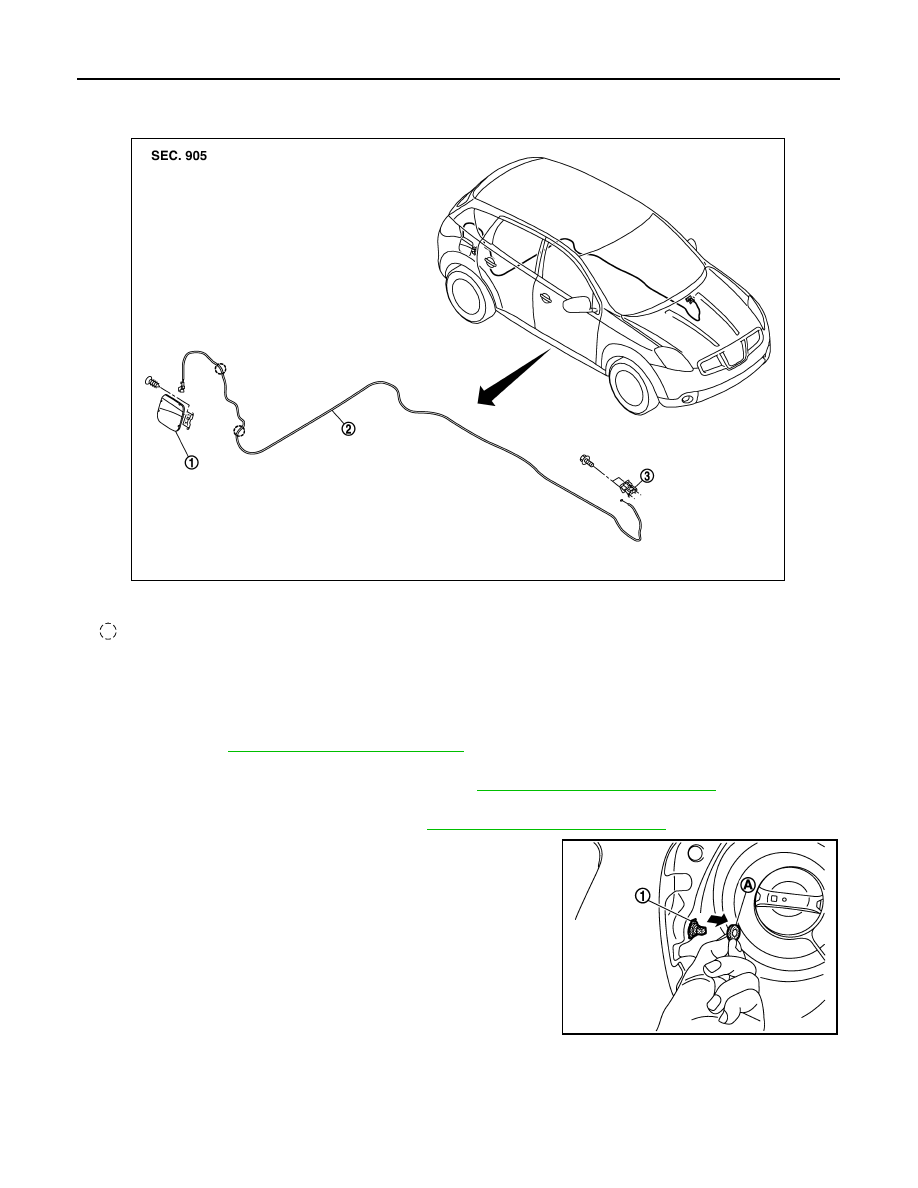

FUEL FILLER OPENER CABLE : Exploded View

INFOID:0000000001091319

FUEL FILLER OPENER CABLE : Removal and Installation

INFOID:0000000001091923

REMOVAL

1.

Remove the rear seat cushion, rear seatback, seatback lower support, and seatback mounting outer
bracket. Refer to

SE-31, "Removal and Installation"

.

2.

Remove the dash side finisher, front kicking plate inner, rear kicking plate inner, center pillar lower gar-
nish, and luggage side lower finisher (front). Refer to

INT-14, "Removal and Installation"

.

3.

Remove the parcel shelf, luggage floor carpet, luggage floor spacer, luggage rear plate, luggage side
lower finisher, and rear pillar finisher. Refer to

INT-24, "Removal and Installation"

.

4.

Remove the fuel filler lock seal (1).

1.

Fuel filler lid assembly

2.

Fuel filler opener cable

3.

Fuel opener lever

: Clip

JMKIA0187ZZ

JMKIA0182ZZ
