FUEL FILLER LID OPENER

DLK-271

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

5.

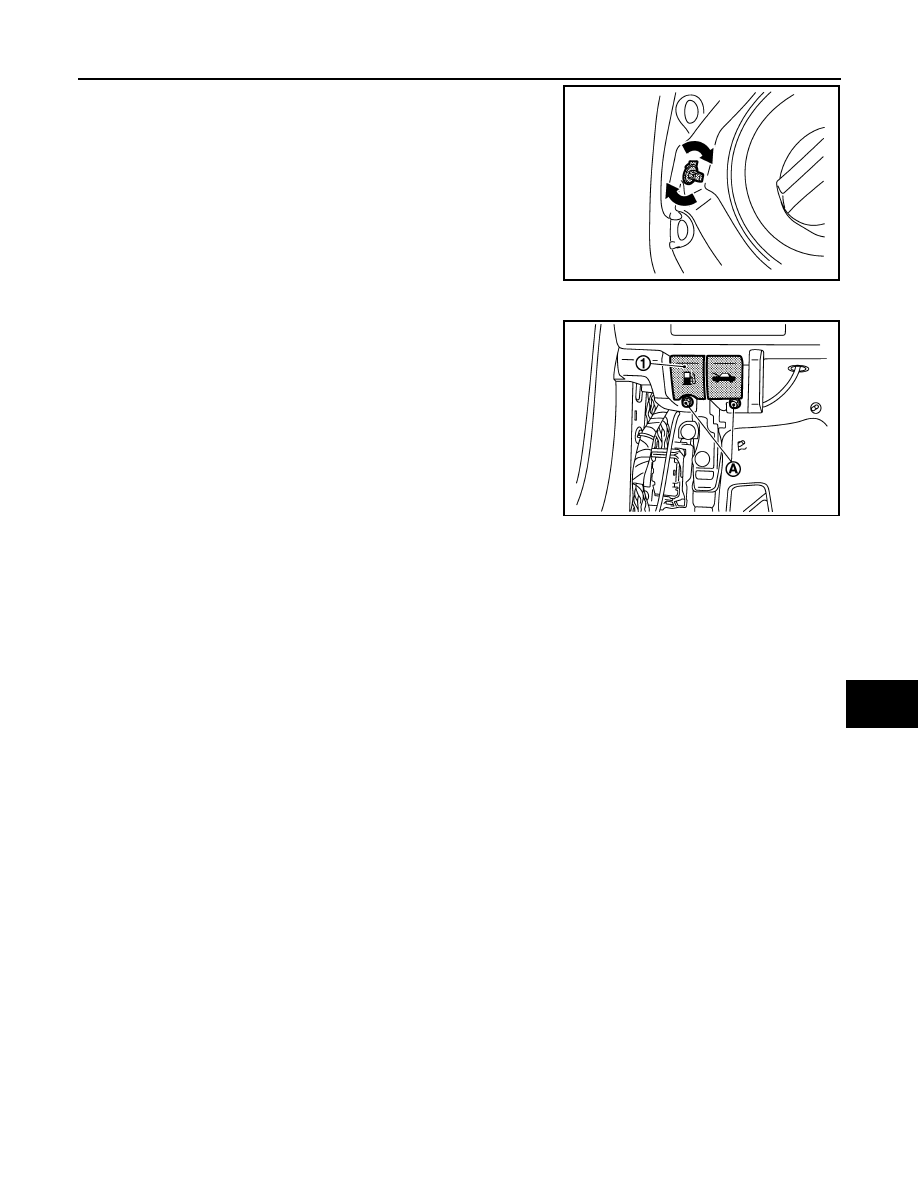

Rotate the fuel filler lock, and then remove the fuel filler lock.

6.

Remove the fuel filler opener cable mounting clips and the clamps.

7.

Remove the mounting bolts, and then remove the fuel filler lid
opener lever.

8.

Remove the fuel filler opener cable.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check the fuel filler lid open/close operation after installation.

PIIB7988J

JMKIA0183ZZ

DLK-272

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

DOOR SWITCH

DOOR SWITCH

Exploded View

INFOID:0000000001091512

Refer to

DLK-272, "Removal and Installation"

.

Removal and Installation

INFOID:0000000000939235

REMOVAL

1.

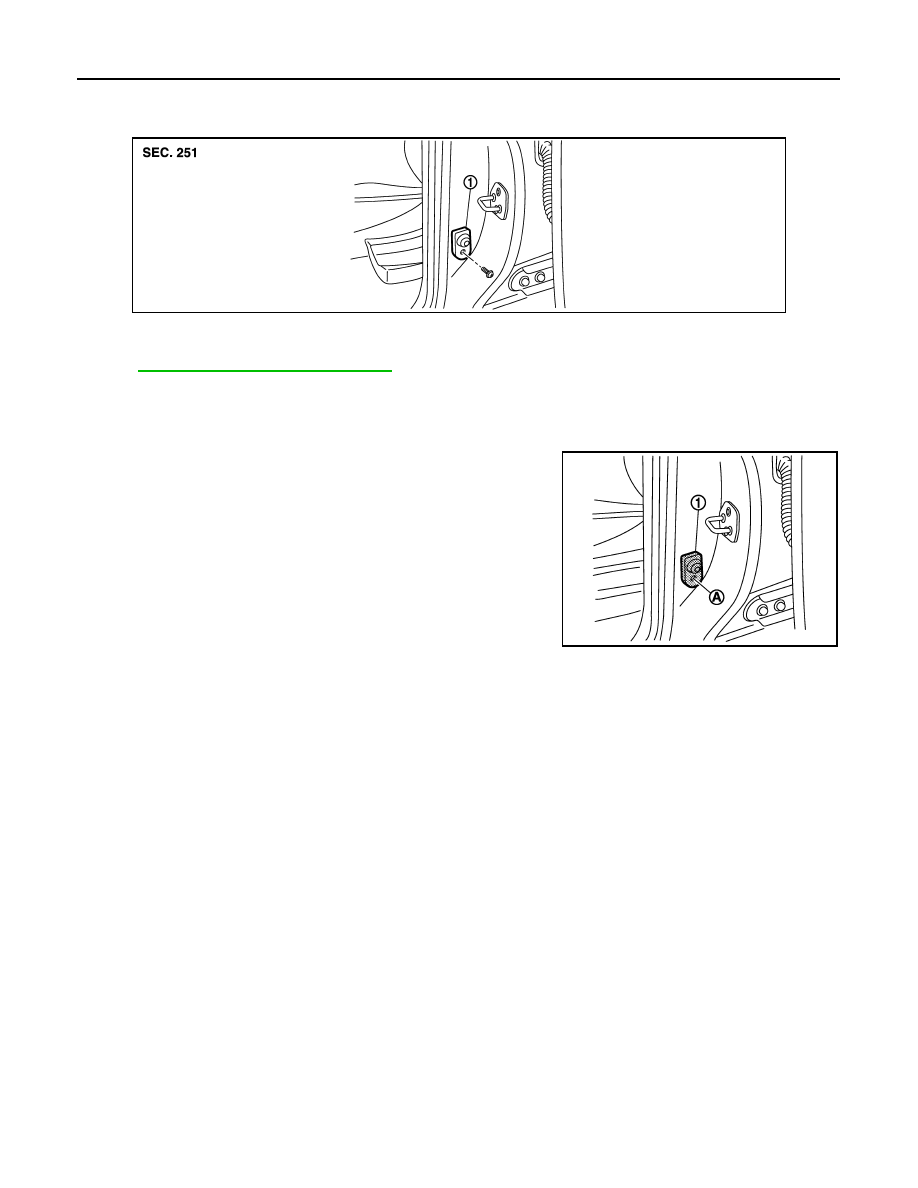

Remove the door switch mounting bolt (A), and then remove
door switch (1).
NOTE:
The same procedure is also performed for door switch (passen-
ger side, rear LH and rear RH).

INSTALLATION

Install in the reverse order of removal.

JMKIA0451ZZ

1.

Door switch (driver side)

JMKIA0452ZZ

INSIDE KEY ANTENNA

DLK-273

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSIDE KEY ANTENNA

INSTRUMENT CENTER

INSTRUMENT CENTER : Exploded View

INFOID:0000000000939236

Refer to

DLK-273, "INSTRUMENT CENTER : Removal and Installation"

.

INSTRUMENT CENTER : Removal and Installation

INFOID:0000000000939237

REMOVAL

1.

Remove the glove box and instrument lower cover RH. Refer to

IP-11, "Exploded View"

 and

IP-12,

"Removal and Installation"

.

2.

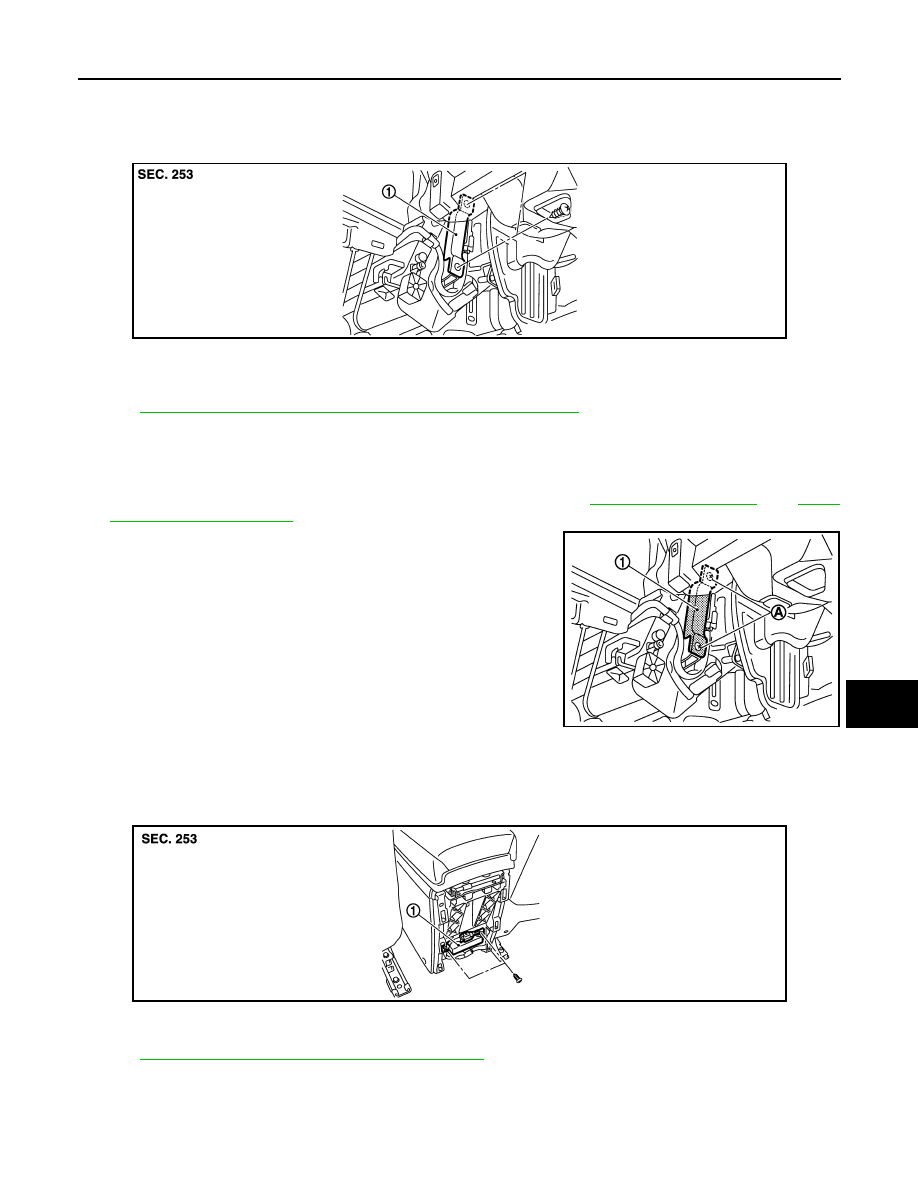

Remove the key slot mounting screw (A), and then remove
inside key antenna (instrument center) (1).

INSTALLATION

Install in the reverse order of removal.

CONSOLE

CONSOLE : Exploded View

INFOID:0000000000939238

Refer to

DLK-273, "CONSOLE : Removal and Installation"

.

CONSOLE : Removal and Installation

INFOID:0000000000939239

REMOVAL

JMKIA0455ZZ

1.

Inside key antenna (instrument cen-
ter)

JMKIA0456ZZ

JMKIA0459ZZ

1.

Inside key antenna (console)

DLK-274

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

INSIDE KEY ANTENNA

1.

Remove the console rear finisher (2). Refer to

IP-18, "Exploded View"

 and

IP-18, "Removal and Installa-

tion"

.

2.

Remove the inside key antenna mounting screw (A), and then
remove inside key antenna (console) (1).

INSTALLATION

Install in the reverse order of removal.

REAR

REAR : Exploded View

INFOID:0000000000939240

Refer to

DLK-274, "REAR : Removal and Installation"

.

REAR : Removal and Installation

INFOID:0000000000939241

REMOVAL

1.

Remove the luggage floor spacer (LH). Refer to

INT-24, "Exploded View"

 and

INT-24, "Removal and

Installation"

.

2.

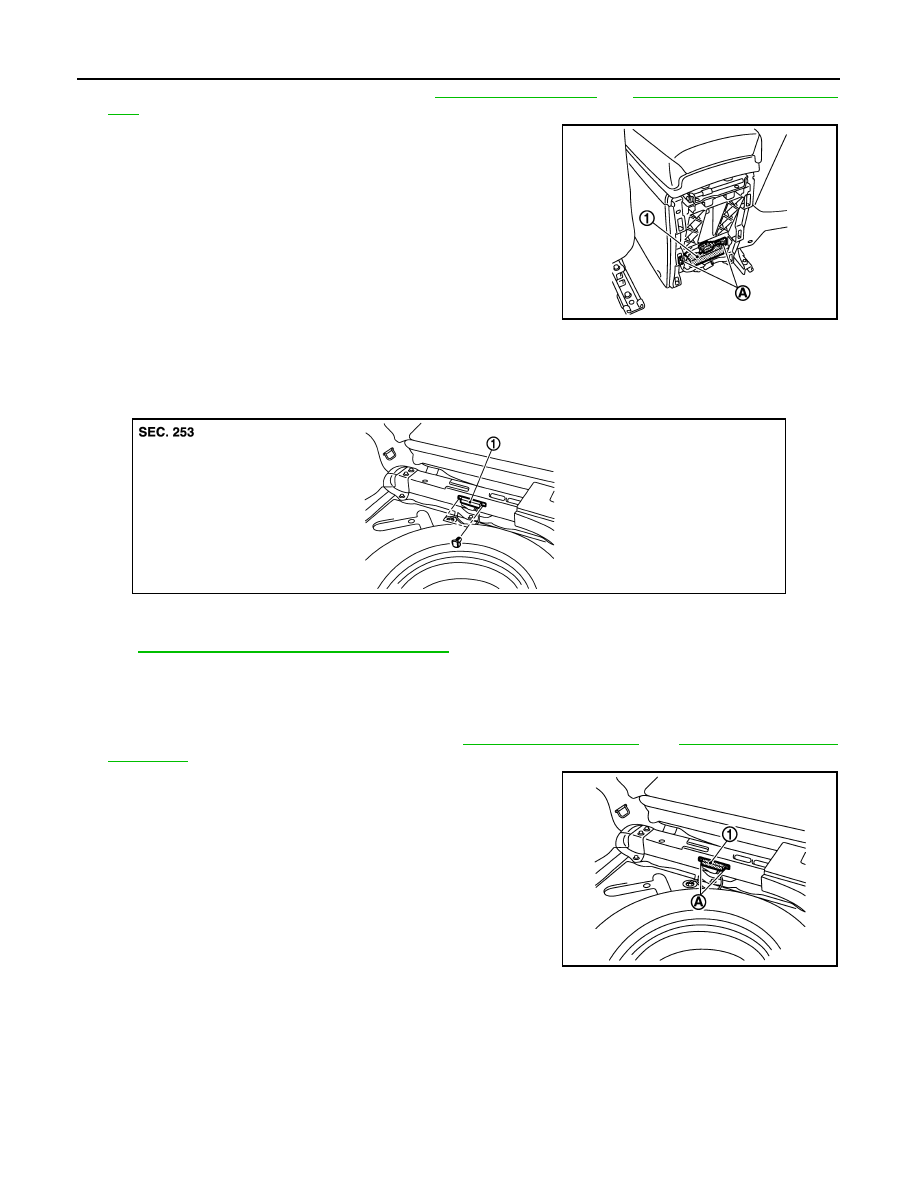

Remove the inside key antenna (rear seat) mounting clips (A),
and then remove inside key antenna (rear seat) (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA0460ZZ

JMKIA0453ZZ

1.

Inside key antenna (rear seat)

JMKIA0454ZZ
