BACK DOOR OPENER SWITCH

Exploded View

INFOID:0000000000939254

Refer to

DLK-279, "Removal and Installation"

.

Removal and Installation

INFOID:0000000000939255

REMOVAL

1.

Remove the back door finisher.
Refer to

EXT-31, "Exploded View"

 and

EXT-31, "Removal and Installation"

.

2.

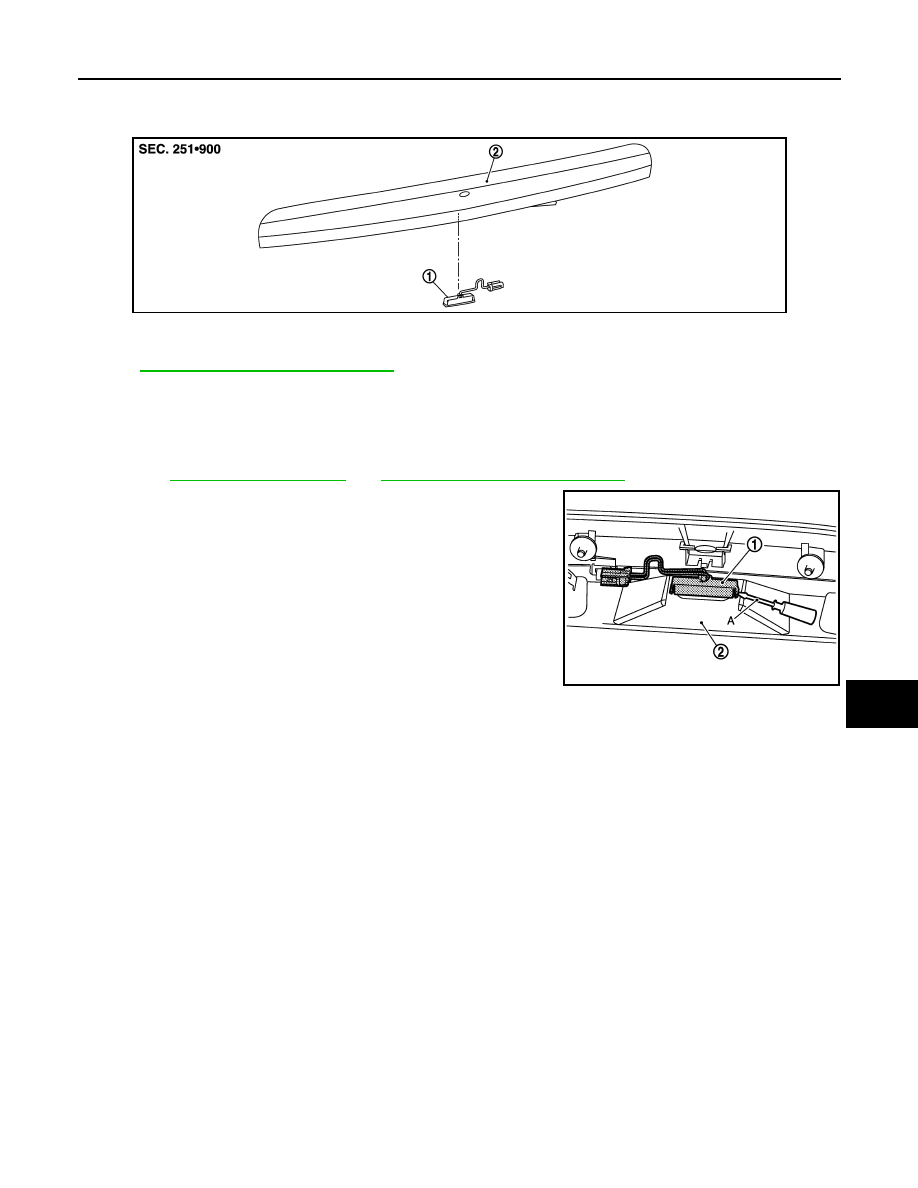

Remove the back door opener switch (1) from back door finisher
(2) using flat-bladed screw driver (A) etc.

INSTALLATION

Install in the reverse order of removal.

JMKIA0516ZZ

1.

Back door opener switch

2.

Back door finisher

JMKIA0519ZZ

DLK-280

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

DOOR LOCK AND UNLOCK SWITCH

DOOR LOCK AND UNLOCK SWITCH

Exploded View

INFOID:0000000001102429

Refer to

DLK-280, "Removal and Installation"

.

Removal and Installation

INFOID:0000000001102430

REMOVAL

1.

Remove the center console switch panel. Refer to

IP-18, "Exploded View"

 and

IP-18, "Removal and

Installation"

.

2.

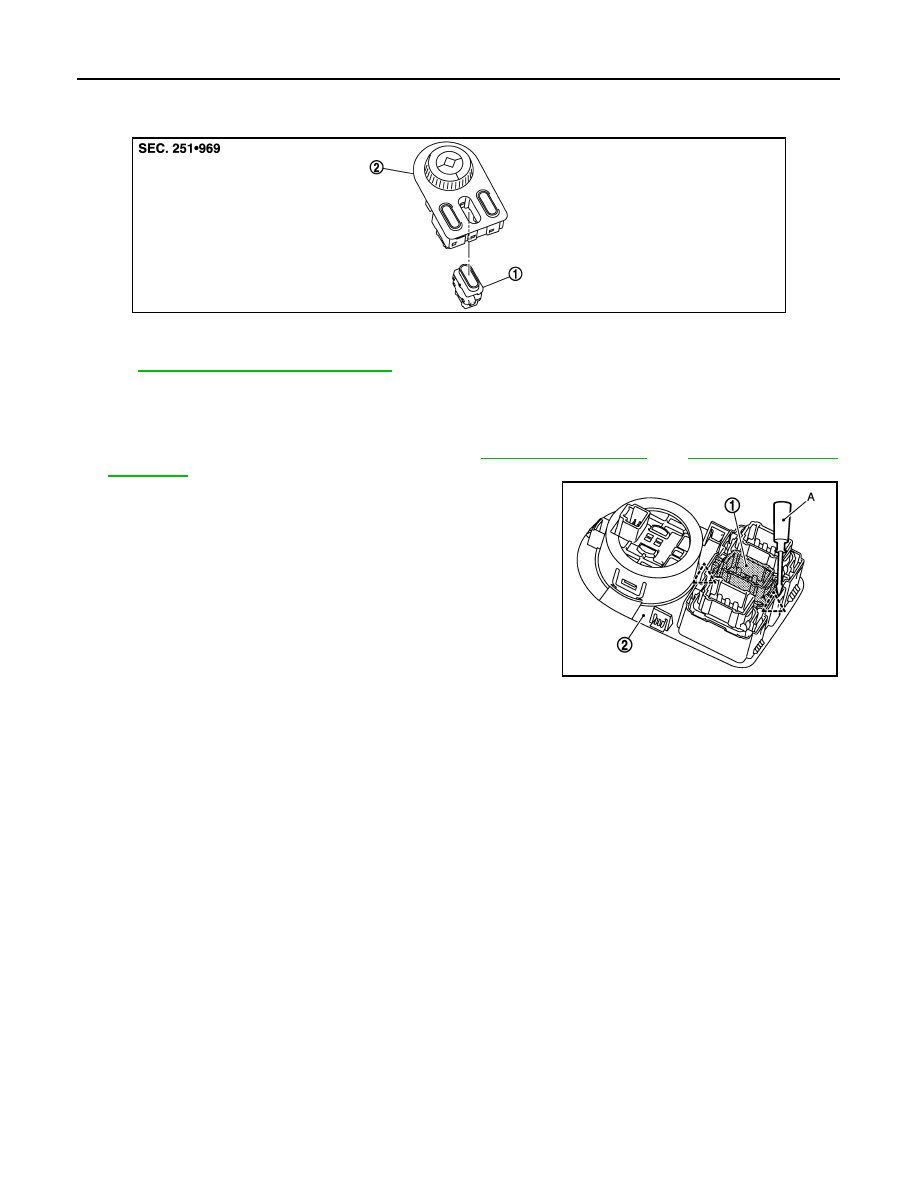

Remove the door lock and unlock switch (1) from center console
switch panel (2) using flat-bladed screwdriver (A), etc.

INSTALLATION

Install in the reverse order of removal.

JMKIA0523ZZ

1.

Door lock and unlock switch

2.

Center console switch panel

JMKIA0520ZZ

INTELLIGENT KEY BATTERY

DLK-281

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY BATTERY

Exploded View

INFOID:0000000001109238

Refer to

DLK-281, "Removal and Installation"

.

Removal and Installation

INFOID:0000000001109237

REMOVAL

1.

Remove Intelligent Key cover.

2.

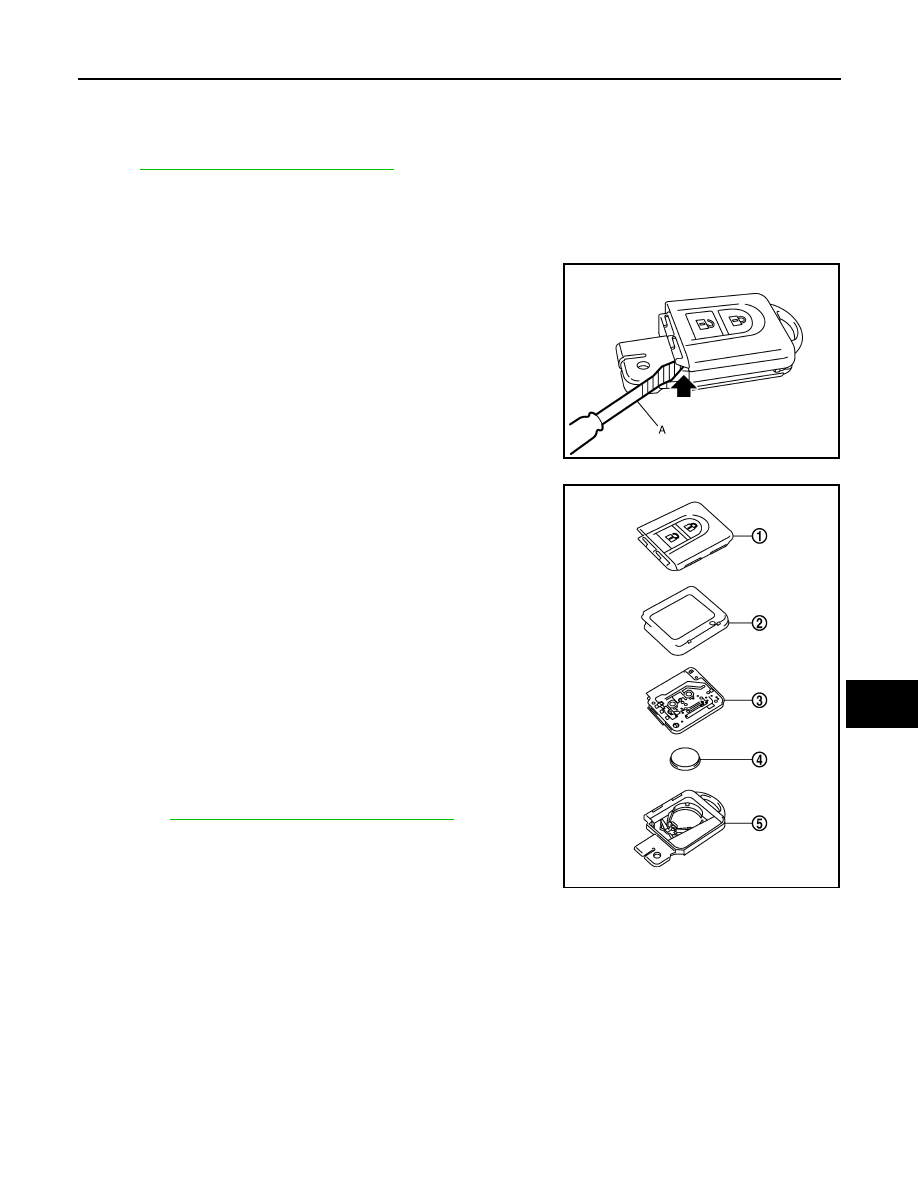

Insert a flat-bladed screwdriver (A) wrapped with tape as shown
in the illustration and then separate lower and upper cases by
twisting screwdriver.

CAUTION:

• Do not touch the circuit board or battery terminal.
• The Intelligent Key is water-resistant. However, if it does

get wet, immediately wipe it dry.

3.

Remove the circuit board assembly from the upper case (1).
[Substrate assembly: circuit board (3) + rubber (2)]

4.

Gently press the rubber (2) and remove the circuit board (3).

CAUTION:

Do not touch the printed circuits directly.

5.

Remove the battery (4) from the lower case (5) and replace it.

CAUTION:

When replacing battery, keep dirt, grease, and other foreign
materials off the electrode contact area.

6.

After replacement, assemble the upper and lower cases by
engaging the hooks on their circumference while being careful
not to pinch the rubber, etc.

CAUTION:

After replacing the battery, check that all Intelligent Key
functions work normally.
Refer to

DLK-134, "Component Function Check"

.

INSTALLATION

Install in the reverse order of removal.

MIIB0661E

Battery replacement

: Coin-type lithium battery
(CR2032)

MIIB0662E

DLK-282

< ON-VEHICLE REPAIR >

[WITH I-KEY, WITHOUT SUPER LOCK]

INTELLIGENT KEY UNIT

INTELLIGENT KEY UNIT

Exploded View

INFOID:0000000001116299

Refer to

DLK-282, "Removal and Installation"

.

Removal and Installation

INFOID:0000000001116300

REMOVAL

1.

Remove lower instrument panel (driver side) and mirror switch finisher. Refer to

IP-11, "Exploded View"

and

IP-12, "Removal and Installation"

.

2.

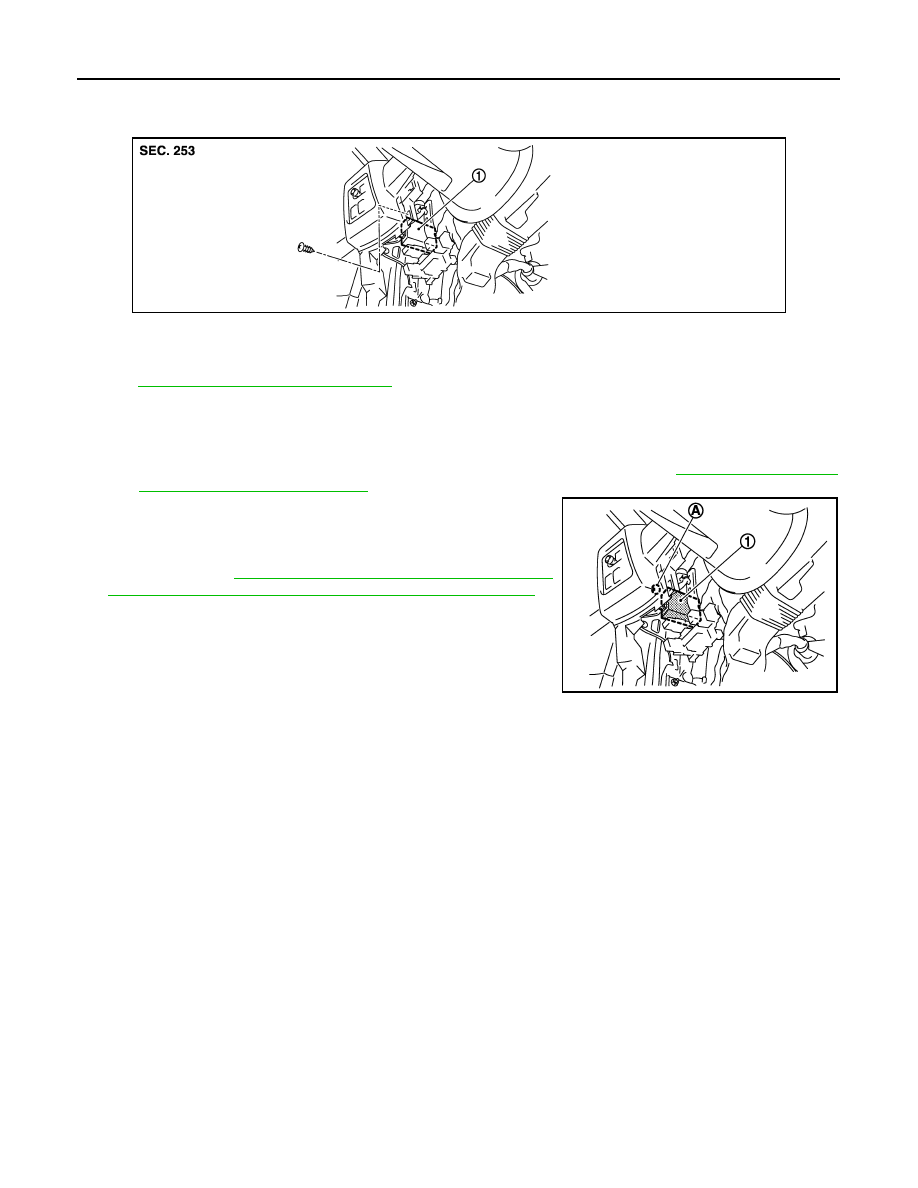

Remove the Intelligent Key unit mounting screw (A), and then
remove Intelligent Key unit (1).
NOTE:
Perform the system initialization when replacing Intelligent Key
unit. Refer to

DLK-23, "ADDITIONAL SERVICE WHEN

REPLACING CONTROL UNIT : Special Repair Requirement"

.

INSTALLATION

Install in the reverse order of removal.

JMKIA0536ZZ

1.

Intelligent Key unit
M40
