4-1. Before driving

WARNING

●

Be careful not to change the shift posi-

tion with the accelerator pedal

depressed. Changing the shift posi-

tion to any positions other than P or N

may lead to unexpected rapid acceler-

ation of the vehicle that may cause an

accident and result in death or serious

injury.

After changing the shift position, make

sure to confirm the current shift posi-

tion displayed on the shift position indi-

cator inside the meter.

■

Brake pad wear

If any of the following situations occurs,

have the brake pads visually checked and

replaced by any authorized Lexus

retailer or Lexus authorized repairer, or

any reliable repairer as soon as possible.

●

If the brake pad wear limit of a brake

pad is found to have been exceeded

when visually checking the brake pads

for each wheel (for the brake pad wear

limit, refer to P.535)

●

If a warning message is displayed on

the multi-information display (only the

right-side pads can be detected)

Rotor damage may result if the pads are

not replaced when needed.

Moderate levels of the brake pad and

disc wear allow enhanced braking power.

As a result, the discs may wear more

quickly than conventional brake discs.

Therefore, when replacing the brake

pads, Lexus recommends that you also

have the thickness of the discs measured.

It is dangerous to drive the vehicle when

the wear limits of the brake pads and/or

those of the brake discs are exceeded.

■

When the vehicle is stopped

●

Do not depress the accelerator pedal

unnecessarily.

If the shift position is in any position

other than P or N, the vehicle may

accelerate suddenly and unexpect-

edly, causing an accident.

●

In order to prevent accidents due to

the vehicle rolling away, always keep

depressing the brake pedal while

stopped with the “READY” indicator is

illuminated, and apply the parking

brake as necessary.

●

If the vehicle is stopped on an incline,

in order to prevent accidents caused

by the vehicle rolling forward or back-

ward, always depress the brake pedal

and securely apply the parking brake

as needed.

●

Avoid revving or racing the engine.

Running the engine at high speed

while the vehicle is stopped may cause

the exhaust system to overheat, which

could result in a fire if combustible

material is nearby.

■

When the vehicle is parked

●

Do not leave glasses, cigarette lighters,

spray cans, or soft drink cans in the

vehicle when it is in the sun.

Doing so may result in the following:

• Gas may leak from a cigarette lighter

or spray can, and may lead to a fire.

• The temperature inside the vehicle

may cause the plastic lenses and plas-

tic material of glasses to deform or

crack.

• Soft drink cans may fracture, causing

the contents to spray over the interior

of the vehicle, and may also cause a

short circuit in the vehicle’s electrical

components.

195

4-1. Before driving

Driving

WARNING

●

Do not leave cigarette lighters in the

vehicle. If a cigarette lighter is in a

place such as the glove box or on the

floor, it may be lit accidentally when

luggage is loaded or the seat is

adjusted, causing a fire.

●

Do not attach adhesive discs to the

windshield or windows. Do not place

containers such as air fresheners on

the instrument panel or dashboard.

Adhesive discs or containers may act

as lenses, causing a fire in the vehicle.

●

Do not leave a door or window open if

the curved glass is coated with a

metallized film such as a silver-colored

one. Reflected sunlight may cause the

glass to act as a lens, causing a fire.

●

Always apply the parking brake, shift

the shift position to P, stop the hybrid

system and lock the vehicle.

Do not leave the vehicle unattended

while the “READY” indicator is illumi-

nated.

If the vehicle is parked with the shift

position in P but the parking brake is

not set, the vehicle may start to move,

possibly leading to an accident.

●

Do not touch the exhaust pipes while

the “READY” indicator is illuminated

or immediately after turning the hybrid

system off.

Doing so may cause burns.

■

When taking a nap in the vehicle

Always turn the hybrid system off. Other-

wise, if you accidentally move the shift

lever or depress the accelerator pedal,

this could cause an accident or fire due

to hybrid system overheating. Addition-

ally, if the vehicle is parked in a poorly

ventilated area, exhaust gases may col-

lect and enter the vehicle, leading to

death or a serious health hazard.

■

When braking

●

When the brakes are wet, drive more

cautiously.

Braking distance increases when the

brakes are wet, and this may cause one

side of the vehicle to brake differently

than the other side. Also, the parking

brake may not securely hold the vehi-

cle.

●

If the electronically controlled brake

system does not operate, do not follow

other vehicles closely and avoid hills or

sharp turns that require braking.

In this case, braking is still possible, but

the brake pedal should be depressed

more firmly than usual. Also, the brak-

ing distance will increase. Have your

brakes fixed immediately.

●

The brake system consists of 2 or more

individual hydraulic systems; if one of

the systems fails, the other(s) will still

operate. In this case, the brake pedal

should be depressed more firmly than

usual and the braking distance will

increase. Have your brakes fixed

immediately.

■

If the vehicle becomes stuck

Do not spin the wheels excessively when

a driven wheel is up in the air, or the vehi-

cle is stuck in sand, mud, etc. This may

damage the driveline components or

propel the vehicle forward or backward,

causing an accident.

NOTICE

■

When driving the vehicle

●

Do not depress the accelerator and

brake pedals at the same time during

driving, as this may restrain the hybrid

system output.

●

Do not use the accelerator pedal or

depress the accelerator and brake

pedals at the same time to hold the

vehicle on a hill.

196

4-1. Before driving

When the following unusual operation
is performed with the accelerator
pedal depressed, the hybrid system
output may be restrained.



When the shift lever is shifted to R



When the shift lever is shifted from P
or R to forward drive shift positon
such as D

When the system operates, a message
appears on the multi-information display.
Read the message and follow the instruc-
tion.

: Depending on the situation, the shift

position may not be changed.

NOTICE

■

When parking the vehicle

Always set the parking brake, and shift

the shift position to P. Failure to do so

may cause the vehicle to move or the

vehicle may accelerate suddenly if the

accelerator pedal is accidentally

depressed.

■

Avoiding damage to vehicle parts

●

Do not turn the steering wheel fully in

either direction and hold it there for an

extended period of time.

Doing so may damage the power

steering.

●

When driving over bumps in the road,

drive as slowly as possible to avoid

damaging the wheels, underside of the

vehicle, etc.

■

If you get a flat tire while driving

A flat or damaged tire may cause the fol-

lowing situations. Hold the steering

wheel firmly and gradually depress the

brake pedal to slow down the vehicle.

●

It may be difficult to control your vehi-

cle.

●

The vehicle will make abnormal

sounds or vibrations.

●

The vehicle will lean abnormally.

Information on what to do in case of a flat

tire (



P.508)

■

When encountering flooded roads

Do not drive on a road that has flooded

after heavy rain etc. Doing so may cause

the following serious damage to the vehi-

cle:

●

Engine stalling

●

Short in electrical components

●

Engine damage caused by water

immersion

In the event that you drive on a flooded

road and the vehicle is flooded, be sure

to have any authorized Lexus retailer or

Lexus authorized repairer, or any reliable

repairer check the following:

●

Brake function

●

Changes in quantity and quality of oil

and fluid used for the engine, hybrid

transmission, transfer (AWD models),

differential, etc.

●

Lubricant condition for the propeller

shaft, bearings and suspension joints

(where possible), and the function of

all joints, bearings, etc.

If the shift control system is damaged by

flooding, it may not be possible to shift

the shift position to P, or from P to other

positions. In this case, contact any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

Sudden start restraint control
(Drive-Start Control [DSC])

197

4-1. Before driving

Driving

■

Drive-Start Control (DSC)

When the TRC is turned off (



P.379), sud-

den start restraint control also does not

operate. If your vehicle have trouble escap-

ing from the mud or fresh snow by operat-

ing sudden start restraint control,

deactivate TRC (



P.379) so that the vehi-

cle may become able to escape from the

mud or fresh snow.

Cargo and luggage

Take notice of the following infor-
mation about storage precautions,
cargo capacity and load:

WARNING

■

Things that must not be carried in the

trunk

The following things may cause a fire if

loaded in the trunk:

●

Receptacles containing gasoline

●

Aerosol cans

■

Storage precautions

Observe the following precautions.

Failure to do so may prevent the pedals

from being depressed properly, may

block the driver’s vision, or may result in

items hitting the driver or passengers,

possibly causing an accident.

●

Stow cargo and luggage in the trunk

whenever possible.

●

Do not place cargo or luggage in or on

the following locations.

• At the feet of the driver

• On the front passenger or rear seats

(when stacking items)

• On the package tray

• On the instrument panel

• On the dashboard

• In front of the Center Display

●

Secure all items in the occupant com-

partment.

■

Load and distribution

●

Do not overload your vehicle.

199

4-2. Driving procedures

Driving

4-2.Driving procedures

Press the parking brake switch to
check that the parking brake is set.
(



P.213)

The parking brake indicator will come on.

Firmly depress the brake pedal.

and a message will be displayed on

the multi-information display.

If it is not displayed, the hybrid system can-

not be started.
When the shift position is N, the hybrid sys-

tem cannot start. Shift the shift position to P

when starting the hybrid system.

(



P.206)

Press the power switch shortly and
firmly.

When operating the power switch, one

short, firm press is enough. It is not neces-

sary to press and hold the switch.
If the “READY” indicator turns on, the

hybrid system will operate normally.
Continue depressing the brake pedal until

the “READY” indicator is illuminated.
The hybrid system can be started from any

power switch mode.

Check that the “READY” indicator
is illuminated.

The vehicle cannot be driven if the

“READY” indicator is off.

■

Power switch illumination

According to the situation, the power

switch illumination operates as follows.

●

When a door is opened, or the power

switch mode is changed from ACCES-

SORY or ON mode to off, the power

switch illumination slowly blinks.

●

When depressing the brake pedal with

carrying the electronic key on your per-

son, the power switch illumination rapidly

blinks.

●

When the power switch is in ACCES-

SORY or ON mode, the power switch

illumination illuminates.

■

If the hybrid system does not start

●

The immobilizer system may not have

been deactivated. (



P.92)

Contact any authorized Lexus retailer or

Lexus authorized repairer, or any reliable

repairer.

●

If a message related to start-up is shown

on the multi-information display, read the

message and follow the instructions.

■

When the ambient temperature is low,

such as during winter driving conditions

●

When starting the hybrid system, the

flashing time of the “READY” indicator

may be long. Leave the vehicle as it is until

the “READY” indicator is steady on, as

Power (ignition) switch

Performing the following opera-
tions when carrying the electronic
key on your person starts the hybrid
system or changes power switch
modes.

Starting the hybrid system

200

4-2. Driving procedures

steady means the vehicle is able to move.

●

When the hybrid battery (traction bat-

tery) is extremely cold (below approxi-

mately -30°C [-22°F]) under the

influence of the outside temperature, it

may not be possible to start the hybrid

system. In this case, try to start the hybrid

system again after the temperature of the

hybrid battery increases due to the out-

side temperature increase etc.

■

Sounds and vibrations specific to a

hybrid electric vehicle



P.86

■

If the 12-volt battery is discharged

The hybrid system cannot be started using

the smart entry & start system. Refer to

P.514to restart the hybrid system.

■

Electronic key battery depletion



P.128

■

Conditions affecting operation



P.146

■

Notes for the entry function



P.146

■

Steering lock function (if equipped)

●

After turning the power switch off and

opening and closing the doors, the steer-

ing wheel will be locked due to the steer-

ing lock function. Operating the power

switch again automatically cancels the

steering lock.

●

When the steering lock cannot be

released, “Push Power Switch While

Turning Steering Wheel in Either Direc-

tion” will be displayed on the multi-infor-

mation display.

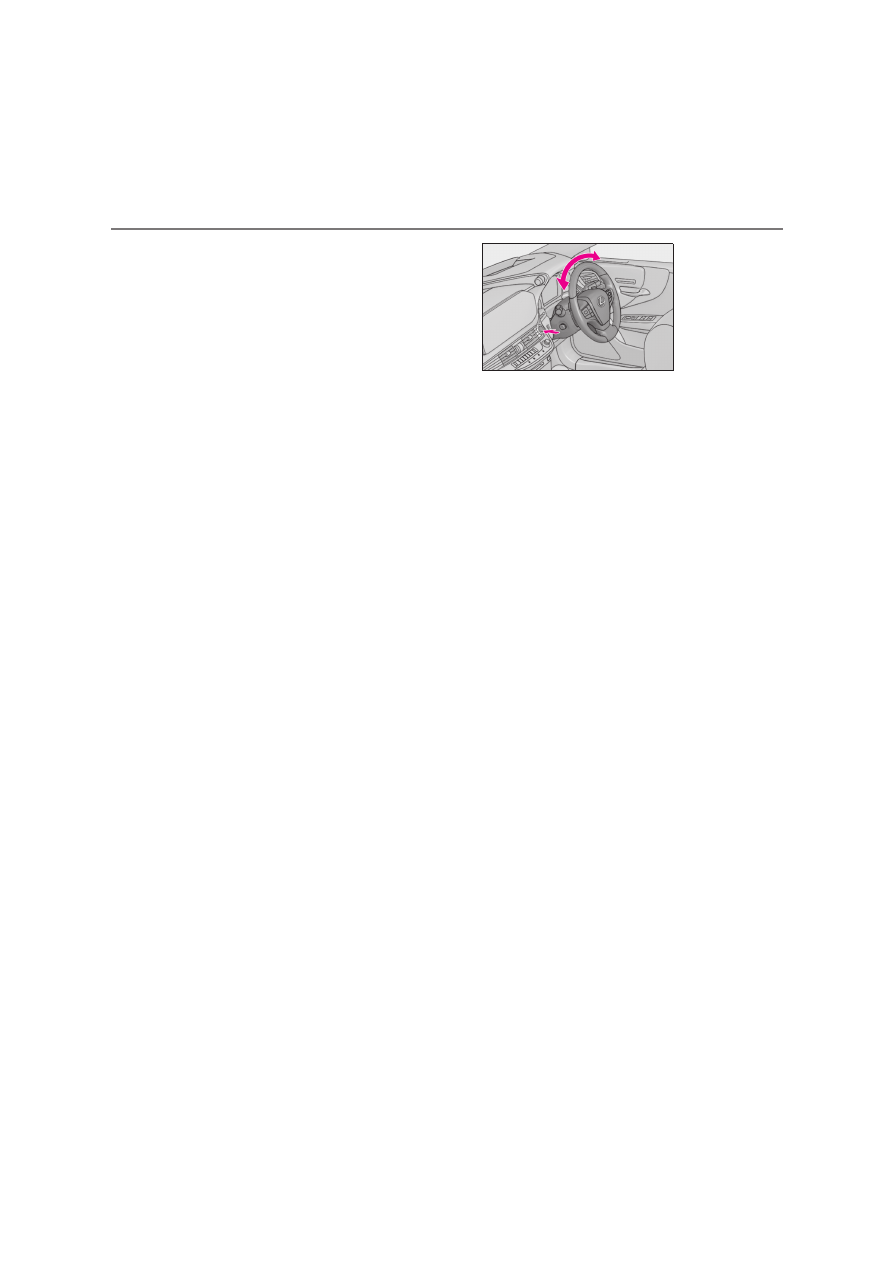

Press the power switch shortly and firmly

while turning the steering wheel left and

right.

●

To prevent the steering lock motor from

overheating, the motor may be sus-

pended if the hybrid system is turned on

and off repeatedly in a short period of

time. In this case, refrain from operating

the power switch. After about 10 sec-

onds, the steering lock motor will resume

functioning.

■

If the “READY” indicator does not come

In the event that the “READY” indicator

does not come on even after performing

the proper procedures for starting the vehi-

cle, contact any authorized Lexus retailer or

Lexus authorized repairer, or any reliable

repairer immediately.

■

If the hybrid system is malfunctioning



P.90

■

Electronic key battery



P.477

■

Operation of the power switch

●

If the switch is not pressed shortly and

firmly, the power switch mode may not

change or the hybrid system may not

start.

●

If attempting to restart the hybrid system

immediately after turning the power

switch off, the hybrid system may not start

in some cases. After turning the power

switch off, please wait a few seconds

before restarting the hybrid system.

■

Customization

If the smart entry & start system has been

deactivated in a customized setting, refer to

P.512.

201

4-2. Driving procedures

Driving

Stop the vehicle completely.

If the parking brake is in manual
mode, set the parking brake.
(



P.213)

Press the P position switch.
(



P.206)

Check that the shift position indicator

shows P and the parking brake indicator is

illuminated.

Press the power switch.

The hybrid system will stop, and the meter

display will be extinguished (the shift posi-

tion indicator will be extinguished a few

seconds after the meter display).

Release the brake pedal and check
that “ACCESSORY” or “IGNI-
TION ON” is not shown on the
meter.

■

Automatic P position selection function



P.208

WARNING

■

When starting the hybrid system

Always start the hybrid system while sit-

ting in the driver’s seat. Do not depress

the accelerator pedal while starting the

hybrid system under any circumstances.

Doing so may cause an accident result-

ing in death or serious injury.

■

Caution while driving

If hybrid system failure occurs while the

vehicle is moving, do not lock or open the

doors until the vehicle reaches a safe and

complete stop. Activation of the steering

lock (if equipped) in this circumstance

may lead to an accident, resulting in

death or serious injury.

NOTICE

■

When starting the hybrid system

If the hybrid system becomes difficult to

start, have your vehicle checked by any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer immediately.

■

Symptoms indicating a malfunction

with the power switch

If the power switch seems to be operat-

ing somewhat differently than usual, such

as the switch sticking slightly, there may

be a malfunction. Contact any author-

ized Lexus retailer or Lexus authorized

repairer, or any reliable repairer immedi-

ately.

Stopping the hybrid system

WARNING

■

Stopping the hybrid system in an

emergency

●

If you want to stop the hybrid system in

an emergency while driving the vehi-

cle, press and hold the power switch

for more than 2 seconds, or press it

briefly 3 times or more in succession.

(



P.486)

However, do not touch the power

switch while driving except in an emer-

gency. Turning the hybrid system off

while driving will not cause loss of

steering or braking control, however,

power assist to the steering will be lost.

This will make it more difficult to steer

smoothly, so you should pull over and

stop the vehicle as soon as it is safe to

do so.

●

If the power switch is operated while

the vehicle is running, a warning mes-

sage will be shown on the multi-infor-

mation display and a buzzer sounds.

●

When restarting the hybrid system

after an emergency shutdown, press

the power switch.

202

4-2. Driving procedures

Modes can be changed by pressing
the power switch with the brake pedal
released. (The mode changes each
time the switch is pressed.)

Off

The emergency flashers can be used.

ACCESSORY mode

Some electrical components such as the
audio system can be used.
“ACCESSORY” will be displayed on the
meter.

ON mode

All electrical components can be used.
“IGNITION ON” will be displayed on the
meter.

■

Auto power off function

If the vehicle is left in ACCESSORY mode

for more than 20 minutes or ON mode

(with hybrid system not operating) for more

than an hour with the shift position in P, the

power switch will automatically turn off.

However, this function cannot entirely pre-

vent the 12-volt battery discharge. Do not

leave the vehicle with the power switch in

ACCESSORY or ON mode for long peri-

ods of time when the hybrid system is not

operating.

■

When the shift control system malfunc-

tions

When attempting to turn the power switch

off while there is a malfunction in the shift

control system, the power switch mode may

change to ACCESSORY mode. In this

case, ACCESSORY mode may be turned

off by applying the parking brake and press-

ing the power switch again. If there is a mal-

function in the system, have the vehicle

inspected by any authorized Lexus retailer

or Lexus authorized repairer, or any reliable

repairer immediately.

Changing power switch modes

NOTICE

■

To prevent 12-volt battery discharge

●

Do not leave the power switch in

ACCESSORY or ON mode for long

periods of time without the hybrid sys-

tem on.

●

If “ACCESSORY” or “IGNITION

ON” is displayed on the meter, the

power switch is not off. Exit the vehicle

after turning the power switch off.

203

4-2. Driving procedures

Driving

Turns EV drive mode on/off

When EV drive mode is turned on, the EV
drive mode indicator will come on. Press-
ing the switch when in EV drive mode will
return the vehicle to normal driving (using
the gasoline engine and electric motor
[traction motor]).

■

Situations in which EV drive mode can-

not be turned on

It may not be possible to turn EV drive

mode on in the following situations. If it can-

not be turned on, a buzzer will sound and a

message will be shown on the multi-infor-

mation display.

●

The temperature of the hybrid system is

high.

The vehicle has been left in the sun,

driven on a hill, driven at high speeds, etc.

●

The temperature of the hybrid system is

low.

The vehicle has been left in temperatures

lower than about 0°C (32°F) for a long

period of time etc.

●

The gasoline engine is warming up.

●

The hybrid battery (traction battery) is

low.

The remaining battery level indicated in

the “Energy monitor” display is low.

(



P.124)

●

Vehicle speed is high.

●

The accelerator pedal is depressed firmly

or the vehicle is on a hill etc.

●

The windshield defogger is in use.

●

When the shift position is in M.

■

Switching to EV drive mode when the

gasoline engine is cold

If the hybrid system is started while the gas-

oline engine is cold, the gasoline engine will

start automatically in order to warm up. In

this case, you will become unable to switch

to EV drive mode.
To prevent gasoline engine warm up in

order to reduce noises, start the hybrid sys-

tem without starting the gasoline engine,

pressing the power switch with fully

depressing the brake pedal and pressing

the EV drive mode switch.

EV drive mode

In EV drive mode, electric power is
supplied by the hybrid battery
(traction battery), and only the
electric motor (traction motor) is
used to drive the vehicle.

This mode allows you to drive in res-
idential areas early in the morning
and late at night, or in indoor park-
ing lots etc. without concern for
noises and gas emissions.

However, when the Acoustic Vehi-
cle Alerting System is active, the
vehicle may produce sound.

Operating instructions

204

4-2. Driving procedures

■

Automatic cancelation of EV drive

mode

When driving in EV drive mode, the gaso-

line engine may automatically restart in the

following situations. When EV drive mode

is canceled, a buzzer will sound and the EV

drive mode indicator will flash and go off.

●

The hybrid battery (traction battery)

becomes low.

The remaining battery level indicated in

the “Energy monitor” display is low.

(



P.124)

●

Vehicle speed is high.

●

The accelerator pedal is depressed firmly

or the vehicle is on a hill etc.

When it is possible to inform the driver of

automatic cancelation in advance, a prior

notice screen will appear on the multi-infor-

mation display.

■

Possible driving distance when driving in

EV drive mode

EV drive mode’s possible driving distance

ranges from a few hundred meters to

approximately 1 km (0.6 mile). However,

depending on vehicle conditions, there are

situations when EV drive mode cannot be

used.

(The distance that is possible depends on

the hybrid battery [traction battery] level

and driving conditions.)

■

Fuel economy

The hybrid system is designed to achieve

the best possible fuel economy during nor-

mal driving (using the gasoline engine and

electric motor [traction motor]). Driving in

EV drive mode more than necessary may

lower fuel economy.

■

If “EV Mode Unavailable” is shown on

the multi-information display

The EV drive mode is not available. The rea-

son the EV drive mode is not available (the

vehicle is idling, battery charge is low, vehi-

cle speed is higher than the EV drive mode

operating speed range or accelerator pedal

is depressed too much) may be displayed.

Use the EV drive mode when it becomes

available.

■

If “EV Mode Deactivated” is shown on

the multi-information display

The EV drive mode has been automatically

canceled. The reason the EV drive mode is

not available (the battery charge is low,

vehicle speed is higher than the EV drive

mode operating speed range or accelera-

tor pedal is depressed too much) may be

displayed. Drive the vehicle for a while

before attempting to turn on the EV drive

mode again.

WARNING

■

Caution while driving

When driving in EV drive mode, pay spe-

cial attention to the area around the vehi-

cle. Because there is no engine noise,

pedestrians, people riding bicycles or

other people and vehicles in the area

may not be aware of the vehicle starting

off or approaching them, so take extra

care while driving. Therefore, take extra

care while driving even if the Acoustic

Vehicle Alerting System is active.

205

4-2. Driving procedures

Driving

: To improve fuel efficiency and reduce

noise, set the shift position in D for nor-
mal driving. You can choose gear range
suitable for your driving situation by
operating the paddle shift switches.

: Any gear range can be fixed when driv-

ing in M mode.

■

To protect the hybrid transmission

If the transmission fluid temperature is high,

“Transmission Fluid Temp High See

Owner’s Manual” will be displayed on the

multi-information display and the vehicle

will go into transmission protection mode

automatically. Have the vehicle inspected

by any authorized Lexus retailer or Lexus

authorized repairer, or any reliable repairer.

■

When driving with the cruise control or

dynamic radar cruise control with

full-speed range activated

Even when performing the following

actions with the intent of enabling engine

braking, engine braking will not be acti-

vated because the cruise control or the

dynamic radar cruise control with

full-speed range will not be canceled.

●

While driving in the D position,

downshifting to 9, 8, 7, 6, 5 or 4.

●

When switching the driving mode to

sport mode while driving in the D position

(



P.372)

■

Sudden start restraint control

(Drive-Start Control [DSC])



P.196

■

AI-SHIFT

The AI-SHIFT automatically selects the suit-

able gear according to driver performance

and driving conditions.

The AI-SHIFT automatically operates when

the shift position is in D. (Shifting the shift

position to the M position cancels the func-

tion.)

■

If a message about a shift operation is

shown

To prevent the shift position from being

selected incorrectly or the vehicle from

moving unexpectedly, the shift position may

be changed automatically or operating the

shift lever may be required. In this case,

change the shift position following the mes-

sages on the multi-information display.

■

After recharging/reconnecting the

12-volt battery



P.456

Hybrid transmission

Select the shift position depending
on your purpose and situation.

Shift position purpose and func-
tions

Shift posi-

tion

Objective or function

Parking the vehicle/starting

the hybrid system

Reversing

Neutral (Condition in which

the power is not transmitted)

Normal driving

M mode driving

(



P.210)

WARNING

■

When driving on slippery road sur-

faces

Do not accelerate or shift the shift posi-

tion suddenly.

Sudden changes in engine braking may

cause the vehicle to spin or skid, resulting

in an accident.

206

4-2. Driving procedures

Shift lever

Operate the shift lever gently and securely
in the direction of the arrow on the shift
position indicator.
To shift to N, slide the shift lever in the
direction of the arrow and hold it.
Release the shift lever after each shifting
operation to allow it to return to its regular

position (

Shifting to M is only possible when the shift
position is in D.
When shifting from P to N, D or R, from N,
D, M or R to P, from D or M to R, or from R
to D, ensure that the brake pedal is being
depressed and the vehicle is stationary.

Shift position indicator

Meter display:
The current shift position is highlighted.
When any shift position other than D or M

NOTICE

■

Hybrid battery (traction battery)

charge

If the shift position is in N, the hybrid bat-

tery (traction battery) will not be

charged. To help prevent the battery

from discharging, avoid leaving the N

position selected for an extended period

of time.

■

Situations where shift control system

malfunctions are possible

If any of the following situations occurs,

shift control system malfunctions are

possible.

Immediately stop the vehicle in a safe

place on level ground, apply the parking

brake, and then contact any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

●

When the warning message indicating

the shift control system appears on the

multi-information display. (



P.505)

●

The display indicates that no shift posi-

tion is selected for more than a few

seconds.

Shift position display and how to
change the shift position

207

4-2. Driving procedures

Driving

is selected, the arrow toward M and the M
position indicator are displayed in gray.
Shift lever display:
The current shift position is illuminated.
When selecting the shift position, make
sure that the shift position has been
changed to the desired position by check-
ing the shift position indicator provided on
the instrument cluster.

P position switch

Fully stop the vehicle and set the parking
brake, and then press the P position switch.
When the shift position is changed to P, the
switch illuminates.
Check that the shift position indicator
shows P.

■

Changing the shift position in power

switch mode

●

The shift position cannot be changed

when the power switch is in ACCES-

SORY mode or off.

●

When the power switch is in ON mode, if

the “READY” indicator is not illuminated,

the shift position can only be changed to

●

When the “READY” indicator is illumi-

nated, the shift position can be changed

from P to D, N, or R.

●

When the “READY” indicator is flashing,

the shift position cannot be changed from

P to any other position, even if the shift

lever is operated. Operate the shift lever

again after the “READY” indicator

changes from flashing to illuminated.

■

Shifting the shift position from P to other

positions

●

While depressing the brake pedal firmly,

operate the shift lever. If the shift lever is

operated without depressing the brake

pedal, the buzzer will sound and the shift-

ing operation will be disabled.

●

When selecting the shift position, make

sure that the shift position has been

changed to the desired position by

checking the shift position indicator pro-

vided on the instrument cluster.

●

The shift position cannot be changed

from P to M directly.

■

The shift position cannot be changed

when

In the following situations, a buzzer will

sound to inform you that the shift position

cannot be changed. Use the appropriate

operation to attempt to change the shift

position again.

●

When attempting to change the shift

position from P with the brake pedal not

depressed

●

When attempting to change the shift

position from P with the accelerator

pedal depressed

●

When attempting to change the shift

position from N while stopped or driving

at an extremely low speed with the brake

pedal not depressed

●

When attempting to change the shift

position from N while stopped or driving

at an extremely low speed with the accel-

erator pedal depressed

●

When attempting to change the shift

position from P or N to M

●

When the P position switch is pressed

while driving

When driving at an extremely low speed,

the shift position may change to P.

■

The shift position automatically changes

to N when

In the following situations, a buzzer will

sound to inform you that the shift position

has been changed to N. Use the appropri-

ate operation to attempt to change the shift

position again.

●

When attempting to change the shift

position to R while the vehicle is moving

forward

When driving at a low speed, the shift posi-
tion may change to R.

●

When attempting to change the shift

position to D while the vehicle is moving

208

4-2. Driving procedures

backward

When driving at a low speed, the shift posi-
tion may change to D.

●

When attempting to change the shift

position from R to M

■

If the N shift position is selected while

driving

If the shift lever is moved to N while driving

above a certain speed, the shift position will

change to N without holding the shift lever

in the N position. In this situation, a buzzer

will sound and a message will be displayed

on the multi-information display to inform

you that the shift position has been changed

to N.

■

Automatic P position selection function

In the following situations, the shift position

is automatically changed to P.

●

When pressing the power switch with the

vehicle stopped while the power switch is

in ON mode and the shift position is in a

position other than P (after the shift posi-

tion has changed to P, the power switch
will turn off)

●

If the driver’s door is opened and all of the

following conditions are met, while the

shift position is in a position other than P

• The power switch is in ON mode.

• The driver is not wearing the seat belt.

• The brake pedal is not depressed.
To start off the vehicle after the shift posi-
tion is changed to P, operate the shift lever
again.

●

When the vehicle is stopped after the

hybrid system has been stopped in an

emergency while driving.

●

When voltage of the 12-volt battery

drops while the shift position is in a posi-

tion other than P.

: When the power switch is pressed while

driving at extremely slow speeds, such
as immediately before stopping the vehi-
cle, the shift position may automatically
change to P. Make sure that the vehicle
is completely stopped before pressing

the power switch.

■

If the shift position cannot be shifted

from P

There is a possibility that the 12-volt battery

is discharged. Check the 12-volt battery in

this situation. (



P.515)

■

Customization

Some functions can be customized.

(



P.540)

WARNING

■

For the shift lever

●

Do not remove the shift lever knob or

use anything but a genuine Lexus shift

lever knob. Also, do not hang anything

on the shift lever.

Doing so could prevent the shift lever

from returning to position, causing

unexpected accidents to occur when

the vehicle is in motion.

●

In order to prevent the shift position

from accidentally being changed, do

not touch the shift lever when not using

them.

■

P position switch

●

Do not press the P position switch

while the vehicle is moving.

If the P position switch is pressed when

driving at very low speeds (for example,

directly before stopping the vehicle), the

vehicle may stop suddenly when the shift

position switches to P, which could lead

to an accident.

●

In order to prevent the shift position

from accidentally being changed, do

not touch the P position switch when

not using them.

209

4-2. Driving procedures

Driving

■

Driving mode



P.372

■

Snow mode

Snow mode can be selected to suit the
conditions when driving on slippery
road surfaces, such as on snow.
Turn the snow mode switch backward.

The snow mode indicator illuminates.
Turn the snow mode switch backward
again to return to normal mode.

Except F SPORT models
F SPORT models

■

Snow mode automatic deactivation

Snow mode is automatically deactivated if

the power switch is turned off after driving

in snow mode.

To drive using temporary shift range
selection, operate the “-” or “+” paddle
shift switch.
When the “-” paddle shift switch is
operated, the shift range switches to a
range that enables engine braking
force that is suitable to driving condi-
tions. When the “+” paddle shift switch
is operated, the shift range switches to
a range that is one range higher than
the current range.
Changing the shift range allows
restriction of the highest gear, prevent-
ing unnecessary upshifting and ena-
bling the level of engine braking force
to be selected.

Except F SPORT models
F SPORT models

Upshifting

NOTICE

■

Notes regarding shift lever and P

position switch operation

Avoid repeatedly operating the shift

lever and P position switch in quick suc-

cession.

The system protection function may acti-

vate and it will not be temporarily possi-

ble to shift the shift position other than P.

If this happens, please wait for a while

before attempting to change the shift

position again.

■

When exiting the vehicle (driver’s

seat only)

Check that the shift position indicator

shows P and that the parking brake indi-

cator is illuminated before opening the

door and exiting the vehicle.

Selecting the driving mode

Selecting shift ranges in the D
position

A
B

210

4-2. Driving procedures

Downshifting

The selected shift range, from D1 to D10,
will be displayed on the meter.
To return to normal D position driving, the
“+” paddle shift switch must be held down
for a period of time.

A lower shift range will provide greater
engine braking forces than a higher shift
range.

■

Automatic deactivation of shift range

selection in the D position

Shift range selection in the D position will

be deactivated in the following situations:

●

When the vehicle comes to a stop

●

If the accelerator pedal is depressed for

more than a certain period of time

●

When the shift position is shifted to a

position other than D.

●

When the “+” paddle shift switch is

pressed and held

■

Downshifting restriction warning

buzzer

To help ensure safety and driving perfor-

mance, downshifting operation may some-

times be restricted. In some circumstances,

downshifting may not be possible even

when the paddle shift switch is operated. (A

buzzer will sound twice.)

To enter M mode, shift the shift position
to M. Gears can be selected by oper-
ating the paddle shift switches, allowing
you to drive in the gear of your choos-
ing.

Except F SPORT models
F SPORT models

Upshifting

Downshifting

The gear changes once every time the
paddle shift switch is operated.
The selected gear, from M1 to M10, will be
fixed and displayed on the meter.

When in the M position, the gear will
not change unless the paddle shift
switches are operated.
However, even when in the M position,
the gears will be automatically
changed in the following situations:



When vehicle speed drops
(downshift only).



When vehicle speed increases
(upshift only).



When the accelerator pedal is firmly
depressed.



When it is necessary to protect the

Meter dis-

play

Function

D2 - D10

A gear in the range between

D1 and the selected shift

range is automatically cho-

sen depending on vehicle

speed and driving condi-

tions

Setting the shift range at D1

Selecting gears in the M position

A
B

211

4-2. Driving procedures

Driving

transmission when the transmission
fluid temperature is high or low, or
other reasons.



When particulate matter has accu-
mulated in the exhaust filter.

Also, the gear will not shift when the
vehicle speed is low, even if an upshift
operation is performed.

■

Downshifting restrictions warning

buzzer

To help ensure safety and driving perfor-

mance, downshifting operation may some-

times be restricted. In some circumstances,

downshifting may not be possible even

when the paddle shift switch is operated. (A

buzzer will sound twice.)

The Gear Shift Indicator display is a
guide to help the driver achieve
improved fuel economy and reduced
exhaust emissions within limits of
engine performance.

Shift-up indicator (except F SPORT
models)
Shift-up indicator (F SPORT mod-
els)

■

Gear Shift Indicator function



This function automatically operates
during M mode.



By following the Shift-up indicator
and shifting up accordingly, it is pos-
sible to achieve improved fuel econ-
omy and reduced exhaust
emissions.



The Gear Shift Indicator does not
have a similar function for
downshifting.



Depending on the driving condi-
tions, the Gear Shift Indicator may
not display the Shift-up indicator
while driving in M mode.



Performing the following opera-
tions allows the power switch to be
set to ACCESSORY mode with the
shift position held in N.

Operate the shift lever and change
the shift position to N when the
hybrid system is operating.

Return the shift lever to its regular

position (

Gear Shift Indicator

WARNING

■

Gear Shift Indicator display

For safety, the driver should not look only

at the display. Refer to the display when it

is safe to do so while considering actual

traffic and road conditions.

Failure to do so may lead to an accident.

When the power switch is
changed to ACCESSORY mode
with the shift position held in N

212

4-2. Driving procedures

Operate the shift lever to N and
hold it there until the buzzer
sounds.

Press the power switch within 5
seconds after the buzzer sounds.

The power switch will be set to ACCES-
SORY mode with the shift position in N.

Make sure to check that the buzzer
sounds and “Holding N Push P Switch
When Done” is displayed on the
multi-information display.



To change to a shift position other
than N, press the P position switch.
The shift position will be changed to
P.



Even if the hybrid system is not
operating, by operating the shift
lever and the power switch, the
power switch may be changed to
ACCESSORY mode with the shift
position held in N. Make sure that
the hybrid system is operating
before performing the operation.

: To keep this state, do not operate the

power switch. If the power switch is
operated repeatedly, the power switch
will turn off after the shift position has
automatically changed to P.

Right turn

Lane change to the right (move the
lever partway and release it)

The right hand signals will flash 3 times.

Lane change to the left (move the
lever partway and release it)

The left hand signals will flash 3 times.

Left turn

■

Turn signals can be operated when

The power switch is in ON mode.

■

If the indicator flashes faster than usual

Check that a light bulb in the front or rear

turn signal lights has not burned out.

■

If the turn signals stop flashing before a

lane change has been performed

Operate the lever again.

Turn signal lever

Operating instructions

213

4-2. Driving procedures

Driving

■

Customization

Some functions can be customized.

(



P.540)

■

Using the manual mode

The parking brake can be set and
released manually.

Push the switch to set the parking
brake

The parking brake indicator light will turn
on.
Press and hold the parking brake switch if
an emergency occurs and it is necessary to
operate the parking brake while driving.

Pull the switch to release the park-
ing brake

Parking brake

The parking brake can be set or
released automatically or manually.

In automatic mode, the parking
brake can be set or released auto-
matically according to the shift
lever operation. Also, even in auto-
matic mode, the parking brake can
be set or released manually.

Operating instructions

214

4-2. Driving procedures

• Operate the parking brake switch while

depressing the brake pedal.

• Using the parking brake automatic

release function, the parking brake can
be released by depressing the accelera-
tor pedal. When using this function,
slowly depress the accelerator pedal.

Make sure that the parking brake indicator
light turn off.

■

Turns automatic mode on

While the vehicle is stopped, press and
hold the parking brake switch until a
message is shown on the multi-infor-
mation display.

When the automatic mode is turned
on, the parking brake operates as fol-
lows.



When the shift position is shifted
from P, the parking brake will be
released, and the parking brake
indicator light will turn off.



When the shift position is shifted to
P, the parking brake will be set, and
the parking brake indicator light will
turn on.

Operate the shift lever and P position
switch with the vehicle stopped and the
brake pedal depressed.

■

Turns automatic mode off

While the vehicle is stopped, pull and
hold the parking brake switch until a
message is shown on the multi-infor-
mation display.

■

Parking brake operation

●

When the power switch is not in ON

mode, the parking brake cannot be

released using the parking brake switch.

●

When the power switch is not in ON

mode, automatic mode (automatic brake

setting and releasing) is not available.

■

Parking brake automatic release func-

tion

●

When the shift position is shifted from P,

the parking brake will be released in

automatic mode.

●

When all of the following conditions are

met in manual mode, the parking brake

can be released by depressing the accel-

erator pedal.

• The driver’s door is closed

• The driver is wearing the seat belt

• The shift position is in D, M or R

■

If “EPB Frequently Operated Wait a

Minute” is displayed on the multi-infor-

mation display

If the parking brake is operated repeatedly

over a short period of time, the system may

restrict operation to prevent overheating. If

this happens, refrain from operating the

parking brake. Normal operation will return

after about 1 minute.

215

4-2. Driving procedures

Driving

■

If “EPB Activation Stopped Incom-

pletely” or “EPB Unavailable” is dis-

played on the multi-information display

Operate the parking brake switch. If the

message does not disappear after operat-

ing the switch several times, the system may

be malfunctioning. Have the vehicle

inspected by any authorized Lexus retailer

or Lexus authorized repairer, or any reliable

repairer.

■

Parking brake operation sound

When the parking brake operates, a motor

sound (whirring sound) may be heard. This

does not indicate a malfunction.

■

Parking brake operation

●

Depending on the power switch mode,

the parking brake indicator light will turn

on and stay on as described below:

ON mode: Comes on until the parking

brake is released.

Not in ON mode: Stays on for approxi-

mately 15 seconds.

●

When the power switch is turned off with

the parking brake set, the parking brake

indicator light will stay on for about 15

seconds. This does not indicate a mal-

function.

■

When the parking brake switch mal-

functions

Automatic mode (automatic brake setting

and releasing) will be turned on automati-

cally.

■

Parking the vehicle



P.191

■

Parking brake engaged warning buzzer

A buzzer will sound if the vehicle is driven

with the parking brake engaged. “EPB

Applied” is displayed on the multi-informa-

tion display. (with the vehicle reached a

speed of 5 km/h [3 mph])

■

If the brake system warning light comes



P.495

■

Usage in winter time



P.386

WARNING

■

When parking the vehicle

Do not leave a child in the vehicle alone.

The parking brake may be released unin-

tentionally and there is the danger of the

vehicle moving that may lead to an acci-

dent resulting in death or serious injury.

NOTICE

■

When parking the vehicle

Before you leave the vehicle, set the

parking brake, shift the shift position to P

and make sure that the vehicle does not

move.

■

When the system malfunctions

Stop the vehicle in a safe place and

check the warning messages.

■

When the parking brake cannot be

released due to a malfunction

Driving the vehicle with the parking

brake set will lead to brake components

overheating, which may affect braking

performance and increase brake wear.

Have the vehicle inspected by any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer immediately if this occurs.

216

4-2. Driving procedures

Turns the brake hold system on

The brake hold standby indicator (green)

comes on. While the system is holding

the brake, the brake hold operated indica-
tor (yellow)

comes on.

■

Brake hold system operating conditions

The brake hold system cannot be turned on

in the following conditions:

●

The driver’s door is not closed.

●

The driver is not wearing the seat belt.

●

Vehicles with Advanced Park: The park-

ing brake is engaged.

If any of the conditions above are detected

when the brake hold system is enabled, the

system will turn off and the brake hold

standby indicator light will go off. In addi-

tion, if any of the conditions are detected

while the system is holding the brake, a

warning buzzer will sound and a message

will be shown on the multi-information dis-

play. The parking brake will then be set

automatically.

■

Brake hold function

●

If the brake pedal is left released for a

period of about 3 minutes after the sys-

tem has started holding the brake, the

parking brake will be set automatically. In

this case, a warning buzzer sounds and a

message is shown on the multi-informa-

tion display.

●

To turn the system off while the system is

holding the brake, firmly depress the

brake pedal and press the button again.

●

The brake hold function may not hold the

vehicle when the vehicle is on a steep

incline. In this situation, it may be neces-

sary for the driver to apply the brakes. A

warning buzzer will sound and the

multi-information display will inform the

driver of this situation. If a warning mes-

sage is shown on the multi-information

display, read the message and follow the

instructions.

■

When the parking brake is set automati-

cally while the system is holding the

brakes

Perform any of the following operations to

release the parking brake.

●

Depress the accelerator pedal. (The

parking brake will not be released auto-

matically if the seat belt is not fastened.)

●

Operate the parking brake switch with

the brake pedal depressed.

Make sure that the parking brake indicator

light goes off. (



P.213)

■

When an inspection at any authorized

Lexus retailer or Lexus authorized

repairer, or any reliable repairer is nec-

essary

When the brake hold standby indicator

(green) does not illuminate even when the

brake hold switch is pressed with the brake

hold system operating conditions met, the

system may be malfunctioning. Have the

Brake Hold

The brake hold system keeps the
brake applied when the shift posi-
tion is in D, M or N with the system
on and the brake pedal has been
depressed to stop the vehicle. The
system releases the brake when the
accelerator pedal is depressed with
the shift position in D or M to allow
smooth start off.

Enabling the system

217

4-2. Driving procedures

Driving

vehicle inspected at any authorized Lexus

retailer or Lexus authorized repairer, or any

reliable repairer.

■

If “Brake Hold Malfunction Press Brake

to Deactivate Visit Your Dealer” or

“Brake Hold Malfunction Visit Your

Dealer” is displayed on the multi-infor-

mation display

The system may be malfunctioning. Have

the vehicle inspected by any authorized

Lexus retailer or Lexus authorized repairer,

or any reliable repairer.

■

Warning messages and buzzers

Warning messages and buzzers are used to

indicate a system malfunction or to inform

the driver of the need for caution. If a warn-

ing message is shown on the multi-informa-

tion display, read the message and follow

the instructions.

■

If the brake hold operated indicator

flashes



P.502

WARNING

■

When the vehicle is on a steep incline

When using the brake hold system on a

steep incline exercise caution. The brake

hold function may not hold the vehicle in

such a situation.

■

When stopped on a slippery road

The system cannot stop the vehicle when

the gripping ability of the tires has been

exceeded. Do not use the system when

stopped on a slippery road.

NOTICE

■

When parking the vehicle

The brake hold system is not designed

for use when parking the vehicle for a

long period of time. Turning the power

switch off while the system is holding the

brake may release the brake, which

would cause the vehicle to move. When

operating the power switch, depress the

brake pedal, shift the shift position to P

and set the parking brake.

218

4-3. Operating the lights and wipers

4-3.Operating the lights and wipers

Operating the

switch turns on

the lights as follows:

The front position, tail, license

plate and instrument panel lights
turn on.

The headlights and all the

lights listed above turn on.

The headlights, daytime run-

ning lights (



P.218) and all the

lights listed above turn on and off
automatically.

■

AUTO mode can be used when

The power switch is in ON mode.

■

Daytime running light system

To make your vehicle more visible to other

drivers during daytime driving, the daytime

running lights turn on automatically when-

ever hybrid system is started and the park-

ing brake is released with the headlight
switch in the

position. (Illuminate

brighter than the front position lights.) Day-

time running lights are not designed for use

at night.

■

Headlight control sensor

The sensor may not function properly if an

object is placed on the sensor, or anything

that blocks the sensor is affixed to the wind-

shield.

Doing so interferes with the sensor detect-

ing the level of ambient light and may cause

the automatic headlight system to malfunc-

tion.

■

Automatic light off system

●

When the light switch is in

The headlights turn off automatically if

the power switch is turned to ACCES-

SORY mode or turned off, and the

driver’s door is opened.

●

When the light switch is in

: The

headlights and all lights turn off automati-

cally if the power switch is turned to

ACCESSORY mode or turned off, and

the driver’s door is opened.

To turn the lights on again, turn the power

switch to ON mode, or turn the light switch
off once and then back to

Headlight switch

The headlights can be operated
manually or automatically.

Operating instructions

219

4-3. Operating the lights and wipers

Driving

■

Light reminder buzzer

A buzzer sounds when the power switch is

turned off or turned to ACCESSORY

mode and the driver’s door is opened while

the lights are turned on.

■

Automatic headlight leveling system

The level of the headlights is automatically

adjusted according to the number of pas-

sengers and the loading condition of the

vehicle to ensure that the headlights do not

interfere with other road users.

■

12-volt battery-saving function

In order to prevent the 12-volt battery of the

vehicle from discharging, if the light switch
is in the

position when the

power switch is turned off the 12-volt bat-

tery saving function will operate and auto-

matically turn off all the lights after

approximately 20 minutes. When the

power switch is turned to ON mode, the

12-volt battery-saving function will be disa-

bled. When any of the following are per-

formed, the 12-volt battery-saving function

is canceled once and then reactivated. All

the lights will turn off automatically 20 min-

utes after the 12-volt battery-saving func-

tion has been reactivated:

●

When the headlight switch is operated

●

When a door or the trunk is opened or

closed

■

Welcome light illumination control

The front position lights automatically turn

on at night when the doors are unlocked

using the entry function or wireless remote
control if the light switch is in the

posi-

tion.

■

Customization

Some functions can be customized.

(



P.540)

With the headlights on, push the
lever away from you to turn on the
high beams.

Pull the lever toward you to the center
position to turn the high beams off.

Pull the lever toward you and
release it to flash the high beams
once.

You can flash the high beams with the
headlights on or off.

This system allows the headlights to be
turned on for 30 seconds when the
power switch is off.
Pull the lever toward you and release it

with the light switch in

after turn-

ing the power switch off.

NOTICE

■

To prevent 12-volt battery discharge

Do not leave the lights on longer than

necessary when the hybrid system is off.

Turning on the high beam head-
lights

Extended Headlight Lighting
system

220

4-3. Operating the lights and wipers

The lights are turned off in the following
situations.



The power switch is turned to ON
mode.



The light switch is turned on.



The light switch is pulled toward you
and then released.



When the steering wheel or turn
signal lever is operated while the
headlights are on (low beam), a cor-
nering light will turn on and light up
the direction of movement of the
vehicle. The cornering lights are
designed to ensure excellent visibil-
ity when making a turn at an inter-
section.

However, when vehicle speed is more than
approximately 35 km/h (22 mph), the cor-
nering lights will not turn on.



When the shift position is in R while
the headlights are on (low beam),
both cornering lights will turn on.
This is designed to enhance visibility
when parking.

■

Cornering lights

When the cornering lights are on for more

than 30 minutes, they will turn off automati-

cally.

Cornering lights

221

4-3. Operating the lights and wipers

Driving

: If equipped



Adjusts the brightness and illumi-
nated area of the high beams
according to the vehicle speed.



Adjusts the intensity of the high
beams, while driving on a curve, so
that the area in the direction that the
vehicle is turning will be illuminated
more brightly than other areas.



Operates the shaded high beams so
that the area around vehicles ahead
is partially not illuminated while all

other areas continue to be illumi-
nated with the high beams.

The shaded high beams help optimize for-
ward visibility while reducing the dazzling
effect on the drivers of vehicles ahead.



Adjusts the distance that the low
beams are projected according to
the distance to a preceding vehicle.

Press the Adaptive High-beam Sys-
tem switch.

Turn the headlight switch to the

position.

When the headlight switch lever is in the

low beam position, the AHS system will be

enabled and the AHS indicator will illumi-

AHS (Adaptive High-beam
System)

The Adaptive High-beam System
uses a camera sensor located
behind the upper portion of the
windshield to assess the brightness
of the lights of vehicles ahead,
streetlights, etc., and automatically
controls the headlight light distribu-
tion as necessary.

WARNING

■

Limitations of the Adaptive

High-beam System

Do not overly rely on the Adaptive

High-beam System. Always drive safely,

taking care to observe your surroundings

and turning the high beams on or off

manually if necessary.

■

To prevent incorrect operation of the

Adaptive High-beam System

Do not overload the vehicle.

System functions

Activating the Adaptive
High-beam System

222

4-3. Operating the lights and wipers

nate.

■

Operating conditions of the Adaptive

High-beam System

●

When all of the following conditions are

met, the high beams will be turned on

automatically and the system will operate:

• The vehicle speed is approximately 15

km/h (10 mph) or more.

• The area ahead of the vehicle is dark.

: When the vehicle speed is approxi-

mately 30 km/h (19 mph) or more, the
area in the direction that the vehicle is
turning will be illuminated more brightly
than other areas while driving on a
curve.

●

When all of the following conditions are

met, the shaded high beams will turn on

and the distance that the low beams are

projected will be adjusted automatically,

depending on the location of vehicles

ahead:

• The vehicle speed is approximately 15

km/h (10 mph) or more.

• The area ahead of the vehicle is dark.

• There are vehicles ahead with headlights

or tail lights turned on.

●

If any of the following conditions are met,

the high beams or shaded high beams will

be changed to the low beams automati-

cally:

• The vehicle speed is below approxi-

mately 15 km/h (10 mph).

• The area ahead of the vehicle is not dark.

• There are many vehicles ahead.

• Vehicles ahead are moving quickly and

the high beams may blind the drivers of

the other vehicles.

■

Camera sensor detection information

●

The high beams may not be automatically

changed to the shaded high beams in the

following situations:

• When vehicles ahead suddenly appear

from a curve

• When the vehicle is cut in front of by

another vehicle

• When vehicles ahead are hidden from

sight due to repeated curves, road divid-

ers or roadside trees

• When vehicles ahead appear from the

faraway lane on wide road

• When vehicles ahead have no lights

●

The high beams may be changed to the

shaded high beams if a vehicle ahead that

is using fog lights without its headlights

turned on is detected.

●

House lights, street lights, traffic signals,

and illuminated billboards or signs and

other reflective objects may cause the

high beams to change to the shaded high

beams, cause the high beams not to

change to the shaded high beams, or

change the area that is not illuminated.

●

The following factors may affect the

amount of time taken to turn the high

beam on or off, or the speed by which the

areas not illuminated change:

• The brightness of headlights, fog lights,

and tail lights of vehicles ahead

• The movement and direction of vehicles

ahead

• When a vehicle ahead only has opera-

tional lights on one side

• When a vehicle ahead is a two-wheeled

vehicle

• The condition of the road (gradient,

curve, condition of the road surface etc.)

• The number of passengers and amount of

luggage

●

The light distribution control of the head-

lights may change unexpectedly.

●

Bicycles or similar objects may not be

detected.

●

In the following situations the system may

not be able to correctly detect the sur-

rounding brightness level. This may cause

the low beams to remain on or the high

beams to flash or dazzle pedestrians or

223

4-3. Operating the lights and wipers

Driving

vehicles ahead. In such a case, it is neces-

sary to manually switch between the high

and low beams.

• When driving in inclement weather

(heavy rain, snow, fog, sandstorms, etc.)

• When the windshield is obscured by fog,

mist, ice, dirt, etc.

• When the windshield is cracked or dam-

aged

• When the camera sensor is deformed or

dirty

• When the temperature of the camera

sensor is extremely high

• When the surrounding brightness level is

equal to that of headlights, tail lights or

fog lights

• When headlights or tail lights of vehicles

ahead are turned off, dirty, changing

color, or not aimed properly

• When the vehicle is hit by water, snow,

dust, etc. from a preceding vehicle

• When driving through an area of inter-

mittently changing brightness and dark-

ness

• When frequently and repeatedly driving

ascending/descending roads, or roads

with rough, bumpy or uneven surfaces

(such as stone-paved roads, gravel roads,

etc.)

• When frequently and repeatedly taking

curves or driving on a winding road

• When there is a highly reflective object

ahead of the vehicle, such as a sign or

mirror

• When the back of a preceding vehicle is

highly reflective, such as a container on a

truck

• When the vehicle’s headlights are dam-

aged or dirty, or are not aimed properly

• When the vehicle is listing or tilting due to

a flat tire, a trailer being towed, etc.

• When the headlights are changed

between the high beams and low beams

repeatedly in an abnormal manner

• When the driver believes that the high

beams may be flashing or dazzling

pedestrians or other drivers

• When the vehicle is used in an area in

which vehicles travel on the opposite side

of the road of the country for which the

vehicle was designed, for example using

a vehicle designed for right-hand traffic in

a left-hand traffic area, or vice versa

■

Customization

Some functions can be customized.

(



P.540)

■

Switching to the high beams

Push the lever away from you.

The AHS indicator will turn off and the high
beam indicator will turn on.
Pull the lever to its original position to acti-
vate the Adaptive High-beam System
again.

■

Switching to the low beams

Press the Adaptive High-beam System
switch.

The AHS indicator will turn off.
Press the switch to activate the Adaptive
High-beam System again.

Turning the high beams on/off
manually

224

4-3. Operating the lights and wipers

■

Temporarily switching to the low
beams

Pull the lever toward you and then
return it to its original position.

The high beams are on while the lever is
pulled toward you. However, after the lever
is returned to its original position, the low
beams remain on for a certain period of
time. Afterwards, the Adaptive High-beam
System will be activated again.

■

Temporarily switching to the low beams

It is recommended to switch to the low

beams when the high beam may cause

problems or distress to other drivers or

pedestrians nearby.

: If equipped

Press the Automatic High Beam
switch.

AHB (Automatic High
Beam)

The Automatic High Beam uses a
camera sensor located behind the
upper portion of the windshield to
assess the brightness of the lights of
vehicles ahead, streetlights, etc.,
and automatically turns the high
beams on or off as necessary.

WARNING

■

Limitations of the Automatic High

Beam

Do not overly rely on the Automatic High

Beam. Always drive safely, taking care to

observe your surroundings and turning

the high beams on or off manually if nec-

essary.

■

To prevent incorrect operation of the

Automatic High Beam system

Do not overload the vehicle.

Activating the Automatic High
Beam

225

4-3. Operating the lights and wipers

Driving

Turn the headlight switch to the

position.

When the headlight switch lever is in the

low beam position, the AHB system will be

enabled and the AHB indicator will illumi-

nate.

■

Conditions to turn the high beams on/off

automatically

●

When all of the following conditions are

met, the high beams will be turned on

automatically (after approximately 1 sec-

ond):

• The vehicle speed is approximately 30

km/h (19 mph) or more.

• The area ahead of the vehicle is dark.

• There are no vehicles ahead with head-

lights or tail lights turned on.

• There are few streetlights on the road

ahead.

●

If any of the following conditions are met,

the high beams will turn off automatically:

• The vehicle speed is below approxi-

mately 25 km/h (16 mph).

• The area ahead of the vehicle is not dark.

• Vehicles ahead have their headlights or

tail lights turned on.

• There are many streetlights on the road

ahead.

■

Camera sensor detection information

●

The high beams may not be automatically

turned off in the following situations:

• When a vehicle suddenly appears from

around a curve

• When the vehicle is cut in front of by

another vehicle

• When vehicles ahead cannot be

detected due to repeated curves, road

dividers or roadside trees

• When vehicles ahead appear in a fara-

way lane on a wide road

• When the lights of vehicles ahead are not

●

The high beams may be turned off if a

vehicle ahead that is using fog lights with-

out its headlights turned on is detected.

●

House lights, street lights, traffic signals,

and illuminated billboards or signs and

other reflective objects may cause the

high beams to change to the low beams,

or the low beams to remain on.

●

The following factors may affect the

amount of time taken for the high beams

to turn on or off:

• The brightness of the headlights, fog

lights, and tail lights of vehicles ahead

• The movement and direction of vehicles

ahead

• When a vehicle ahead only has opera-

tional lights on one side

• When a vehicle ahead is a two-wheeled

vehicle

• The condition of the road (gradient,

curve, condition of the road surface, etc.)

• The number of passengers and amount of

luggage in the vehicle

●

The high beams may turn on or off unex-

pectedly.

●

Bicycles or similar vehicles may not be

detected.

●

In the following situations the system may

not be able to correctly detect the sur-

rounding brightness level. This may cause

the low beams to remain on or the high

beams to flash or dazzle pedestrians or

vehicles ahead. In such a case, it is neces-

sary to manually switch between the high

and low beams.

• When driving in inclement weather

(heavy rain, snow, fog, sandstorms, etc.)

• When the windshield is obscured by fog,

mist, ice, dirt, etc.

• When the windshield is cracked or dam-

aged

• When the camera sensor is deformed or

dirty

• When the temperature of the camera

Lexus LS (2023 year). Manual in english - page 6
