Under vehicle terrain view & dual side view

●

The screen can be displayed when the shift lever is in P, D or N.

●

While the under vehicle terrain view is displayed, if the vehicle speed reaches or

exceeds approximately 7 mph (12 km/h), under vehicle terrain view will disappear.

●

In the following situations, under vehicle terrain view will disappear.
• After the engine starts or the system returns to normal, a fixed distance or more has

not yet been driven

• When the tires are slipping or spinning

• ABS is activated

• When there is a malfunction in the system

• When the steering wheel is operated at or more than a specified steering angle

●

If the outside rear view mirrors are folded while the under vehicle terrain view is being

displayed, a separate screen is displayed.

●

In the following situations, the system may not operate normally.
• The road is covered with snow

• When there are shadows due to light sources such as sunlight or illumination

• When driving on slippery roads or tires are spinning

• Dirt or foreign matter is adhering to the camera lens

• There is water in front of the vehicle (a river, puddle, sea water, etc.)

• Optional equipment has been installed

• When the camera is covered or there is an object in the image capture range

• Tires have been replaced

• When the back door is open

• When the steering wheel is operated at or more than a specified steering angle

• On roads that are not flat, such as slopes

WARNING

■

Guide lines

The tire position indicator lines and vehicle position indicator lines may differ from

actual vehicle positions depending on the number of passengers, cargo weight, road

grade, road surface conditions, brightness of the surrounding environment, whether

tires or suspension parts other than those specified are equipped, etc. Always drive the

vehicle while confirming the safety of your surroundings.

■

Under vehicle terrain view display

The image displayed is one that was previously taken at a point behind the current vehi-

cle position. In cases such as when objects move after the image is taken, the image

displayed on the screen may differ from the actual state. In addition, when driving in the

dark such as at night, there are cases when obstacles cannot be confirmed from the

image.

314

GX460_OM_OM60R43U_(U)

■

Under vehicle terrain view (rear wheel) & dual side views

Lines indicating current vehicle and tire position are displayed in a composite
view on an image taken behind the current vehicle position and assists the
driver to check conditions underneath the vehicle or determine the position of
the rear tires.
To display the screen, press the VIEW switch when the shift lever is in the P, D
or N position, select the under vehicle terrain view (rear wheel) selection
switch.

• If the under vehicle terrain view (rear wheel) display is selected while the

screen is displayed, the screen switches from normal to magnified display.
(Selecting the display again returns the screen to the normal display)

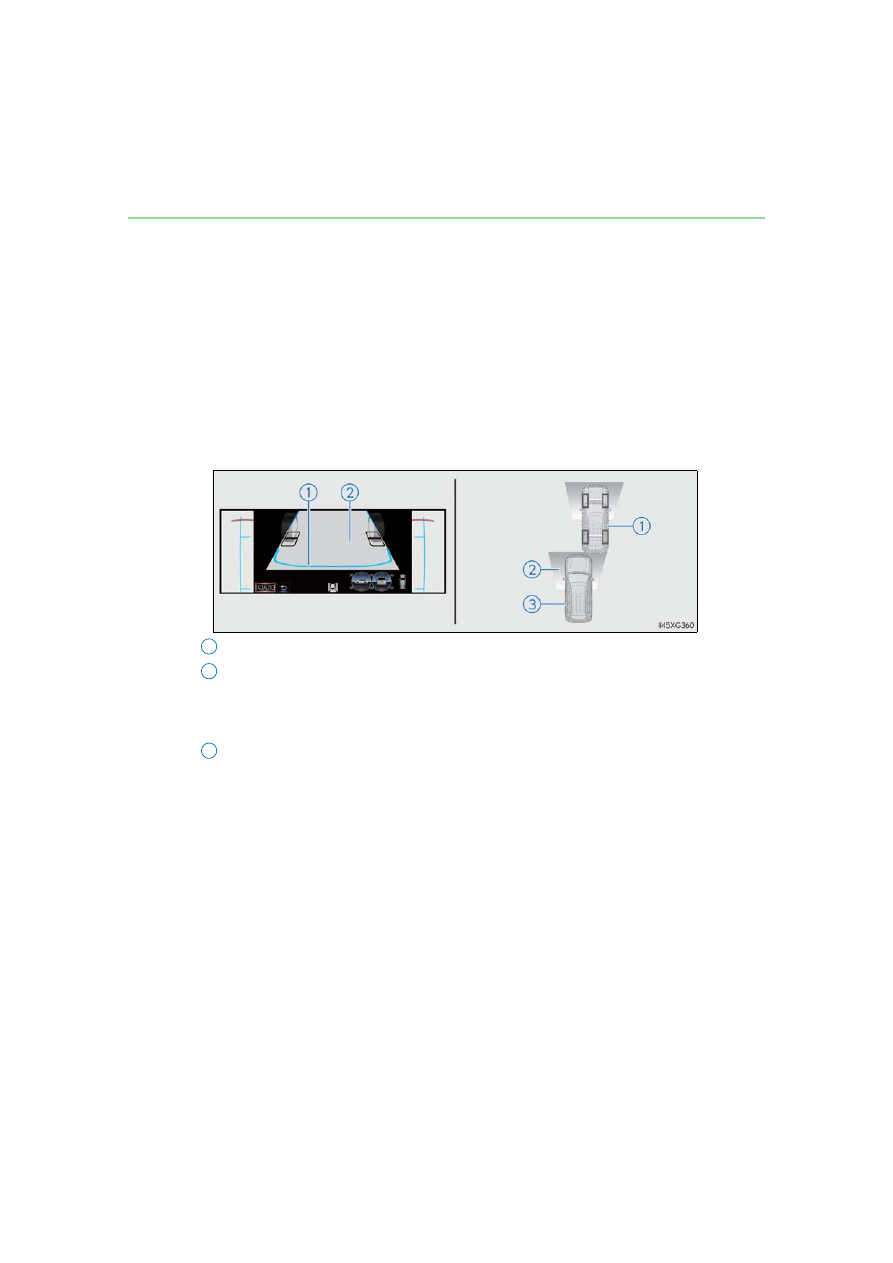

Current vehicle position
Image displayed in the under vehicle terrain view (rear wheel) (image taken
behind the current vehicle position)

Switches the screen to under vehicle terrain view (rear wheel) (magnified) display

when you touch the display.

Vehicle position at the time the image was taken (behind the current vehicle
position)

GX460_OM_OM60R43U_(U)

315

●

Screen description

Tire position indicator lines (black, white)

Indicates the estimated position of the rear tires.

Vehicle position indicator lines (blue)

Indicates the estimated position of the vehicle.

■

Under vehicle terrain view (rear wheel)

●

The screen can be displayed when the shift lever is in P, D or N.

●

While the under vehicle terrain view (rear wheel) is displayed, if the vehicle speed

reaches or exceeds approximately 3 mph (5 km/h), the screen automatically returns to

the previous display.

●

In the following situations, the display of the under vehicle terrain view (rear wheel)

ends and the screen automatically returns to the most recently used camera screen. In

addition, the under vehicle terrain view (rear wheel) selection switch cannot be oper-

ated until the next screen can be displayed.
• After the engine starts or the system returns to normal, a fixed distance or more has

not yet been driven

• When the tires are slipping or spinning

• ABS is activated

• When there is a malfunction in the system

• When the steering wheel is operated at or more than a specified steering angle

●

If the outside rear view mirrors are folded while the under vehicle terrain view (rear

wheel) is being displayed, a separate screen is displayed.

316

GX460_OM_OM60R43U_(U)

●

In the following situations, the system may not operate normally or may not be able to

switch to the under vehicle terrain view (rear wheel). In addition, the under vehicle ter-

rain view (rear wheel) selection switch cannot be operated until the next screen can be

displayed.
• The road is covered with snow

• When there are shadows due to light sources such as sunlight or illumination

• When driving on slippery roads or tires are spinning

• Dirt or foreign matter is adhering to the camera lens

• There is water in front of the vehicle (a river, puddle, sea water, etc.)

• Optional equipment has been installed

• When the camera is covered or there is an object in the image capture range

• Tires have been replaced

• When the back door is open

• When the steering wheel is operated at or more than a specified steering angle

• On roads that are not flat, such as slopes

WARNING

■

Guide lines

The tire position indicator lines and vehicle position indicator lines may differ from

actual vehicle positions depending on the number of passengers, cargo weight, road

grade, road surface conditions, brightness of the surrounding environment, whether

tires or suspension parts other than those specified are equipped, etc. Always drive the

vehicle while confirming the safety of your surroundings.

■

Under vehicle terrain view (rear wheel) display

The image displayed is one that was previously taken at a point behind the current vehi-

cle position. In cases such as when objects move after the image is taken, the image

displayed on the screen may differ from the actual state. In addition, when driving in the

dark such as at night, there are cases when obstacles cannot be confirmed from the

image.

GX460_OM_OM60R43U_(U)

317

■

Rear view & dual side views/wide rear view & dual side views

The rear view & dual side views and the wide rear view & dual side views
screen provide support when checking the areas of behind the vehicle and
around the vehicle while backing up, for example while parking.
The screens will be displayed when the shift lever is in the R position.

●

Screen description

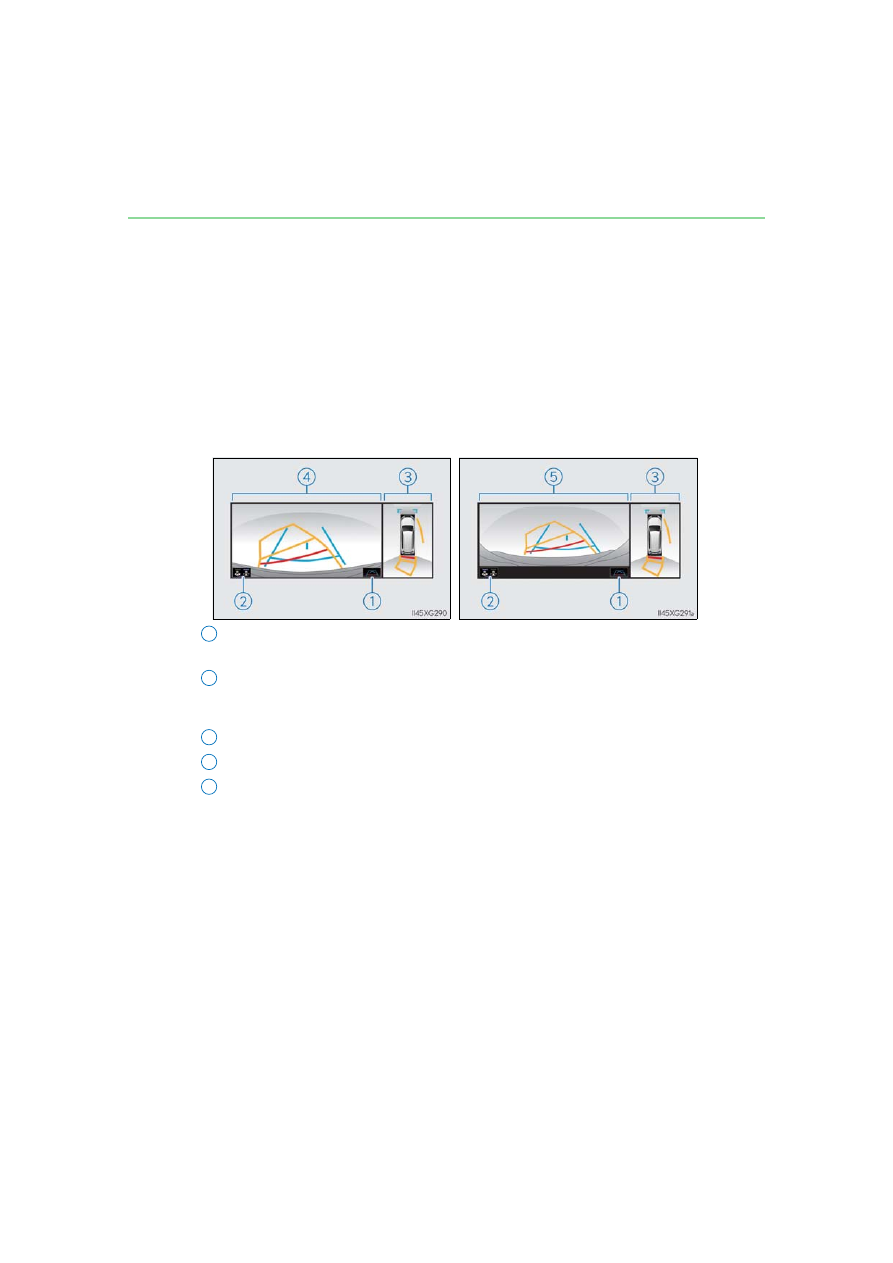

The following 2 types of display mode can be selected according to condi-
tions.

Angle selection switch

Switches between rear view & dual side view display and wide rear view display each

time the switch is selected.

Tilt meter

P. 310

intuitive parking assist/slip display

P. 310

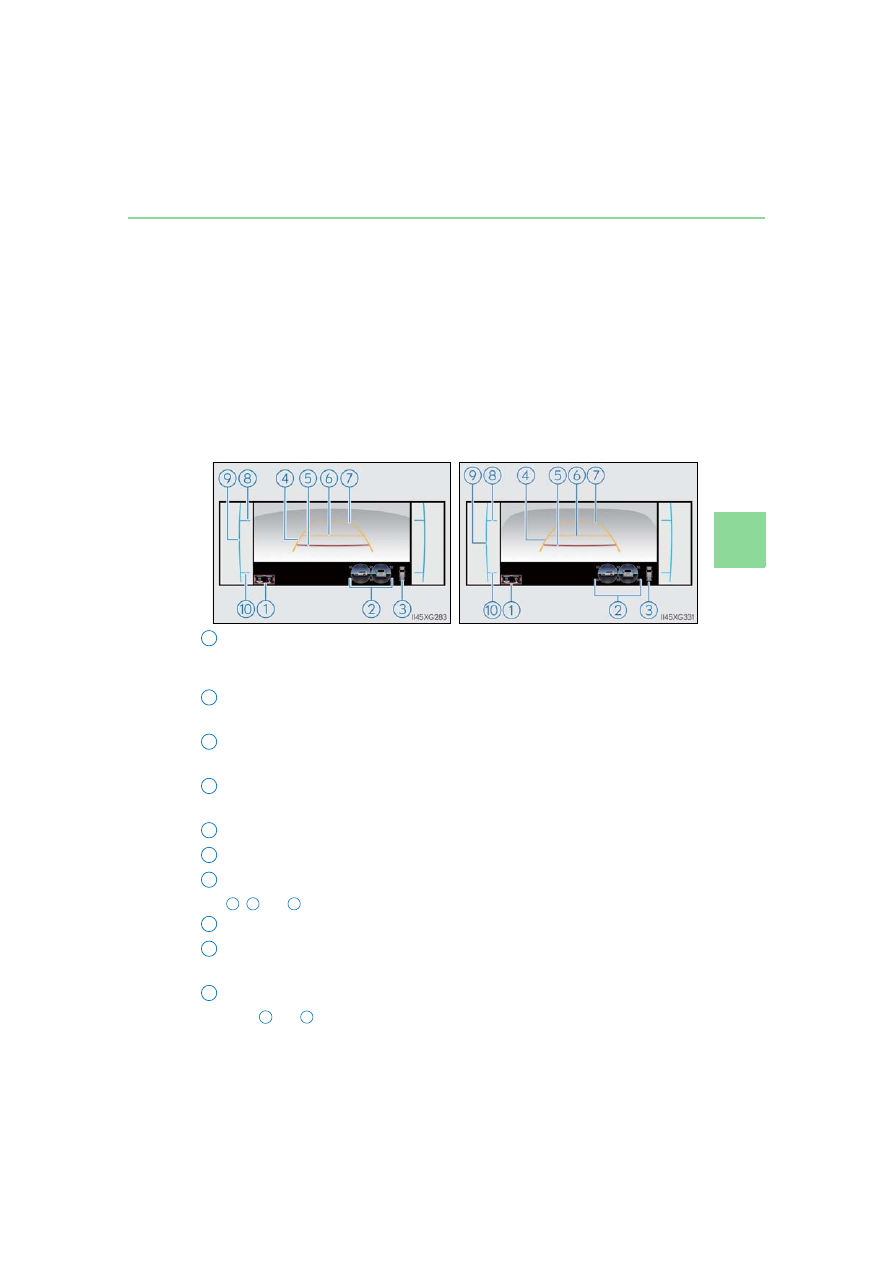

Projected course lines (yellow)

Indicate the estimated course of the vehicle according to steering operations.

1.5 ft. (0.5 m) distance guide line (red)
3 ft. (1 m) distance guide line (yellow)
8 ft. (2.5 m) distance guide line (yellow)

, and indicate the estimated distance from the rear end of the vehicle.

Front tire contact line (blue)
Vehicle width extension guide line (blue)

Indicates the estimated vehicle width including the outside rear view mirrors.

Rear tire contact line (blue)

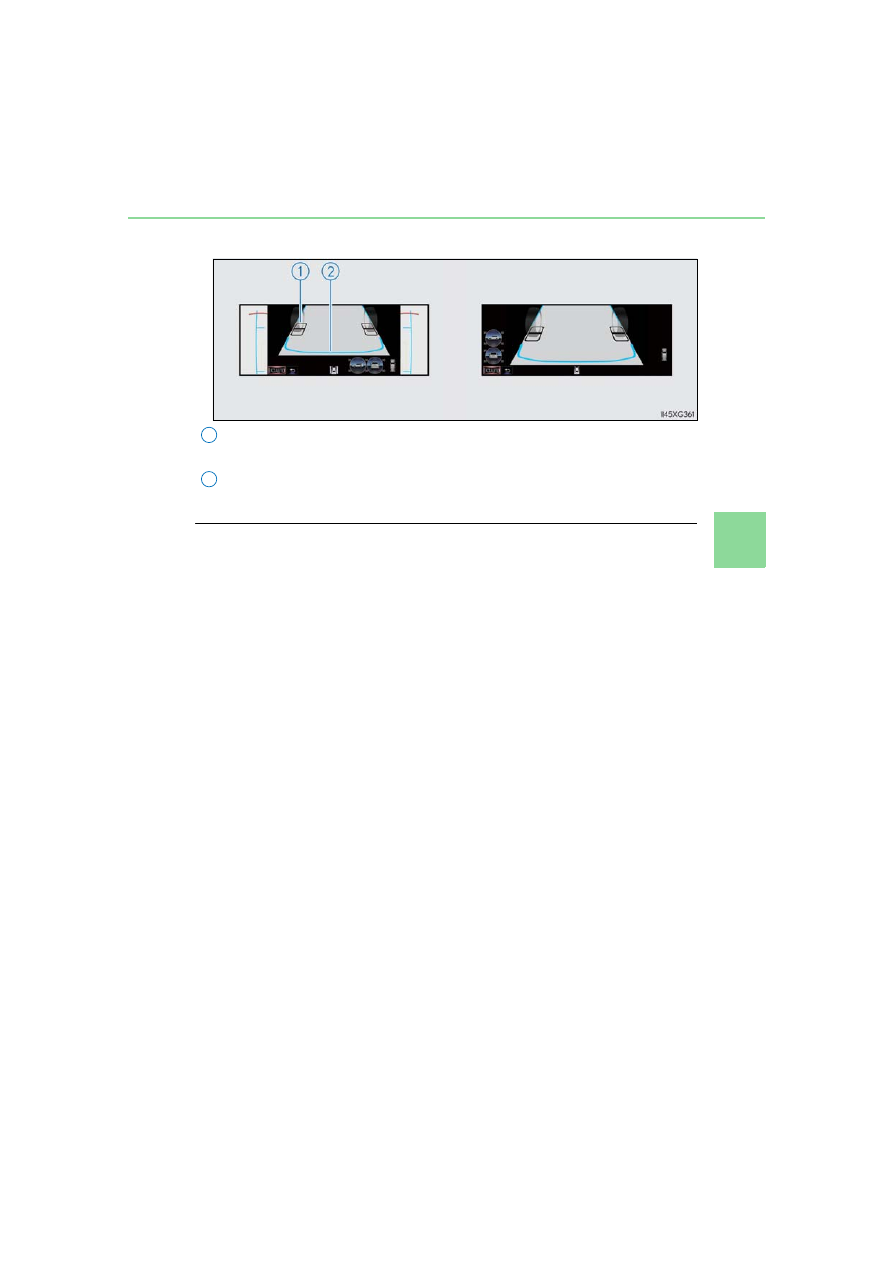

Items and indicate estimated tire positions on the image.



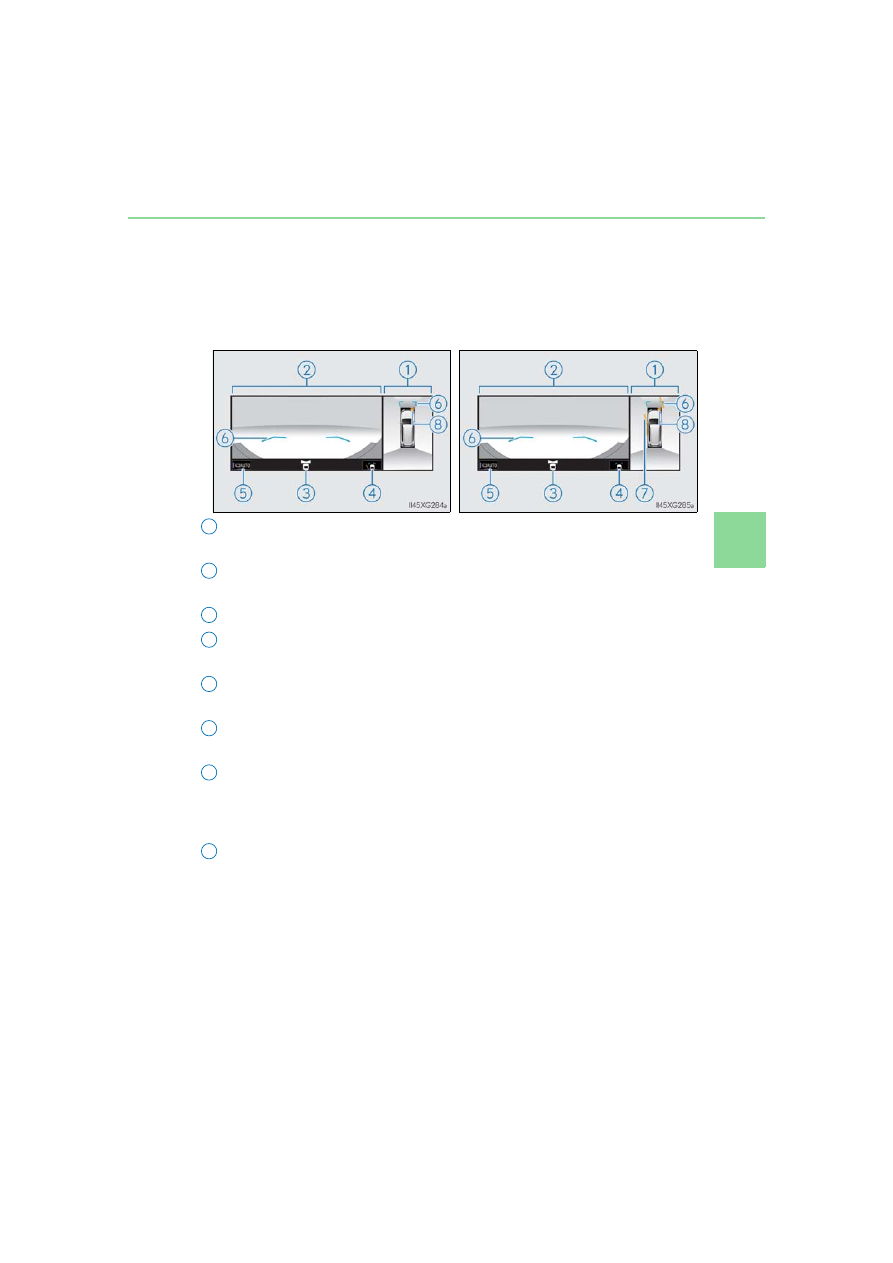

Rear view & dual side views display



Wide rear view display & dual side
views display

5
6
7

8
9

318

GX460_OM_OM60R43U_(U)

■

Rear view & dual side views/wide rear view & dual side views

The screen can be displayed when the shift lever is in R.

■

Guide lines

If the back door is not closed, guide lines will not be displayed. If the guide lines do not

display even when the back door is closed, have the vehicle inspected at your Lexus

dealer.

WARNING

■

Guide lines

The tire position indicator lines and vehicle position indicator lines may differ from

actual vehicle positions depending on the number of passengers, cargo weight, road

grade, road surface conditions, brightness of the surrounding environment, etc. Always

drive the vehicle while confirming the safety of your surroundings.

GX460_OM_OM60R43U_(U)

319

When the four-wheel drive control switch is in H4, the various screens display
information to support several different driving situations, such as when checking
for obstacles when moving forward.

■

Moving view/See-through view

The moving view screen and the see-through view screen provide support
when checking the areas of around the vehicle while parking. These screens
display an image of the vicinity of the vehicle combined from the 4 cameras.
The screen will display a 360° view around the vehicle from either inside the
vehicle or from a birds-eye view at an angle.
To display the moving view/see-through view screen, press the VIEW switch
when the shift lever is in the “P” position and the intuitive parking assist is
enabled.

●

Screen display

Display mode selection switch

Select to change the display mode between the moving view and the see-through

view.

Rotation pause switch

Select to pause the rotation of the screen.
To resume rotation, select switch again.

Body color setting switch

Select to display the body color setting screen and change the color of the vehicle dis-

played on the panoramic view monitor.

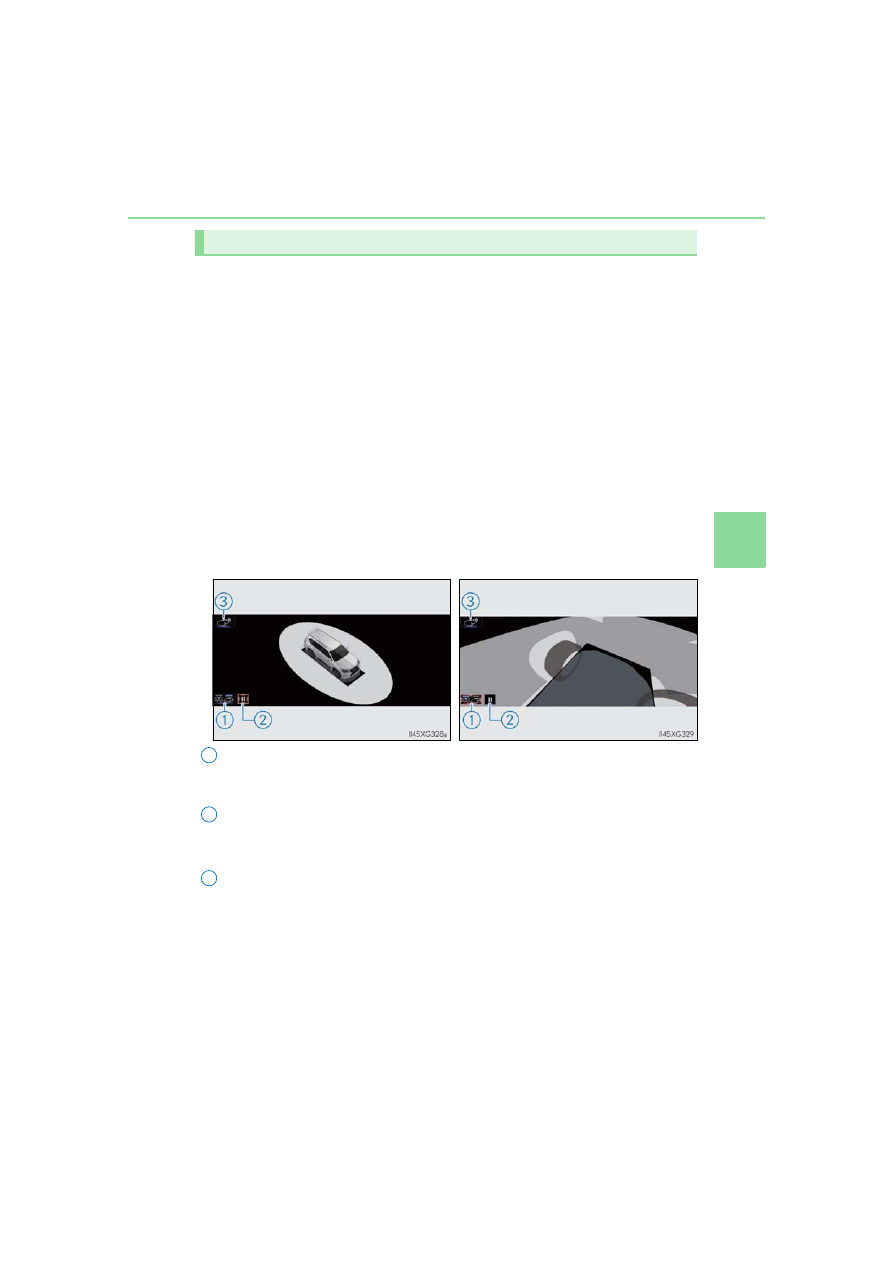

Screen display and functions



Moving view



See-through view

320

GX460_OM_OM60R43U_(U)

●

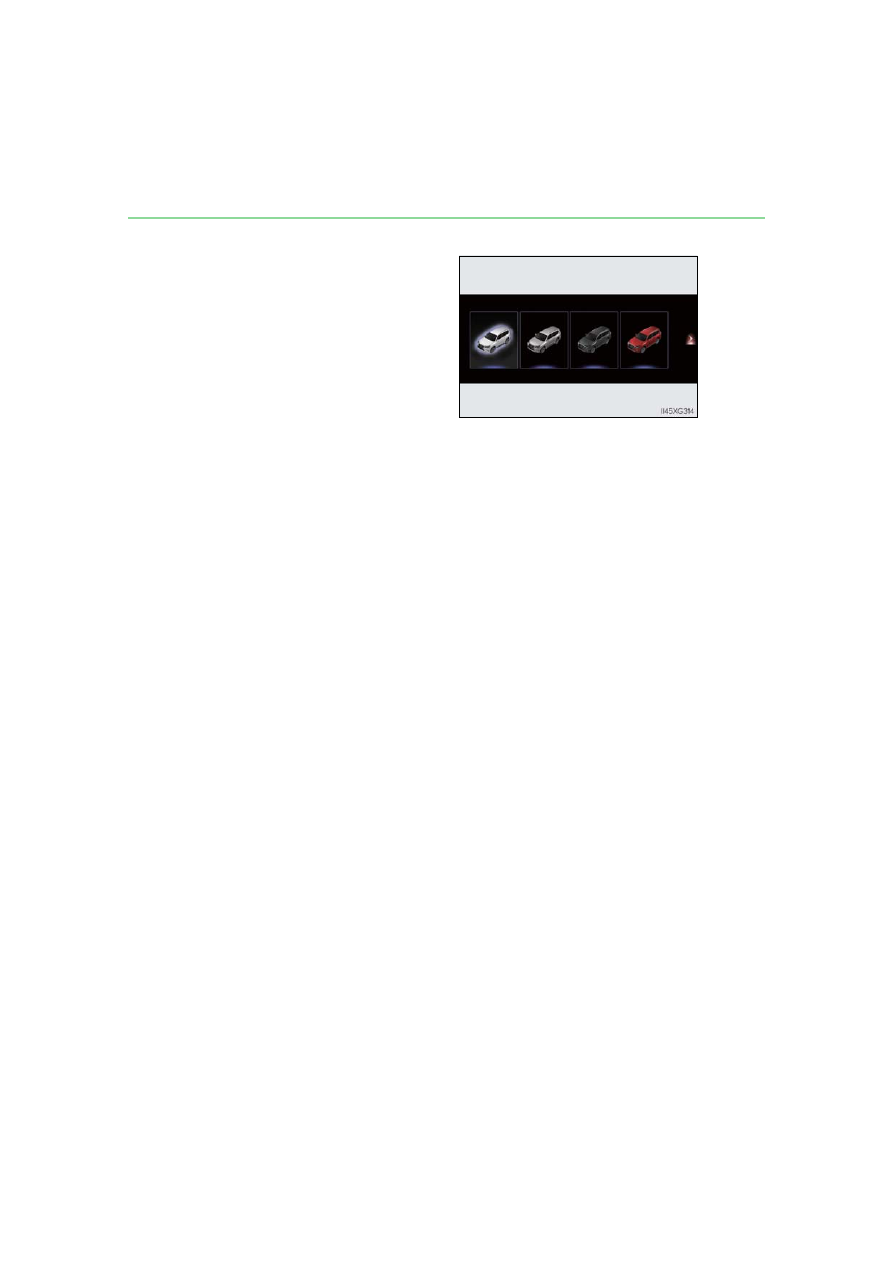

Changing the body color displayed in the panoramic view monitor
Select the desired color.

■

Panoramic view & wide front view

The panoramic view & wide front view screen provides support when check-
ing the areas in front of the vehicle and around the vehicle when taking-off at
T-intersections or other intersections during poor visibility.
To display the screen, press the VIEW switch when the shift lever is in the D or
N position with the vehicle moving approximately 7 mph (12 km/h) or less.
This screen will be displayed if the intuitive parking assist detects an object in
front of your vehicle when the vehicle is moving at approximately 6 mph (10
km/h) or less (intuitive parking assist linked display).

GX460_OM_OM60R43U_(U)

321

●

Screen description
The following 2 types of display mode can be selected according to condi-
tions.

Panoramic view

Displays an image looking down at the vehicle from above.

Wide front view

Displays an image of the area to the front of the vehicle.

Display area
Guide line display selection switch

P. 322

Automatic display mode selection switch

P. 302

Front distance guide line (blue)

Indicates a distance approximately 3 ft. (1 m) from the front end of the vehicle.

Forward projected course lines

Automatically displayed when the steering wheel is turned 90



or more from the cen-

ter position.
Indicates the estimated course of the vehicle according to steering wheel operations.

Intuitive parking assist

When the intuitive parking assist is on, an icon will be displayed when an obstacle is

detected. (Refer to P. 267 for information about the intuitive parking assist.)



Distance guide line display mode



Estimated course line display
mode

3
4

322

GX460_OM_OM60R43U_(U)

●

Switching to automatic display mode



P. 302

●

Switching guide line display modes

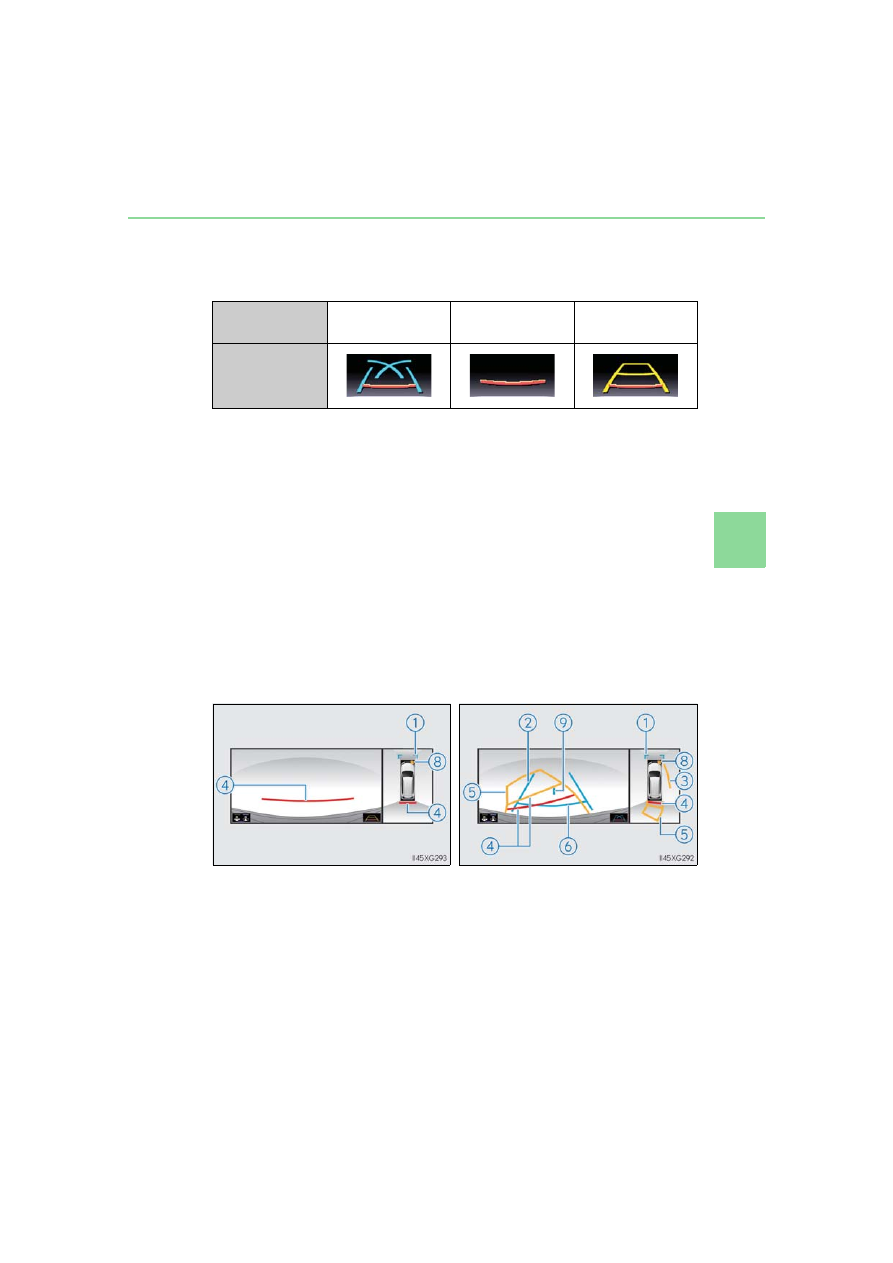

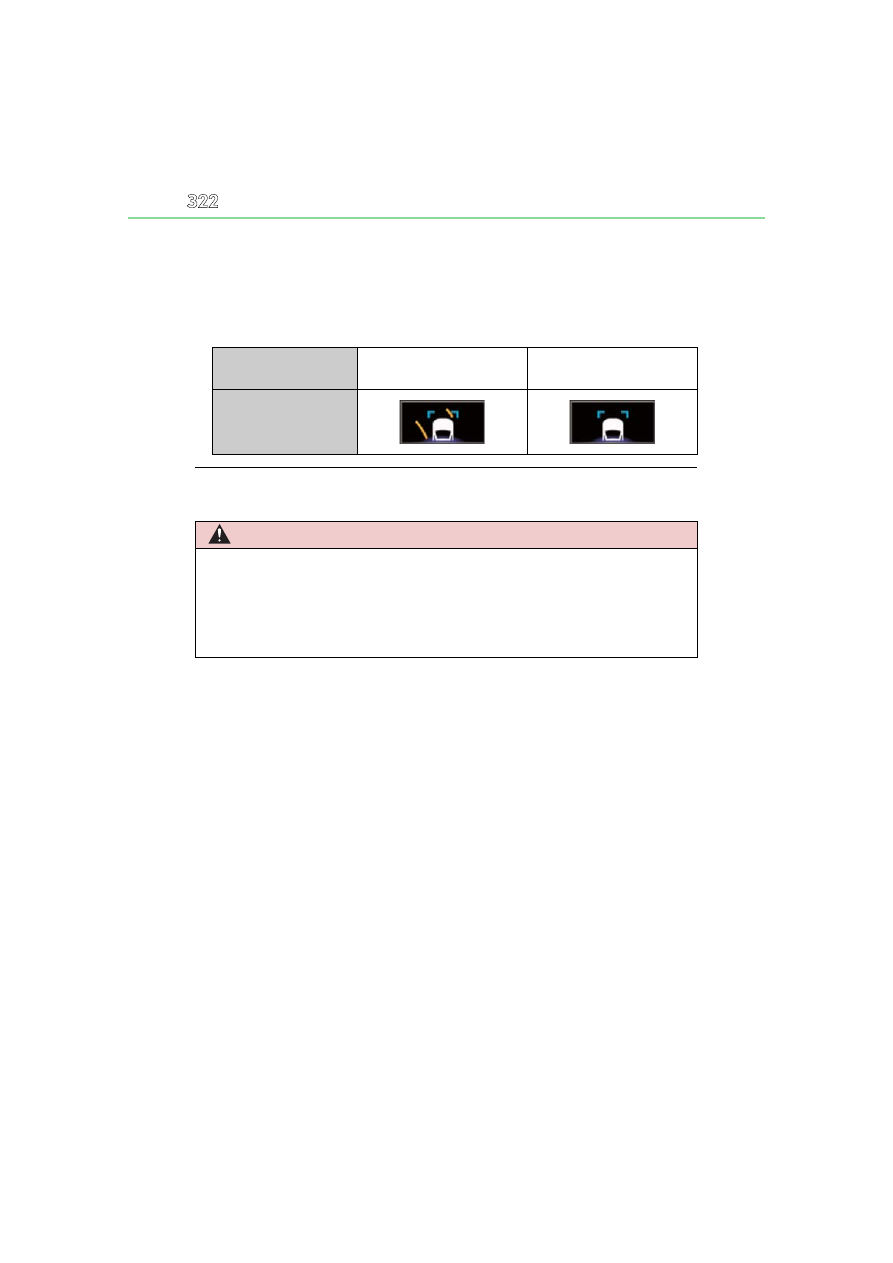

The mode switches and the switch display changes each time the guide line
display selection switch is selected.

■

Panoramic view & wide front view

The screen can be displayed when the shift lever is in D or N.

Selected mode

Distance guide line display

mode

Estimated course line display

mode

Switch display

WARNING

■

Guide lines

The tire position indicator lines and vehicle position indicator lines may differ from

actual vehicle positions depending on the number of passengers, cargo weight, road

grade, road surface conditions, brightness of the surrounding environment, etc. Always

drive the vehicle while confirming the safety of your surroundings.

GX460_OM_OM60R43U_(U)

323

■

Panoramic view & side views

The panoramic view & side views screen displays images from the cameras
installed on each outside rear view mirror. This screen is designed to support
the driver in safe driving in situations such as when driving on a narrow road,
by allowing them to check the areas around the sides of the vehicle.
To display the screen, press the VIEW switch when the shift lever is in the D or
N position with the vehicle moving approximately 7 mph (12 km/h) or less.

●

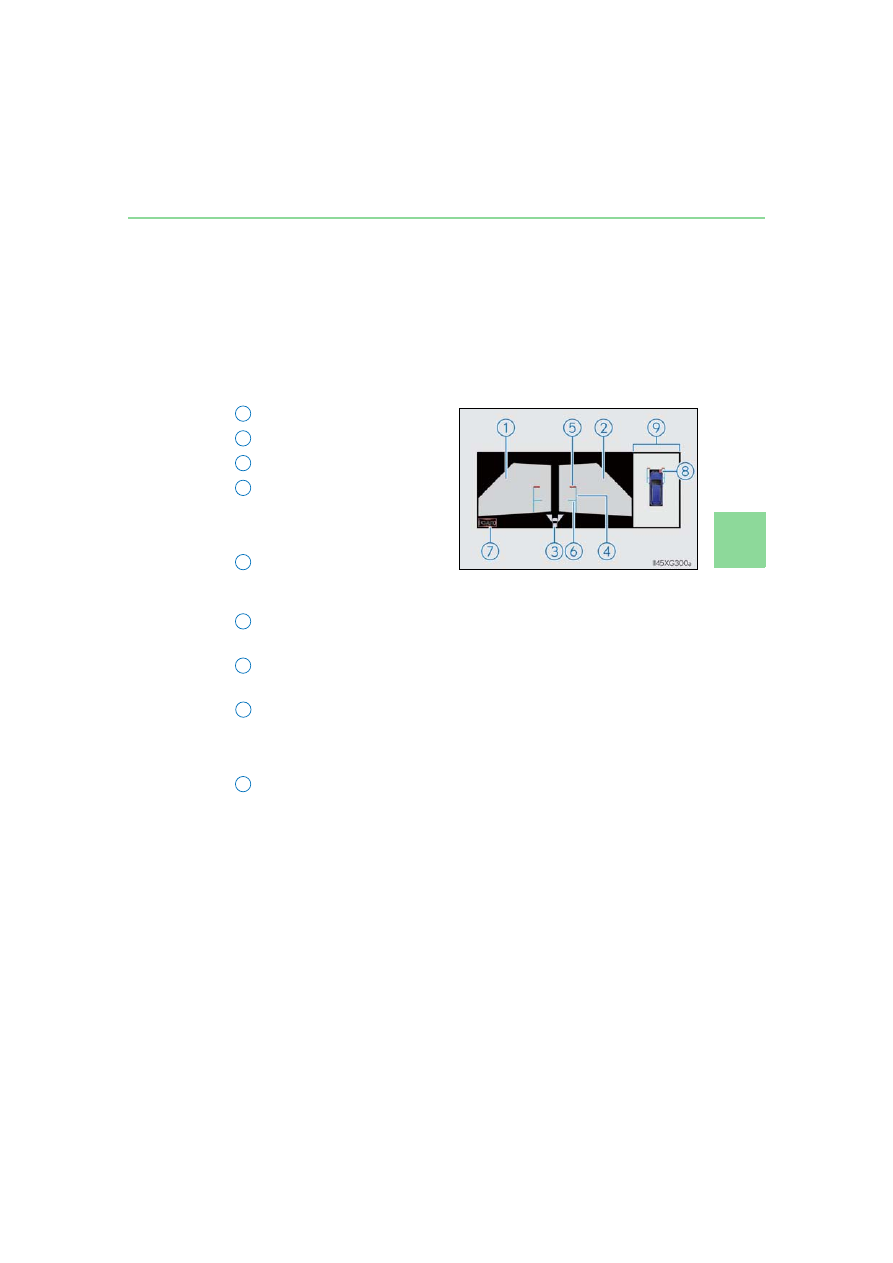

Screen description

Side view (left front side)
Side view (right front side)
Display area
Vehicle width lines (blue)

Indicate the estimated vehicle

width including the outside rear

view mirrors.

Front distance guide line (red)

Indicates a distance approximately 1.6 ft. (0.5 m) from the front end of the vehi-

cle.

Front tire contact line (blue)

Indicates the estimated front tire position on the image.

Automatic display mode selection switch

P. 302

Intuitive parking assist

When the intuitive parking assist is on, an icon will be displayed when an obsta-

cle is detected. (Refer to P. 267 for information about the intuitive parking

assist.)

Panoramic view

Displays an image looking down at the vehicle from above.

2
3
4

324

GX460_OM_OM60R43U_(U)

●

Using the vehicle width lines

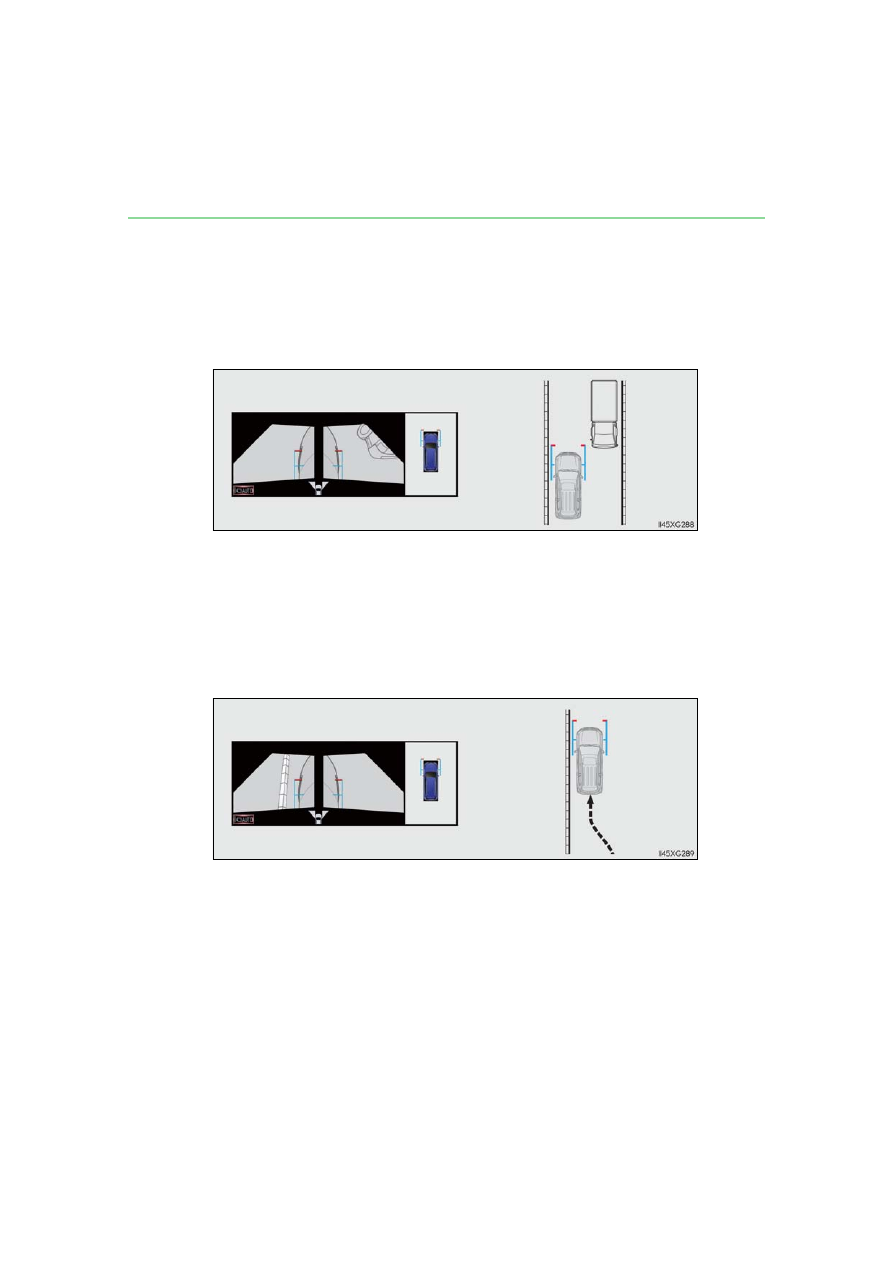

The relative distance of obstacles from the vehicle width lines can be con-
firmed.
Example 1:

When there is an obstacle in front of the vehicle
Operate the steering wheel so that the vehicle width line and
the obstacle do not overlap.

Example 2: When parking on the shoulder

Approach the shoulder, but do not allow the vehicle width
line to overlap the curb or other obstacles.
After confirming the distance to the shoulder of the road,
maneuvering the vehicle so that the vehicle width line and
the curb or other obstacle are parallel allows the vehicle to
be parked evenly.

GX460_OM_OM60R43U_(U)

325

■

Panoramic view & side views

●

The screen can be displayed when the shift lever is in D or N.

●

When the outside rear view mirrors are retracted, the displayed area changes.

(

P. 332)

WARNING

■

Guide lines

The tire position indicator lines and vehicle position indicator lines may differ from

actual vehicle positions depending on the number of passengers, cargo weight, road

grade, road surface conditions, brightness of the surrounding environment, etc. Always

drive the vehicle while confirming the safety of your surroundings.

326

GX460_OM_OM60R43U_(U)

■

Panoramic view & rear view/panoramic view & wide rear view

• Panoramic view & rear view:

The image looking down at the vehicle from above and the image from the
rear camera are displayed simultaneously and assist the driver to check the
safety of the area when parking.

• Panoramic view & wide rear view:

The image from the rear camera is displayed in a range of approximately
180



and assists the driver to check the safety of the area when backing up.

●

Screen description

Guide line selection switch

P. 322

Angle mode selection switch

Switches between the panoramic view & rear view and panoramic view & wide rear

view display each time the switch is selected.

Panoramic view
Rear view
Wide rear view



Panoramic view & rear view



Panoramic view & wide rear view

3
4
5

GX460_OM_OM60R43U_(U)

327

●

Switching modes
The display mode switches and the icon display changes each time the
guide line display selection switch is selected.

• Estimated course line display mode:

Estimated course lines that change according to steering wheel opera-
tions are displayed.

• Parking assist guide line display mode:

Inverted steering wheel operations (parking assist guide line) are dis-
played. Use this mode if you are used to how the vehicle handles (if you
can park without needing the course line display).

• Distance guide line display mode:

Only distance guide lines are displayed.

●

Guide lines
The panoramic view & rear view screen is explained here as an example.

Selected mode

Estimated course

line display mode

Parking assist guide

line display mode

Distance guide line

display mode

Icon display



Distance guide line mode



Estimated course line display
mode

328

GX460_OM_OM60R43U_(U)

Front distance guide line (blue)

Indicates a distance approximately 3 ft. (1 m) from the front end of the vehicle.

Rear vehicle width extension guide lines

Indicate the estimated course of the vehicle when backing up straight.

• The displayed width is wider than the actual vehicle width.

• In projected course line display mode, this item overlaps the projected course lines

when going straight.

Side projected course line (yellow)

Indicates the projected reverse course calculated by the angle of the steering wheel.
The projected reverse course line on the outside of the turn is displayed according to

the direction of the steering wheel.

Rear distance guide line

Indicates the estimated distance from the end of the rear bumper (at the center). (Red

line: approximately 1.5 ft. [0.5 m] away. Yellow line: approximately 3 ft. [1 m] away.)
In projected course line display mode, the rear distance guide line changes according

to steering wheel operations.

Projected reverse course (yellow)

Changes according to steering wheel operations and indicates the estimated course

of the vehicle.

Rear distance guide line (blue)

Indicates a distance approximately 1.5 ft. (0.5 m) from the end of the rear bumper (at

the center).

Parking assist guide line (blue)

Indicates the estimated tire course of the tightest possible turn in reverse.

Intuitive parking assist

When the intuitive parking assist is on, an icon will be displayed when an obstacle is

detected. (Refer to P. 267 for information about the intuitive parking assist.)

Vehicle center line (blue)

Indicates the estimated vehicle center on the ground.



Parking assist guide line display mode

GX460_OM_OM60R43U_(U)

329

●

Parking operation (using the estimated curse line)
When parking in a space which is in the reverse direction to the space
described in the procedure below, the steering directions will be reversed.

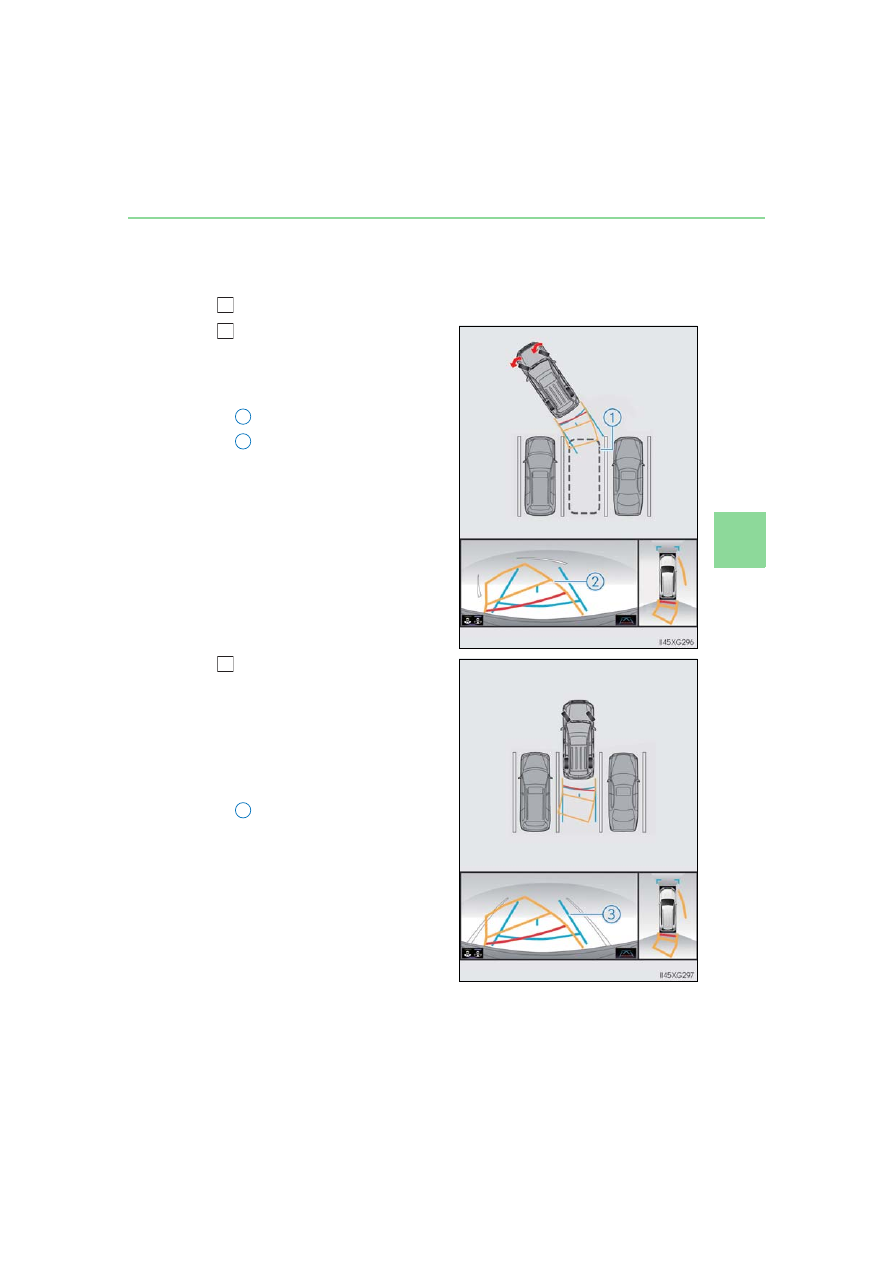

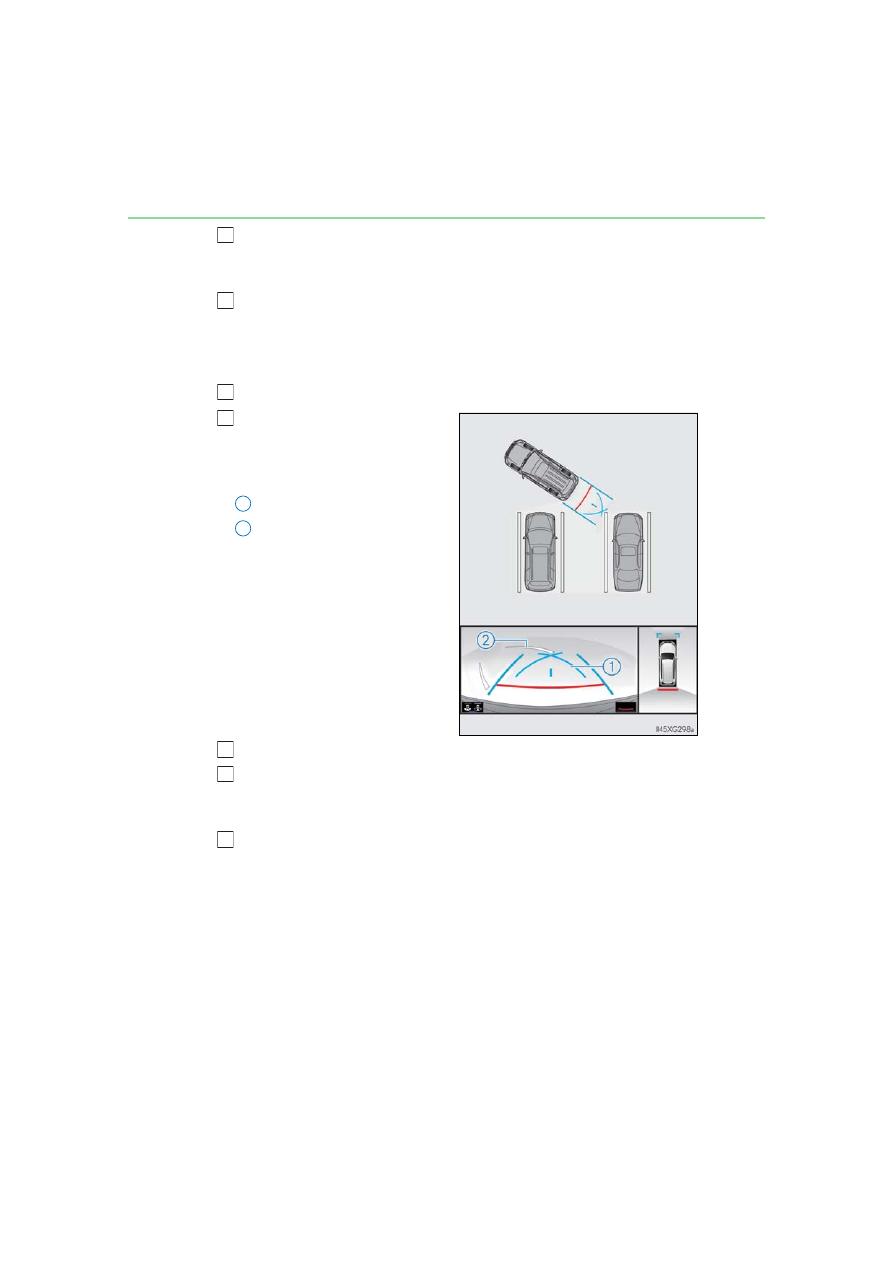

Shift the shift lever to the R position.
Turn the steering wheel so that
the estimated course lines are
within the parking space, and
back up slowly.

Parking space
Estimated course lines

When the rear position of the
vehicle has entered the parking
space, turn the steering wheel so
that the vehicle width extension
guide lines are within the left and
right dividing lines of the parking
space.

Vehicle width extension guide
line

330

GX460_OM_OM60R43U_(U)

Once the vehicle width extension guide lines and the parking space lines
are parallel, straighten the steering wheel and back up slowly until the vehi-
cle has completely entered the parking space.
Stop the vehicle in an appropriate place, and finish parking.

●

Parking operation (using the parking assist guide line)
When parking in a space which is in the reverse direction to the space
described in the procedure below, the steering directions will be reversed.

Shift the shift lever to the R position.
Back up until the parking assist
guide line meets the edge of the
left-hand dividing line of the park-
ing space.

Parking assist guide line
Parking space dividing line

Turn the steering wheel all the way to the right, and back up slowly.
Once the vehicle is parallel with the parking space, straighten the steering
wheel and back up slowly until the vehicle has completely entered the
parking space.
Stop the vehicle in an appropriate place, and finish parking.

3
4

GX460_OM_OM60R43U_(U)

331

■

Panoramic view & rear view/panoramic view & wide rear view

The screen can be displayed when the shift lever is in R.

■

Guide lines

If the back door is not closed, guide lines will not be displayed. If the guide lines do not

display even when the back door is closed, have the vehicle inspected at your Lexus

dealer.

WARNING

■

Guide lines

The tire position indicator lines and vehicle position indicator lines may differ from

actual vehicle positions depending on the number of passengers, cargo weight, road

grade, road surface conditions, brightness of the surrounding environment, etc. Always

drive the vehicle while confirming the safety of your surroundings.

■

When using panoramic view & rear view or wide rear view

Rear vehicle width extension guide lines are displayed wider than the actual vehicle

width. When backing up, always confirm the safety of your surroundings and the area

to the rear of the vehicle.

332

GX460_OM_OM60R43U_(U)

■

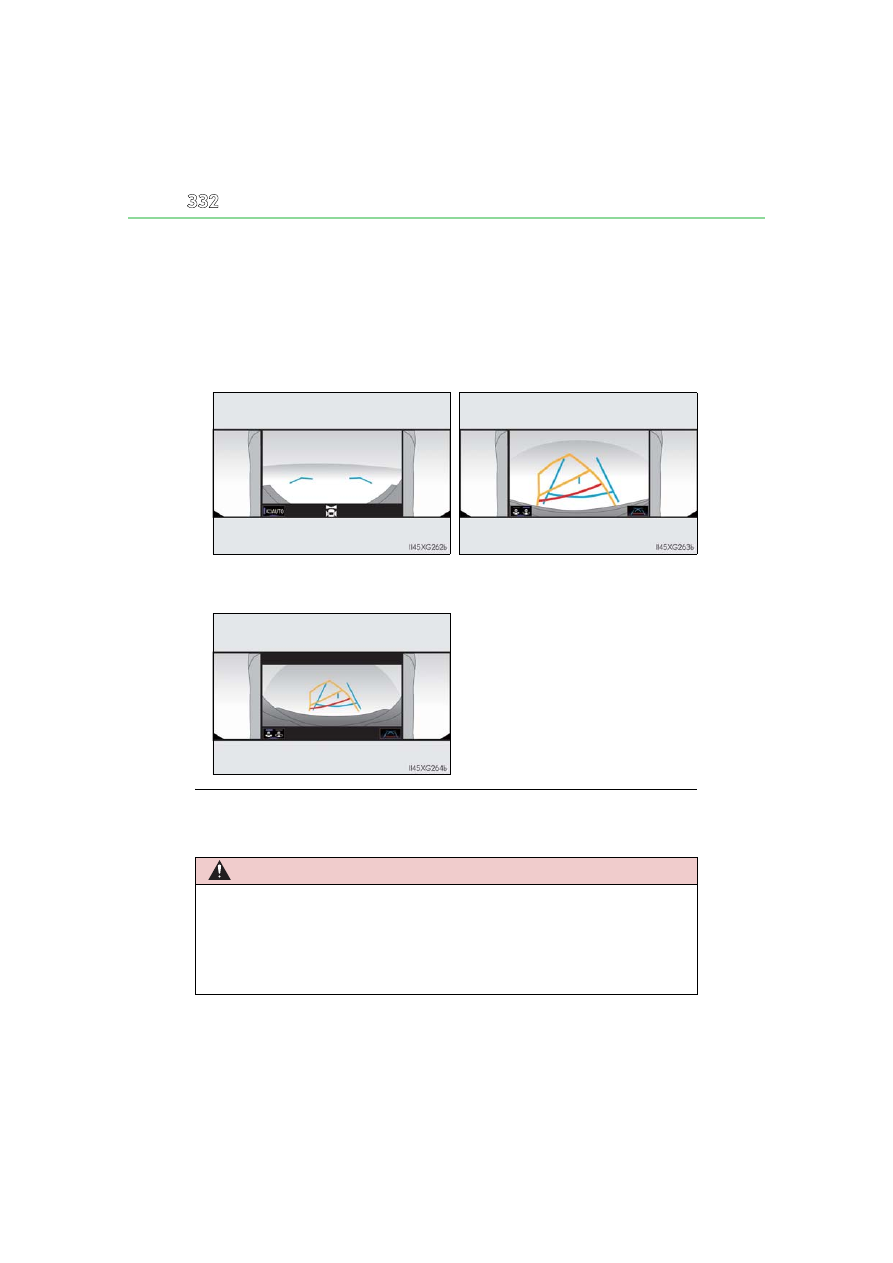

Display when the outside rear view mirrors are retracted

Even when outside rear view mirrors are stored, the monitor can display vari-
ous images of the vicinity of the vehicle and assist the operation in the confirm-
ing safe conditions in a narrow places, parking, etc.

●

Screen description

■

Screen display

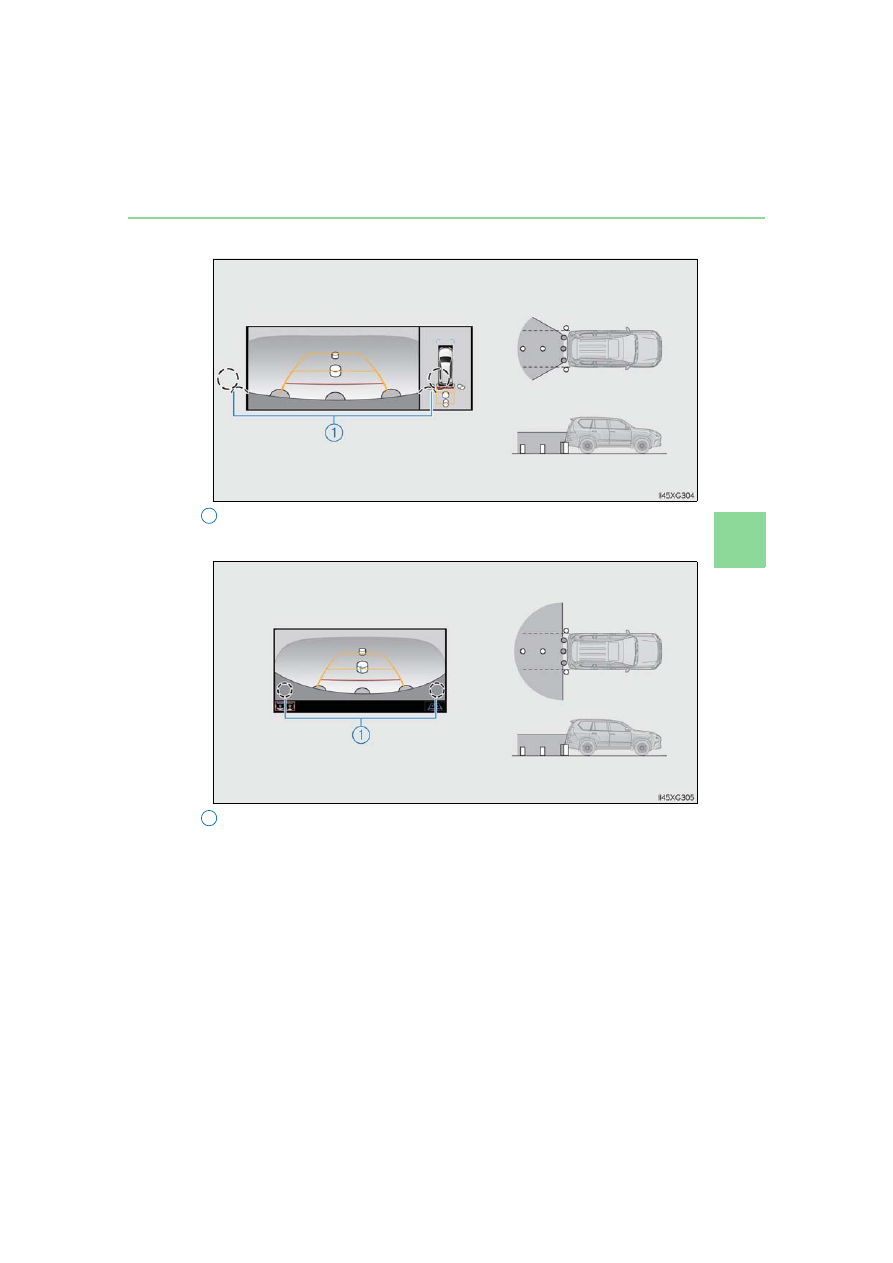

When the main switch is pressed while the side view and wide front view are displayed,

the navigation screen or information setting screen is displayed.



When the wide front view & dual
side views is displayed



When the rear view & dual side
views is displayed



When the wide rear view & dual side
views is displayed

WARNING

■

Guide lines

The tire position indicator lines and vehicle position indicator lines may differ from

actual vehicle positions depending on the number of passengers, cargo weight, road

grade, road surface conditions, brightness of the surrounding environment, etc. Always

drive the vehicle while confirming the safety of your surroundings.

GX460_OM_OM60R43U_(U)

333

■

Intuitive parking assist and RCTA cooperative display

When either the Intuitive parking assist (

P. 267) or Blind Spot Monitor

(

P. 374) is turned on, a pop-up icon warns the driver when an obstacle is

detected.

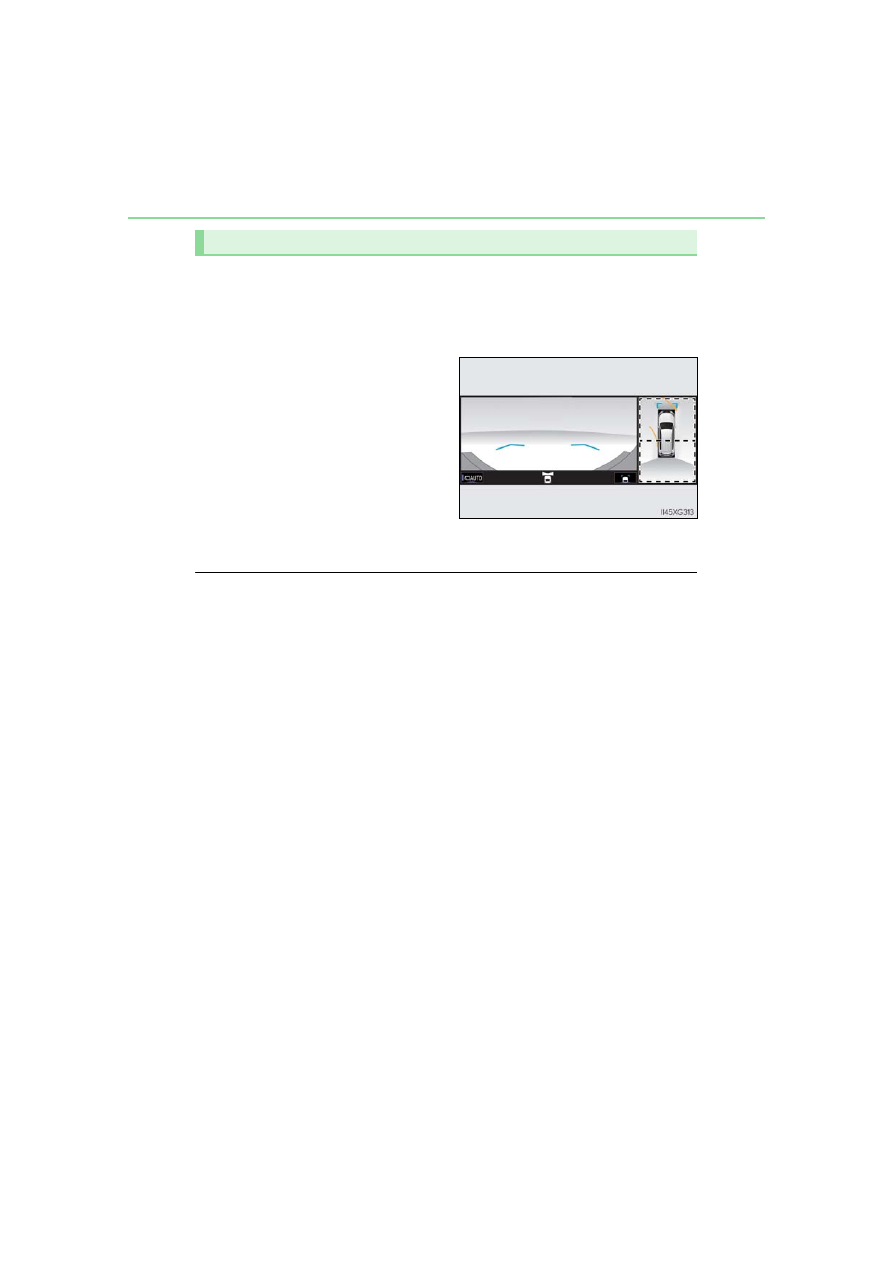

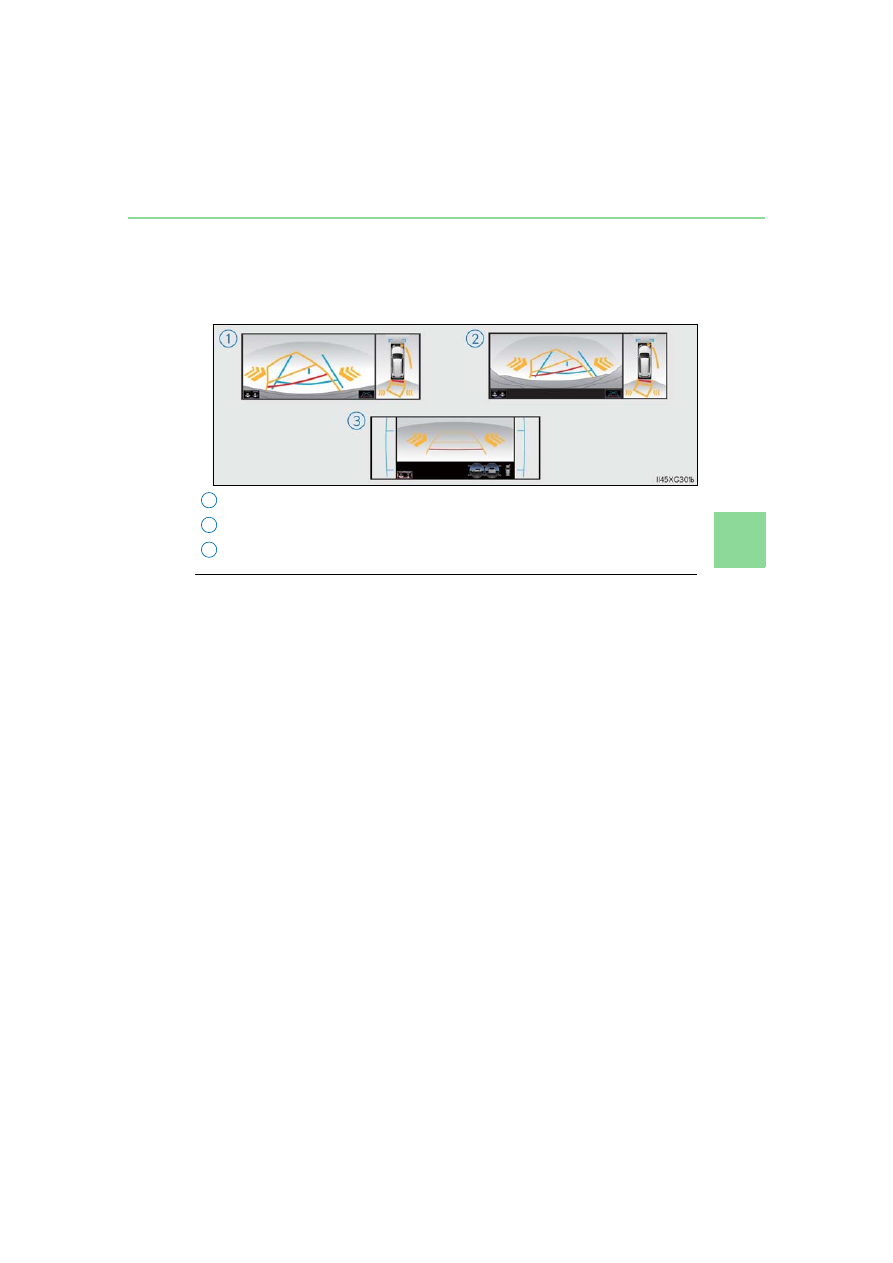

Example of pop-up display in the panoramic view & rear view
Example of pop-up display in the Panoramic view & wide rear view
Example of pop-up display in the Rear view & dual side views

■

Intuitive parking assist pop-up display

While the Intuitive parking assist is in use, a pop-up icon is displayed when an obstacle is

detected (



P. 267).

However, this function only informs the driver that an obstacle is close to the vehicle and

the detected obstacle is not displayed on the screen. Be sure to visually confirm the

safety of your surroundings.

2
3

334

GX460_OM_OM60R43U_(U)

If displayed objects are too small to see clearly when the panoramic view is dis-
played, the area around the front side or rear side of the vehicle can be magni-
fied.

■

Magnifying the display

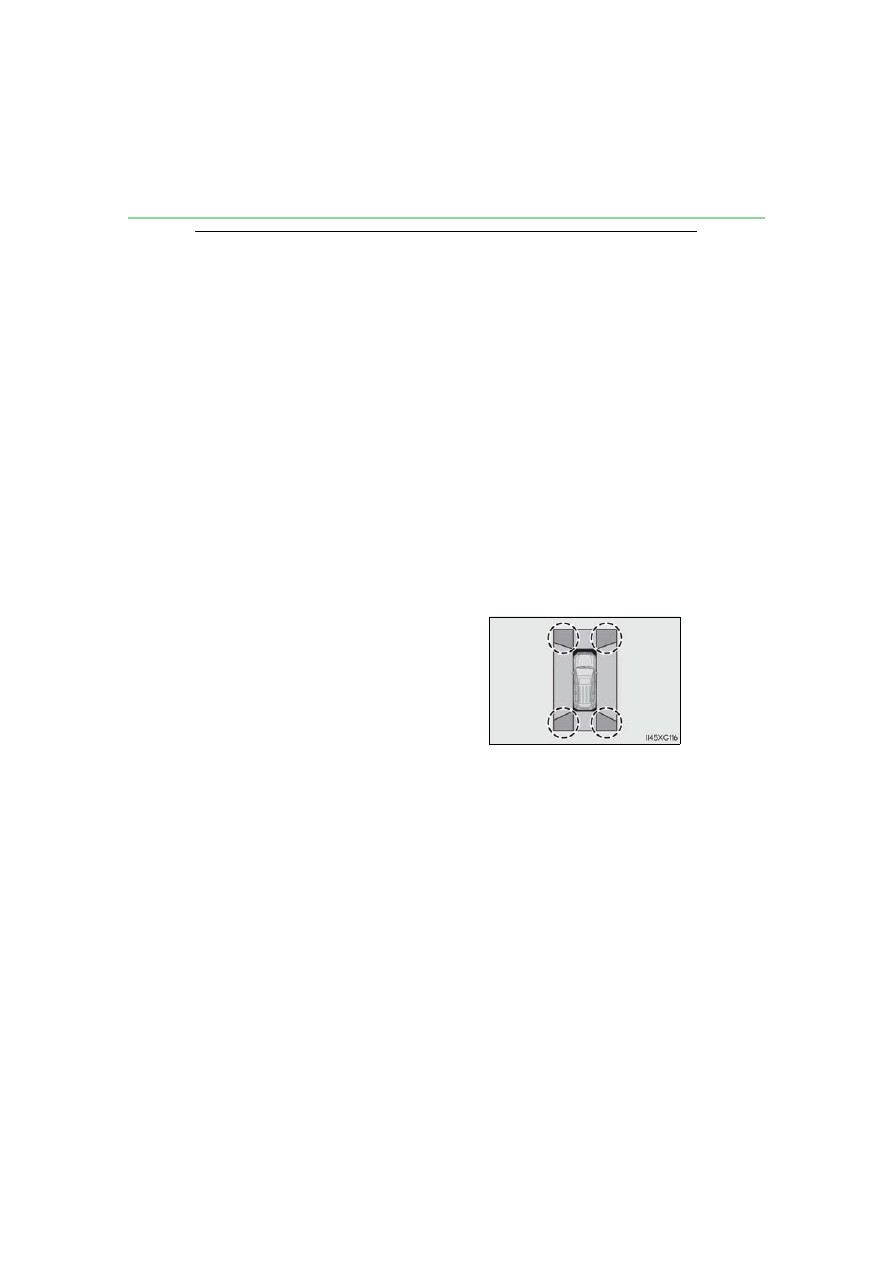

Select the area on the panoramic
view display you wish to magnify.

●

Selecting one of the 2 areas
within the dotted lines will mag-
nify that area. (Dotted lines are
not displayed on the actual dis-
play.)

●

To return to the normal view,
select the panoramic view display
again.

■

Magnifying the display

●

The magnifying function is enabled when all of the following conditions are met:
• The panoramic view & wide front view/panoramic view & side views/panoramic

view & rear view/panoramic view & wide rear view is displayed.

• The vehicle speed is below approximately 7 mph (12 km/h).

• The intuitive parking assist is available.

●

In the following situations, the magnified display will be canceled automatically:
• The vehicle speed is approximately 7 mph (12 km/h) or higher.

• The intuitive parking assist is unavailable.

●

When the display is magnified, the guide lines will not be displayed.

Magnifying function

GX460_OM_OM60R43U_(U)

335

Observe the following precautions. Failure to do so may result in an unexpected
accident. Also, when driving, make sure to directly confirm the safety of your sur-
roundings and the area to the rear of the vehicle.

When using the Multi-terrain Monitor

WARNING

■

Conditions under which the Multi-terrain Monitor should not be used

Do not use the Multi-terrain Monitor in the following situations. The system may not

operate properly, resulting in an unexpected accident.

●

When driving on an icy, snow-covered or otherwise slippery road surface

●

When using tire chains or a spare tire

●

When either front door or the back door is not completely closed

●

When driving on an uneven road, such as a hill

●

When tires or suspension parts other than those specified are equipped

When the tires are replaced, the position indicated by the guide lines displayed on the

screen may differ.

●

When any aftermarket parts have been installed on the bumper area which is dis-

played by the camera.

■

Guide lines

The tire position indicator lines and vehicle position indicator lines may differ from

actual vehicle positions depending on the number of passengers, cargo weight, road

grade, road surface conditions, brightness of the surrounding environment, etc. Always

drive the vehicle while confirming the safety of your surroundings.

336

GX460_OM_OM60R43U_(U)

NOTICE

■

Panoramic view

●

In the panoramic view, the system combines images taken from the front, back, left

and right side cameras into a single image. There are limits to the range and content

that can be displayed. Understand the characteristics of this system before using.

●

Image clarity may decline at the four corners of the panoramic view. However, this is

not a malfunction, as these are the regions along the border of each camera image

where the images are combined.

●

Depending on lighting conditions near each of the cameras, bright and dark patches

may appear on the panoramic view.

●

The panoramic view display does not extend higher than the installation position and

image capture range of each camera.

●

There are blind spots around the vehicle and there are regions that are not displayed

in the panoramic view.

●

Three-dimensional objects displayed in wide front view or rear view may not be dis-

played in the panoramic view.

●

People and other three-dimensional obstacles may appear differently when dis-

played in the panoramic view. (These differences include, among others, cases in

which displayed objects appear to have fallen over, disappear near image processing

areas, appear from image processing areas, or when the actual distance to an object

differs from the displayed position.)

●

The panoramic view will not be properly displayed when either front door or the back

door is open.

●

The vehicle icon displayed in the panoramic view is a computer generated image, and

properties such as the color, shape and size will differ from the actual vehicle. There-

fore, nearby three-dimensional objects may appear to be touching the vehicle, and

actual distances to three-dimensional objects may differ from those displayed.

GX460_OM_OM60R43U_(U)

337

■

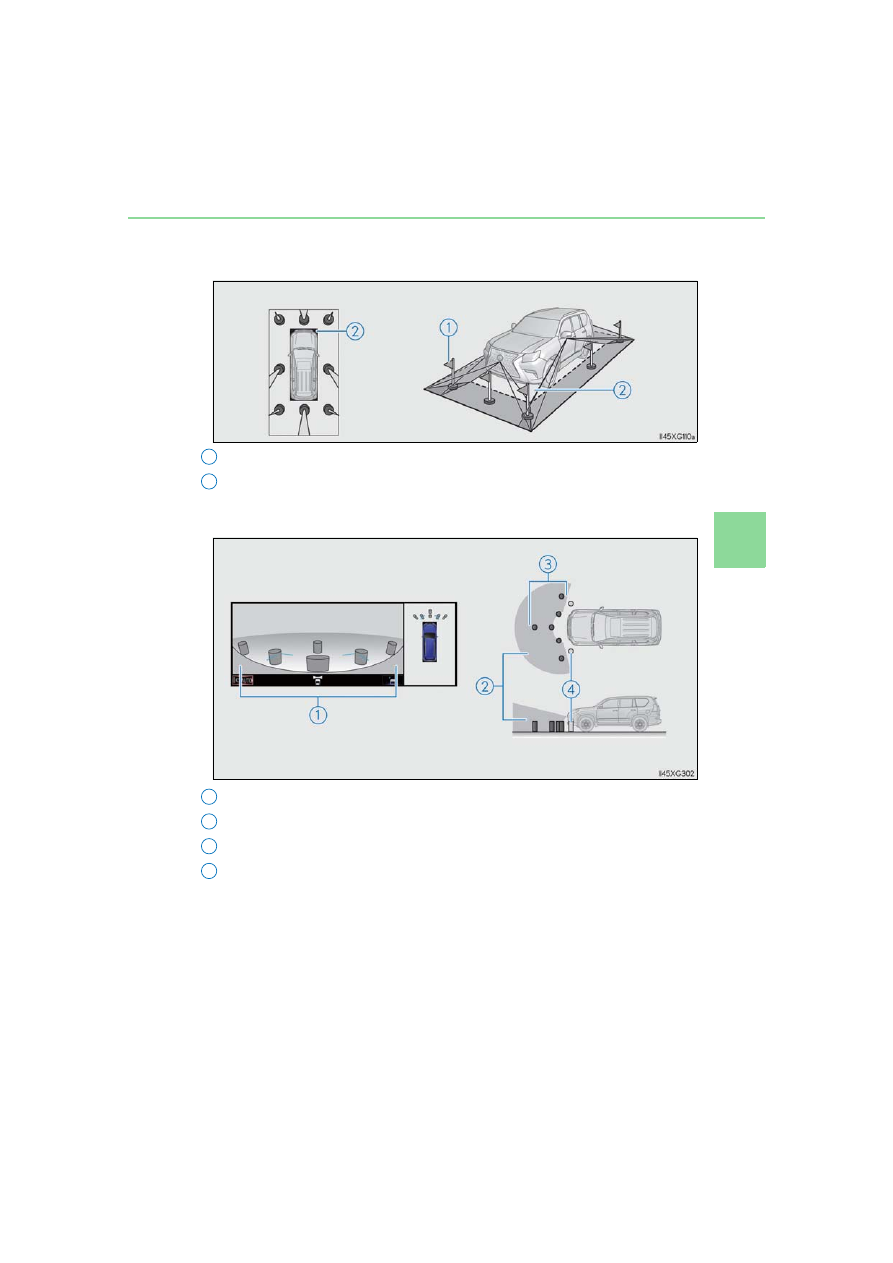

Display range

●

Panoramic view

Not displayed.
Not displayed. (Displayed in black around the vehicle icon.)

●

Wide front view

Parts of the vehicle (such as the bumper or grille) are displayed on the screen.
Camera visibility range
Object detectable by camera
Object not detectable by camera

2
3
4

340

GX460_OM_OM60R43U_(U)

■

Panoramic view display range

●

In the panoramic view, the system processes and displays images acquired form the 4

cameras under the assumption that the vehicle is on a flat road surface. Therefore, the

display may appear as follows.
• Three-dimensional objects may appear to have fallen over, and be long and thin or

bigger than they actually are

• Three-dimensional objects at a point higher than the surface of the road may appear

further away than they actually are, or may not appear

• Tall objects may appear to emerge from the image processing seams

●

Inconsistencies in the brightness of images from each camera may occur depending on

lighting conditions.

●

The displayed image may not be aligned when the tilt or height of the vehicle changed

due to the number of passengers, cargo weight or remaining quantity of gasoline.

●

The displayed image may not be aligned when the vehicle is in other than “N” (normal)

height mode. (

P. 352)

●

Images and guide lines may not be properly displayed when the doors are not com-

pletely closed.

●

The relative distances between the vehicle icon and road surface or an obstacle dis-

played in the panoramic view may differ from the actual state.

●

If an illuminated license plate is used, it may appear on the screen.

●

The black area around the vehicle icon is an area that is not appear in the camera.

Check these areas directly.

■

Wide front view display range

●

There are limits to the range displayed on the screen. Objects at either corner of the

bumper or directly below the bumper are not displayed.

●

The perceived distance in images displayed on the screen differs from the actual dis-

tance.

■

Images displayed on the screen

Cameras of the Multi-terrain Monitor system use special lenses. The distance of the

image that appears on the screen differs from the actual distance.

●

The circled areas shown in the illustration may

be difficult to see, as these are points where

images are combined.

GX460_OM_OM60R43U_(U)

341

■

Multi-terrain Monitor cameras

●

Camera positions

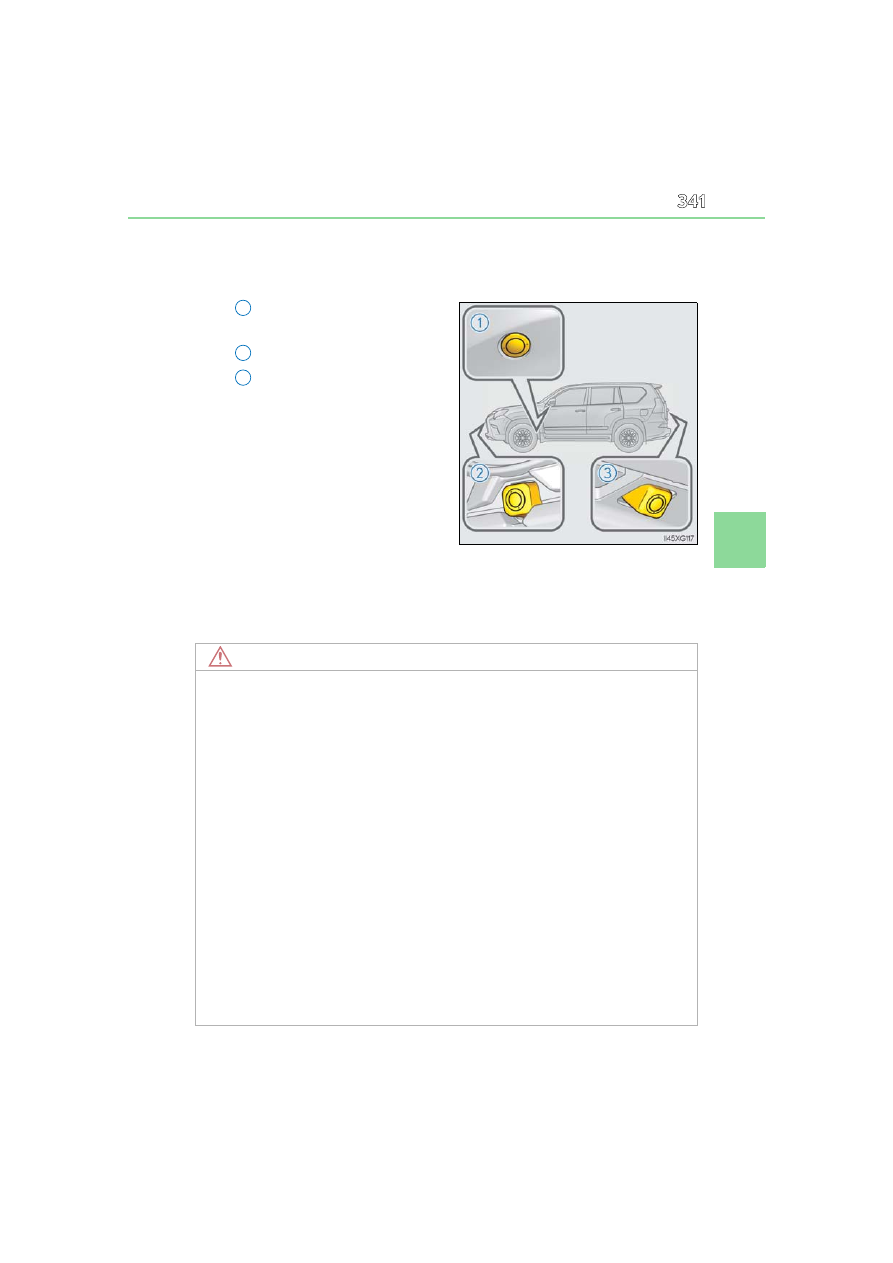

The cameras of the Multi-terrain Monitor system are installed as follows.

Side camera (left and right
sides)
Front camera
Rear camera

●

Using the cameras
If dirt or foreign matter (such as water droplets, snow, mud, etc.) is adhering
to the camera, it cannot transmit a clear image. In this case, flush it with a
large quantity of water and wipe the camera lens with a soft and wet cloth.

NOTICE

■

How to use the cameras

●

Observe the following precautions. Failure to do so may prevent the Multi-terrain

Monitor from operating properly.
• Do not strike the camera area, or allow any objects to bump into it

If the camera or surrounding area has received a strong impact, the camera posi-

tion, installation angle, etc., may deviate. If the camera is accidentally subjected to

an impact, have the vehicle inspected at your Lexus dealer.

• Do not remove, disassemble or modify the camera or surrounding parts

Doing so may result in the camera malfunctioning. This also may result in a loss of

waterproof performance.

• If the camera lens is dirty, follow the above procedures to clean it

If the camera lens is damaged it cannot transmit a clear image.

Do not allow organic solvent, car wax, oil film remover, glass coating, etc. to con-

tact the camera cover

Doing so will negatively affect the camera cover (resin). If this happens, wipe it off

immediately.

• When the outside temperature is cold, do not cause any sudden changes in tem-

perature, such as by applying hot water

●

When washing the vehicle, do not apply water with a high-pressure washer to the

camera or surrounding area. Doing so may cause the camera to receive a strong

impact, and the camera may not operate properly

342

GX460_OM_OM60R43U_(U)

■

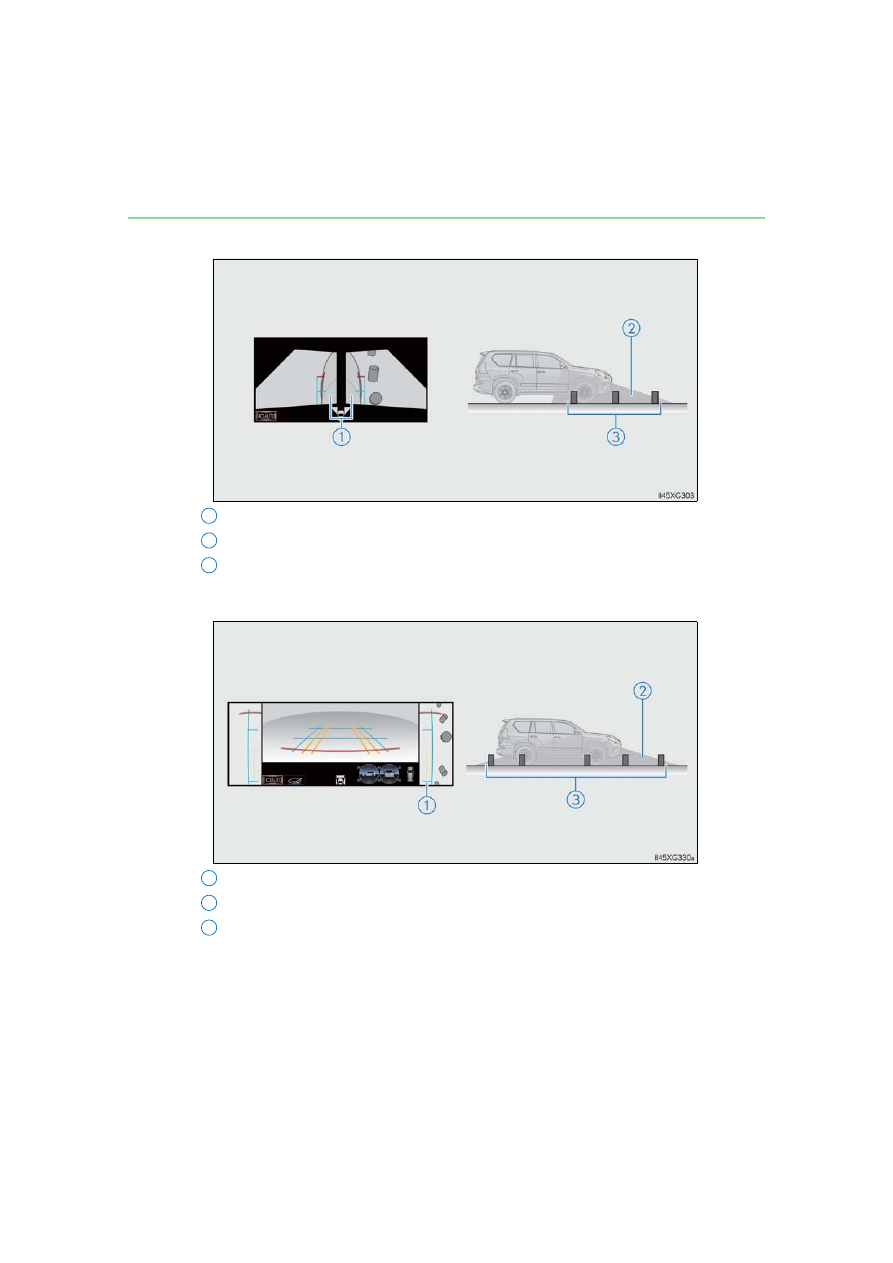

Differences between the panoramic view screen and the actual road

The distance guide lines, the combined panoramic view image, guide lines,
etc., indicate estimated distances on a flat road surface. In the following situa-
tions, actual distances and vehicle course will differ from the guide lines on the
screen.

●

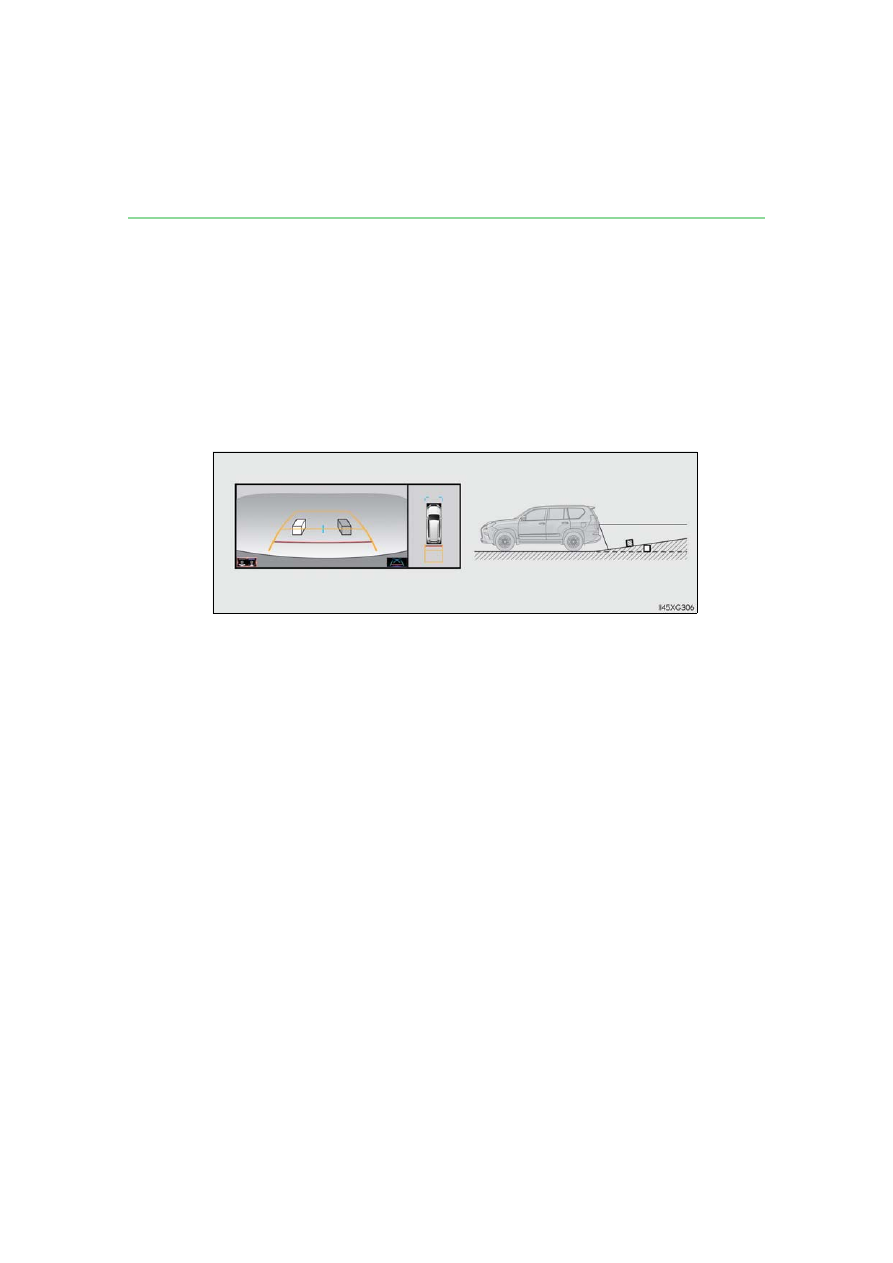

When the ground behind the vehicle slopes up sharply
The distance guide lines will appear to be closer to the vehicle than the
actual distance. Therefore, obstacles on an upward slope appear further
away than they actually are. In the same way, the actual course of the vehi-
cle will differ from the course indicated by the guide lines.

GX460_OM_OM60R43U_(U)

343

●

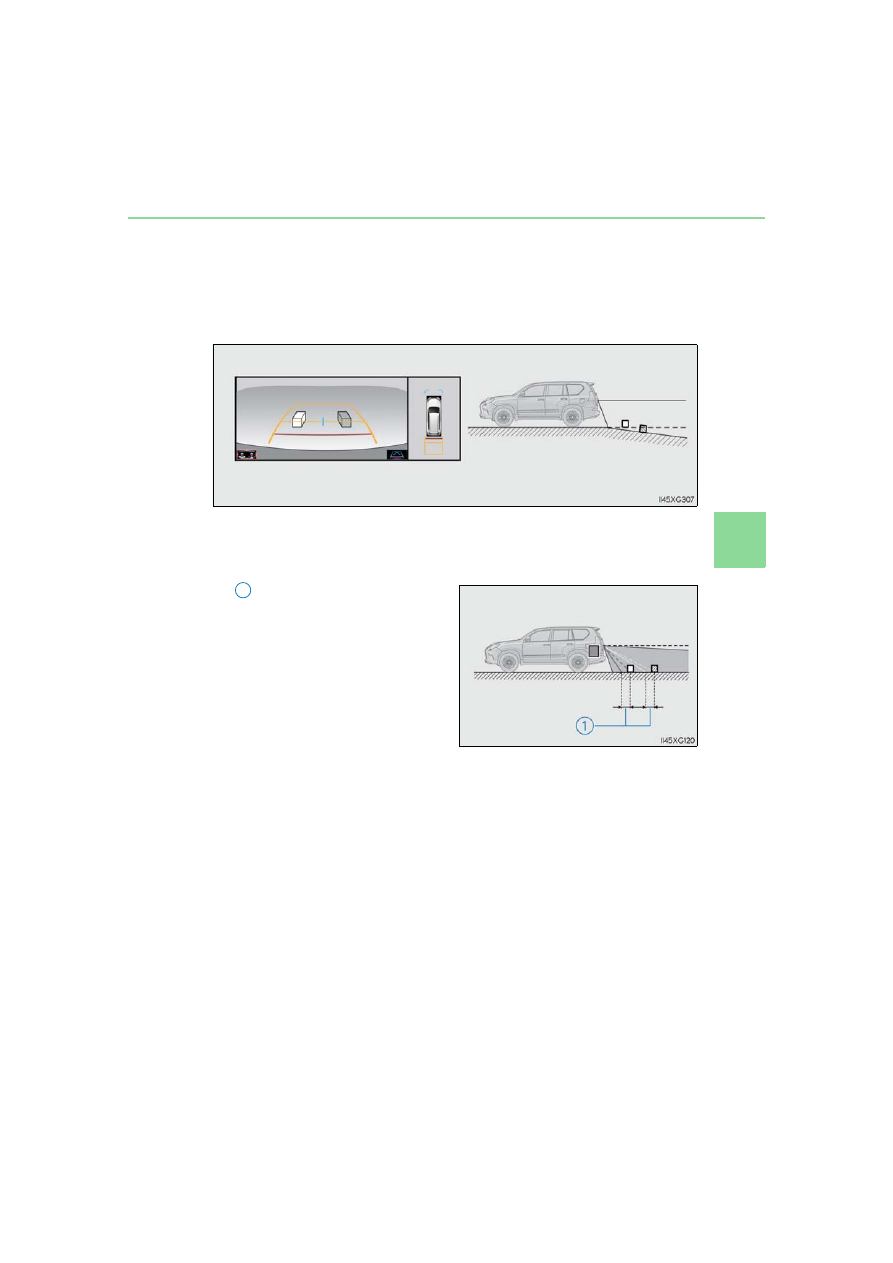

When the ground behind the vehicle slopes down sharply
The distance guide lines are displayed further away than the actual dis-
tance. Therefore, obstacles on a downward slope appear closer than the
actually are. In the same way, the actual course of the vehicle will differ from
the course indicated by the guide lines.

●

When the vehicle is tilted
When the vehicle is tilted due to the number of passengers or weight of the
load, actual distances and vehicle course will differ.

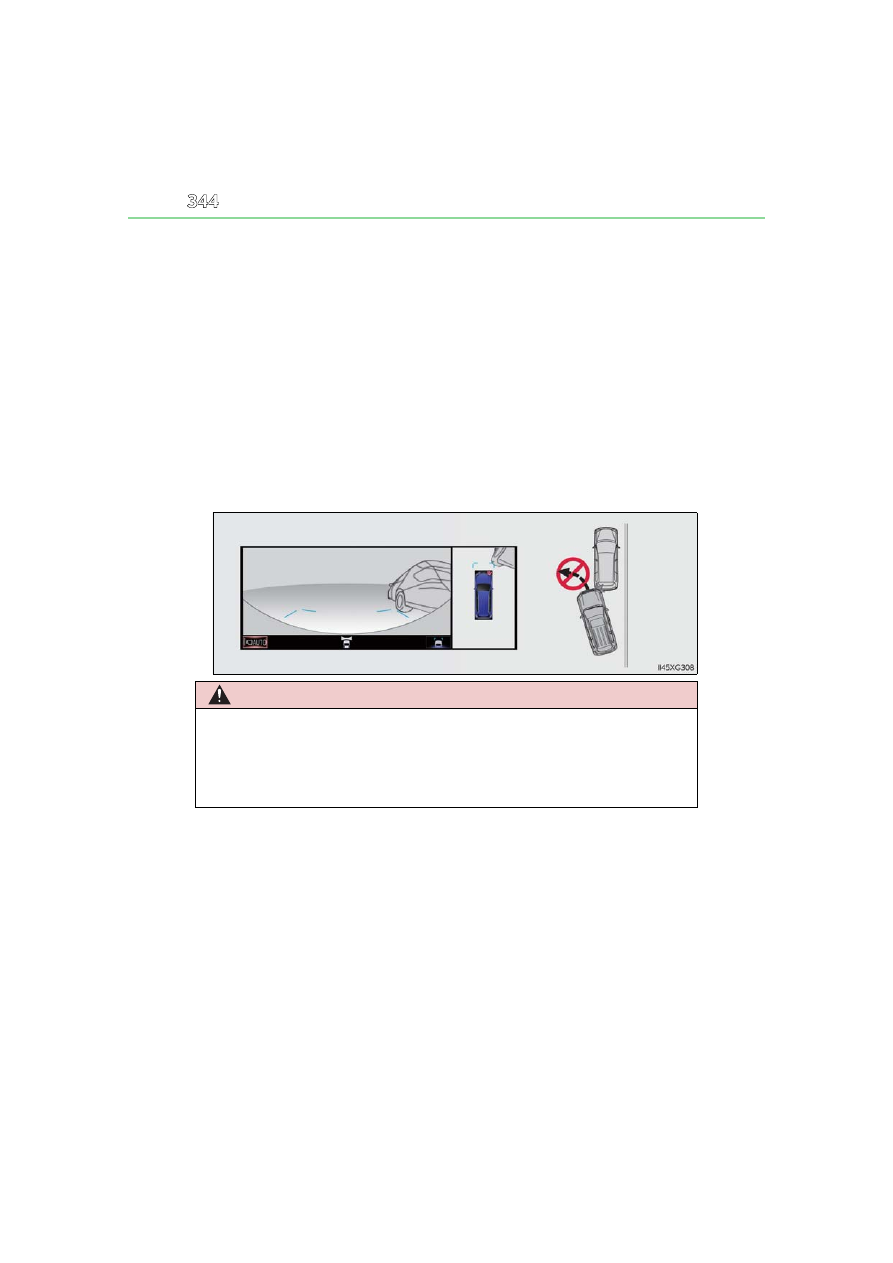

Margin of error

344

GX460_OM_OM60R43U_(U)
