Harley Davidson Parts Catalog 2019: touring models - page 22
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
26
42937-08C
MASTER CYLINDER
ALL
COVER KIT, rear, with
11902 and 42858-06A

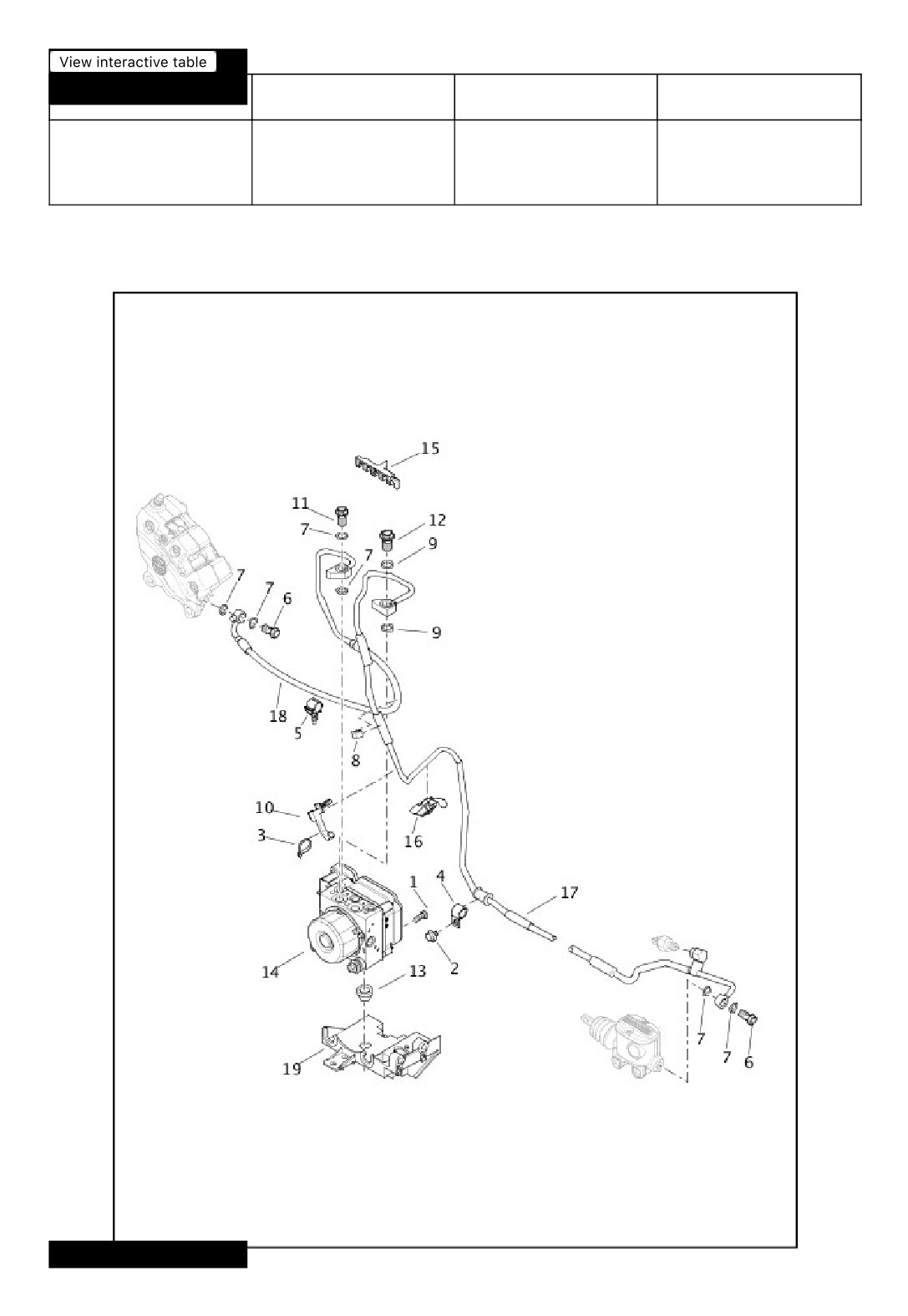

BRAKE LINES AND MODULE, REAR - ABS
630/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
14
41100061B
ABS MODULE (EHCU)
ALL

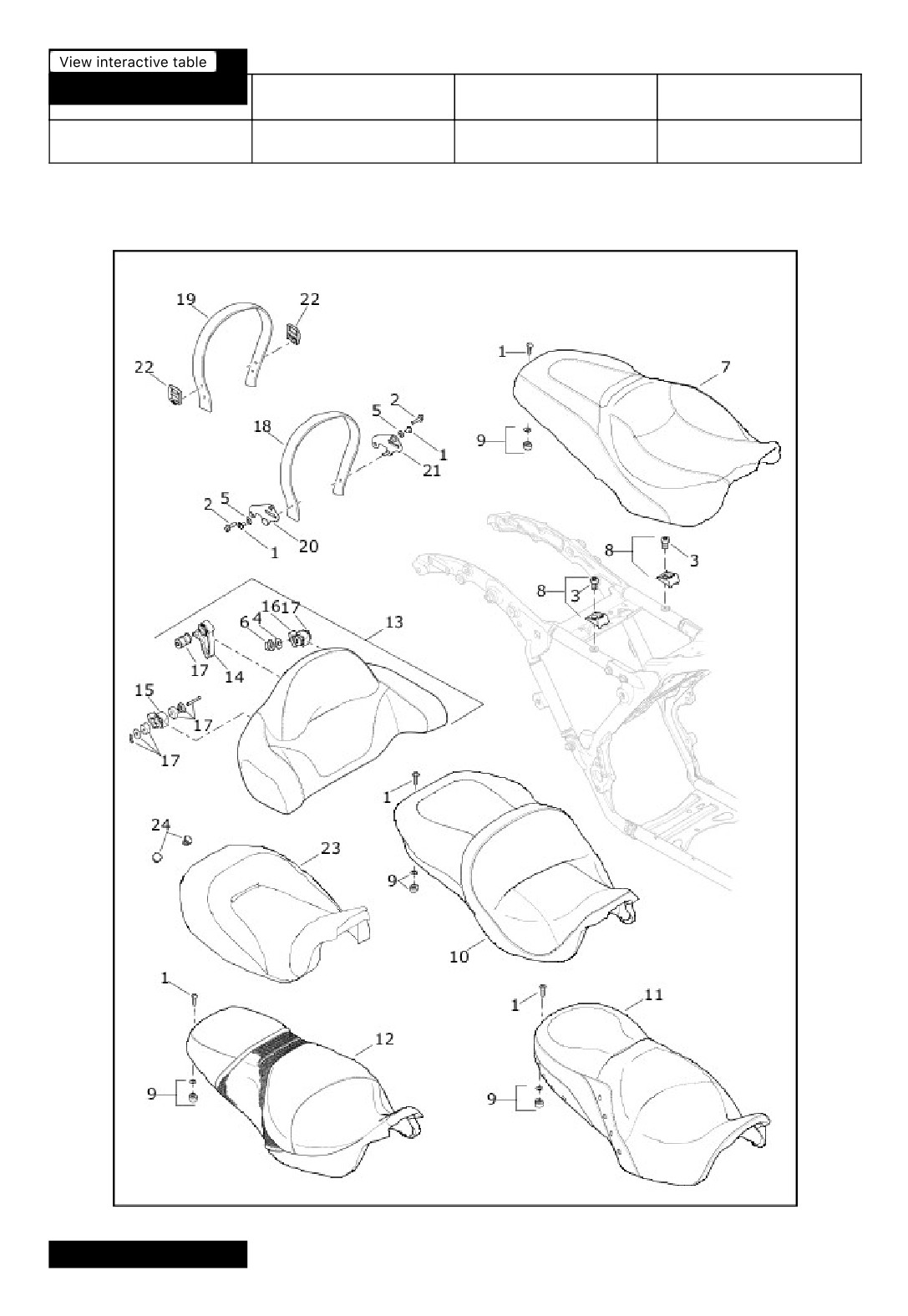

SEATS
631/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
23
52000464
SEAT
FLHT
24
3633
NUT (2)
FLHT

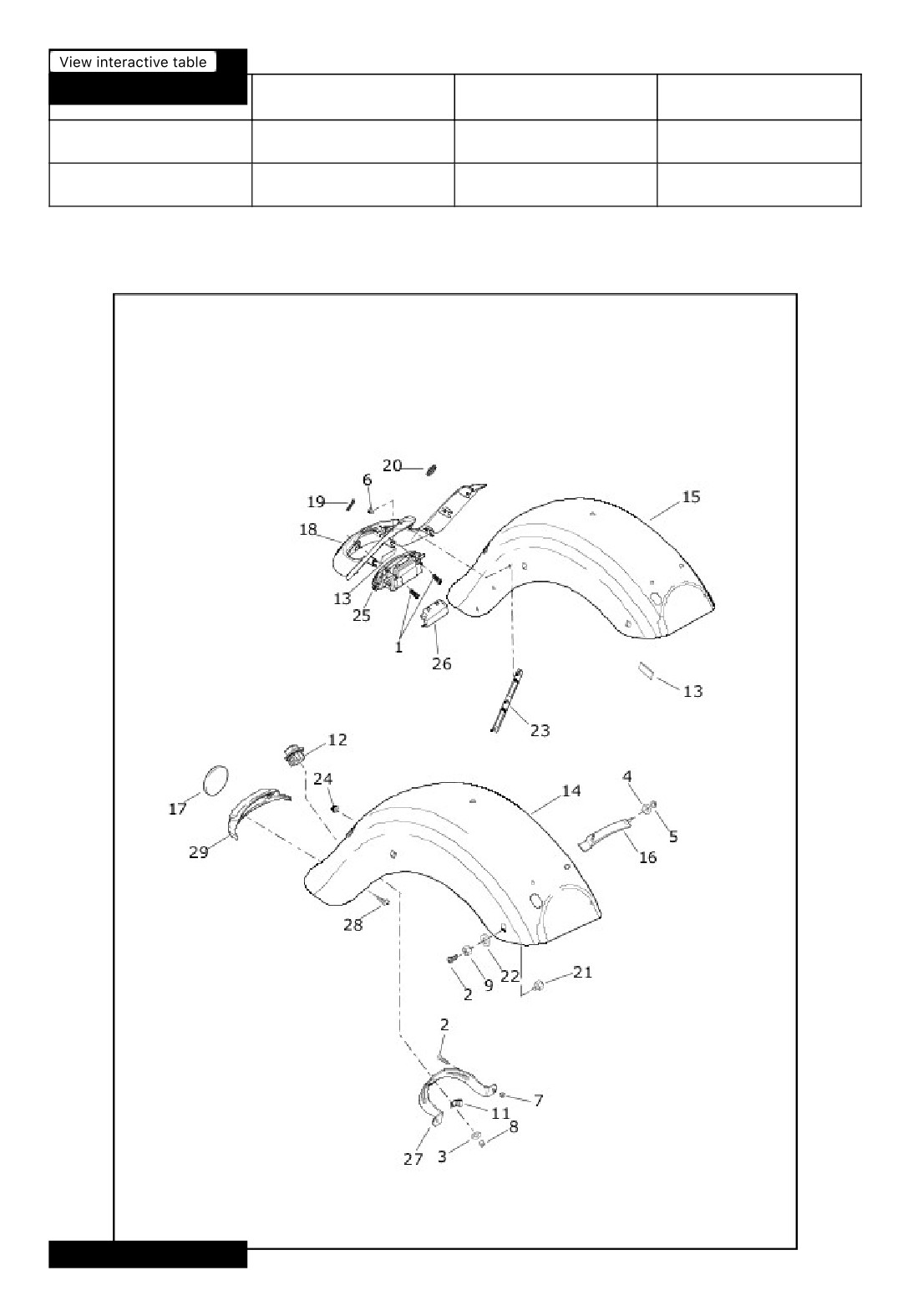

FENDERS, REAR (1 OF 2)
632/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
14
58702-09A
FENDER, rear (prime)
FLHR, FLHT
14
58702-09A
FENDER, rear (prime)
FLHRC, FLHTK, FLHTK
(HDI)
SHRINE, FLHTKL, FLTRU

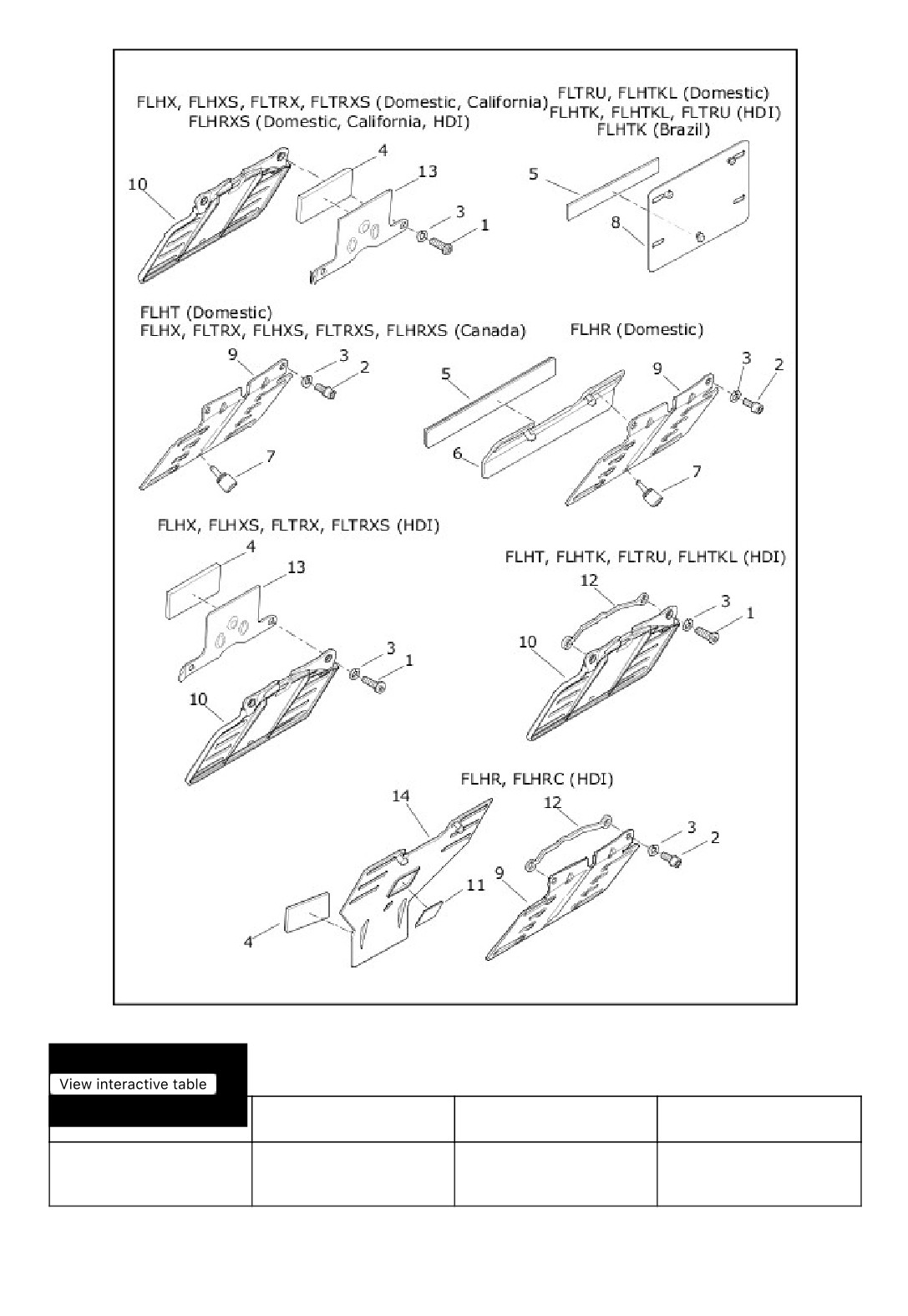

LICENSE PLATE BRACKETS
633/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
7
67900009
BUMPER, license plate
FLHT
bracket
634/956
4/5/2019

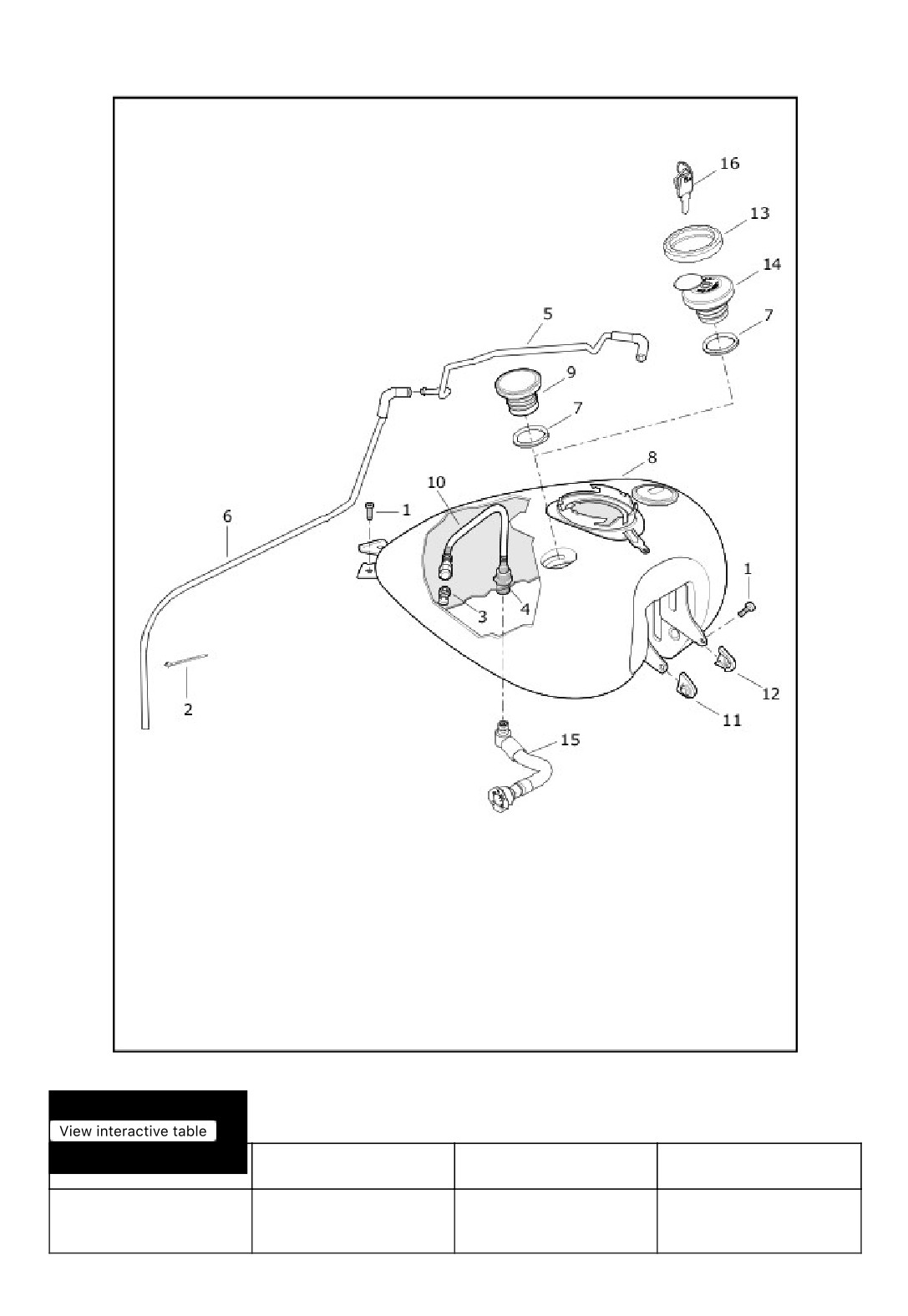

FUEL TANK - FLHR, FLHRC AND FLHRXS
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
13
61100065
BUMPER, filler cap
FLHR, FLHRXS
(China)
635/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
14
61100120
FILLER CAP KIT, locking,
FLHR, FLHRXS
with 61109-85D and
90300093 (Asia-Pacific)
14
61100123
FILLER CAP KIT, locking,
FLHR, FLHRXS
with 61109-85D,
61100065 and 90300093
(China)

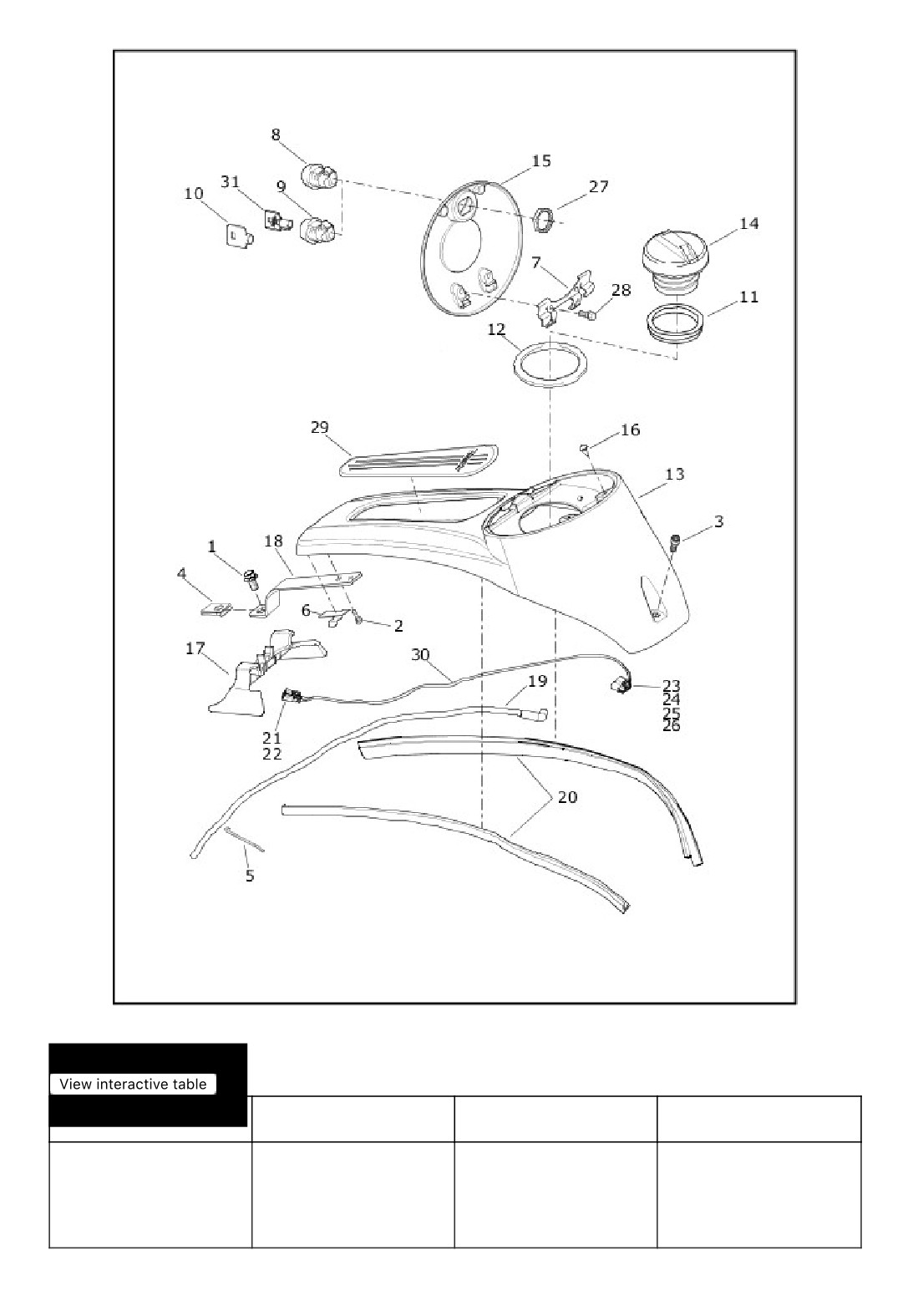

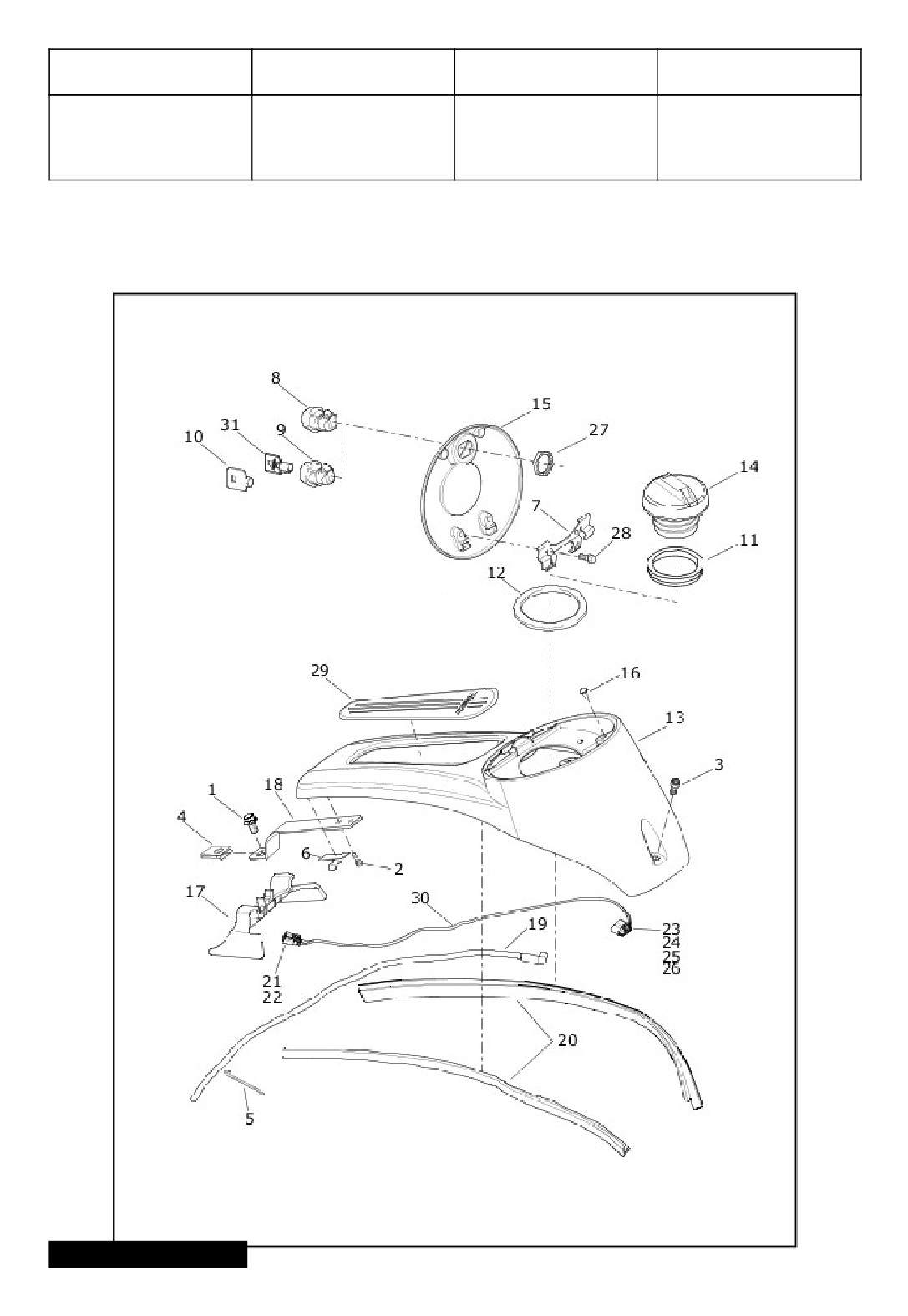

CONSOLE, FUEL TANK - FLHT, FLHTCU, FLHTK, FLHTKL,
FLHX, FLHXS, FLTRU, FLTRX AND FLTRXS (1 OF 3)
636/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
8
53919-04B
PUSH BUTTON KIT, fuel
FLHT, FLHTCU, FLHTK,
tank, with 84850-92
FLHTK SHRINE, FLHTKL,
(chrome) (Domestic)
FLHX, FLHXS, FLTRU,
FLTRX
637/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
8
90300096A
PUSH BUTTON KIT, fuel
FLHXS, FLTRXS
tank, with 84850-92
(black) (Domestic)
CONSOLE, FUEL TANK - FLHT, FLHTCU, FLHTK, FLHTKL,
FLHX, FLHXS, FLTRU, FLTRX AND FLTRXS (3 OF 3)
638/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
29
14101371
INSERT, console panel
FLHT
(not illustrated)

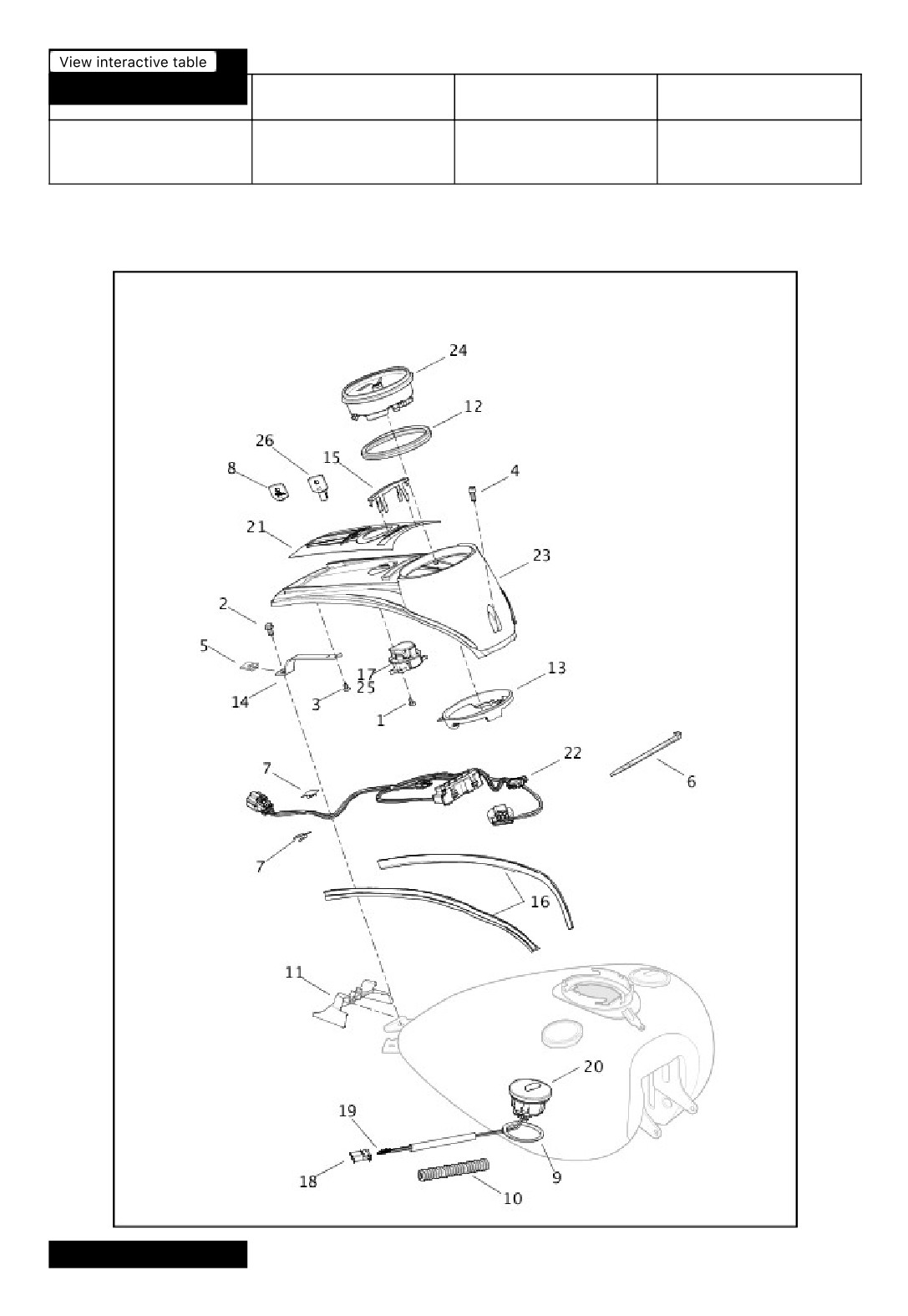

INSTRUMENTS, FUEL TANK - FLHR, FLHRC AND FLHRXS
639/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
71517-11A
IGNITION SWITCH
FLHR, FLHRC, FLHRXS
(keyed-to-match)
INSTRUMENTS - FLHT, FLHTCU, FLHTK, FLHTKL, FLHX AND
FLHXS
640/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
11
70900118C

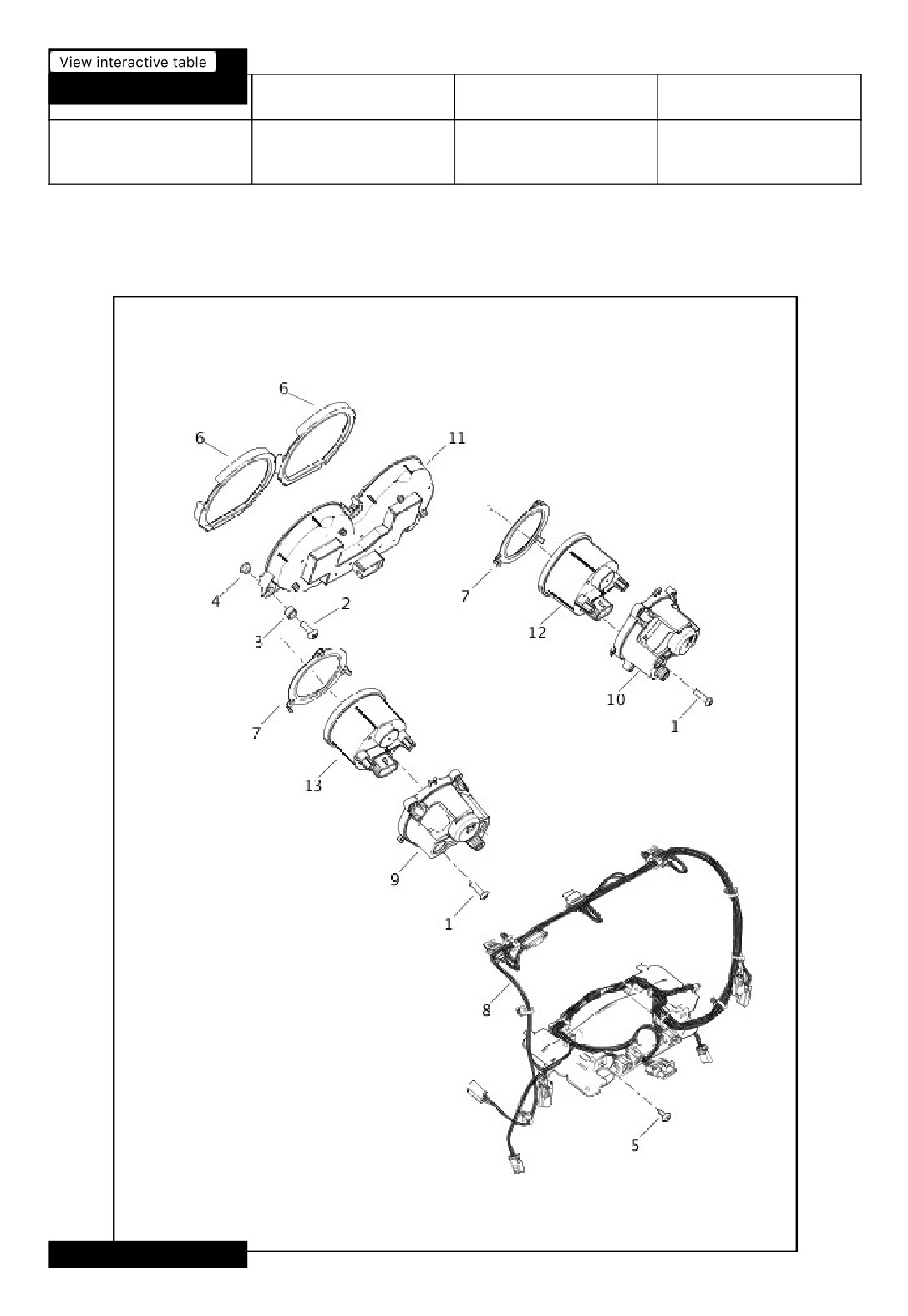

INSTRUMENT MODULE,
FLHTK, FLHTK SHRINE,
mph, with 12100020 and
FLHTKL
12400034 (Domestic,
California)
11
70900119B
INSTRUMENT MODULE,
FLHTK, FLHTK SHRINE,
km/h, with 12100020 and
FLHTKL
12400034 (Brazil,
Canada, HDI, Australia,
Japan, Asia-Pacific)
11
70900120B
INSTRUMENT MODULE,
FLHTK, FLHTK SHRINE,
dual - mph/km/h, with
FLHTKL
12100020 and 12400034
(England)
11
70900121C
INSTRUMENT MODULE,
FLHT, FLHTCU, FLHXS
mph, with 12100020 and
12400034 (Domestic,
California) (black)
11
70900122B
INSTRUMENT MODULE,
FLHT, FLHTCU, FLHXS
km/h, with 12100020 and
12400034 (Canada, HDI,
Australia, Japan, Asia-
Pacific) (black)
11
70900123B
INSTRUMENT MODULE,
FLHT, FLHXS
dual - mph/km/h, with
12100020 and 12400034
(England) (black)
11
70900124C
INSTRUMENT MODULE,
FLHX
mph, with 12100020 and
12400034 (Domestic,
California) (silver)
11
70900125B
INSTRUMENT MODULE,
FLHX
km/h, with 12100020 and
12400034 (Brazil,
Canada, HDI, Australia,
Japan, Asia-Pacific)
(silver)
11
70900126B
INSTRUMENT MODULE,
FLHX
dual - mph/km/h, with
12100020 and 12400034
(England) (silver)

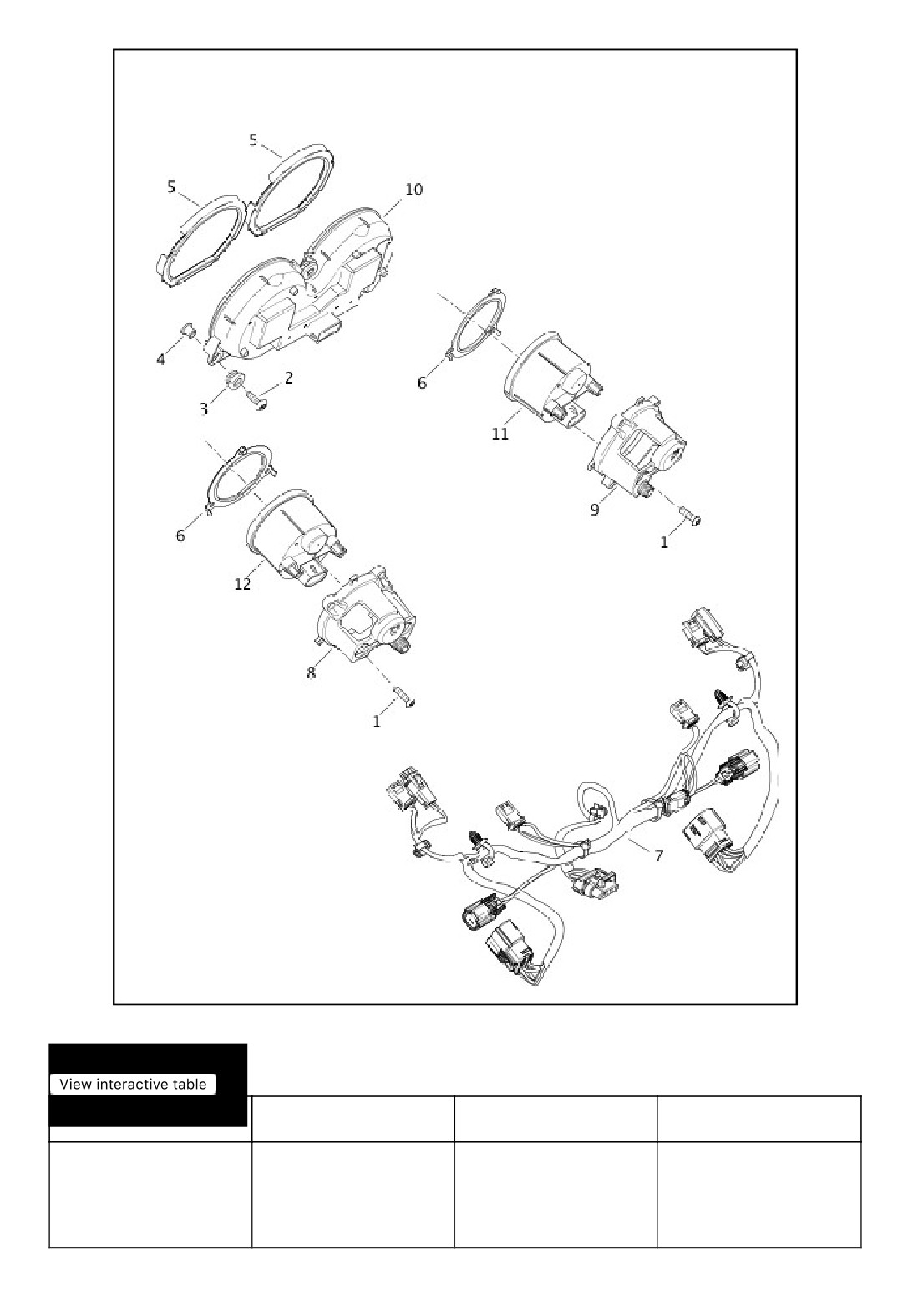

INSTRUMENTS - FLTRU, FLTRX AND FLTRXS
641/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
10
70900121C
INSTRUMENT MODULE,
FLTRU, FLTRXS
mph, with 12100020 and
12400034 (Domestic,
California) (black)
642/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
10
70900122B
INSTRUMENT MODULE,
FLTRU, FLTRXS
km/h, with 12100020 and
12400034 (Canada, HDI,
Japan, Asia-Pacific)
(black)
10
70900123B
INSTRUMENT MODULE,
FLTRU, FLTRXS
dual - mph/km/h, with
12100020 and 12400034
(England) (black)
10
70900124C
INSTRUMENT MODULE,
FLTRX
mph, with 12100020 and
12400034 (Domestic,
California) (silver)
10
70900125B
INSTRUMENT MODULE,
FLTRX
km/h, with 12100020 and
12400034 (Canada, HDI,
Australia, Japan, Asia-
Pacific) (silver)

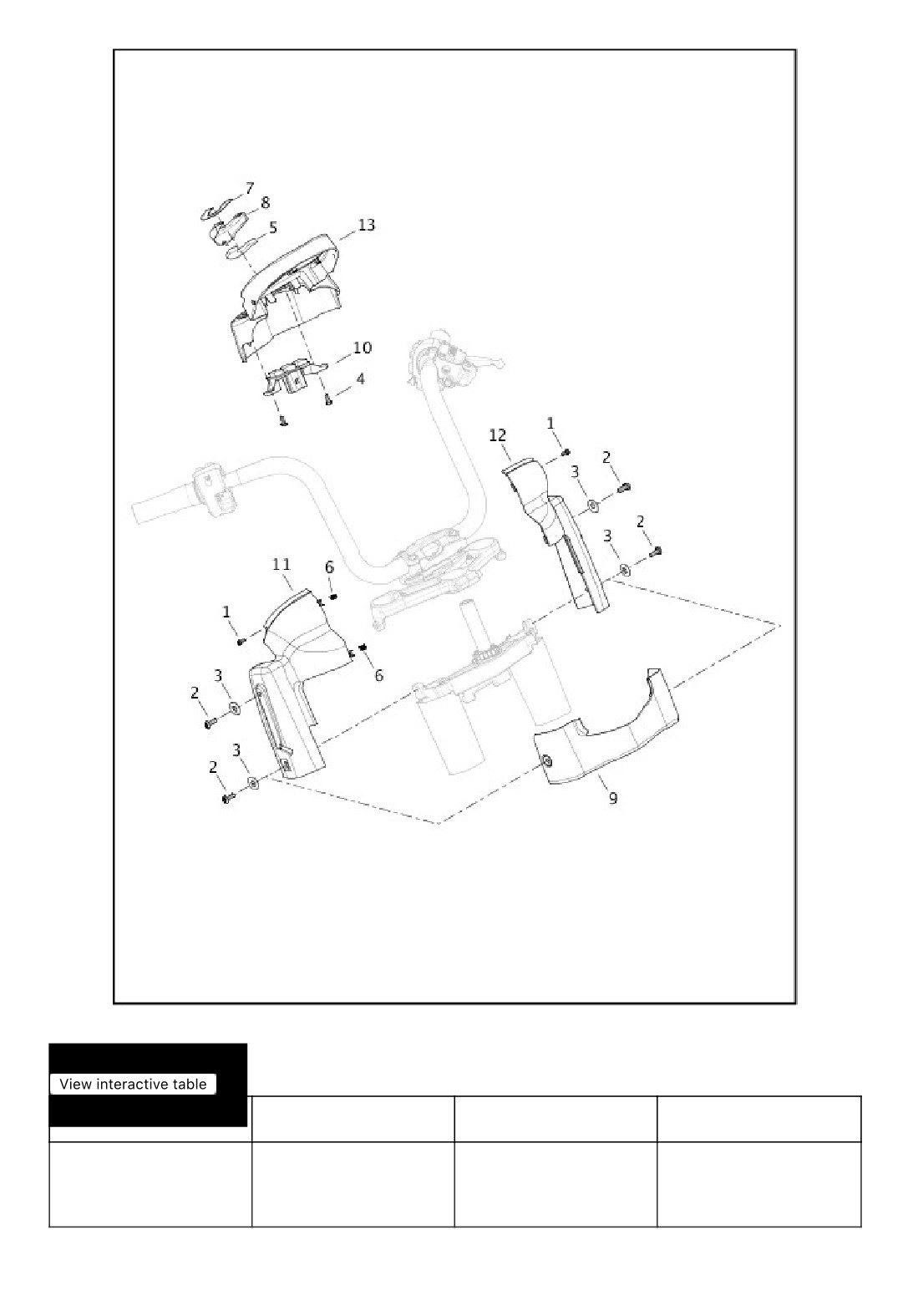

INSTRUMENT HOUSING - FLTRU, FLTRX AND FLTRXS
643/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
8
25700870
COVER ASSEMBLY,
FLTRXS
ignition switch, with
11100152
644/956
4/5/2019

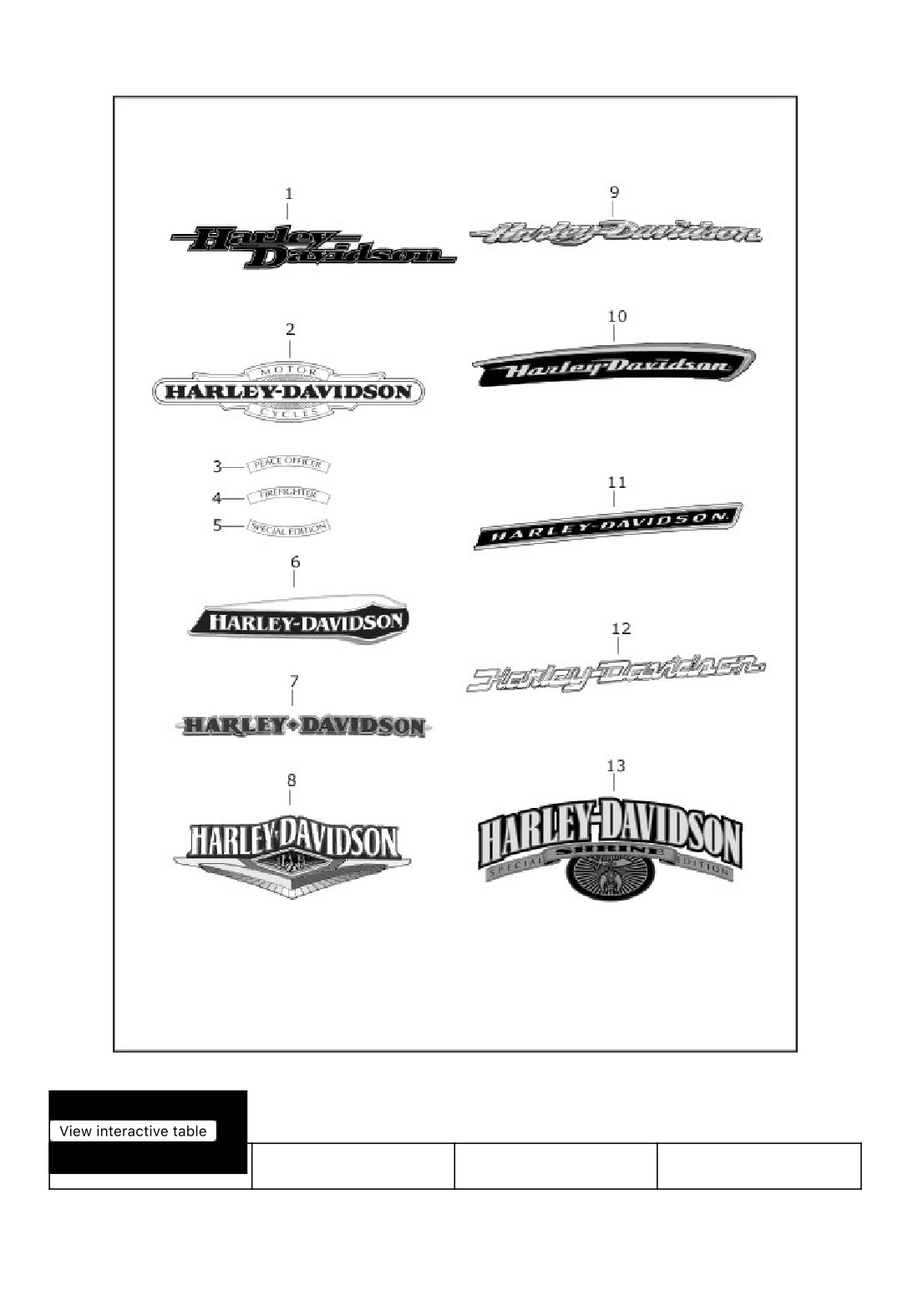

FUEL TANK TRIM (2 OF 2)
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
645/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
8
14100079
MEDALLION (right) (for
FLHRC
vivid black, bonnevile salt
pearl, billiard blue, 2-tone
wicked red/twisted
cherry tanks)
8
14100080
MEDALLION (left) (for
FLHRC
vivid black, bonnevile salt
pearl, billiard blue, 2-tone
wicked red/twisted
cherry tanks)
11
14100835
MEDALLION (left) (for
FLHRXS
vivid black, twisted
cherry, bonneville salt
denim, midnight blue
tanks)
11
14100836
MEDALLION (right) (for
FLHRXS
vivid black, twisted
cherry, bonneville salt
denim, midnight blue
tanks)
12
14101144BAGI
MEDALLION (left) (for 2-
FLHRXS, FLHXS, FLTRXS
tone scorched
orange/silver flux tanks)
12
14101145BAGI
MEDALLION (right) (for 2-
FLHRXS, FLHXS, FLTRXS
tone scorched
orange/silver flux tanks)
12
14101144BAGH
MEDALLION (left) (for 2-
FLHTK, FLTRU
tone scorched
orange/silver flux tanks)
12
14101145BAGH
MEDALLION (right) (for 2-
FLHTK, FLTRU
tone scorched
orange/silver flux tanks)

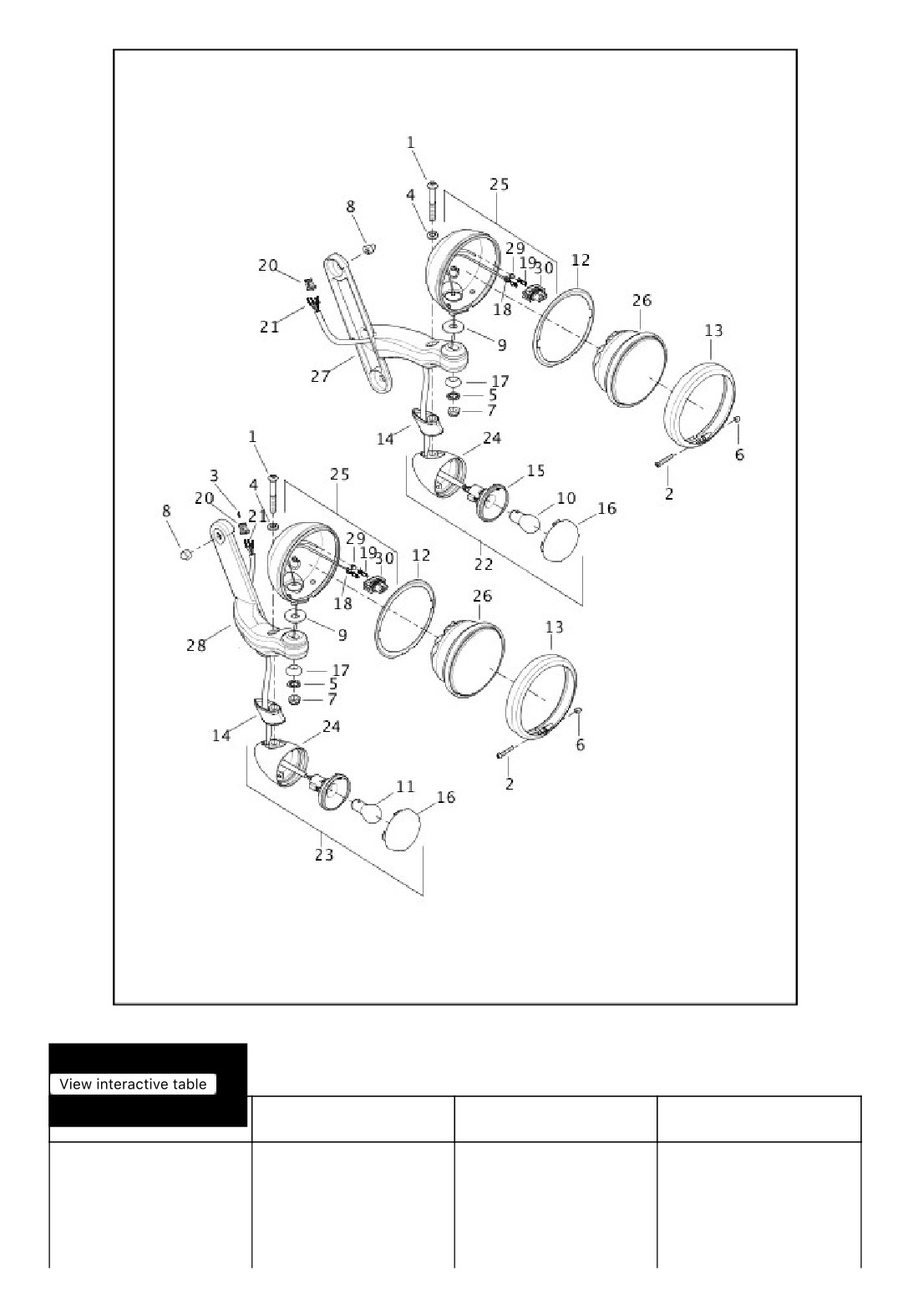

AUXILIARY/FOG LAMPS AND TURN SIGNALS, FRONT -
FLHTCU, FLHTK AND FLHTKL (2 OF 2)
646/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
25
67800254A
HOUSING, auxiliary/fog
FLHTCU, FLHTK, FLHTK
lamp, with 72298-95,
SHRINE, FLHTKL
72356-95, 72910-11,
69200199 and 69200259
(2)
647/956
4/5/2019

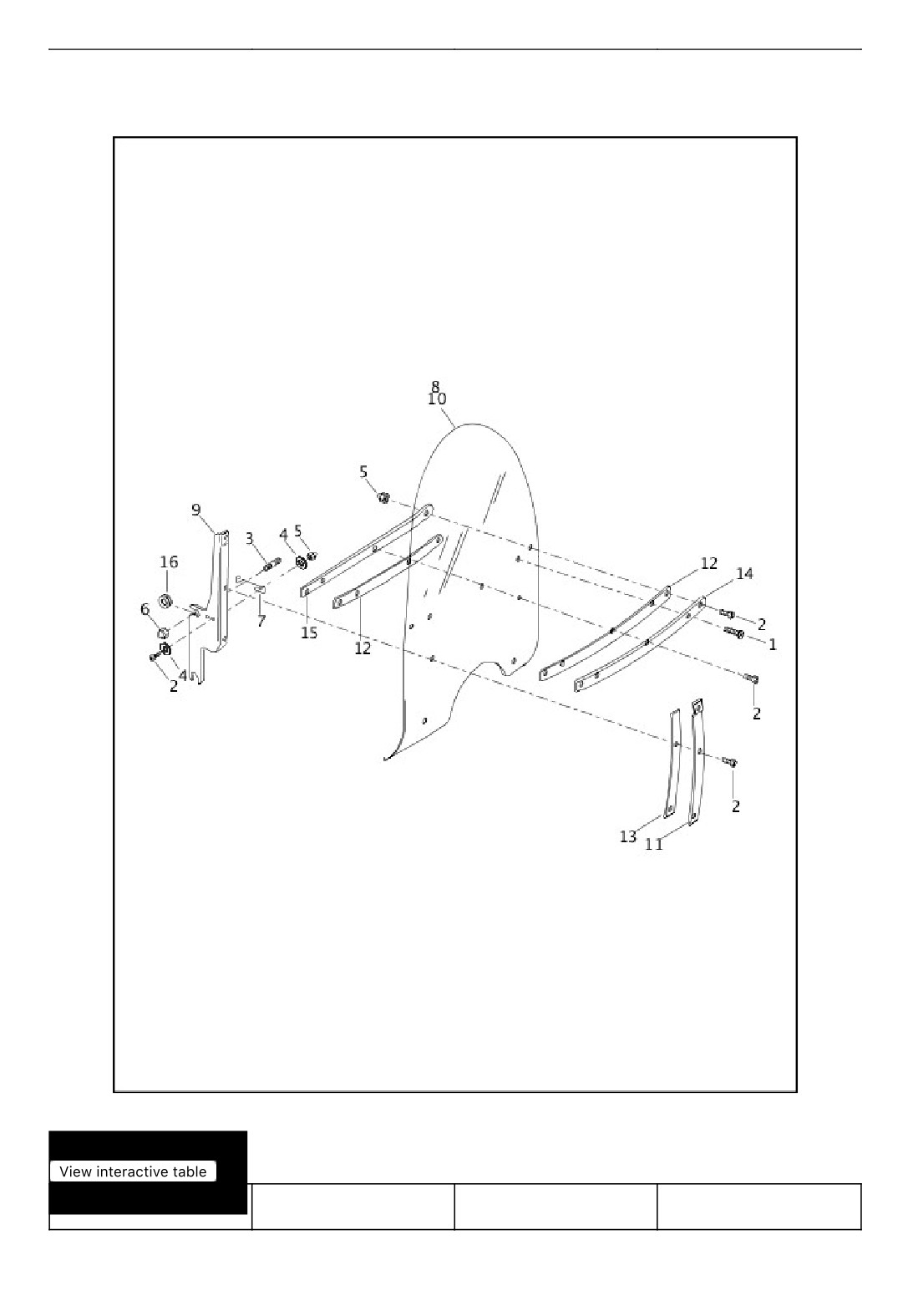

WINDSHIELD - FLHR AND FLHRC
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
648/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
2921A
SCREW (11)
FLHR, FLHRC

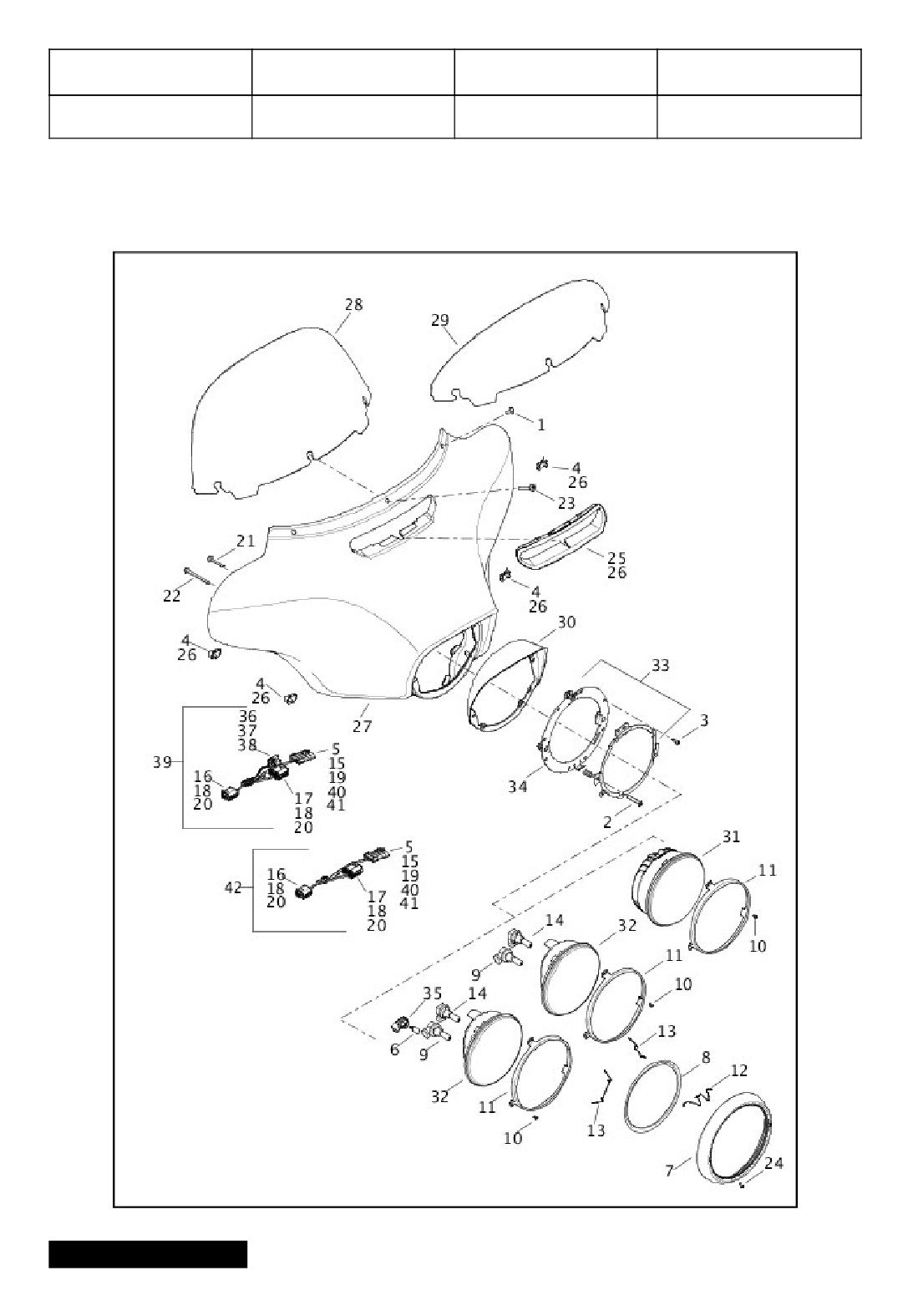

WINDSHIELD, FAIRING AND HEADLAMP - FLHT, FLHTCU,
FLHTK, FLHTKL, FLHX AND FLHXS (2 OF 2)
649/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
28
57400441
WINDSHIELD (clear)
FLHT
(Domestic, Australia)

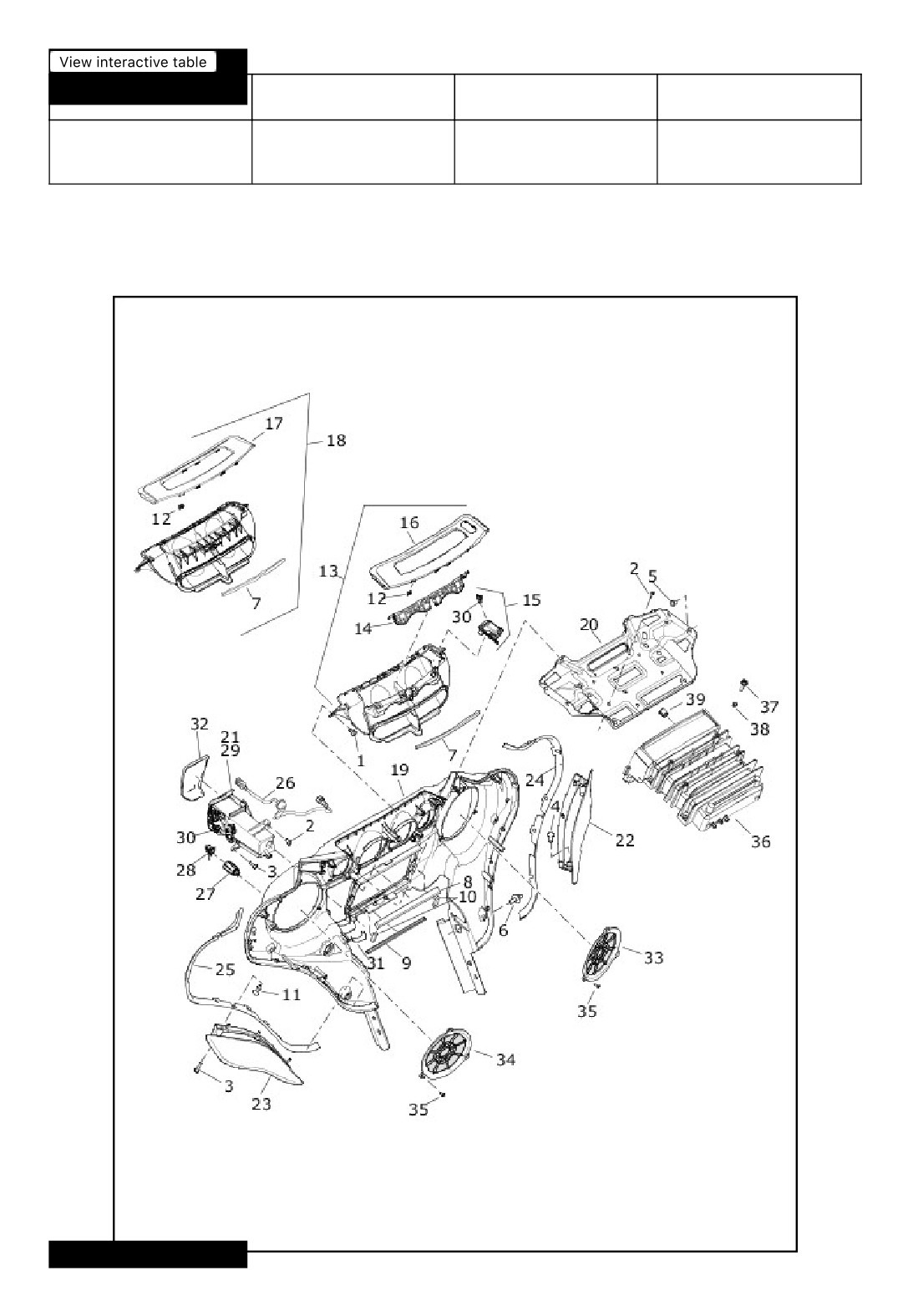

FAIRING, INNER - FLHT, FLHTCU, FLHTK, FLHTKL, FLHX AND
FLHXS (1 OF 3)
650/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
29200087
BEZEL, air duct, inner
FLHT
fairing, with 12200064
18
29200088
AIR DUCT, inner fairing,
FLHT
with 11100038 and
29200087
FAIRING, INNER - FLHT, FLHTCU, FLHTK, FLHTKL, FLHX AND
FLHXS (2 OF 3)
651/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
26
69200031A
WIRE HARNESS, USB
FLHTCU, FLHTK, FLHTK
jumper
SHRINE, FLHTKL, FLHX,
FLHXS
652/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
29
76000107A

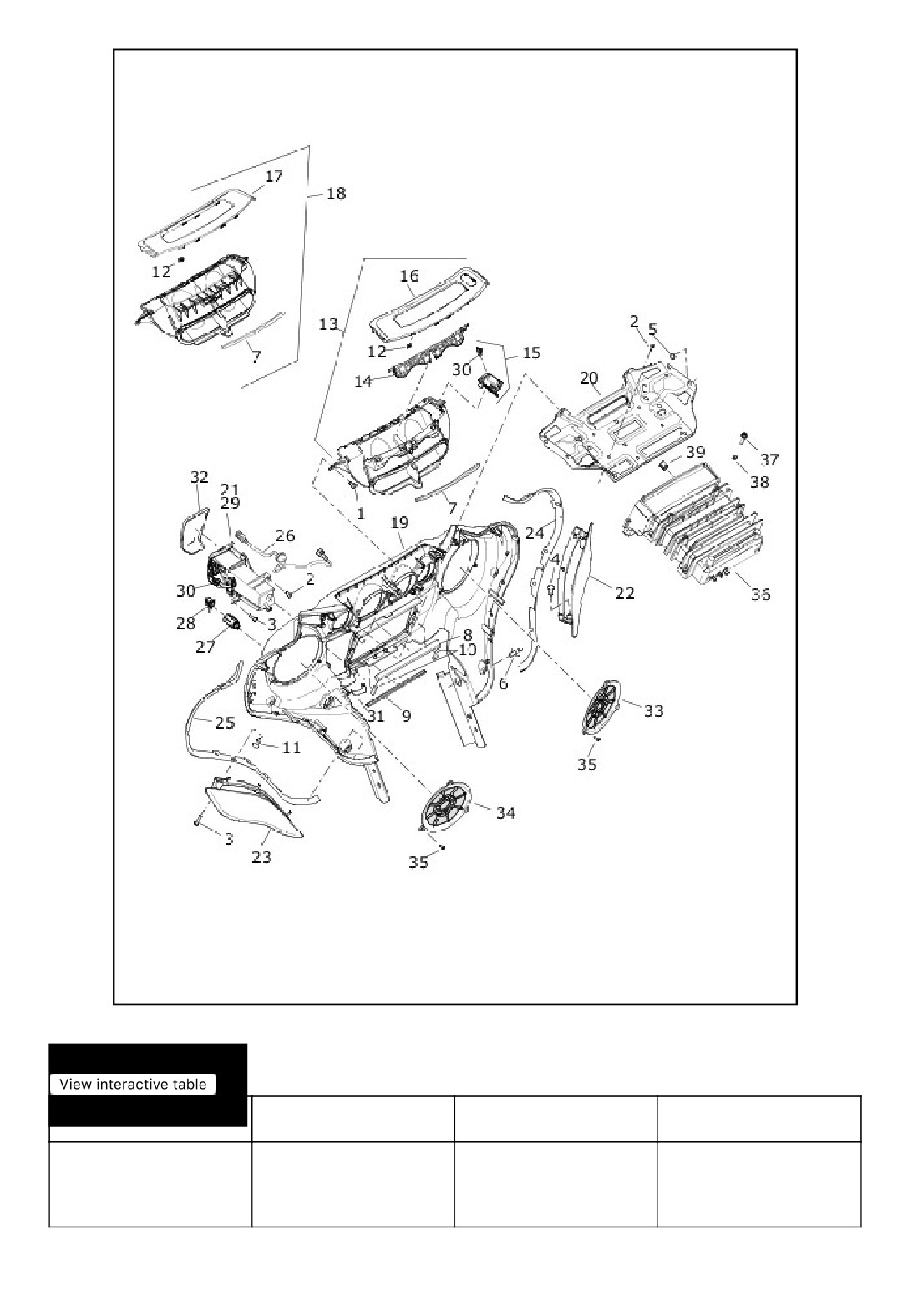

MEDIA COMPARTMENT
FLHTCU, FLHTK, FLHTK
ASSEMBLY, with
SHRINE, FLHTKL, FLHX,
57000299, 69200031A
FLHXS
and 76000127
29
76000944
MEDIA COMPARTMENT
FLHT
ASSEMBLY, with
76000127
36
76000187
GLOVEBOX, with
FLHT
12600070 and 12600071
37
12600070
BOLT (4)
FLHT
38
12600071
RETAINER (4)
FLHT
39
12100154
PLUG
FLHT

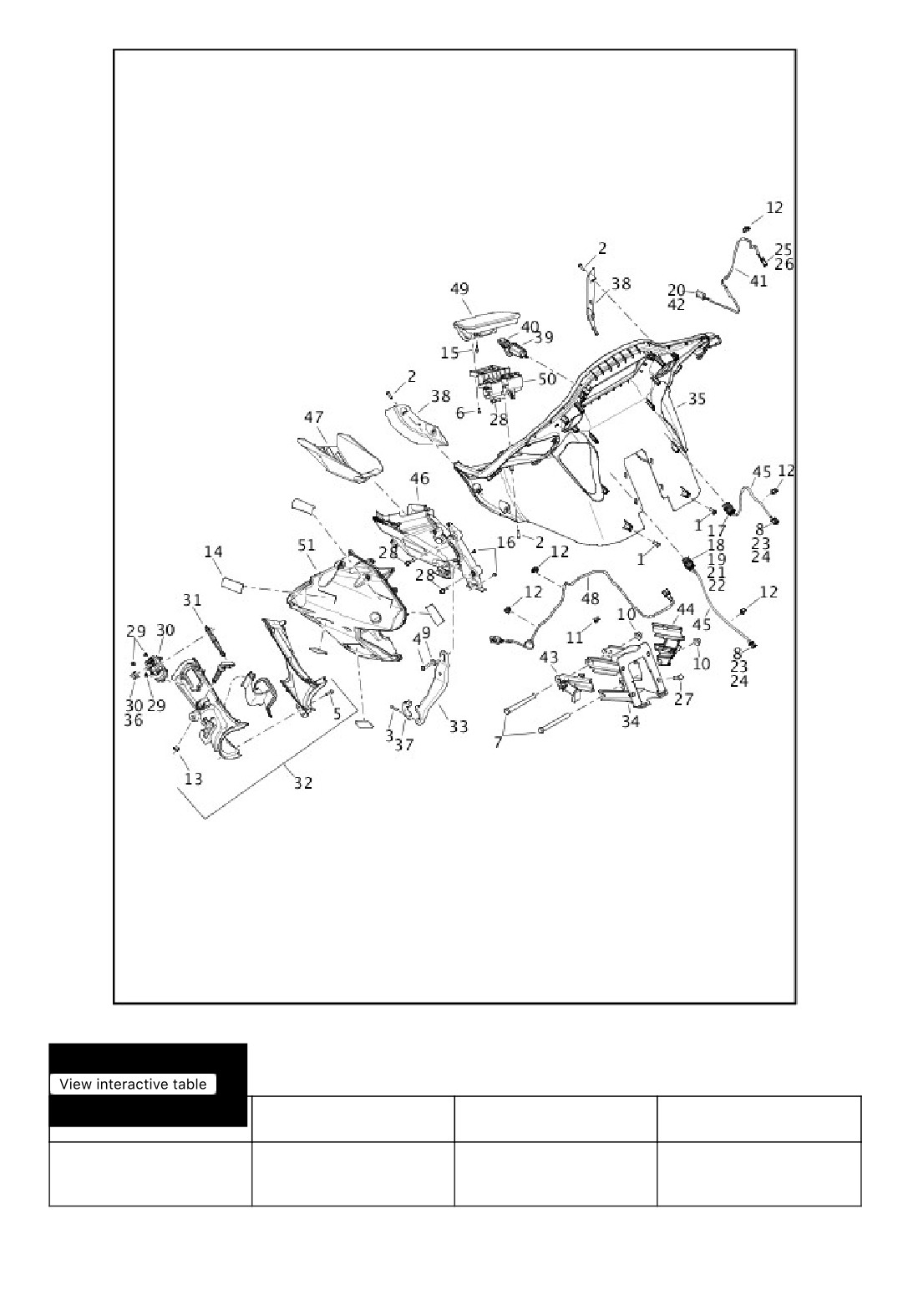

FAIRING, INNER - FLTRU, FLTRX AND FLTRXS (2 OF 2)
653/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
35
57000374DH
INNER FAIRING (vivid
FLTRU, FLTRXS
denim)
654/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
46
76000370A
MEDIA STORAGE
FLTRU, FLTRX, FLTRXS
COMPARTMENT, with
16, 47 and 48 (right)
48
76000374A
USB CABLE ASSEMBLY
FLTRU, FLTRX, FLTRXS

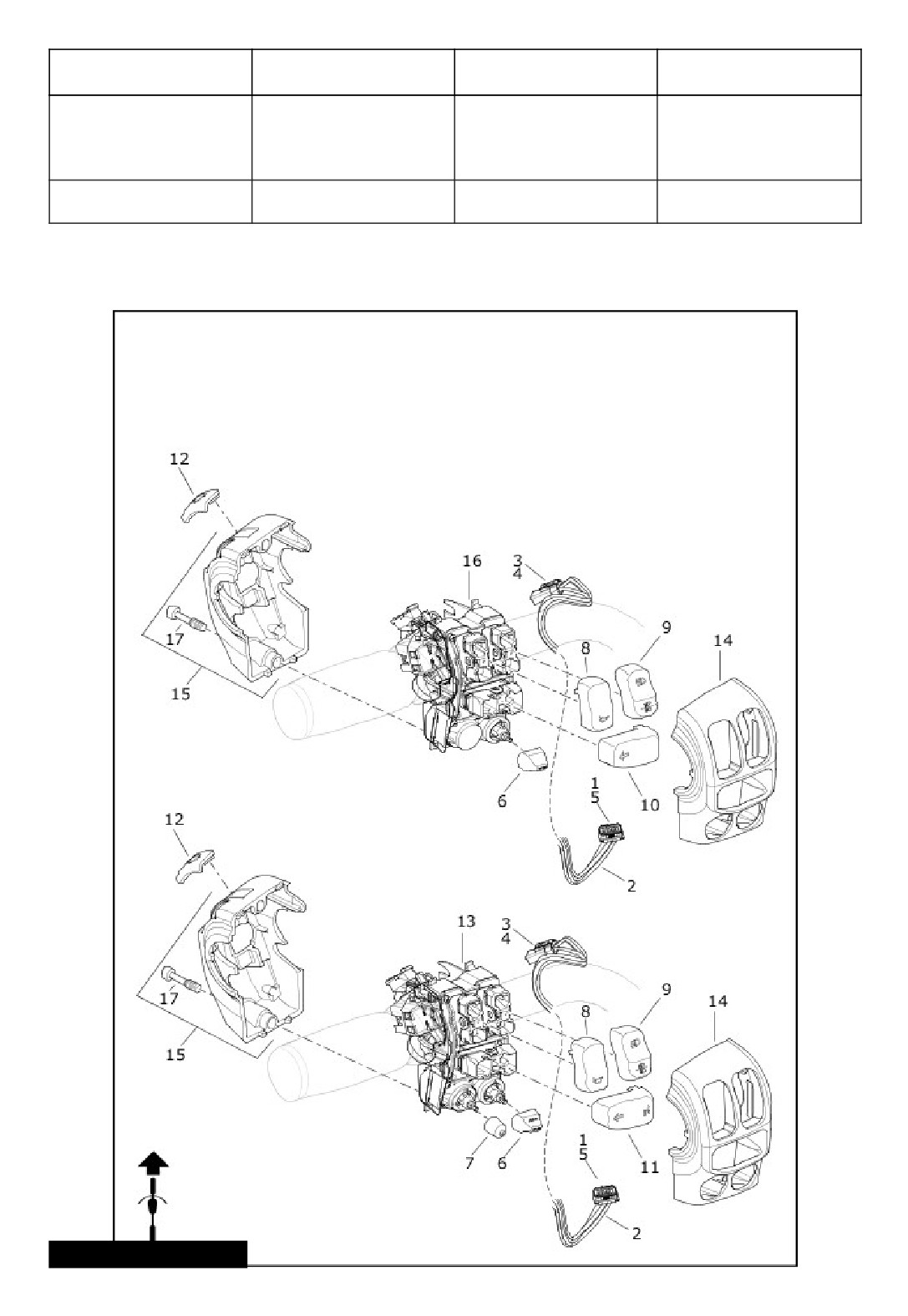

SWITCHES, HANDLEBAR, LEFT - EXCEPT FLHRXS
655/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
13
71500128B
SWITCH PACK, left hand
FLHTCU, FLHTK, FLHTK
control, with 71500044,
SHRINE, FLHTKL, FLHX,
71500045, 71500047,
FLHXS, FLTRU, FLTRX,
71500048 and 71500055
FLTRXS
16
71500419A
SWITCH PACK, left hand
FLHR, FLHRC, FLHT
control, with 71500044,
71500047, 71500048 and
71500053
17
10500008
SCREW (2)
FLHR, FLHRC, FLHT,
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS

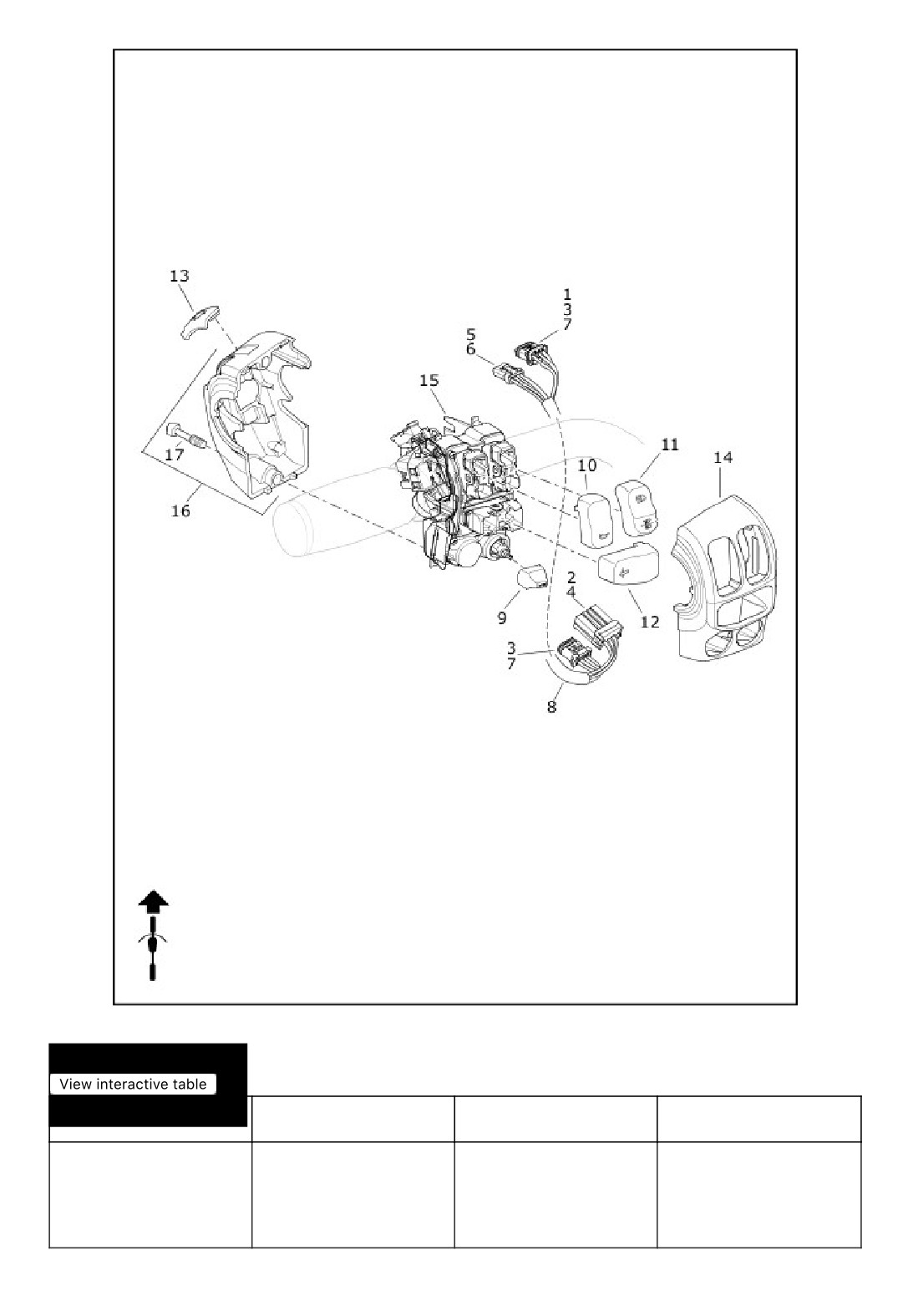

SWITCHES, HANDLEBAR, LEFT - FLHRXS
656/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
15
71500419A
SWITCH PACK, left hand
FLHRXS
control, with 71500044,
71500047, 71500048 and
71500053
657/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
10500008
SCREW (2)
FLHRXS
SWITCHES, HANDLEBAR, RIGHT - EXCEPT FLHRXS (2 OF 2)
658/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
13
71500478
SWITCH CAP, right turn
FLHTK, FLHTK SHRINE,
signal and back
FLHTKL, FLHXS, FLTRU,
FLTRXS
13
71500478
SWITCH CAP, right turn
FLHTCU, FLHX, FLTRX
signal and back (used
with BOOM!™ BOX GTS)
14
71500127C
SWITCH PACK, right
FLHR, FLHRC, FLHT
hand control, with
71500049, 71500050 and
71500057
15
71500501
SWITCH PACK, right
FLHTK, FLHTK SHRINE,
hand control, with
FLHTKL, FLHXS, FLTRU,
71500046, 71500049,
FLTRXS
71500050 and 71500478
15
71500501
SWITCH PACK, right
FLHTCU, FLHX, FLTRX
hand control, with
71500046, 71500049,
71500050 and 71500478
(used with BOOM!™
BOX GTS)
15
71500129C
SWITCH PACK, right
FLHTCU, FLHX, FLTRX
hand control, with
71500046, 71500049,
71500050 and 71500063
(used with BOOM!™
BOX 4.3)
18
10500008
SCREW (2)
FLHR, FLHRC, FLHT,
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
SWITCHES, HANDLEBAR, RIGHT - FLHRXS
