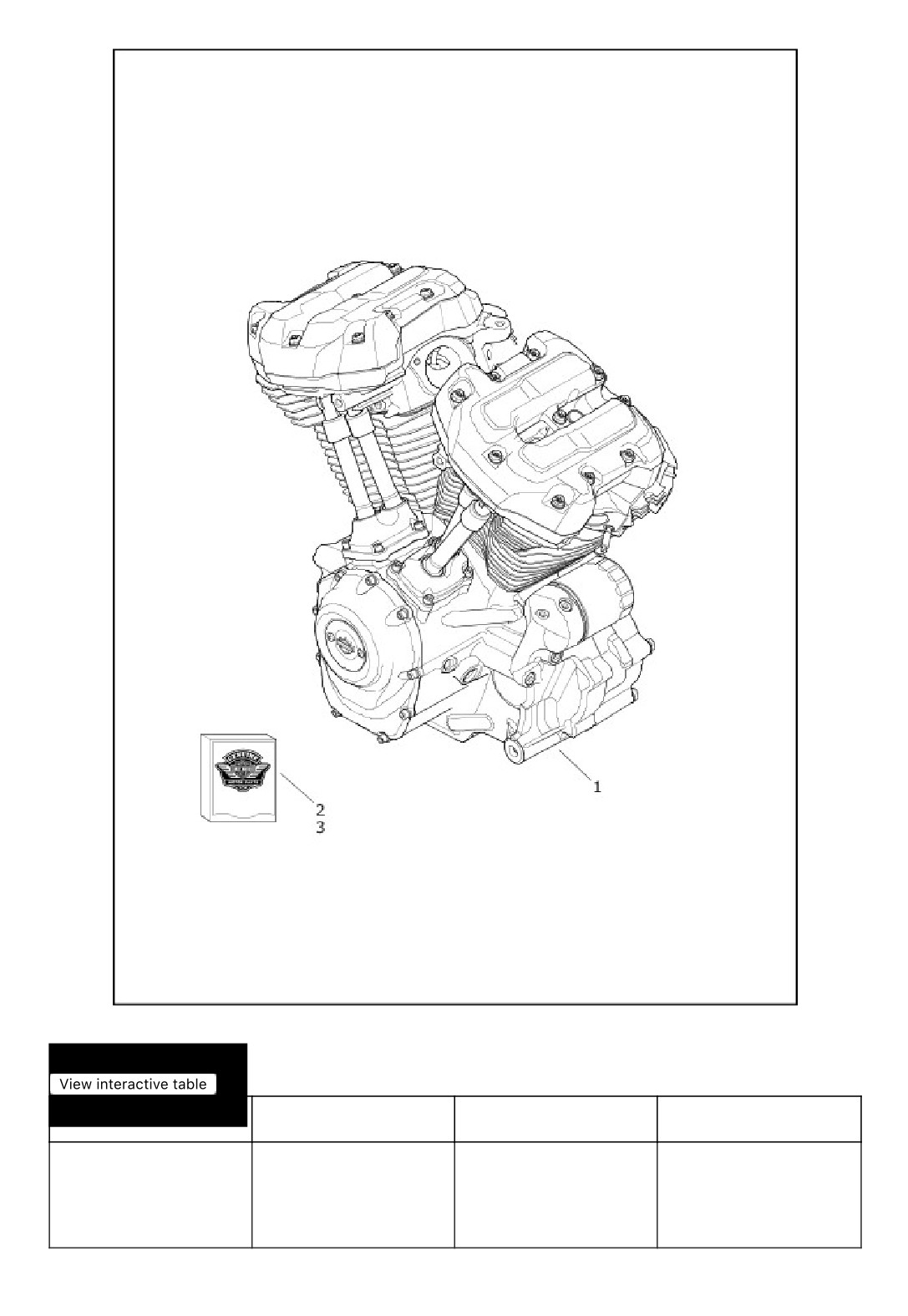

Harley Davidson Parts Catalog 2019: touring models - page 21
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
16200362
ENGINE ASSEMBLY,
FLHR, FLHRC, FLHT,
complete (Air-Cooled)
FLHTCU, FLHX, FLTRX
(Milwaukee-eight™ 107)
(chrome)
600/956
4/5/2019

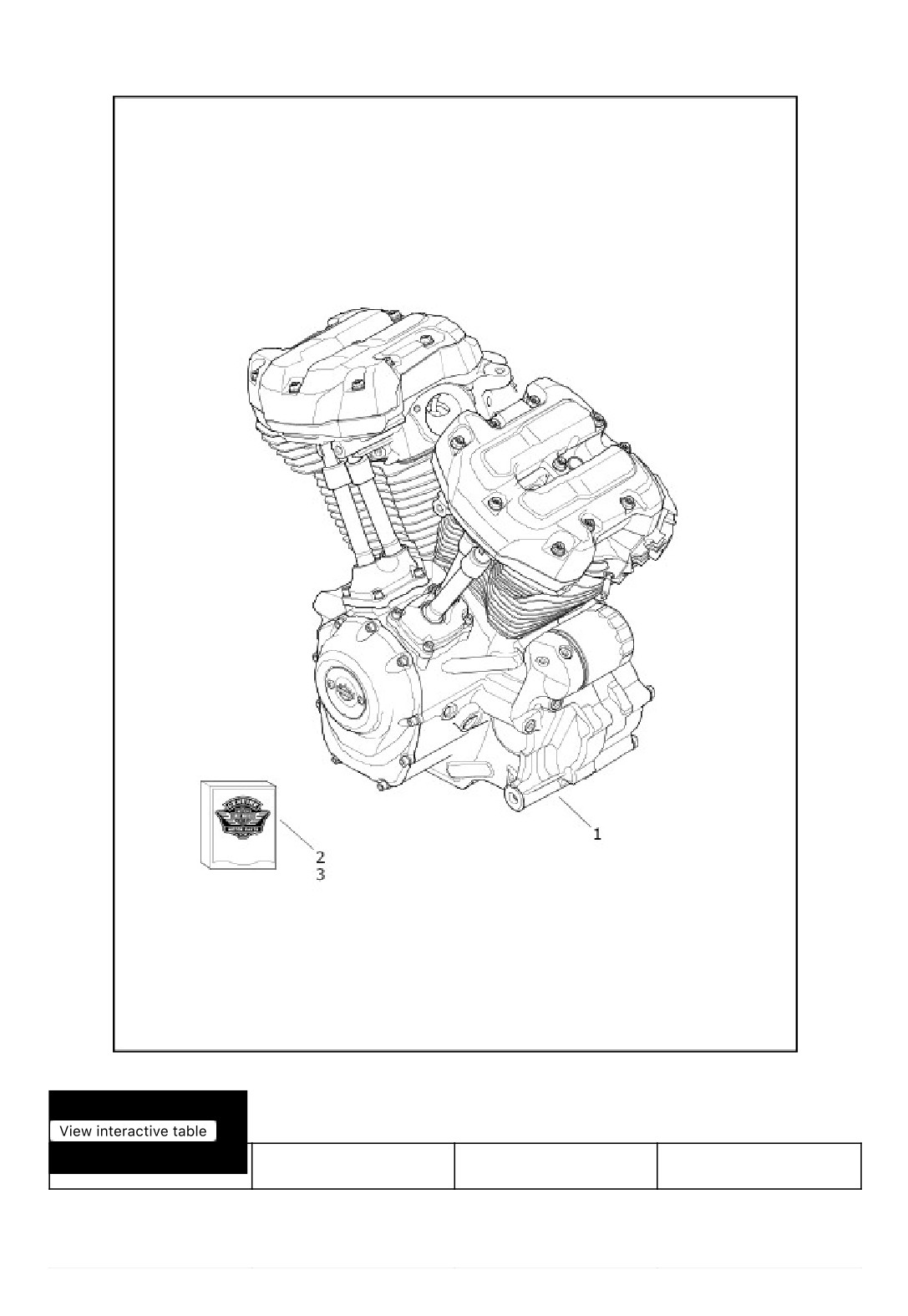

ENGINE ASSEMBLY - Milwaukee-eight™ 114
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
601/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
16200364
ENGINE ASSEMBLY,
FLHTK, FLHTK SHRINE,
complete (Twin-Cooled)
FLHTKL, FLTRU
(Milwaukee-eight™ 114)
(chrome)
1
16200365
ENGINE ASSEMBLY,
FLHRXS, FLHXS, FLTRXS
complete (Air-Cooled)
(Milwaukee-eight™ 114)
(black)
2
16200582
ENGINE ASSEMBLY,
FLHRXS, FLHTK, FLHTK
shortblock, with
SHRINE, FLHTKL,
91800064, crankcase,
FLHXS, FLTRU, FLTRXS
flywheel assembly,
camshaft support plate
assembly, balancer and
cylinder studs (See Note)

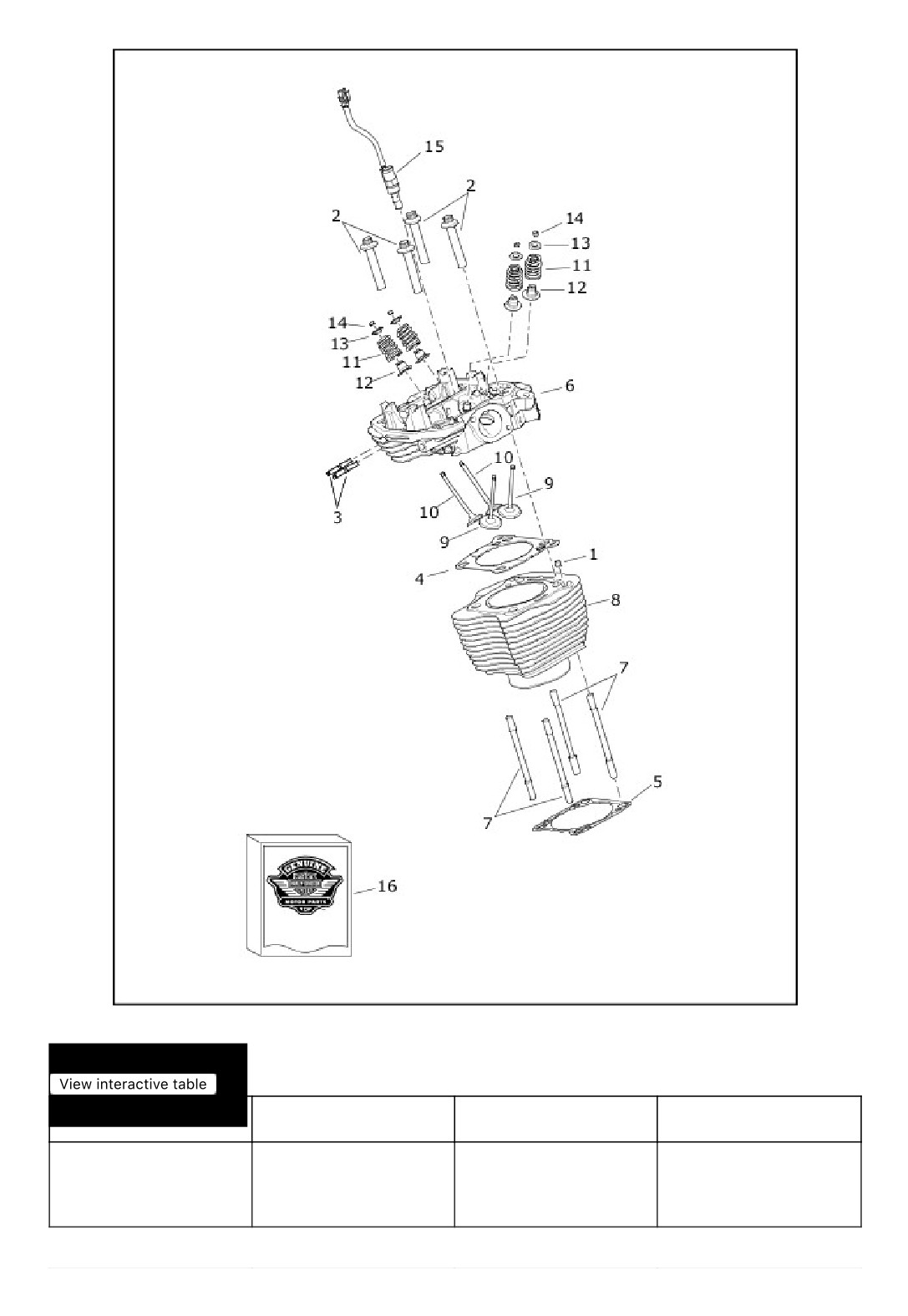

CYLINDERS, HEADS AND VALVES
602/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
4
16500305
GASKET, cylinder head
FLHRXS, FLHTK, FLHTK
(4.016 in) (2)
SHRINE, FLHTKL,
FLHXS, FLTRU, FLTRXS
603/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
8
16800075
CYLINDER, front, with
FLHRXS, FLHTK, FLHTK
16589-99A (4.016 in)
SHRINE, FLHTKL,
(black)
FLHXS, FLTRU, FLTRXS
8
16800080
CYLINDER, rear, with
FLHRXS, FLHTK, FLHTK
16589-99A (4.016 in)
SHRINE, FLHTKL,
(black)
FLHXS, FLTRU, FLTRXS
15
18400073B
SOLENOID, auto
ALL
compression release
(ACR) (2)

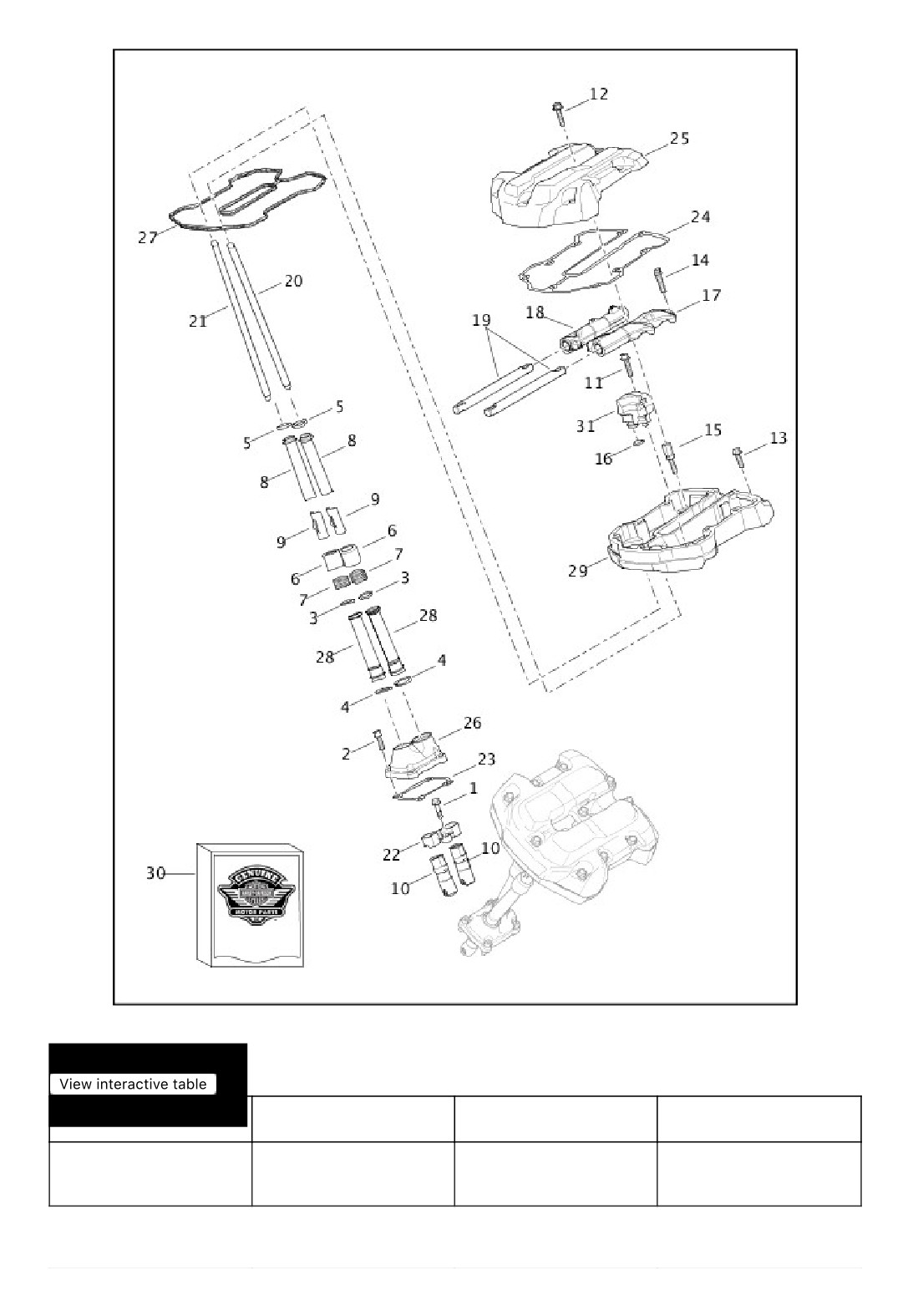

ROCKER ARM ASSEMBLY AND PUSHRODS
604/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
24
25700372B
GASKET, rocker arm
ALL
cover (2)
605/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
25
25700693
ROCKER COVER
FLHT
(polished) (2)
29
25700691
ROCKER COVER, lower
FLHT
(polished) (2)

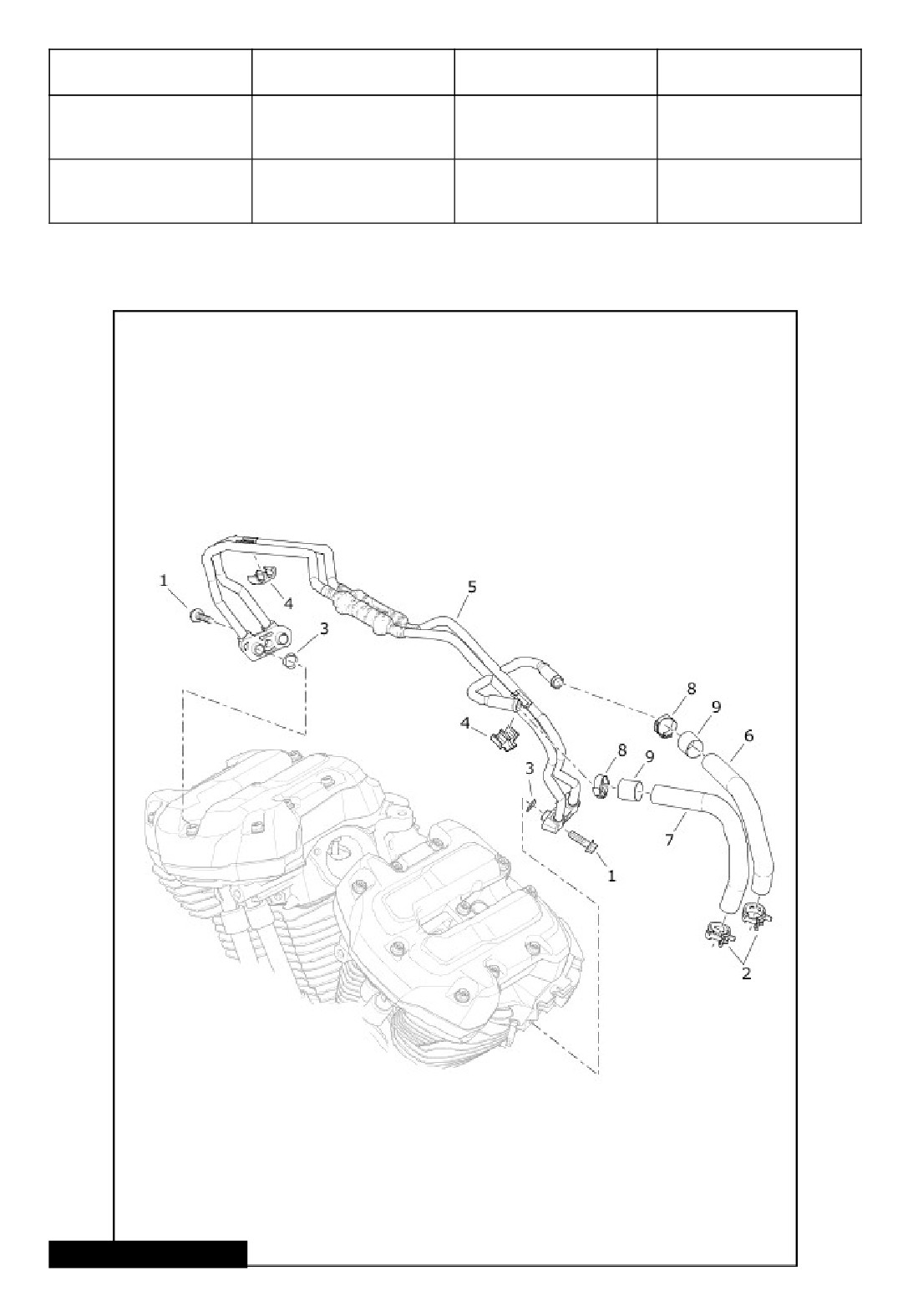

COOLING SYSTEM, ENGINE, TWIN-COOLED™
606/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
6
26900144
HOSE
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
7
26900145
HOSE
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
8
10800109
CLAMP (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
9
10800111
SLEEVE (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU

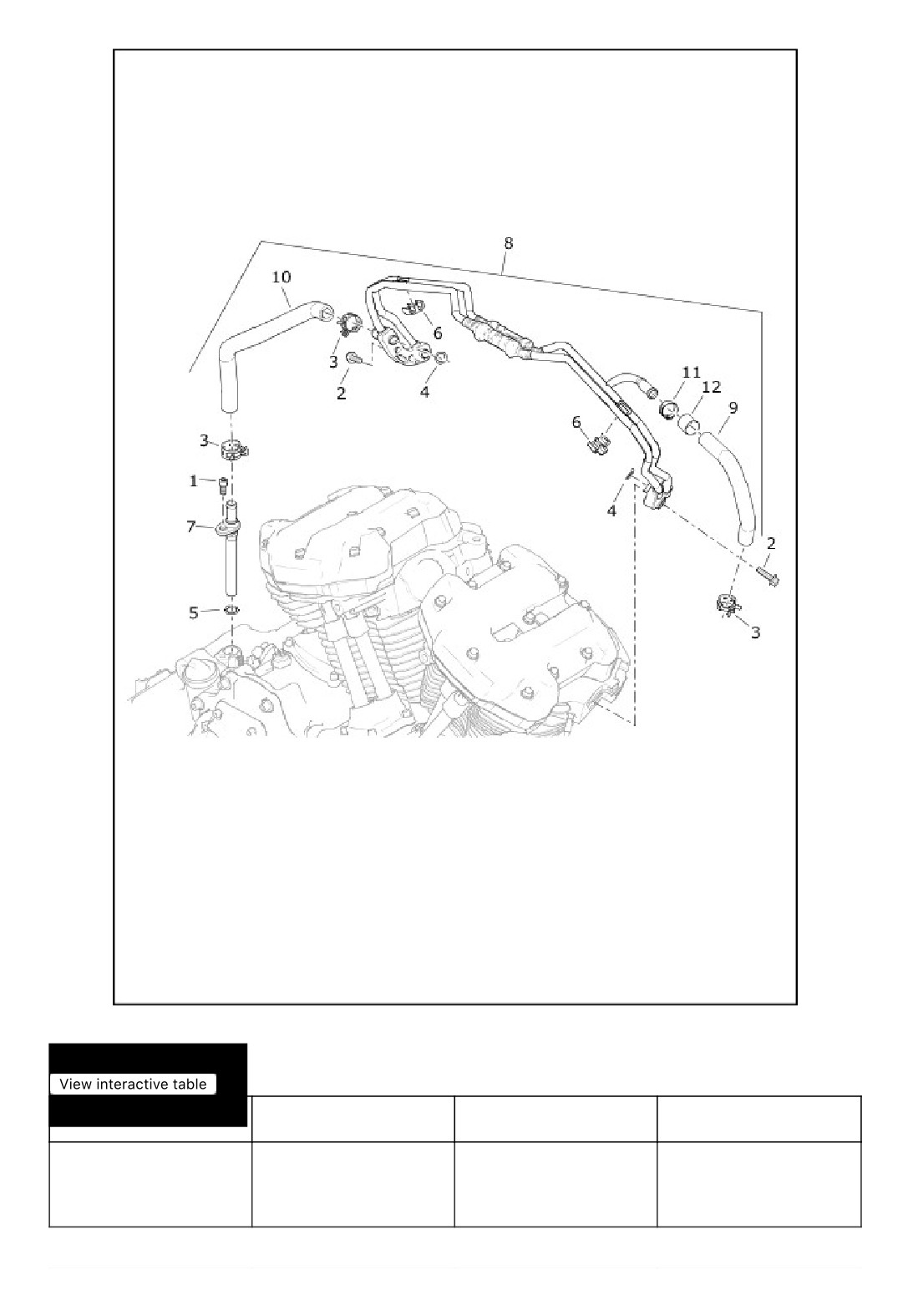

COOLING SYSTEM, ENGINE, AIR-COOLED
607/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
9
26900144
HOSE
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
608/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
10
62700161
HOSE
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
11
10800109
CLAMP
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS
12
10800111
SLEEVE
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHX,
FLHXS, FLTRX, FLTRXS

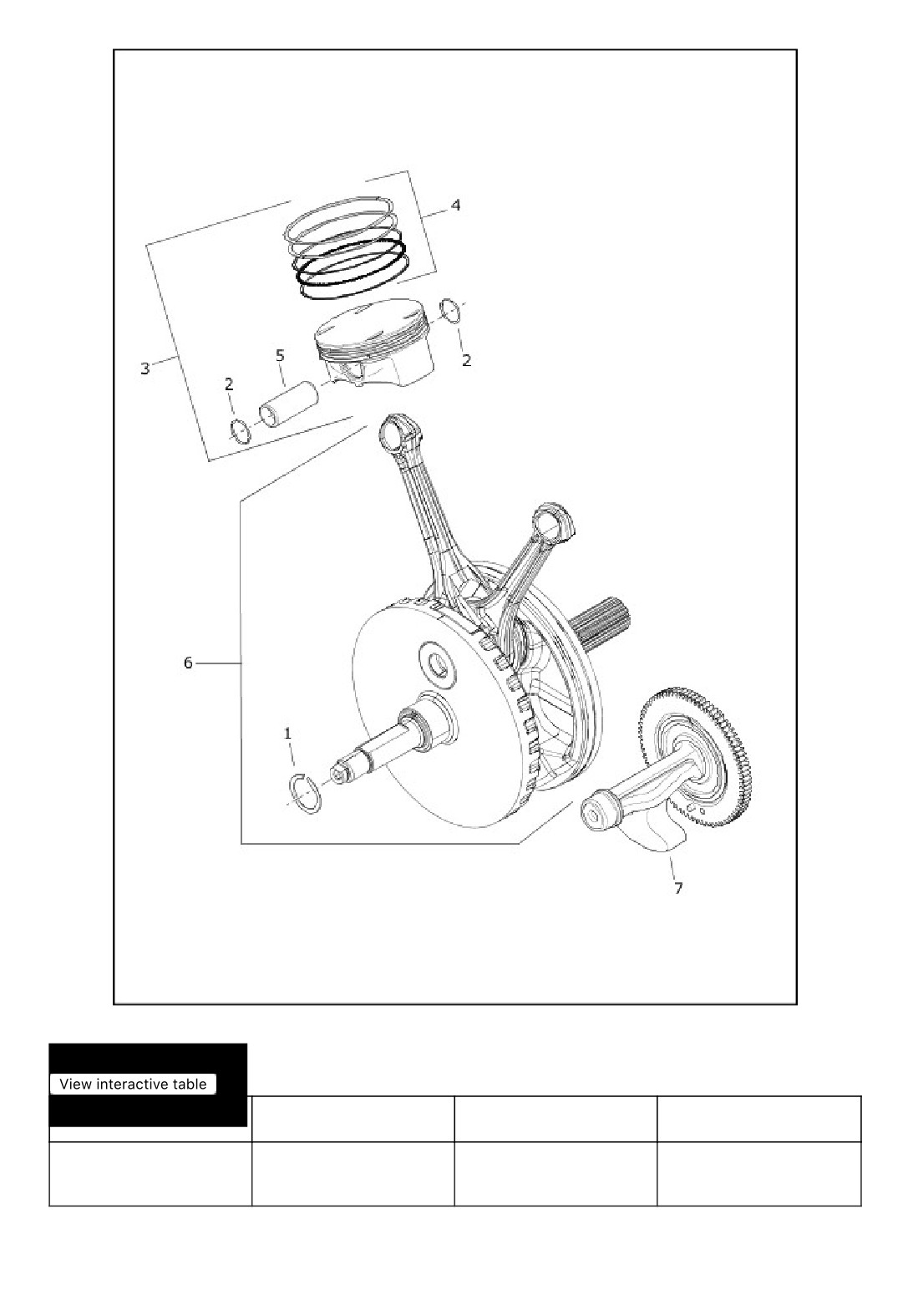

PISTONS AND FLYWHEEL ASSEMBLY - Milwaukee-eight™
107
609/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
6
24100057A
FLYWHEEL ASSEMBLY
FLHR, FLHRC, FLHT,
KIT, with 11177A
FLHTCU, FLHX, FLTRX
610/956
4/5/2019

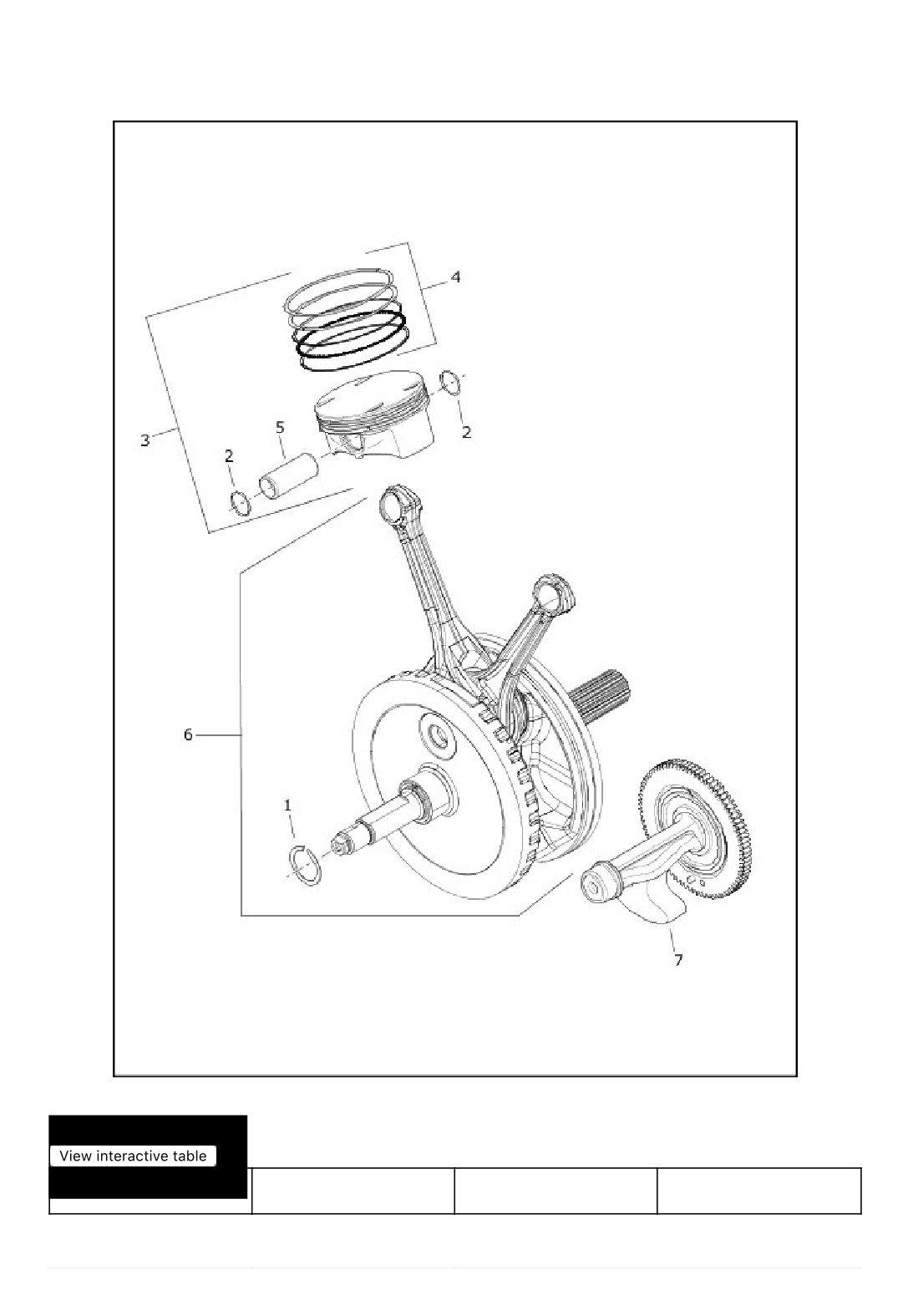

PISTONS AND FLYWHEEL ASSEMBLY - Milwaukee-eight™
114
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
611/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
3
21900048
PISTON AND RINGS
FLHRXS, FLHTK, FLHTK
ASSEMBLY, with 22097-
SHRINE, FLHTKL,
99, 22000061 and
FLHXS, FLTRU, FLTRXS
22100006 (4.016 in) (2)
4
22000061
PISTON RING SET (4.016
FLHRXS, FLHTK, FLHTK
in) (2)
SHRINE, FLHTKL,
FLHXS, FLTRU, FLTRXS
6
24100045A
FLYWHEEL ASSEMBLY
FLHRXS, FLHTK, FLHTK
KIT, with 11177A
SHRINE, FLHTKL,
FLHXS, FLTRU, FLTRXS

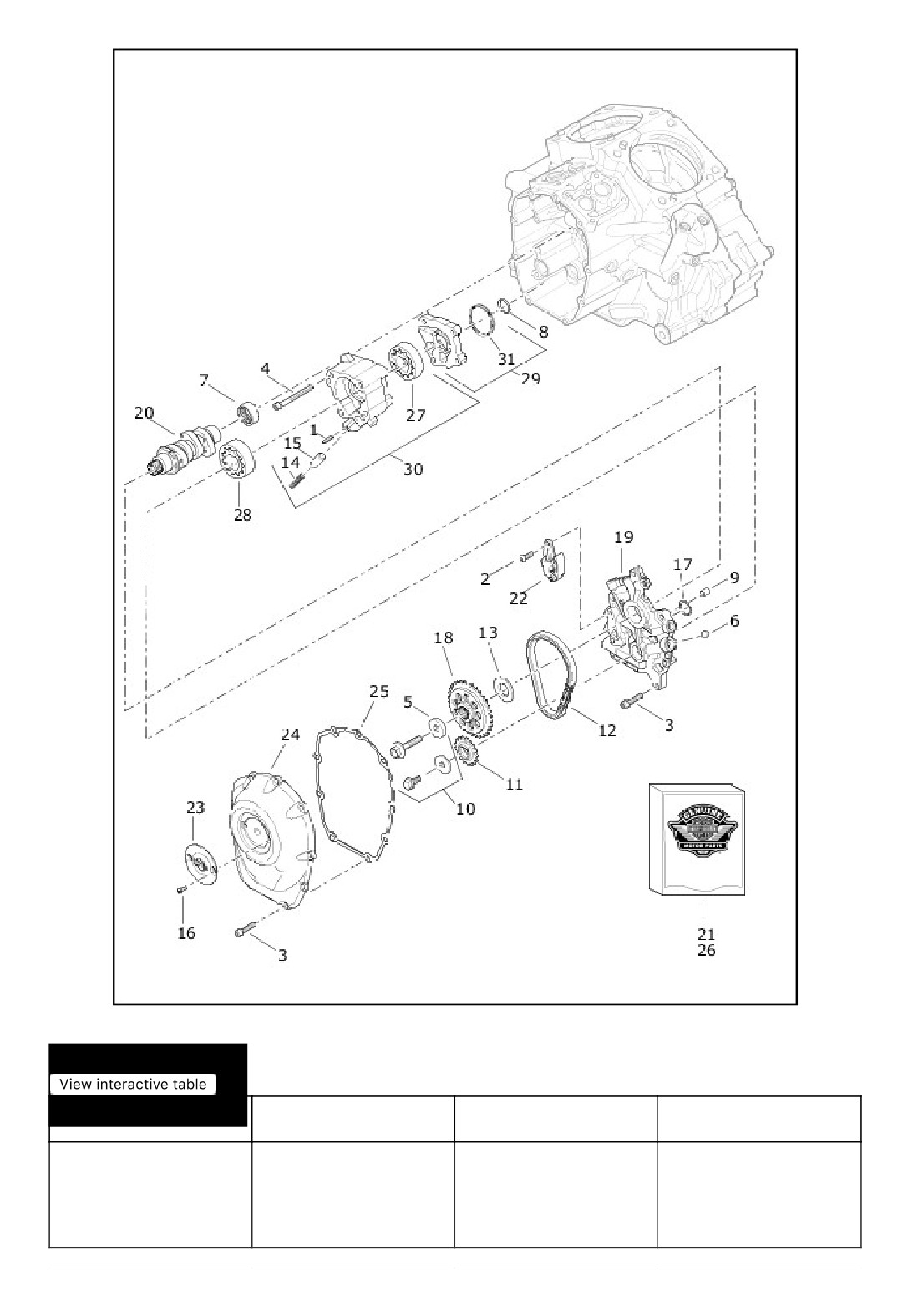

CAMSHAFTS AND CAMSHAFT COVER (2 OF 2)
612/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
23
25600078
COVER, timer cover
FLHR, FLHRC, FLHRXS,
(black)
FLHT, FLHTCU, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
613/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
23
25600110
COVER, timer cover
FLHTK, FLHTK SHRINE,
FLHTKL
24
25700698
CAMSHAFT COVER
FLHT
(polished)
29
62400206
COVER, oil pump
ALL
assembly, with 62400205
31
62400205
OIL SEAL
ALL

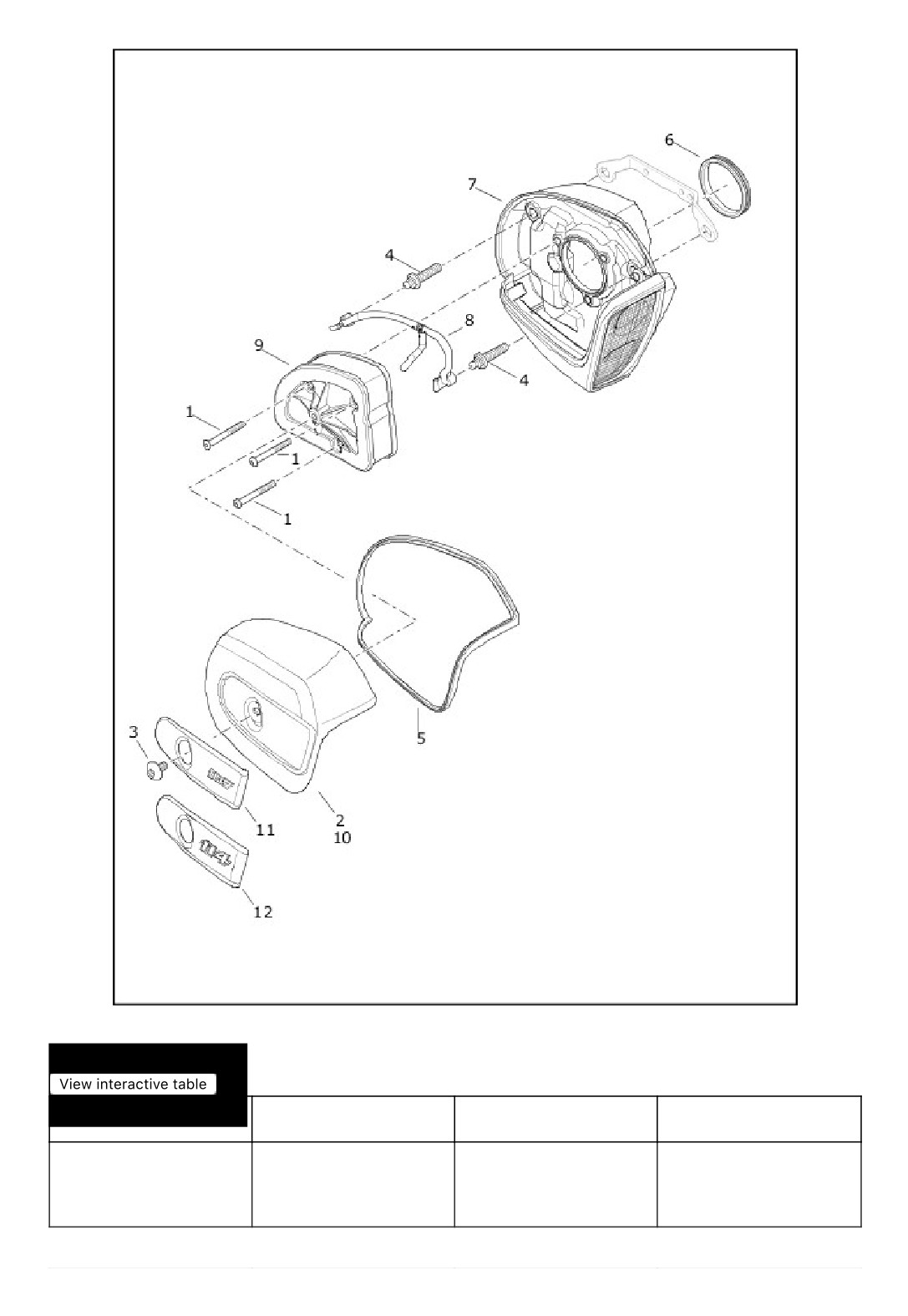

AIR CLEANER
614/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
14001799
LABEL, air cleaner
FLHR, FLHRXS, FLHTK,
warning (China)
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
615/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
10
29000301
COVER KIT, with
FLHR, FLHRC, FLHTCU,
14001799 (chrome)
FLHTK, FLHTK SHRINE,
(China)
FLHTKL, FLHX, FLTRU,
FLTRX
10
29000302
COVER KIT, with
FLHRXS, FLHXS, FLTRXS
14001799 (gloss black)
(China)
12
61300934
INSERT, cover
FLTRU
12
61300935
INSERT, cover
FLHTK, FLHTK SHRINE,
FLHTKL
12
61300936
INSERT, cover
FLHRXS, FLHXS, FLTRXS

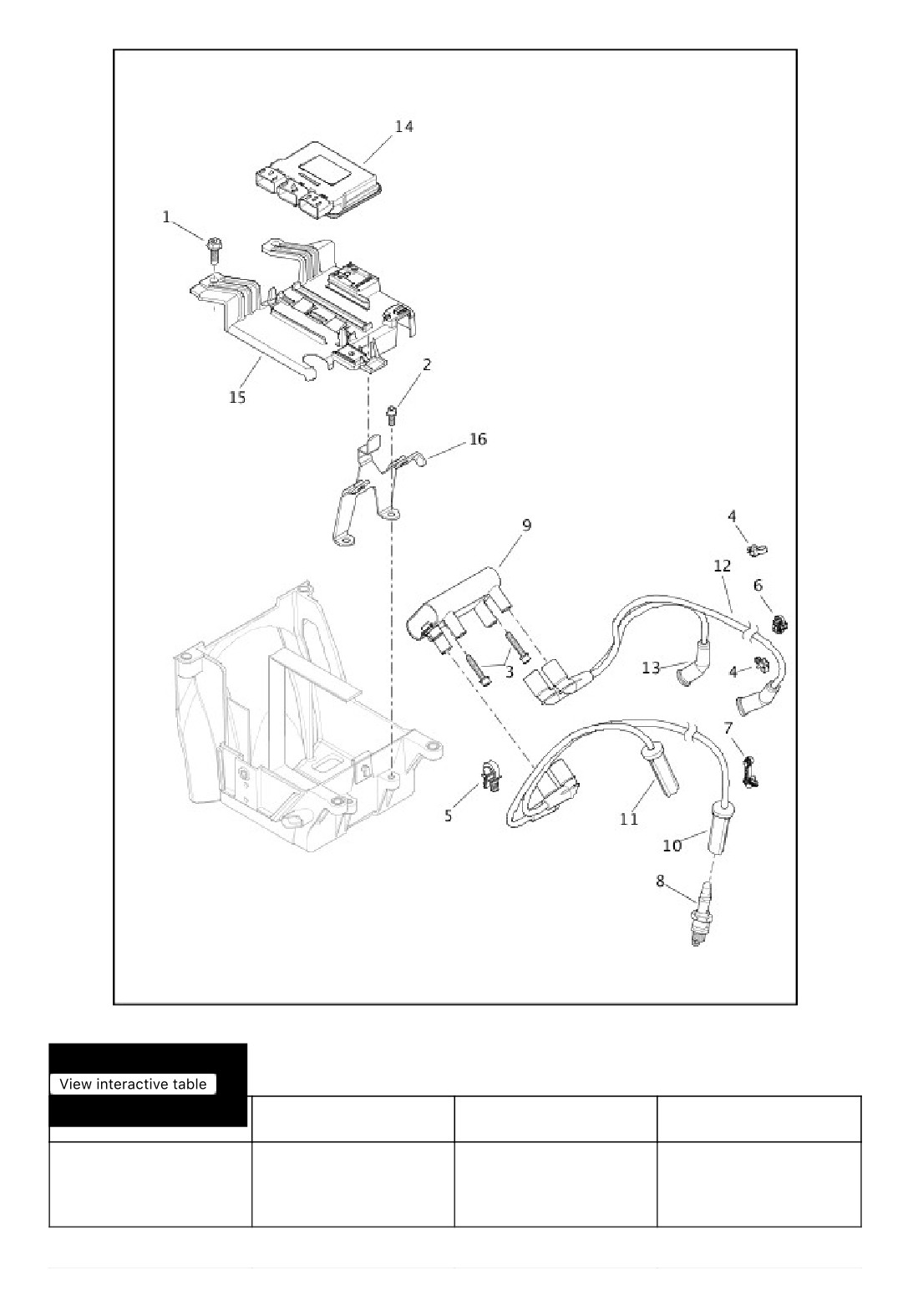

ELECTRONIC CONTROL MODULE (ECM) AND COIL
616/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
10
31600018B
SPARK PLUG CABLE,
ALL
right front cylinder, with
10177 and 12200172
617/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
14
41000599
ELECTRONIC CONTROL
FLHRXS, FLHTK, FLHTK
MODULE (ECM),
SHRINE, FLHTKL,
Requires Digital
FLHXS, FLTRU, FLTRXS
Technician II
programming.
14
41000668
ELECTRONIC CONTROL
FLHR, FLHRC, FLHT,
MODULE (ECM),
FLHTCU, FLHX, FLTRX
Requires Digital
Technician II
programming.

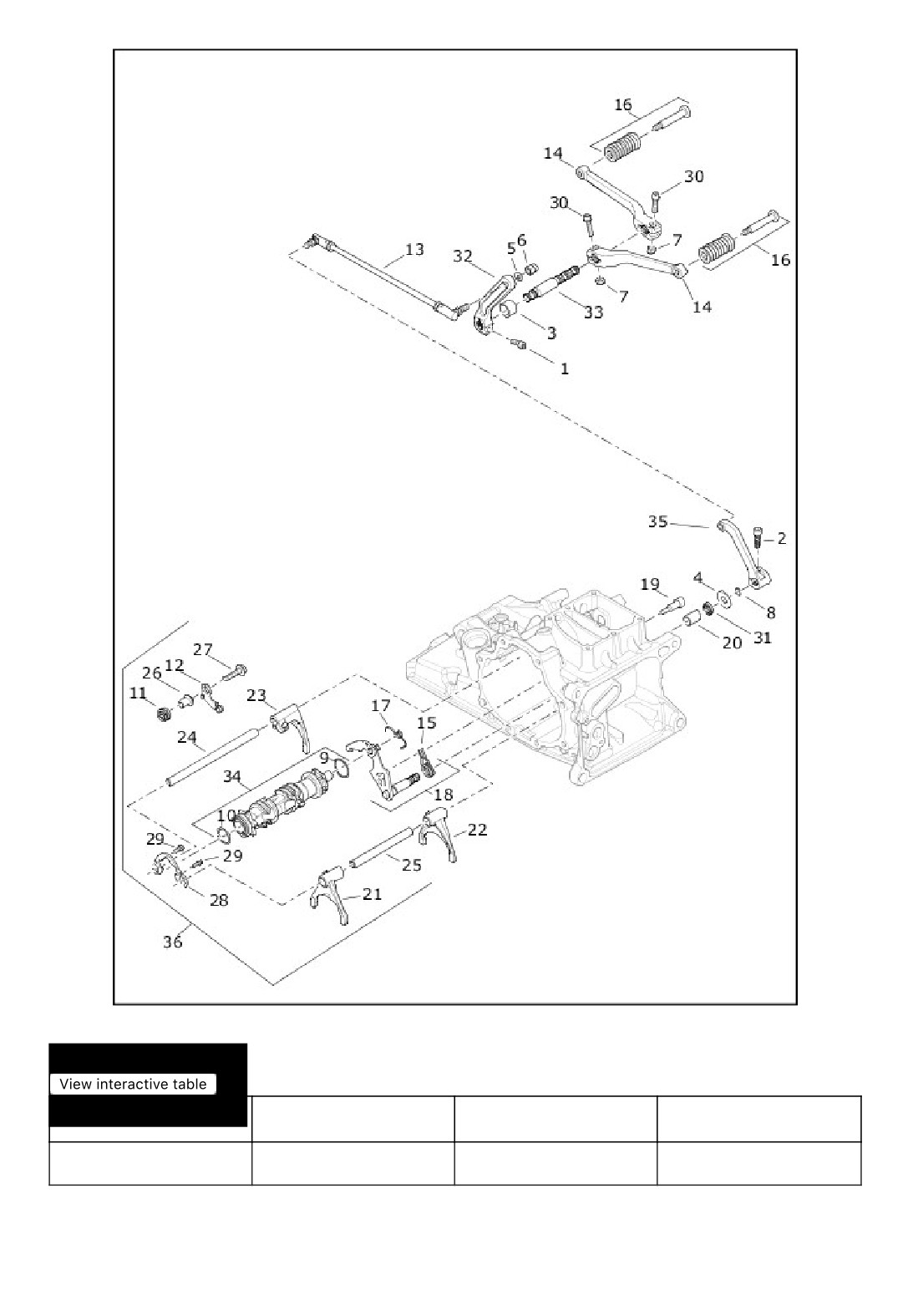

SHIFTER, GEAR
618/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
3
33600304
SPACER
FLHT

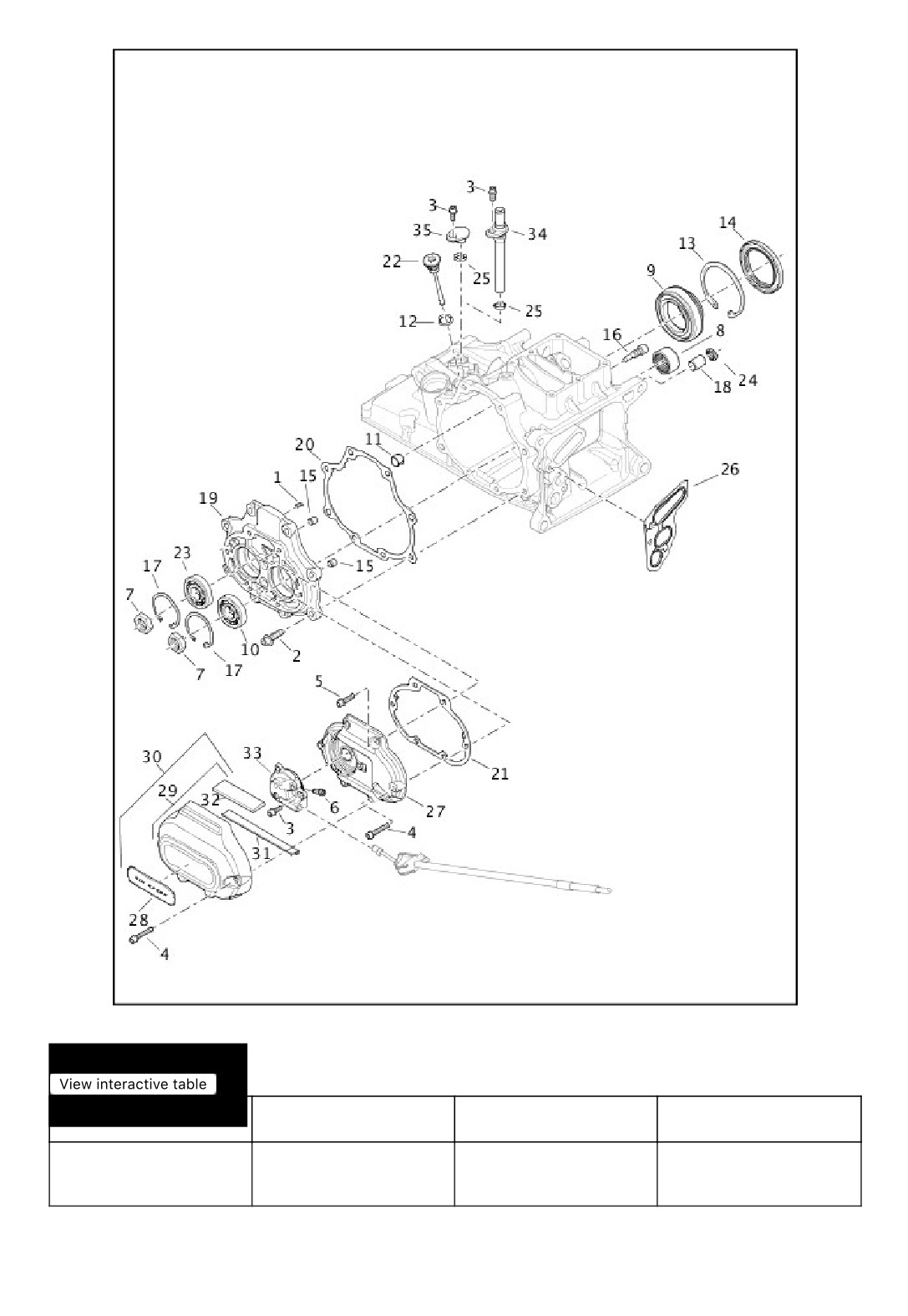

TRANSMISSION BEARINGS AND COVERS
619/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
33
37200131B
SECONDARY CLUTCH
ALL
ACTUATOR, with 4890
620/956
4/5/2019

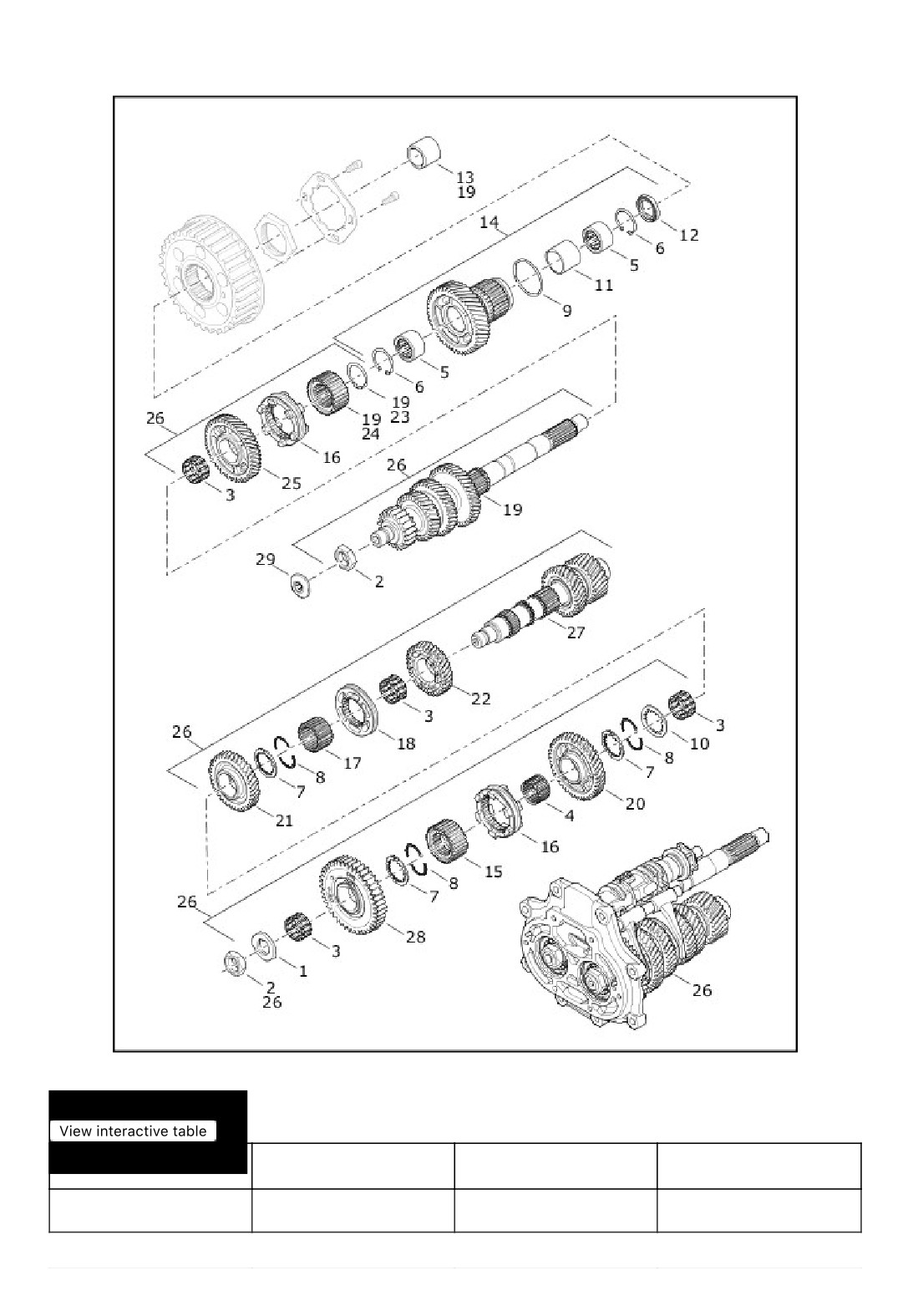

TRANSMISSION GEARS
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
5
8042A
BEARING, needle (2)
ALL
621/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
14
35122-06A
GEAR ASSEMBLY, driven
ALL
output, with 8042,
10991A, 11201, 11599A
and 12077
29
36300026
OIL DEFLECTOR
ALL

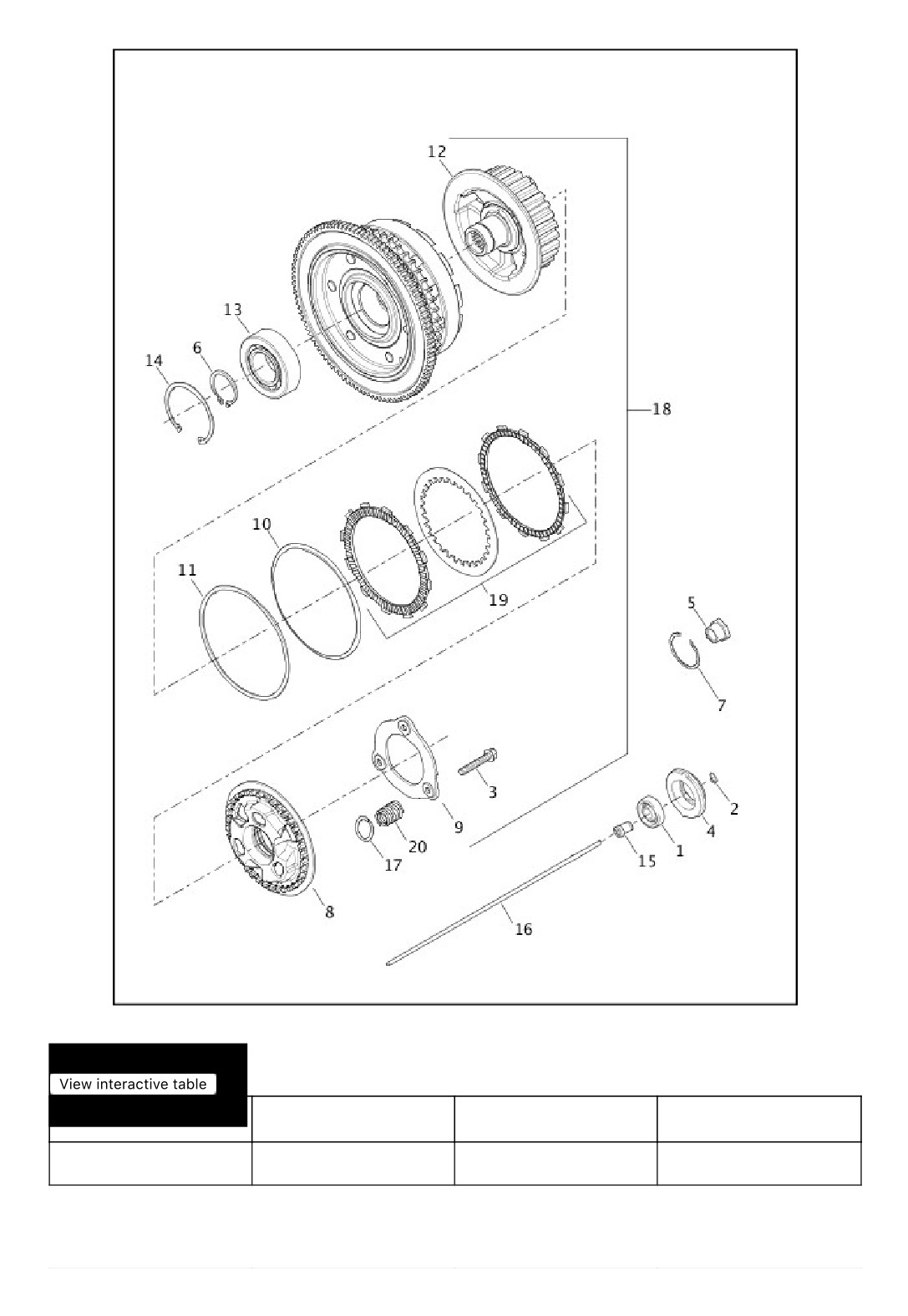

CLUTCH
622/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
11
37000295
SEAT, damper-spring
ALL
623/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
18
37000254A
CLUTCH ASSEMBLY,
ALL
complete, with 3, 6, 8, 9,
10, 11, 12, 13, 14, 17, 19
and 20
20
37000270A
COIL SPRING (3)
ALL

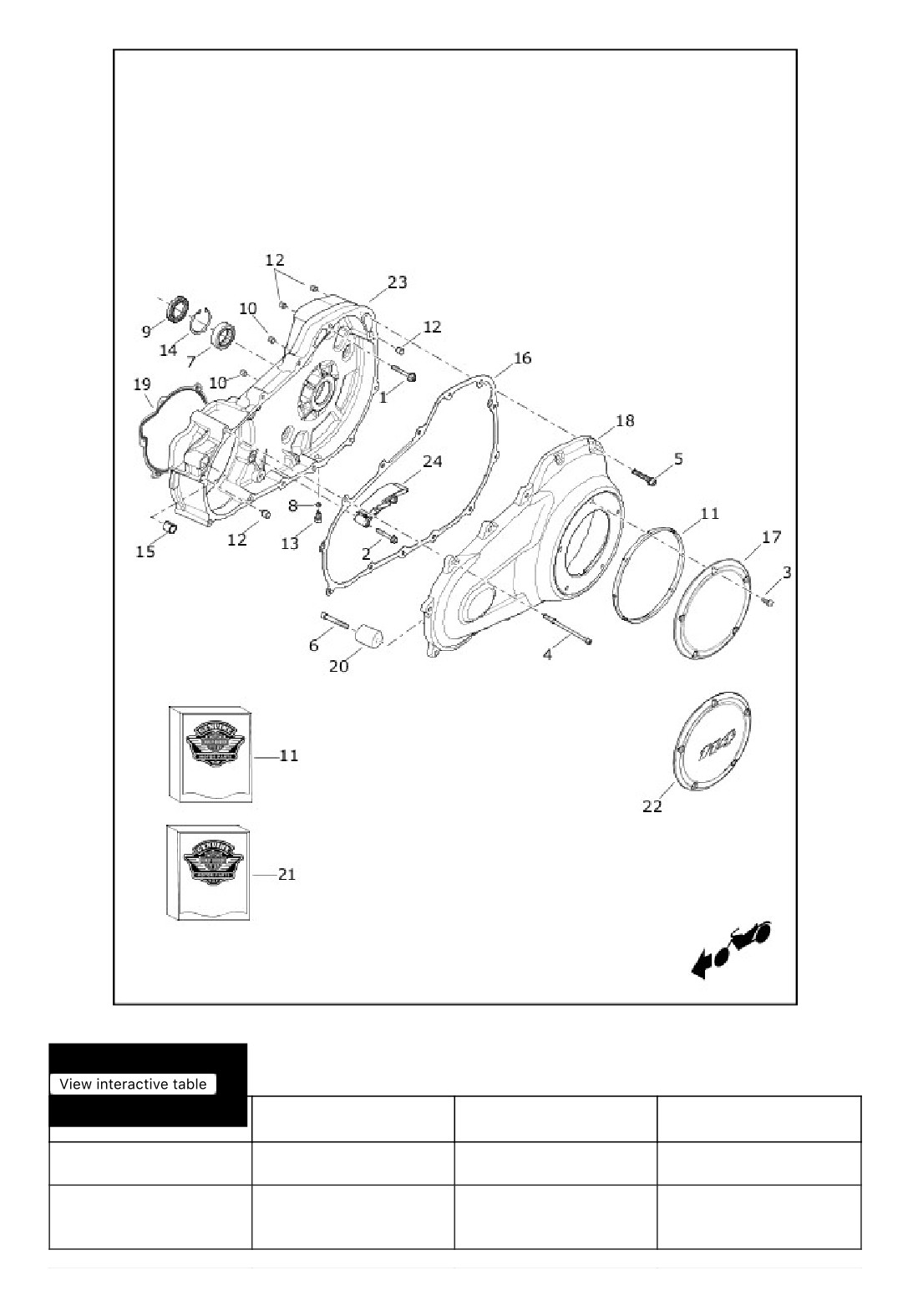

PRIMARY HOUSING
624/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
25701145
COVER, clutch (polished)
FLHT
18
25701144
COVER, primary
FLHT
(polished)
625/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
22
25700902
COVER, clutch (chrome)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
22
25700904
COVER, clutch (gloss
FLHRXS, FLHXS, FLTRXS
black)

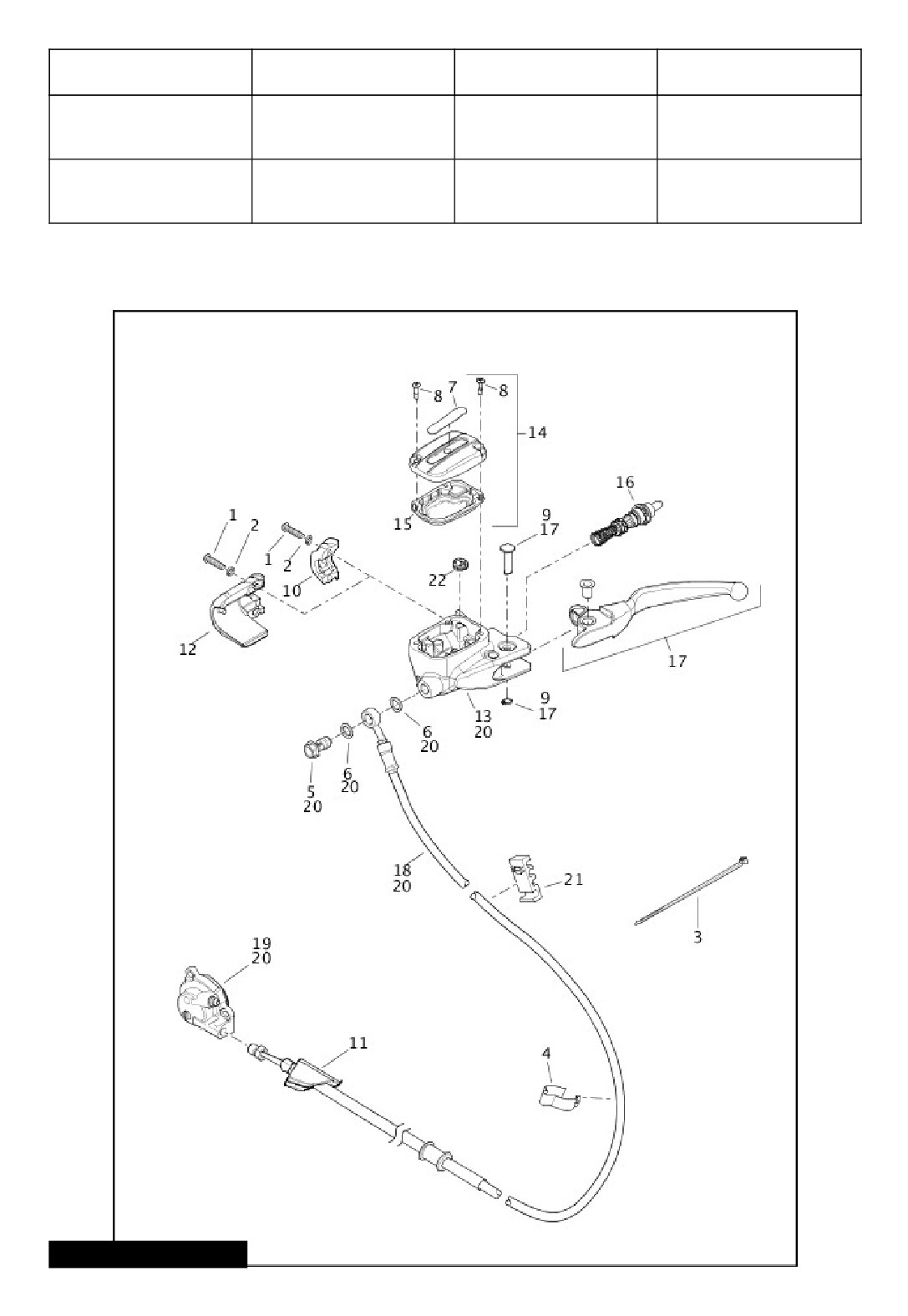

CLUTCH CONTROL
626/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
13
36700128A
MASTER CYLINDER
FLHR, FLHRC, FLHT,
ASSEMBLY, clutch, with
FLHTCU, FLHTK, FLHTK
36700130, 36700132,
SHRINE, FLHTKL, FLHX,
36700133 and 41700367
FLTRU, FLTRX
(black)
13
36700169A
MASTER CYLINDER
FLHRXS, FLHXS, FLTRXS
ASSEMBLY, clutch, with
36700130, 36700132,
36700171 and 41700367
(black)
17
36700133A
LEVER ASSEMBLY, hand,
FLHR, FLHRC, FLHT,
with 42860-06B and
FLHTCU, FLHTK, FLHTK
bushing (polished)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
17
36700171A
LEVER ASSEMBLY, hand,
FLHRXS, FLHXS, FLTRXS
with 42860-06B and
bushing (black)
19
37200131B
SECONDARY CLUTCH
ALL
ACTUATOR
20
37200347B
CLUTCH ACTUATION
FLTRX, FLTRXS
KIT, with 5, 6, 13, 18 and
19
20
37200348B
CLUTCH ACTUATION
FLHR, FLHRC, FLHT,
KIT, with 5, 6, 13, 18 and
FLHTCU, FLHTK, FLHTK
19
SHRINE, FLHTKL, FLHX
20
37200349B
CLUTCH ACTUATION
FLTRU
KIT, with 5, 6, 13, 18 and
19
20
37200352B
CLUTCH ACTUATION
FLHRXS, FLHXS
KIT, with 5, 6, 13, 18 and
19

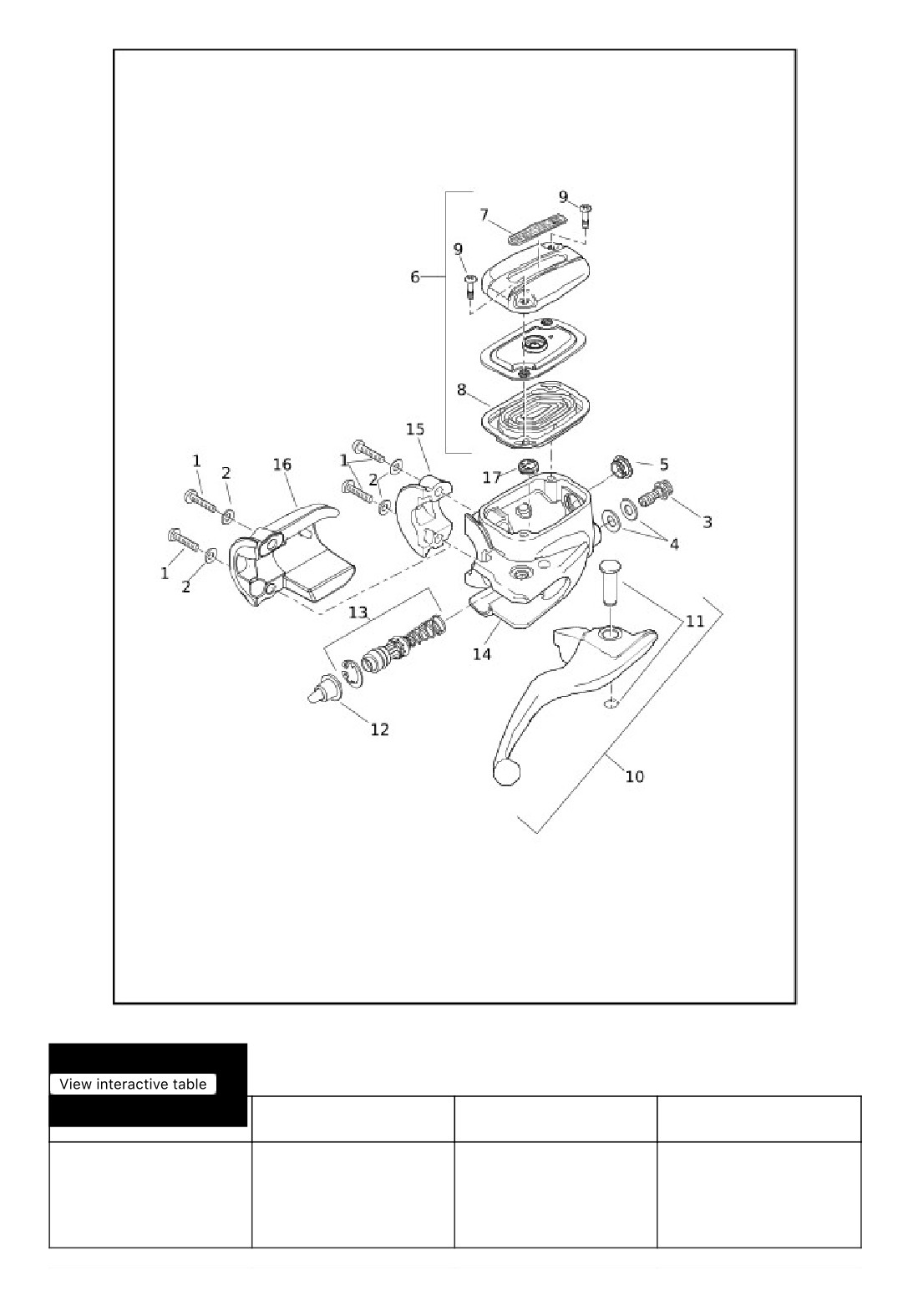

BRAKE CONTROL, FRONT
627/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
14
44551-08F
MASTER CYLINDER
FLHR, FLHRC, FLHT,
ASSEMBLY, front, with 5,
FLHTCU, FLHTK, FLHTK
6, 7, 8, 9, 10, 11, 12, 13
SHRINE, FLHTKL, FLHX,
and 17 (black)
FLTRU, FLTRX
628/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
14
44985-10D
MASTER CYLINDER
FLHRXS, FLHXS, FLTRXS
ASSEMBLY, front, with 5,
6, 7, 8, 9, 10, 11, 12, 13
and 17 (black)

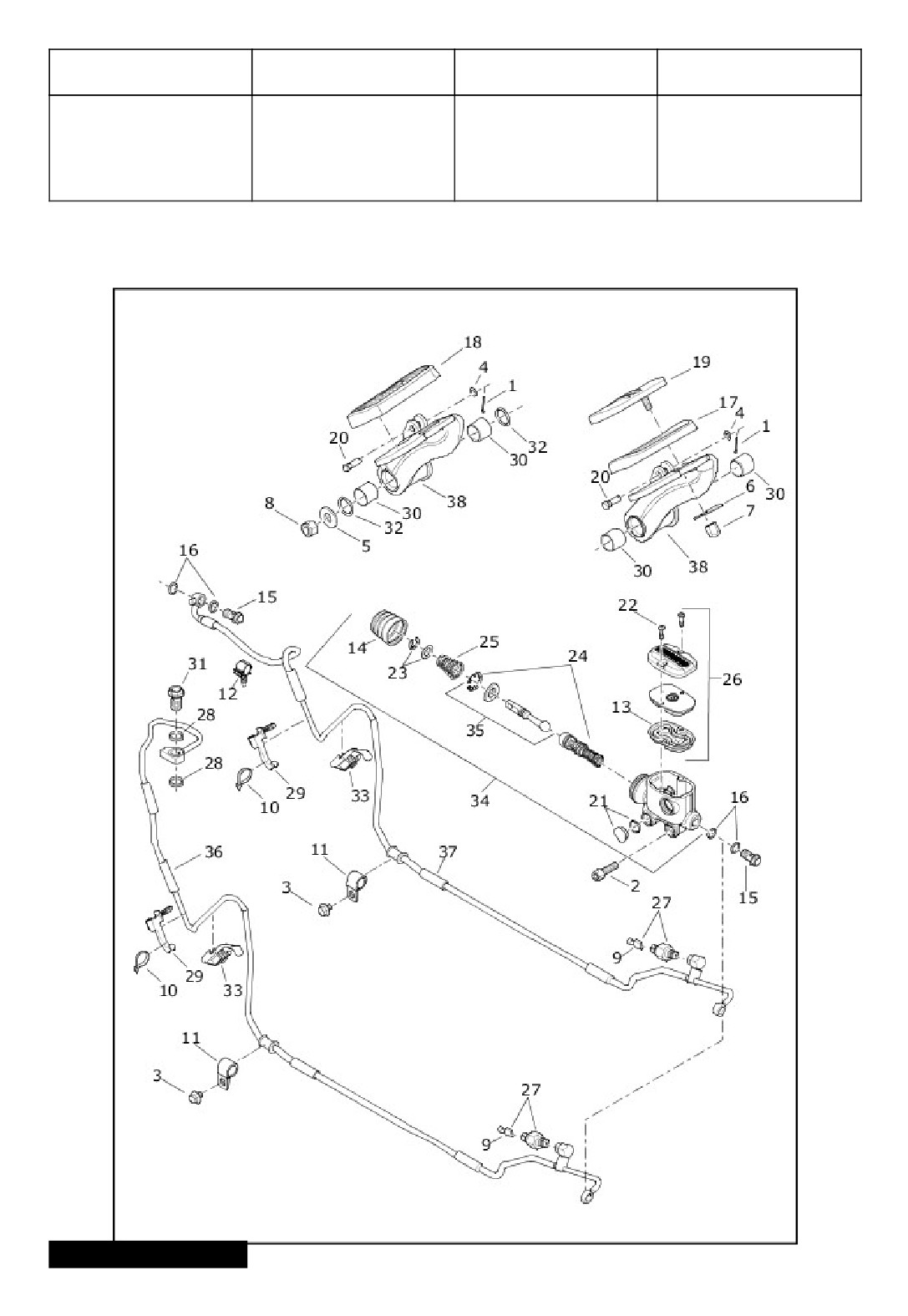

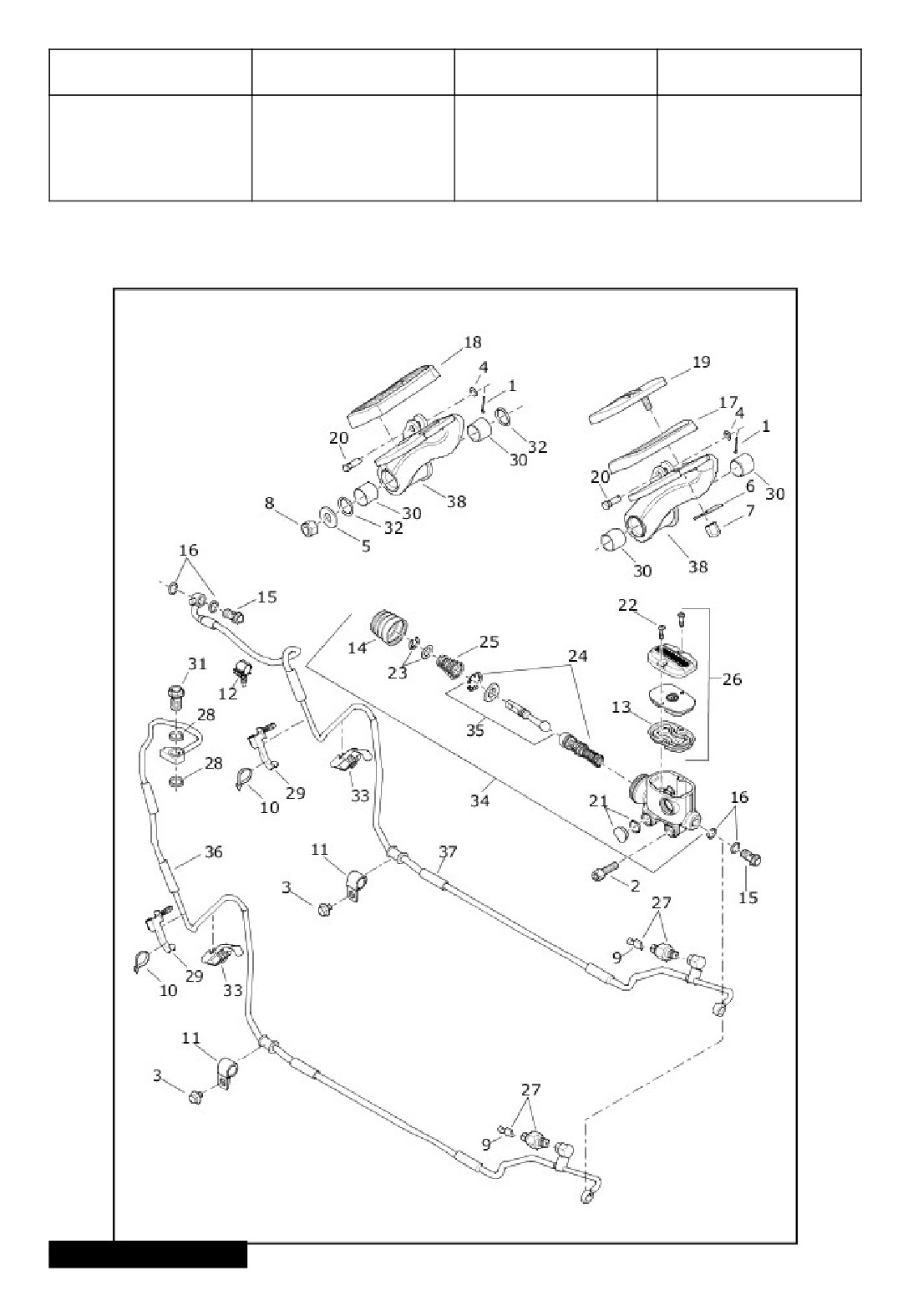

BRAKE CONTROL, REAR
629/956
