Harley Davidson Parts Catalog 2019: touring models - page 20
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
27
90200984DH
FACEPLATE (right) (vivid
FLHRXS, FLHX, FLHXS,
black)
FLTRX, FLTRXS
27
90200984ELD
FACEPLATE (right)
FLHX, FLTRX
(kinetic green)
27
90200984ELE
FACEPLATE (right) (blue
FLHX, FLTRX
max)
27
90200984EKG
FACEPLATE (right)
FLHXS, FLTRXS
(wicked red denim)
27
90200984EKR
FACEPLATE (right)
FLHXS
(barracuda silver)
27
90200984ELG
FACEPLATE (right)
FLHRXS, FLHXS, FLTRXS
(scorched orange)
27
90200984EFF
FACEPLATE (right)
FLHX, FLTRX
(wicked red)
27
90200984EFC
FACEPLATE (right)
FLHXS, FLTRXS
(industrial gray denim)
27
90200984EFH
FACEPLATE (right)
FLHRXS, FLTRX
(twisted cherry)
27
90200984EKP
FACEPLATE (right)
FLHXS, FLTRXS
(billiard blue)
27
90200984ELI
FACEPLATE (right) (silver
FLHXS, FLTRXS
flux)
27
90200984EEZ
FACEPLATE (right)
FLTRX
(industrial gray)
27
90200984EFW
FACEPLATE (right)
FLHRXS
(bonneville salt denim)
28
90201540
KIT, SADDLEBAG
FLHR, FLHRXS,
MOUNT, with 10200533
FLHTCU, FLHTK, FLHTK
and 10400034 (set of 4)
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
29
90201743
SADDLEBAG BOTTOM,
FLHRXS, FLHXS, FLTRXS
with 90820-93D,
90200467 and 90200964
(right) (prime)
29
90201742
SADDLEBAG BOTTOM,
FLHRXS, FLHXS, FLTRXS
with 90820-93D,
90200467 and 90200963
(left) (prime)
570/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
30
90300024
LOCK, with 7586 (specify
FLHR, FLHRXS, FLHT,
key number) (2)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
31
90300043
KEY, with 61081-92 (set
FLHR, FLHRXS,
of 2) (specify key number)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
SADDLEBAGS - FLHRC
571/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
572/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
8126A
PUSH NUT, eight prong
FLHRC
(4)
2
90382-98
SPRING KIT, hinge, with
FLHRC
two springs (2)
3
90425-98
BUCKLE (4)
FLHRC
4
90439-10
SADDLEBAG STRAP
FLHRC
REPAIR KIT (left)
4
90482-10
SADDLEBAG STRAP
FLHRC
REPAIR KIT (right)
5
90820-93D
LABEL, saddlebag load
FLHRC
limits
6
10900037
STUD KIT, saddlebag,
FLHRC
with studs and
receptacles (set of 2) (2)
7
14100254
MEDALLION, saddlebag
FLHRC
lid (2)
8
90200684
SADDLEBAG, with
FLHRC
8126A, 90382-98, 90425-
98, 90820-93D,
14100254 and 90200905
(right)
8
90200685
SADDLEBAG, with
FLHRC
8126A, 90382-98, 90425-
98, 90820-93D,14100254
and 90200905 (left)
9
90200905
ISOLATOR, saddlebag (4)
FLHRC

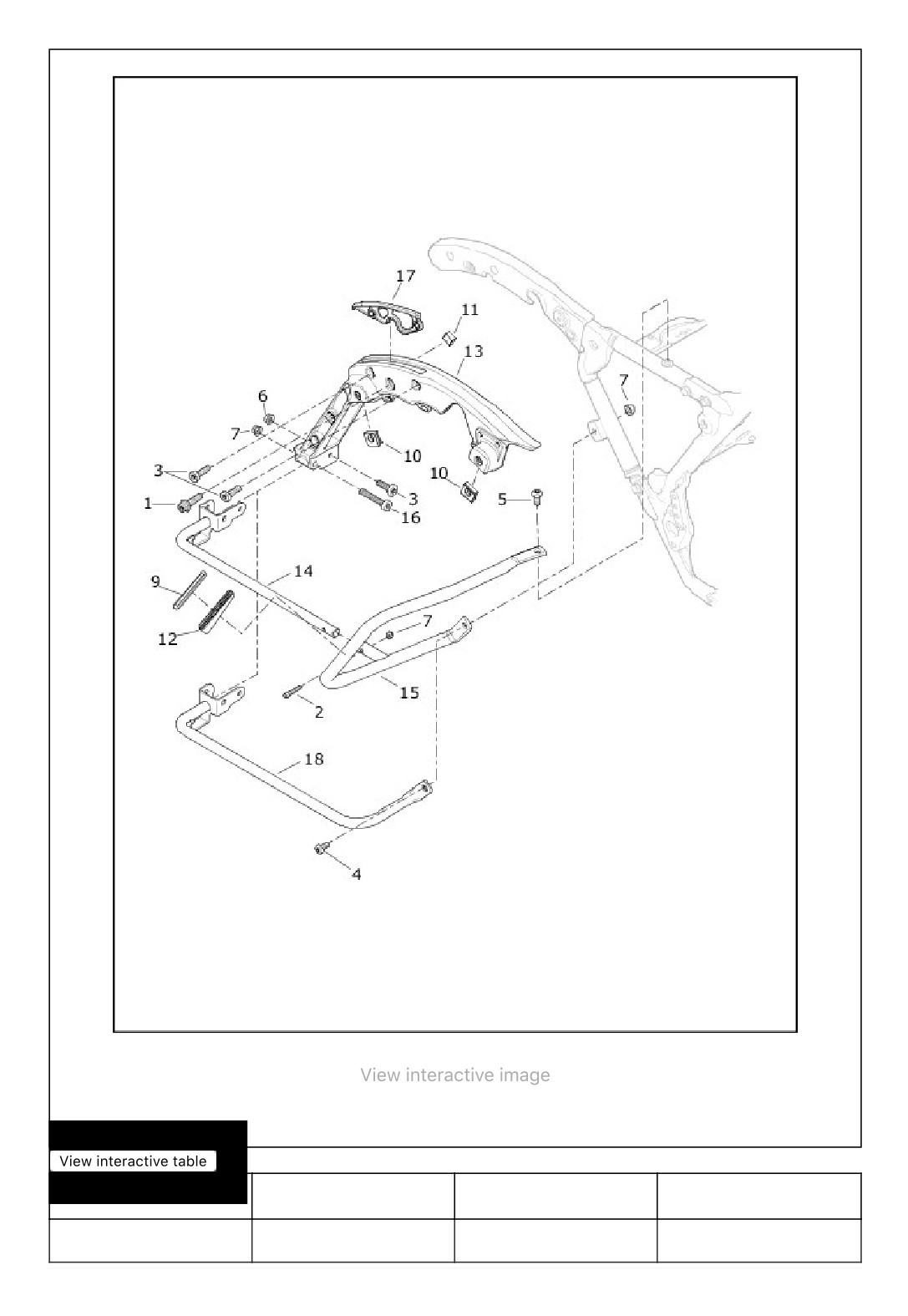

GUARDS, SADDLEBAG
573/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
10200217
SCREW (2)
ALL
574/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
3601
SCREW (2)
FLHR, FLHRC, FLHTCU,
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
3
3684
SCREW (6)
ALL
4
4924
SCREW (2)
FLHRXS, FLHT, FLHX,
FLHXS, FLTRX, FLTRXS
5
4924
SCREW (2)
FLHR, FLHRC, FLHTCU,
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
6
7531
LOCKNUT (2)
ALL
7
7601
LOCKNUT (4)
ALL
8
7686
LOCKNUT (2)
FLHR, FLHRC, FLHTCU,
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
9
60254-07
REFLECTOR (amber) (2)
FLHRC
10
10400034
NUT, clip (4)
FLHR, FLHT, FLHTCU,
FLHTK, FLHTK SHRINE,
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
11
11100068
CUSHION (2)
ALL
12
67900120
BRACKET, reflector (2)
FLHRC
13
90200499
SUPPORT, saddlebag,
FLHR, FLHRC, FLHT,
with 11100068 (right)
FLHTCU, FLHTK, FLHTK
(chrome)
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
13
90201319
SUPPORT, saddlebag,
FLHRXS
with 11100068 (right)
(black)
13
90200501
SUPPORT, saddlebag,
FLHR, FLHRC, FLHT,
with 11100068 (left)
FLHTCU, FLHTK, FLHTK
(chrome)
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
13
90201320
SUPPORT, saddlebag,
FLHRXS
with 11100068 (left)
(black)
575/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
14
90200504
SUPPORT, saddlebag
FLHR, FLHRC, FLHTCU,
(right) (black)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
14
90200505
SUPPORT, saddlebag
FLHR, FLHRC, FLHTCU,
(left) (black)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
15
90200506
GUARD (left) (chrome)
FLHR, FLHRC, FLHTCU,
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
15
90200507
GUARD (right) (chrome)
FLHR, FLHRC, FLHTCU,
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
16
90200543
SCREW (2)
ALL
17
90200547
INSERT ASSEMBLY,
FLHR, FLHRC, FLHT,
saddlebag support (2)
FLHX, FLHXS, FLTRX,
FLTRXS
17
90201754DH
INSERT ASSEMBLY,
FLHRXS
saddlebag support
(black) (2)
18
90200549
SUPPORT (left) (black)
FLHRXS, FLHT, FLHX,
FLHXS, FLTRX, FLTRXS
18
90200550
SUPPORT (right) (black)
FLHRXS, FLHT, FLHX,
FLHXS, FLTRX, FLTRXS

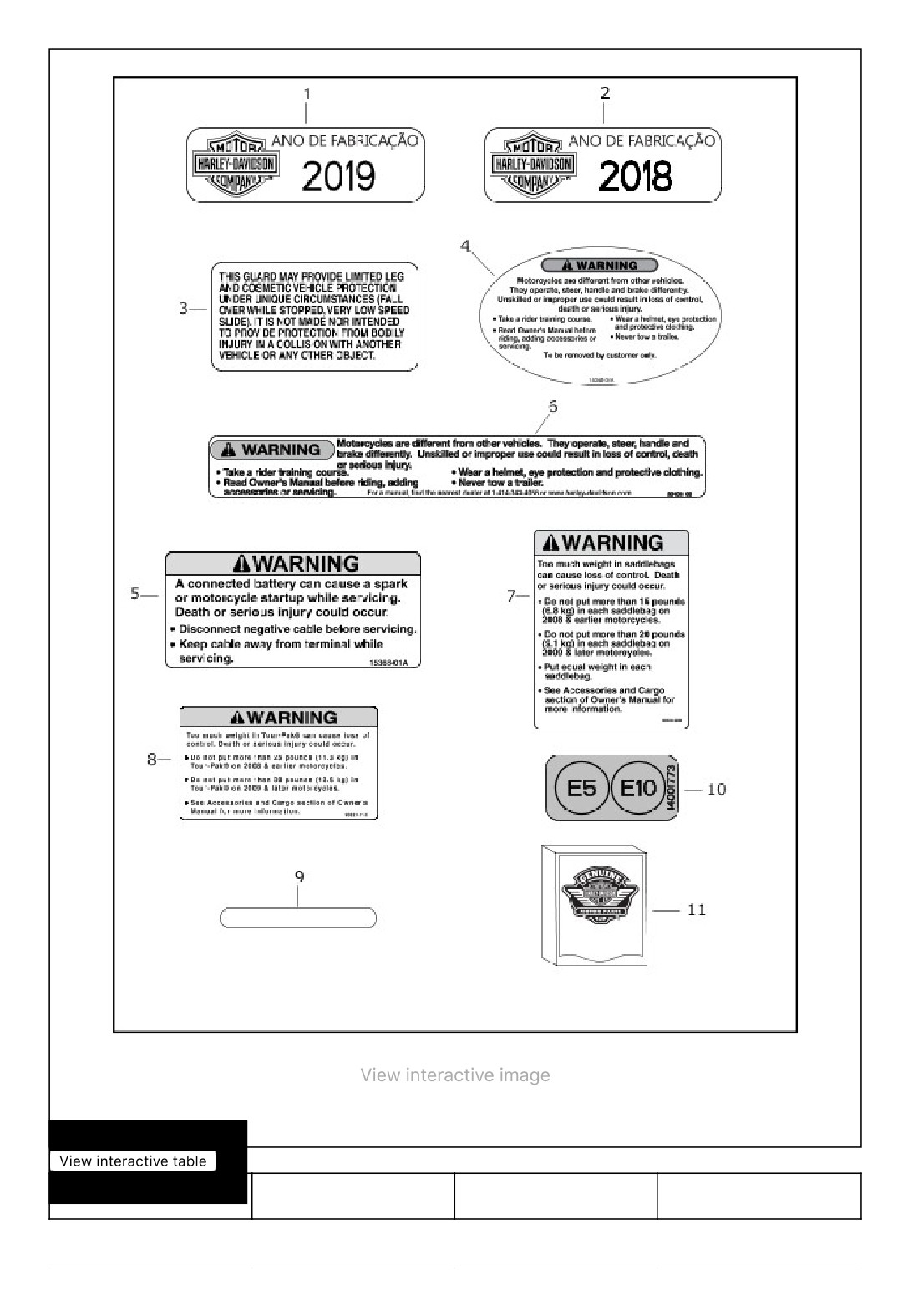

LABELS
576/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
577/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
14001593
LABEL, year of
FLHRC, FLHRXS, FLHTK,
manufacturing (Brazil)
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRXS
2
14001396
LABEL, year of
FLHRC, FLHRXS, FLHTK,
manufacturing (Brazil)
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRXS
3
14148-86
LABEL, engine guard
FLHR, FLHRC, FLHT,
warning
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX
3
14151-02
LABEL, engine guard
FLHRXS, FLTRXS
warning
3
14001735
LABEL, engine guard
FLHRC, FLHRXS, FLHTK,
warning (Brazil) (not
FLHTK SHRINE, FLHX,
shown)
FLHXS, FLTRU, FLTRXS
4
15342-06A
LABEL, mirror warning
FLHX, FLHXS
4
15370-01A
LABEL, mirror warning
FLHR, FLHRC, FLHRXS,
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU
4
15385-08
LABEL, mirror warning
FLHRC, FLHRXS, FLHTK,
(Brazil) (not shown)
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRXS
5
15368-01A
LABEL, battery warning
ALL
5
14001739
LABEL, battery warning
FLHRC, FLHRXS, FLHTK,
(Brazil) (not shown)
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRXS
6
29108-08
LABEL, air cleaner
FLHR, FLHRXS, FLHT,
warning (Domestic)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
6
14001734
LABEL, air cleaner
FLHRC, FLHRXS, FLHTK,
warning (Brazil) (not
FLHTK SHRINE, FLHX,
shown)
FLHXS, FLTRU, FLTRXS
6
14001799
LABEL, air cleaner
FLHR, FLHRXS, FLHTK,
warning (China) (not
FLHTKL, FLHX, FLHXS,
shown)
FLTRU, FLTRX, FLTRXS
NOTE: When ordering any V.I.N., Emissions, or Noise Labels you must contact your local dealer with the V.I.N.
number and model year of your motorcycle and the label type needed. Replacement V.I.N. and Emissions labels
can only be ordered for warranty purposes through h-dnet Service eForm.
578/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
7
90820-93D
LABEL, saddlebag load
ALL
limits (2)
7
14001738
LABEL, saddlebag load
FLHRC, FLHRXS, FLHTK,
limits (Brazil) (not shown)
FLHTK SHRINE, FLHX,
(2)
FLHXS, FLTRU, FLTRXS
8
90821-74C
LABEL, tour-pak load
FLHTCU, FLHTK, FLHTK
limit
SHRINE, FLHTKL, FLTRU
8
14001737
LABEL, tour-pak load
FLHRC, FLHRXS, FLHTK,
limit (Brazil) (not shown)
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRXS
9
14000827
CLEAR OVERLAY, VIN
FLHR, FLHRXS, FLHTK,
label (Japan)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
10
14001773
LABEL, fuel (England,
ALL
HDI)
11
14001736
LABEL, primary cover
FLHRC, FLHRXS, FLHTK,
(Brazil) (not shown)
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRXS
11
14001800
LABEL, fuel tank (Asia-
FLHR, FLHRXS, FLHTK,
Pacific) (not shown)
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
11
14001859
LABEL, front brake lever
FLHR, FLHRXS, FLHTK,
(China) (not shown)
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
NOTE: When ordering any V.I.N., Emissions, or Noise Labels you must contact your local dealer with the V.I.N.
number and model year of your motorcycle and the label type needed. Replacement V.I.N. and Emissions labels
can only be ordered for warranty purposes through h-dnet Service eForm.
LOOSE PARTS (1 OF 3)
579/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
580/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
66250-09
SIDE COVER (left)
ALL
(unpainted) (See NOTE 1)
1
94000687
OWNER'S MANUAL
ALL
(Domestic, Australia,
England)
1
69200336
MAIN FUSE, 50 A (red)
ALL
1
90300043
KEY (set of 2) (specify
ALL
key number)
1
90300111
REMOTE CONTROL FOB
ALL
(except Japan) (2)
1
90300112
REMOTE CONTROL FOB
ALL
(Japan) (2)
1
94000326
OWNER'S KIT CONTENT
ALL
(Domestic)
1
53598-88A
LINER, Tour-Pak,
FLHTCU
removable
1
58002-09A
AIR DEFLECTOR KIT,
FLHTCU, FLHTK, FLHTK
MID-FRAME (See NOTE
SHRINE, FLHTKL
2)
1
62152-08
MEDALLION, fuel tank
FLHTK
(left)
**RESTRICTED SALES
PART**
1
62153-08
MEDALLION, fuel tank
FLHTK
(right)
**RESTRICTED SALES
PART**
1
62241-08
INSERT, PEACE
FLHTK, FLHTK SHRINE,
OFFICER (2)
FLHTKL
**RESTRICTED SALES
PART**
1
62242-08
INSERT, FIREFIGHTER
FLHTK, FLHTK SHRINE,
(2)
FLHTKL
**RESTRICTED SALES
PART**
ALL TOURINGFLHTCU, FLHTK, FLHTKLNOTE 1: Left side cover is shipped loose. Refer to the Service Section of
h-dnet.com for painted part numbers.NOTE 2: Order 58002-09A only if missing complete kit. Otherwise order
individual components as needed. Refer to the COVERS AND AIR DEFLECTORS section in this parts manual.NOTE
3: The BOOM!™ BOX GTS Owners Manual (94000601 and BOOM!™ BOX 4.3 Owners Manual (94000585) are not
included in the loose parts. Only available online or for separate order.
581/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
62243-08
INSERT, SPECIAL
FLHTK, FLHTK SHRINE,
EDITION (2)
FLHTKL
**RESTRICTED SALES
PART**
1
76000799
ANTENNA MAST,
FLHTCU, FLHTK, FLHTK
AM/FM/WB/LW
SHRINE, FLHTKL
1
77117-10
HEADSET ASSEMBLY
FLHTCU, FLHTK, FLHTK
(Domestic, California,
SHRINE, FLHTKL
Canada)
1
77117-10
HEADSET ASSEMBLY
FLHTK, FLHTK SHRINE,
(HDI, Australia, Japan,
FLHTKL
Asia-Pacific, Brazil,
England) (2)
1
92038-10
LINER, Tour-Pak,
FLHTK, FLHTK SHRINE,
removable
FLHTKL
1
99461-89
COVER, owner manual
FLHTCU, FLHTK, FLHTK
(Domestic, California,
SHRINE, FLHTKL
Canada, Australia)
1
94000634
BOOM!™ BOX GTS,
FLHTCU, FLHTK, FLHTK
quick start guide
SHRINE, FLHTKL
(English)
1
97011-16
BOOM!™ BOX 4.3, quick
FLHTCU
start guide (English)
1
94000601
BOOM!™ BOX GTS,
FLHTCU, FLHTK, FLHTK
owners manual (See
SHRINE, FLHTKL
NOTE 3)
1
94000585
BOOM!™ BOX 4.3,
FLHTCU
owners manual (See
NOTE 3)
1
52300053
BACKREST ASSEMBLY,
FLHTCU, FLHTK, FLHTK
passenger (black)
SHRINE, FLHTKL
1
57400001
WINDSHIELD (clear)
FLHTCU, FLHTK, FLHTK
(Domestic)
SHRINE
1
57400001
WINDSHIELD (clear)
FLHTK, FLHTK SHRINE
(Brazil, Australia)
ALL TOURINGFLHTCU, FLHTK, FLHTKLNOTE 1: Left side cover is shipped loose. Refer to the Service Section of
h-dnet.com for painted part numbers.NOTE 2: Order 58002-09A only if missing complete kit. Otherwise order
individual components as needed. Refer to the COVERS AND AIR DEFLECTORS section in this parts manual.NOTE
3: The BOOM!™ BOX GTS Owners Manual (94000601 and BOOM!™ BOX 4.3 Owners Manual (94000585) are not
included in the loose parts. Only available online or for separate order.
582/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
57400002
WINDSHIELD (clear)
FLHTK, FLHTK SHRINE
(HDI, England, Japan)
1
57400058
WIND DEFLECTOR
FLHTK, FLHTK SHRINE,
(clear) (Asia-Pacific)
FLHTKL
1
57400250
WINDSHIELD (clear)
FLHTKL
(Domestic, HDI, Australia,
England, Japan)
1
90200488
LINER, saddlebag,
FLHTCU
removable (2)
1
90200489
LINER, saddlebag,
FLHTK, FLHTK SHRINE,
removable (2)
FLHTKL
ALL TOURINGFLHTCU, FLHTK, FLHTKLNOTE 1: Left side cover is shipped loose. Refer to the Service Section of
h-dnet.com for painted part numbers.NOTE 2: Order 58002-09A only if missing complete kit. Otherwise order
individual components as needed. Refer to the COVERS AND AIR DEFLECTORS section in this parts manual.NOTE
3: The BOOM!™ BOX GTS Owners Manual (94000601 and BOOM!™ BOX 4.3 Owners Manual (94000585) are not
included in the loose parts. Only available online or for separate order.
LOOSE PARTS (2 OF 3)
583/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
584/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
3767B
BOLT (4)
FLHTK, FLHTK SHRINE,
FLHTKL
1
6703
WASHER (4)
FLHTK, FLHTK SHRINE,
FLHTKL
1
53000311
ADAPTER PLATE, Tour-
FLHTK, FLHTK SHRINE,
Pak
FLHTKL, FLHTKL
1
2731W
SCREW (2)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL
1
59292-94
NUT, plastic (2)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL
1
76000799
ANTENNA MAST,
FLTRX, FLTRXS
AM/FM/WB/LW
1
94000634
BOOM!™ BOX GTS,
FLTRX, FLTRXS
quick start guide
(English)
1
97011-16
BOOM!™ BOX 4.3, quick
FLTRX
start guide (English)
1
94000601
BOOM!™ BOX GTS,
FLTRX, FLTRXS
owners manual (See
NOTE 3)
1
94000585
BOOM!™ BOX 4.3,
FLTRX
owners manual (See
NOTE 3)
1
57400302
WINDSHIELD (Domestic,
FLTRX, FLTRXS
Australia)
1
57400303
WINDSHIELD (HDI,
FLTRXS
England, Japan, Asia-
Pacific)
1
933
SCREW (4)
FLTRX, FLTRXS
1
6054
WASHER (4)
FLTRX, FLTRXS
1
53598-88A
LINER, Tour-Pak,
FLTRU
removable
FLHTCU, FLHTK, FLHTKLTOUR-PAK ADAPTER KIT (China)LICENSE PLATE MOUNTING KIT HARDWAREFLTRX,
FLTRXSWINDSHIELD HARWAREFLTRUTOUR-PAK ADAPTER KIT (China)NOTE 1: Left side cover is shipped loose.
Refer to the Service Section of h-dnet.com for painted part numbers.NOTE 2: Order 58002-09A only if missing
complete kit. Otherwise order individual components as needed. Refer to the COVERS AND AIR DEFLECTORS
section in this parts manual.NOTE 3: The BOOM!™ BOX GTS Owners Manual (94000601 and BOOM!™ BOX 4.3
Owners Manual (94000585) are not included in the loose parts. Only available online or for separate order.
585/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
58002-09A
AIR DEFLECTOR KIT,
FLTRU
MID-FRAME (See NOTE
2)
1
76000799
ANTENNA MAST,
FLTRU
AM/FM/WB/LW
1
77117-10
HEADSET ASSEMBLY
FLTRU
(Domestic, California,
Canada)
1
77117-10
HEADSET ASSEMBLY
FLTRU
(HDI, Japan, Asia-Pacific,
England) (2)
1
99461-89
COVER, owner manual
FLTRU
(Domestic, California,
Canada)
1
94000634
BOOM!™ BOX GTS,
FLTRU
quick start guide
(English)
1
94000601
BOOM!™ BOX GTS,
FLTRU
owners manual (See
NOTE 3)
1
52300053
BACKREST ASSEMBLY,
FLTRU
passenger (black)
1
57200065
WIND DEFLECTOR (right)
FLTRU
1
57200066
WIND DEFLECTOR (left)
FLTRU
1
57400260
WINDSHIELD (clear)
FLTRU
(Asia-Pacific)
1
57400262
WINDSHIELD (clear)
FLTRU
(HDI, England, Japan)
1
57400305
WINDSHIELD (clear)
FLTRU
(Domestic)
1
90200488
LINER, saddlebag,
FLTRU
removable (2)
1
3767B
BOLT (4)
FLTRU
FLHTCU, FLHTK, FLHTKLTOUR-PAK ADAPTER KIT (China)LICENSE PLATE MOUNTING KIT HARDWAREFLTRX,
FLTRXSWINDSHIELD HARWAREFLTRUTOUR-PAK ADAPTER KIT (China)NOTE 1: Left side cover is shipped loose.
Refer to the Service Section of h-dnet.com for painted part numbers.NOTE 2: Order 58002-09A only if missing
complete kit. Otherwise order individual components as needed. Refer to the COVERS AND AIR DEFLECTORS
section in this parts manual.NOTE 3: The BOOM!™ BOX GTS Owners Manual (94000601 and BOOM!™ BOX 4.3
Owners Manual (94000585) are not included in the loose parts. Only available online or for separate order.
586/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
6703
WASHER (4)
FLTRU
1
53000311
ADAPTER PLATE, Tour-
FLTRU
Pak
FLHTCU, FLHTK, FLHTKLTOUR-PAK ADAPTER KIT (China)LICENSE PLATE MOUNTING KIT HARDWAREFLTRX,
FLTRXSWINDSHIELD HARWAREFLTRUTOUR-PAK ADAPTER KIT (China)NOTE 1: Left side cover is shipped loose.
Refer to the Service Section of h-dnet.com for painted part numbers.NOTE 2: Order 58002-09A only if missing
complete kit. Otherwise order individual components as needed. Refer to the COVERS AND AIR DEFLECTORS
section in this parts manual.NOTE 3: The BOOM!™ BOX GTS Owners Manual (94000601 and BOOM!™ BOX 4.3
Owners Manual (94000585) are not included in the loose parts. Only available online or for separate order.
LOOSE PARTS (3 OF 3)
587/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
588/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
2731W
SCREW (2)
FLTRU
1
59292-94
NUT, plastic (2)
FLTRU
1
10200400
SCREW (4)
FLTRU
1
57400308
TRIM, right (black)
FLTRU
1
57400309
TRIM, left (black)
FLTRU
1
57668-10
WINDSHIELD
FLHR
ASSEMBLY, complete,
low (clear) (Asia-Pacific)
1
57994-94
WINDSHIELD
FLHR
ASSEMBLY, complete
(Domestic, Canada,
California)
1
57994-94
WINDSHIELD
FLHR, FLHRC
ASSEMBLY, complete
(Australia, Brazil)
1
58002-09A
AIR DEFLECTOR KIT,
FLHRC
MID-FRAME (Brazil) (See
NOTE 2)
1
58325-06
WINDSHIELD
FLHR, FLHRC
ASSEMBLY, complete
(HDI, England, Japan)
1
61400159
INSERT, handlebar cover
FLHR, FLHRC
1
58002-09A
AIR DEFLECTOR KIT,
FLHXS
MID-FRAME (Brazil) (See
NOTE 2)
1
76000799
ANTENNA MAST,
FLHX, FLHXS
AM/FM/WB/LW
1
94000634
BOOM!™ BOX GTS,
FLHX, FLHXS
quick start guide
(English)
1
97011-16
BOOM!™ BOX 4.3, quick
FLHX
start guide (English)
FLTRULICENSE PLATE MOUNTING KIT HARDWAREWINDSHIELD TRIM KITFLHR, FLHRCFLHX,
FLHXSFLHRXSNOTE 1: Left side cover is shipped loose. Refer to the Service Section of h-dnet.com for painted
part numbers.NOTE 2: Order 58002-09A only if missing complete kit. Otherwise order individual components as
needed. Refer to the COVERS AND AIR DEFLECTORS section in this parts manual.NOTE 3: The BOOM!™ BOX
GTS Owners Manual (94000601 and BOOM!™ BOX 4.3 Owners Manual (94000585) are not included in the loose
parts. Only available online or for separate order.
589/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
94000601
BOOM!™ BOX GTS,
FLHX, FLHXS
owners manual (See
NOTE 3)
1
94000585
BOOM!™ BOX 4.3,
FLHX
owners manual (See
NOTE 3)
1
57400003
WIND DEFLECTOR
FLHX, FLHXS
(smoked) (Domestic)
1
57400003
WIND DEFLECTOR
FLHXS
(smoked) (Brazil,
Australia)
1
57400004
WIND DEFLECTOR
FLHXS
(smoked) (HDI, England,
Japan)
1
57400058
WIND DEFLECTOR
FLHXS
(clear) (Asia-Pacific)
1
61400159
INSERT, handlebar cover
FLHRXS
FLTRULICENSE PLATE MOUNTING KIT HARDWAREWINDSHIELD TRIM KITFLHR, FLHRCFLHX,
FLHXSFLHRXSNOTE 1: Left side cover is shipped loose. Refer to the Service Section of h-dnet.com for painted
part numbers.NOTE 2: Order 58002-09A only if missing complete kit. Otherwise order individual components as
needed. Refer to the COVERS AND AIR DEFLECTORS section in this parts manual.NOTE 3: The BOOM!™ BOX
GTS Owners Manual (94000601 and BOOM!™ BOX 4.3 Owners Manual (94000585) are not included in the loose
parts. Only available online or for separate order.
PART NO.
DESCRIPTION
10100062
LOCKNUT 7/16-20 flange (Grade F) (zinc)
10200042
SCREW No. 10-24 X 1-5/8 hex flange head full thread
(Grade 5) (zinc)
10200052
SCREW 1/4-20 X 39/64 TORX SEMS socket button
head , with lockpatch
10200059
SCREW 1/4-20 X 1-11/16 TORX socket button head
matpoint (Grade 5) (black)
10200060
SCREW 1/4-20 X 2-5/8 TORX socket button head
matpoint (Grade 5) (black)
10200061
SCREW No. 8-32 X 1/2 TORX SEMS pan head (zinc)
10200062
SCREW No. 8-32 X 3/8 TORX pan head (zinc)
590/956
4/5/2019
PART NO.
DESCRIPTION
10200063
SCREW No. 8 X 1/2 TORX SEMS pan head (stainless)
10200064
SCREW No. 8-32 X 1 TORX pan head (zinc)
10200065
SCREW No. 8-32 X 5/8 TORX SEMS pan head, with
lockpatch (stainless)
10200103
SCREW No. 8-32 X 1/2 TORX SEMS pan head, with
lockpatch (stainless)
10200105
SCREW No. 6-32 X 3/4 TORX pan head (black zinc)
10200112
SCREW 1/4-20 X 2 TORX button head SEMS (Grade 5)
(black)
10200120
SCREW 1/8 X 18 X 1.00 hex cap
10200133
SCREW No. 8-16 X 9/16 TORX pan head (zinc)
10200134
SCREW 1/4-20 X 3/4 hex socket head (Grade 8) (zinc)
10200141
SCREW 1/4-20 X 1/2 hex socket button head (zinc)
10200142
SCREW 5/16-18 X 3/4 hex flange with internal hex
SEMS, hardened (zinc)
10200147
SCREW No. 10-24 X 3/4 TORX socket button head
SEMS (black)
10200154
SCREW No. 8 X 3/4 TORX SEMS pan head (stainless)
10200155
SCREW No. 8-16 X 1 TORX pan head (zinc)
10200156
SCREW No. 8-32 X 3/8 phillips round head (stainless
steel)
10200205
SCREW No. 10 X 1/2 pan head TORX, hardened (zinc)
10200217
SCREW 5/16-18 X 1-1/4 TORX SEMS, with lockpatch
(zinc)
10200223
SCREW No. 10-24 UNRC X 3/4 TORX truss head (zinc)
10200257
SCREW No. 8-32 X 1/2 TORX pan head T-20 (zinc)
10200258
SCREW 1/4-20 X 1-1/4 SEMS hex socket head
(Grade 8) (zinc)
10200343
SCREW 5/16-18 X 3-1/4 flange (zinc)
10200349
SCREW
10200350
SCREW 1/4-20 X 1-1/8 SEMS hex socket head
(Grade 8) (zinc)
591/956
4/5/2019
PART NO.
DESCRIPTION
10200365
SCREW 1/4-20 X 1-1/16 TORX socket head SEMS
(Grade 8) (zinc)
10200373
SCREW M6 X 1 X 18mm hex head (Grade 10.9) (zinc)
10200400
SCREW No. 10-32 X 1 socket button head (black zinc)
10200408A
SCREW 3/8-16 X 2 hex head, with washer (Grade 8)
(zinc)
10200414
SCREW 5/16-18 X 5/8 button head SEMS TORX T-40,
with lockpatch (Grade 8) (zinc)
10200422
SCREW 1/4-20 X 5/8 button head SEMS TORX T-27,
with lockpatch (zinc)
10200429
SCREW 3/8-16 X 2-1/2 hex socket head with scotch
grip (Grade 8) (zinc)
10200442
SCREW No. 8-32 X 5/16 tri-lobe thread forming (zinc)
10200446
SCREW 1/4-20 X 1 hex flange, with adhesive
10200463
SCREW 3/8-16 X 1-3/8 hex head with lockpatch
(Grade 8) (zinc)
10200503
SCREW 5/16-18 X 1-1/4 12 pt. head (Grade 8)
10200546
SCREW No. 10-24 X 5/8 hex serrated flange, with
scotch grip (zinc-nickel plate and seal)
10200569
SCREW 5/16-18 x 1/2 hex flange head, serrated
10500015
SCREW 5/16-18 X 1-7/8 SEMS hex socket head
10500017
SCREW No. 10 X 3/8 pan head, TORX, plastite,
hardened (zinc)
10500022
SCREW 5/16-18 X 1-1/2 SEMS hex socket head
(Grade 8) (zinc)
10500036
SCREW 3/8-16 X 2 SEMS socket head (Grade 8.8)
(black)
10500053
SCREW 1/4-20 X 3/8 TORX button head, with
lockpatch (zinc)
1062
SCREW 1/4-20 X 5/8 TORX head (Grade 8)
12600031
SCREW 5/16-18 X 1 hex socket head cap (Grade 8)
(black)
12600032
SCREW 1/2-13 X 2 hex head cap lock patch(Grade 5)
592/956
4/5/2019
PART NO.
DESCRIPTION
12600049
SCREW No. 10-24 X 3/4 pan head torx, with lockpatch
(Grade 8) (zinc)
1332
SCREW No. 5/16 X 2-1/4 socket button head with lock
patch (Grade 8)
1775
SCREW 1/4-20 X 4 hex socket head (Grade 8)
2445
SCREW 1/4-20 X 9/16 button head
2446
SCREW 1/4-20 X 5/8 TORX socket button head
2452
SCREW No. 12-24 X 13/16 pan head, with lockpatch
2478
SCREW No. 10-24 X 1/2 TORX button head
2479
SCREW 5/16-18 X 1-1/8 SEMS socket head
2482
SCREW 6-32 X 5/16 socket button head (stainless)
2531
SCREW No. 4-40 X 5/16 Pozidriv pan head (Grade 2)
2563
SCREW No. 10-24 X 5/8 TORX button head
2647B
SCREW No. 10-24 X 3/4 socket head, self-locking
2692WB
SCREW No. 10-24 X 1/2 socket fillister head (Grade 8)
2708A
SCREW 5/16-18 X 1 socket head
2724
SCREW No. 10-16 X 1/2 (Grade 2) (chrome)
2731W
SCREW No. 10 X 3/8 Phillips truss head, self-tapping
2921A
SCREW 12-24 X 5/8 TORX pan head, T27
29269-83A
SCREW 15/16-18 X 5/8 hex button head, with
lockpatch
2933
SCREW No. 10-24 X 1/2
2952A
SCREW 1/4-20 X 1/2 SEMS truss head
2968
SCREW No. 8-32 X 3/4 TORX pan head
2995
SCREW No. 10-16 X 3/4 pan head
3022A
SCREW 1/4-20 X 5/8 socket fillister head, with
lockpatch
3050
SCREW No. 10-24 X 1-3/8 TORX head
3057
SCREW 7/16-14 X 1-1/4 hex head with washer, with
lock patch
593/956
4/5/2019
PART NO.
DESCRIPTION
3061
SCREW 1/4-20 X 5/8 SEMS hex head
3088
SCREW 1/4-20 X 1-1/2 socket button head (chrome)
3143
SCREW 3/8-16 X 1 hex socket head, with lock patch
3152
SCREW #10 X 1/2 TORX pan head
3225
BOLT No. 6 X 5/8 long phillips pan head (zinc)
3249
SCREW 5/16-18 X 1-3/16 socket head (Grade 8)
3275
SCREW 5/16-18 X 3/4 socket head (Grade 8)
3514
SCREW No. 8-32 X 1 fillister head (Grade 5)
35241-06
NUT 1-3/4-20 X .350 X 2-1/4 hex head
35244-06
SCREW 5/16-18 X 1-1/4 hex flange head
35259-06
SCREW No. 10-24 X 1/2 hex head (Grade 8)
3536
BOLT 3/8-16 X 1-1/4 hex head (Grade 8)
3560WA
BOLT No. 10-24 X 3/8
3561WC
BOLT No. 10-24 X 3/8
3563
SCREW 1/4-20 X 3/8 hex flange head (Grade 5)
3576
SCREW 5/16-18 X 1/2 hex head, with washer.
3588
SCREW 1/4-20 X 1/2 hex flange head
3594
SCREW 1/4-20 X 5/8 knurled head (Grade 8)
3601
SCREW 1/4-20 X 1-1/4 knurled head (Grade 8)
3607
BOLT 1/2-13 X 2 hex head (Grade 5)
3612
SCREW No. 10-16 X 1/2 TORX pan head, self-tapping
3622
SCREW No. 10-16 X 3/8 pan head, self-tapping
3634
SCREW 5/16-18 X 1.0 self-tapping
3655A
SCREW 5/16-18 X 7/8 TORX pan head, with lockpatch
(Grade 8)
3656
SCREW No. 8-32 X 3/8 TORX pan head (Grade 5)
36706-01K
BOLT M6 X 1.0 X 30 hex flange head
3676
SCREW 5/16-18 X 5/8 TORX pan head
594/956
4/5/2019
PART NO.
DESCRIPTION
3684
SCREW 5/16-18 X 1 TORX pan head
3699D
SCREW 3/8-16 X 2.0 hex flange head (Grade 8)
3767B
BOLT 1/4-20 X 5/8 hex head (Grade 5)
3787
BOLT 1/4-20 X 3/4 hex head (Grade 5)
3892
SCREW 1/4 X 5/8 self-tapping
3901
SCREW 1/4-20 X 1.0 hex flange head (Grade 5)
3910
SCREW 1/2-20 X 2-1/4 hex head full thread (Grade 5)
(zinc)
3929
SCREW 5/16-18 X 1/2 hex head
3976
SCREW 1/4-20 X 1 hex flange head (Grade 5)
3983
SCREW 3/8-16 X 1-5/8 hex flange head, with washer
(Grade 8)
3987
BOLT 5/16-18 X 3/4 hex head (Grade 5)
4132
SCREW 1/4-20 X 1-1/8 TORX button head (Grade 5)
(black)
4194
SCREW No. 10-24 X 5/16 TORX pan head (Grade 5)
4240
SCREW No. 10-24 X 3/16 hex head, with washer
4312C
SCREW M6 X 1.0 X 14mm, SEMS flange head
(stainless)
43567-92
SCREW 3/8-16 X 1 TORX pan head, with lockpatch
4419
SCREW 5/16-18 X 1-3/4 SEMS hex head
45500118
SCREW M14 X 1.25 X 25 hex socket cap (zinc)
45500132
SCREW M8 X 1.25 X 45 hex socket cap (Grade 8.8)
4597M
SCREW M10 X 1.5 X 30 hex socket head
4612
SCREW 10-24 X 3/4 TORX pan head
46509-01
WASHER 30 X 43 X 2.3
4688
SCREW 3/8-16 X 1-1/4 SEMS hex socket head, with
lock patch
4694
SCREW No. 8-32 X 3/8 TORX pan head, with
lockpatch
595/956
4/5/2019
PART NO.
DESCRIPTION
4705
SCREW 1/4-20 X 11/16 SEMS socket head, with
lockpatch
4706
SCREW 3/8-16 X 4 hex head
4718A
SCREW 1/4-20 X 1-1/2 knurled head, with lockpatch
4740A
SCREW 1/4-20 X 1-1/4 knurled head, with lockpatch
(Grade 8)
4741A
SCREW 1/4-20 X 1 socket head, with lockpatch
4775
SCREW 3/8-16 X 1-1/4 hex head (Grade 5)
4790
SCREW No. 10-16 X 3/4 TORX head, self-tapping
4813A
SCREW 1/4-20 X 1-3/8 knurled head, with lockpatch
4816A
SCREW 5/16-18 X 1-1/2 socket head
4820A
SCREW 1/4-20 X 2 socket head
4822A
SCREW 1/4-20 X 2-3/4 knurled head, with lockpatch
4856
SCREW No. 10-24 X 1/2 socket head (stainless)
4867
SCREW hex head, socket
4916
SCREW 5/16-18 X 1.0 hex socket head shoulder
4924
SCREW 3/8-16 X 7/8 TORX button head (zinc plate)
(Grade 5)
54321-85
NUT No. 8-32 X 1/2 X 1/8 (brass)
6019
WASHER 3/8 X 29/32 X 1/16
6026
WASHER 3/8 X 7/8 X 7/64
6036
WASHER 17/64 X 1 X 1/16
6054
WASHER 3/16 X 9/16 X 1/16 nylon (black)
6072
WASHER 3/8 X 1 1/4 X 5/64
6101
WASHER 17/64 X 27/64 X 1/16
6109
WASHER 5/16 X 11/16 X 1/8
6113
WASHER 1/2 X 13/16 X 1/32
6116
WASHER 5/16 X 16/16 X 1/8
6119
WASHER 1/4 X 9/16 X 1/16
596/956
4/5/2019
PART NO.
DESCRIPTION
6127
WASHER 13/32 X 13/16 X 5/64
6150W
WASHER 3/16 X 3/8 X 1/16
6220W
WASHER 1/4 X 7/16 X 1/32
6235
WASHER 1/4 X 23/32 X 1/16
6294
WASHER 3/8 X 1-1/8 X 7/32
6333
WASHER 5/16 X 7/8 X 5/64
6416
WASHER 3/8 X 1 X 5/64
6421
WASHER 21/64 X 1-1/2 X 1/16 offset 7/32
6497HW
WASHER 29/64 X 1-1/8 X 1/16
6532
WASHER 3/8 X 3/4 X 1/8
6590HW
WASHER 1/2 X 1-1/8 X 3/32
6594
WASHER 5/8 X 1-1/8 X 3/32
6702
WASHER 5/16 X 11/16 X 1/16
6703
WASHER 1/4 X 5/8 X 1/16
67721-48
SCREW 8-32 X 1/4 phillips head self-tapping
6789
WASHER No. 6 X 7/8 X .05
68026-99
SCREW No. 8-32 X 1 Phillips pan head (stainless)
68042-99
SCREW No. 8-32 X 3/8 TORX head
68120-00
SCREW No. 8-32 x 1-2 TORX head, self-tapping
7036
WASHER 1/4 X 31/64 X 1/16
7038
LOCKWASHER 3/8
703B
SCREW 1/4-20 X 7/16 TORX socket button head
7041
LOCKWASHER 5/16
7129
LOCKWASHER 1/2 internal tooth
7130W
LOCKWASHER 3/8 internal tooth
7155
LOCKWASHER 5/16 internal tooth (black)
7330
ACORN NUT 5/16-24 (chrome)
7331
ACORN NUT 5/16-24
597/956
4/5/2019
PART NO.
DESCRIPTION
7352
ACORN NUT 5/16-24 (black)
7415A
WASHER 11/32 X 7/8 X 1/8 rubber
7434
WASHER 1/4 X 1-29/64 X 1/16 nylon
7495
NUT M6 flange
7499
NUT 1/4-20 large flange
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 flange
7549A
ACORN NUT 5/16-18 X 9/16 X 1/2
7576
NUT 5/16-18 UNC keps flange
7586
JAMNUT 9/32-28 X 1/4
7593
NUT 5/16-24 flange
7600
NUT No. 4-40 keps
7601
LOCKNUT 3/8-16 flange
7606
LOCKNUT No. 8-32 X 1/4 X 1/4 hex (chrome)
7624
LOCKNUT No. 10-24 X 1/4 X 3/8
76259-86
NUT hex jam
7629
NUT No. 10-32 X 3/8 keps
7651A
ACORN NUT No. 12-24 (Grade 2) (chrome)
7667
NUT 3/8-16 X 9/32 X 9/16 nylon insert
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
7687
NUT 3/8-16 X 25/64 (Grade 2)
7716
LOCKNUT 1/4-20 X 7/16 flange
7744
JAMNUT 5/16-24 X 3/16 X 1/2 (Grade 2)
7792
NUT 1/4-20 X 1/4 (Grade 2)
780
SCREW 1/4-20 X 7/8 SEMS hex head (Grade 8)
7813A
NUT 5/8-18 X 9/16 X 15/16 (Grade 2)
7825
LOCKNUT 7/16-20 X 7/16 X 5/8
786A
BOLT 5/16-18 X 2-1/4 hex head (Grade 5)
7880
NUT 1/2-13 X 7/16 X 3/4 (Grade 2)
598/956
4/5/2019
PART NO.
DESCRIPTION
7888A
NUT No. 6-32 flange head
7889
NUT No. 6-32 keps
7900
CLIP NUT 1/4-20
791A
SCREW 3/8-18 X 2-1/4 hex flange head (Grade 5)
7992
ACORN NUT 5/16-18
8020
NUT M24 X 2.0 X 15
8108
SPEEDNUT 1/4-20
84850-92
NUT 3/4-24 X 5/32
856A
SCREW 5/16-24 X 1 socket head (Grade 8)
882
SCREW 1/4-20 X 7/8 knurled head, with washer
(Grade 8)
8972
WASHER 1-1/4 X 1-53/64 X 1/8
90200543
SCREW 3/8-16 X 2-1/2 TORX button head (zinc)
90844-80
ACORN NUT No. 10 X 3/8 flange (Grade 2)
923
SCREW 1/4-20 X 3/4 socket pan head
933
SCREW No. 10-32 X 15/16 Pozidriv truss head
(Grade 2)
942
SCREW 1/4-20 X 3/4 TORX button head, with
lockpatch (Grade 8)
946
SCREW 1/4-20 X 2-1/4 socket button head, with
lockpatch (Grade 8)
New Parts List
ENGINE ASSEMBLY - Milwaukee-eight™ 107
599/956
